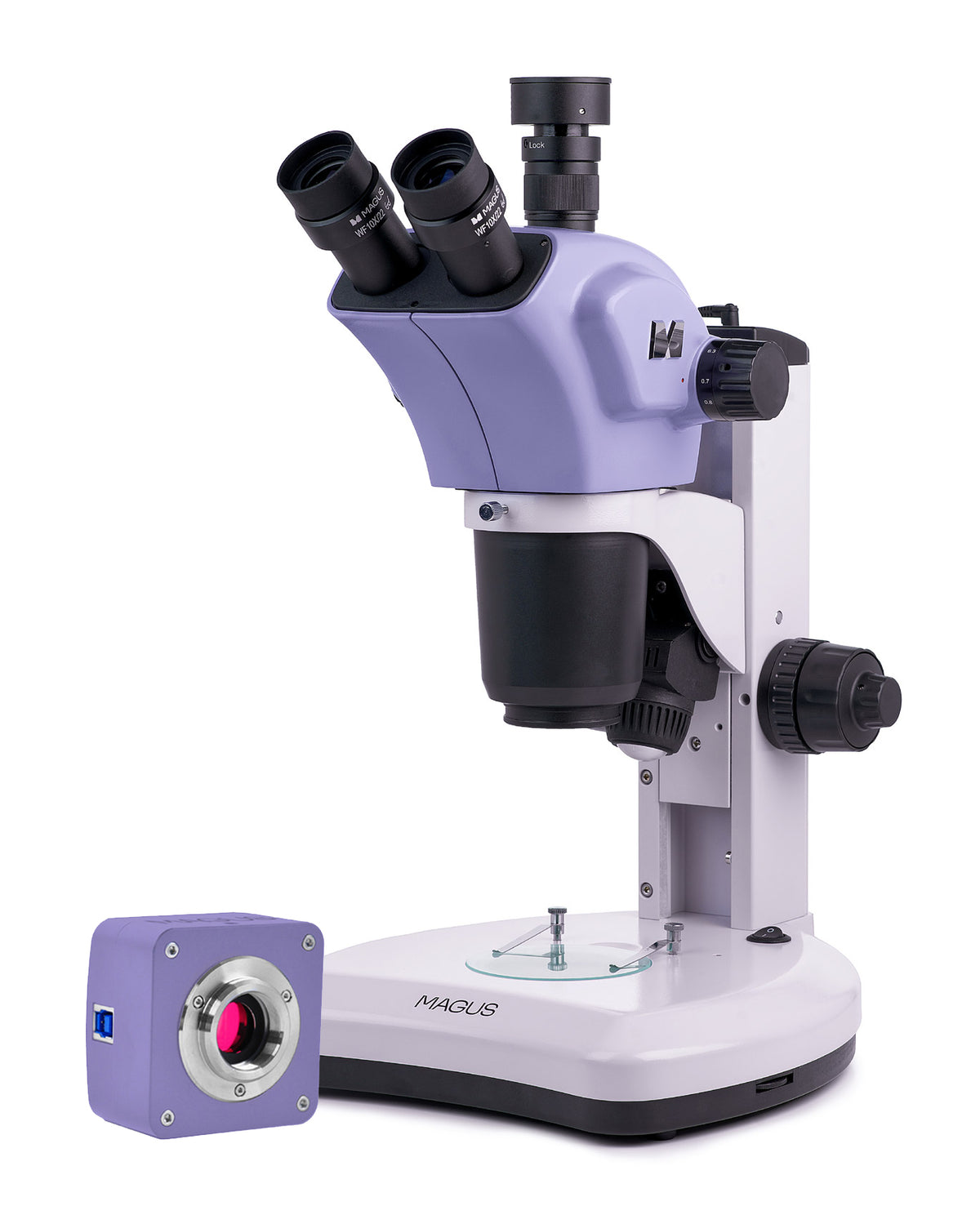

The MAGUS Stereo D9T Stereomicroscope forms a non-inverted three-dimensional image and has a large working distance. You can examine samples but also conduct experiments with them. The Greenough optical scheme produces images that are sharp and three-dimensional which is essential for high-precision observations. The microscope is equipped with a zoom lens and two illuminators (transmitted and reflected light) and can be optionally upgraded with additional accessories. Excellent choice for restoration soldering modeling machinery service repair and quality control.
The MAGUS CBF10 digital camera is designed for the brightfield microscopy technique. The camera is equipped with an 18MP sensor and produces realistic images at a resolution of 4912x3684pix. The camera is recommended for use with 4x and 10x flat-field microscope objectives as well as stereomicroscopes. When working with low magnification objectives the camera will enable you to see more fine details. At maximum resolution video is captured at 13.1fps. It is enough for adjusting the focus of the microscope. At resolutions of 2456x1842pix and 1228x922pix the frequency increases to 34.3fps and 54.4fps. The transitions between frames become softer and the camera catches the slightest movement of the sample. These modes are suitable for classroom demonstrations recording video of fast-moving processes and observing samples that are moving. The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories research or university training.
The microscope has a trinocular head with a trinocular tube for mounting a camera. A C-mount adapter is included but a digital camera must be purchased separately. The trinocular head rotates 360°. The zoom objective combined with a 10x eyepiece provides magnification from 7x to 63x. Thanks to the zoom lens the magnification changes without reducing the focus. If you use auxiliary objectives (not included) you can change the magnification range working distance and field of view of the microscope. With optional accessories the magnification of the microscope can be increased up to 315x.
The working area is lit by two LED illuminators: 5W transmitted light illuminator and 3W reflected light (oblique) illuminator. Both illuminators are AC powered bright do not change color temperature when adjusting brightness and have a 50 000-hour life.
Stage and focusing mechanism
One of the included plates is installed on the stage: double-sided black and white white or transparent. The first plate is used for observing opaque objects and makes the image high contrast. Dark-colored samples are examined on the white side while light-colored samples - on the black side. White and transparent plates are used when you are observing translucent and transparent samples and want to achieve maximum brightness and uniform illumination of the working area.
The microscope has a coarse and fine focusing mechanism. Fine focusing is used at magnifications above 40x. Coarse focusing has tension adjustment.
To extend the microscope’s capabilities use additional accessories such as eyepieces auxiliary lenses calibration slides and digital cameras. It is also possible to install a device for polarized light observations.
Key features of the microscope:
Zoom objective with a zoom ratio of 9:1
360° rotation of the trinocular head trinocular tube for photo and video shooting
Greenough optical scheme three-dimensional image with a large depth of field
Transmitted and reflected (oblique) illumination two durable LED illuminators
Optional accessories to improve microscope performance
Key features of the camera:
Camera with an Aptina CMOS sensor for brightfield microscopy with 4x and 10x objectives as well as stereomicroscopes
18MP resolution: When working with low magnification objectives the camera will enable you to see more fine details
13.1fps at a resolution of 4912x3684pix is enough for focusing adjustments
34.3fps and 54.4fps at resolutions of 2456x1842pix and 1228x922pix are perfect for classroom use observing moving samples recording video; the movement of the preparation can be seen without jerkiness and delays
USB 3.0 interface for fast smooth data transfer
Software with photo video recording editing external display linear and angular measurement
The kit includes:
MAGUS CBF10 Digital Camera (digital camera USB cable installation CD with drivers and software user manual and warranty card)
Base with integrated transmitted light source and power supply unit
Stand with focusing mechanism
Eyepiece 10x/22 mm (2 pcs.)
Black-and-white stage plate
Reflected light oblique illuminator
AC power cord
User manual and warranty card
Available on request:
15x/15mm eyepiece (2 pcs.)
16x/15mm eyepiece (2 pcs.)
20x/12mm eyepiece (2 pcs.)
25x/9mm eyepiece (2 pcs.)
Auxiliary objective 0.5x
Auxiliary objective 2x
Reflected ring light illuminator
Package size (LxWxH) cm
Shipping Weight kg
Head inclination angle
up to 200x
Eyepiece tube diameter mm
0.7–6.3x (*optional: with 0.5x auxiliary objective: 0.35–3.15x; with 2x auxiliary objective: 1.4–12.6x)
