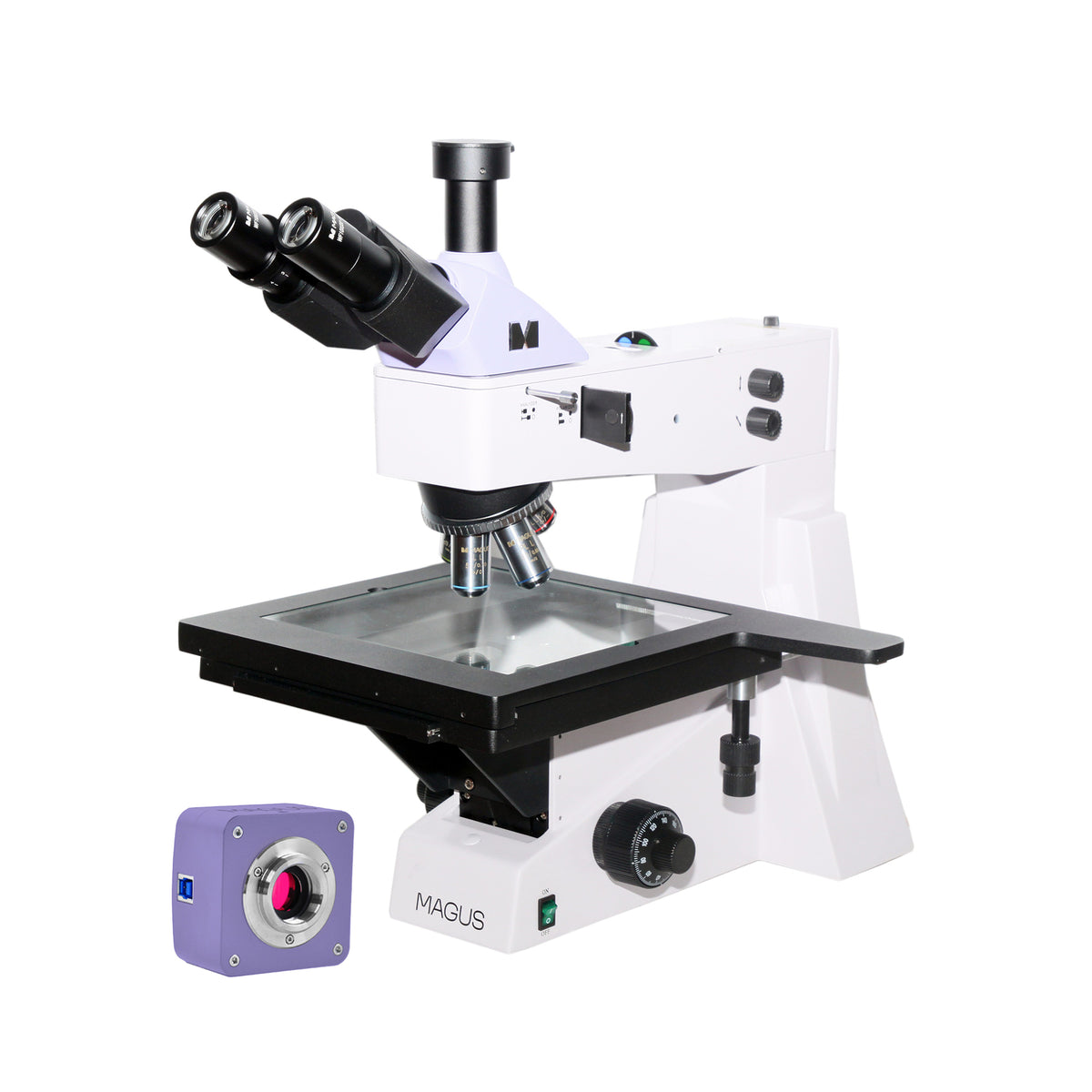

The MAGUS Metal D650 Metallurgical Microscope has a large stage where you can place photomasks printed circuit boards integrated circuits and other long and wide specimens to be examined in reflected light. Brightfield and polarized light observations are possible. The microscope provides high precision focusing. The fine focusing scale value of 0.7µm makes it easy to work at high magnifications. It is used for conducting research in industrial plants and teaching engineering students.
The MAGUS CBF30 digital camera is designed for the brightfield microscopy technique. The camera is equipped with a 6.3MP sensor and produces realistic images at a resolution of 3072x2048pix. The camera is recommended for use with 4x 10x 20x and 40x objectives. When working with low magnification objectives the camera will enable you to see more fine details. Video is recorded at 59fps at maximum resolution. Videos are smooth with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with samples that are moving and is suitable for classroom demonstrations. The resolution can be reduced to 1536x1024pix if required. The camera is equipped with a USB 3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories research or university training.
Infinity plan achromatic optics deliver sharp well-detailed images. The microscope head is trinocular 30° inclined and a trinocular tube for mounting a digital camera. The camera (not included) captures the photos and videos of the study and outputs the microscope image to an external screen. There is a two-position-beamsplitter: 100:0 and 0:100. The light beam is directed into the eyepieces or to the camera. There is a diopter adjustment ring on the left tube.
You can install 5 objectives in the revolving nosepiece – all of them are included in the package. To achieve higher magnification you can install optional objectives instead of the basic ones. In the basic configuration the microscope provides magnification in a range of 50 to 800x. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path.
The reflected light illumination system combines three centering elements: light source aperture and field diaphragm. The 30W halogen illuminator emits warm light and so working with the microscope for long periods of time does not make your eyes fatigue. The brightness of the illumination is adjustable it is possible to set the Köhler illumination. The reflected light illumination system also comes with a polarization device: a built-in analyzer and a detachable rotating polarizer. There is a set of color filters.
Stage and focusing mechanism
The most interesting part of the microscope design is the 280x270 mm stage which can be moved along two axes within 204mm. Therefore you can observe large-sized samples and examine their surface easily. The coarse and fine focusing knobs are coaxial located on both sides of the microscope with a lock knob and coarse tension adjustment knob. The handles are located close to the microscope base you can place your hands freely on the table and take a comfortable position while observing.
The MAGUS Metal D650 line of microscope-compatible accessories includes eyepieces long working distance objectives digital cameras and calibration slides. The accessories can be used to expand the capabilities of the microscope.
Key features of the microscope:
Large stage with a wide movement range for working with long and wide samples
Fine focusing scale value 0.7µm for easy focusing at high magnifications; coarse focusing with a lock knob and tension adjustment
Trinocular head with a trinocular tube and a beam splitter
Reflected light illuminator: powerful 30W halogen bulb with brightness adjustment and powered by AC power supply
Polarization device elements of the reflected light illuminator that can be centered Köhler illumination color filters
Wide range of compatible optional accessories
Key features of the camera:
For brightfield microscopy 4x 10x 20x and 40x objectives
6.3MP resolution: when working with low magnification objectives the camera will allow you to see more fine details
59fps for observing samples that are moving recording video and moving the preparation without jerkiness or delays
SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low light conditions. You will get clearer brighter and more color-saturated images
USB 3.0 interface for fast smooth data transfer
Software with photo video recording editing external display and linear and angular measurement
The kit includes:
MAGUS CBF30 Digital Camera (digital camera USB cable installation CD with drivers and software user manual and warranty card)
Base with a power input reflected light source focusing mechanism stage and revolving nosepiece
Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
Infinity plan achromatic objective: PL L80x/0.80 WD 1.25mm
Eyepiece 10x/22mm with long eye relief (2 pcs.)
C-mount adapter 1x
Hex key wrench
AC power cord
User manual and warranty card
Available on request:
10x/22mm eyepiece with a scale
12.5x/14mm eyepiece (2 pcs.)
15x/15mm eyepiece (2 pcs.)
20x/12mm eyepiece (2 pcs.)
25x/9mm eyepiece (2 pcs.)
Infinity plan achromatic objective: PL L40х/0.60 WD 3.98mm
Infinity plan achromatic objective: PL L60x/0.70 WD 2.08mm
Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
