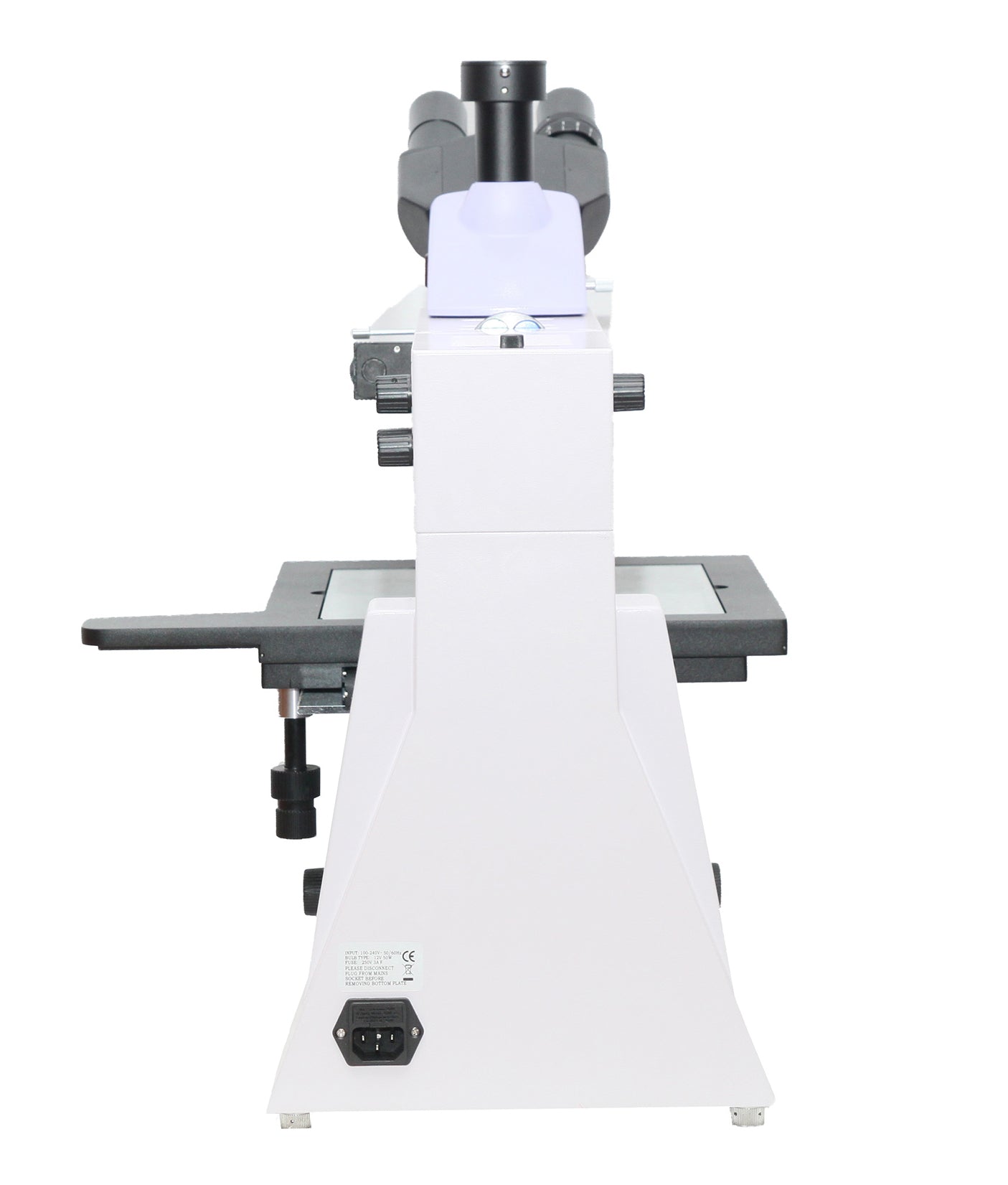

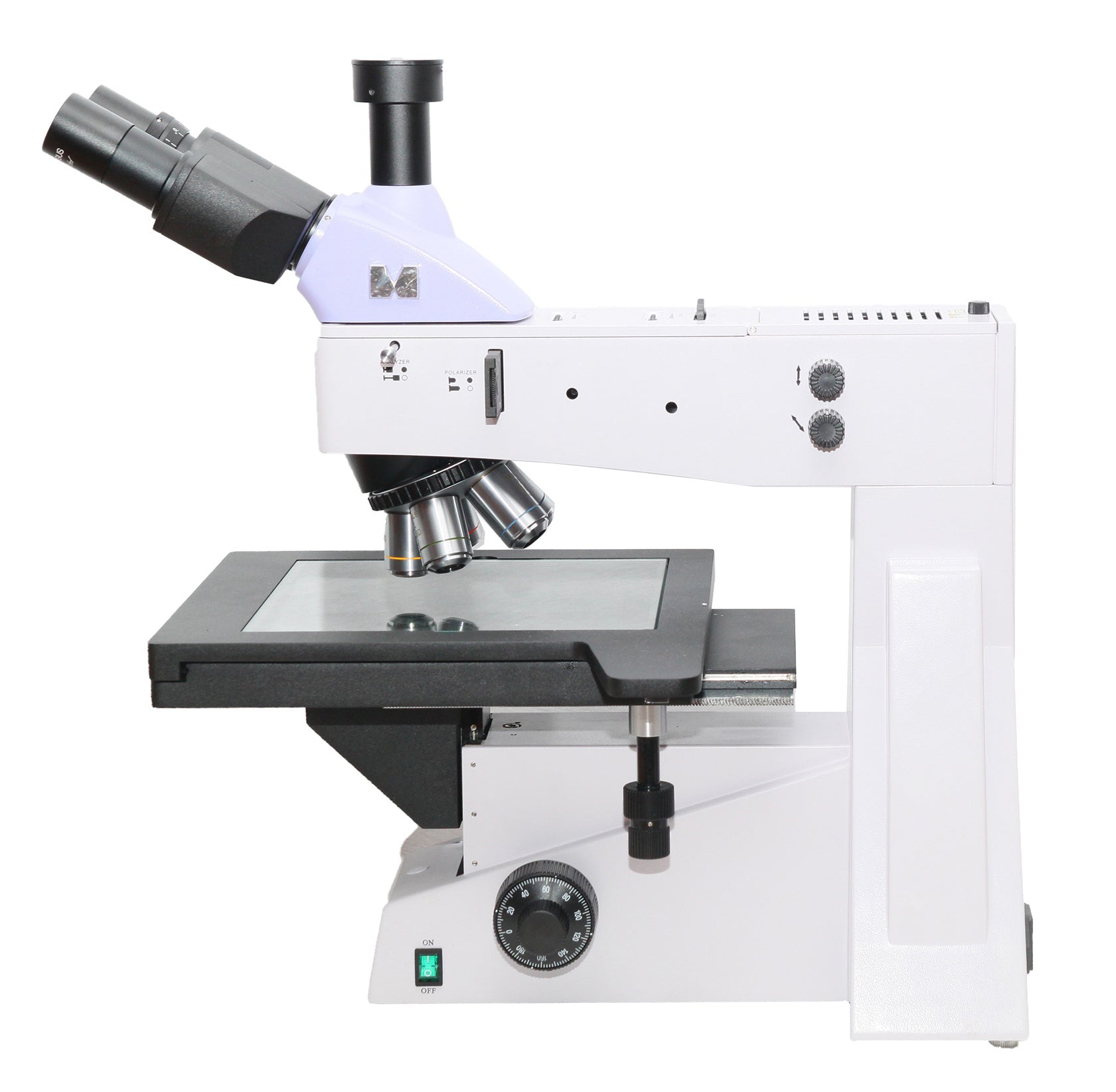

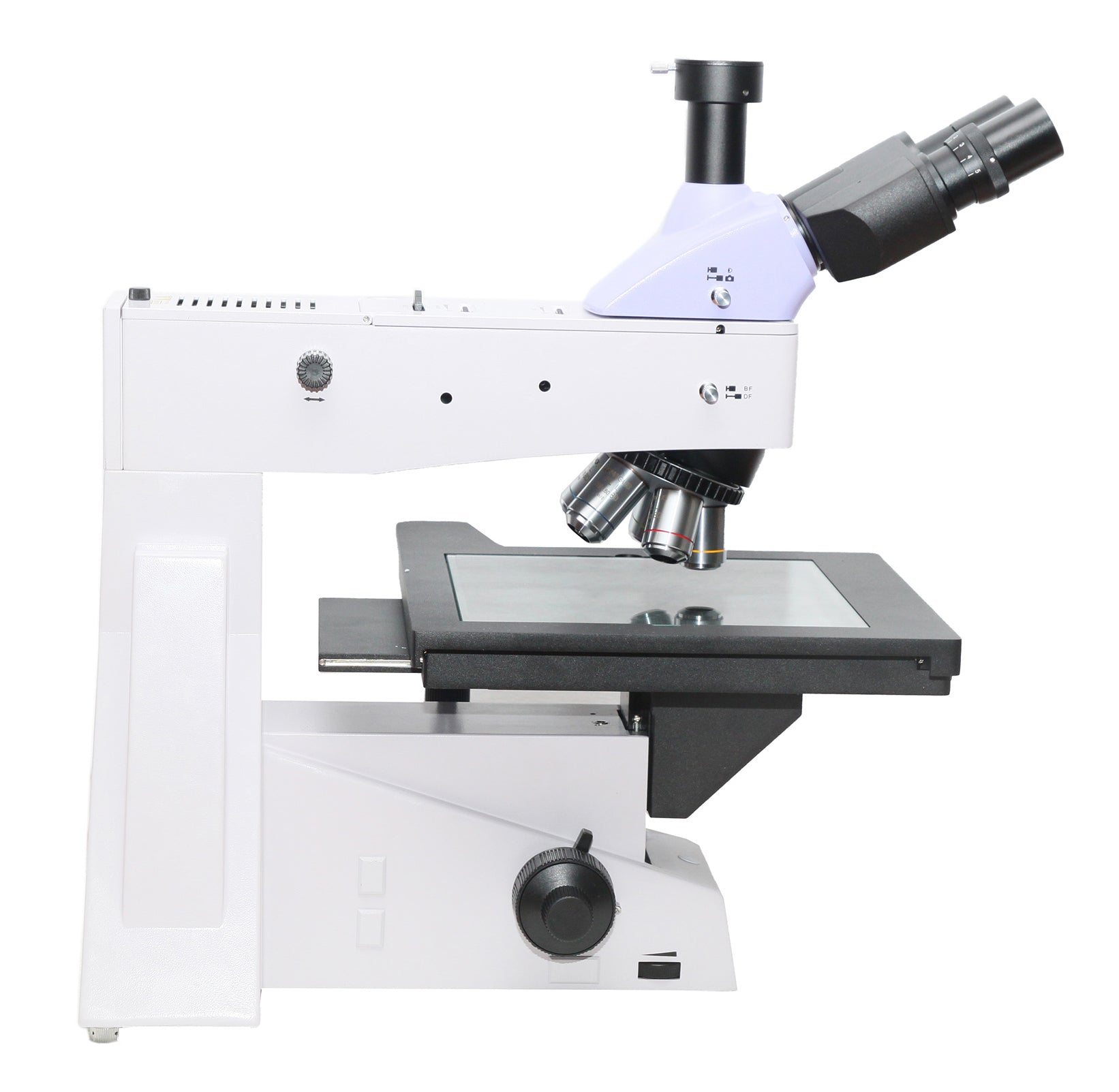

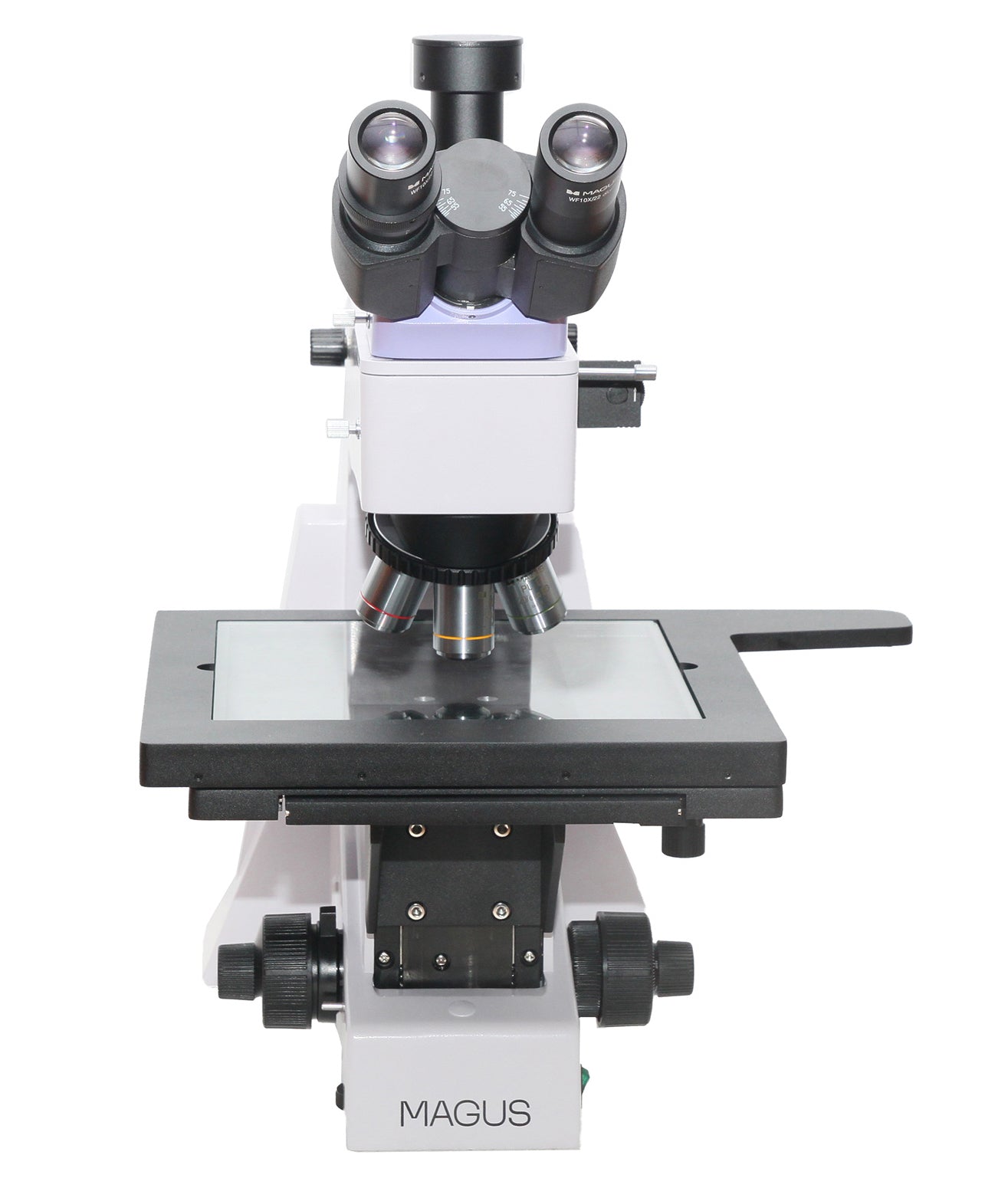

MAGUS Metal 650 BD Metallurgical Microscope

The MAGUS Metal 650 BD Metallurgical Microscope is suitable for observing the surfaces of photomasks integrated circuits printed circuit boards and other long and wide objects. It is equipped with a large stage that can easily hold large samples and fine focusing with a scale value 0.7µm for high-precision observations at high magnification. Brightfield darkfield and polarized light microscopy techniques. The microscope is suitable for quality control laboratories research centers and university departments.

Optics

The trinocular head has a trinocular tube for mounting a digital camera. The light/camera selection knob directs the light beam onto the camera for bright well-detailed photos and video that can be displayed on the external screen. The camera is not included in the basic configuration. On the left eyepiece there is a diopter ring for adjusting the image.

Plan achromatic objectives with the BD symbol are designed specifically for brightfield and darkfield microscopy techniques. The objectives have a long working distance. Five of them are included one in each slot of the revolving nosepiece. Any installed objective can be quickly replaced with an optional one if required. Infinity-corrected optics with magnification from 50x to 800x. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path.

Illumination

The reflected light illumination system is designed for all observations to be as well-detailed as possible regardless of the used objective and microscopy techniques. The light source is a 50W halogen bulb that creates bright even and warm lighting. The Köhler illumination method can be used to adjust the illumination there are filters for color rendering and a polarization device (built-in analyzer and removable polarizer). The light source aperture and field diaphragms can be centered. The illumination system also includes a darkfield device.

Stage and focusing mechanism

A special feature of the microscope is a large stage of 280x270mm with a movement range of 204mm along the X and Y axes. Focusing is adjusted by rotating the coarse and fine focusing knobs. They run smoothly and confidently and due to the fine focusing scale value operation at high magnifications is precise. The coarse focusing has a lock knob and tension adjustment. The focusing knobs are located at the base of the microscope and so you can take a relaxed and comfortable position. You can place your hands on the table instead of holding them in the air.

Accessories

To get the maximum out of the MAGUS Metal 650 BD microscope get additional accessories: eyepieces objectives with long working distance for brightfield and darkfield calibration slides digital cameras.

Key features:

• Precise focusing: fine focusing scale value 0.7µm; coarse focusing has a lock knob and tension adjustment
• Large stage for easy observation of long and wide objects large range of movement of the stage along two axes
• Plan achromatic optics trinocular head with a 100:0 and 0:100 beam splitter trinocular tube for camera installation
• Light source field and aperture diaphragms can be centered Köhler illumination adjustment polarization device set of color filters darkfield microscopy techniques
• Illuminator – 50W halogen bulb with 220V power supply and brightness-adjustment
• Optional accessories

The kit includes:

• Base with a power input reflected light illuminator focusing mechanism stage and revolving nosepiece
• Trinocular head
• Infinity plan achromatic objective: PL L5x/0.12 BD WD 9.7mm
• Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3mm
• Infinity plan achromatic objective: PL L20x/0.40 BD WD 7.2mm
• Infinity plan achromatic objective: PL L50х/0.70 BD WD 2.5mm
• Infinity plan achromatic objective: PL L80x/0.80 BD WD 0.8mm
• Eyepiece 10x/22mm with long eye relief (2 pcs.)
• C-mount adapter 1x
• Hex key wrench
• AC power cord
• Dust cover
• User manual and warranty card

Available on request:

• 10x/22mm eyepiece with a scale
• 12.5x/14mm eyepiece (2 pcs.)
• 15x/15mm eyepiece (2 pcs.)
• 20x/12mm eyepiece (2 pcs.)
• 25x/9mm eyepiece (2 pcs.)
• Infinity plan achromatic objective: PL L40x/0.60 BD WD 3.0mm
• Infinity plan achromatic objective: PL L60x/0.70 BD WD 1.9mm
• Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD 0.4mm
• Digital camera
• Calibration slide
