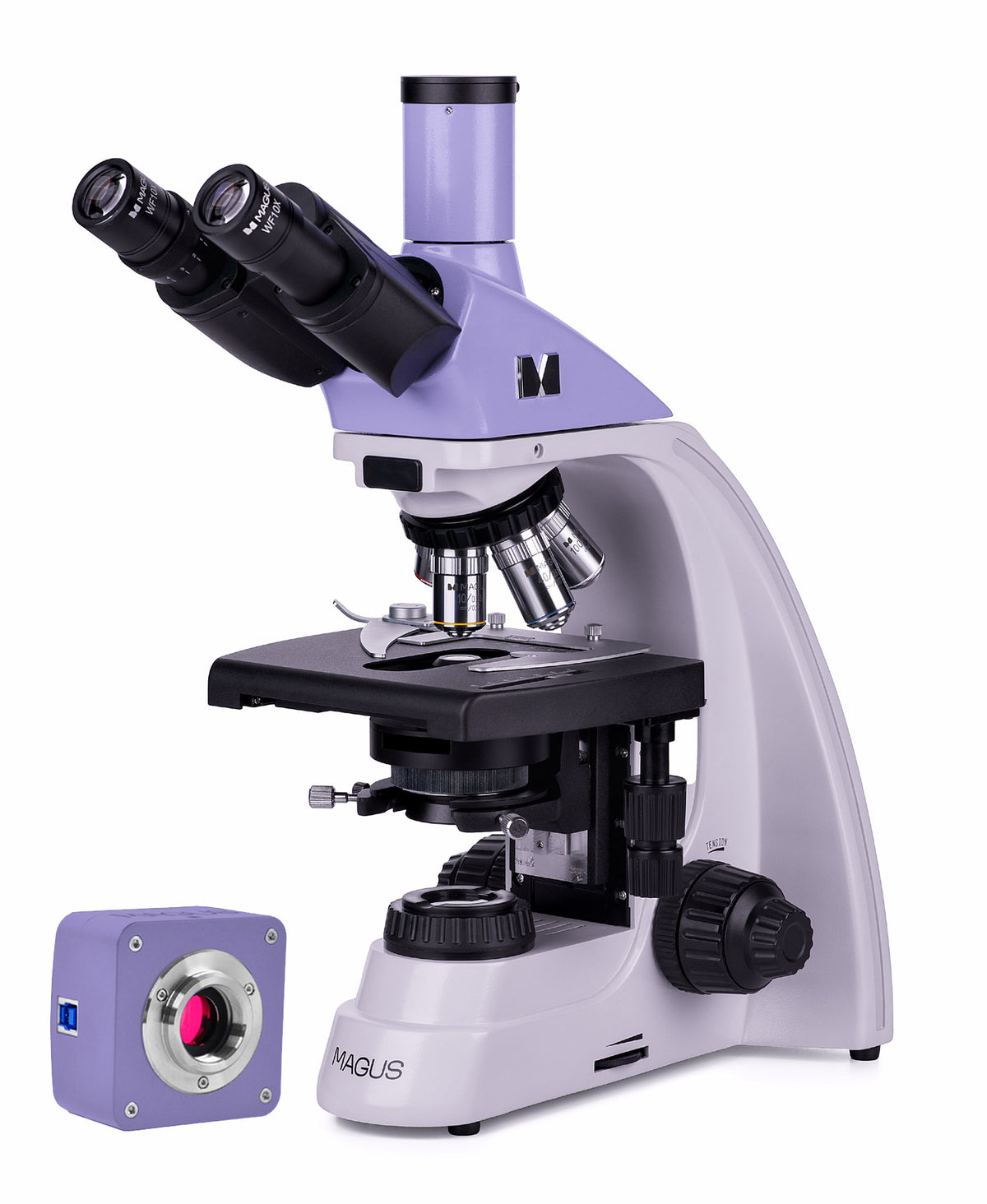

MAGUS Bio D230T Biological Digital Microscope

MAGUS Bio D230T is a biological trinocular microscope for laboratory and research observations in the field of medicine pharmaceuticals forensics biotechnology etc. It is suitable for the observation of flat biological translucent and transparent specimens: thin sections and smears. Equipped with achromatic objectives and a halogen bulb the transmitted light microscopy technique (brightfield) is used for studying samples. The design of the microscope provides the possibility of installing additional accessories that allow for the use of other microscopy techniques: darkfield phase contrast polarized light.

Digital camera

The MAGUS CDF10 digital camera is designed for the brightfield and darkfield microscopy technique. It offers a low noise level and high light sensitivity. The camera is equipped with a 2MP sensor and delivers realistic Full HD images (1920x1080px) when observing with 40x 60x and 100x objectives. Video is recorded at 125fps at maximum resolution: They are smooth with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with moving samples and is ideal for classroom demonstrations. The camera is equipped with the USB3.0 interface. The data transfer speed is 10 times faster than USB 2.0 cameras. The high-speed camera is recommended for professional laboratories research or university training.

Optics

The trinocular head has a vertical tube for mounting a digital camera. The camera (not included) is an excellent solution for making digital archives of your studies and output images to an external monitor screen. To adjust the observation tubes to fit the user’s height there is an option to rotate them 360°. The left tube is equipped with a diopter adjustment ring.

The revolving nosepiece is oriented toward the interior which leaves the space above the stage free. Five objectives can be simultaneously mounted into the nosepiece (4 objectives are included in the kit and the 5th slot is left for an additional objective). In the basic configuration the infinity-corrected objectives provide magnification from 40 to 1000x. With optional eyepieces the upper limit can be increased up to 1500 1600 or 2000x.

Illumination

The halogen bulb produces warm-spectrum lighting that reduces eye strain and is ideal for long hours of working with the microscope. The bulb is 30W and therefore the brightness and contrast of the transmitted image is high regardless of the type of objective or observation technique being used.

The Abbe condenser is height-adjustable and can be centered. The illumination is controlled by adjusting the iris and field diaphragms and there is an option to set up the Köhler illumination for better image clarity. The condenser has a slot for installing a phase or darkfield slider which speeds up the process and makes it easier to switch between different microscopy techniques.

Stage and focusing mechanism

There is no positioning rack on the stage. This is an advantage of the mechanical stage design as it makes it easier to operate the microscope. The specimen can be moved smoothly across the stage. The mechanical attachment is removable (it can be removed for manual scanning).

There is coarse and fine focusing adjustment the focusing knob movement is smooth and easy and it requires no further effort. The coarse focusing mechanism has a lock knob and tension adjustment. The focusing knobs are coaxial positioned for maximum comfort during long hours of observation and are located at the microscope base so that you can comfortably rest your hands on the table.

Accessories

To maximize the capabilities of the MAGUS Bio D230T microscope you can further upgrade it with some accessories. It may include eyepieces and objectives digital cameras and calibration slides darkfield condensers polarized light and phase contrast microscopy observation devices.

Key features of the microscope:

• Trinocular head with a vertical tube for mounting a digital camera
• The 360° rotation to fit the height of the observer
• Infinity achromatic objectives revolving nosepiece for 5 objectives
• Diopter adjustment ring on the left tube
• 30W halogen bulb powered by AC power supply Abbe condenser with a slot for darkfield and phase contrast sliders field diaphragm
• Coaxial coarse and fine focusing knobs lock knob and coarse tension adjustment knob
• Optional accessories to improve microscope performance

Key features of the camera:

• For brightfield and darkfield microscopy observations with 40х 60х and 100х objectives; it is the most affordable camera for darkfield microscopy with a large pixel sensor.
• The camera resolution is 1920x1080px: It is an ideal choice for displaying images on a Full HD monitor.
• 125fps for observing samples that are moving recording video and moving the sample without jerkiness or delays.
• SONY Exmor backlit color CMOS sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer brighter and more color-saturated images.
• USB3.0 interface for fast smooth data transfer
• Software with photo video recording editing external display linear and angular measurements

The kit includes:

• MAGUS CDF10 Digital Сamera (digital camera USB cable installation CD with drivers and software user manual and warranty card)
• Base with a power input transmitted light source focusing mechanism stage condenser and revolving nosepiece
• Trinocular head
• Infinity achromatic objective: 4x/0.1
• Infinity achromatic objective: 10x/0.25
• Infinity achromatic objective: 40x/0.65 (spring-loaded)
• Infinity achromatic objective: 100x/1.25 (spring-loaded)
• Eyepieces 10x/18mm with a long eye relief (2 pcs.)
• Eyecups (2 pcs.)
• Filters (4 pcs.)
• C-mount camera adapter
• Bottle of the immersion oil
• Hex key wrench
• AC power cord
• Dust cover
• User manual and warranty card

Available on request:

• 15x/11mm eyepiece (2 pcs.)
• 16x/11mm eyepiece (2 pcs.)
• 20x/11mm eyepiece (2 pcs.)
• Infinity achromatic objective: 20x/0.4
• Phase contrast device
• Phase slider
• Darkfield condenser NA 0.9
• Oil darkfield condenser NA 1.36–1.25
• Darkfield slider
• Polarization device
• Calibration slide
