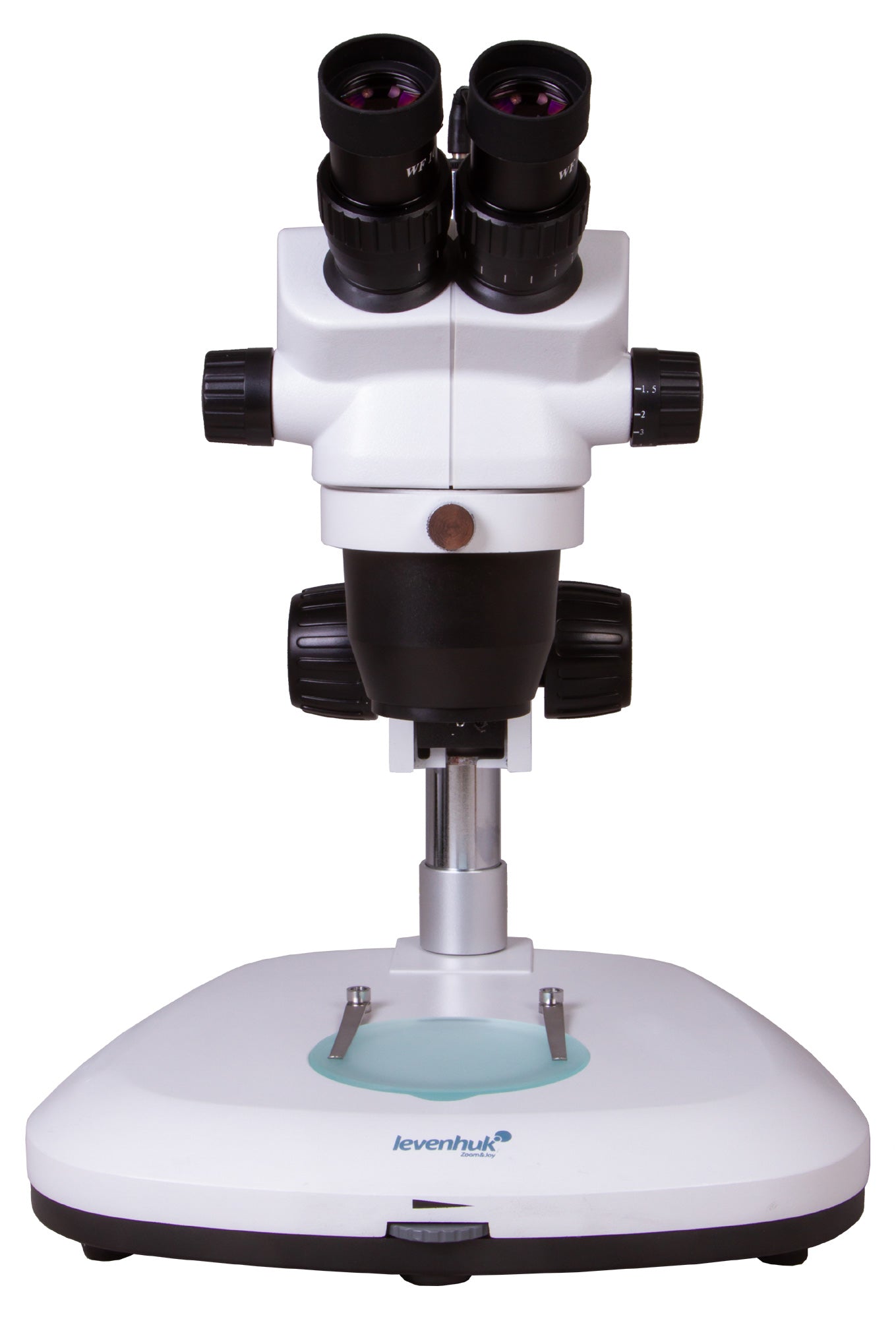

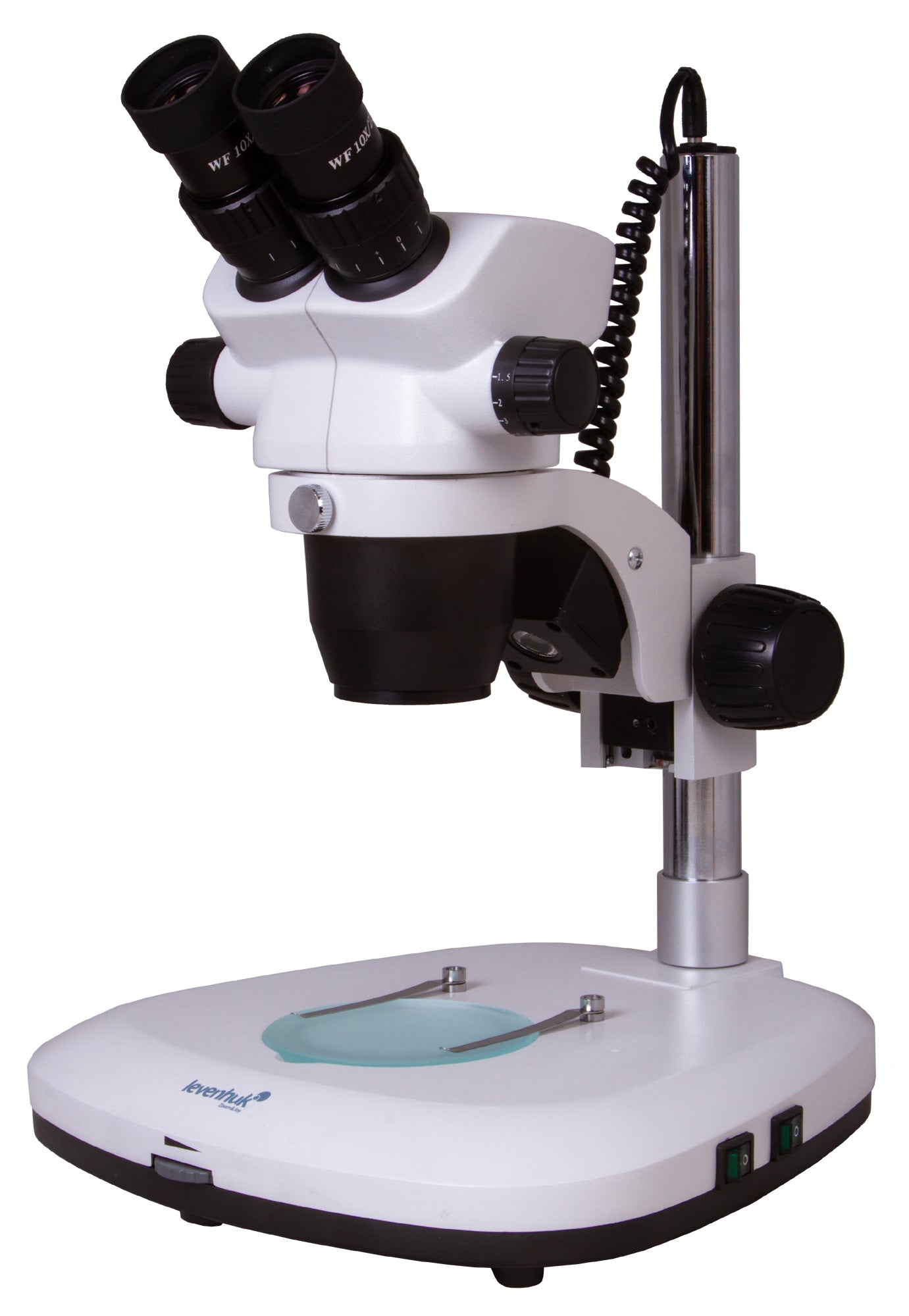

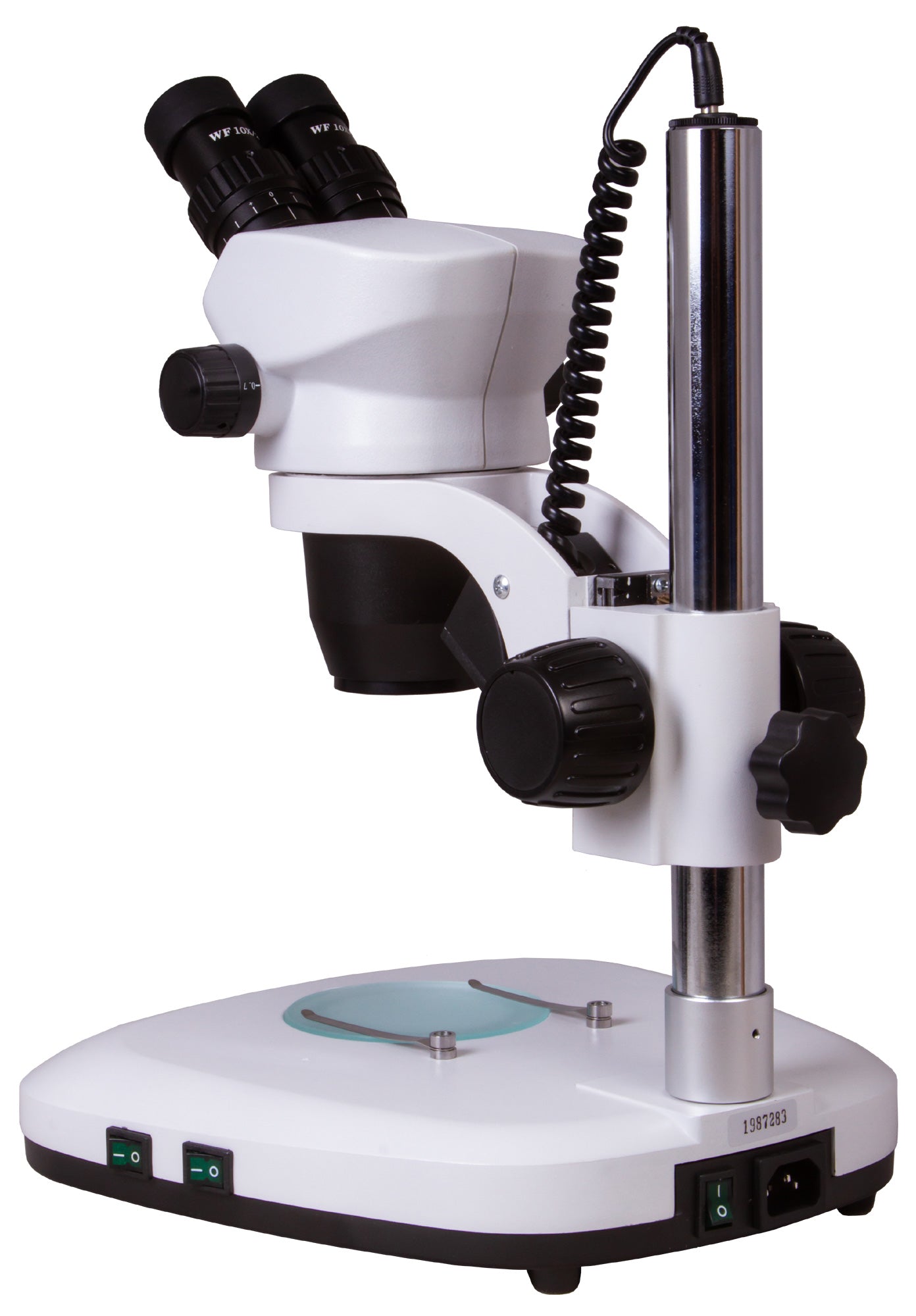

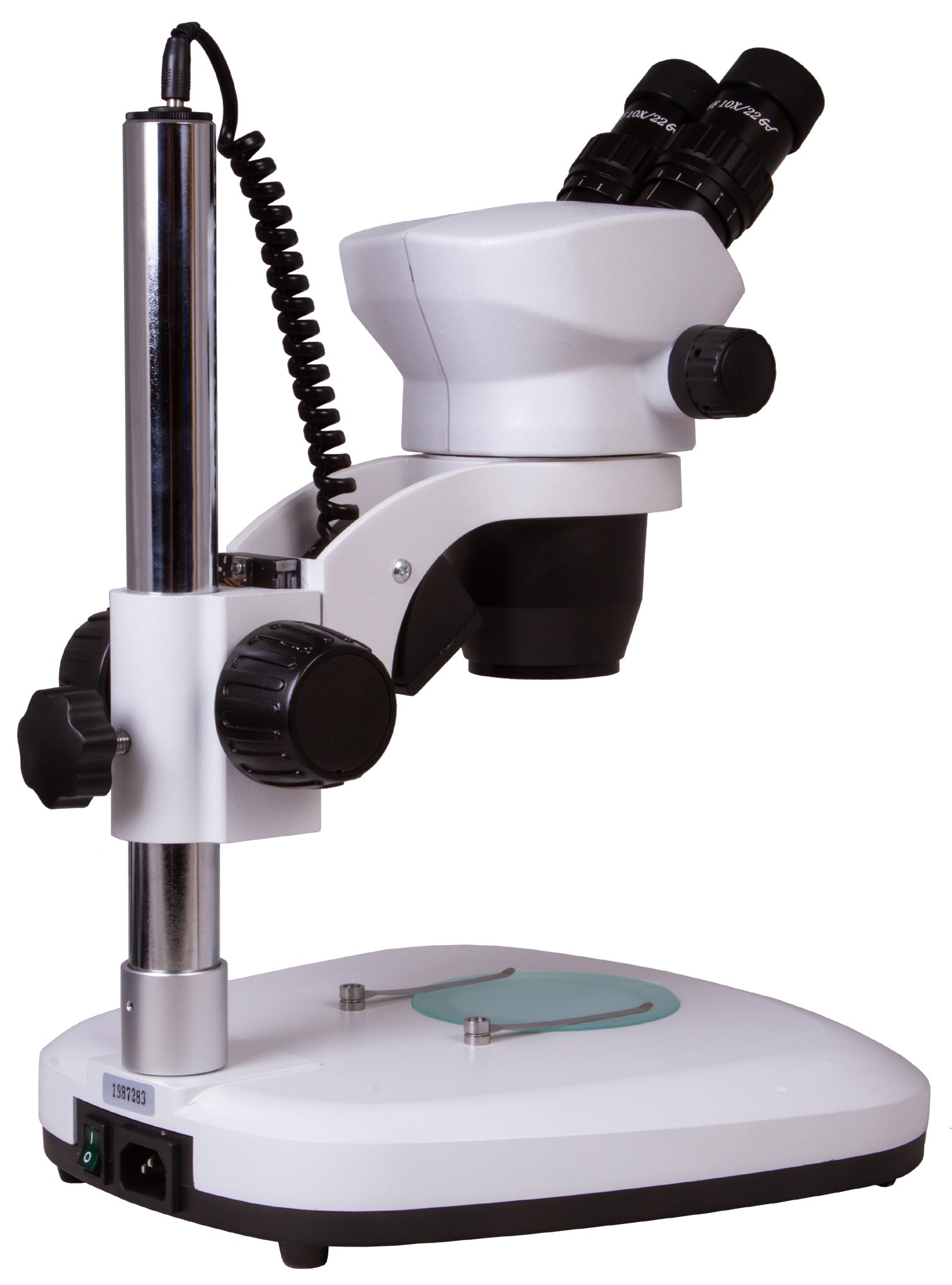

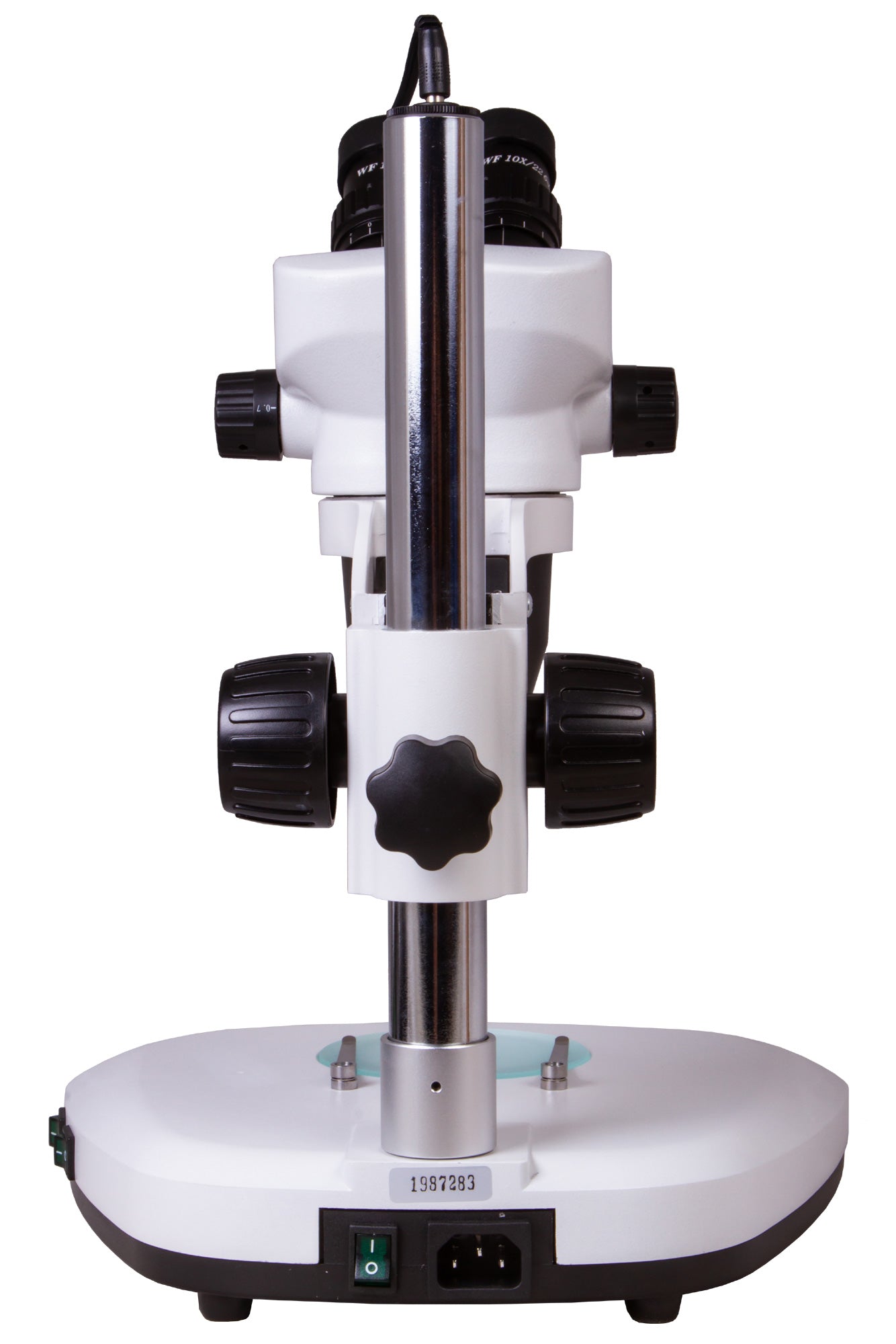

Levenhuk ZOOM 1B Binocular Microscope
Magnification: 7–45x. Stereo microscope with a zoom objective and 235mm working distance

Levenhuk ZOOM 1B is an instrumental microscope with a large working distance. It is convenient for studying geological samples, jewelry, biological objects, textiles, circuit boards, and small mechanisms. This microscope can also be used for hobbies and professional activities, e.g. in a service center or watch workshop.

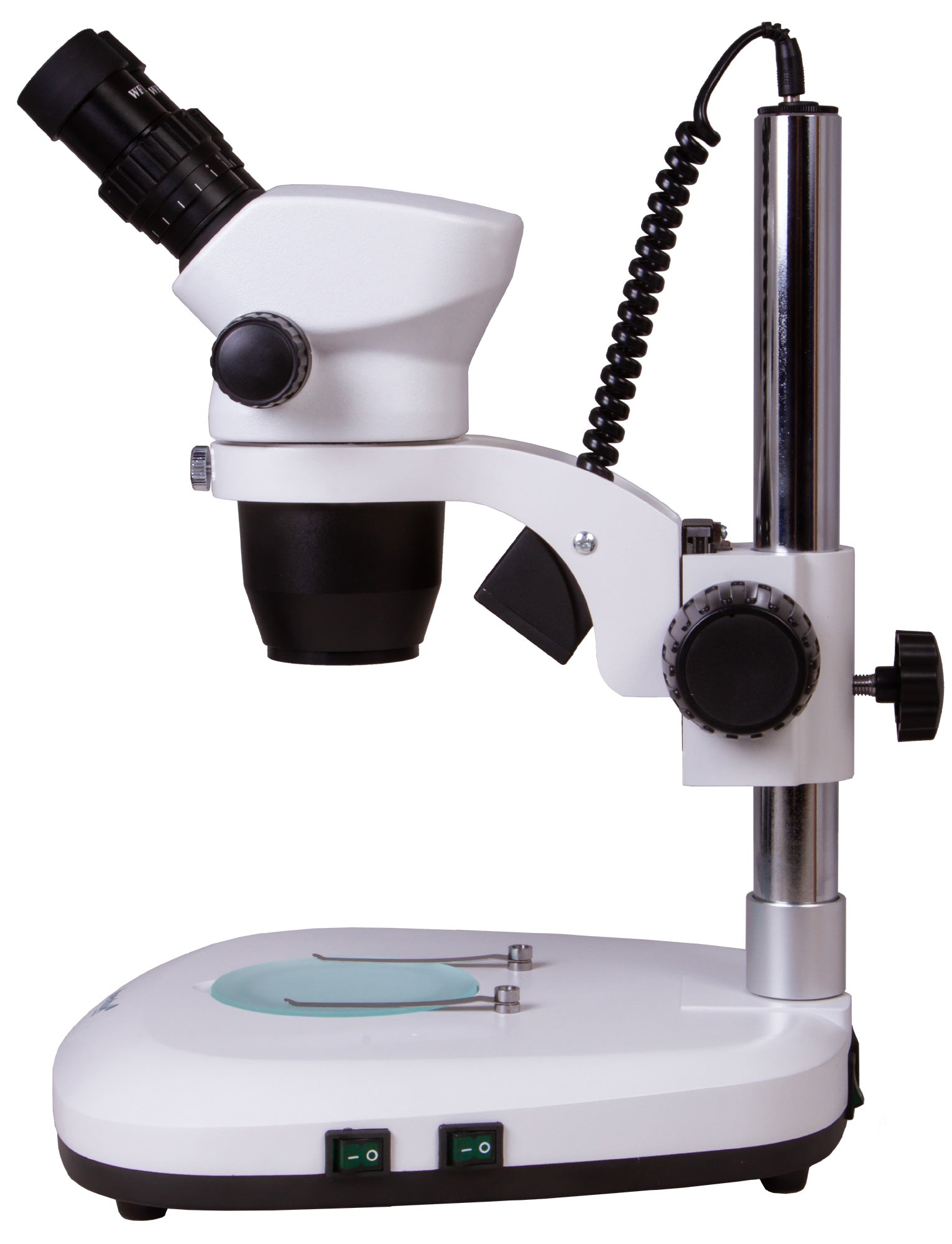

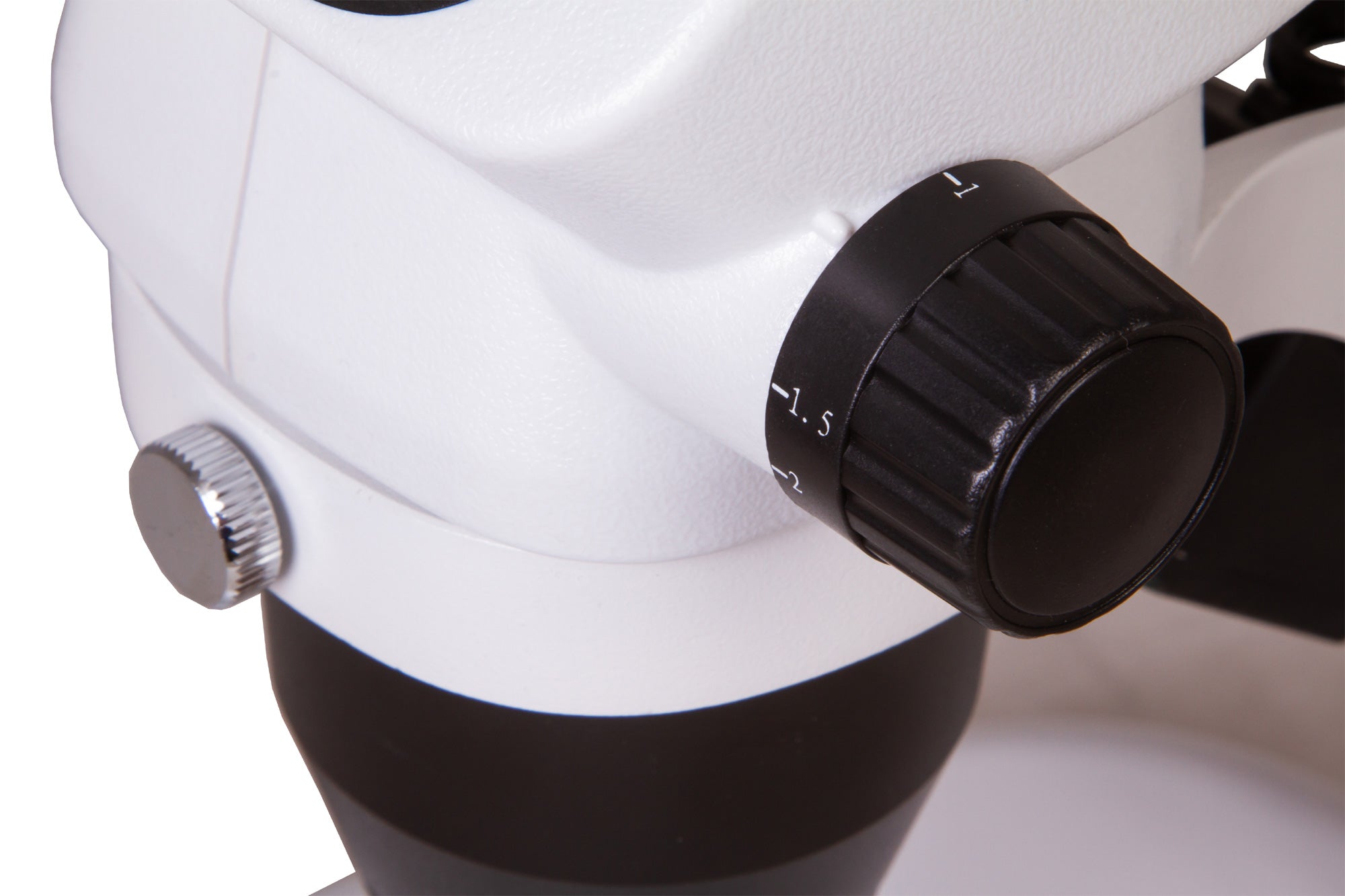

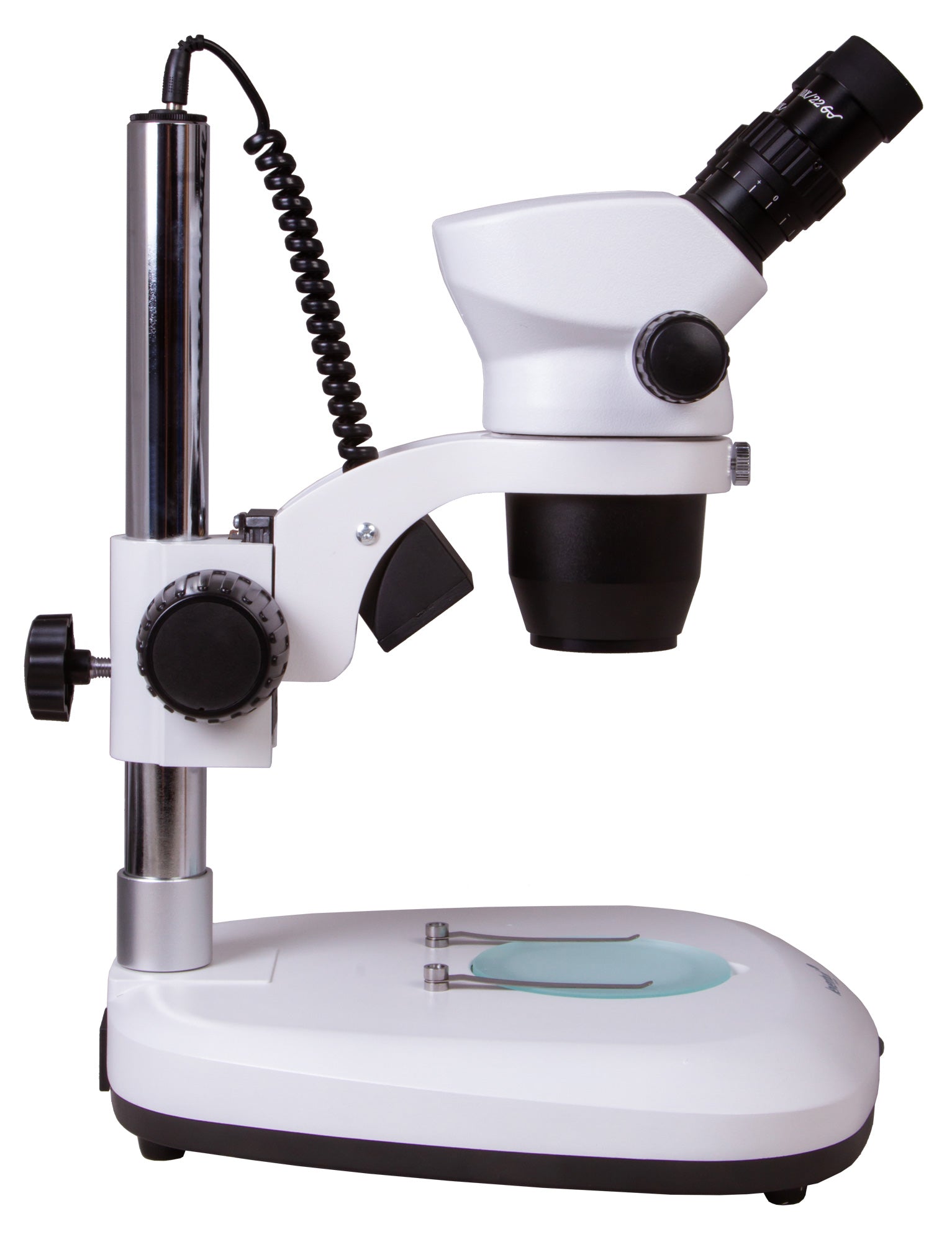

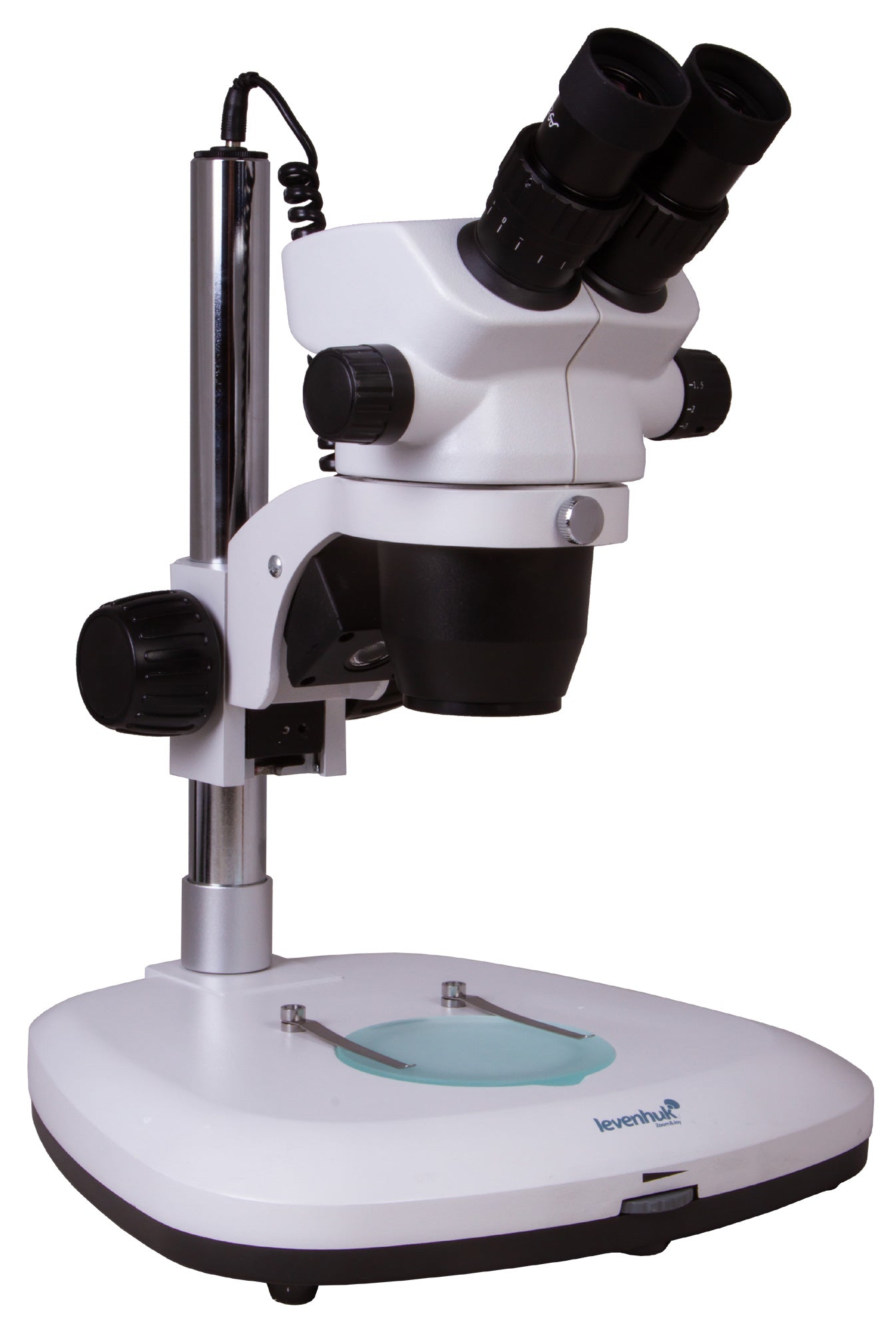

In terms of design, the microscope consists of a base, vertical stand, and optical head. You can conduct observations with both eyes at the same time, the head is slightly angled and can be rotated at 360°. The kit includes two wide-field eyepieces with 10x magnification. The optical scheme is supplemented by a zoom objective, thanks to which you can change the magnification of the microscope not stepwise, but smoothly. An overall magnification range varies from 7 to 45 times. Coarse focusing adjustment is available.

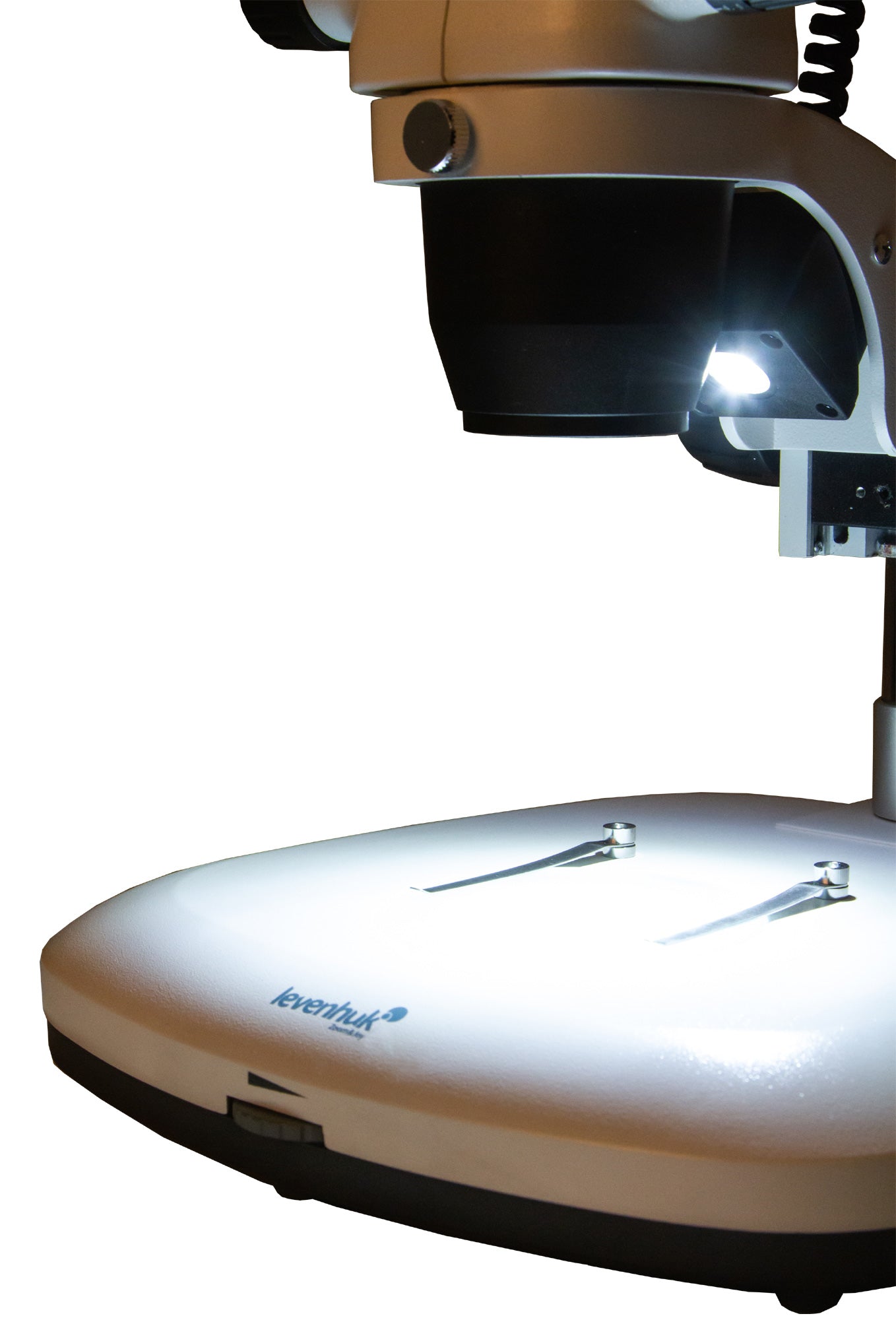

The microscope features two light sources: upper and lower LED lights. This allows for studying samples of any degree of transparency. Brightness adjustment makes it easy to choose an optimal level of illumination so that you can study any of them. The light is powered by an AC power supply.

The microscope body is made of metal, which makes it durable and robust.

Stereoscopic (3D) image
Smooth variable magnification in the range from 7 to 45 times
Rotatable binocular head inclined at 45°
Large working distance: 235mm
Combined LED light with brightness adjustment and an AC power supply

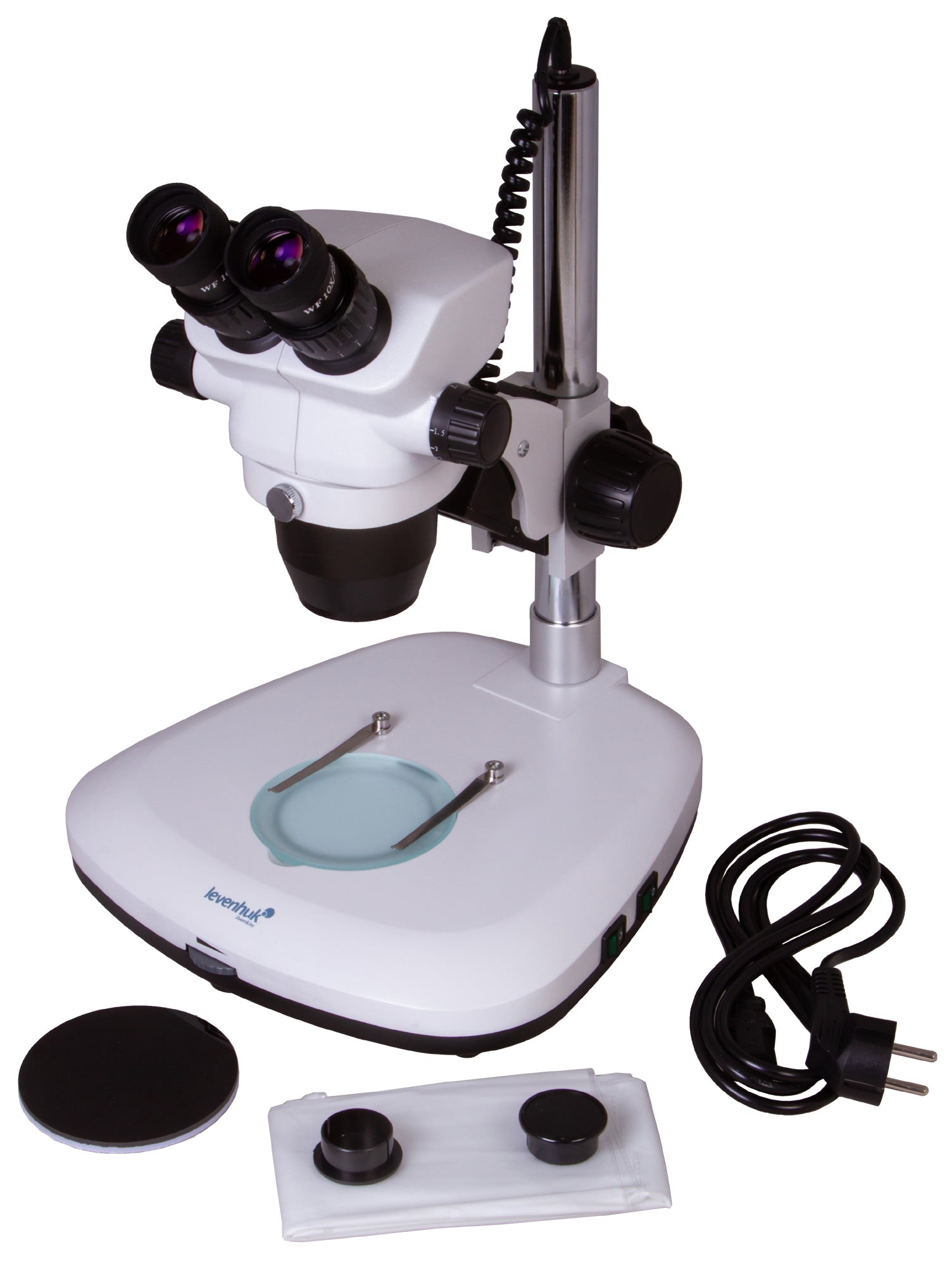

The kit includes:

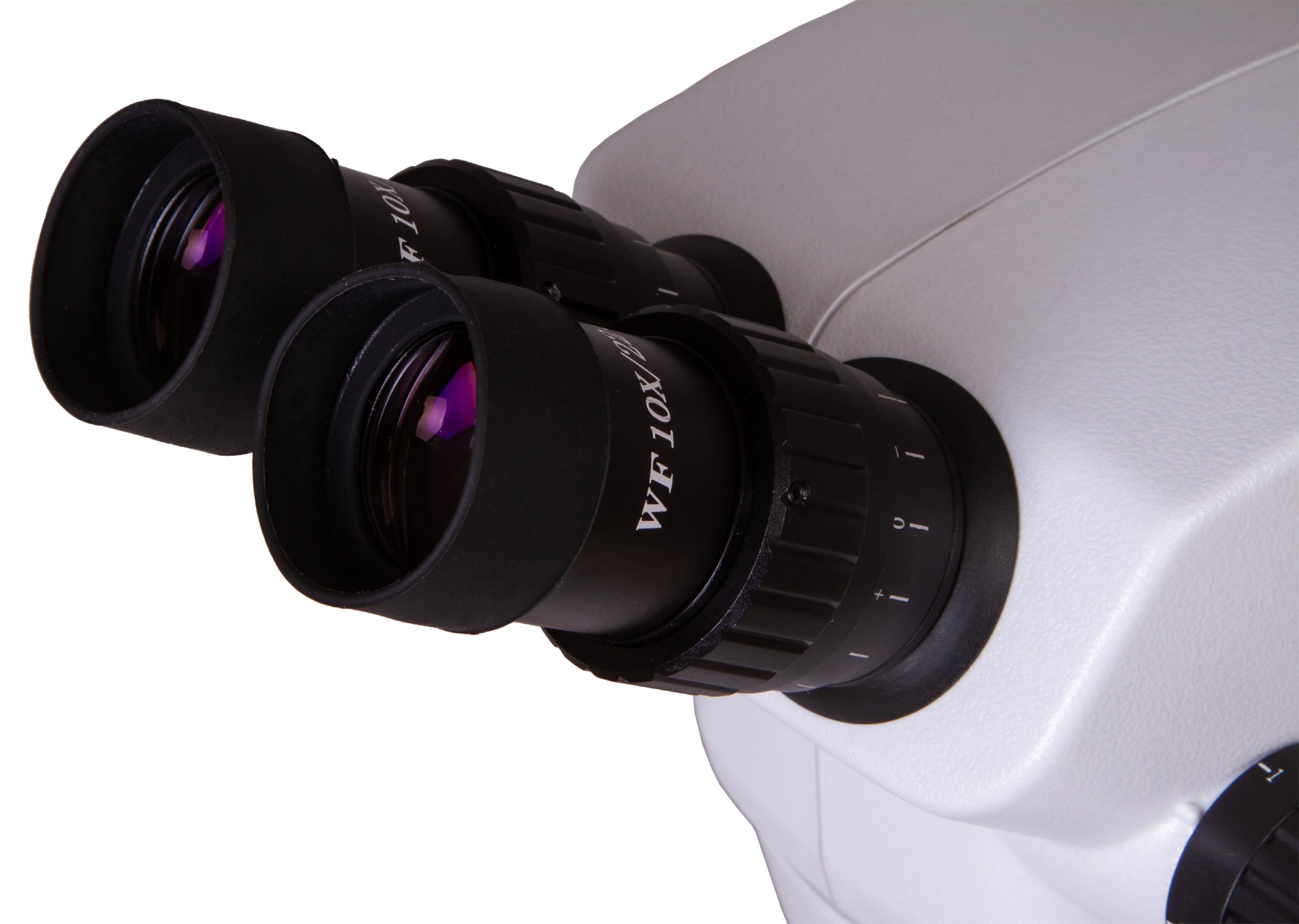

WF10x eyepieces with eyecups (2 pcs)
Zoom objective: 0.7x–4.5x

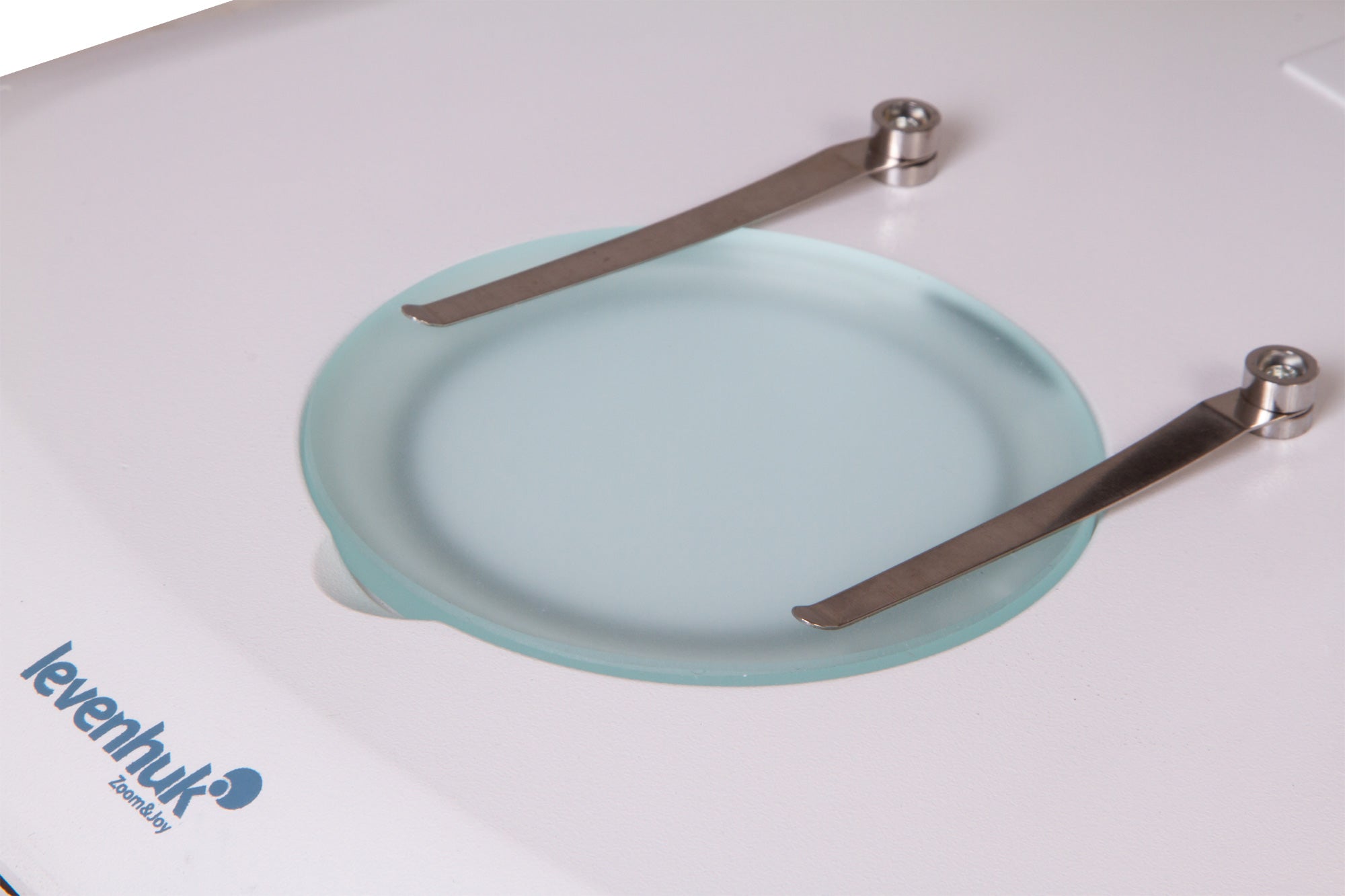

Stage made of matte glass
Black-and-white double-sided plate
Power cord with an AC adapter
Dust cover
User manual and lifetime warranty

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Head: binocular, rotatable 360°, inclined 45°
Optics material: optical glass
Magnification, x: 7–45
Eyepiece tube diameter, mm: 30
Eyepieces: WF10x/22 (2 pcs)
Objectives: zoom: 0.7x–4.5x
Working distance, mm: 235
Interpupillary distance, mm: 48–75
Stage, mm: Ø95: matte plate, black-and-white double-sided plate
Stage moving range, using focusing mechanism, mm: fixed
Eyepiece diopter adjustment, diopters: ±5
Focus: coarse: 50mm
Body: aluminum
Backlight: LED
Brightness adjustment: yes
Power source: 220V/50Hz via an AC power supply
Light source type: upper: 3W LED, lower: 2W LED
Operating temperature range, °C/°F: +5…+35/41…95
Usage: General use product. May be used by kids over 3 years old.
Assembly and setup: extremely simple
Application: for applied research
Pouch/case/bag in set: yes
