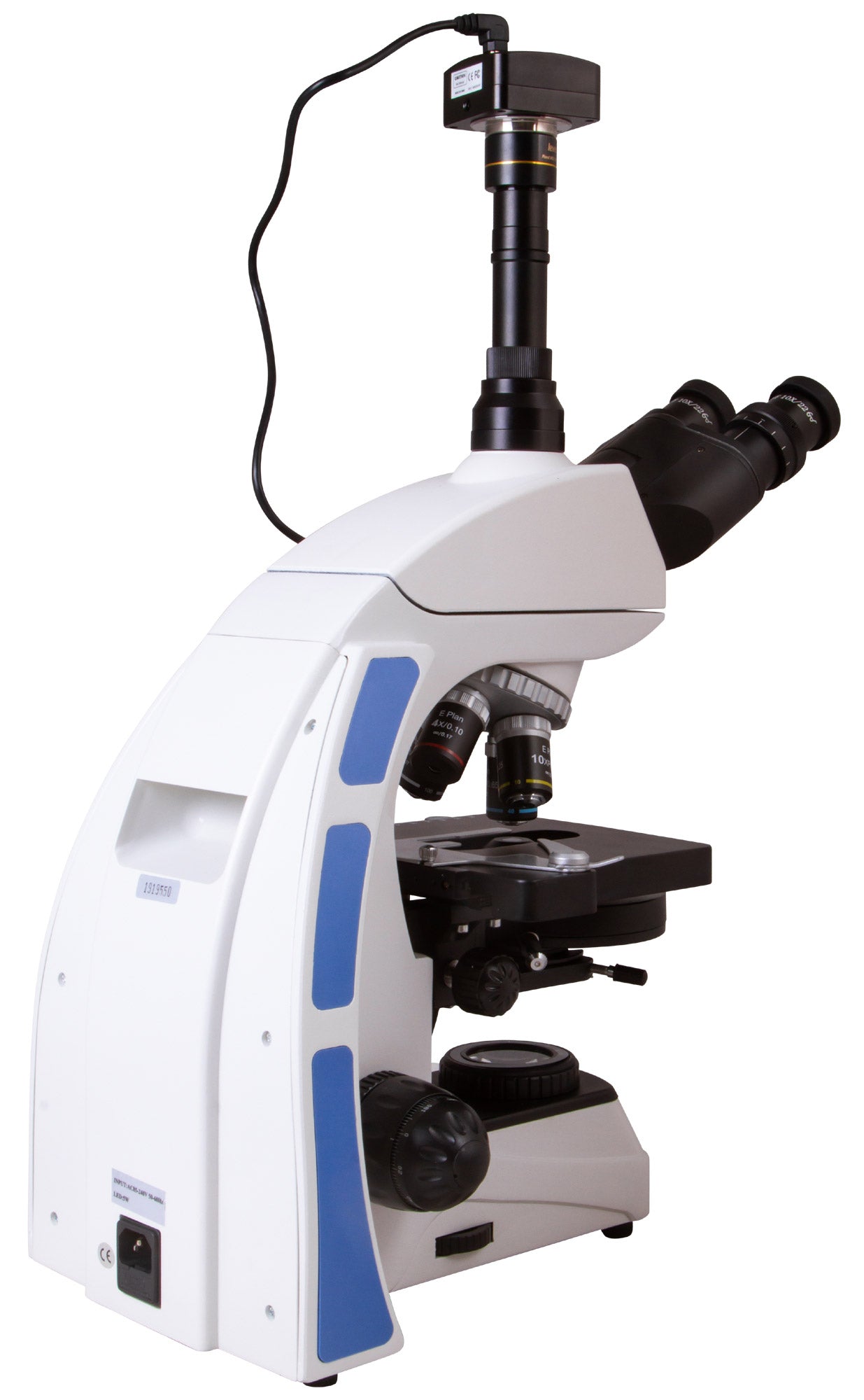

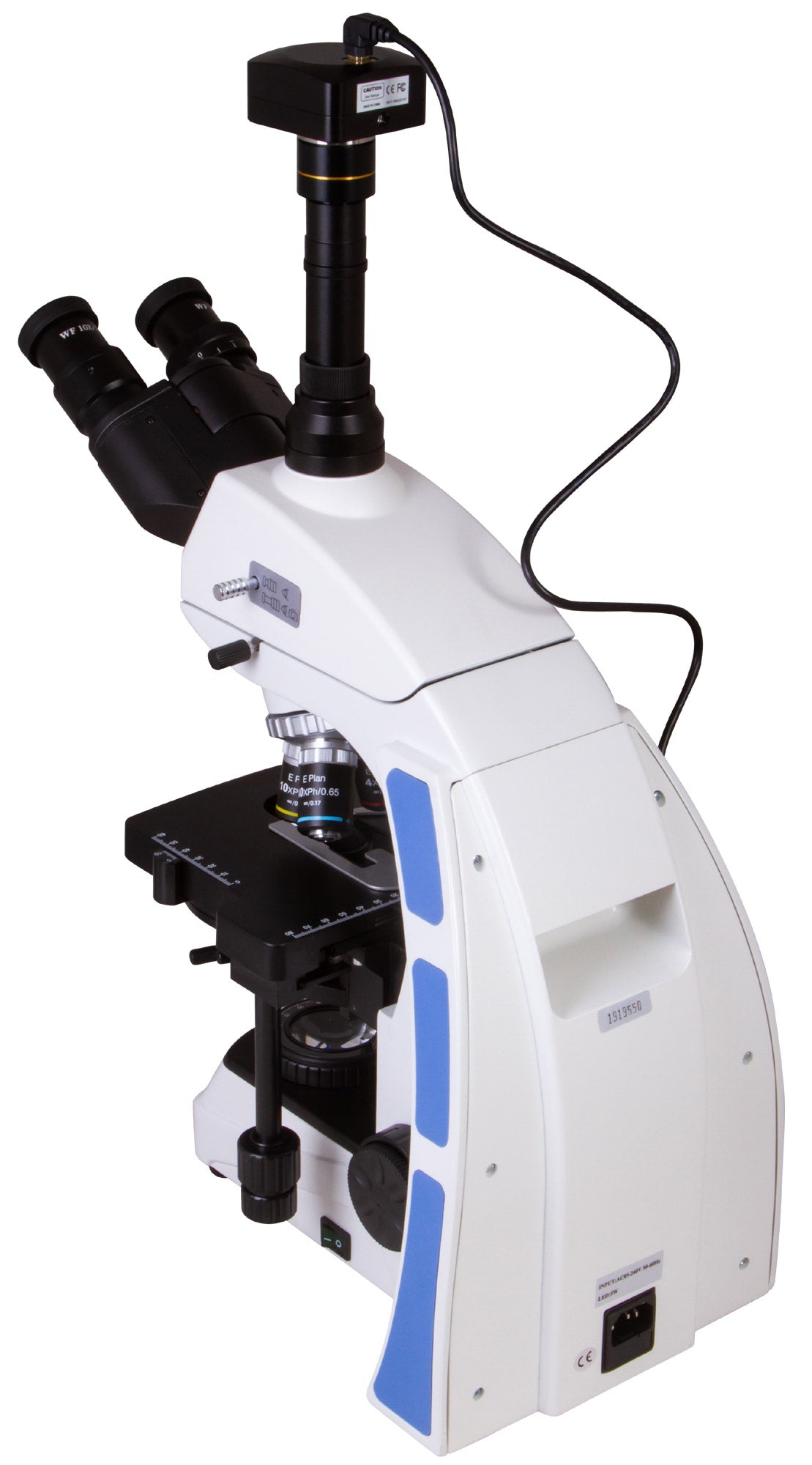

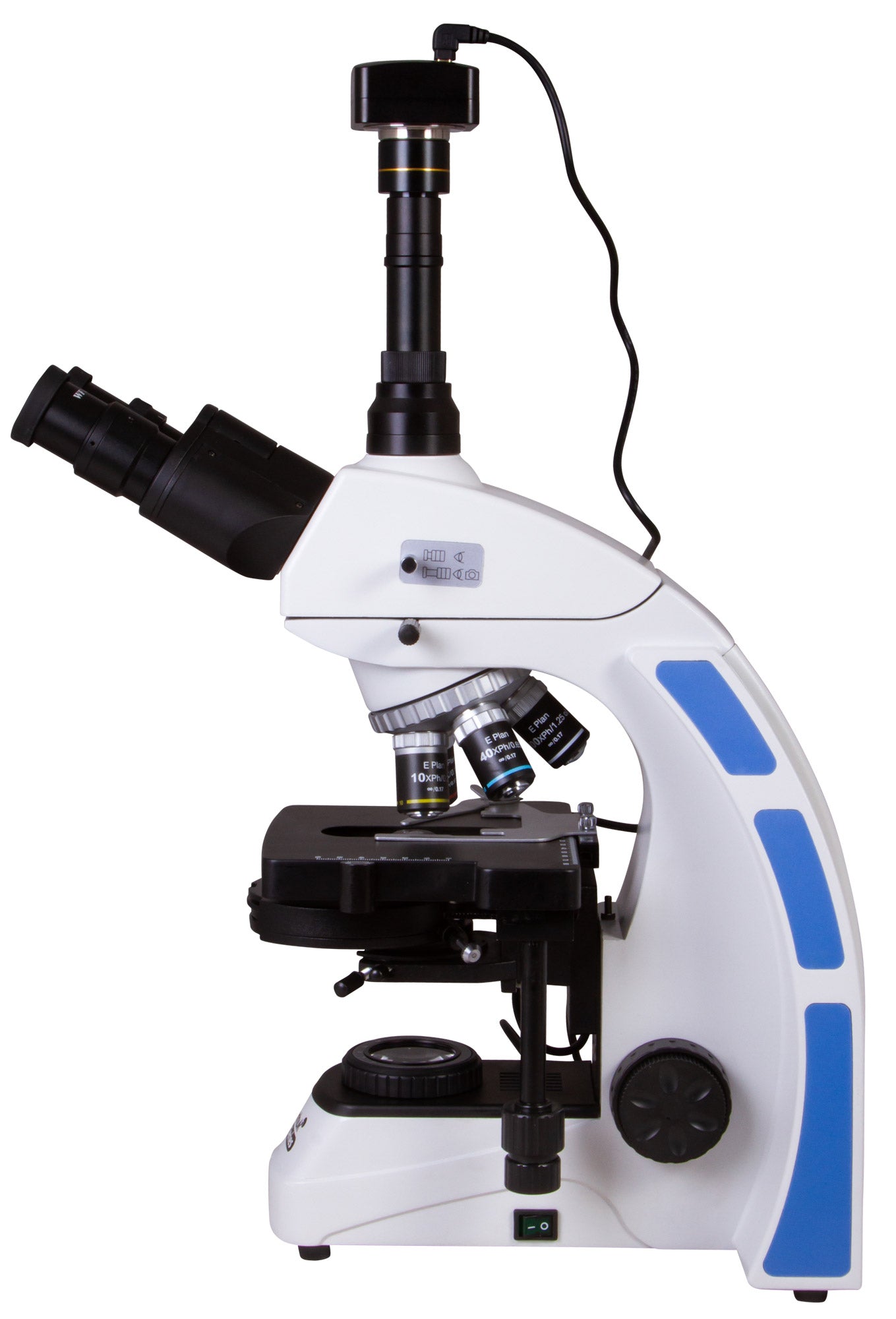

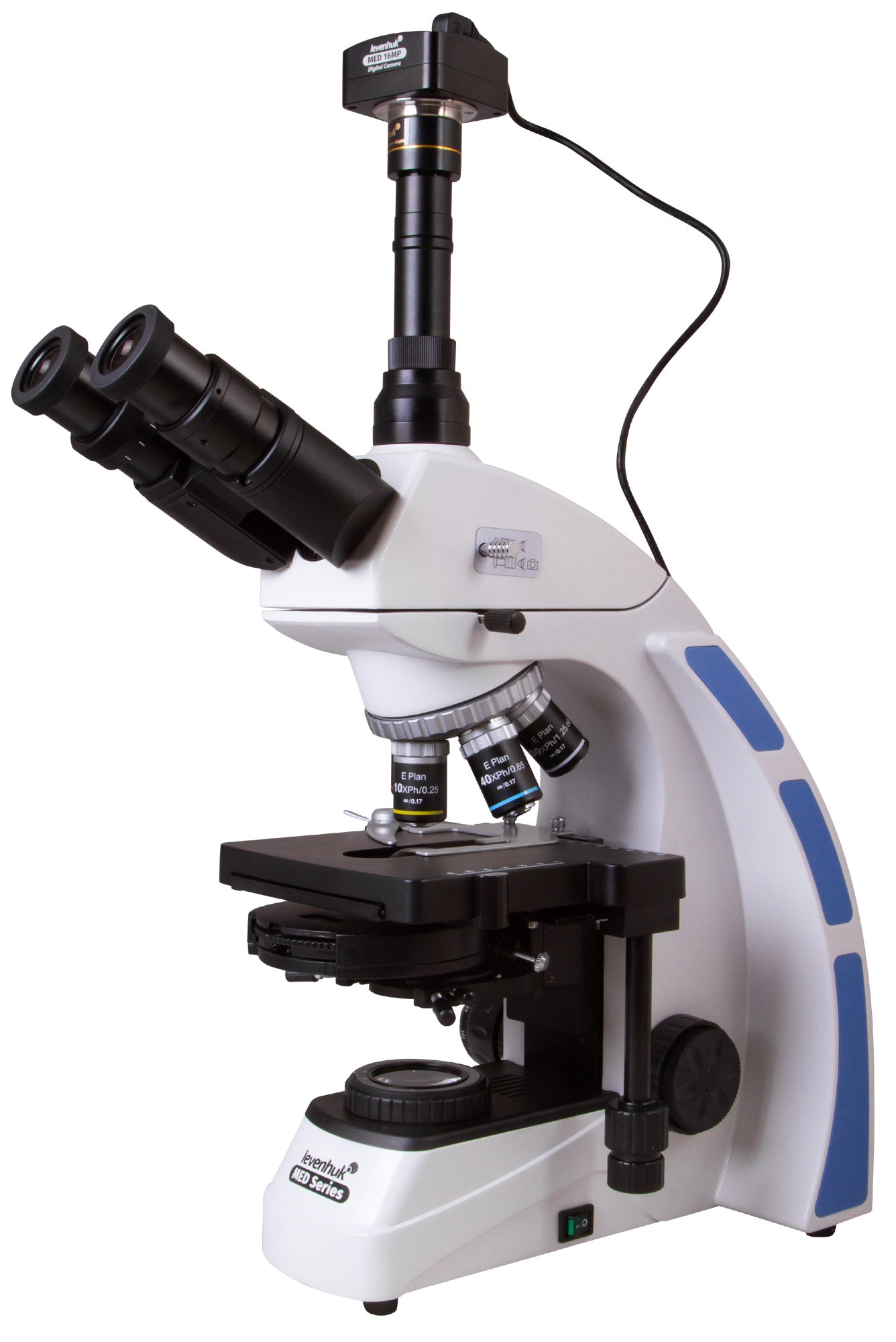

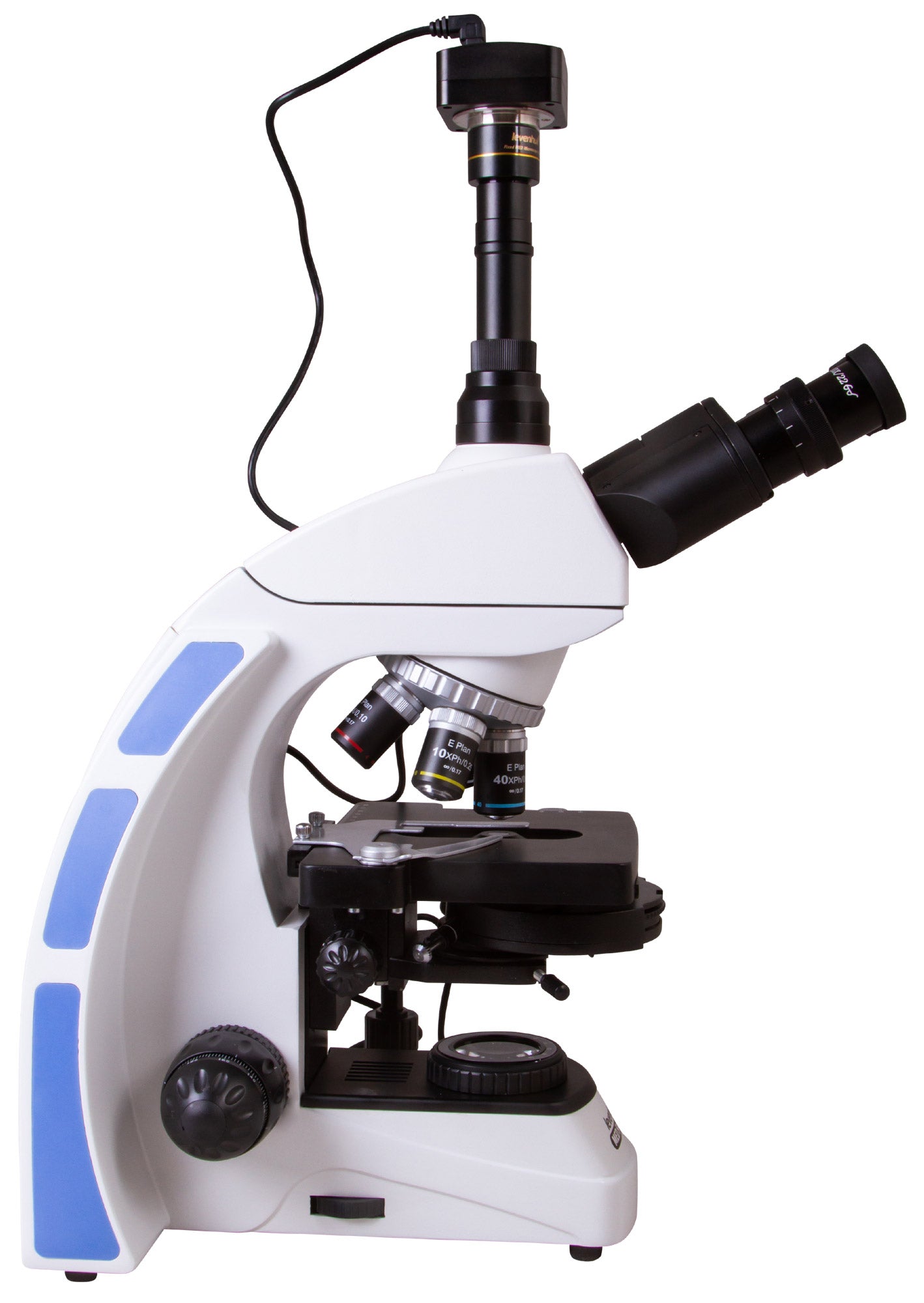

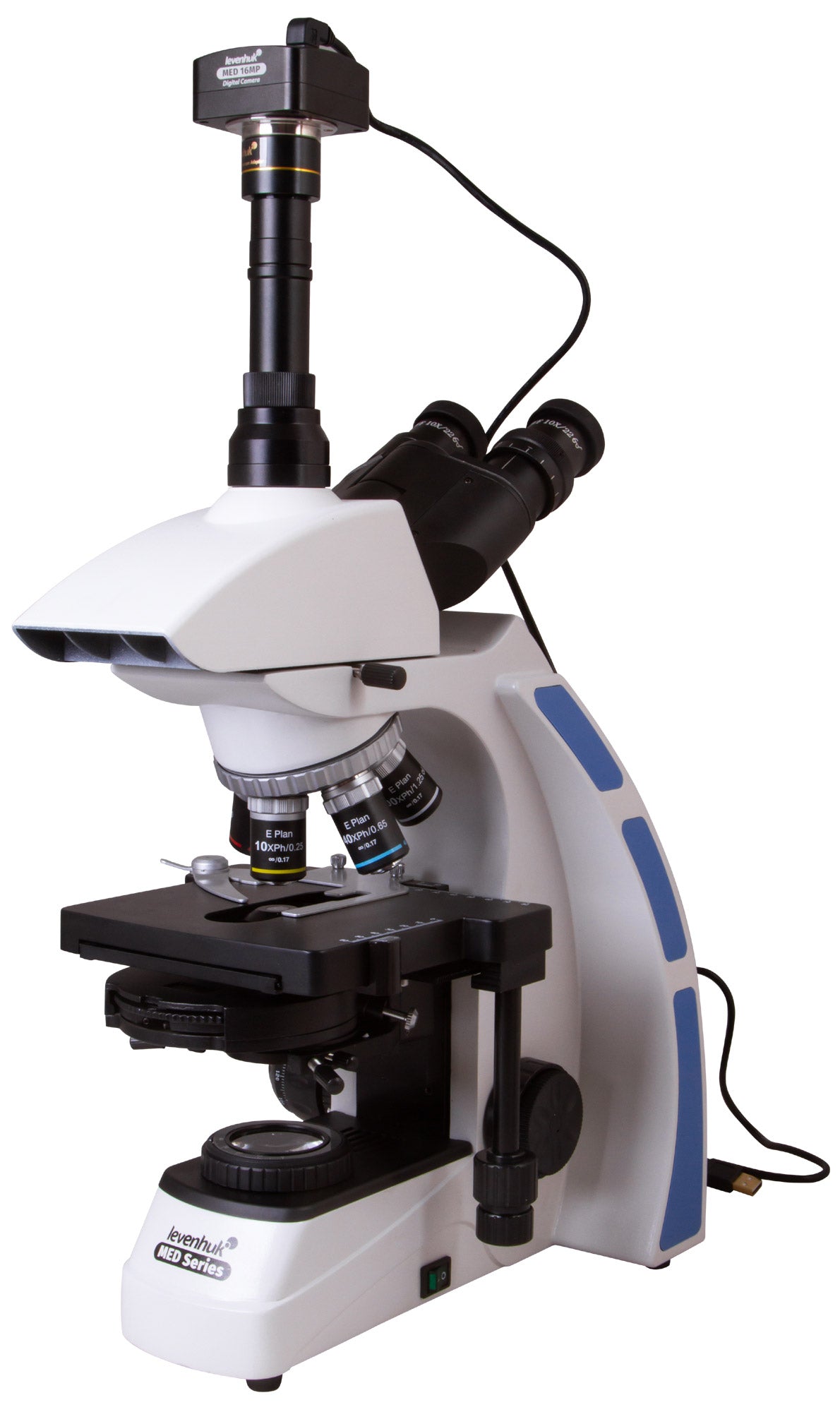

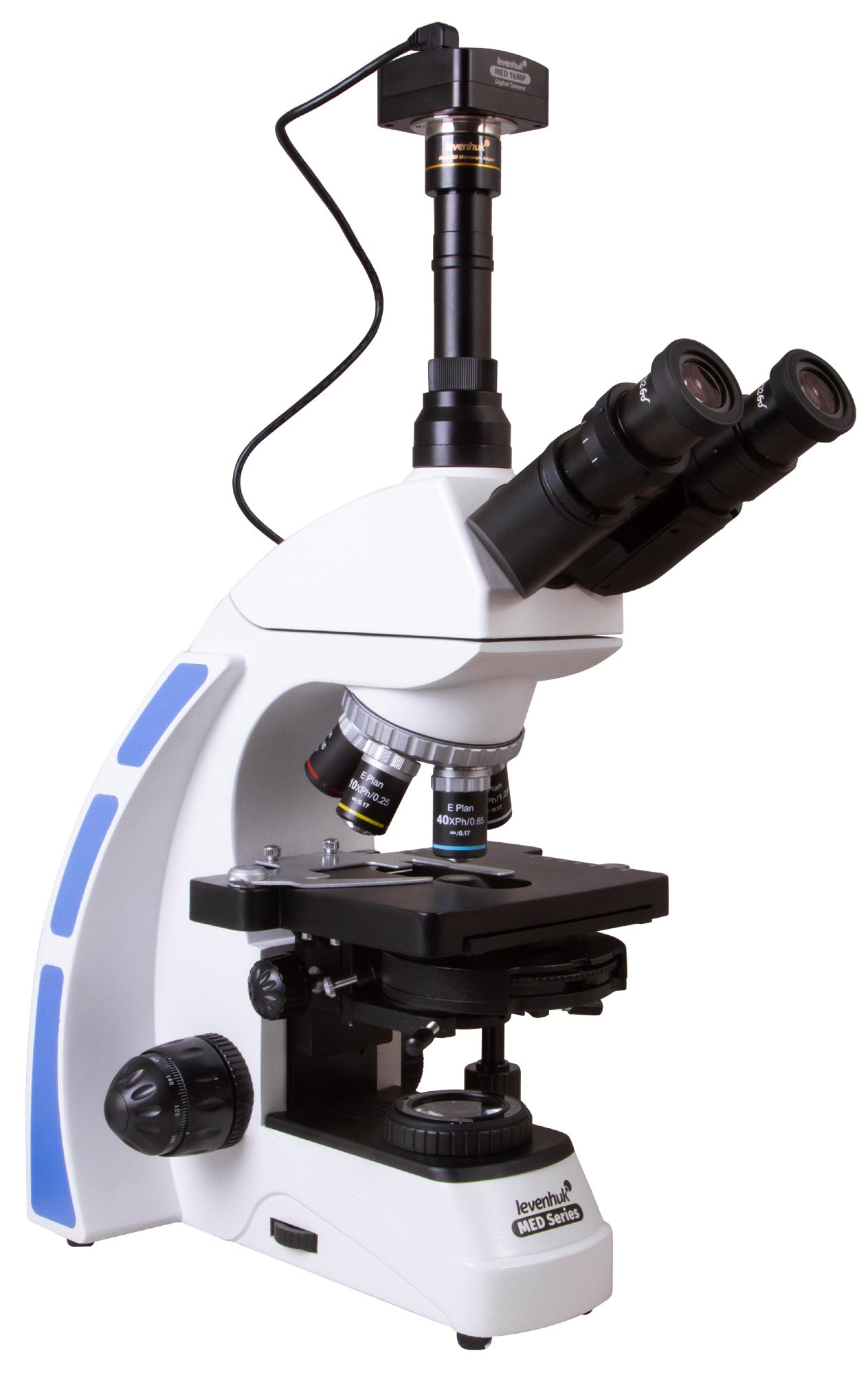

Levenhuk MED D45T Digital Trinocular Microscope Magnification: 40x to 1000x. Trinocular head, a 16 MP digital camera, infinity-corrected phase contrast plan achromatic objective lenses, a phase contrast condenser (dark field)
Levenhuk MED D45T trinocular microscope is equipped with a 16 MP digital camera that allows for taking high-resolution photos and videos. The microscope is suitable for phase contrast observations as well as for bright field and dark field ones. It is the perfect asset for a clinical diagnostic center, biochemical laboratory, or microbiological laboratory. The microscope has a provision or Köhler illumination adjustment; all observations are made with a magnification of 40x to 1000x.
It is noteworthy that phase-contrast microscopy allows for using this optical instrument. This method improves the contrast and sharpness of semi-transparent and transparent microscope slides up to a level that can be only reached by dying slides during a standard research method. That is why phase-contrast microscopy is indispensable during studying live specimens in their native state, as dying them inevitably leads to their death. This method can be applied for drinking water analysis, parasitic, cytological, hematological, and other research.

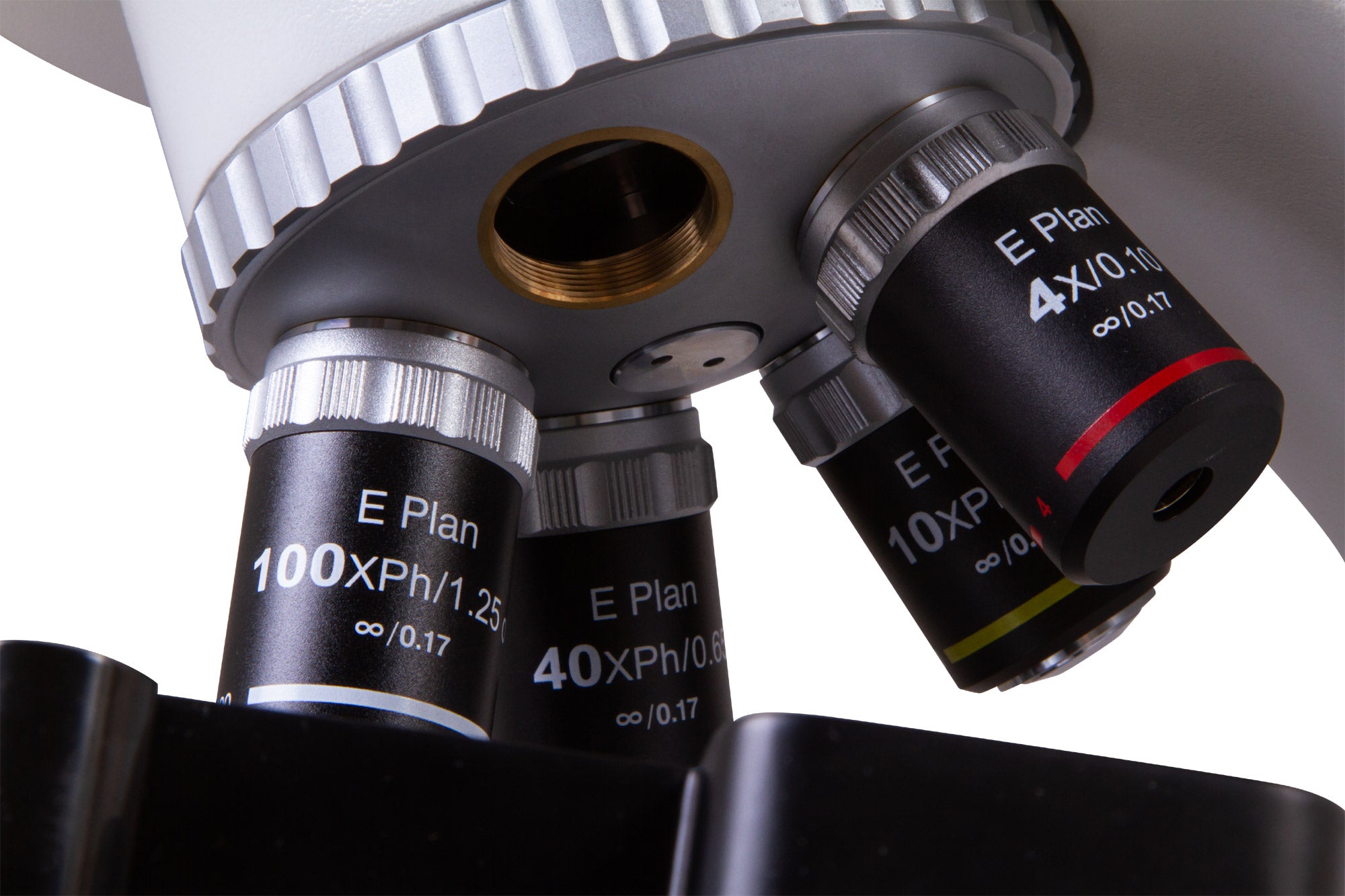

The microscopes in the Levenhuk MED 45 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with a high level of flatness.

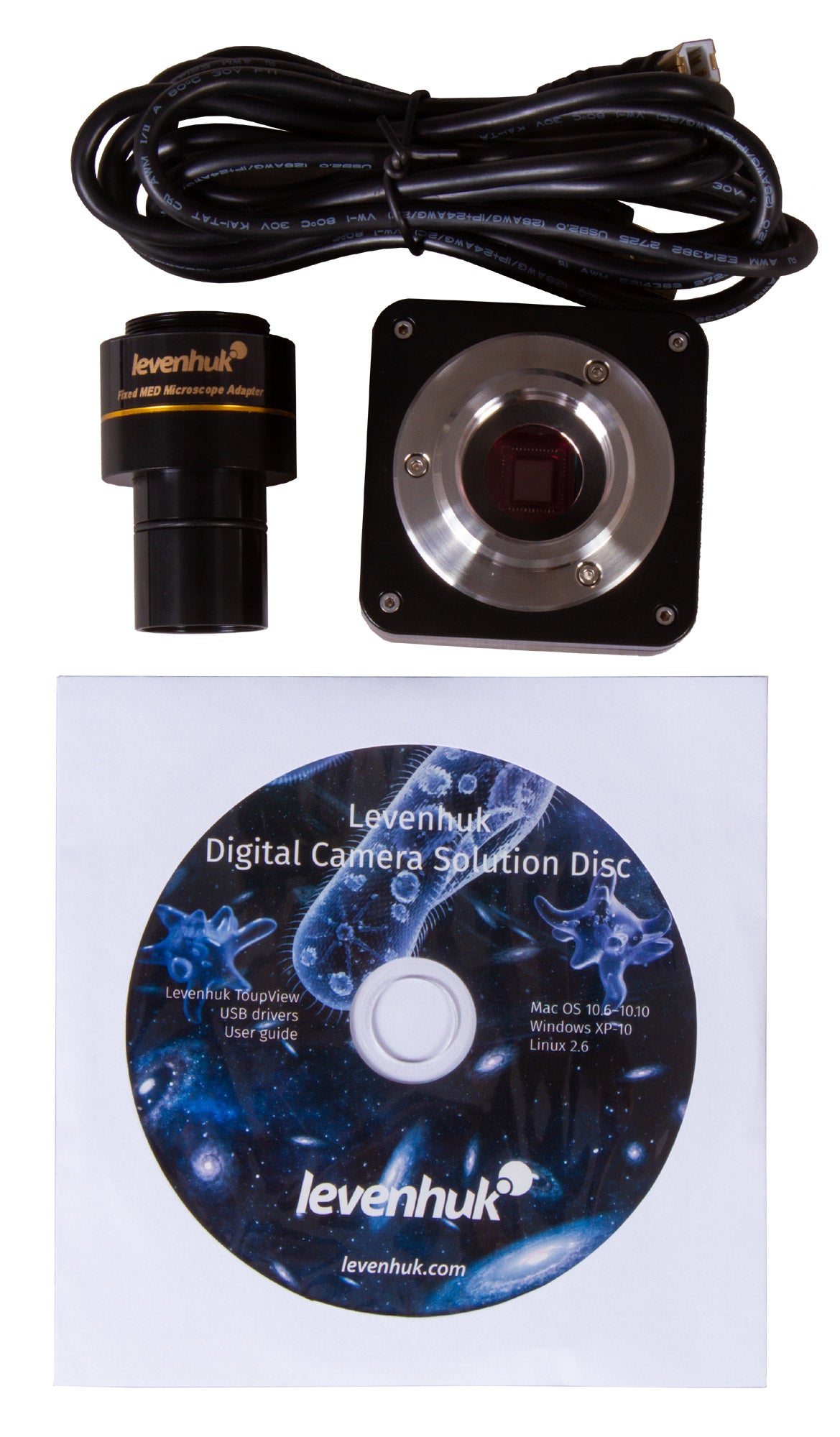

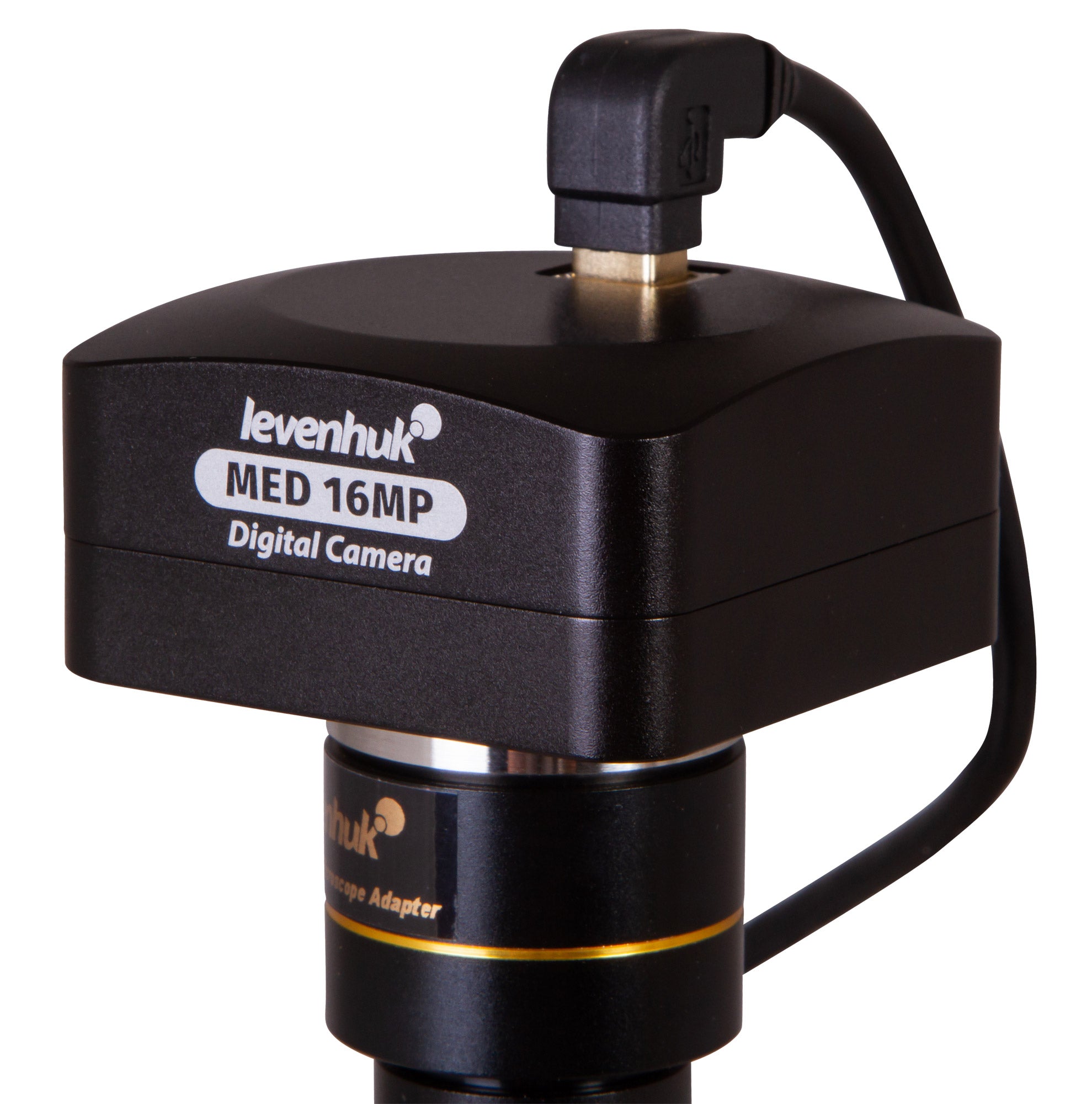

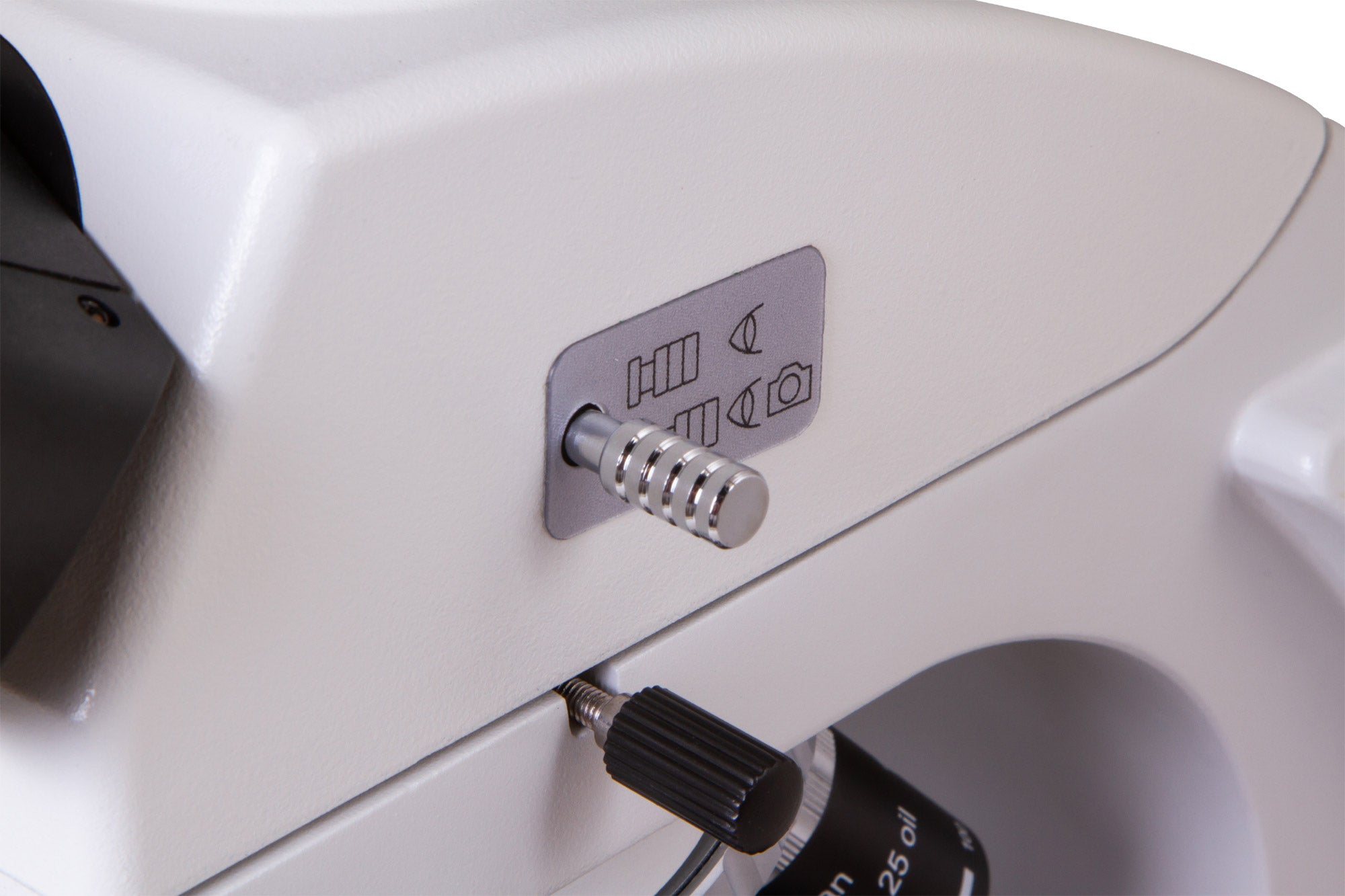

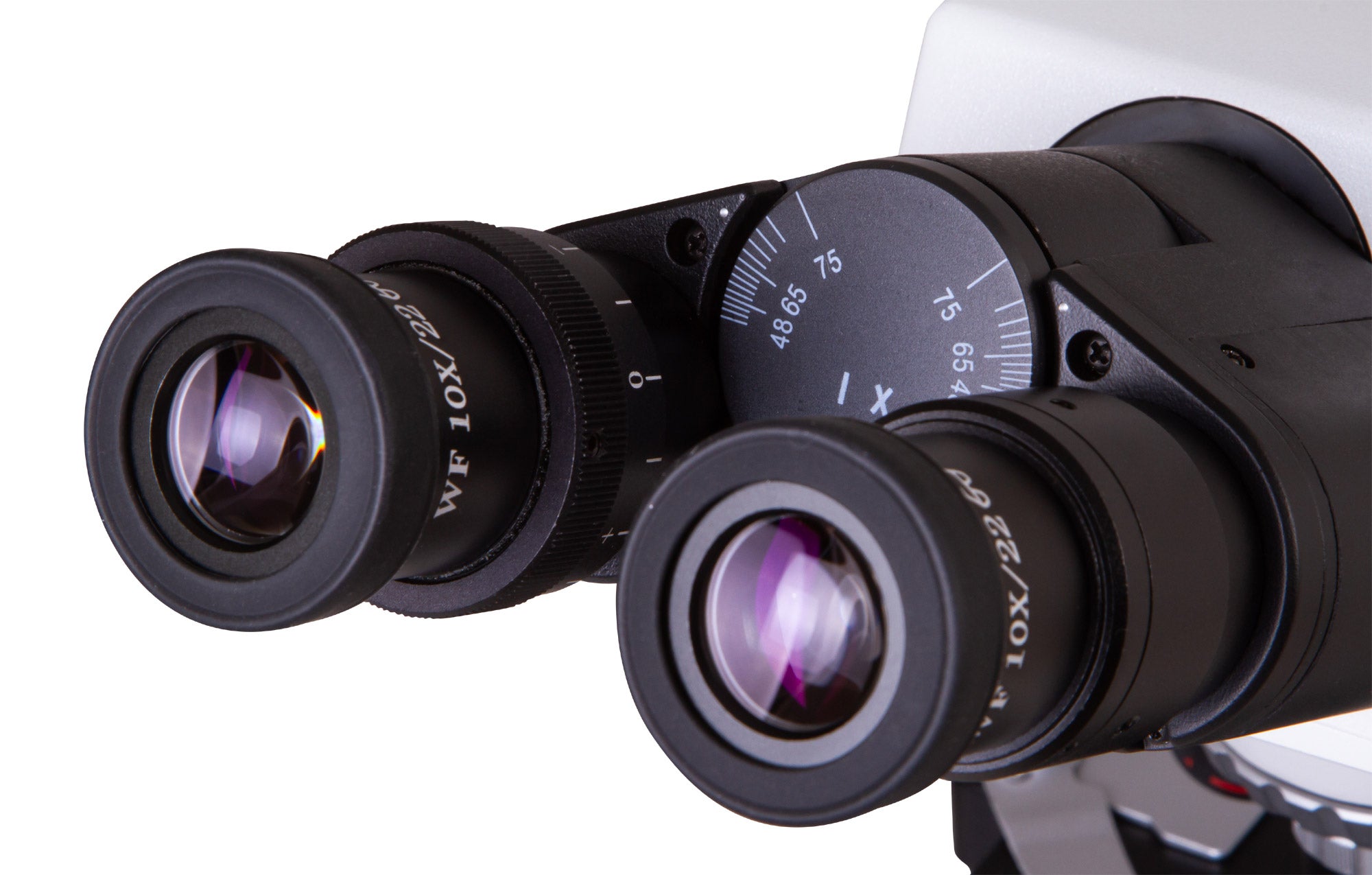

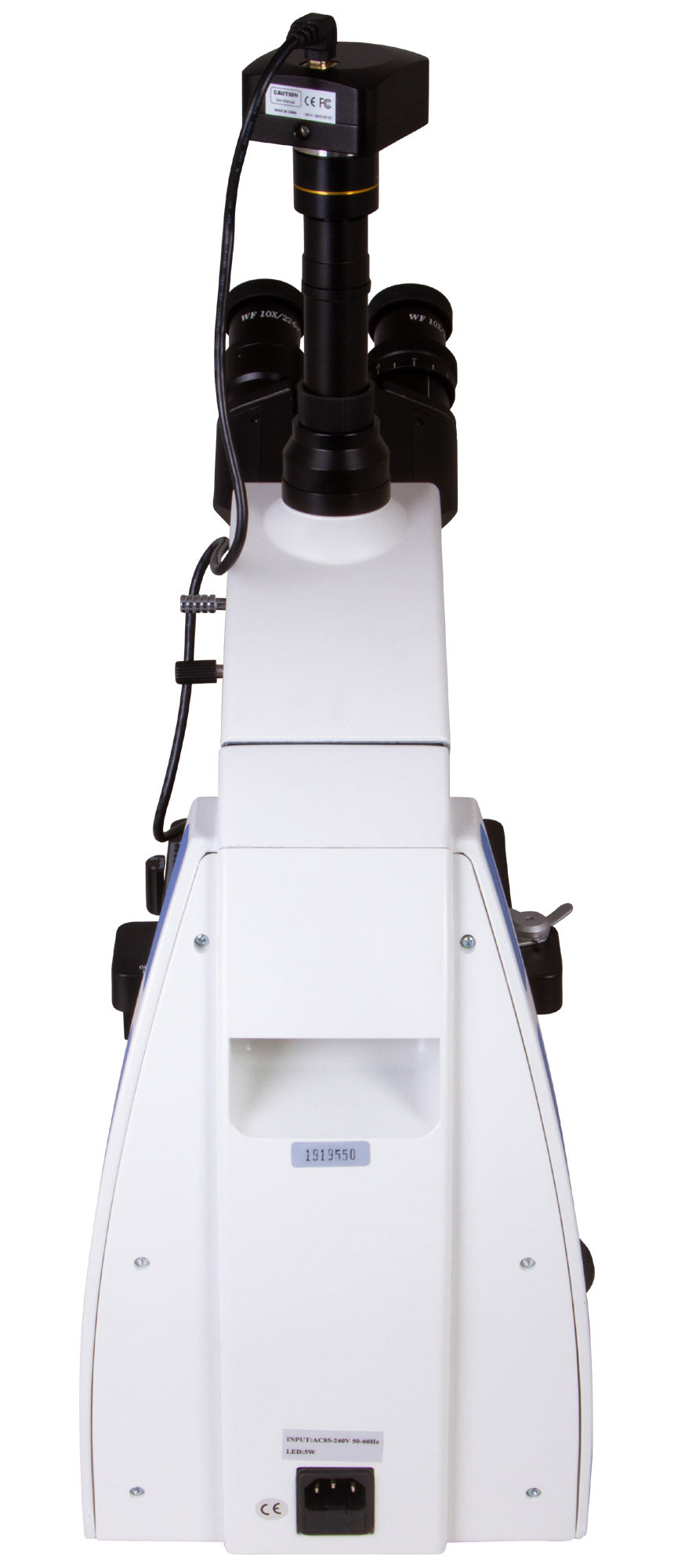

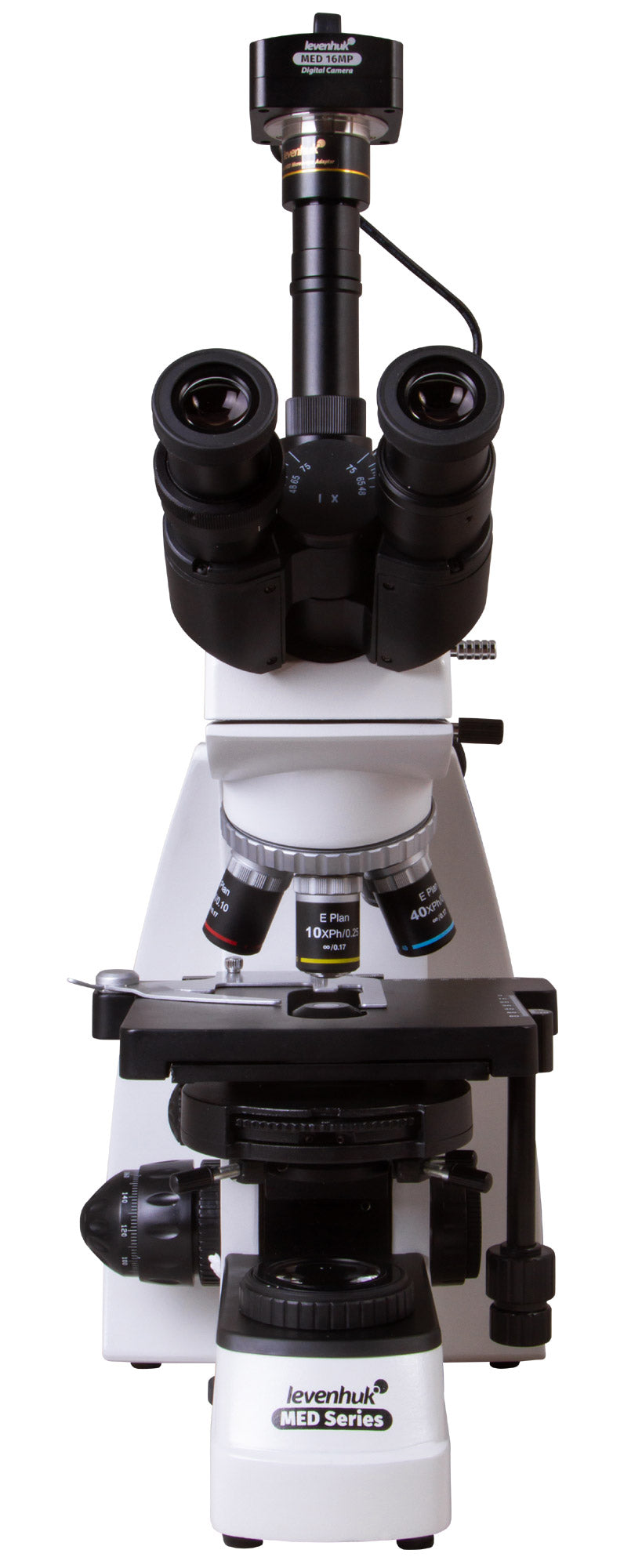

The trinocular head consists of the binocular visual part inclined by 30 degrees and the vertical eyepiece tube where the digital camera is positioned. The kit includes a camera with a 16 MP sensor. It can be used to transmit images from the objective to an external screen as well as to take photos of specimens and videos of studies. A camera transmits an image to a computer screen online. That makes work in a laboratory easier and more practical as well as reduces eyestrain, as there is no necessity to look through the eyepieces. The camera is connected to the PC via a USB cable included in the kit. In addition, image editing software can be installed from the disc. The software allows for adjusting size, image brightness and contrast, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available).

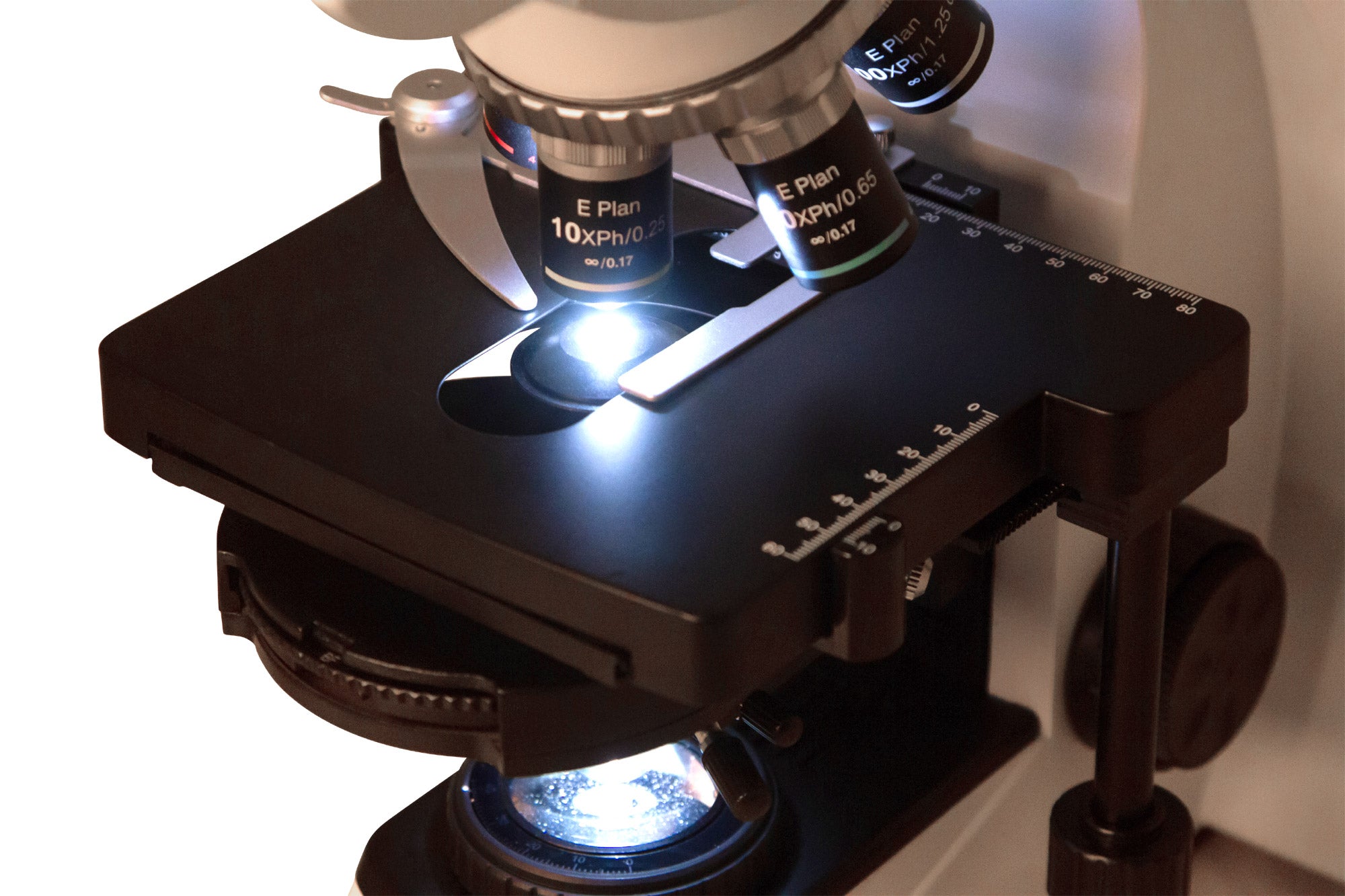

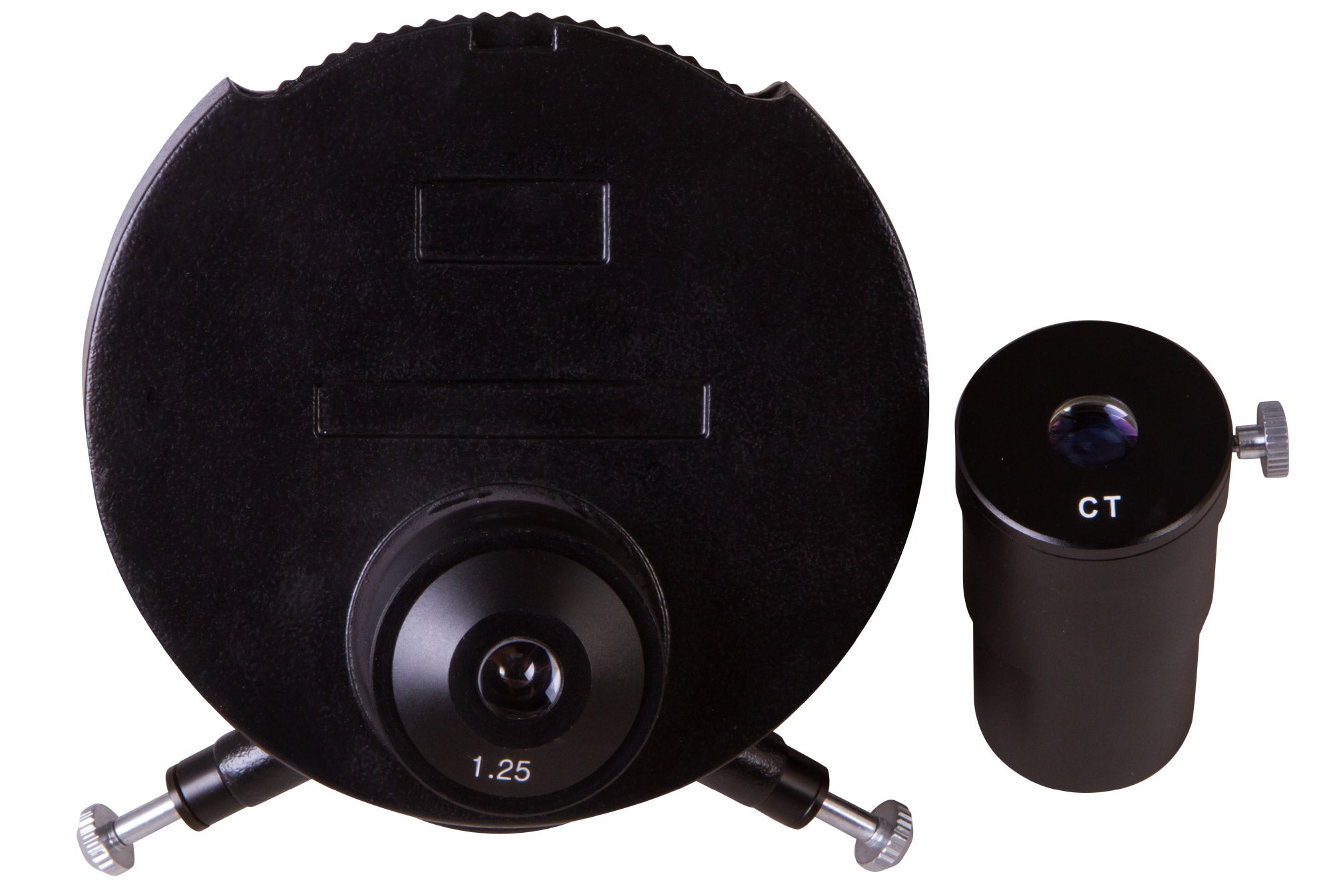

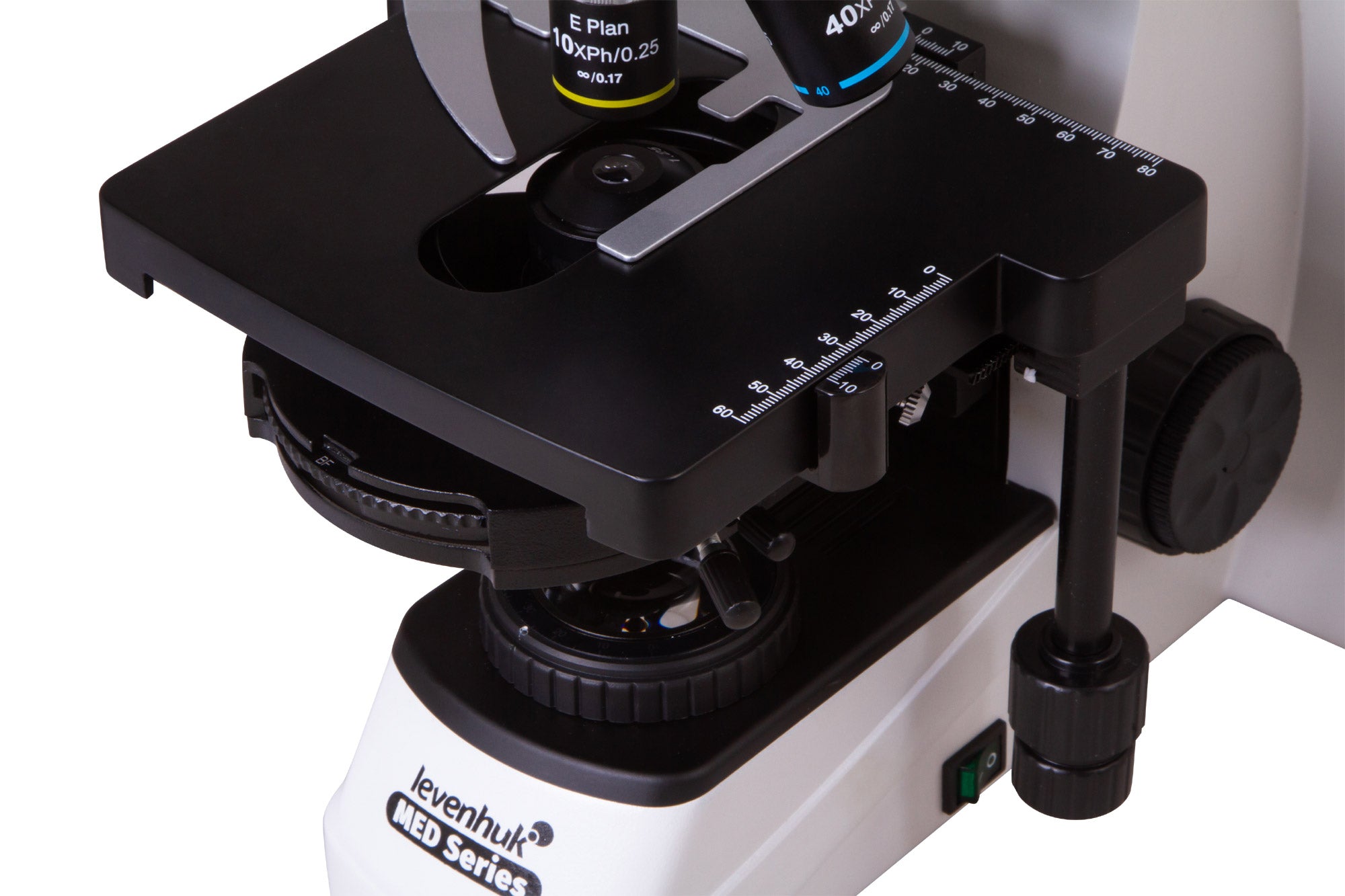

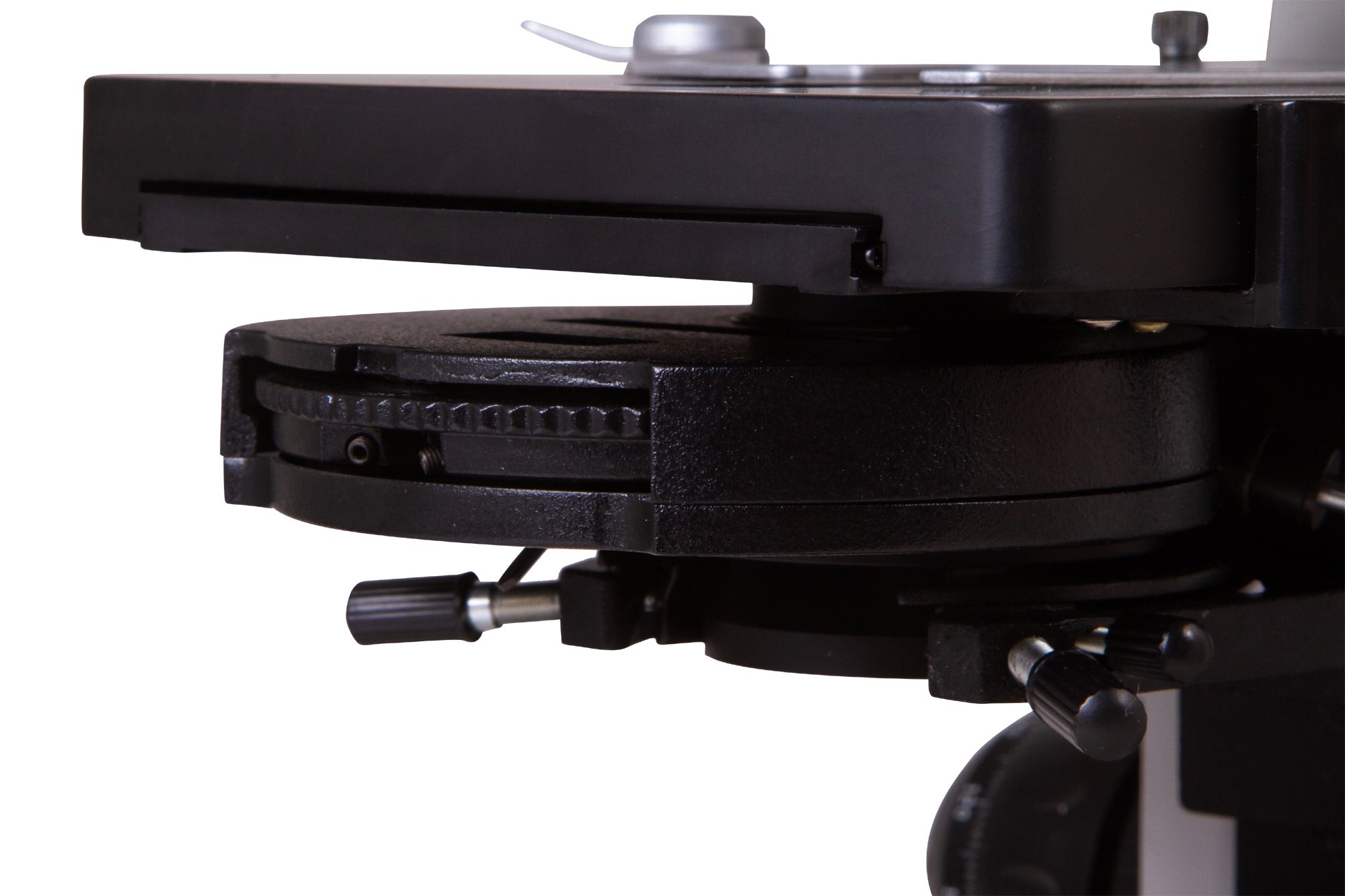

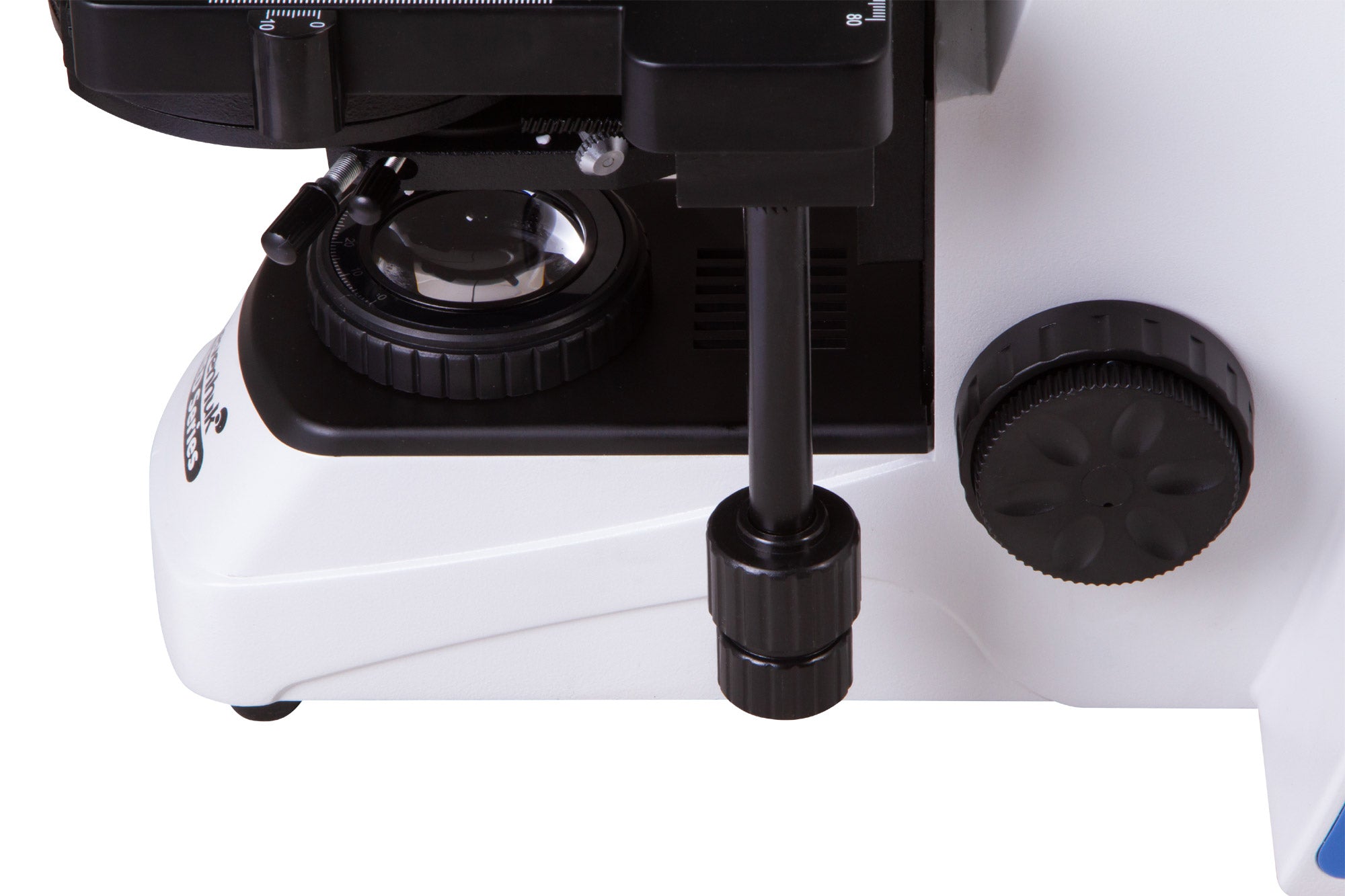

The double-coordinate stage has a mechanical scale that helps to promptly and accurately place specimens under the objective. Coarse and fine focusing is available. Köhler illumination adjustment is available. An LED light is located at the bottom and has a brightness adjustment. The phase contrast condenser can be used for dark field studies by the “dry” method.

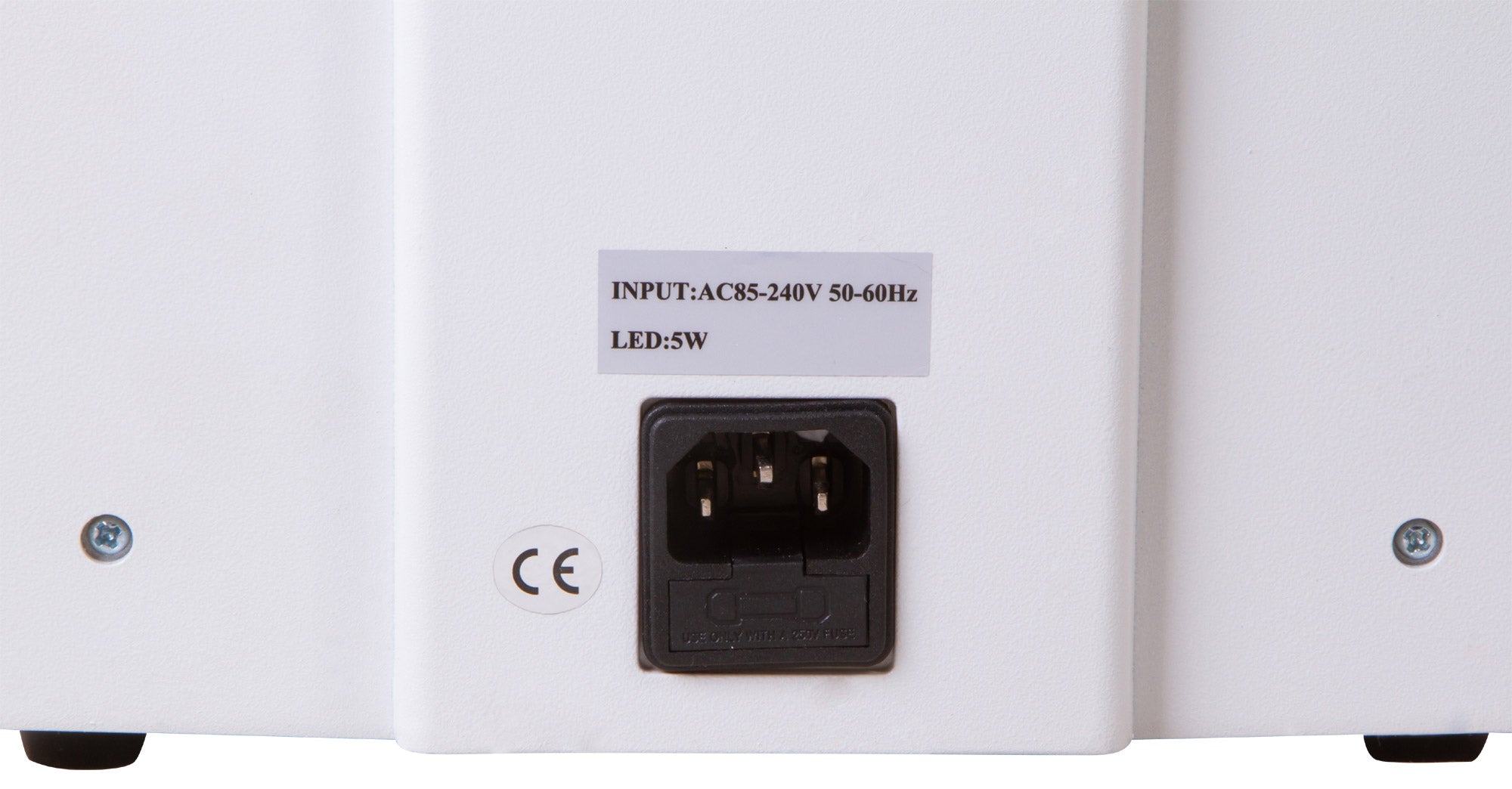

The light is powered by an AC power supply.
Features: Trinocular head, magnification range of 40x to 1000x Infinity-corrected phase contrast plan achromatic optical system Wide-field eyepieces with diopter adjustment Phase contrast condenser with dark field Lower LED light with brightness adjustment Köhler illumination is available 16MP digital camera is included

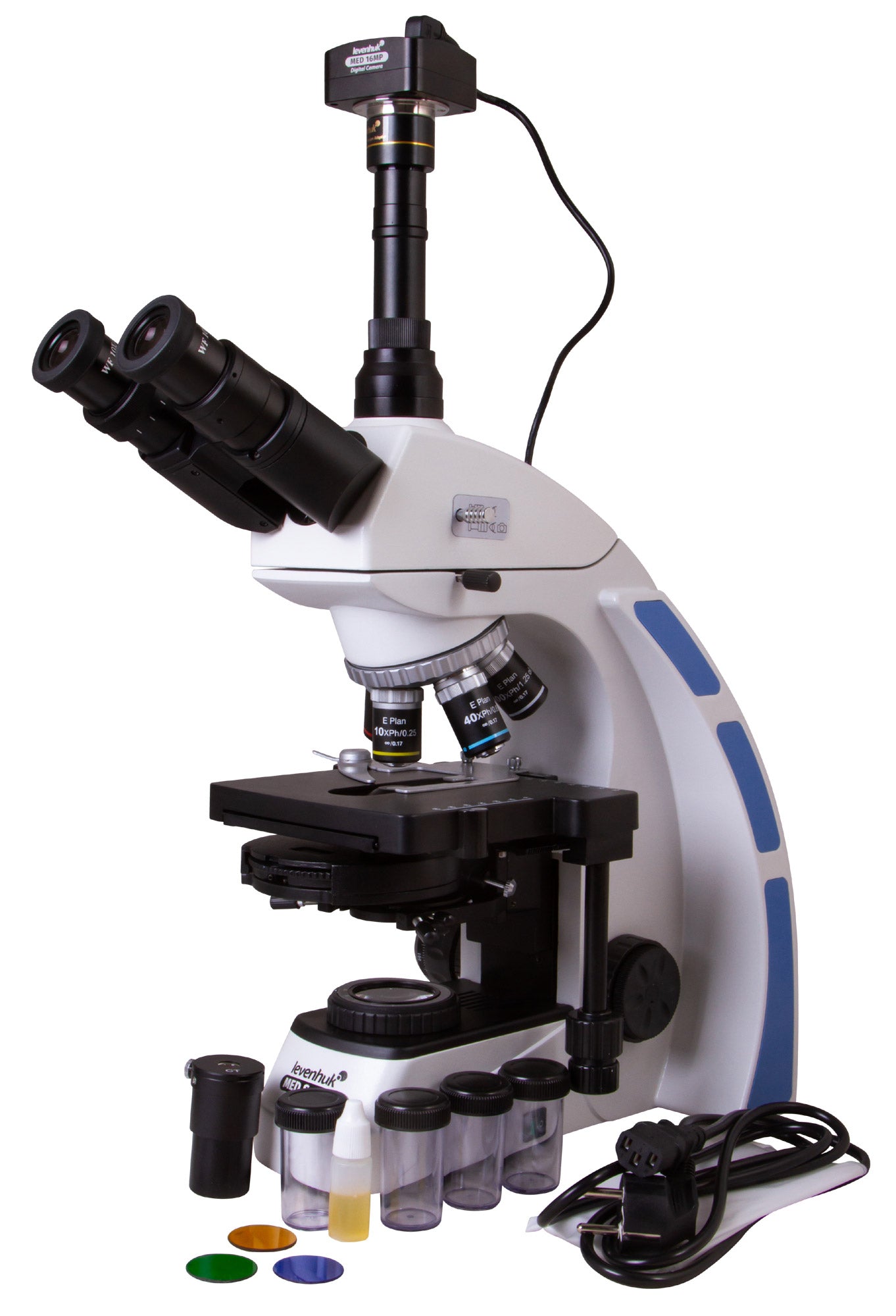

The kit includes: Microscope base with a stand 360° rotatable trinocular head Infinity-corrected phase contrast plan achromatic objective lenses: 4x, 10x, 40xs, 100xs (oil) with anti-fungal coating Wide-field eyepieces: WF10x/22mm with anti-fungal coating (2 pcs) Phase contrast device (dark field) Filters: blue, green, yellow Bottle of immersion oil Fuse (2 pcs) Power cord for microscope Dust cover 16MP digital camera Camera adapter Camera mount USB cable for connecting and charging the camera CD with software and drivers User manual and lifetime warranty
