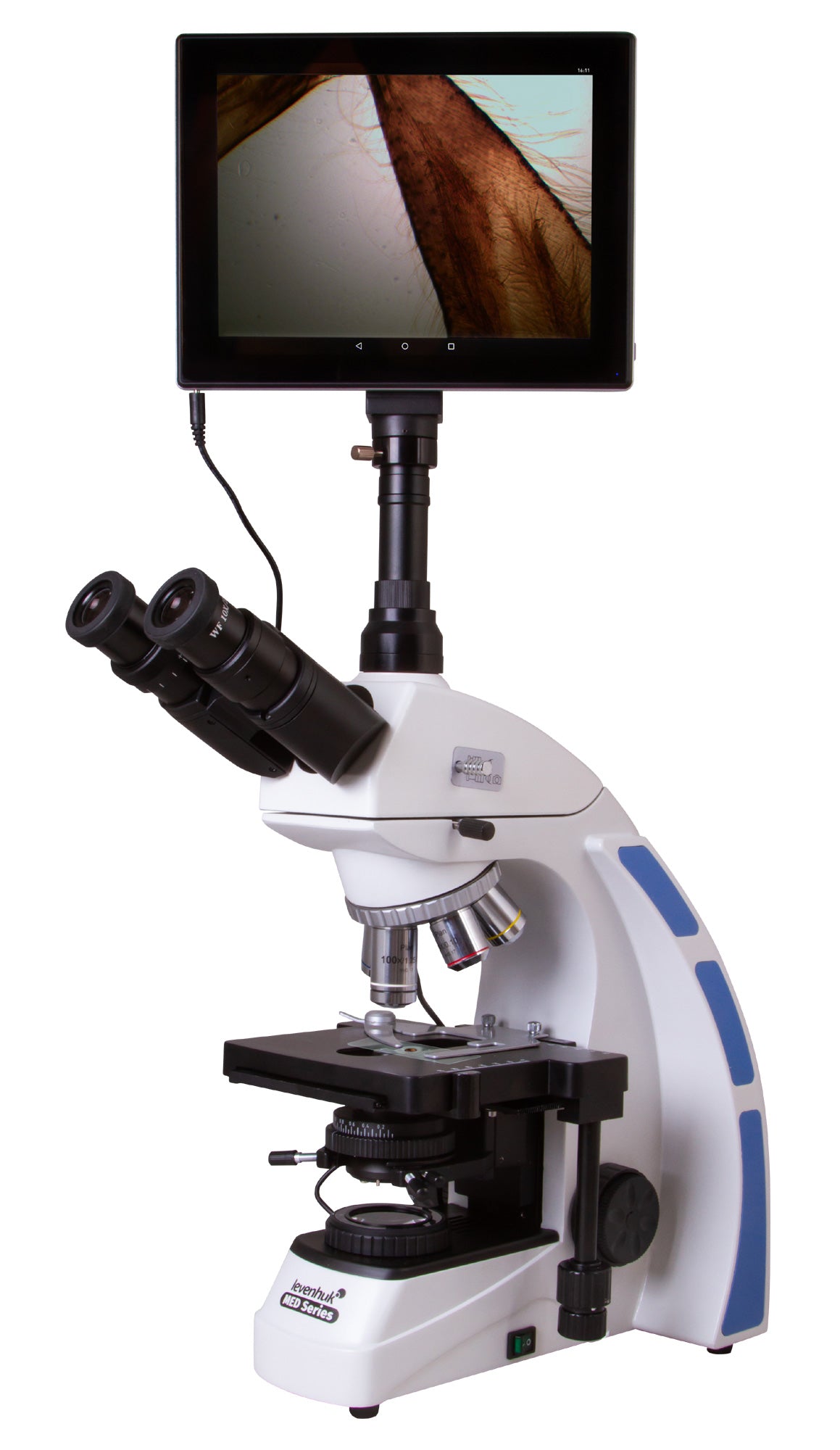

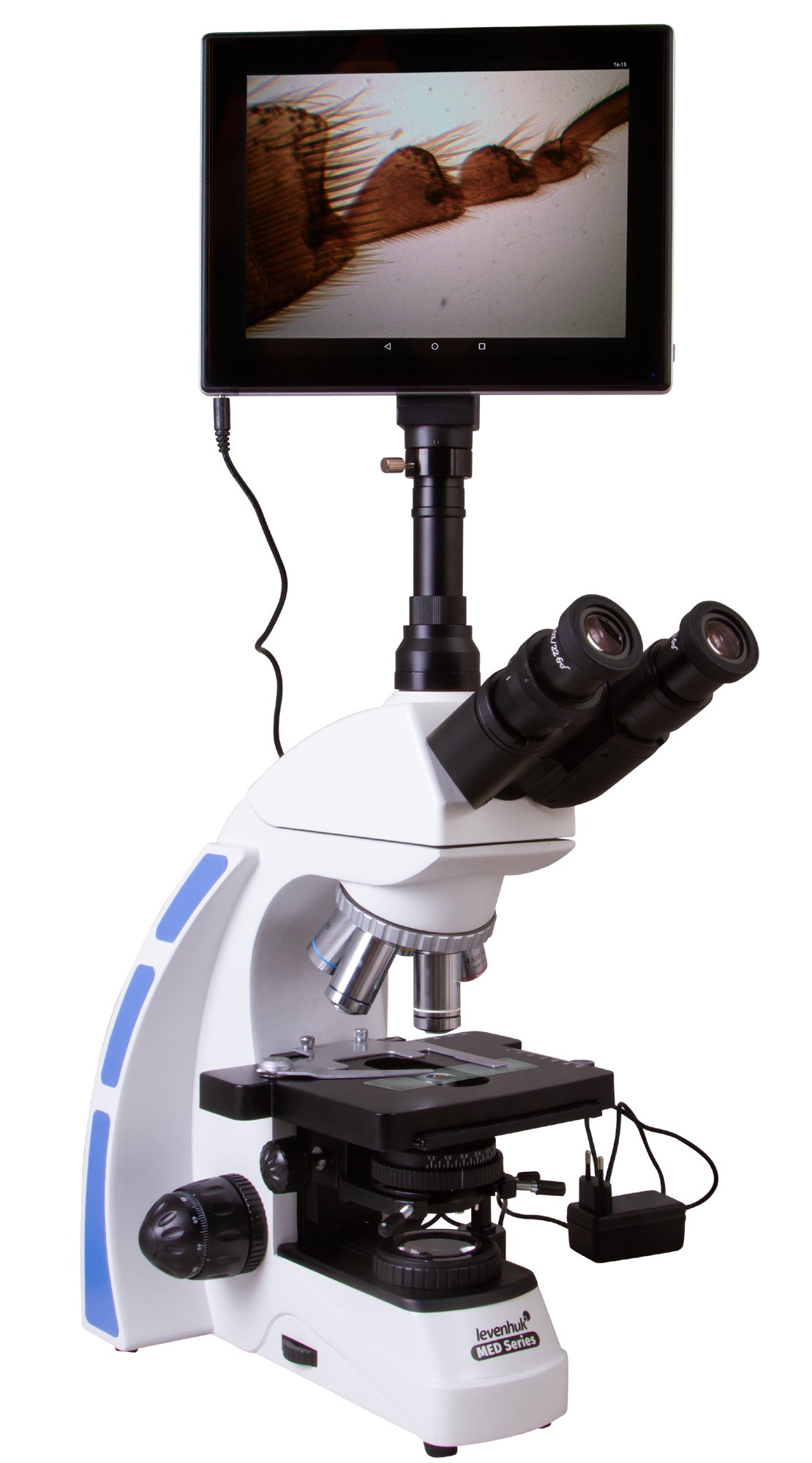

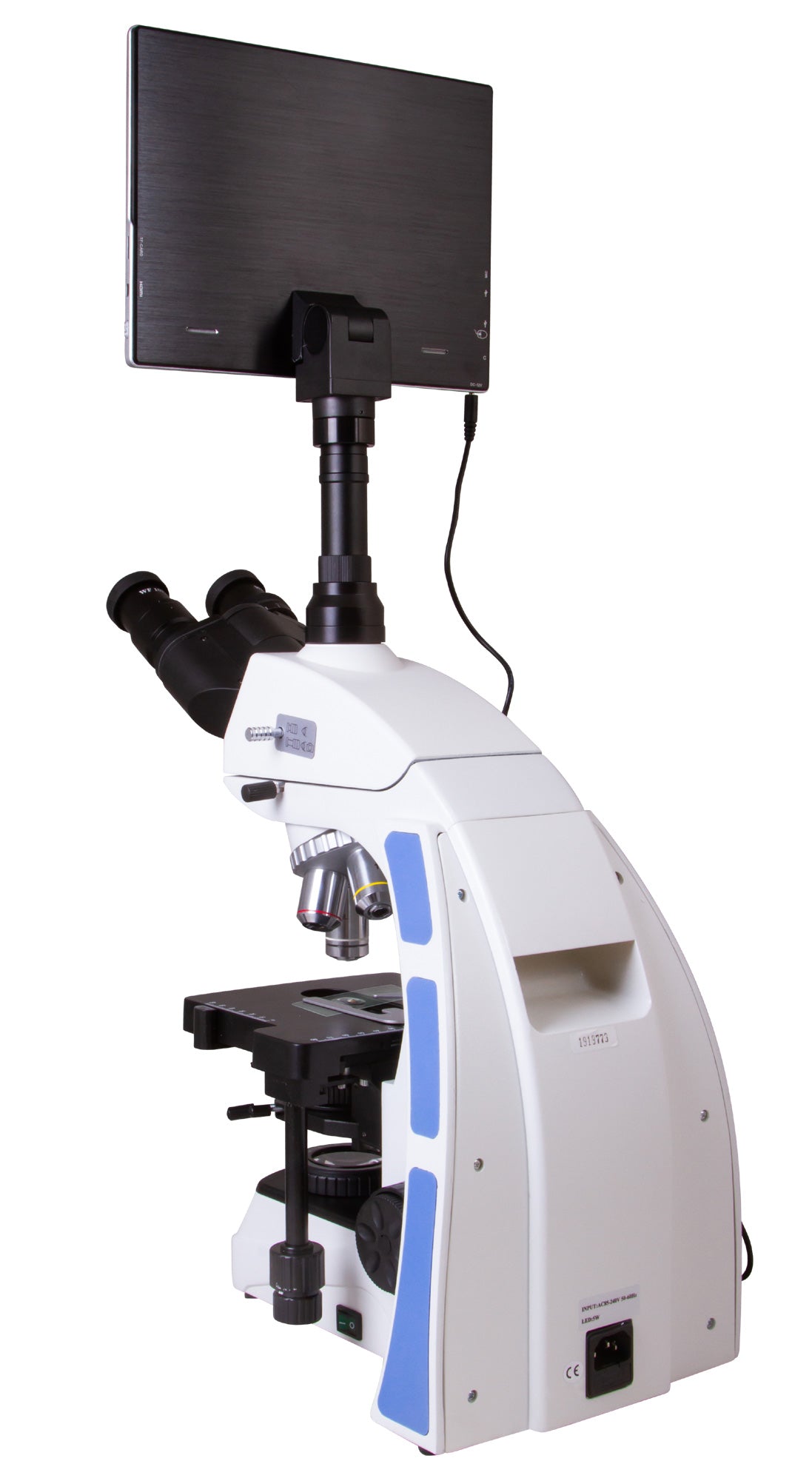

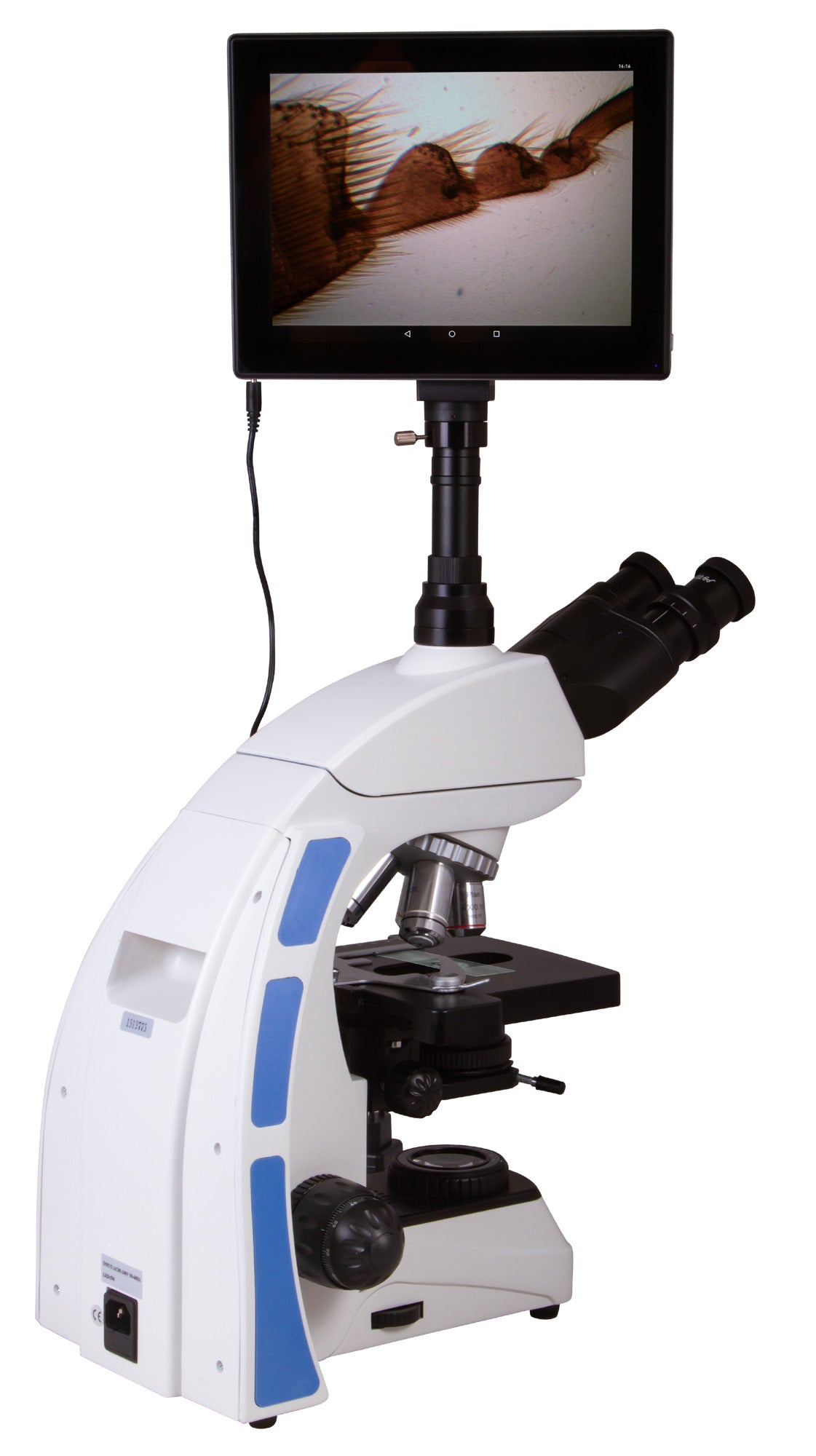

Levenhuk MED D40T LCD Digital Trinocular Microscope
Magnification: 40–1000x. Trinocular head, 5MP digital camera with an LCD screen, infinity-corrected semi-plan achromatic objective lenses, an Abbe condenser with an iris diaphragm and a filter holder
The Levenhuk MED D40T LCD digital microscope features not only the infinity-corrected pan achromatic optical system and Köhler illumination, but also an LCD digital camera include in the kit. The microscope is created for professionals; it can be used in laboratories, medical centers, and academic institutions for training students. It is suitable both for careful research and for presentations, workshops, and lectures.
Plan achromatic infinity-corrected optics
The microscopes in the Levenhuk MED 40 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with a high level of flatness.
A rotatable head with a beam splitter

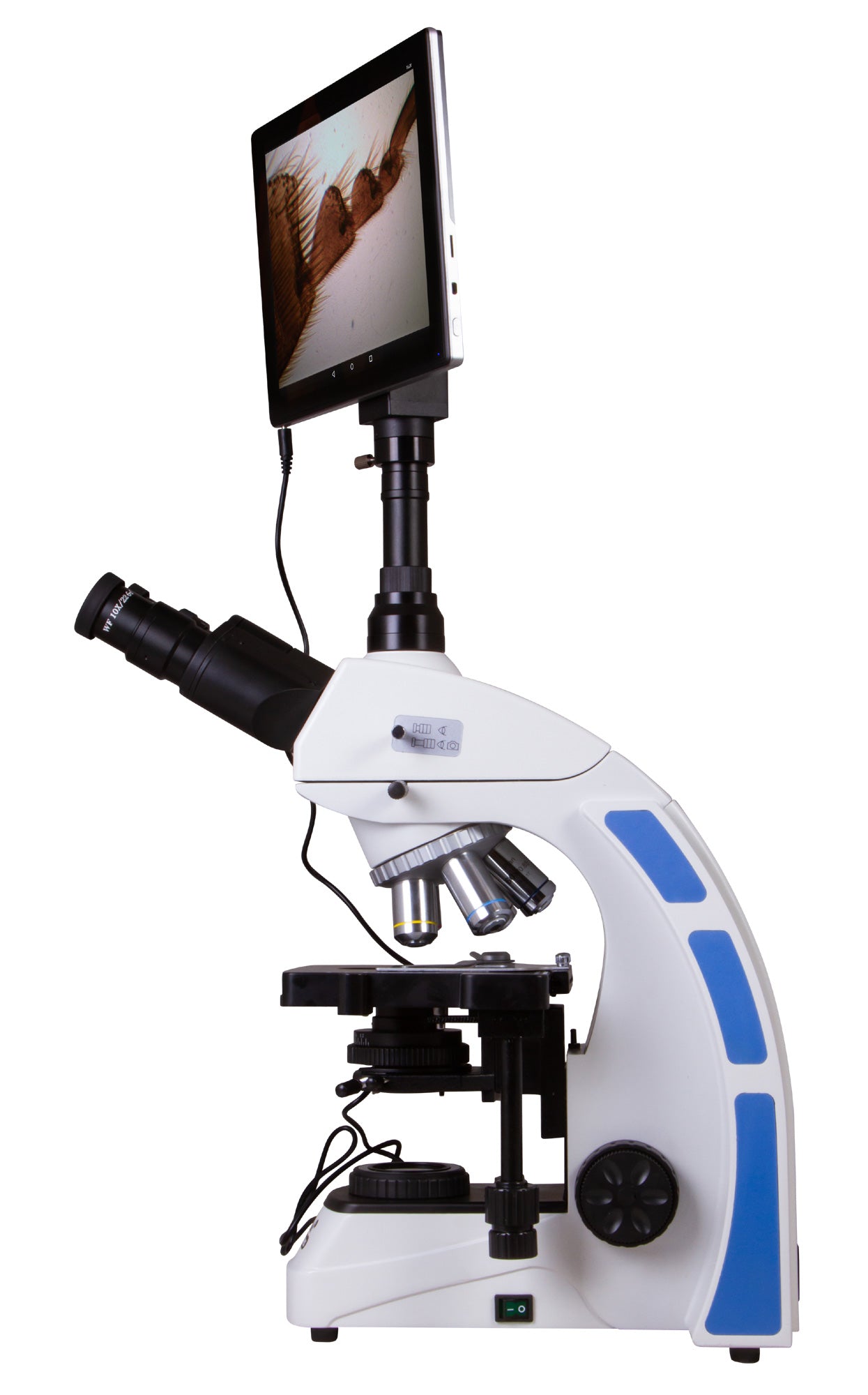

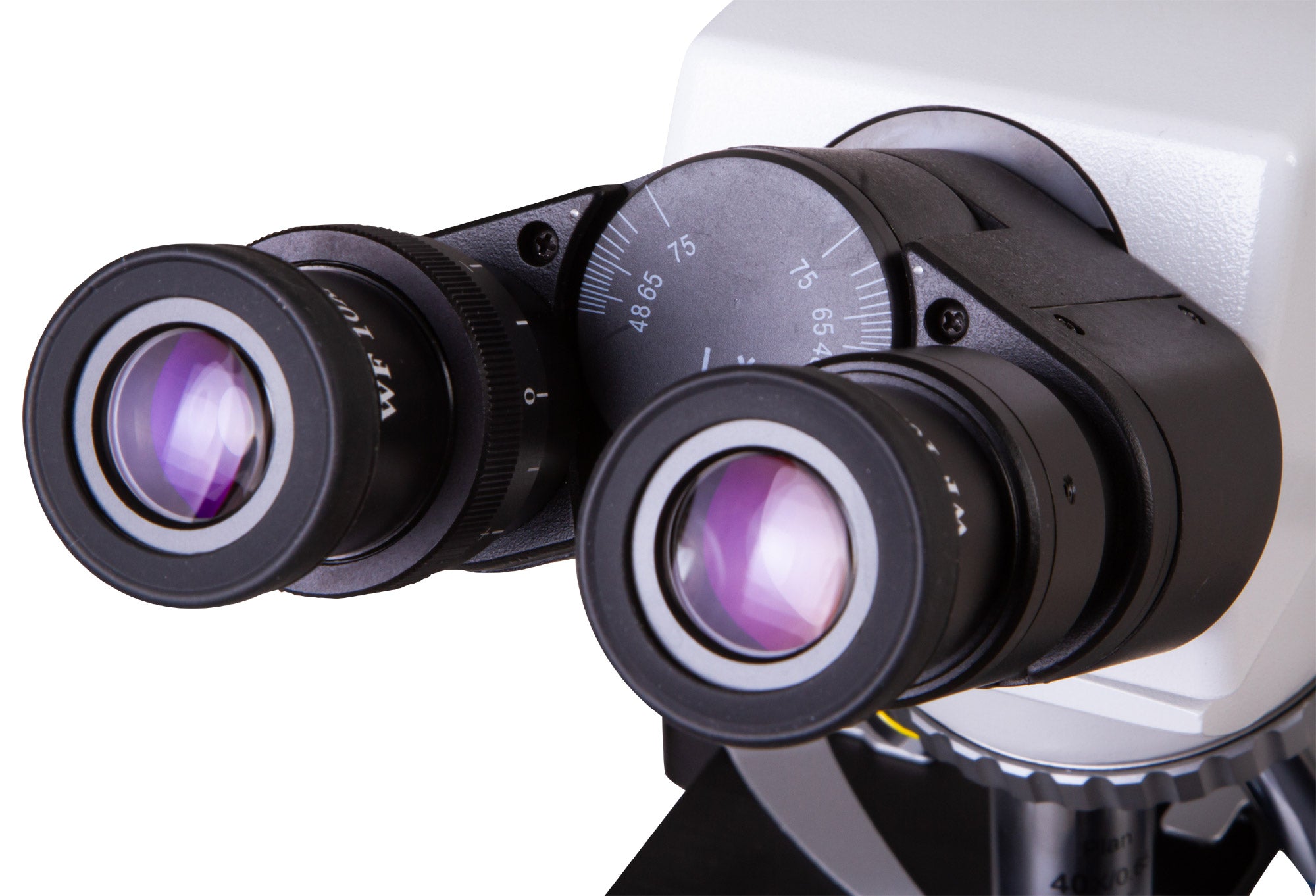

The trinocular head can be rotated 360°, so the microscope is convenient for group studies. The binocular visual part is inclined by 30°, whereas the eyepiece tube for a digital camera is vertical, there is a beam splitter.
A digital camera with a sensor LCD screen

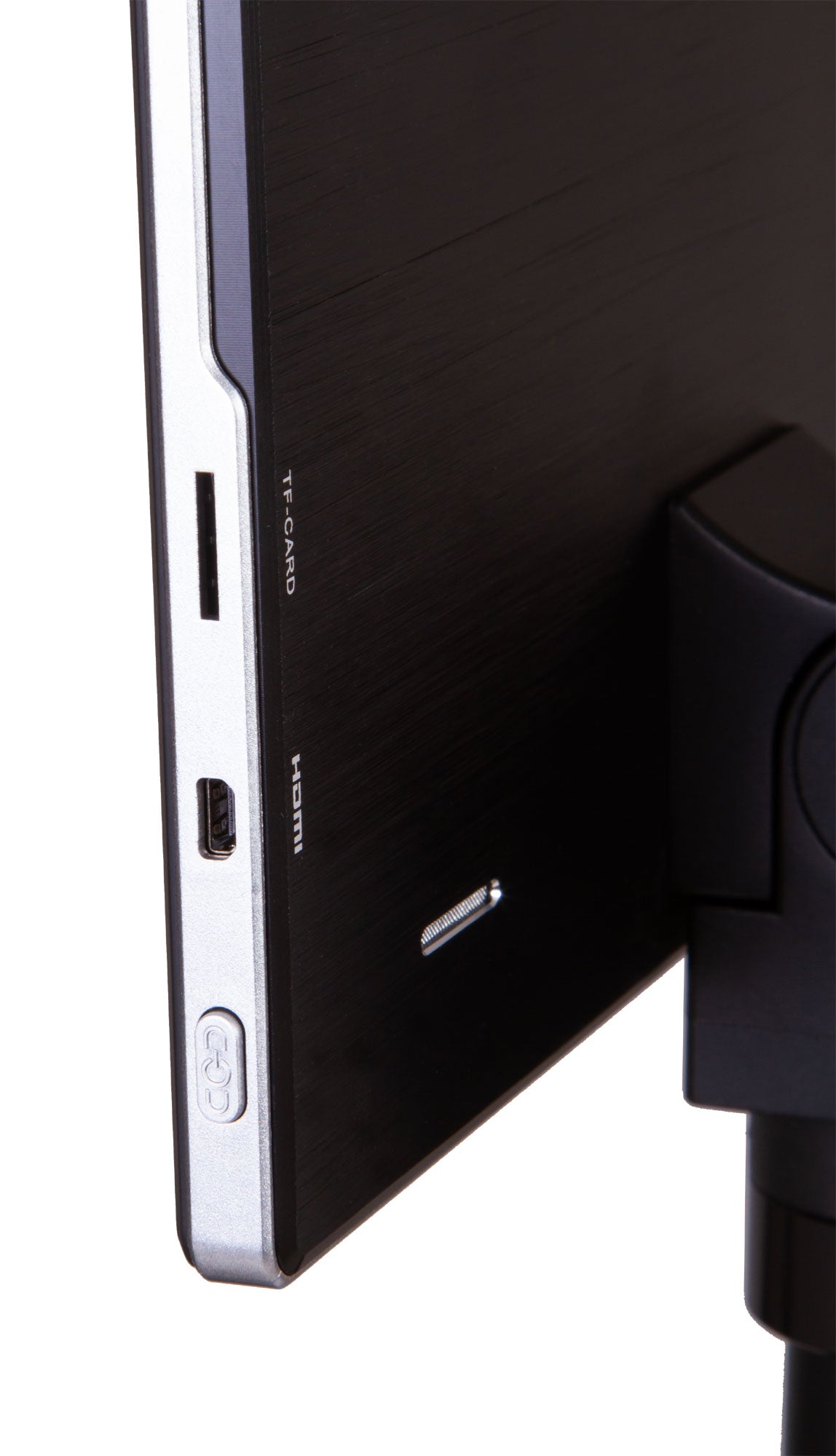

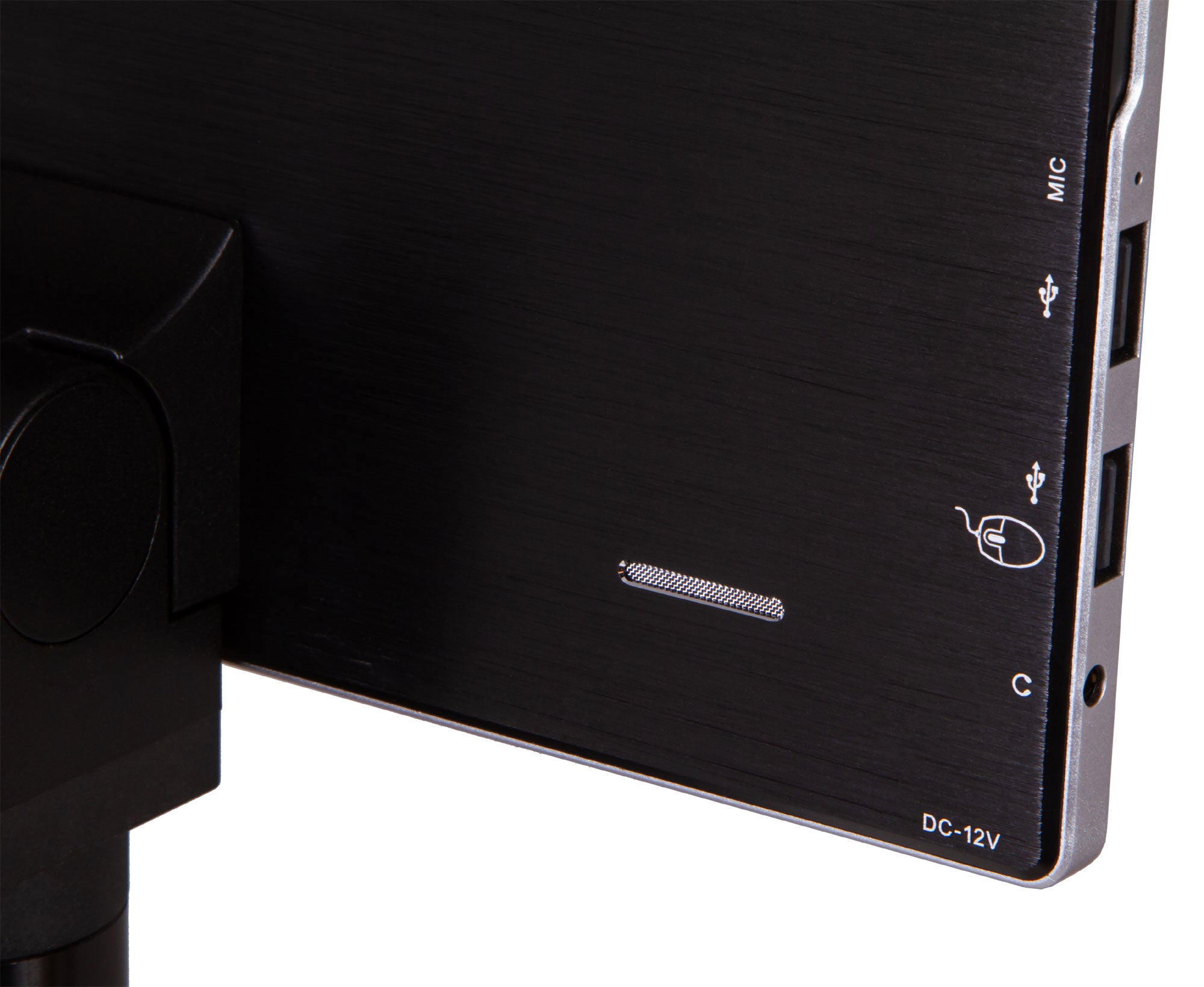

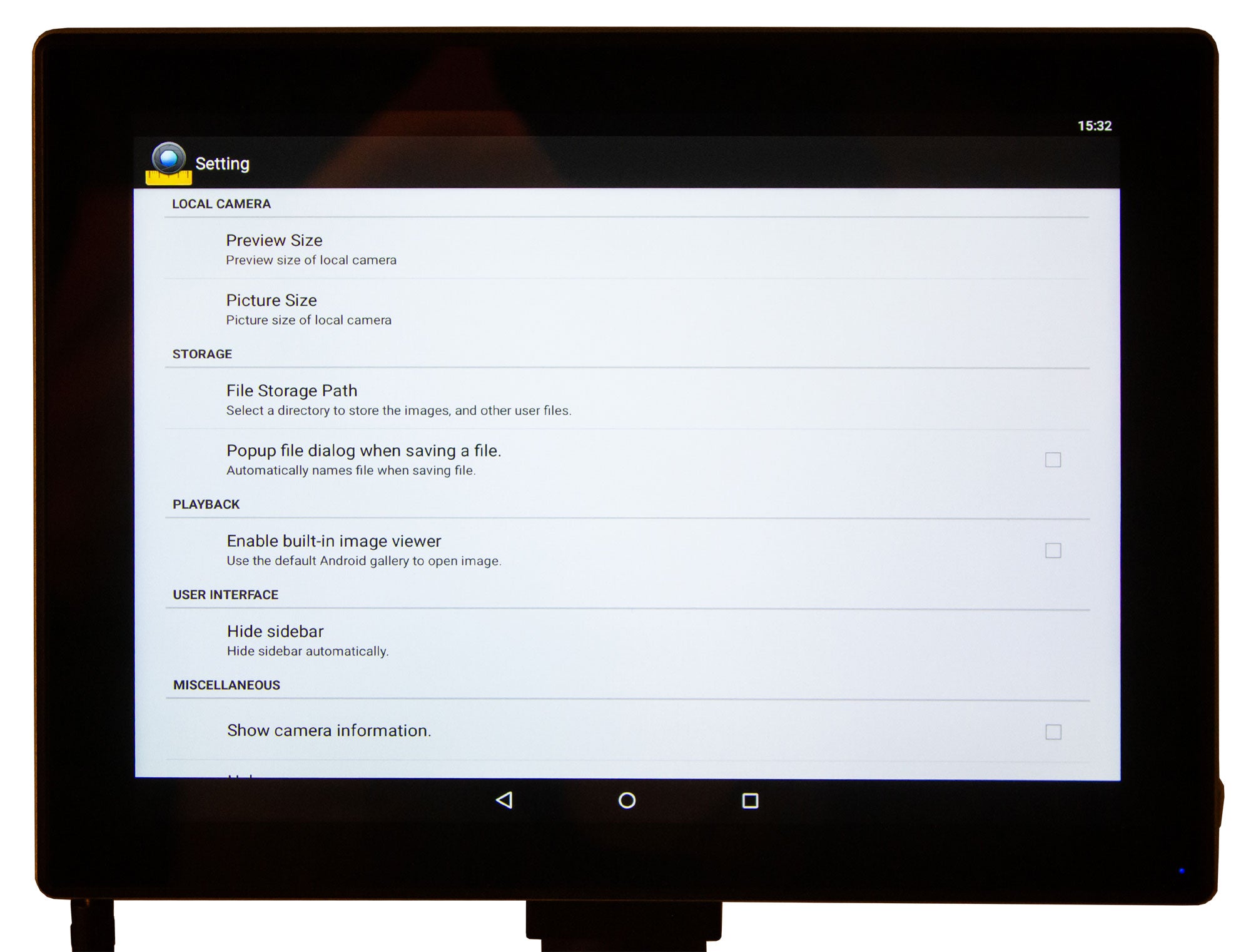

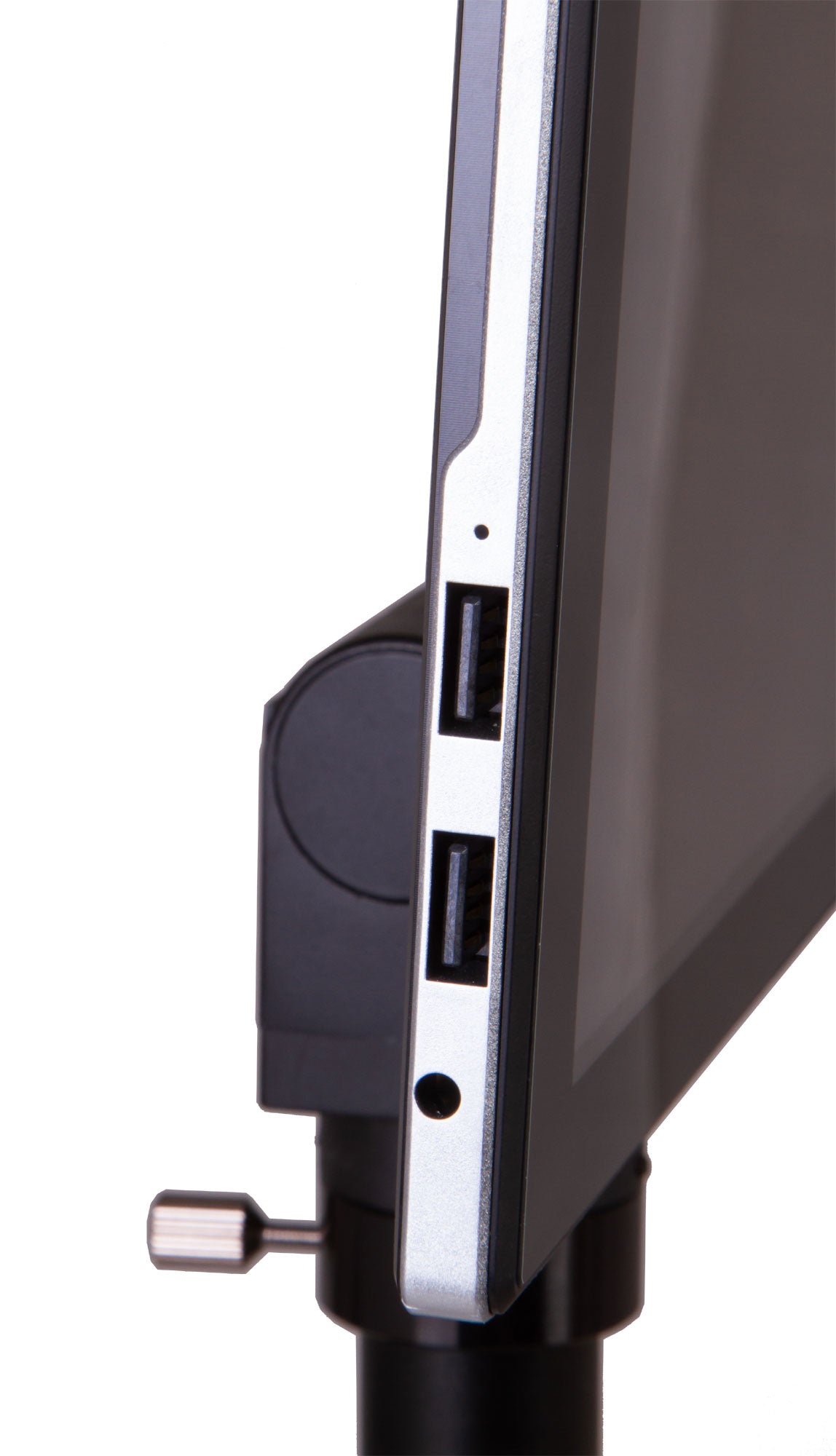

The kit includes a 5MP sensor LCD camera. You do not have to connect it to a PC or install any additional software. The camera displays the image on the built-in screen online, as there is no necessity to look through the eyepieces. That makes work in a laboratory easier and more practical and also reduces the eyestrain and tension in the rotator cuff. The camera can be coupled with an external screen or a TV set, can be connected to additional equipment (earphones, keyboard, computer mouse, etc.). Memory cards and other data storage devices are supported. The camera allows for taking high-resolution photos and videos. The software allows for adjusting size, image brightness and contrast, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available). In addition, the program allows for carrying out a particle analysis.
Convenient work with microscope slides

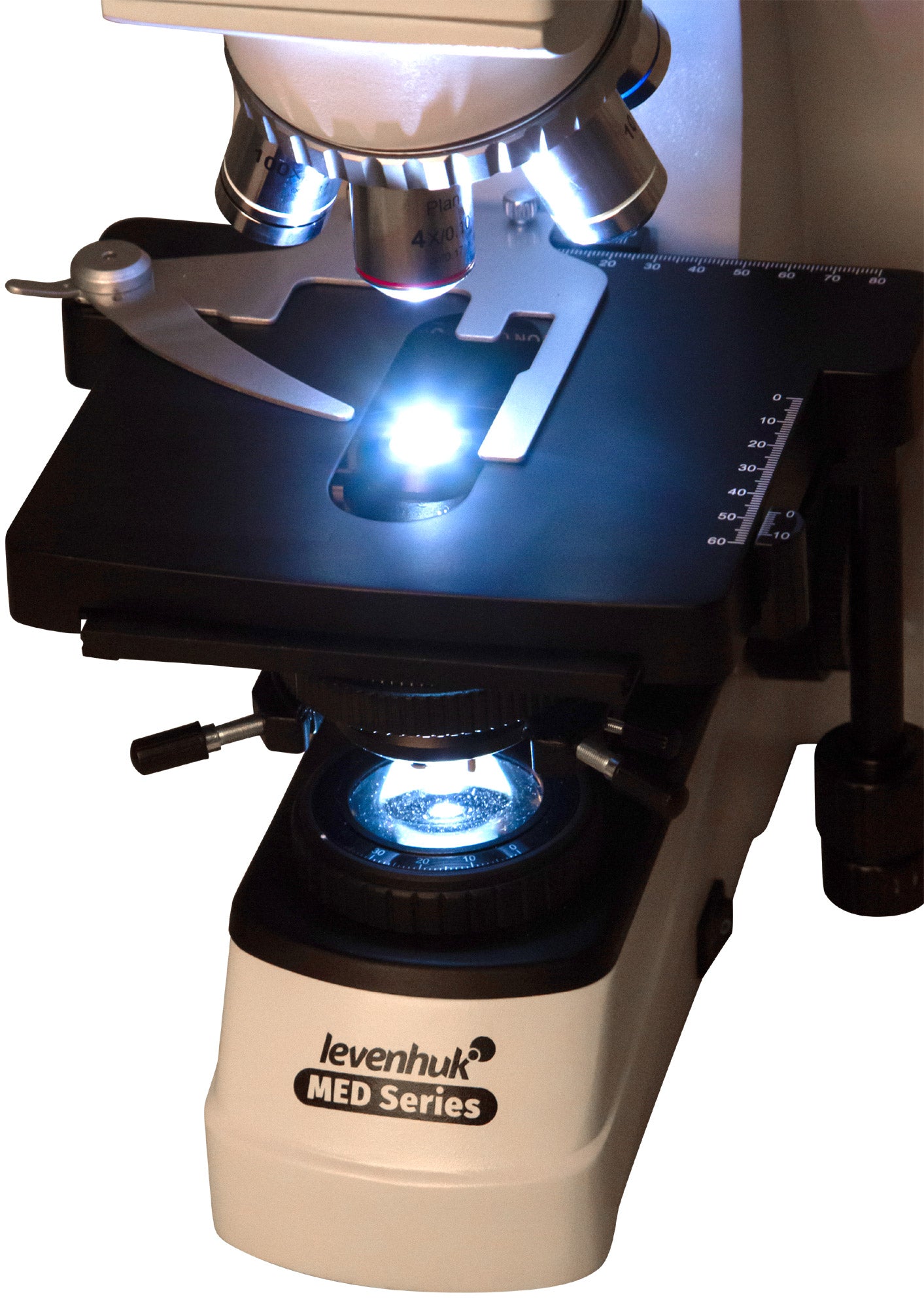

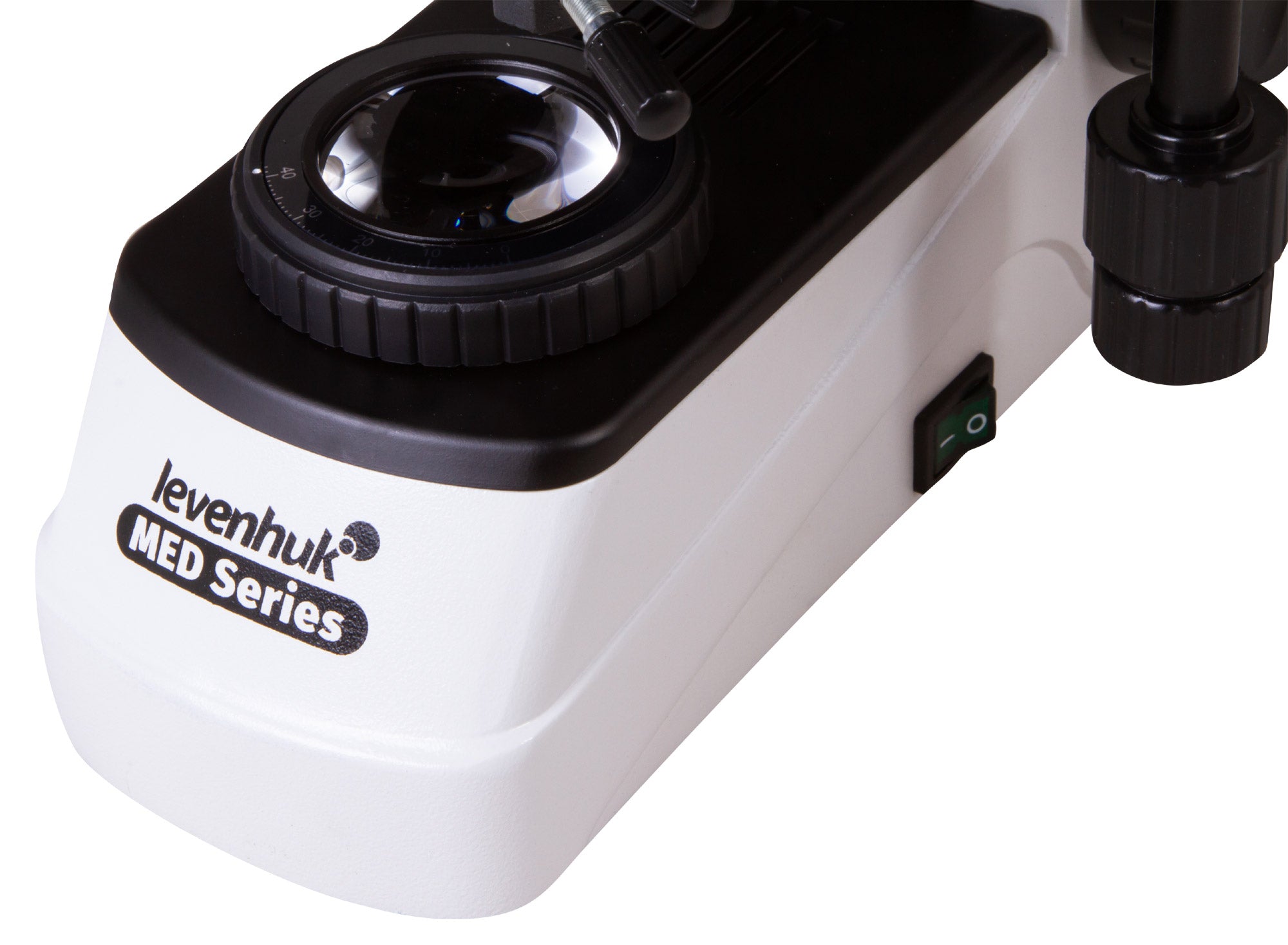

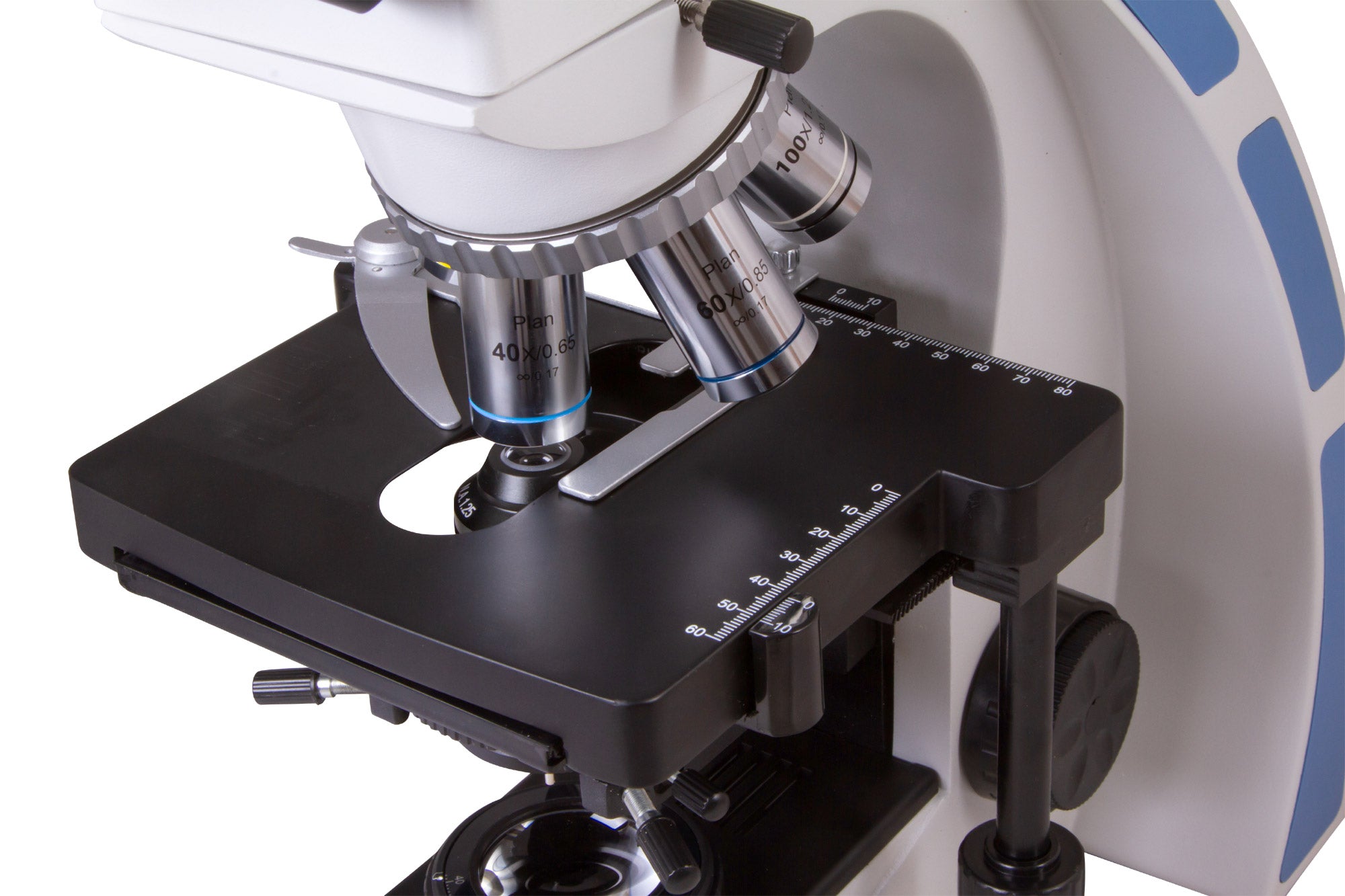

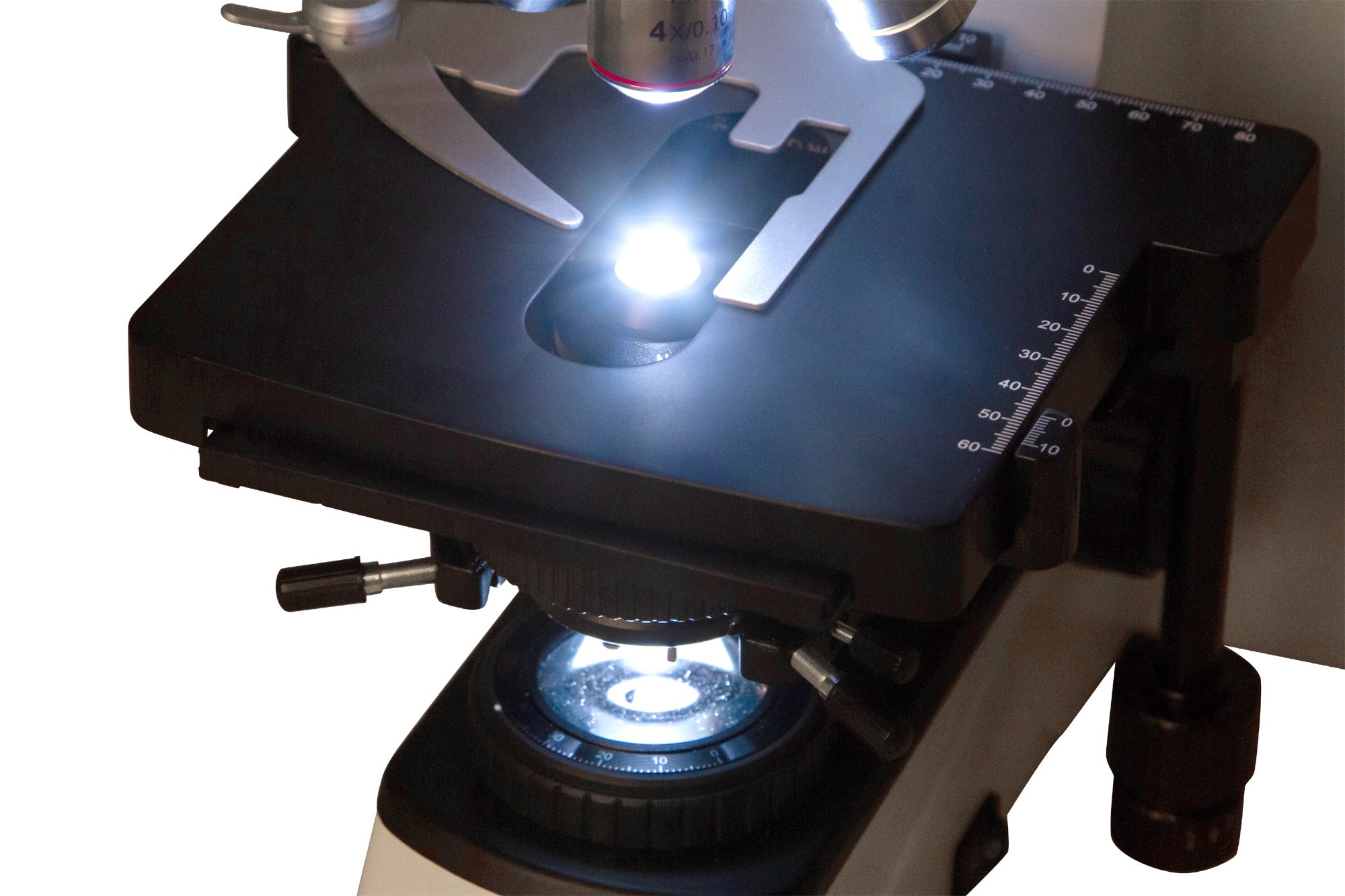

The double-coordinate stage is equipped with a mechanical scale. The lighting system is placed below; it includes a bright LED and an Abbe condenser with an iris diaphragm. There is a filter holder available. The light brightness is adjustable.

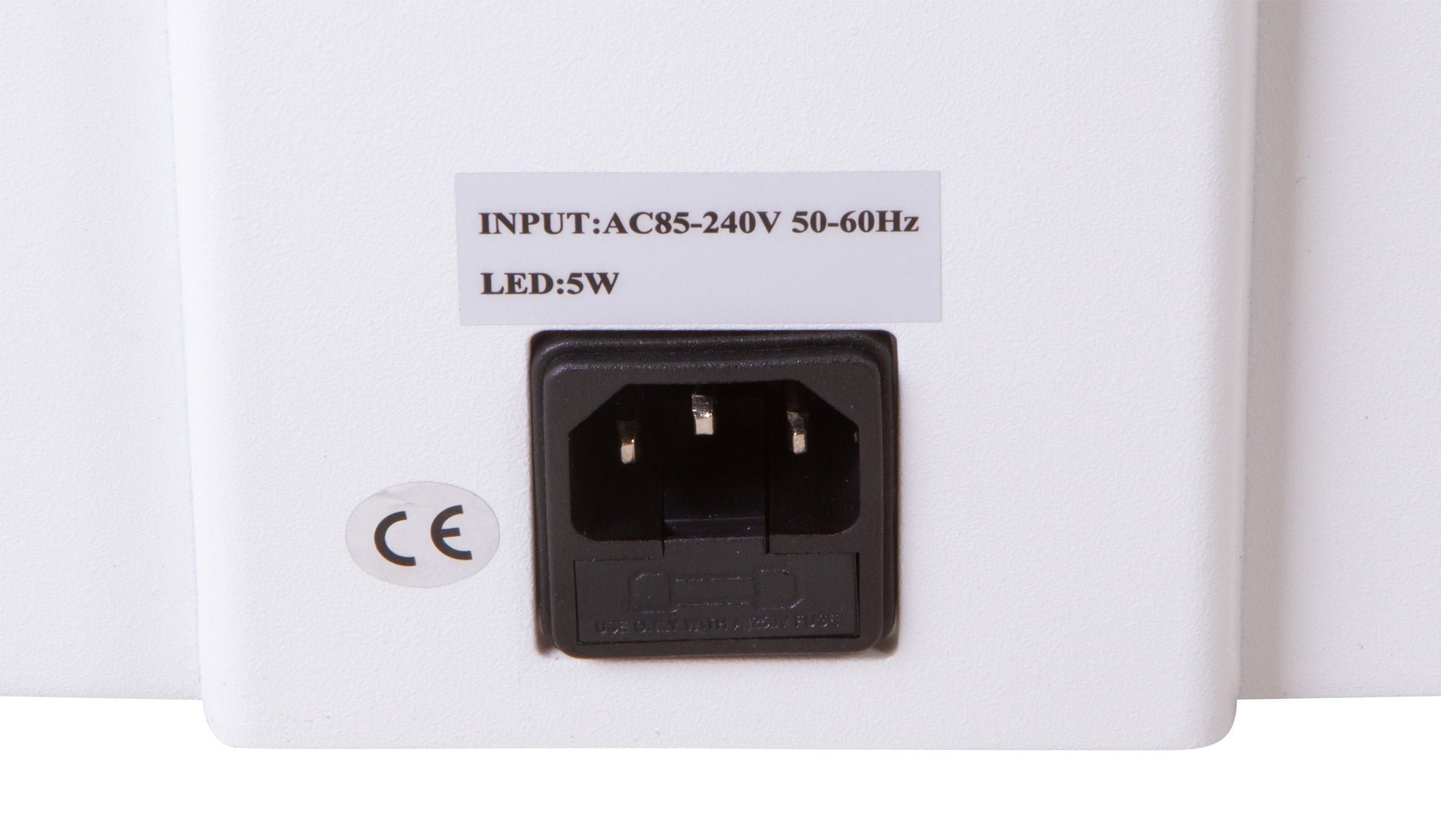

Illumination is powered by an AC power supply.
Features:
Infinity-corrected plan achromatic optics
Trinocular head with a beam splitter, magnification range of 40x to 1000x
LED light with brightness adjustment
Köhler illumination is available
Powered by AC power supply, light brightness adjustment
The kit includes a 5MP digital camera with an Android-based LCD screen
The kit includes:
Microscope base with a stand
360° rotatable trinocular head
Infinity-corrected plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) with anti-fungal coating
Wide-field eyepieces: WF10x/22mm with anti-fungal coating (2 pcs)

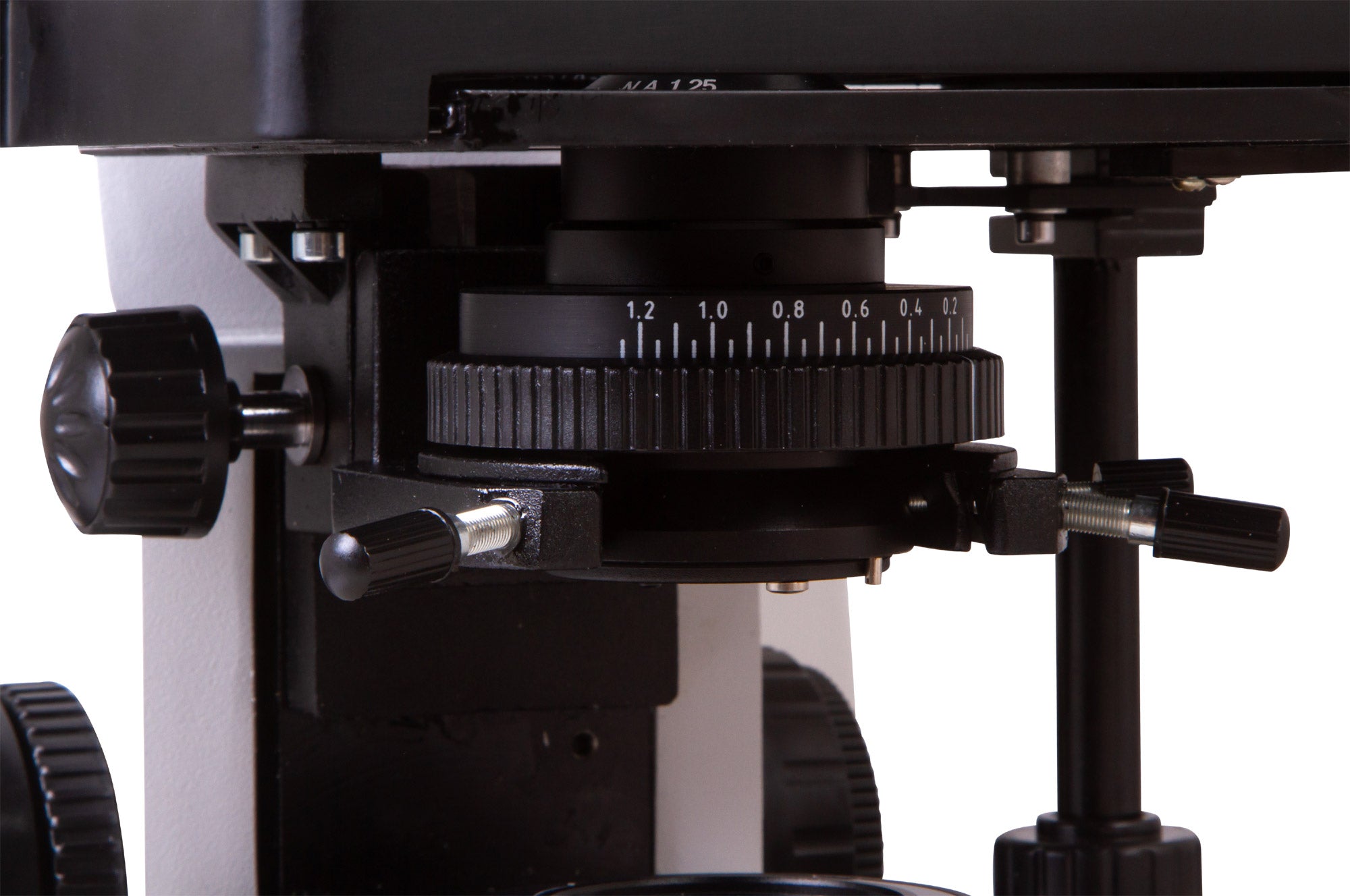

Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Filters: blue, green, yellow
Bottle of immersion oil
Fuse (2 pcs)
Power cord for microscope
Dust cover
5MP digital camera with an LCD screen
Camera mount
Power cord for camera
User manual and lifetime warranty
