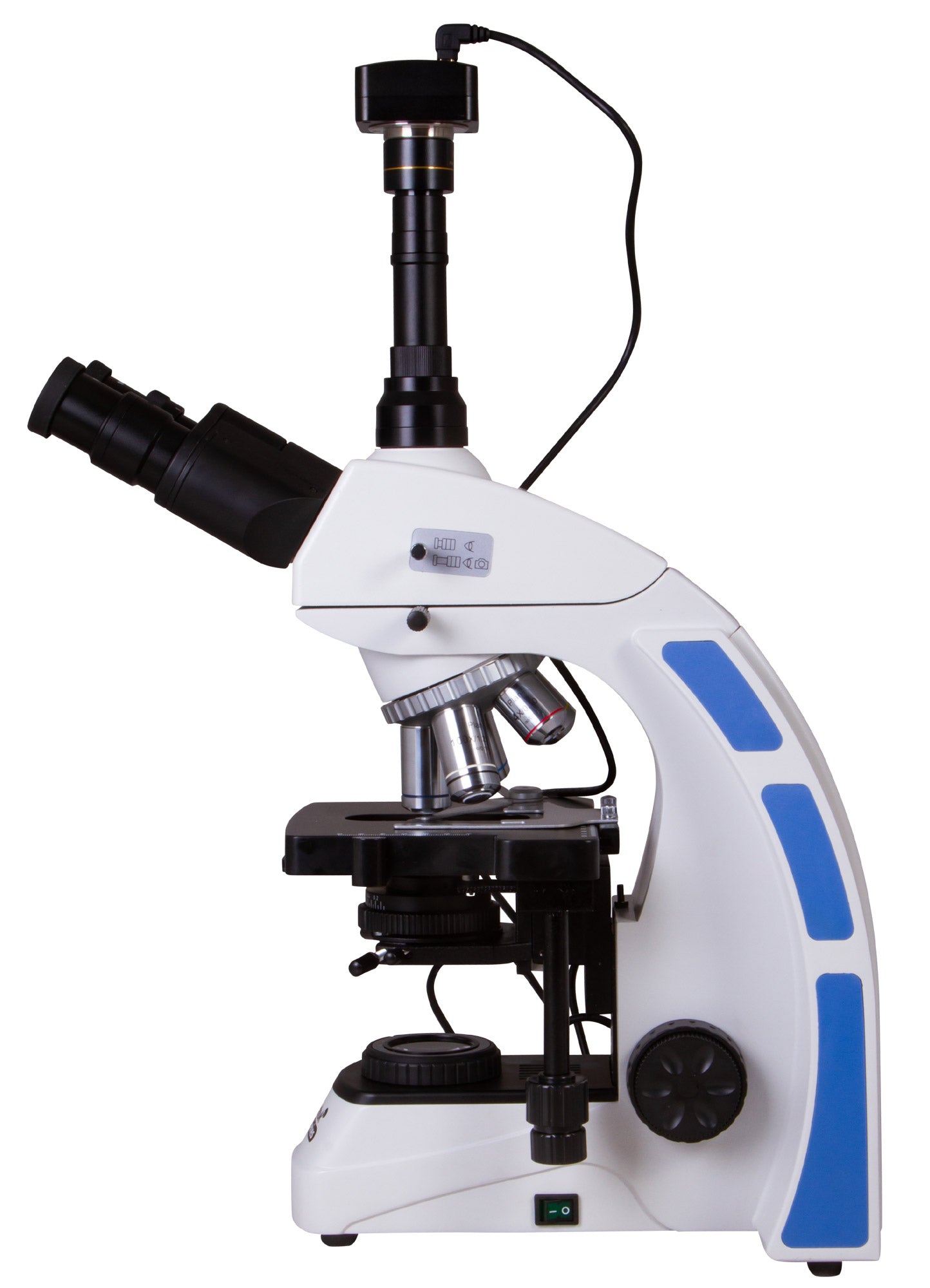

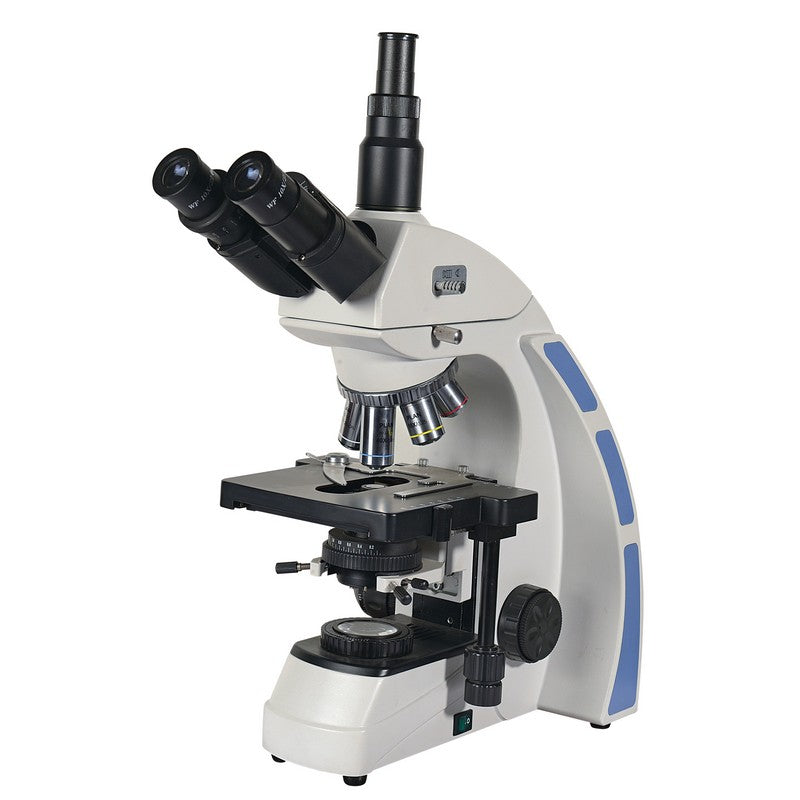

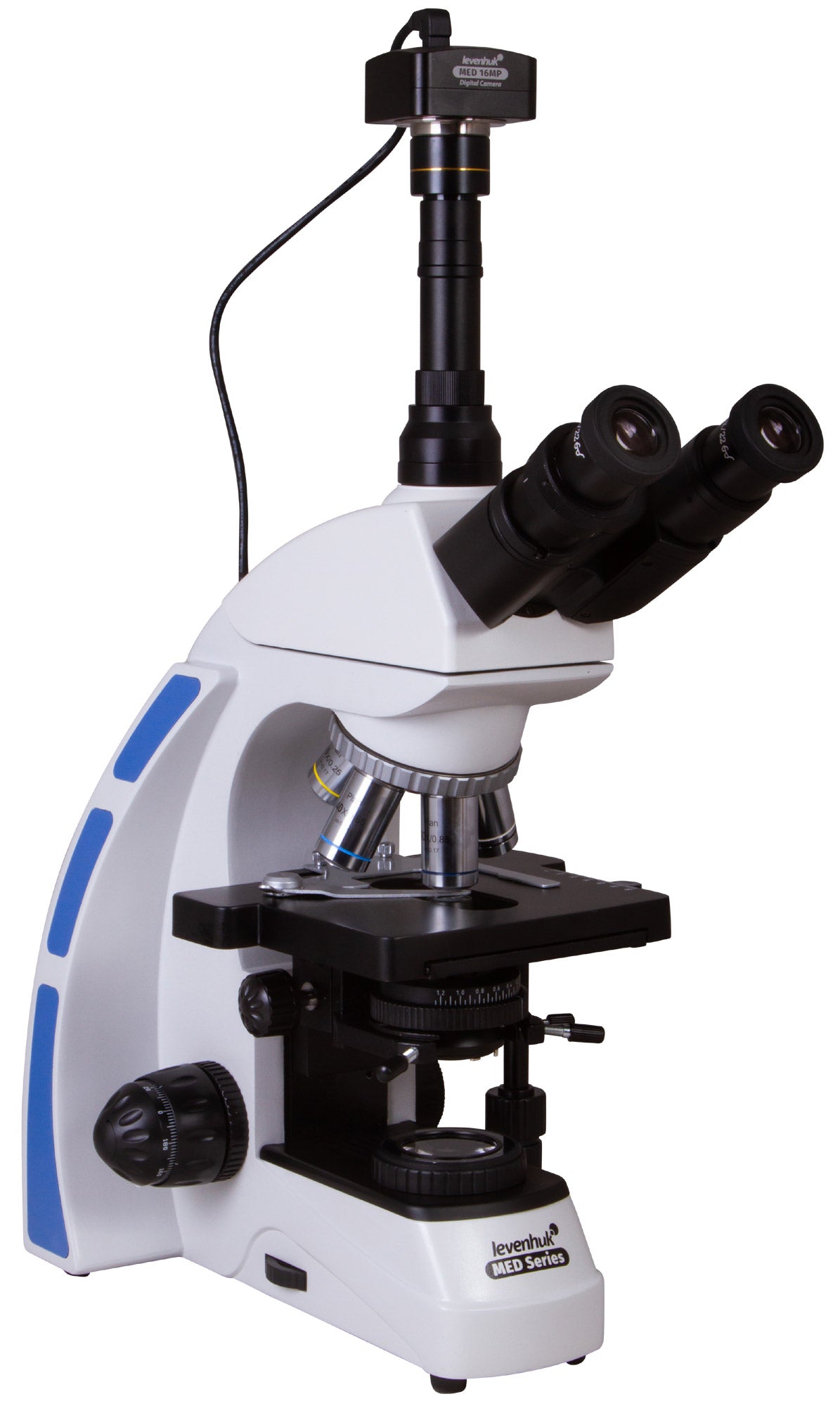

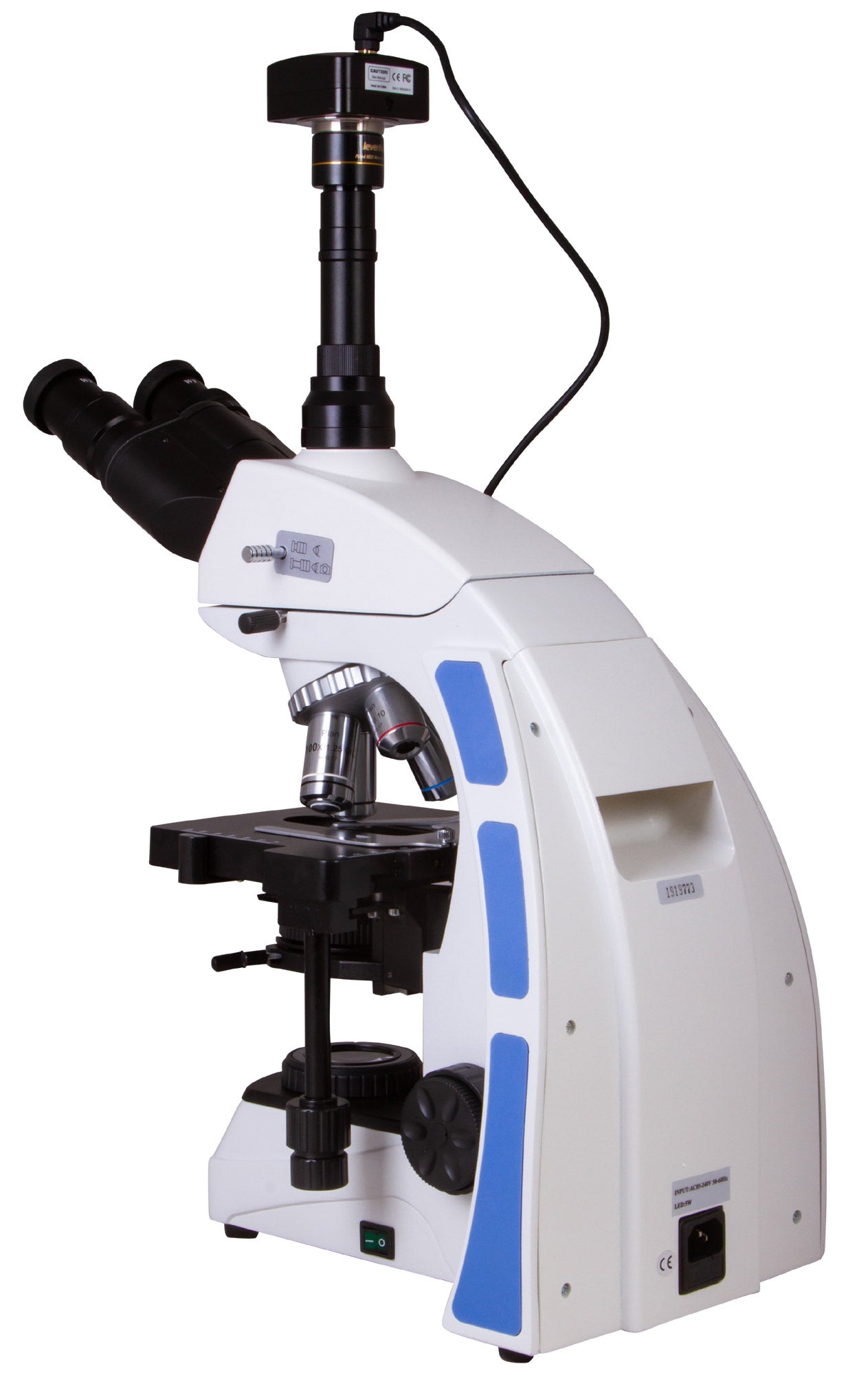

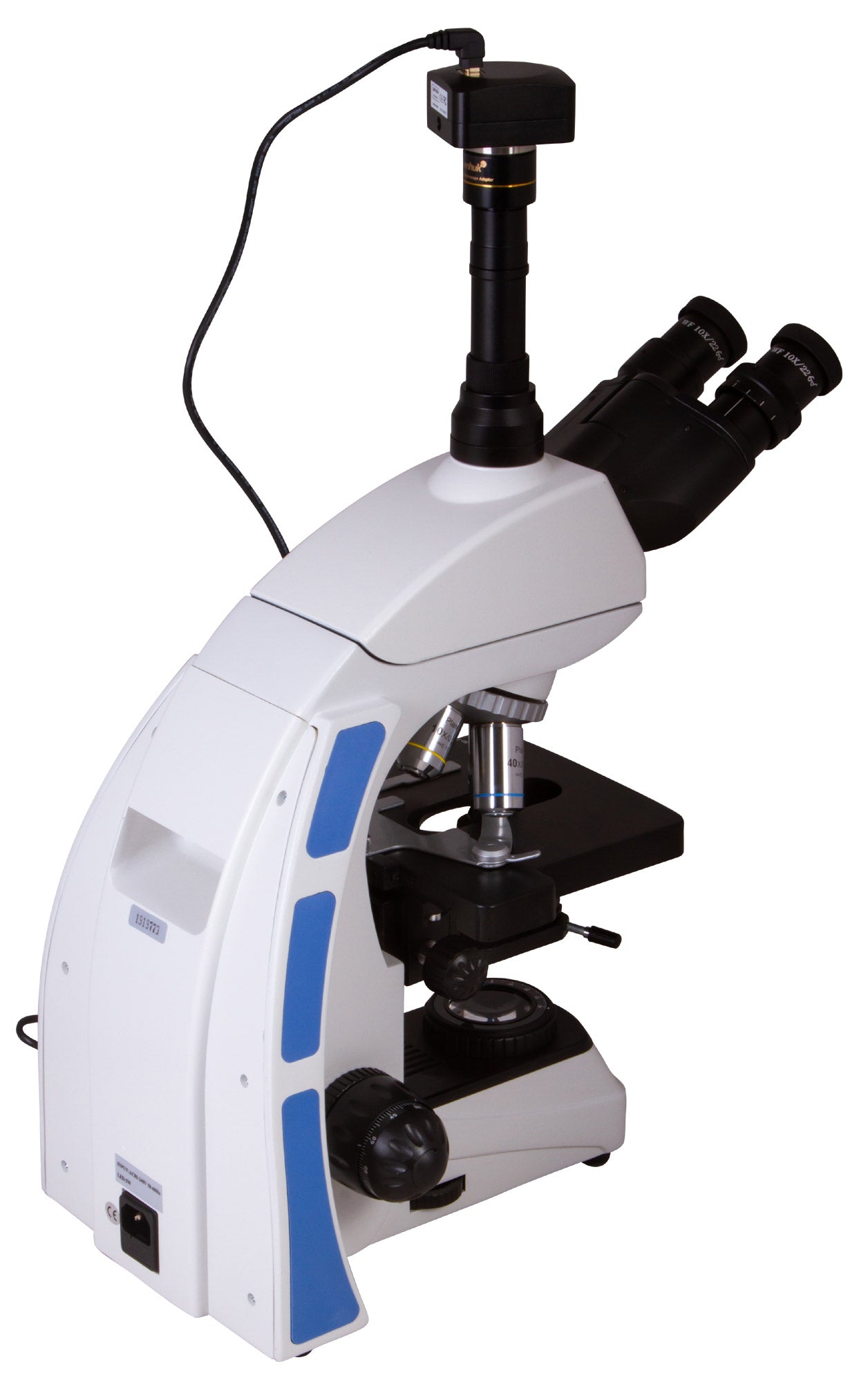

Levenhuk MED D40T Digital Trinocular Microscope
Magnification: 40–1000x. Trinocular head, 10MP digital camera, infinity-corrected plan achromatic objective lenses, an Abbe condenser with an iris diaphragm and a filter holder

The Levenhuk MED D40T is a digital microscope with a trinocular head and a 16MP camera included in the kit. The infinity-corrected plan achromatic optical system produces a flat field, clears chromatic aberration, and enables observations with a high degree of detail. Köhler illumination can be used in the microscope and oil immersion is available. Levenhuk MED D40T is a perfect optical instrument for a professional who needs a microscope with extended functionality and high-quality optics.

Plan achromatic infinity-corrected optics

The microscopes in the Levenhuk MED 40 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with a high level of flatness.

A rotatable head with a beam splitter

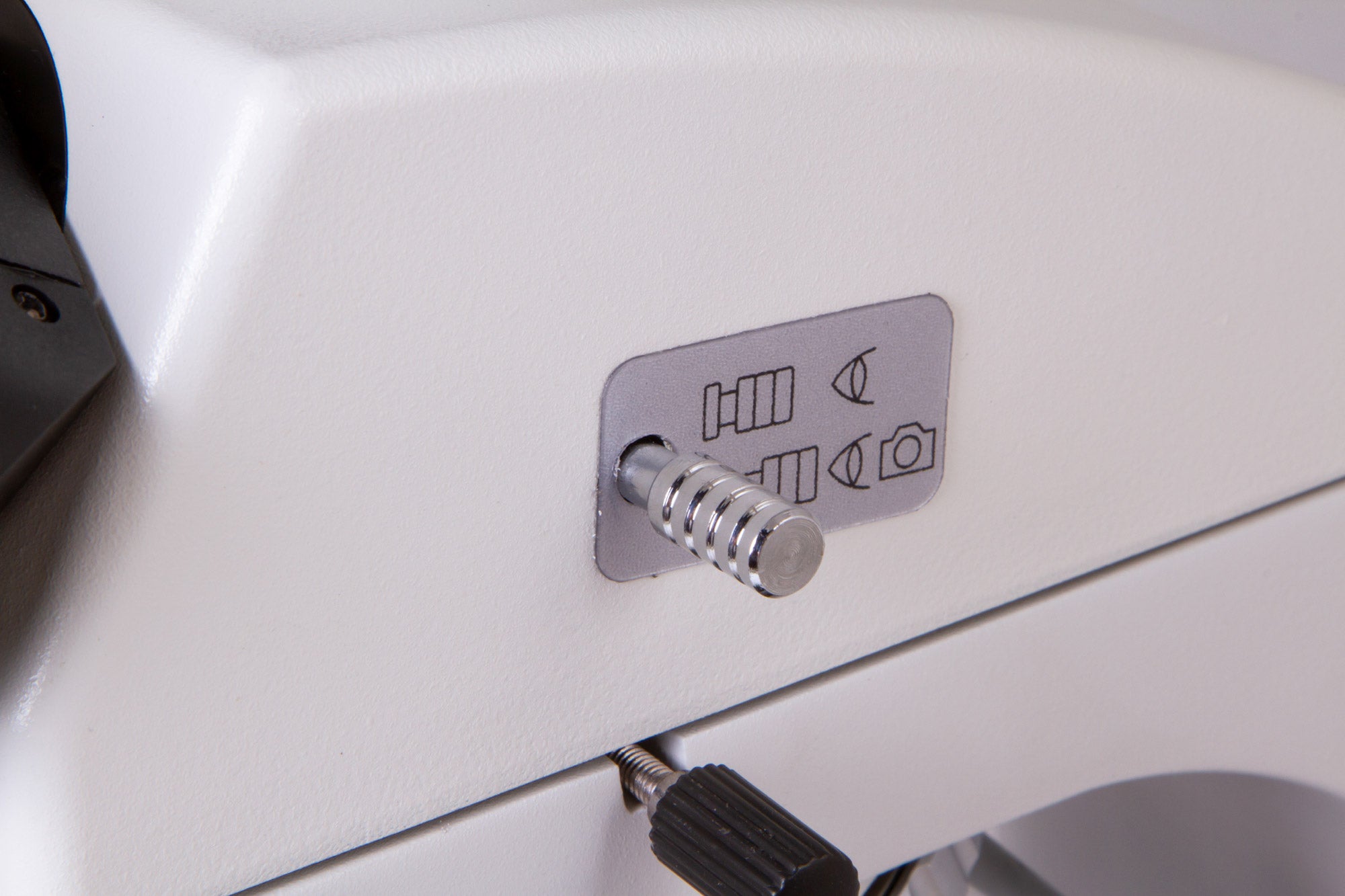

The trinocular head is standard for microscopes with a digital camera in the kit. The binocular part is used for visual observations and the camera is installed in a separate eyepiece tube. You do not have to interrupt your study to take a photo or a video of specimens. The visual module is slightly inclined by 30°, which prevents tensing your neck muscles during long hours of observations. The head can be rotated by 360°, there is a beam splitter.

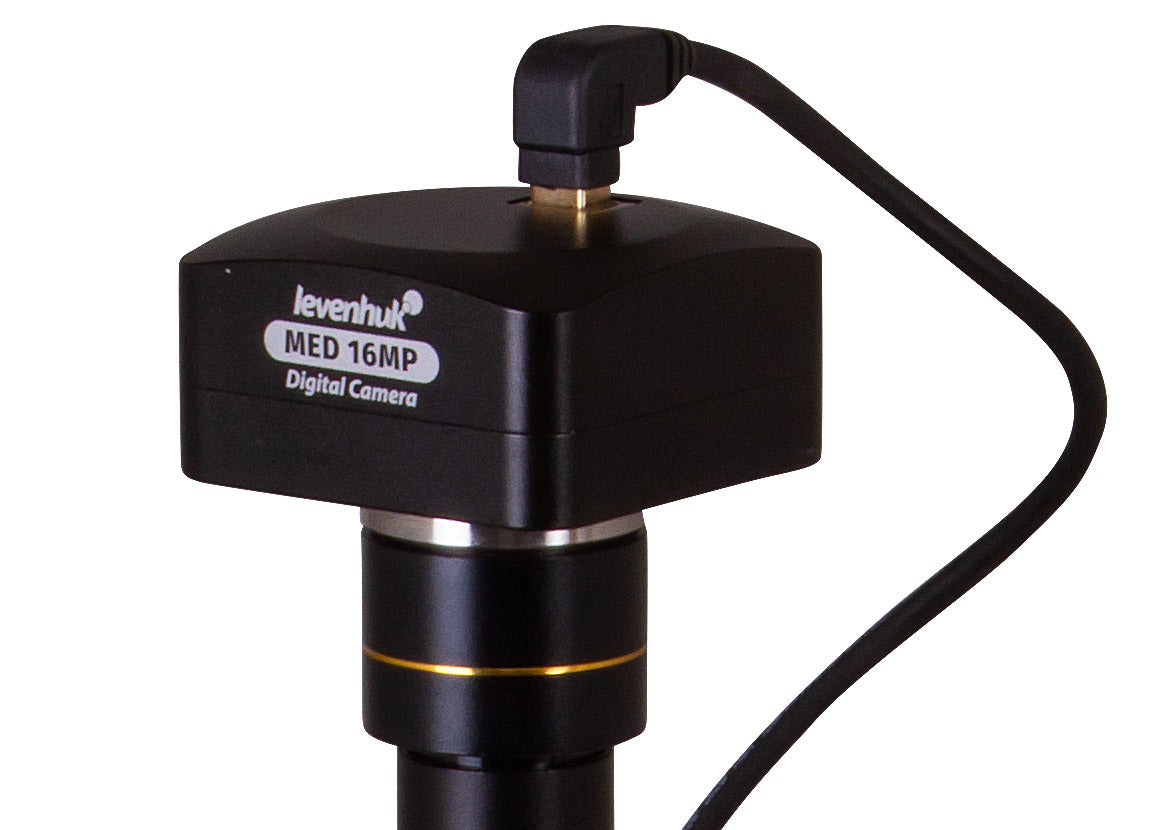

A 16M digital camera for capturing photos and videos

A 16MP digital camera allows for taking high-resolution photos and videos. The resultant images can be used for professional work with microspecimens and for creating digital archives of studies. The camera is connected to a PC with a USB cable (the cable is included in the kit) and transmits the image to the screen online. A camera transmits an image to a computer screen online. That makes work in a laboratory easier and more practical as well as reduces the eyestrain and tension in the rotator cuff, as there is no necessity to look through the eyepieces. You can do the basic processing of recorded content using special software (CD is included in the kit). The software allows for adjusting size, image brightness and contrast, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available).

Convenient work with microscope slides

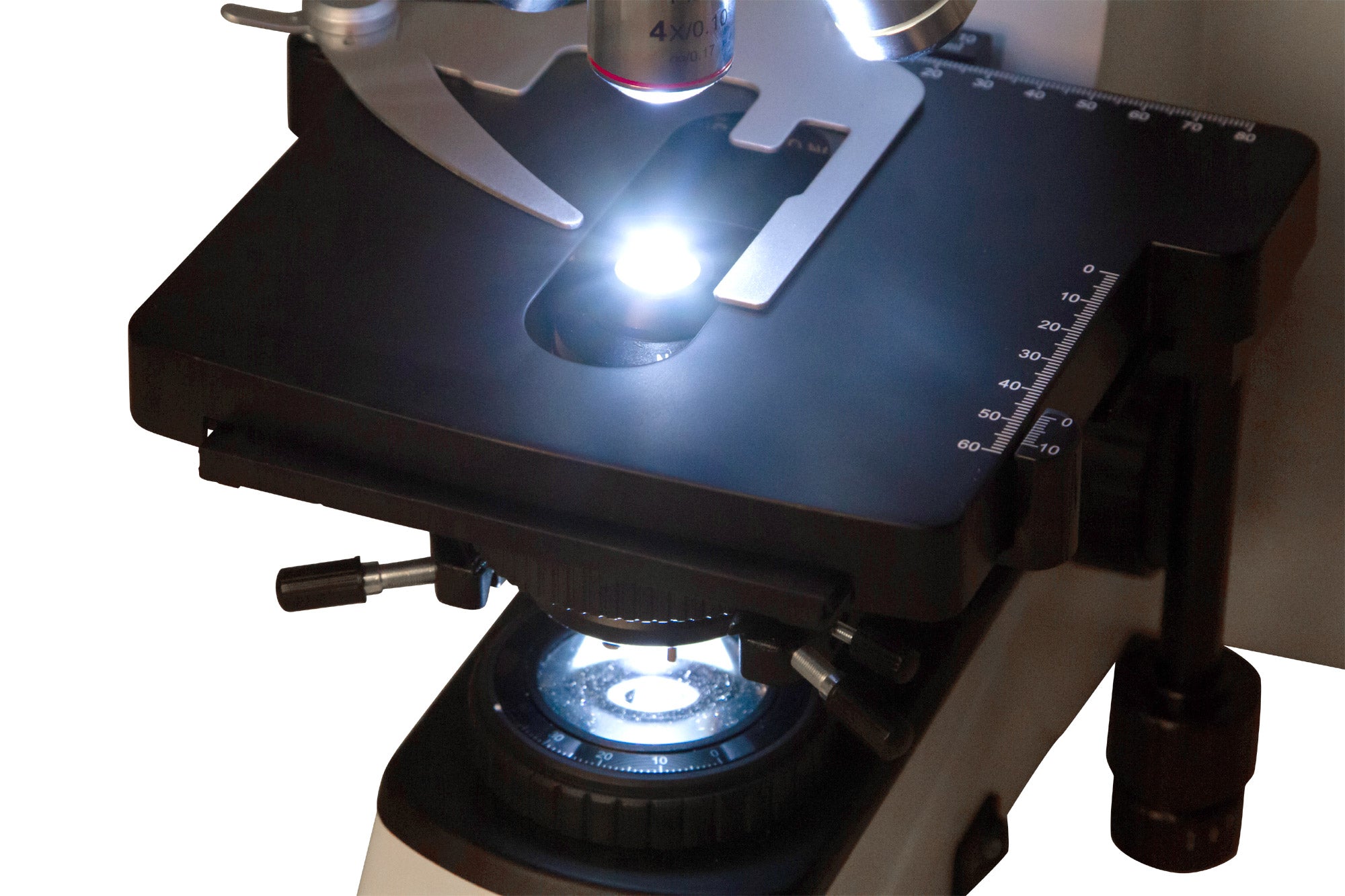

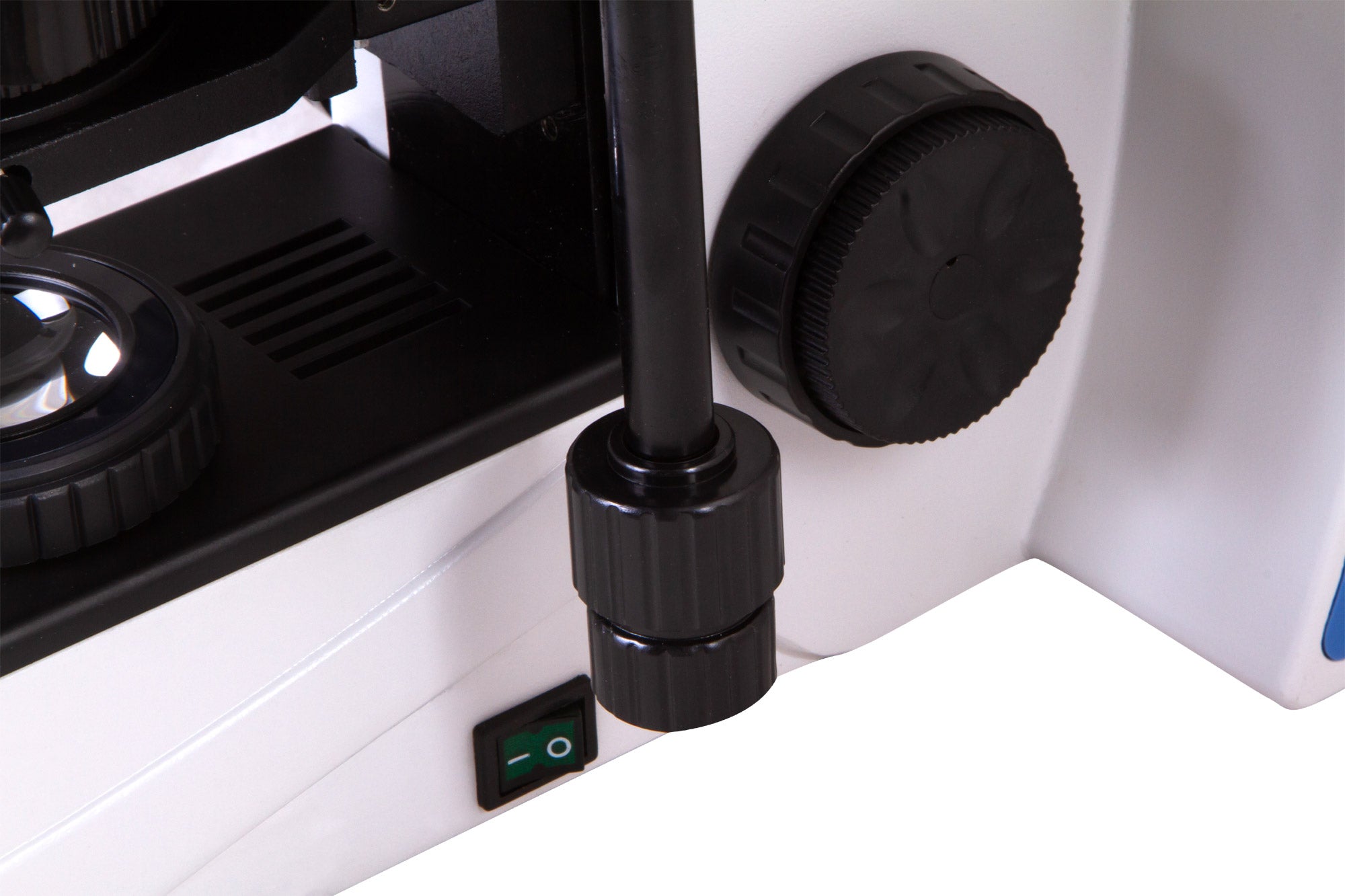

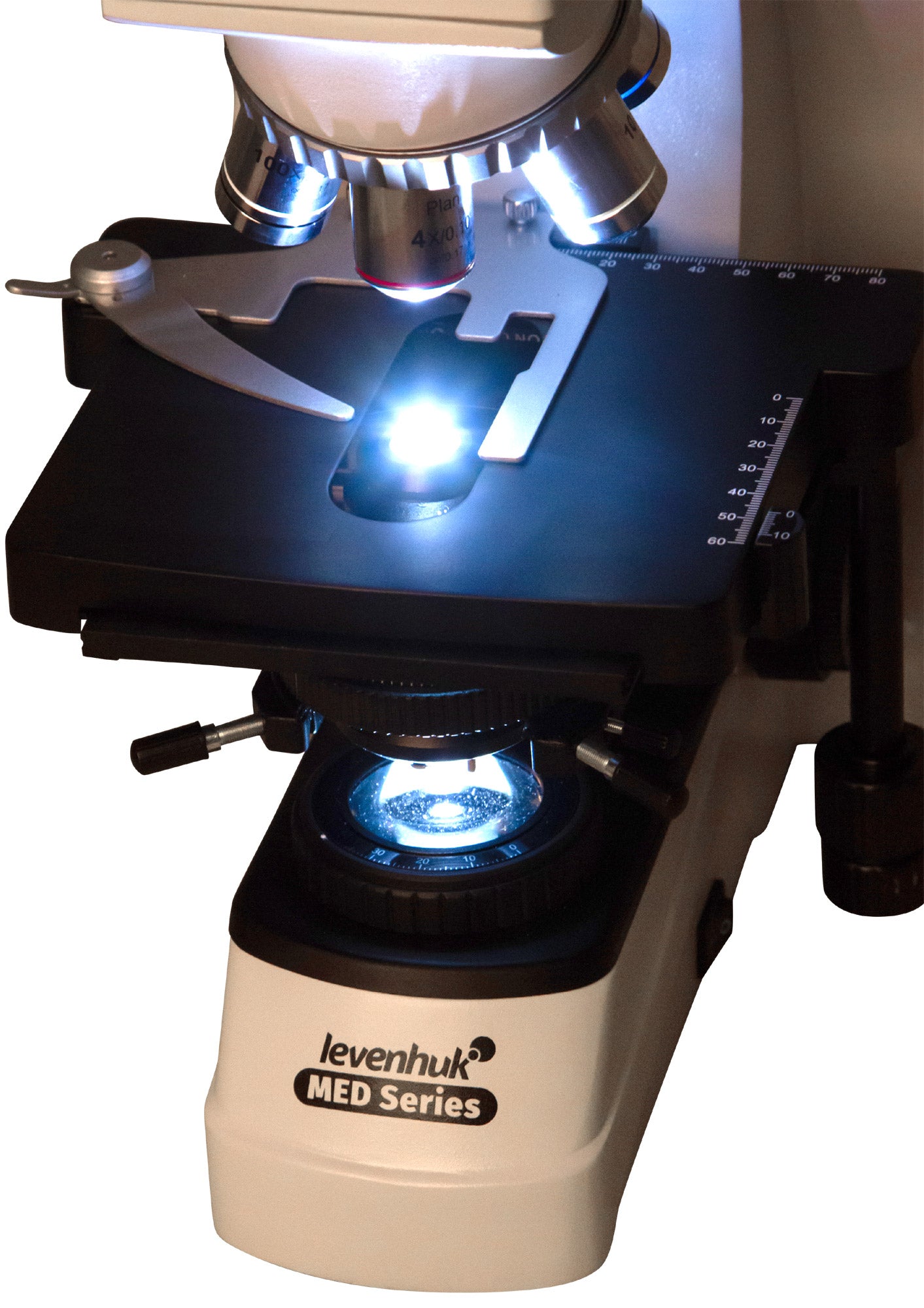

Specimens are placed under the objective with the help of a mechanical scale. The stage can move in two directions. Coarse and fine focusing is used for sharpness adjustment. Bright LED light is located at the bottom. The light system also includes an Abbe condenser with an iris diaphragm and a filter holder. Köhler illumination is available.

Infinity-corrected plan achromatic optics
Trinocular head with a beam splitter, magnification range of 40x to 1000x

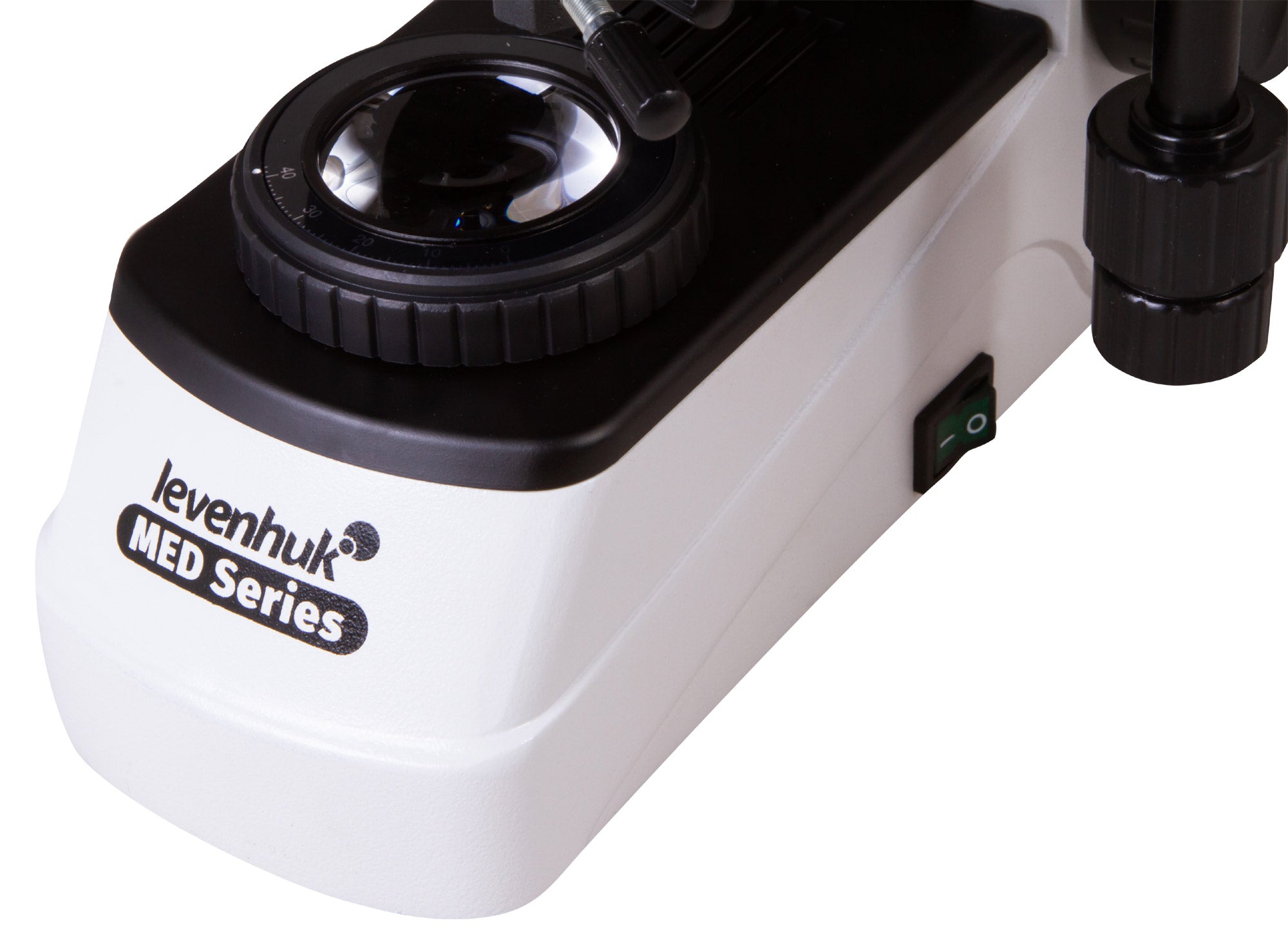

Bright LED light with brightness adjustment
Köhler illumination is available

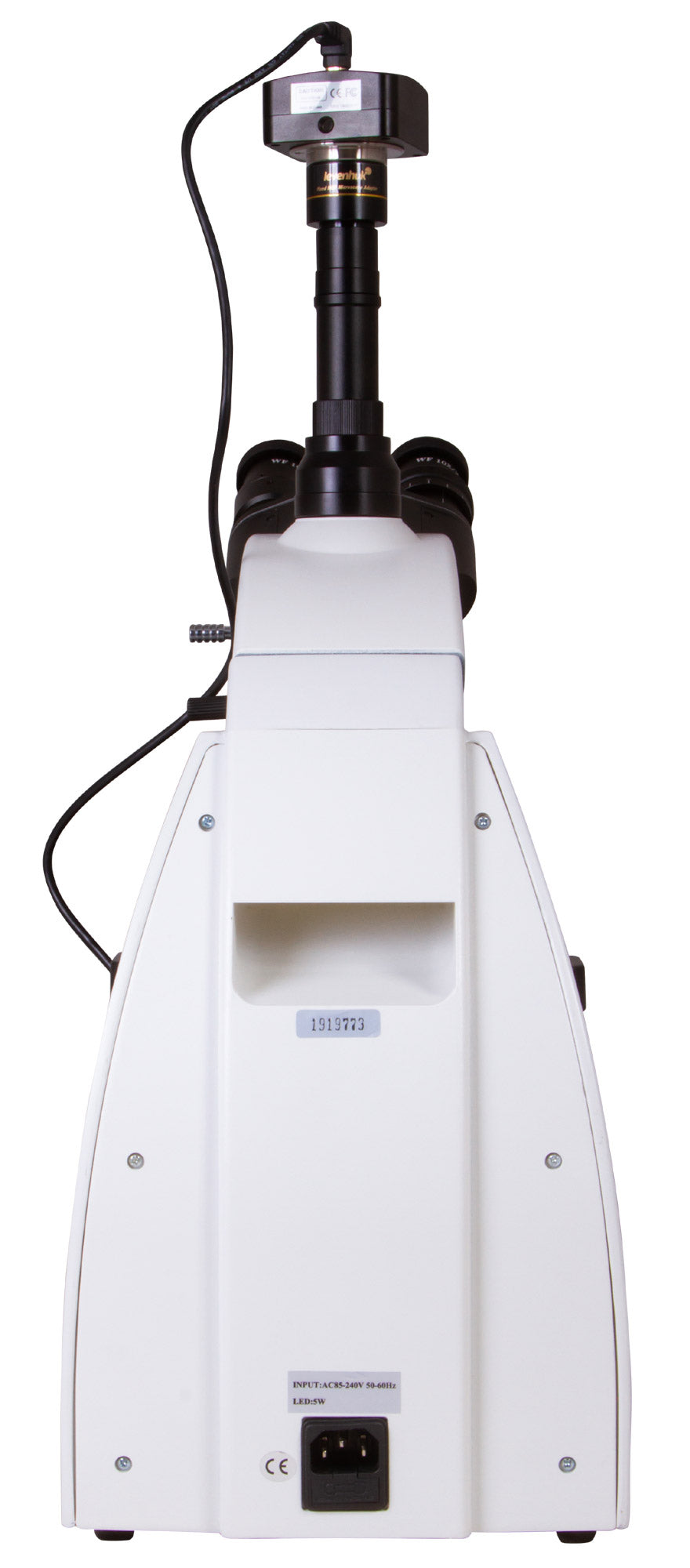

Powered by an AC power supply, adjustable light brightness
16MP digital camera is included

The kit includes:
Microscope base with a stand
360° rotatable trinocular head
Infinity-corrected plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) with anti-fungal coating

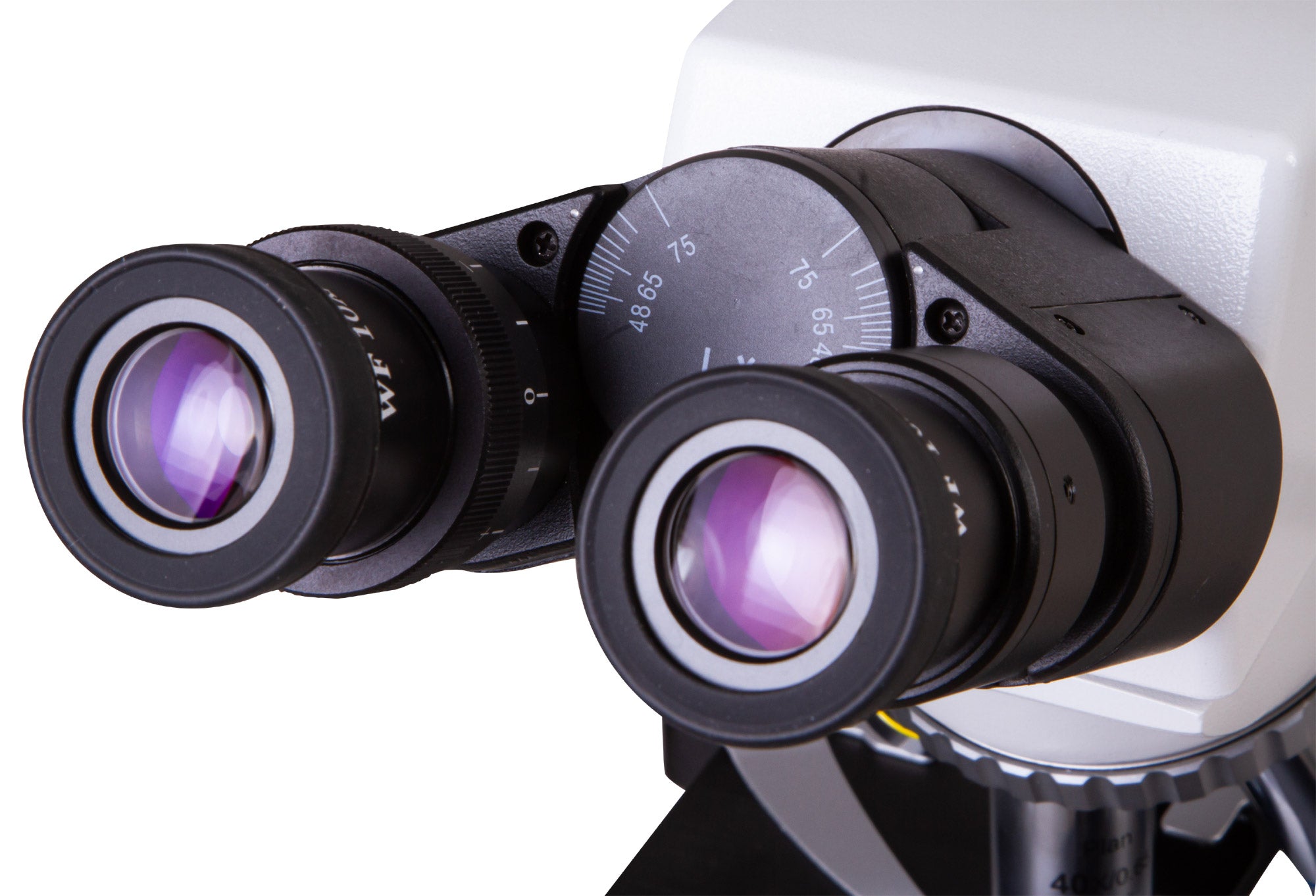

Wide-field eyepieces: WF10x/22mm with anti-fungal coating (2 pcs)

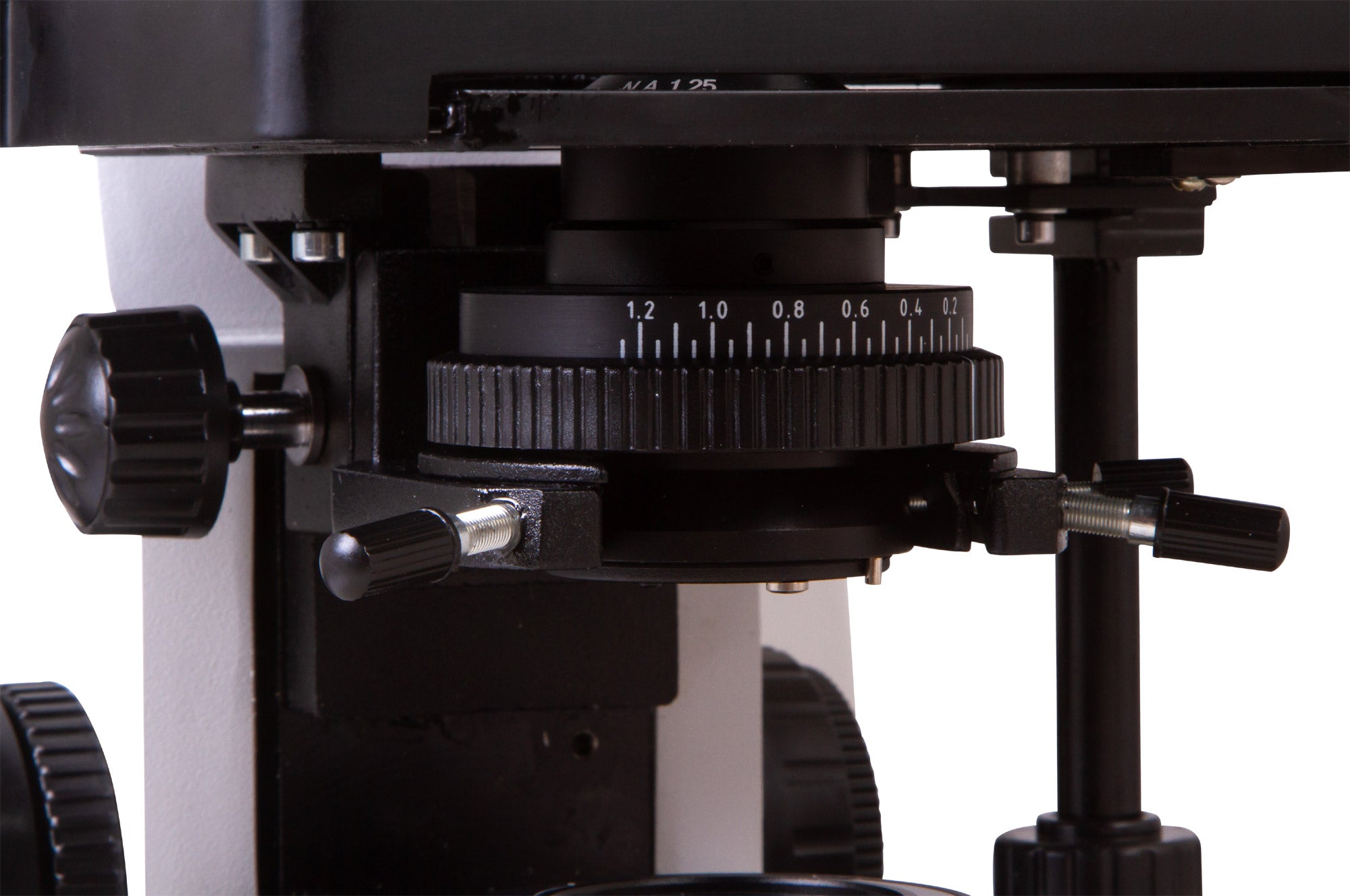

Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Filters: blue, green, yellow
Bottle of immersion oil
Fuse (2 pcs)
Power cord for microscope
Dust cover

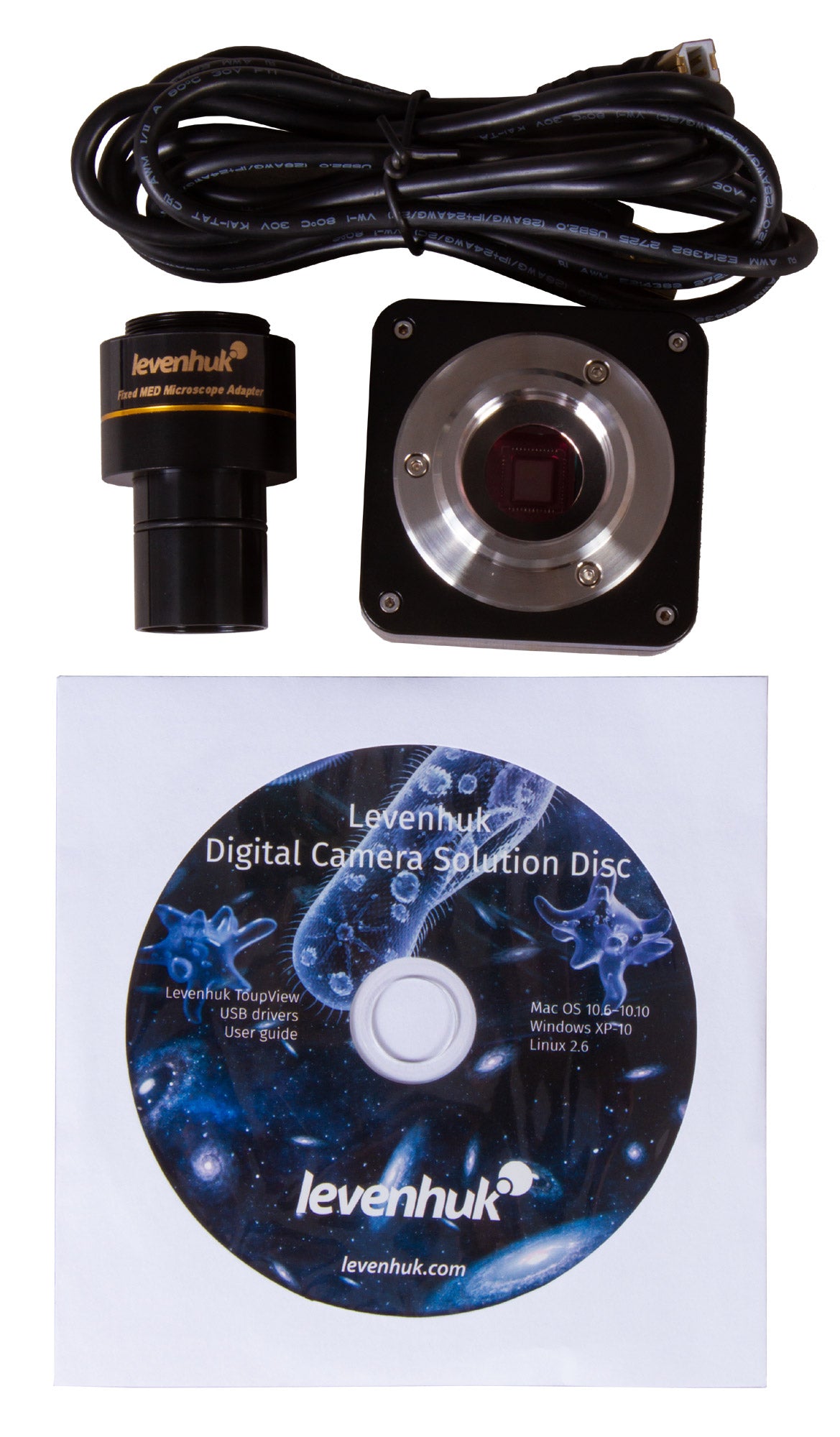

16MP digital camera
Camera adapter
Camera mount
USB cable for connecting and charging the camera
CD with software and drivers
User manual and lifetime warranty
