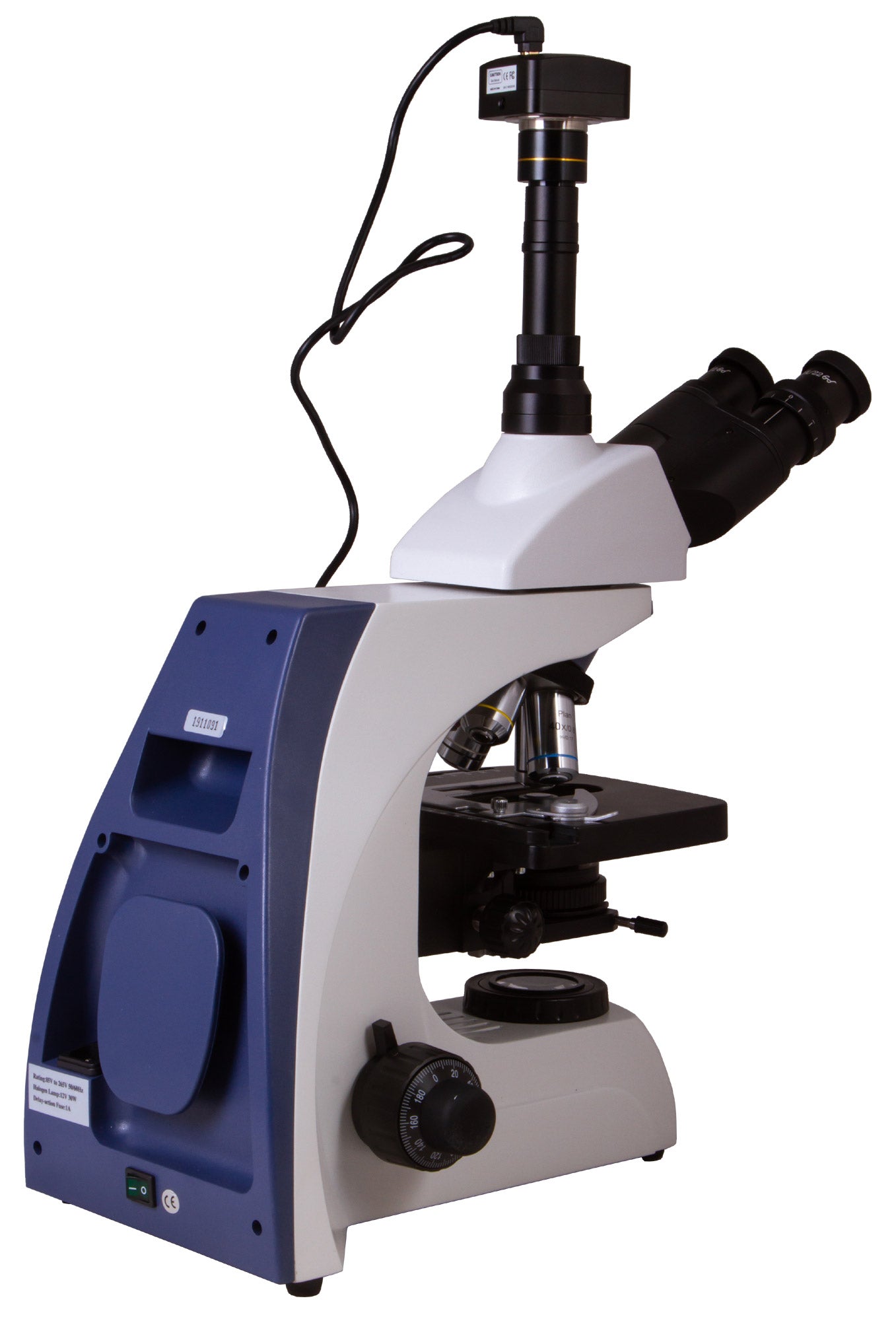

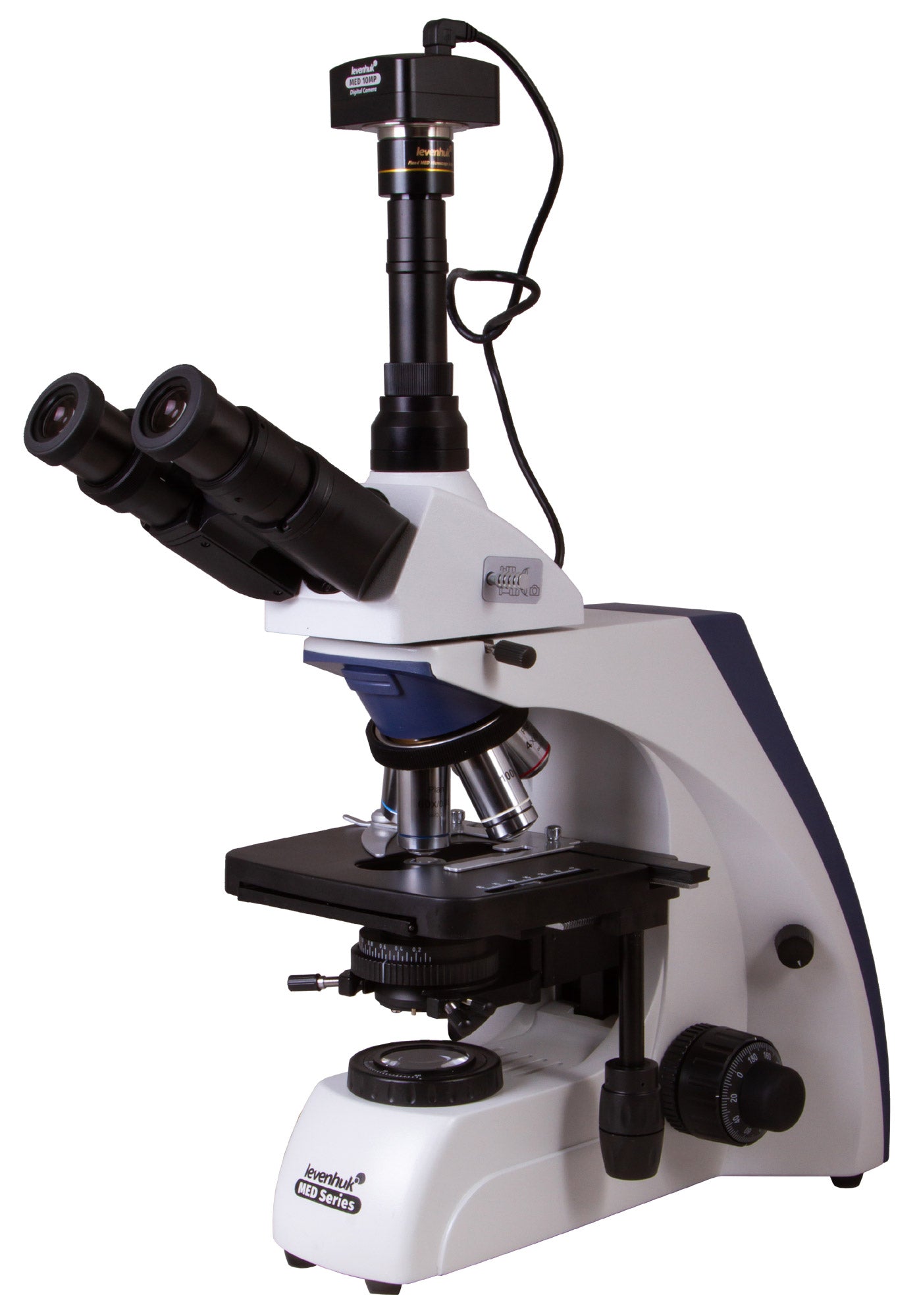

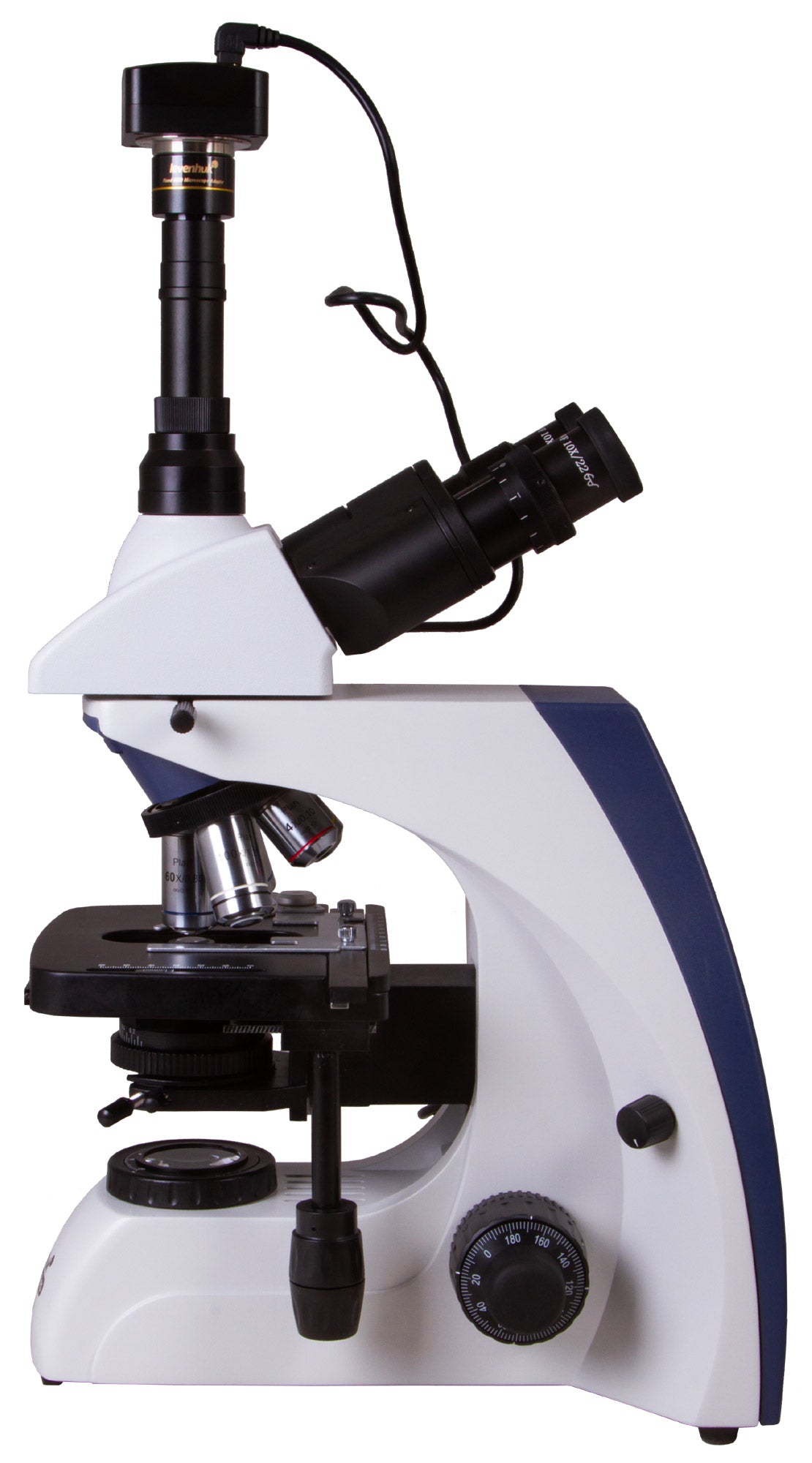

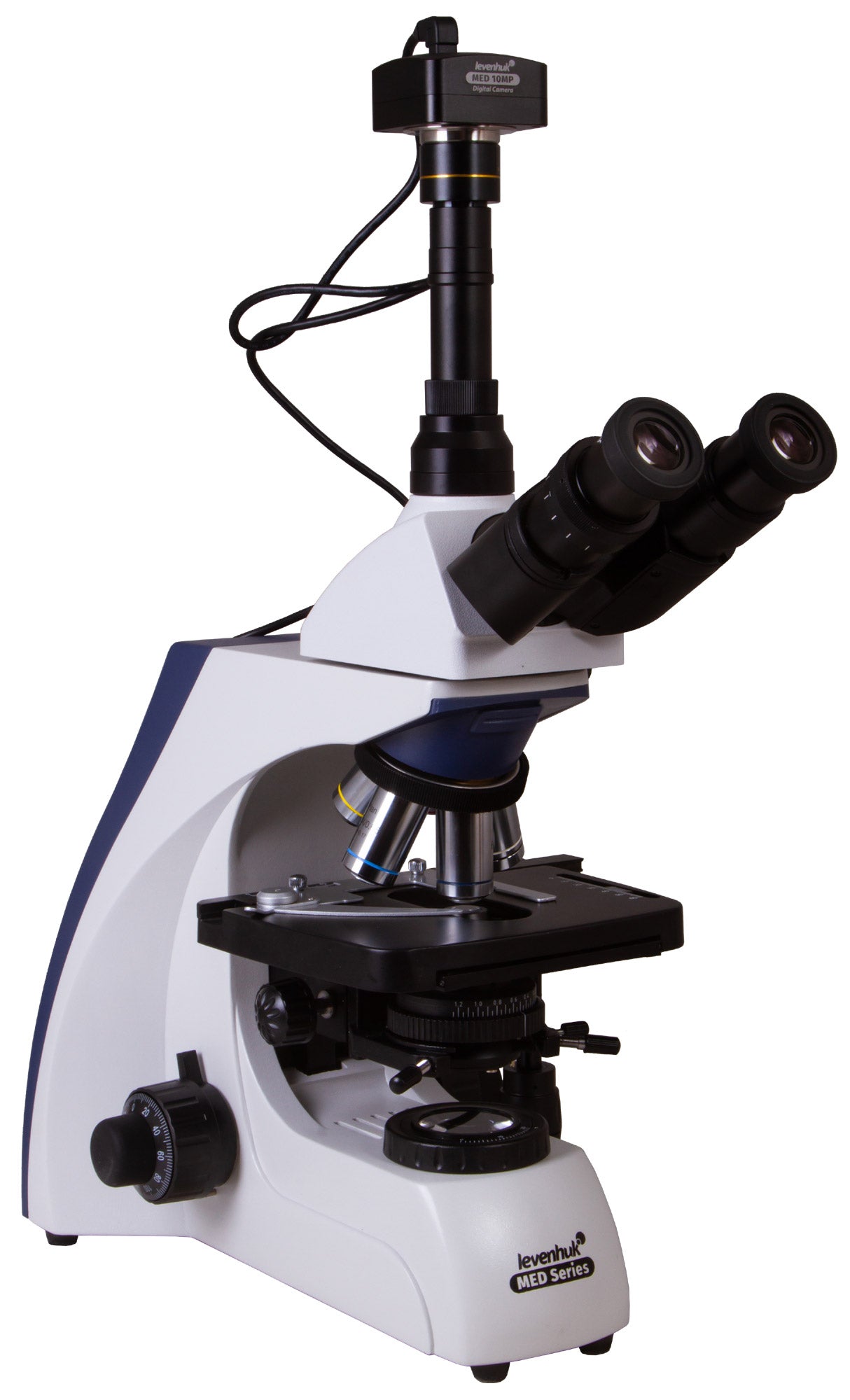

Levenhuk MED D35T Digital Trinocular Microscope
Magnification: 40–1000x. Trinocular head, 10MP digital camera, infinity-corrected plan achromatic objective lenses, an Abbe condenser with an iris diaphragm and a filter holder
The Levenhuk MED D35T Digital Microscope for scientific research combines the capabilities of a classic biological model and a microscope for taking digital photos and videos. It comes with a 10MP camera that is connected to a computer and allows for observing an image on its screen in real-time mode. This microscope is excellent for a university department, research center, or clinical and diagnostics laboratory.
Plan achromatic infinity-corrected optics
The microscopes in the Levenhuk MED 35 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with high level of flatness.
One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers, epi-fluorescence light, and phase contrast devices. All in all, modular design and simple operation make Levenhuk MED 35 optimal microscopes for using in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.
The Levenhuk MED 35 series includes scientific microscopes for working in a laboratory

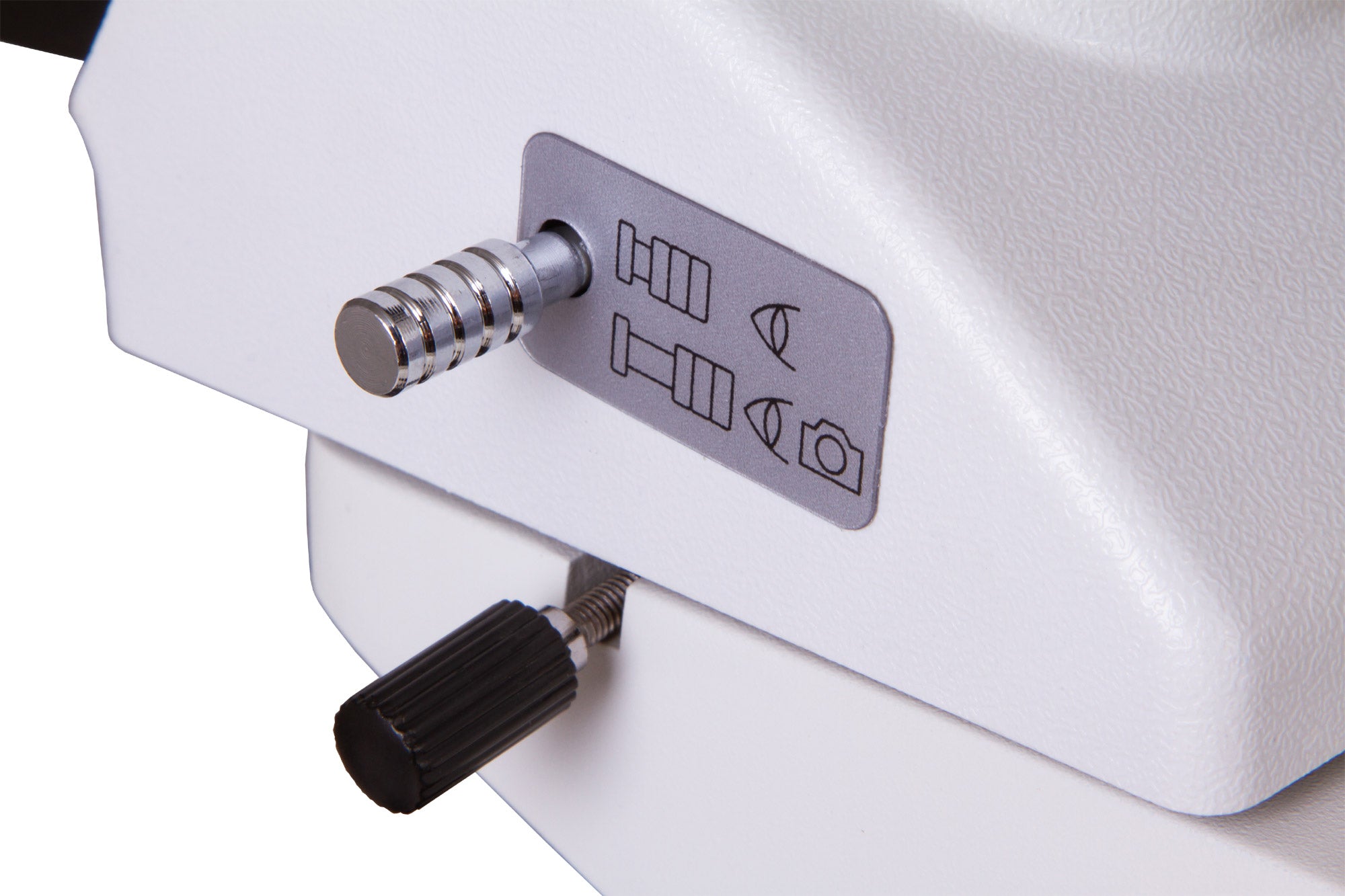

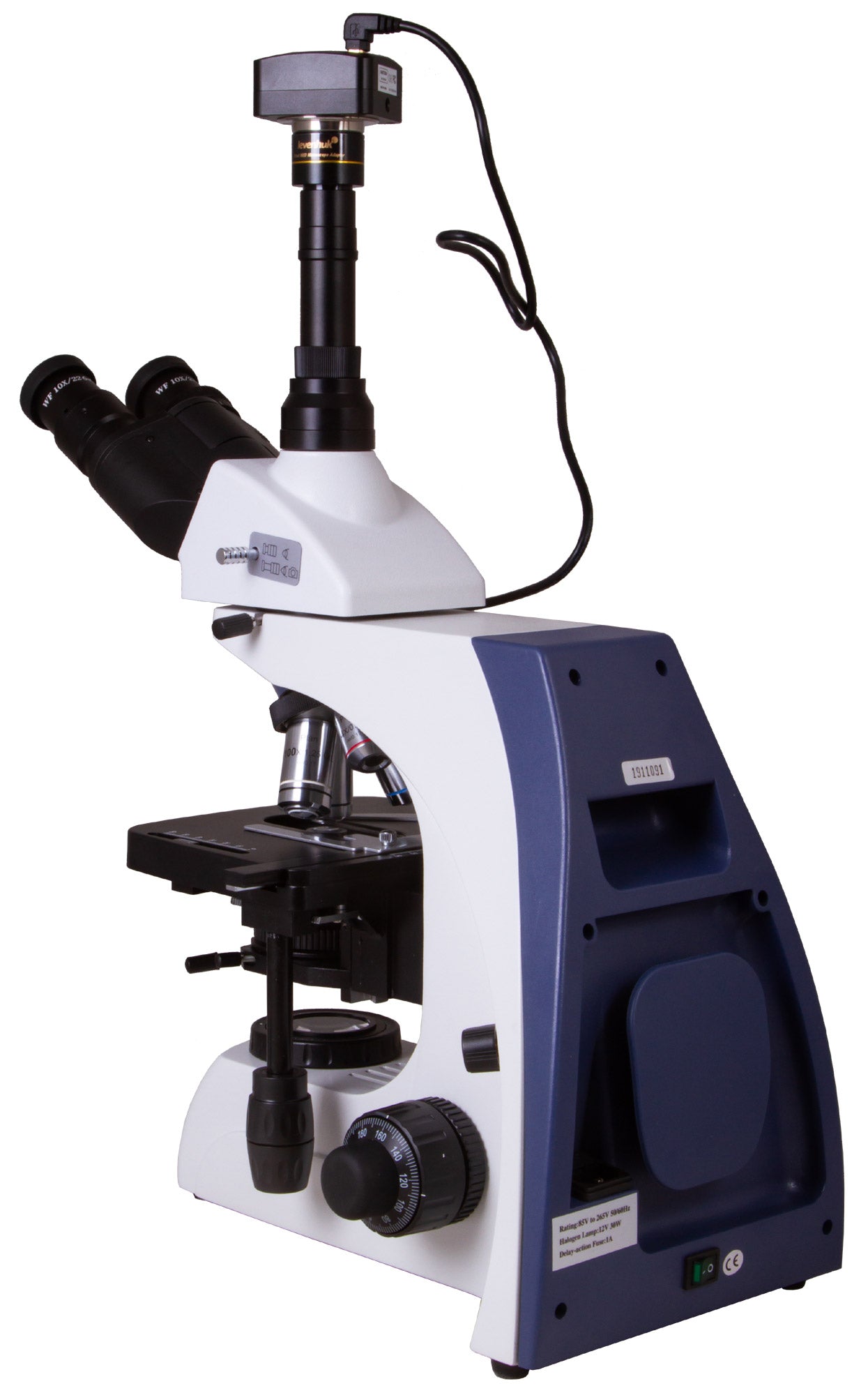

A trinocular head has a binocular visual unit and a vertical tube inclined at 30° for installing a digital camera in it. There is a beam splitter. The head is 360° rotatable, which is convenient if the sample should be observed by several researchers.

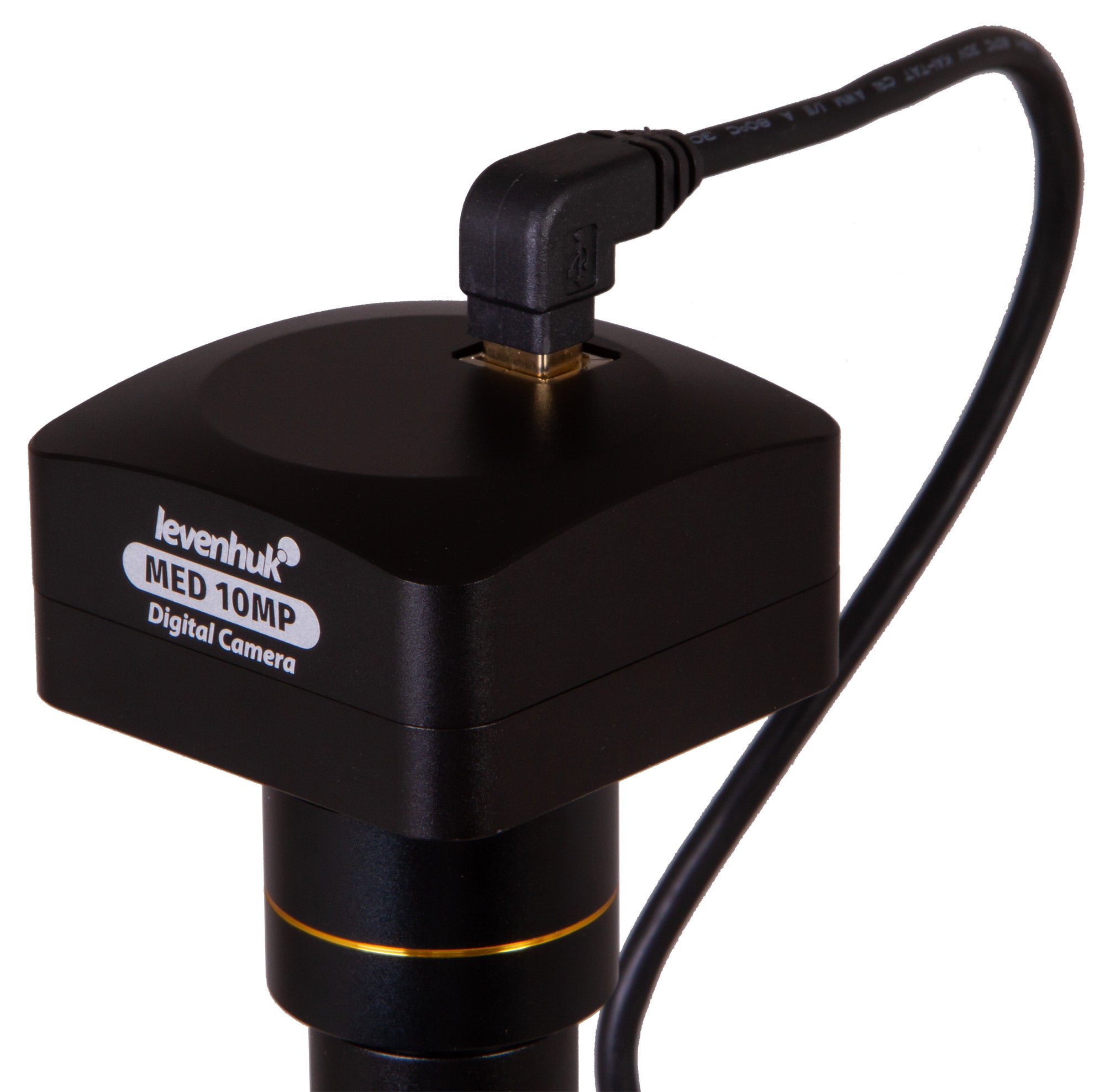

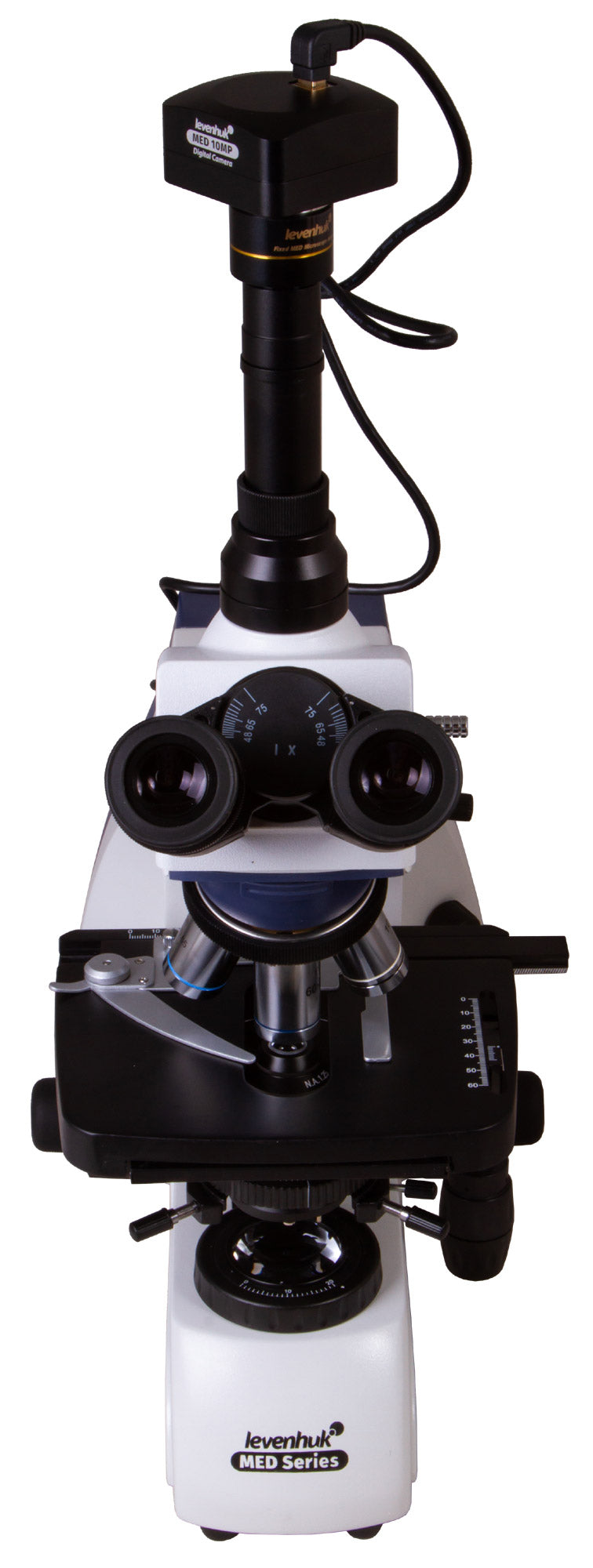

A 10M digital camera for capturing photos and videos
A 10MP sensor in a digital camera (included in the kit) allows for obtaining high-resolution pictures. Moreover, recording smooth videos with high frame rate is available. A camera transmits an image to a computer screen online. That makes work in a laboratory easier and more practical as well as reduces eyestrain and tension in the rotator cuff, as there is no necessity to look through the eyepieces. Special software (on an included CD) allows for the simple processing of recorded images. The software allows for adjusting size, image brightness and contrast, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available). A digital camera is powered and connected to a computer via a USB cable.
Scientific work with Levenhuk MED D35T Microscope provides for precise observations, allows for using modern technologies, and conducting practical extended observations.
Features:
Magnification: 40x to 1000x
Trinocular head with a beam splitter, wide-field eyepieces
Plan achromatic optics with an anti-fungal coating

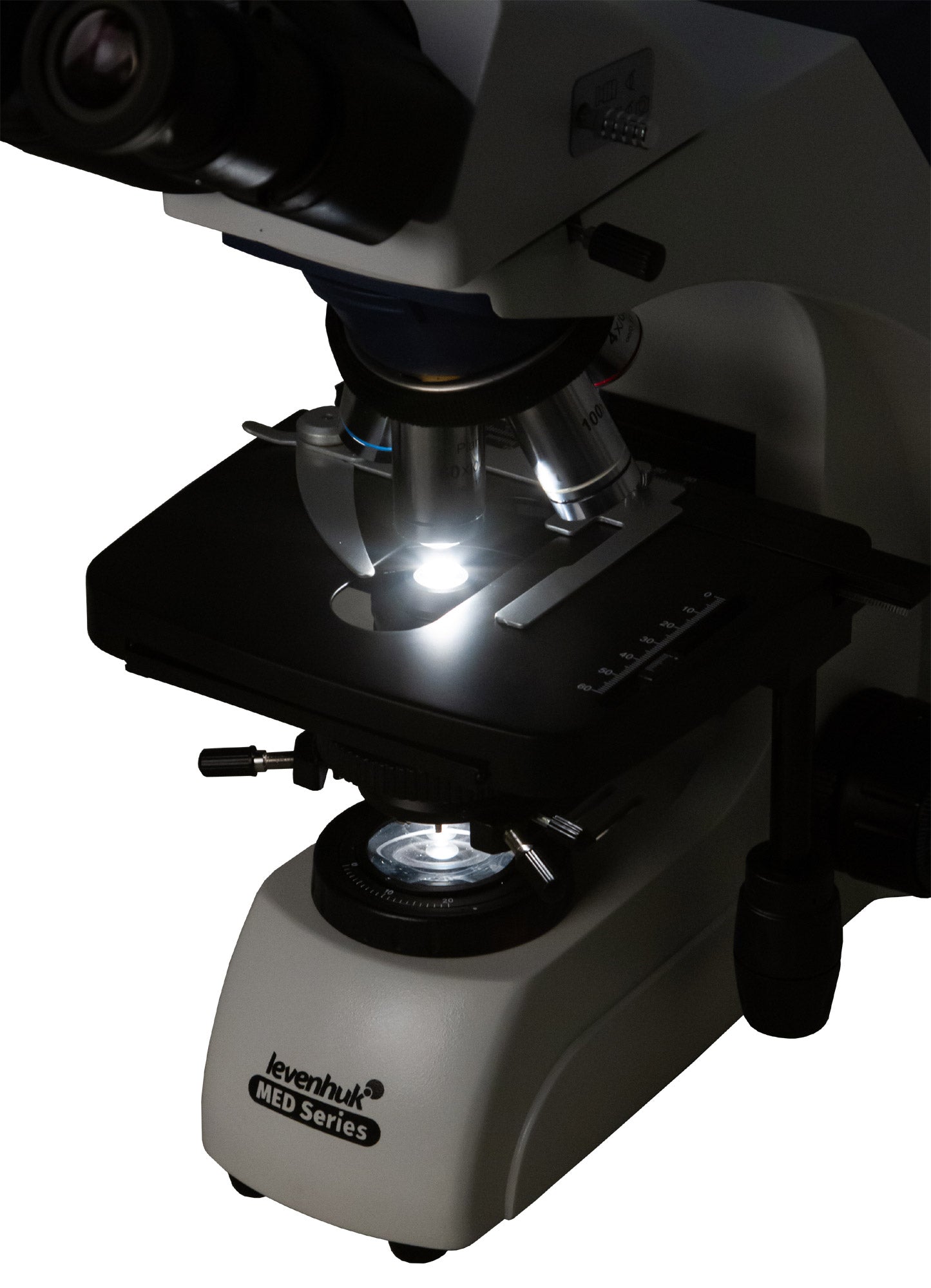

Halogen light with adjustable brightness
Setting up Köhler illumination is available
Powered by an AC power supply
10MP digital camera is included

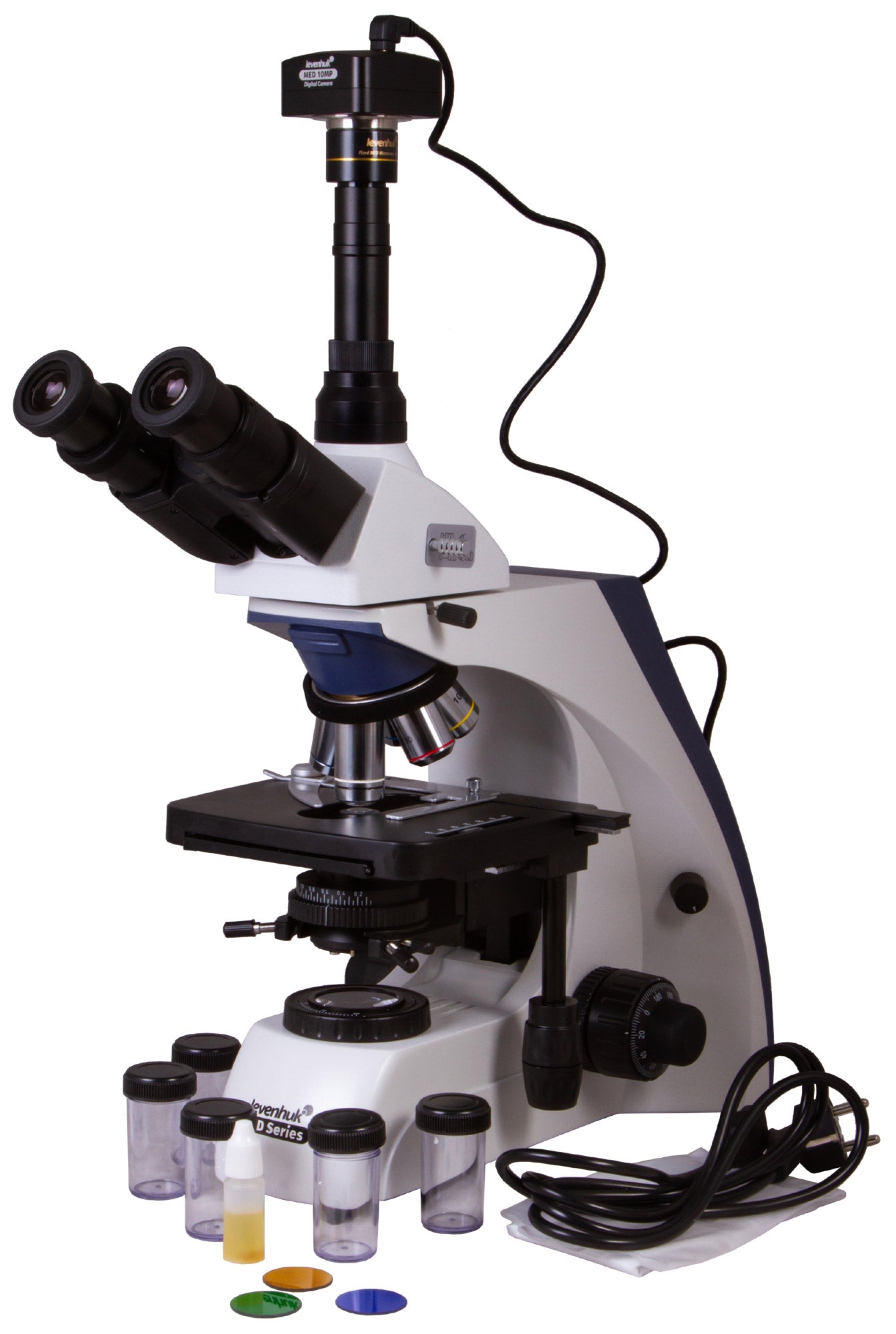

The kit includes:
Microscope base with a stand
360° rotatable trinocular head

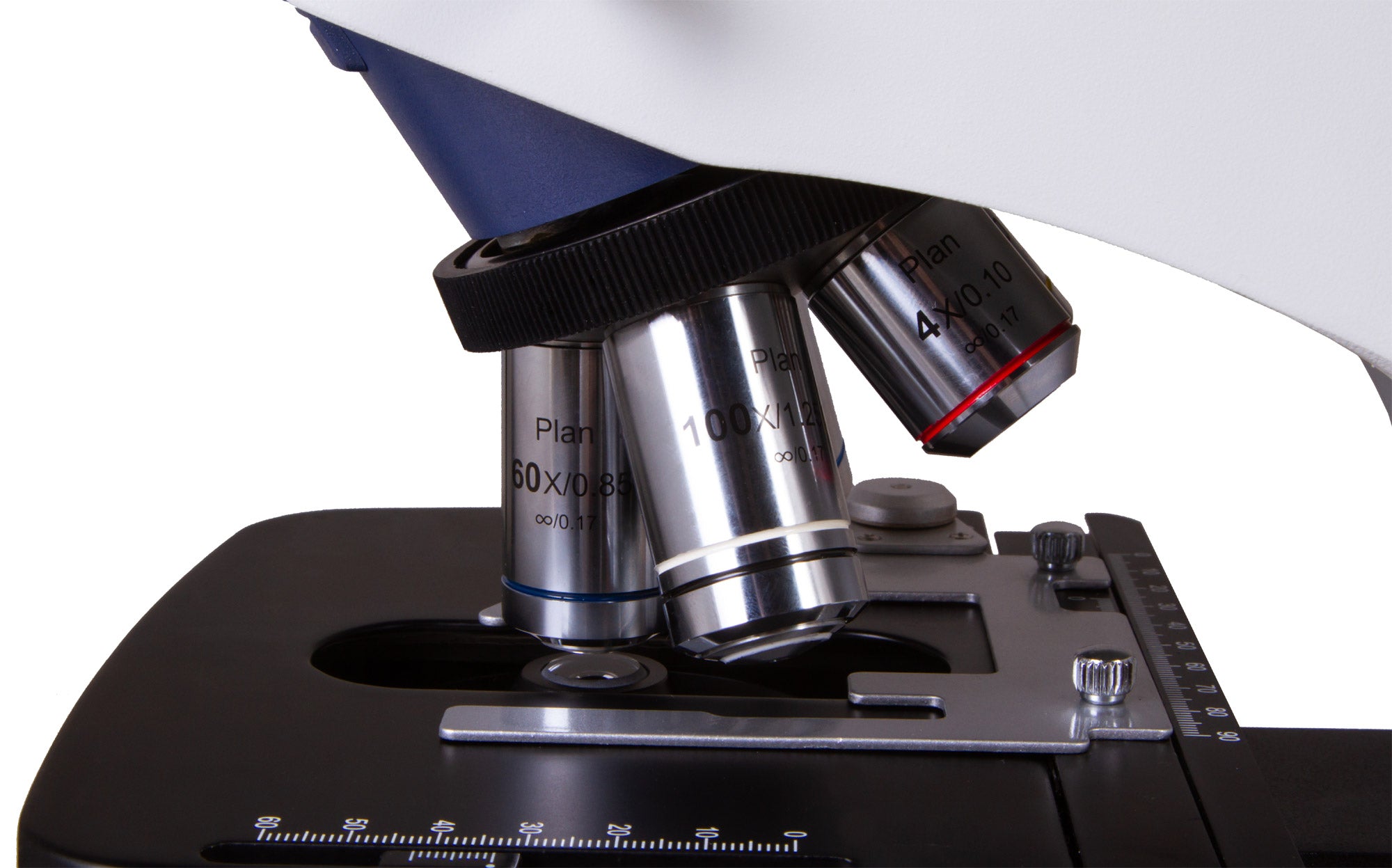

Infinity-corrected plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) with an anti-fungal coating

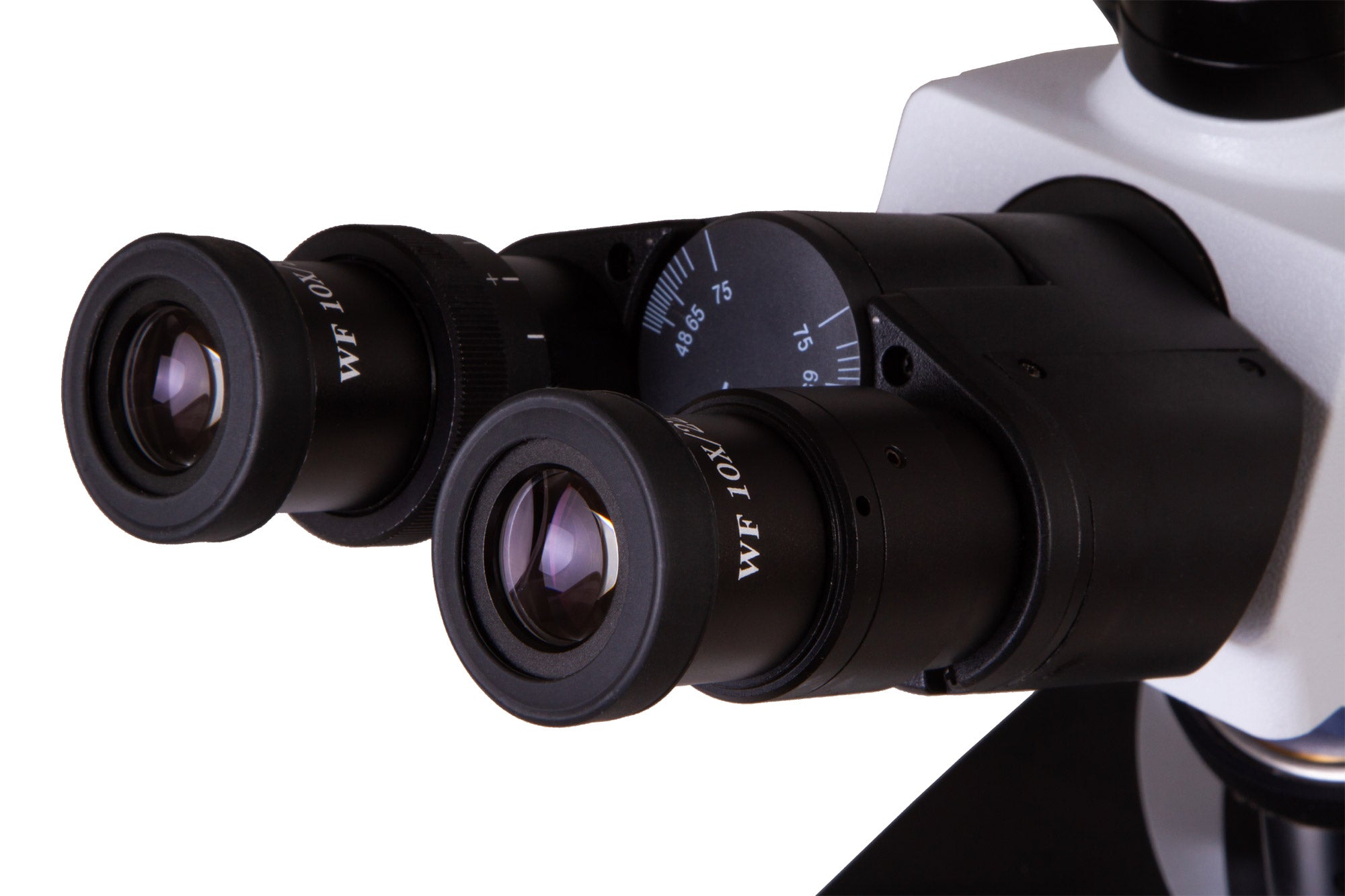

Wide-field eyepieces: WF10x/22mm with an anti-fungal coating (2 pcs)

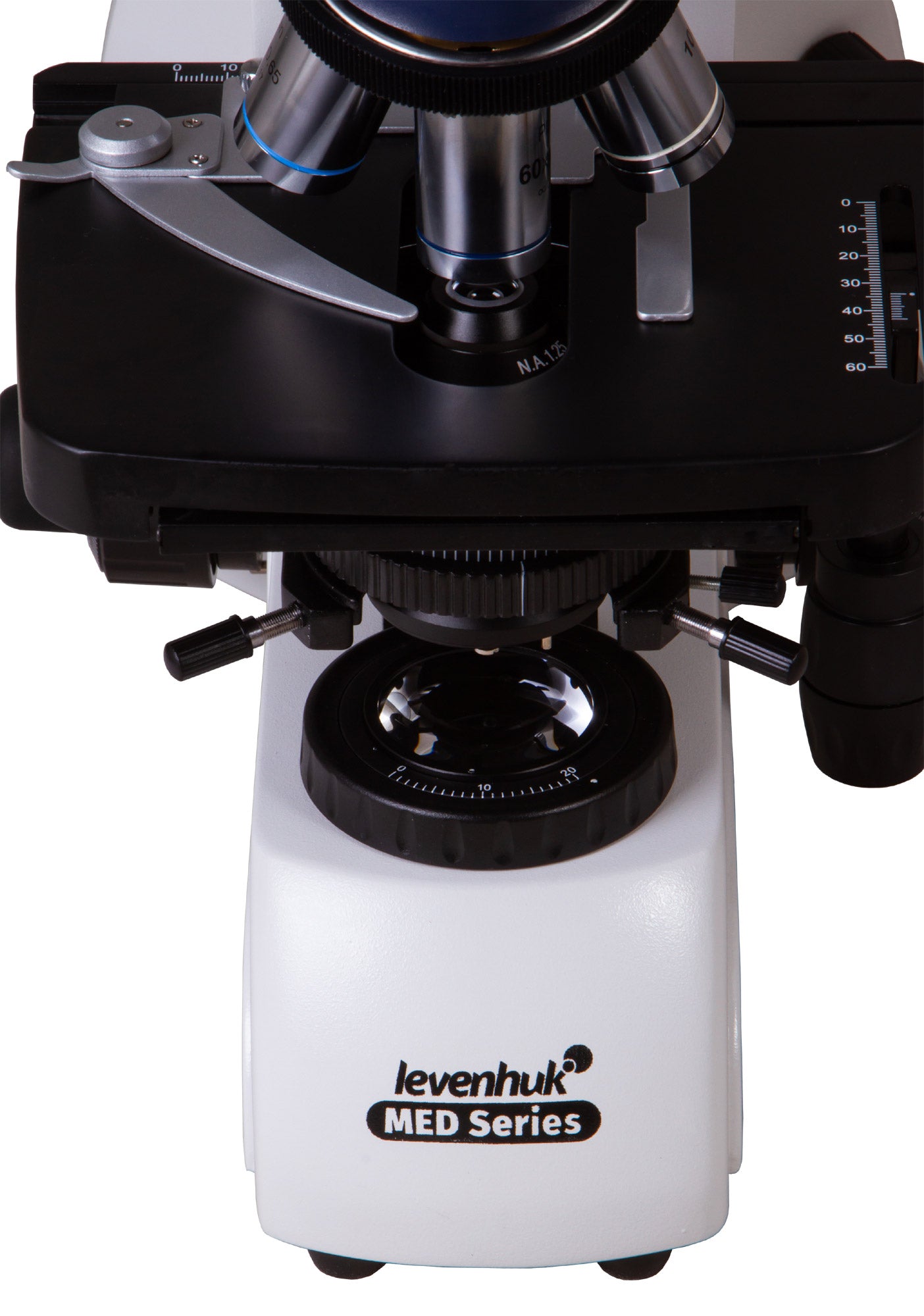

Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Filters: blue, green, yellow
Vial of immersion oil
Fuse (2 pcs)
Power cord for microscope
Dust cover
10MP digital camera
Camera adapter
Camera mount
USB cable for connecting and powering a digital camera
Software CD and drivers
User manual and lifetime warranty
