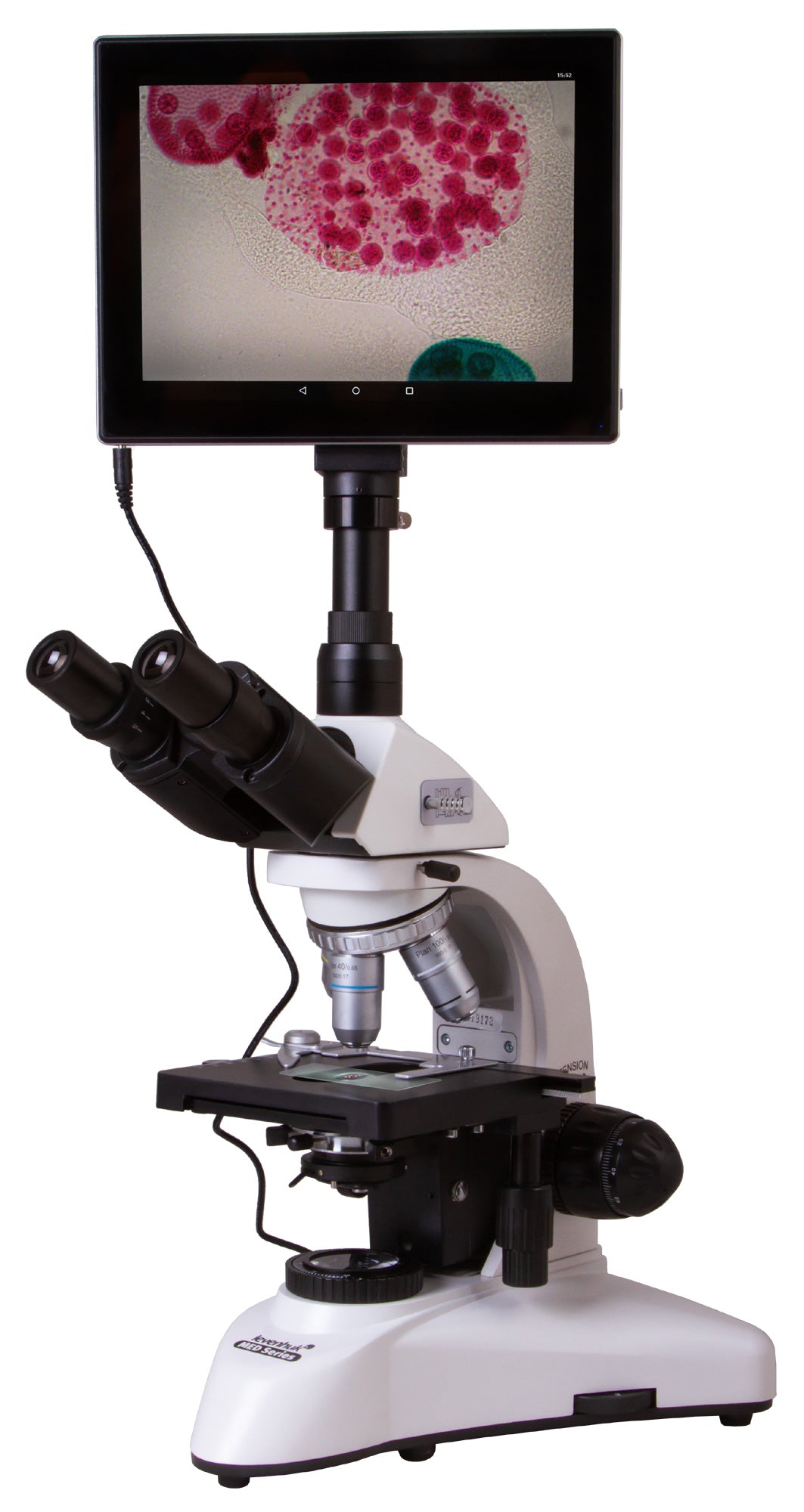

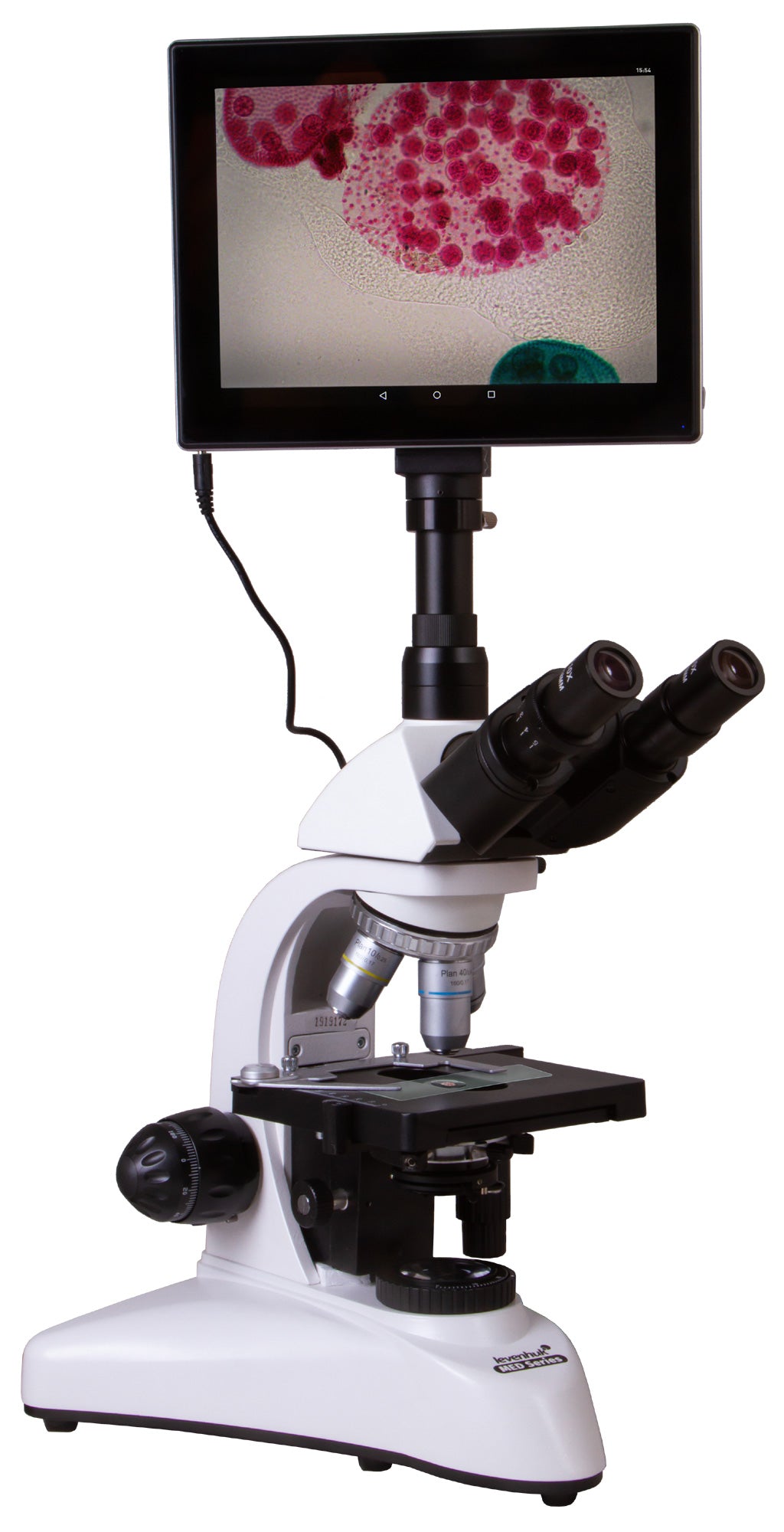

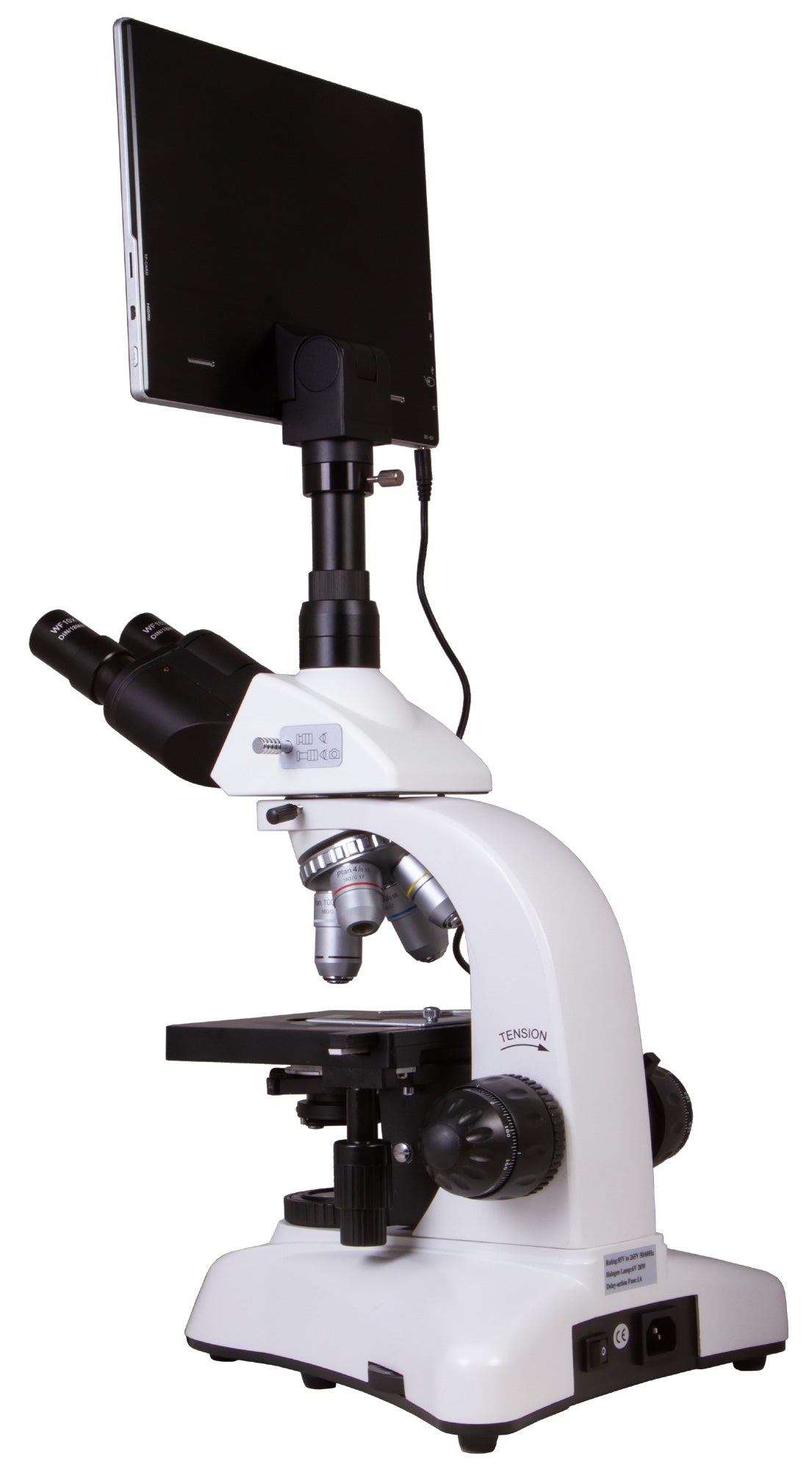

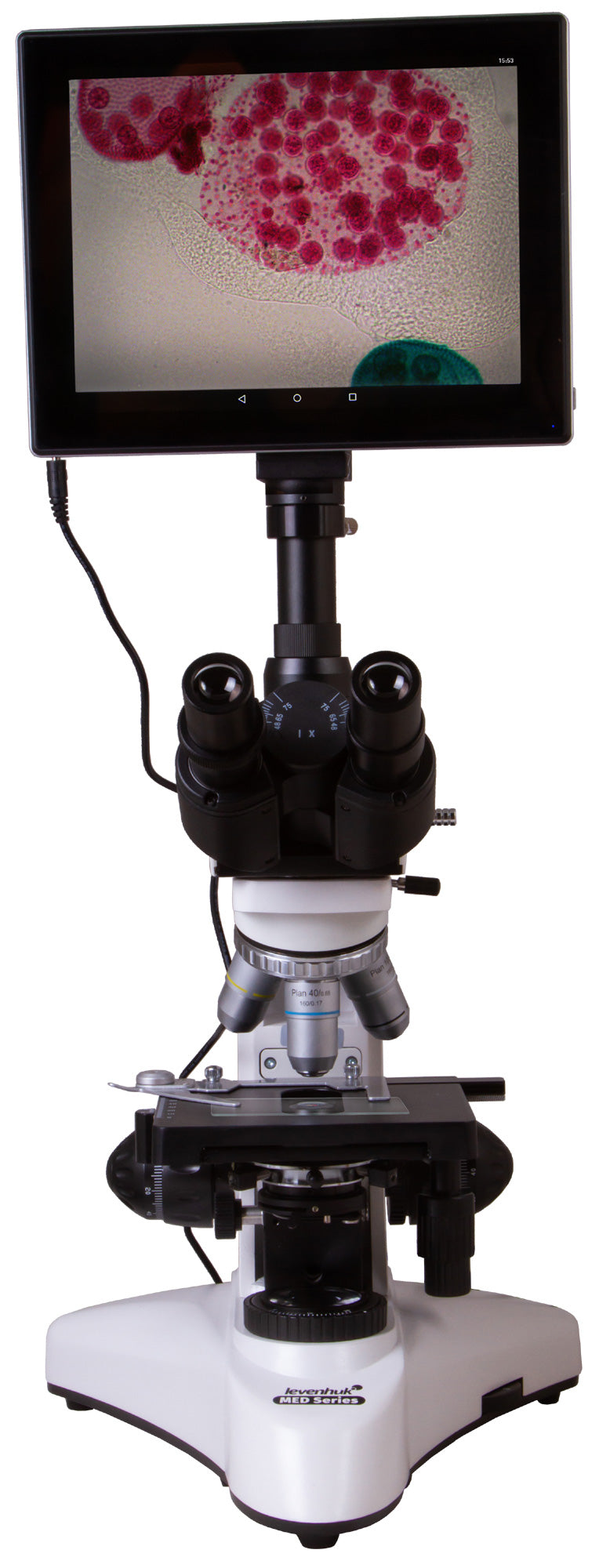

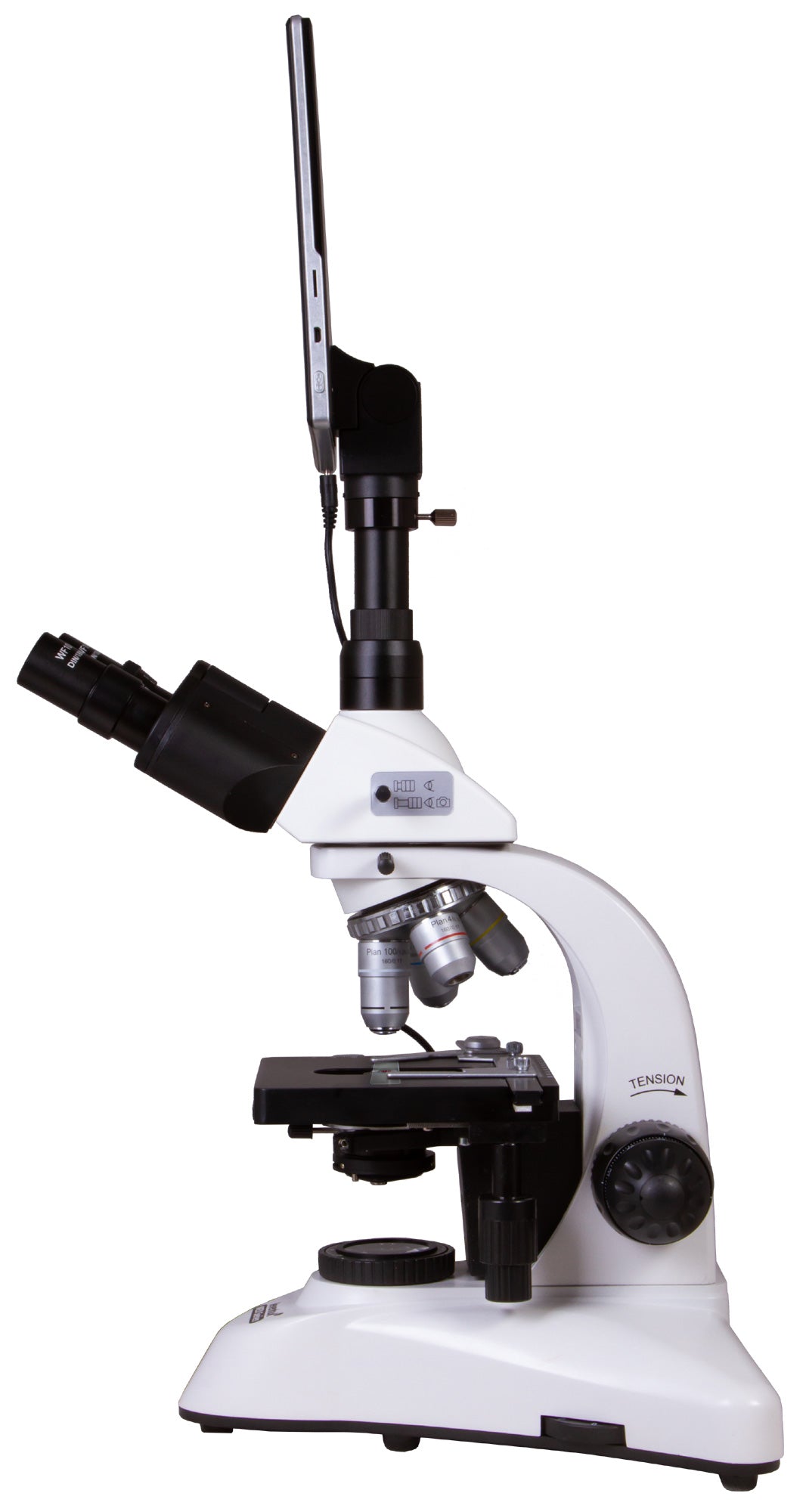

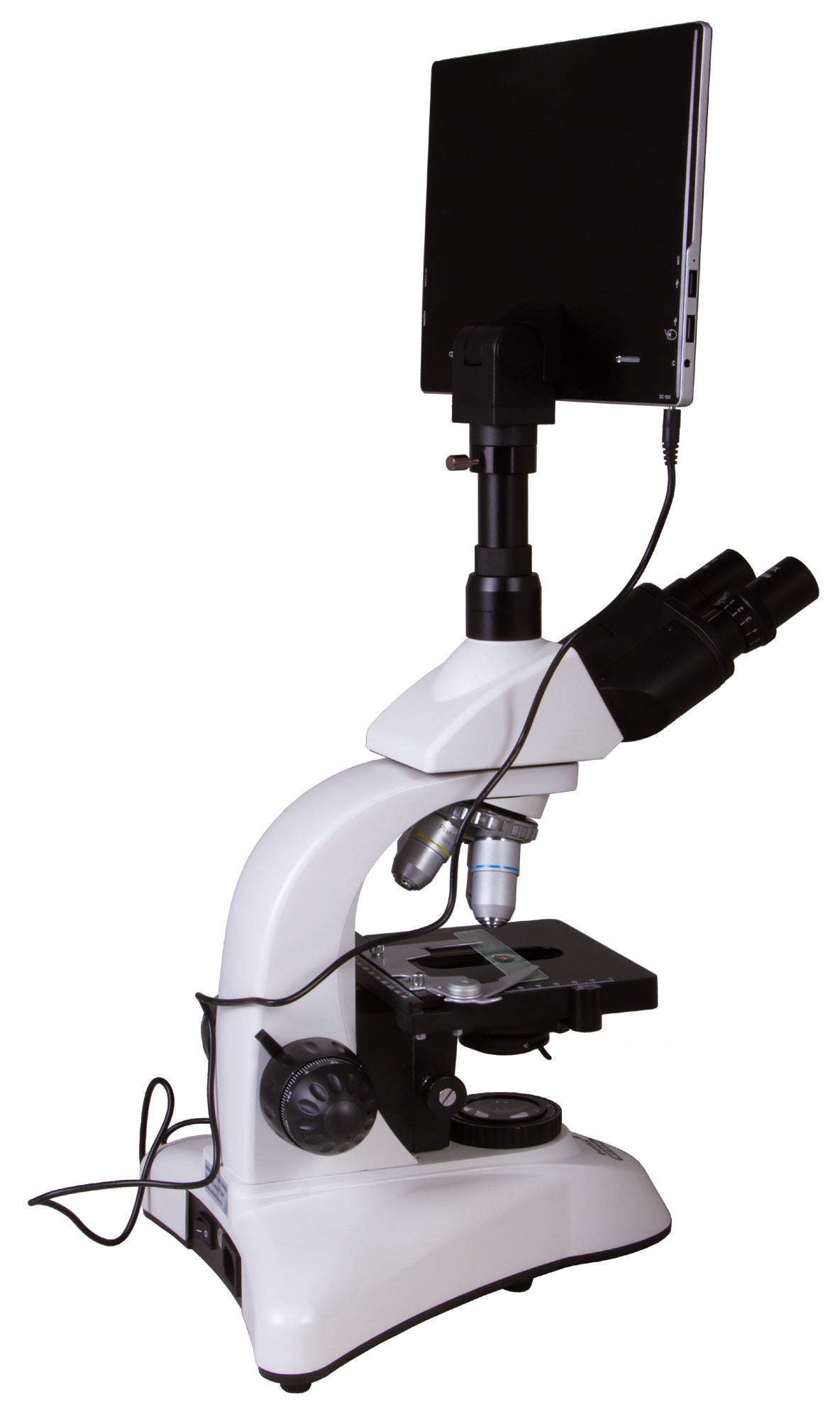

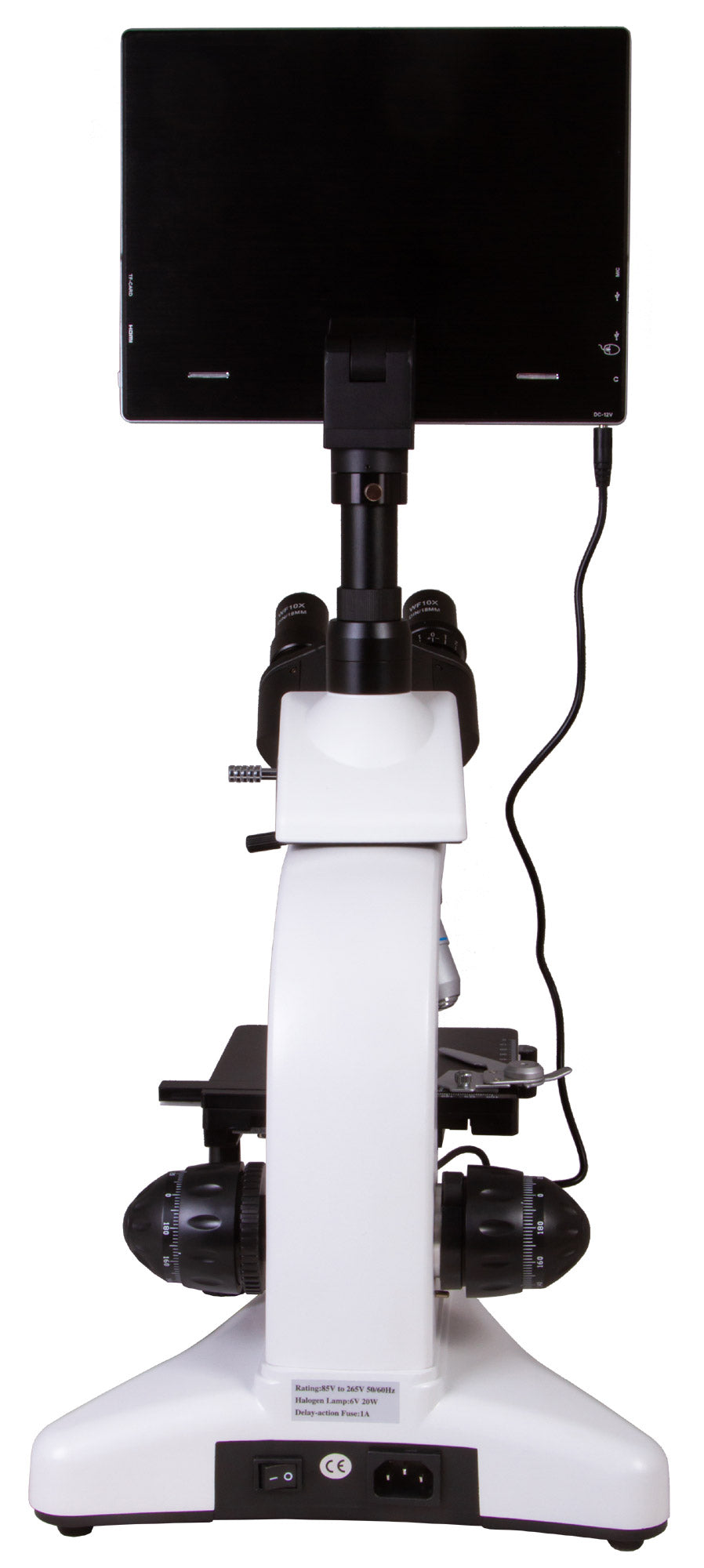

Levenhuk MED D25T LCD Digital Trinocular Microscope
Magnification: 40–1000x. Trinocular head, 5.1MP digital camera with an LCD screen, plan achromatic objective lenses, an Abbe condenser, a dark field condenser (oil)

Levenhuk MED D25T LCD Digital Trinocular Microscope allows for conducting visual observations using the bright field and dark field method, recording exciting moments as photos and videos, setting up Köhler illumination, and using oil immersion in research. The optics provide magnification in a range of 40x to 1000x, plan achromatic objective lenses reduce chromatic aberrations and create an almost flat field of view, and wide-field eyepieces allow for studying lengthy specimens. This microscope is invaluable for professional work: staff members of medical centers and laboratories, specialists in research institutes, and university professors will highly appreciate it. Levenhuk MED D25T LCD is an optimal microscope for live blood analysis, cytology, and other microbiological research.

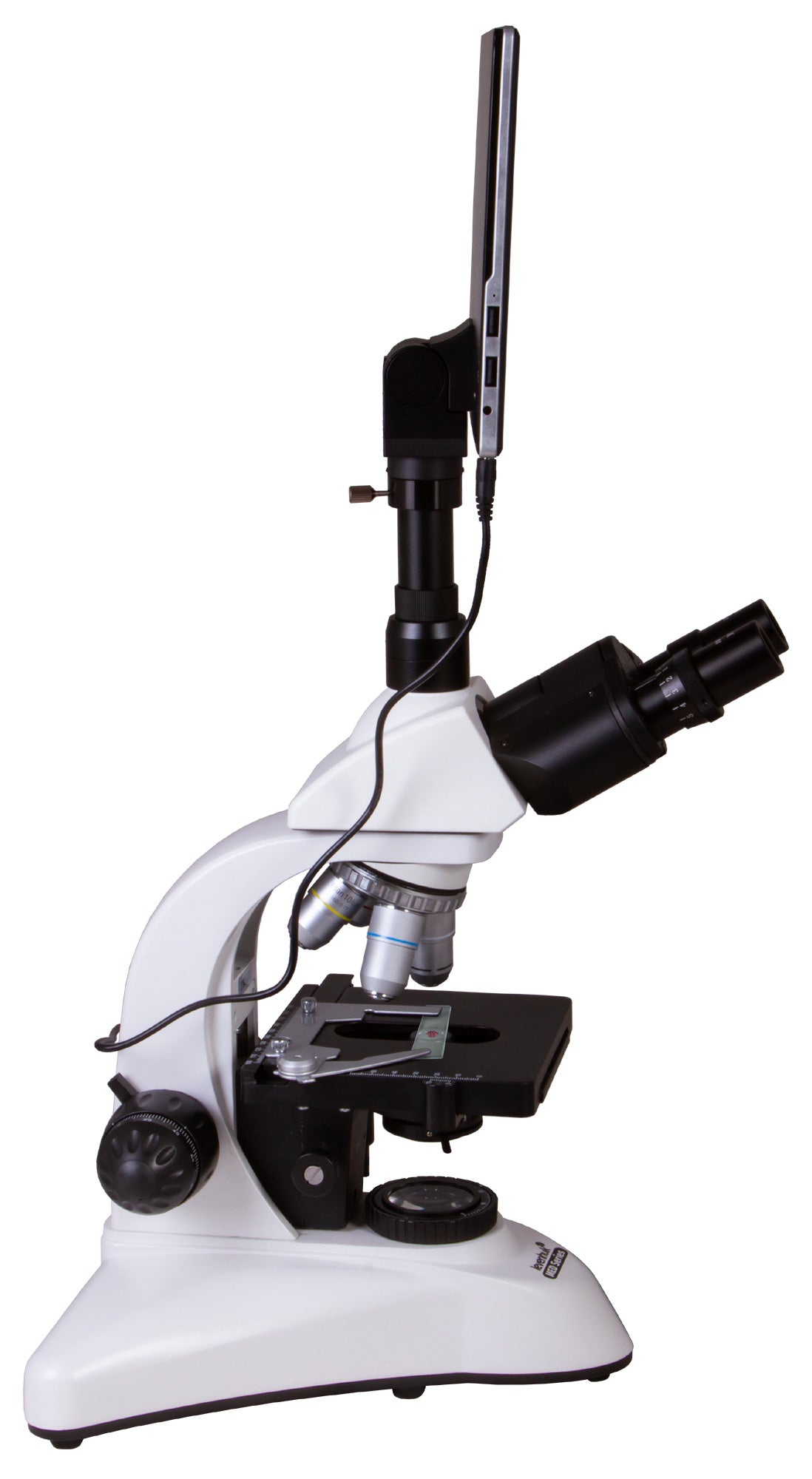

A rotatable head with a beam splitter

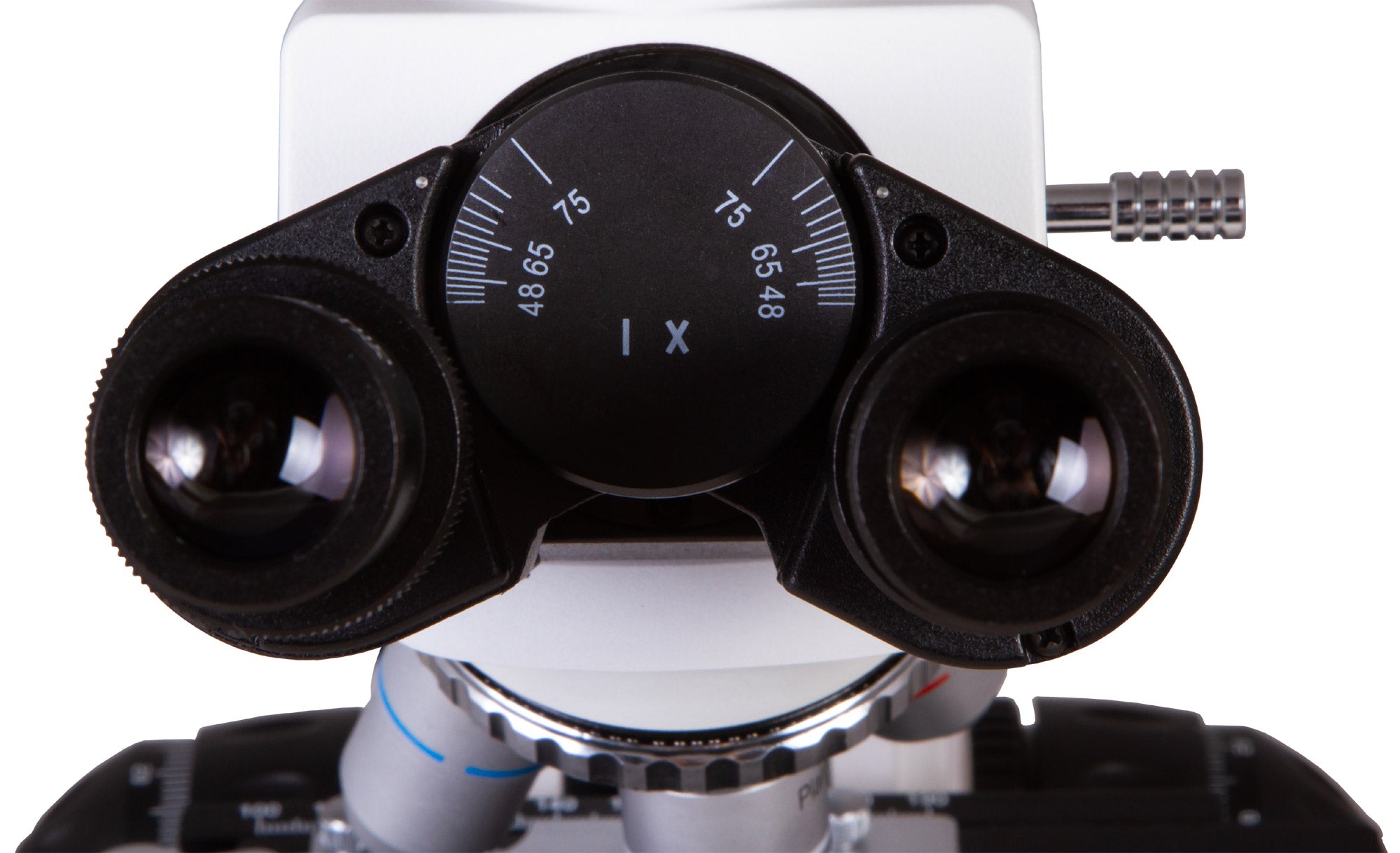

The trinocular head is 360° rotatable. The visual part is inclined at 30°, and there is a vertical ocular tube for a digital camera. There is a beam splitter. The eyepieces provide 10x magnification, feature diopter adjustment, and are installed in the visual part. You can conduct observations looking through a microscope with both eyes.

Digital capabilities

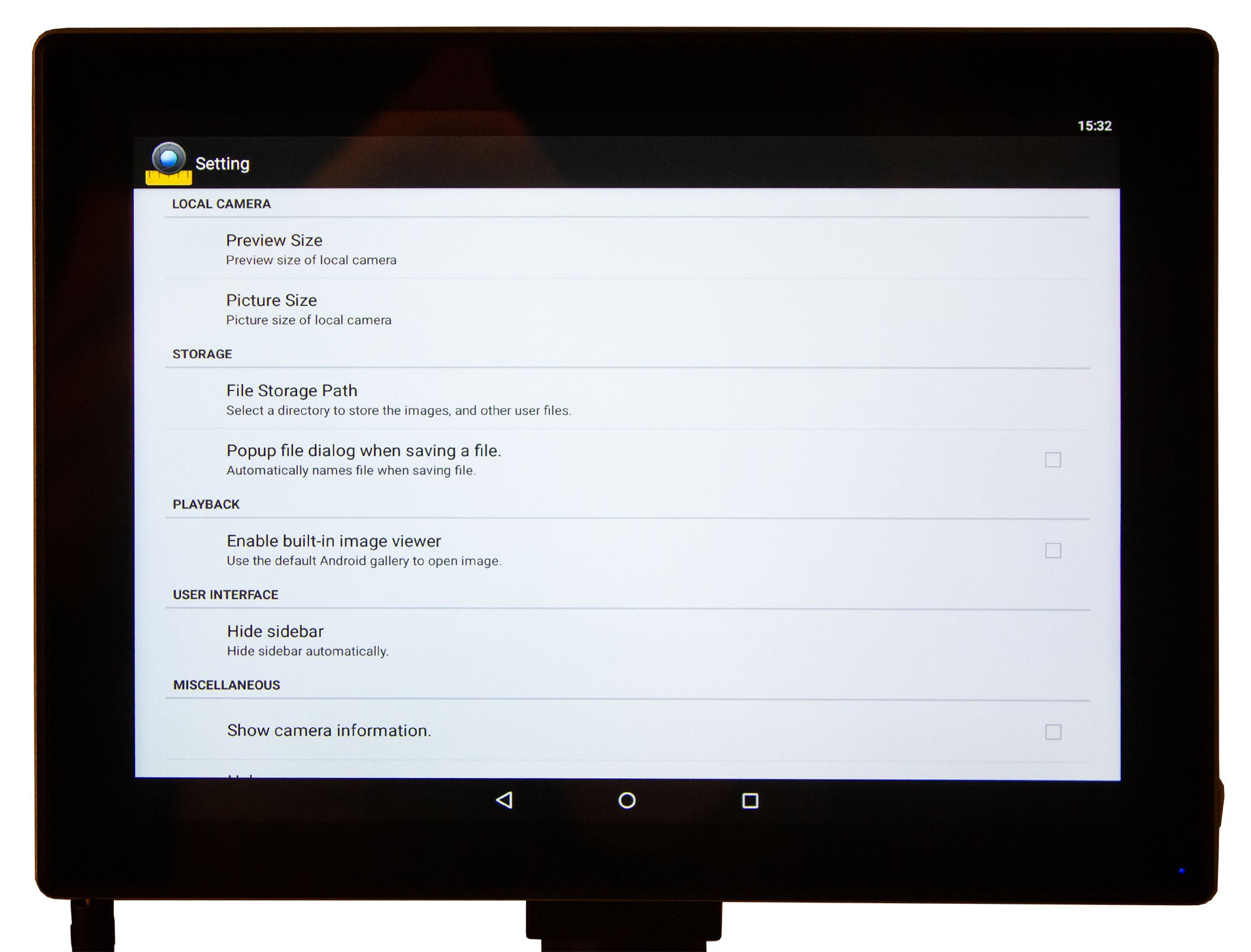

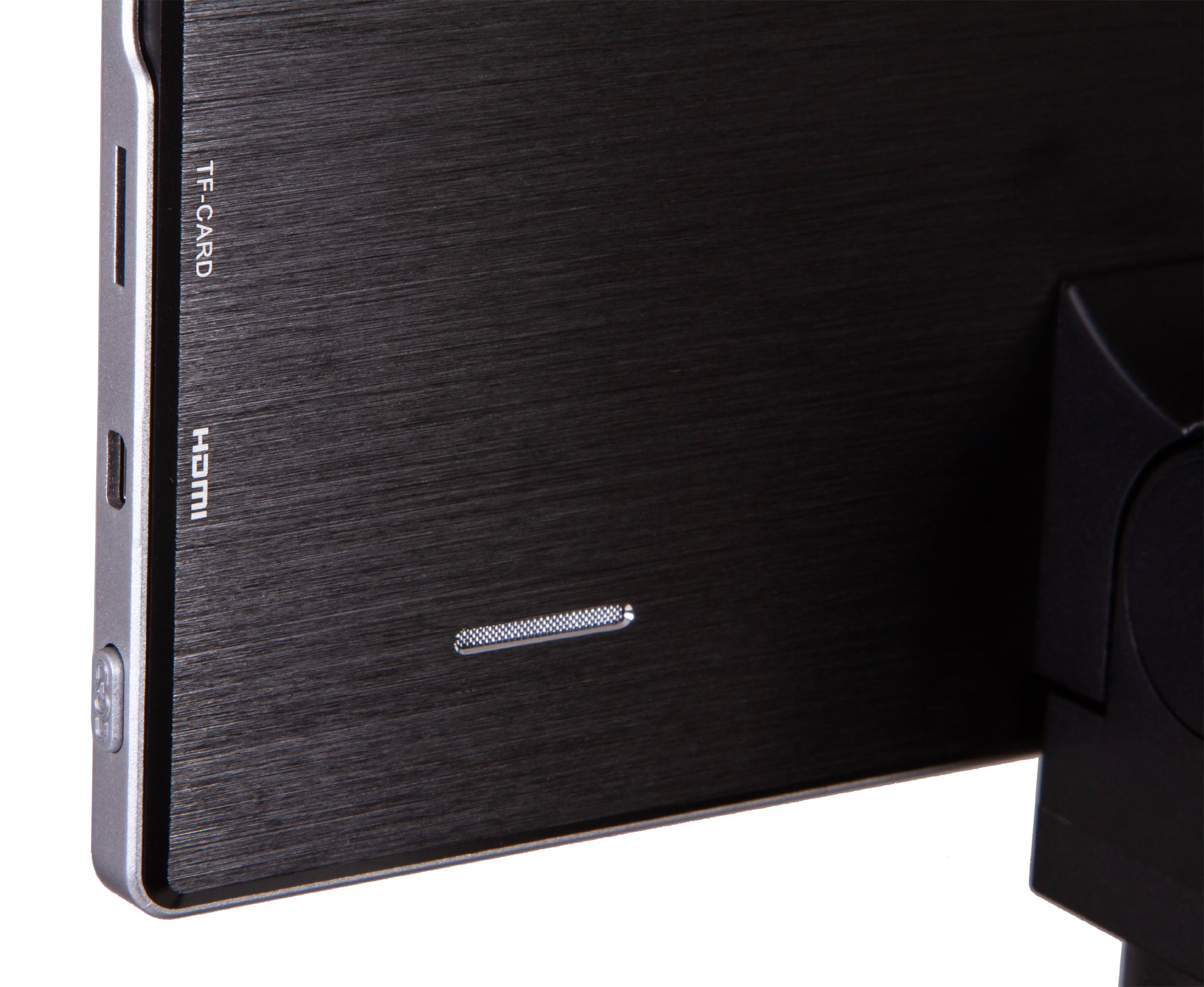

Levenhuk MED D25T LCD allows for carrying out live blood analysis: a darkfield microscope or a microscope with a dark-field condenser is most effective for blood tests. This 5MP digital camera can simultaneously show the image on a built-in LCD screen, transmit it to an external screen, and record videos and photos. The main feature of this camera is its self-sufficiency. It uses its own software, allows for processing recorded material, can work connected to a TV or monitor, and is compatible with additional accessories (memory cards, headphones, a keyboard, and other). The software allows for adjusting size, image brightness and contrast, gamma, sharpness and saturation, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available). In addition, the program allows for carrying out a particle analysis. The camera makes working in a laboratory easier and more practical for an explorer. An image observed through an obj ective lens is also transmitted to a built-in LCD screen with sensor control. That removes the necessity to continuously observe through the eyepieces and strain the eyes and the rotator cuff.

A microscope for live blood analysis, cytology, and other microscopy research
Trinocular head with a beam splitter
Plan achromatic optics provides magnification of 40x to 1000x
Anti-fungal coating of all the optical surfaces

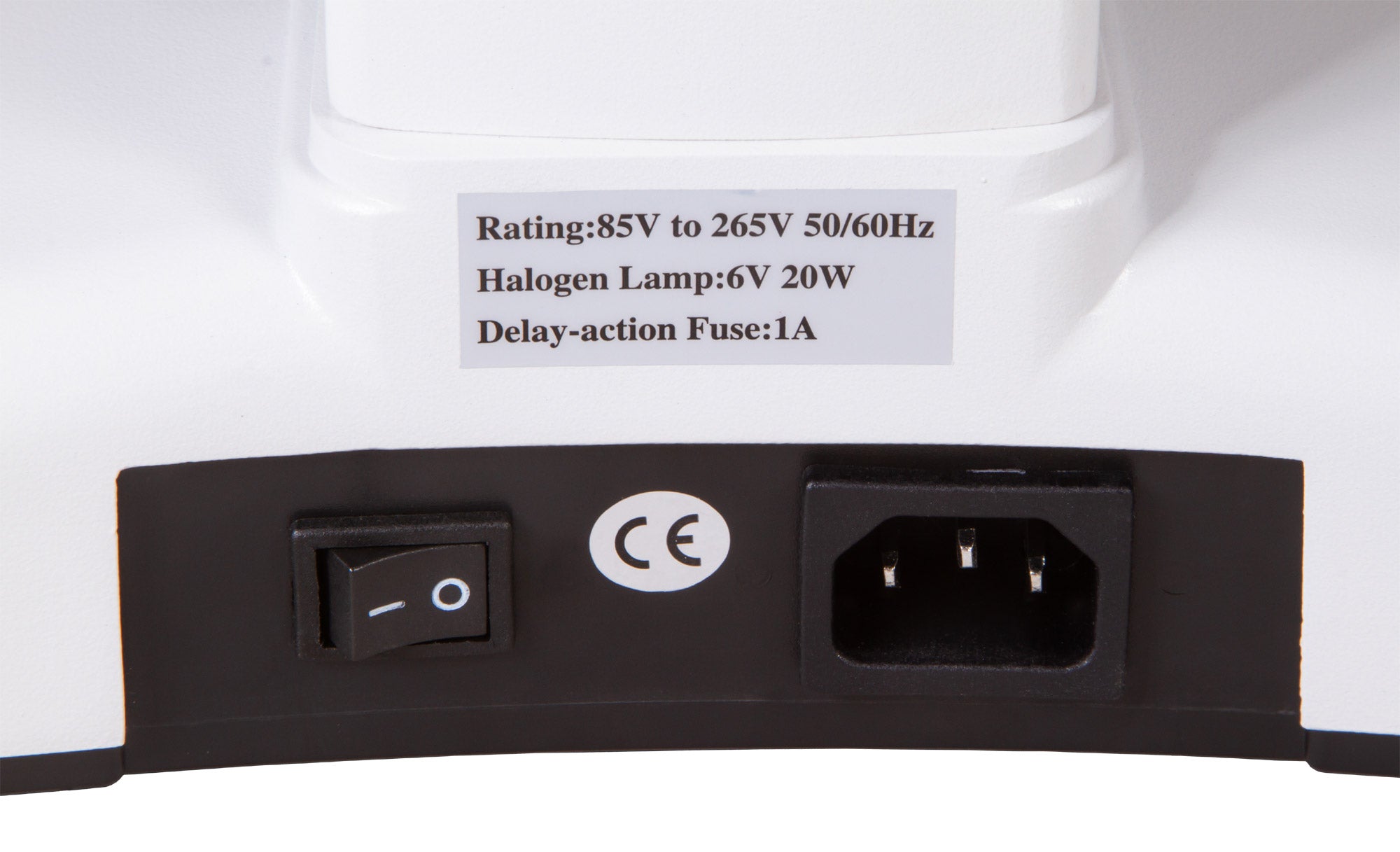

20W halogen light is powered by an AC power supply
Köhler illumination is available
Bright field and dark field observations are available
The kit includes a 5MP digital camera with an Android-based LCD screen

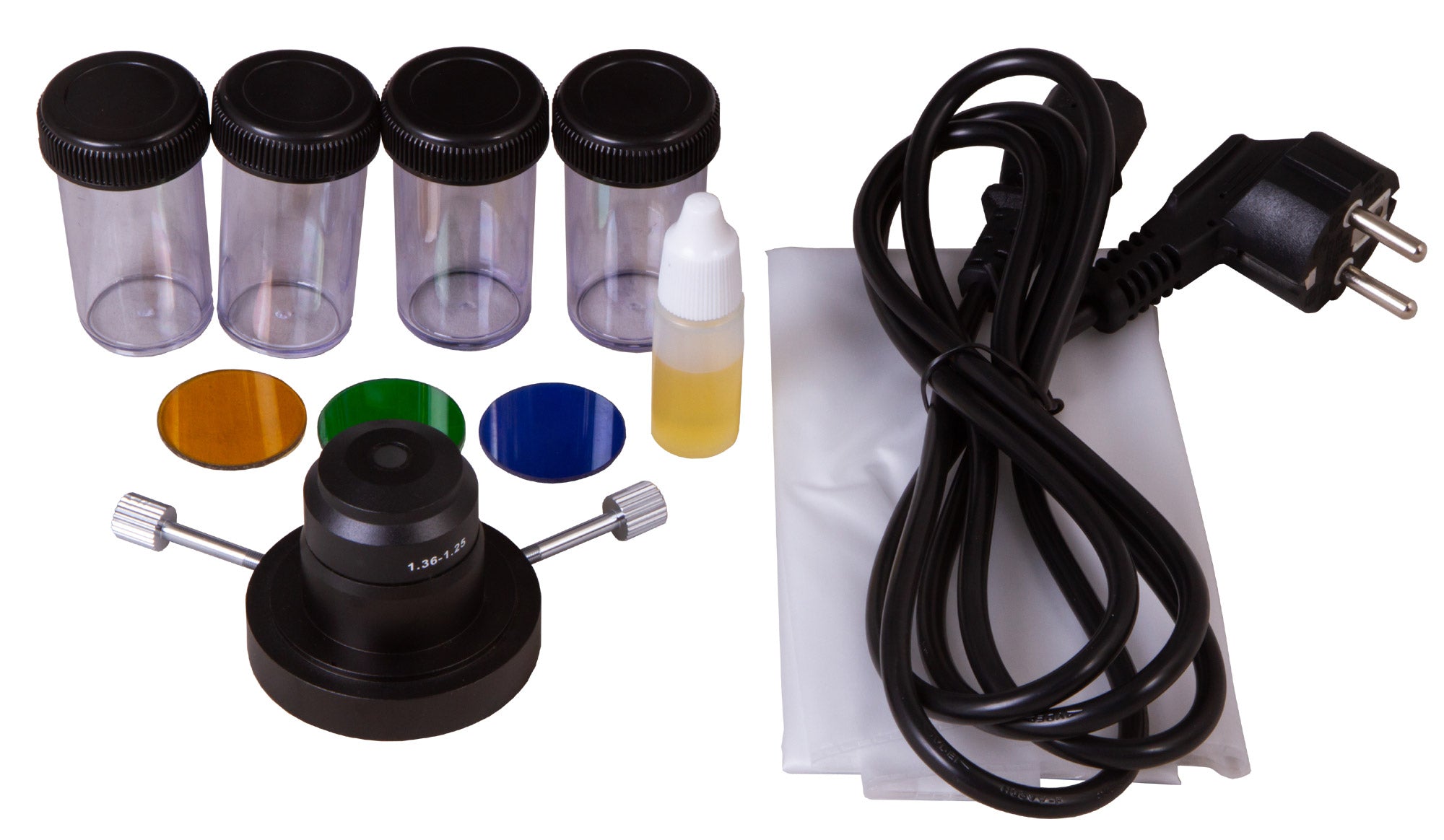

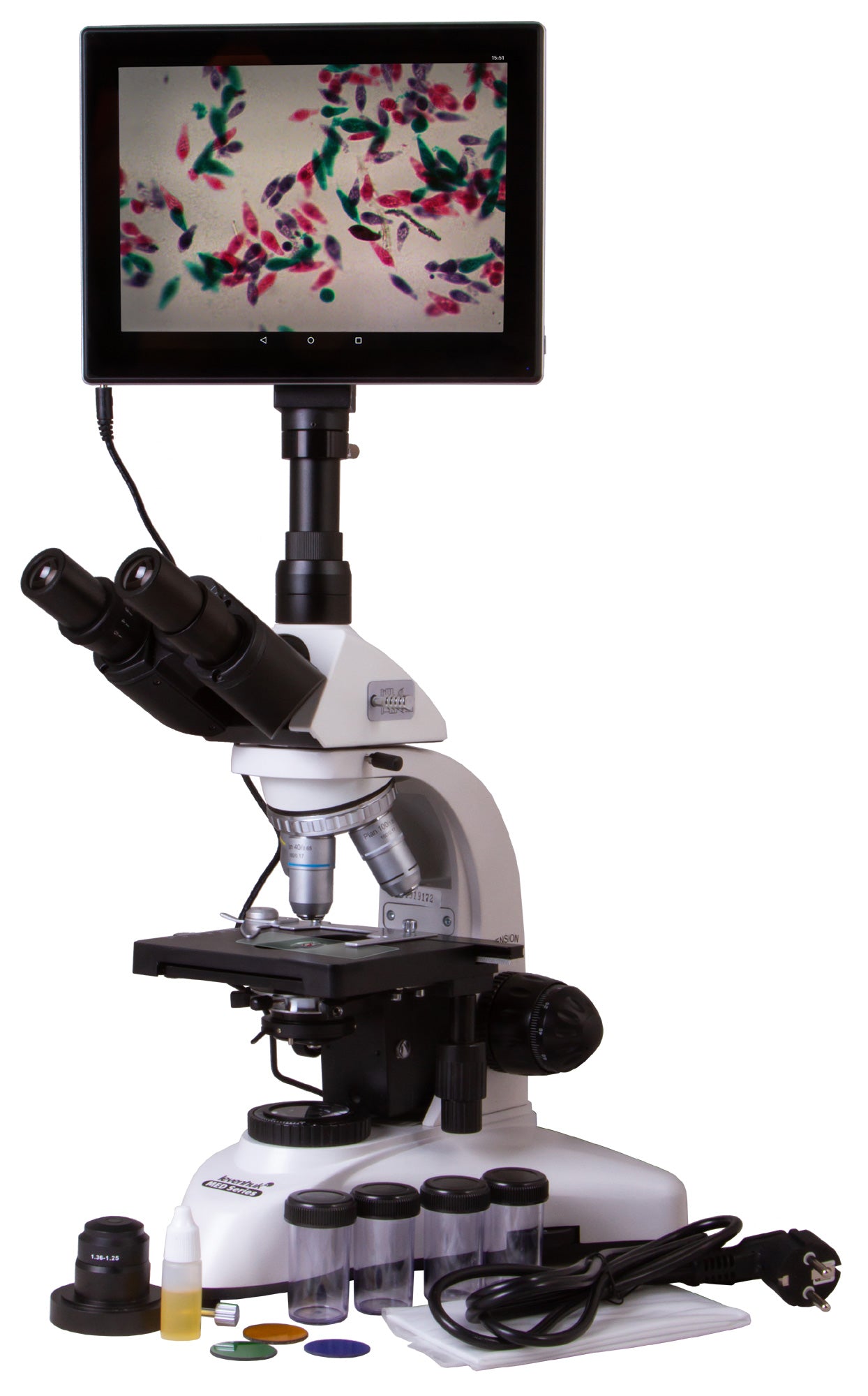

The kit includes:
Microscope base with a stand
360° rotatable trinocular head

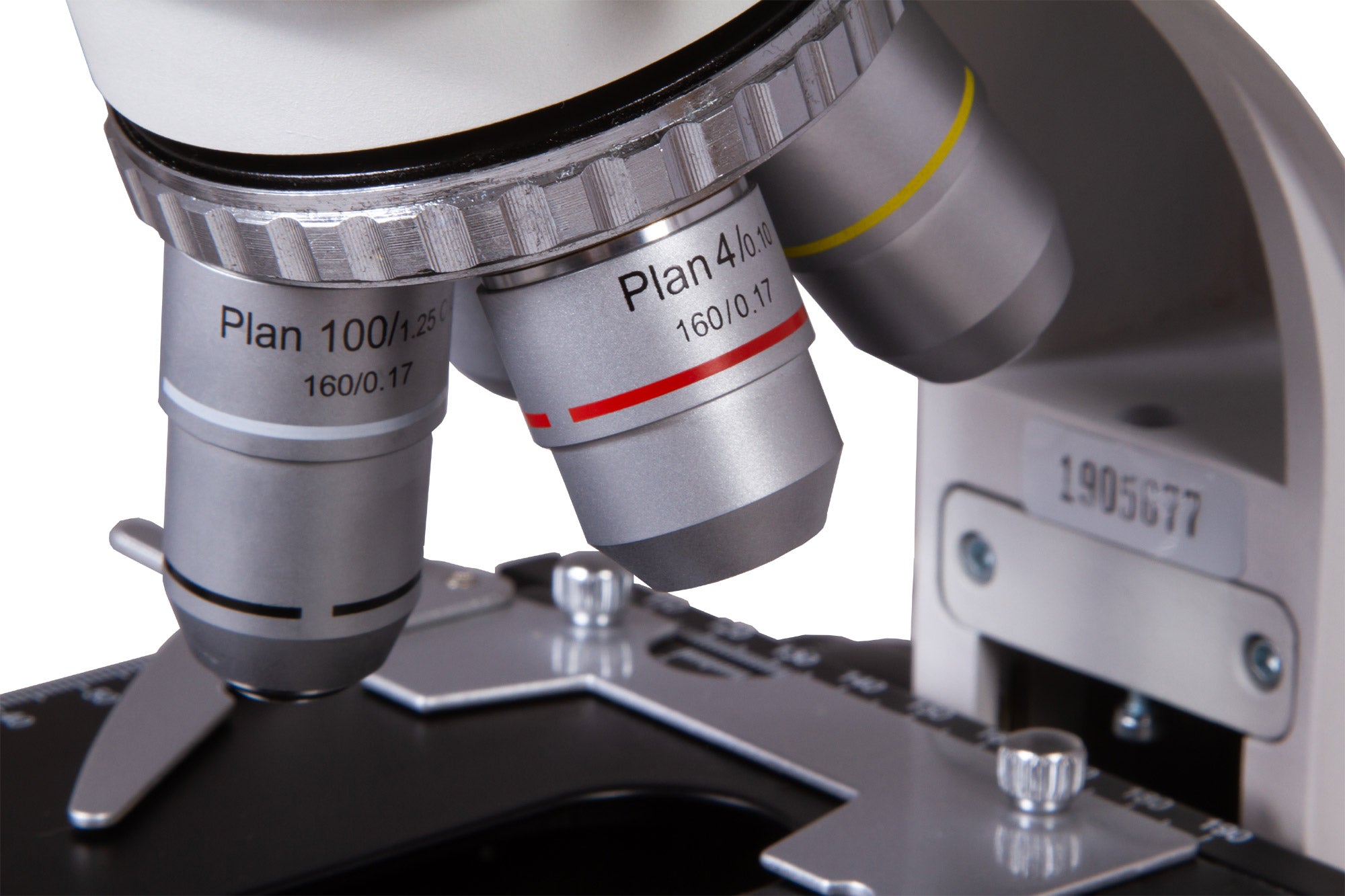

Plan achromatic objective lenses: 4x, 10x, 40xs, 100xs (oil) with an anti-fungal coating
Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)

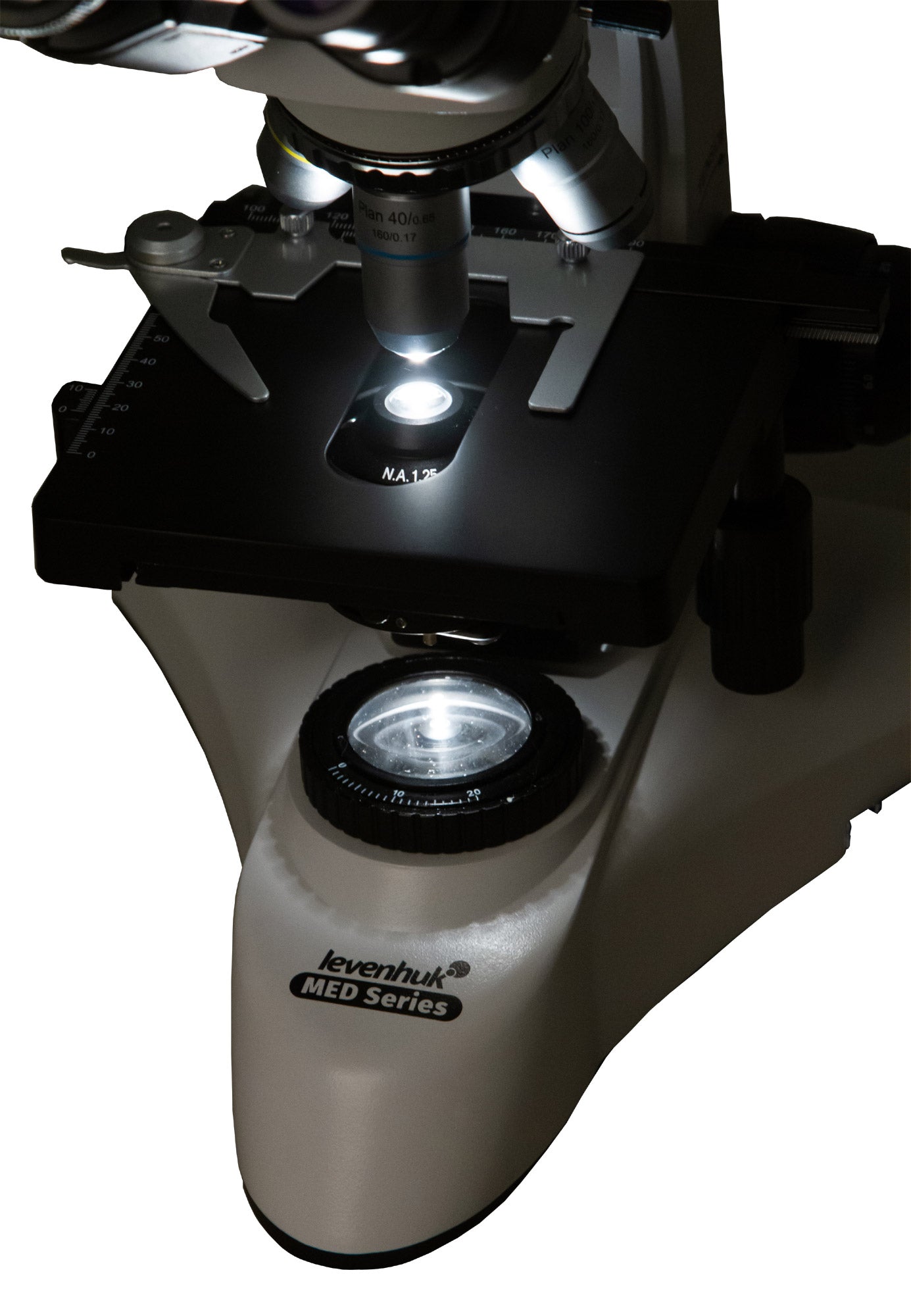

Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder

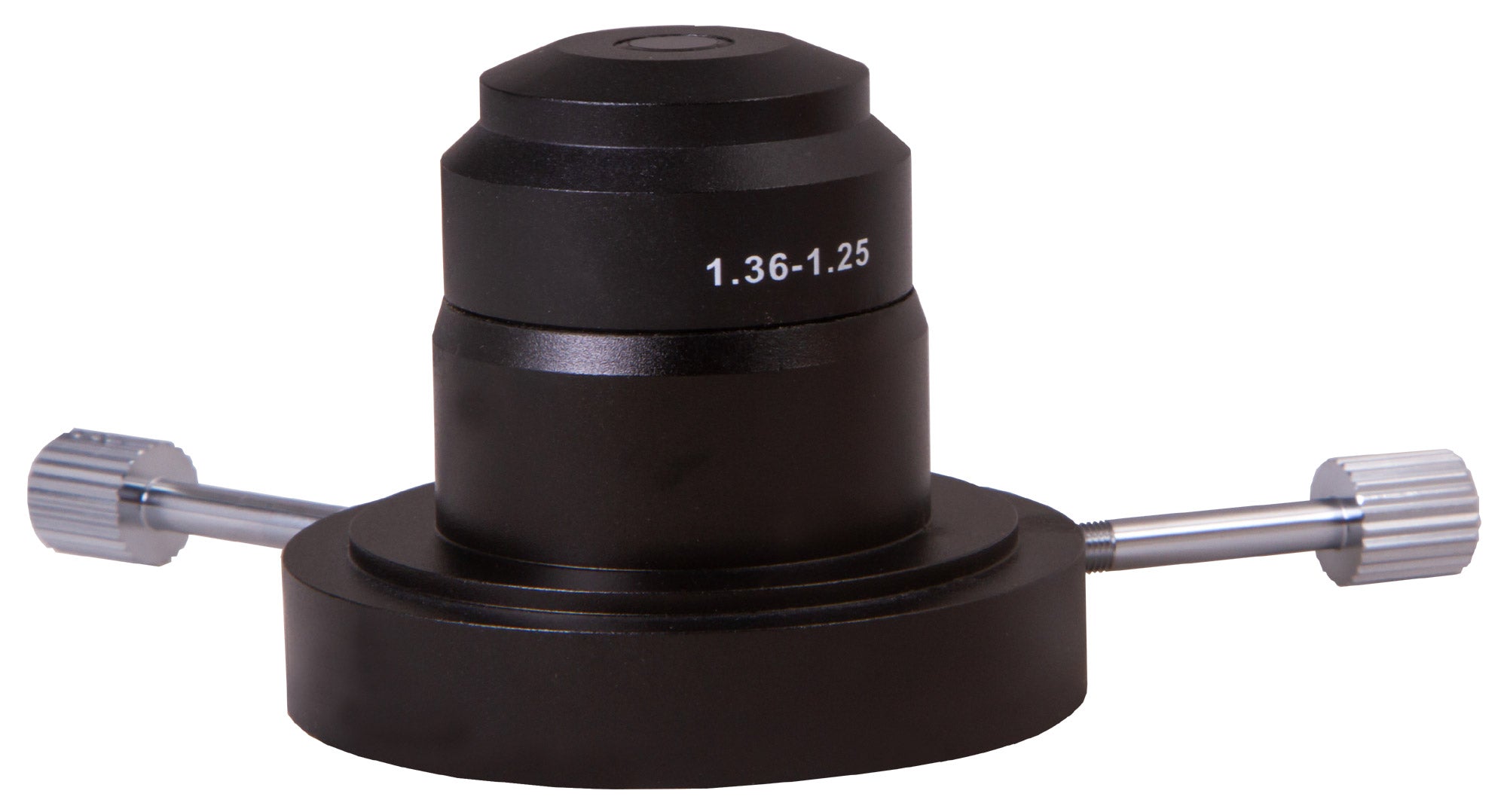

Dark field condenser (oil)
Filters: blue, green, yellow
Vial of immersion oil
Fuse (2 pcs)
Power cord for microscope
Dust cover

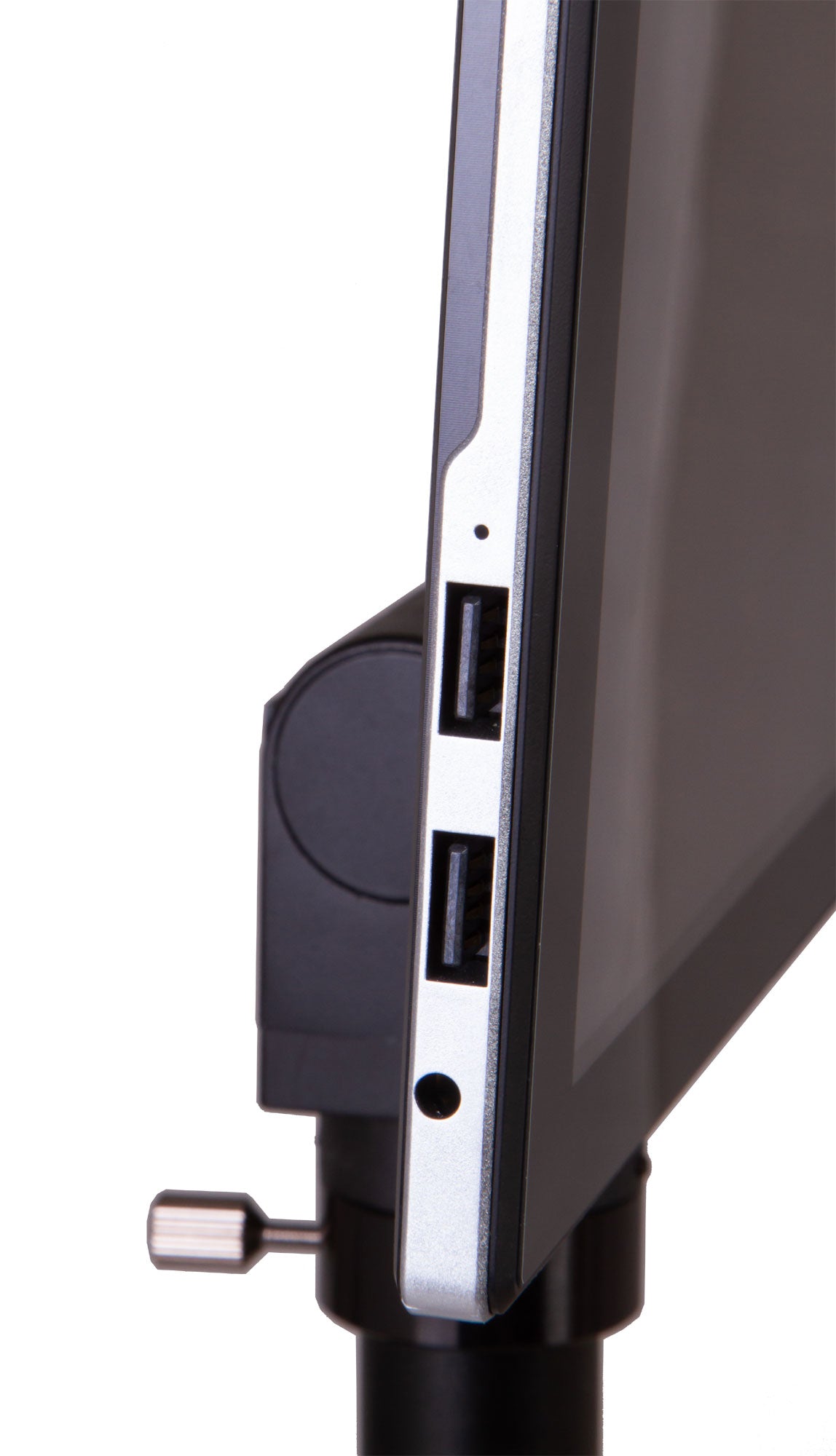

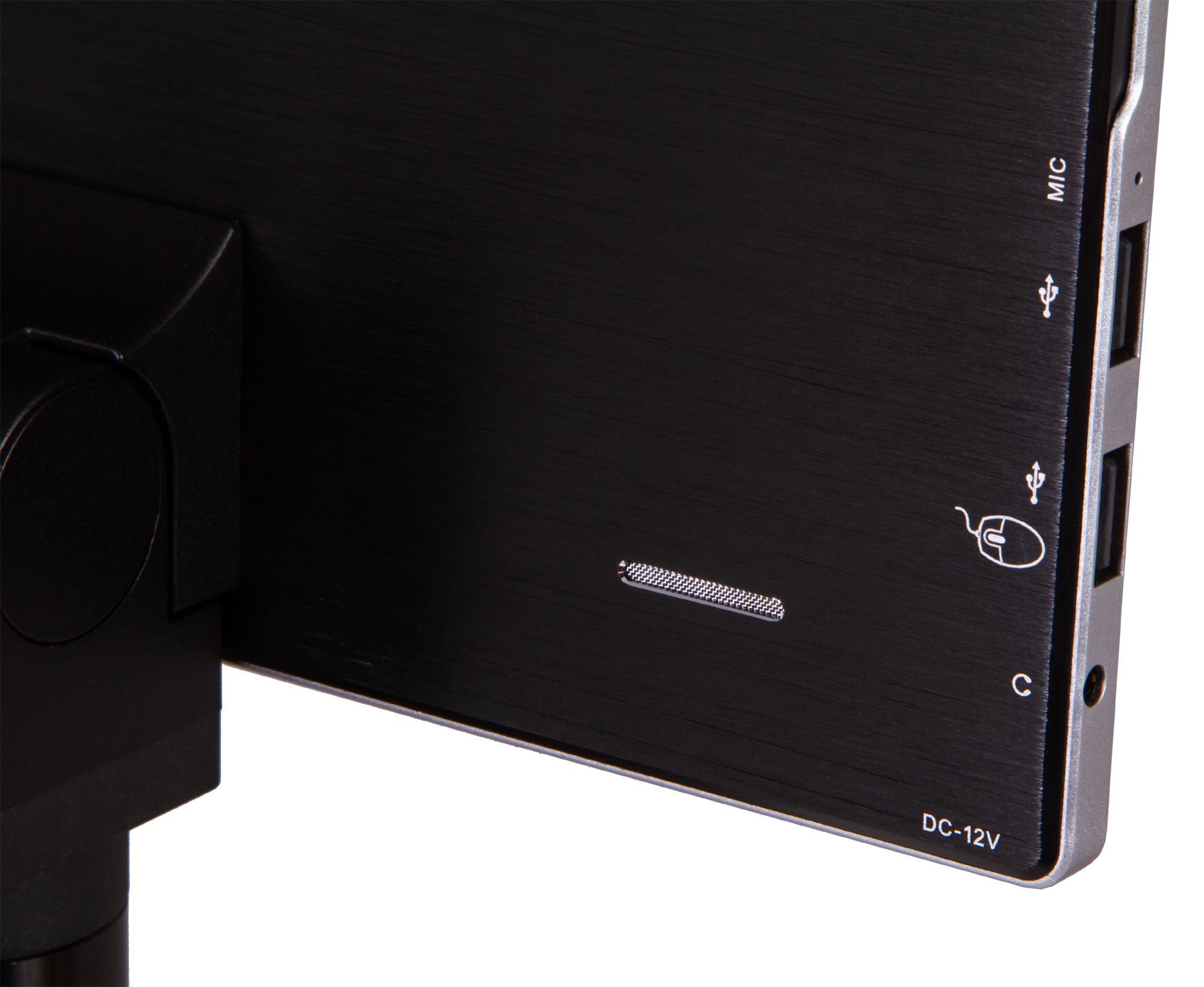

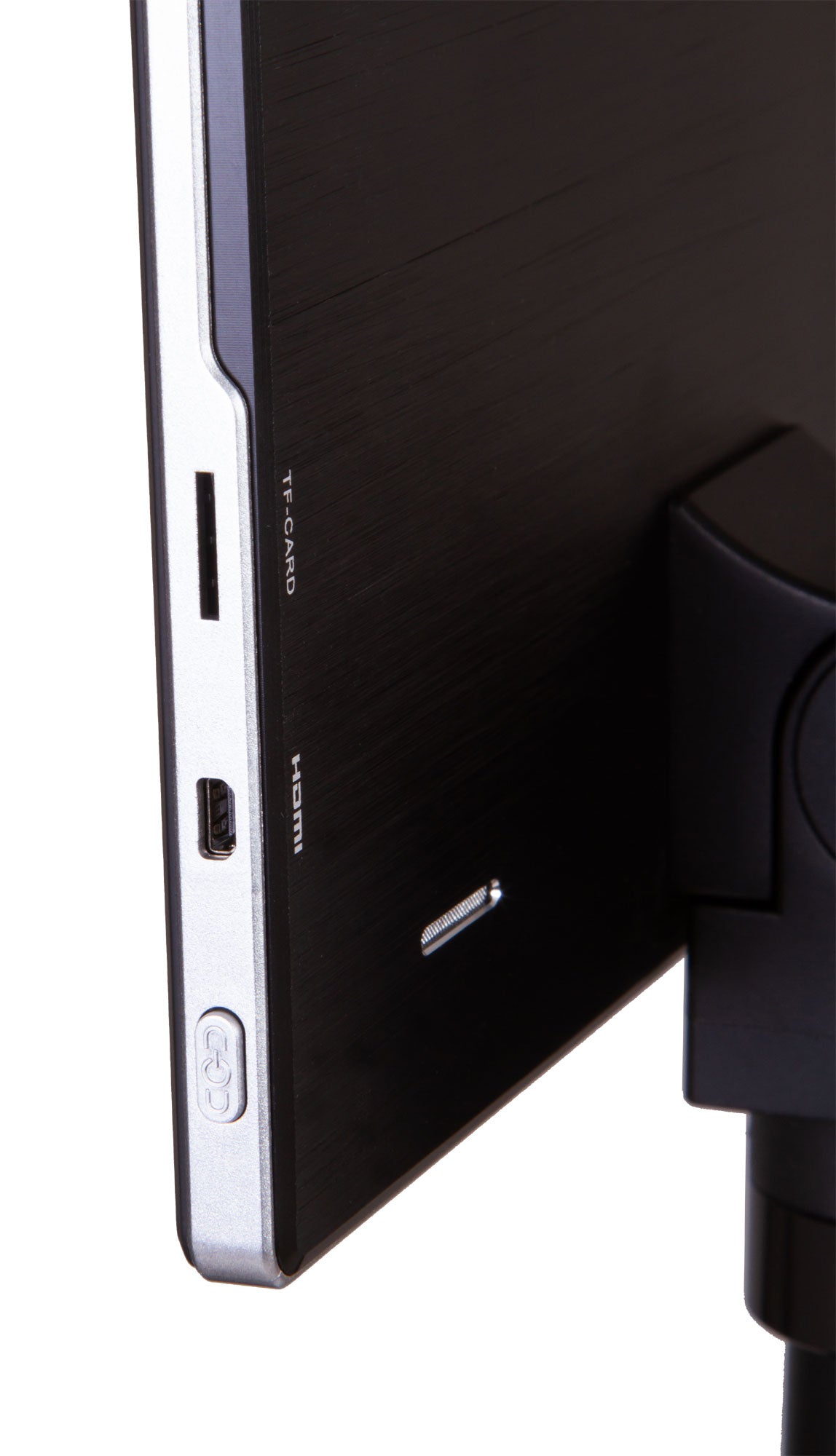

5MP digital camera with an LCD screen

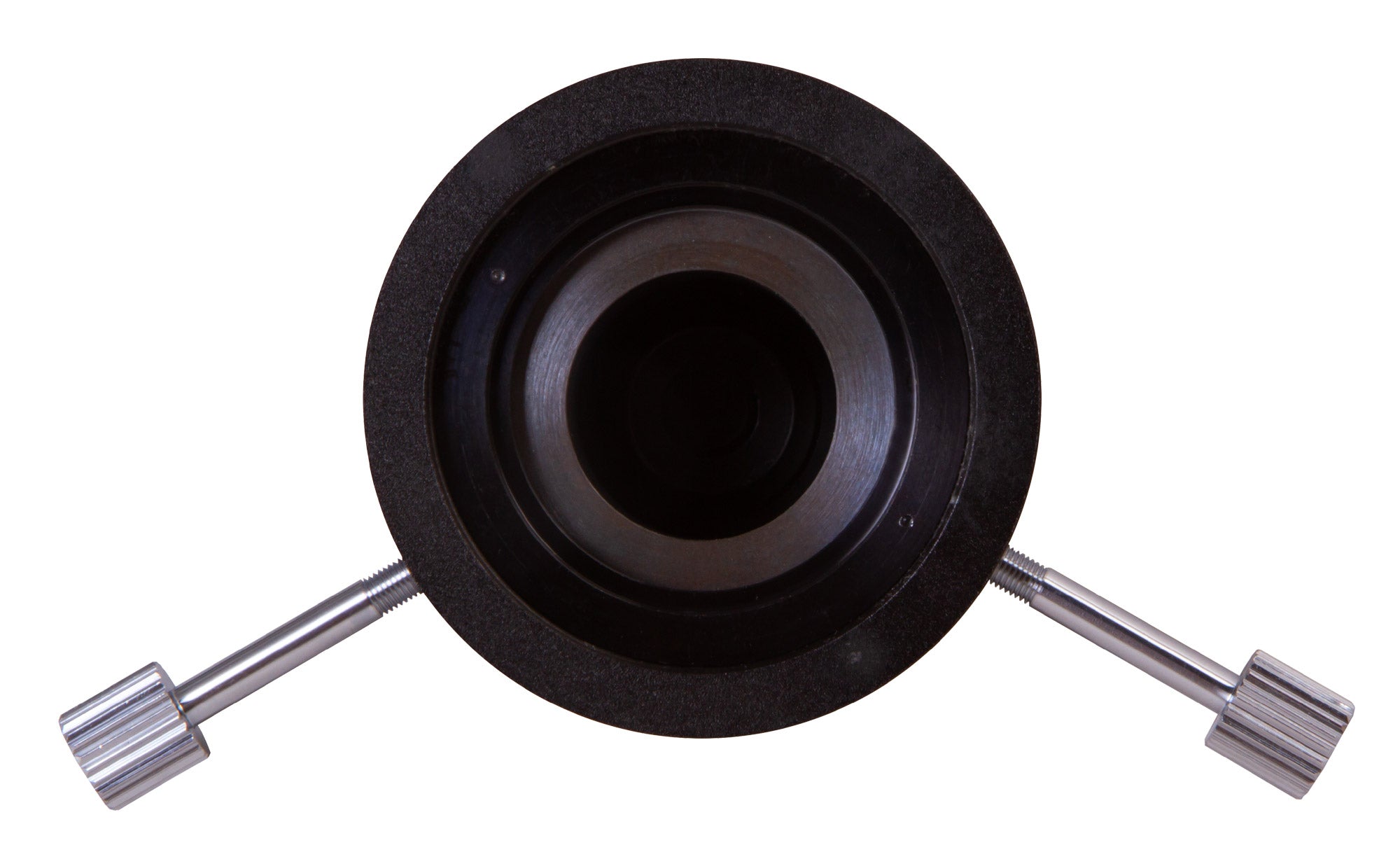

C amera mount
Power cord for camera
User manual and lifetime warranty
