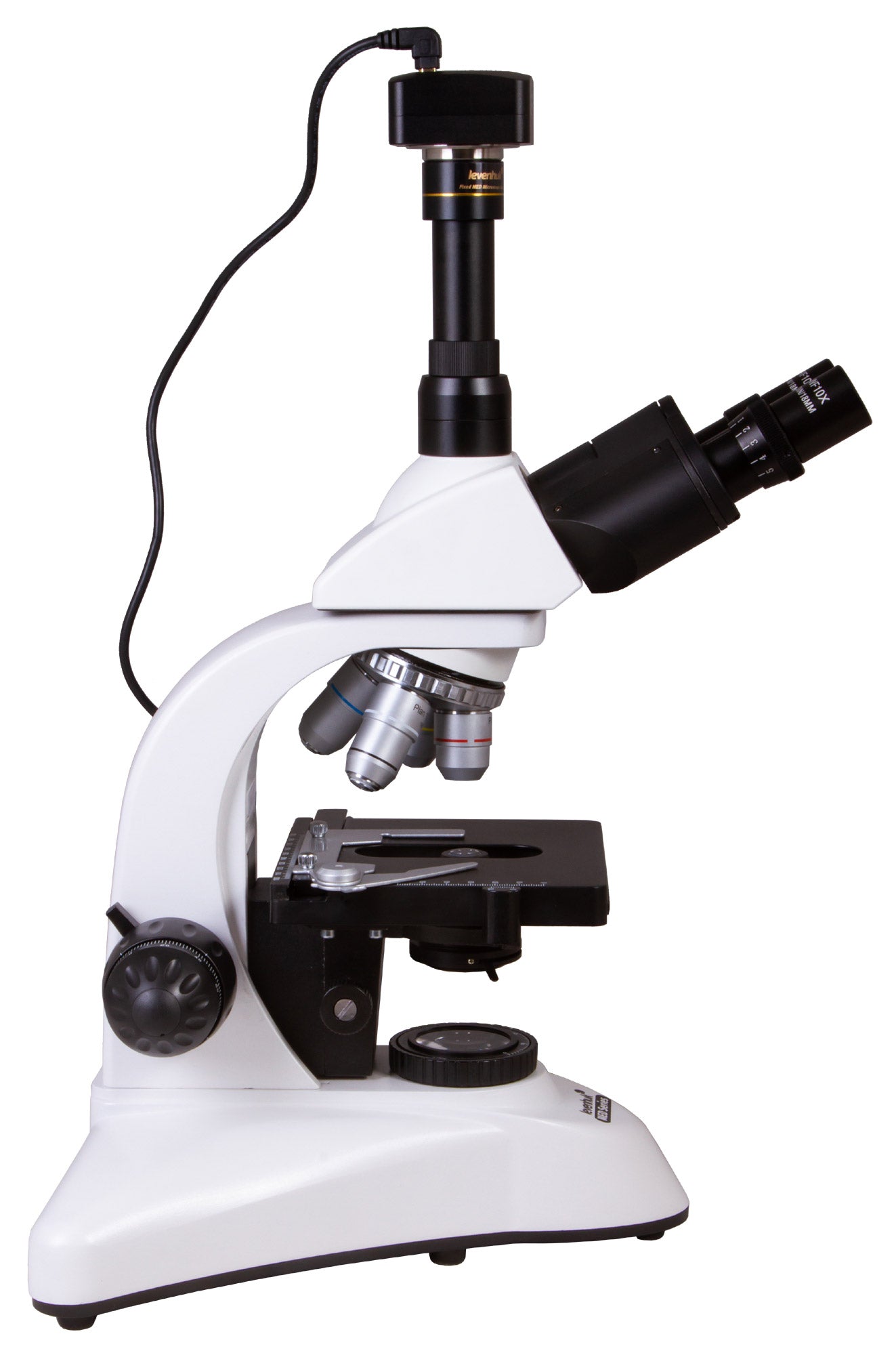

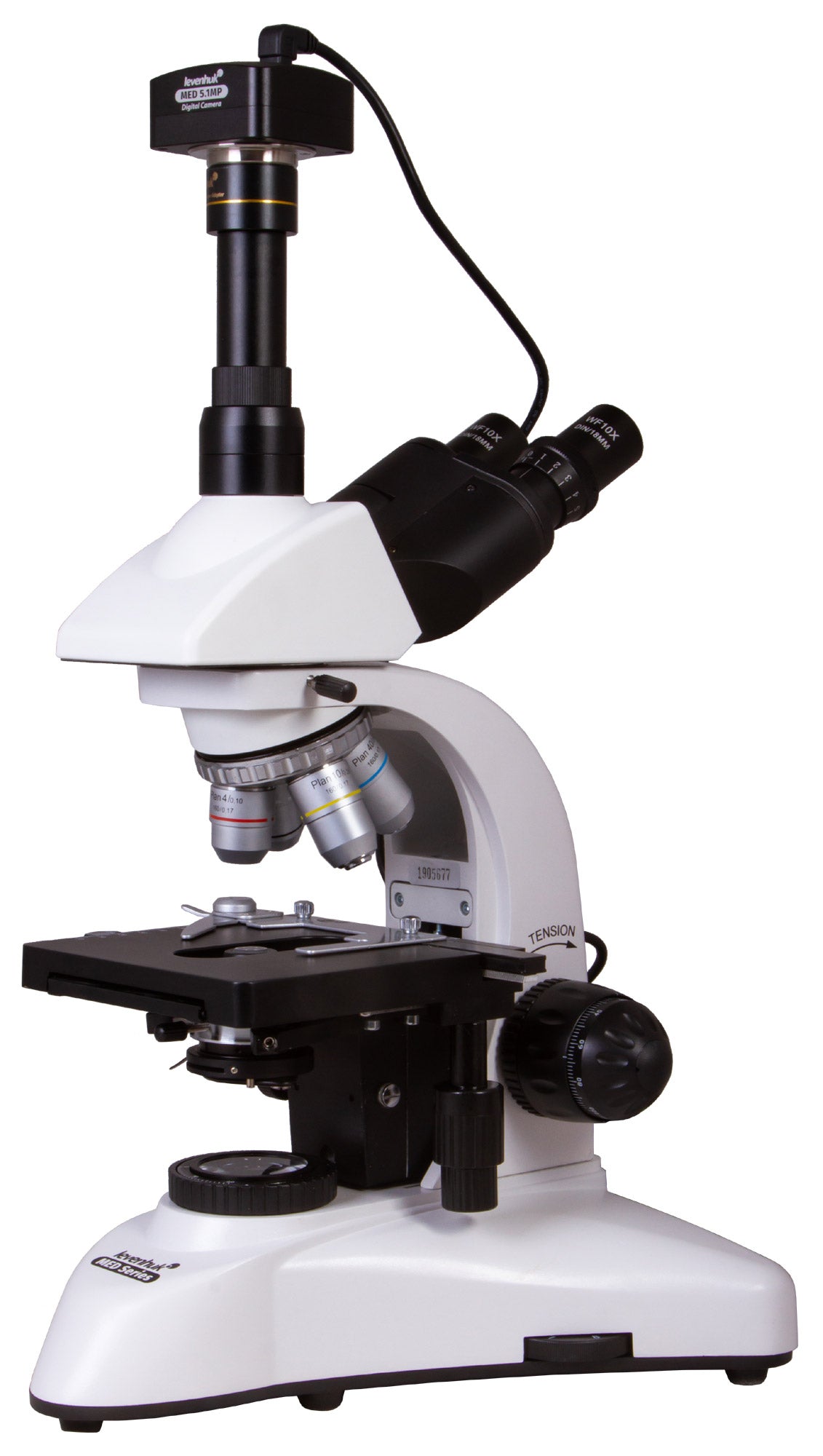

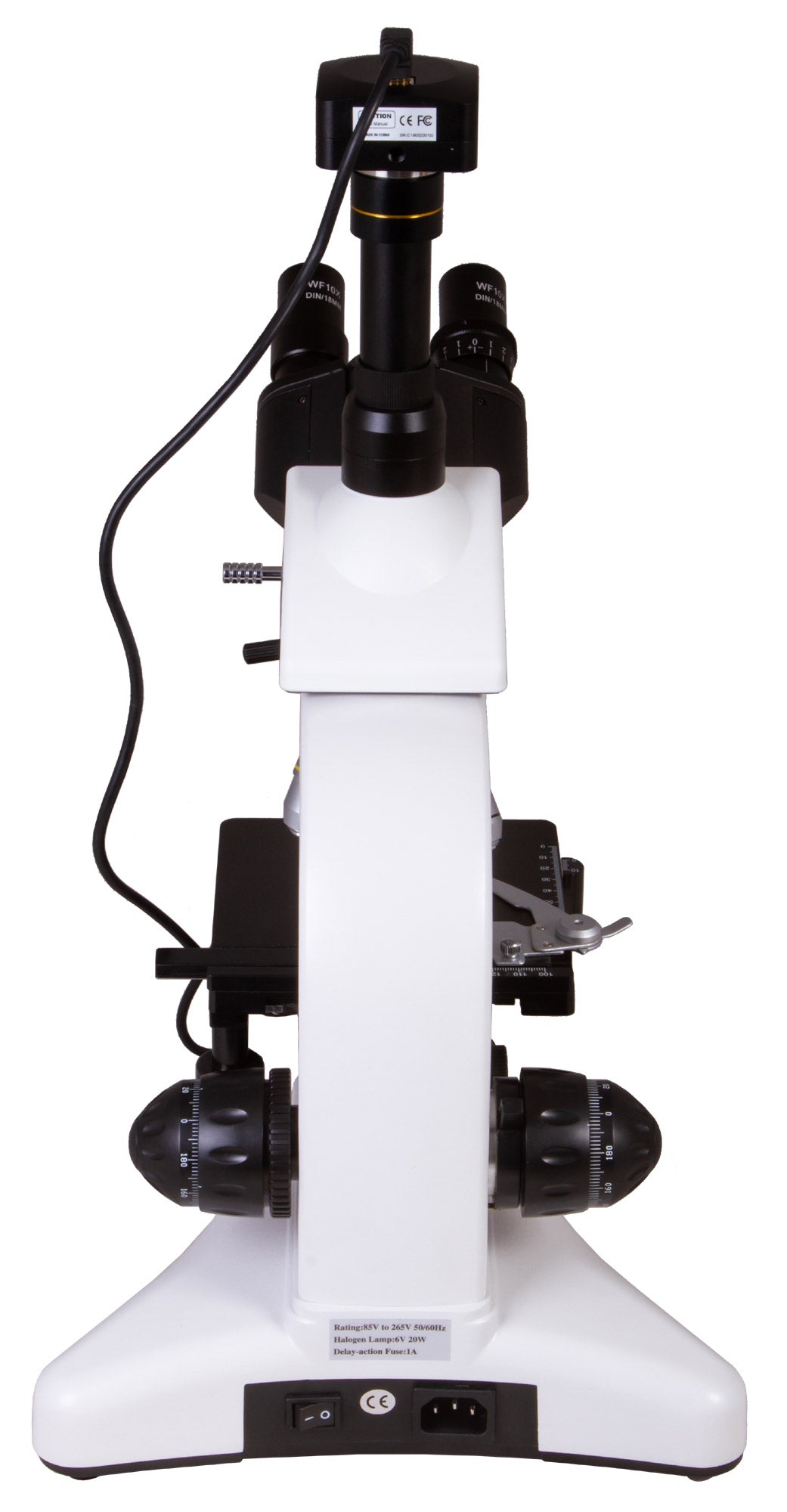

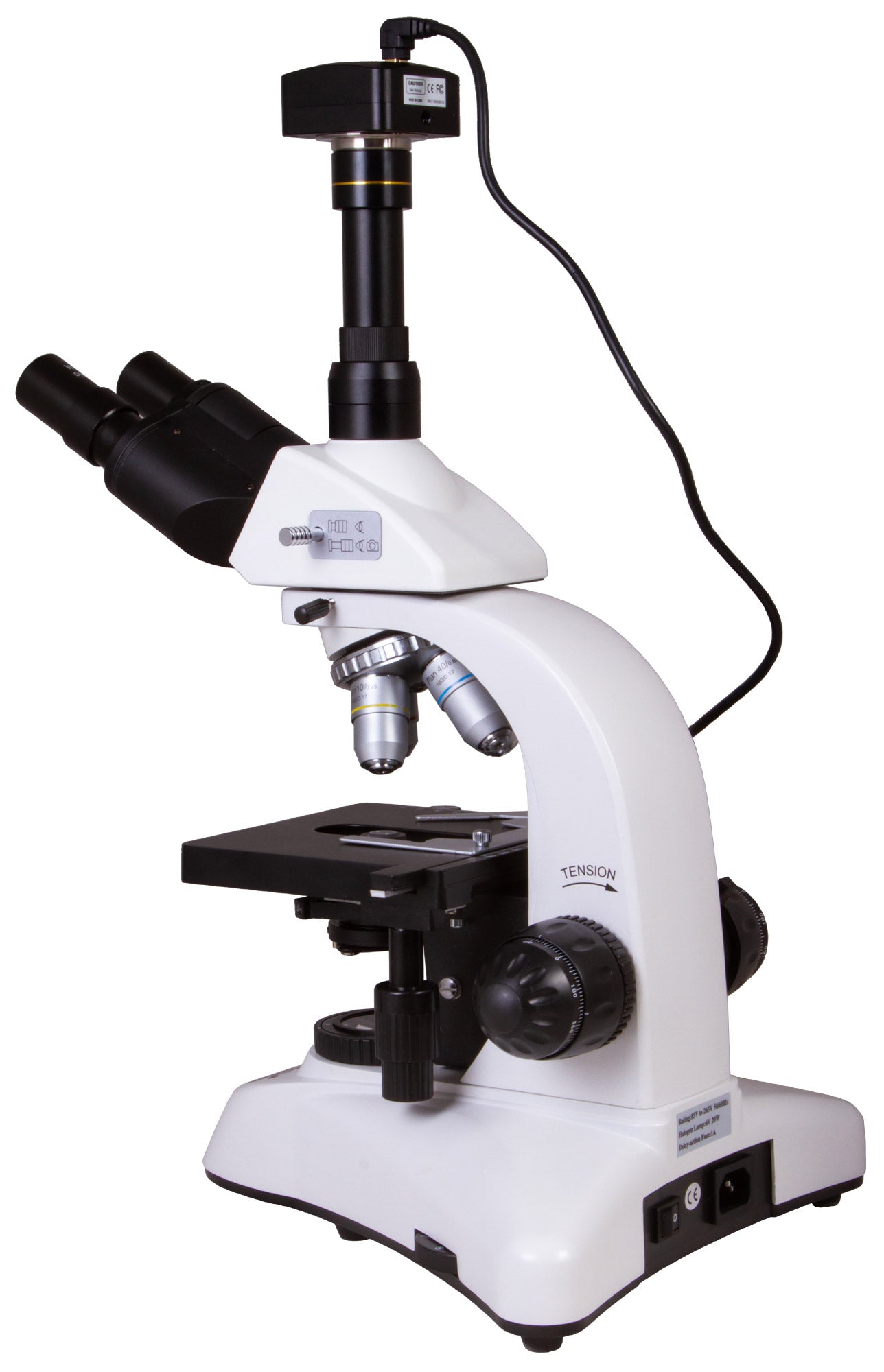

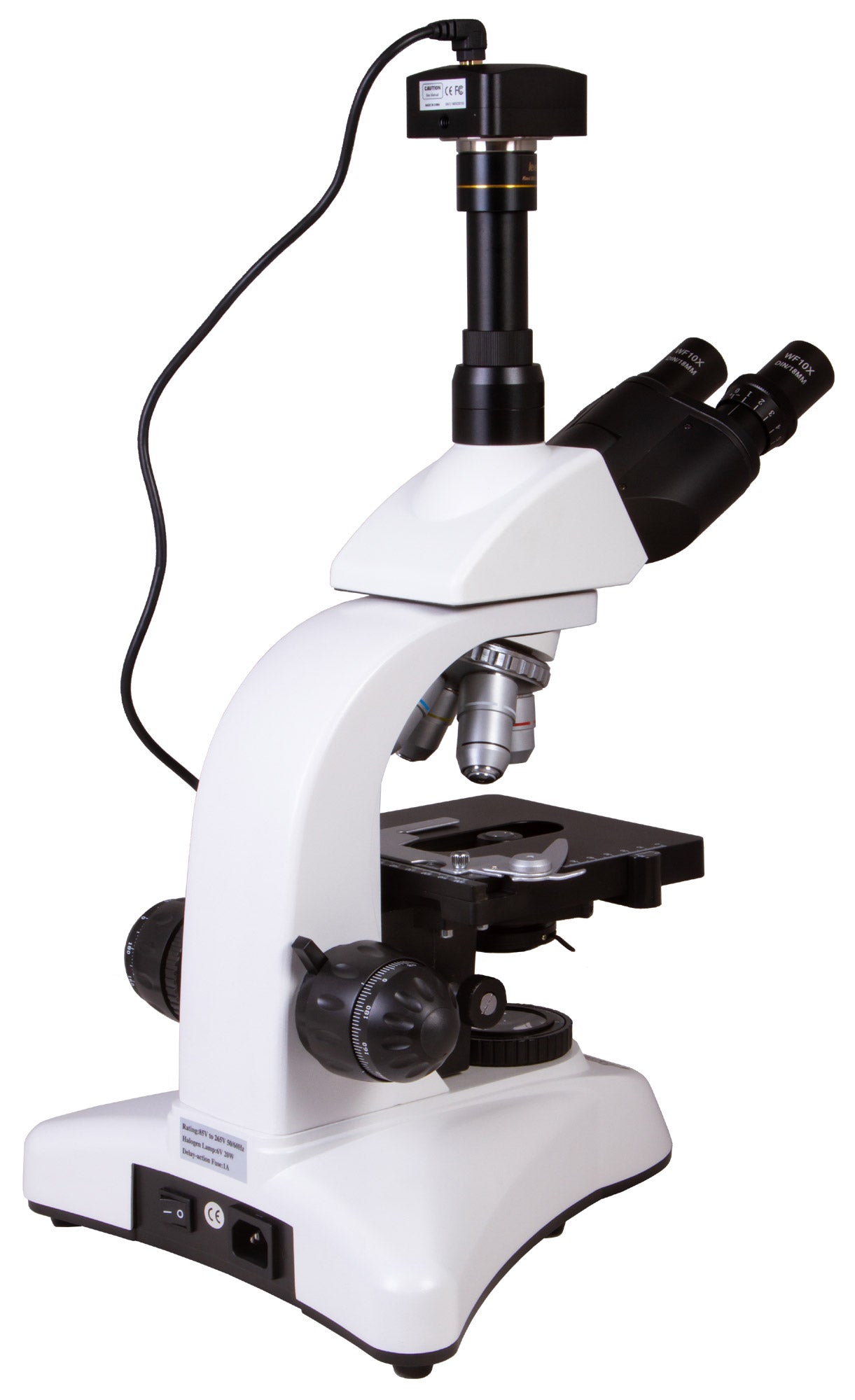

Levenhuk MED D25T Digital Trinocular Microscope
Magnification: 40–1000x. Trinocular head, 5.1MP digital camera, plan achromatic objective lenses, an Abbe condenser, a dark field condenser (oil)

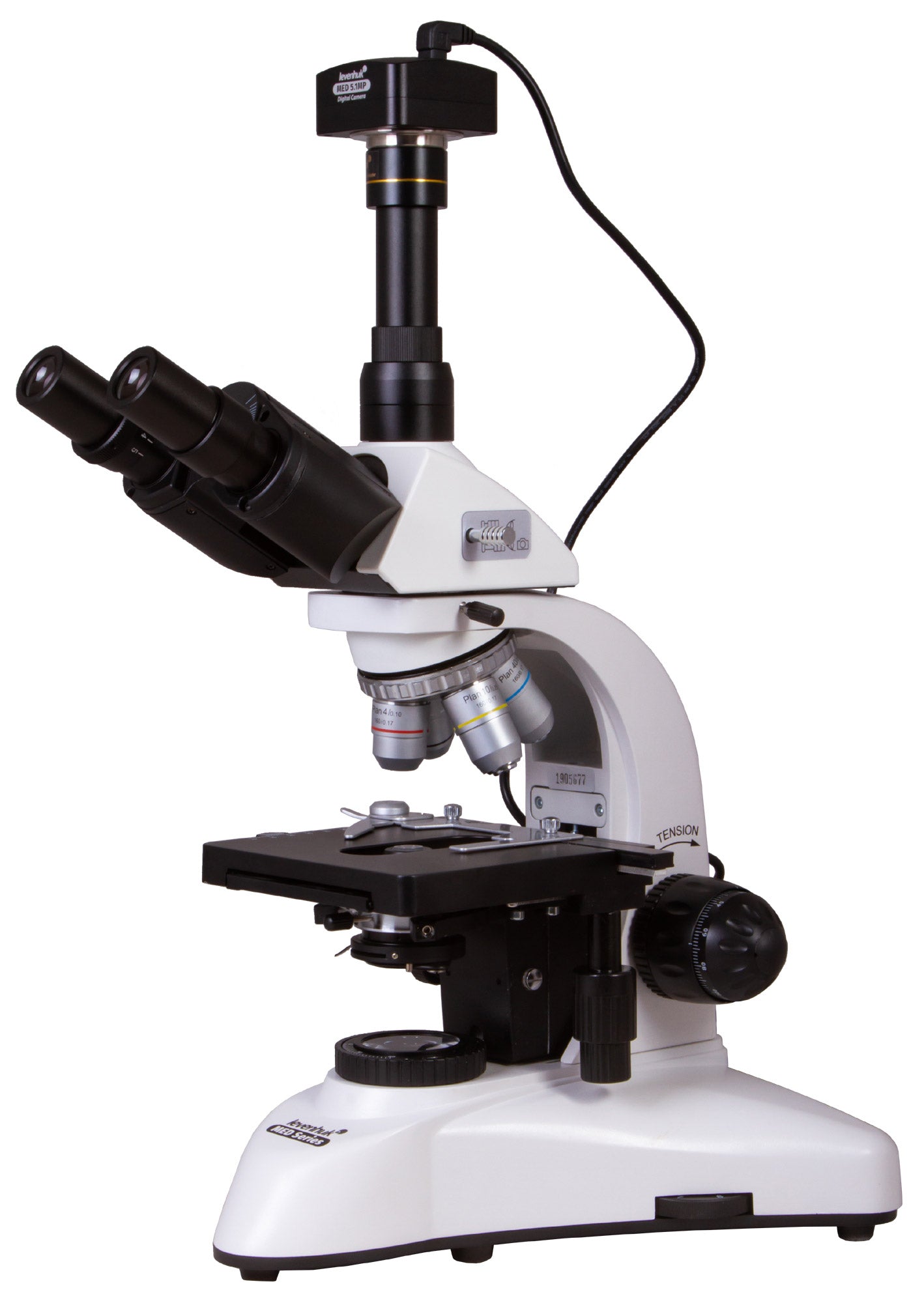

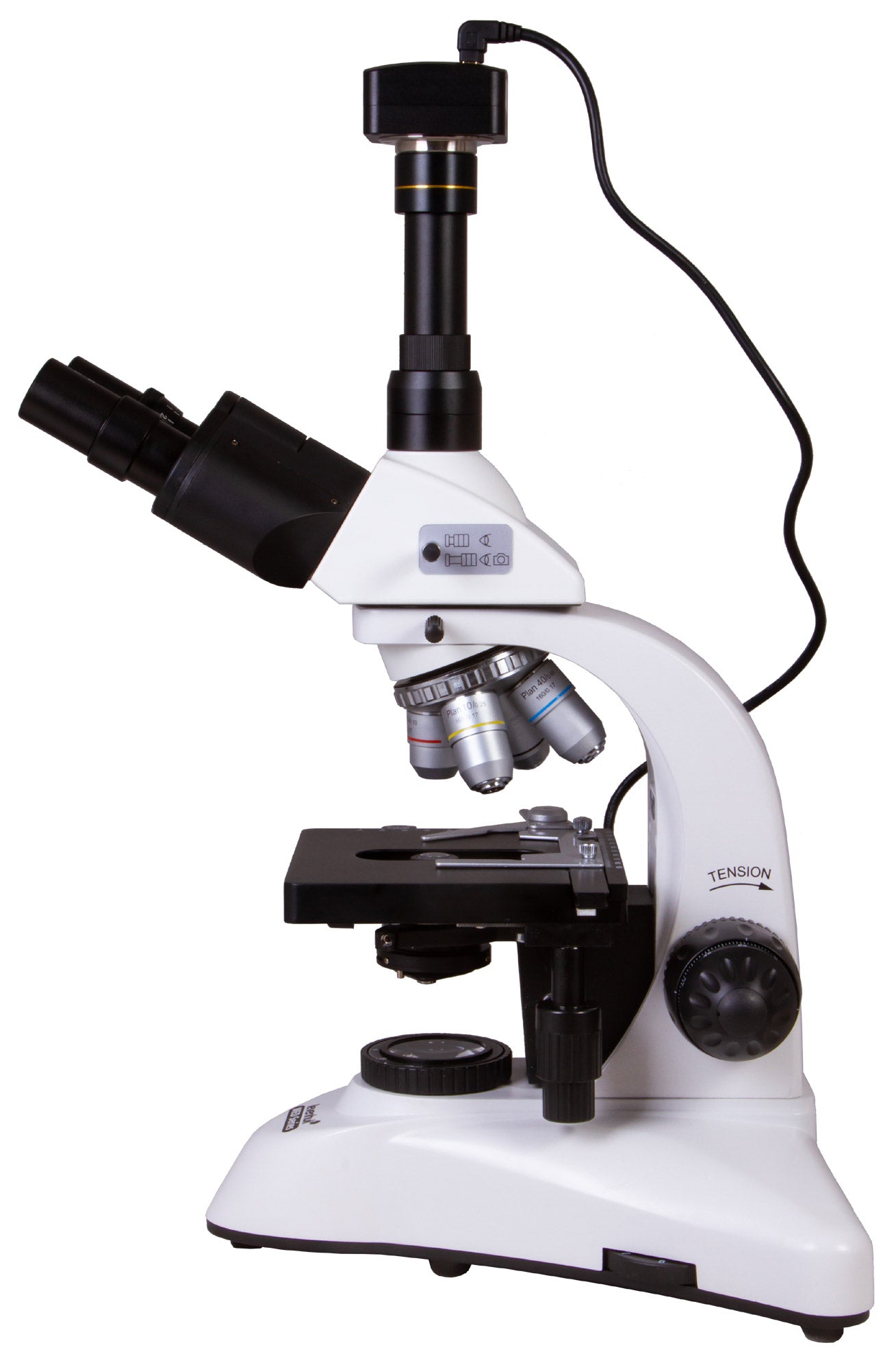

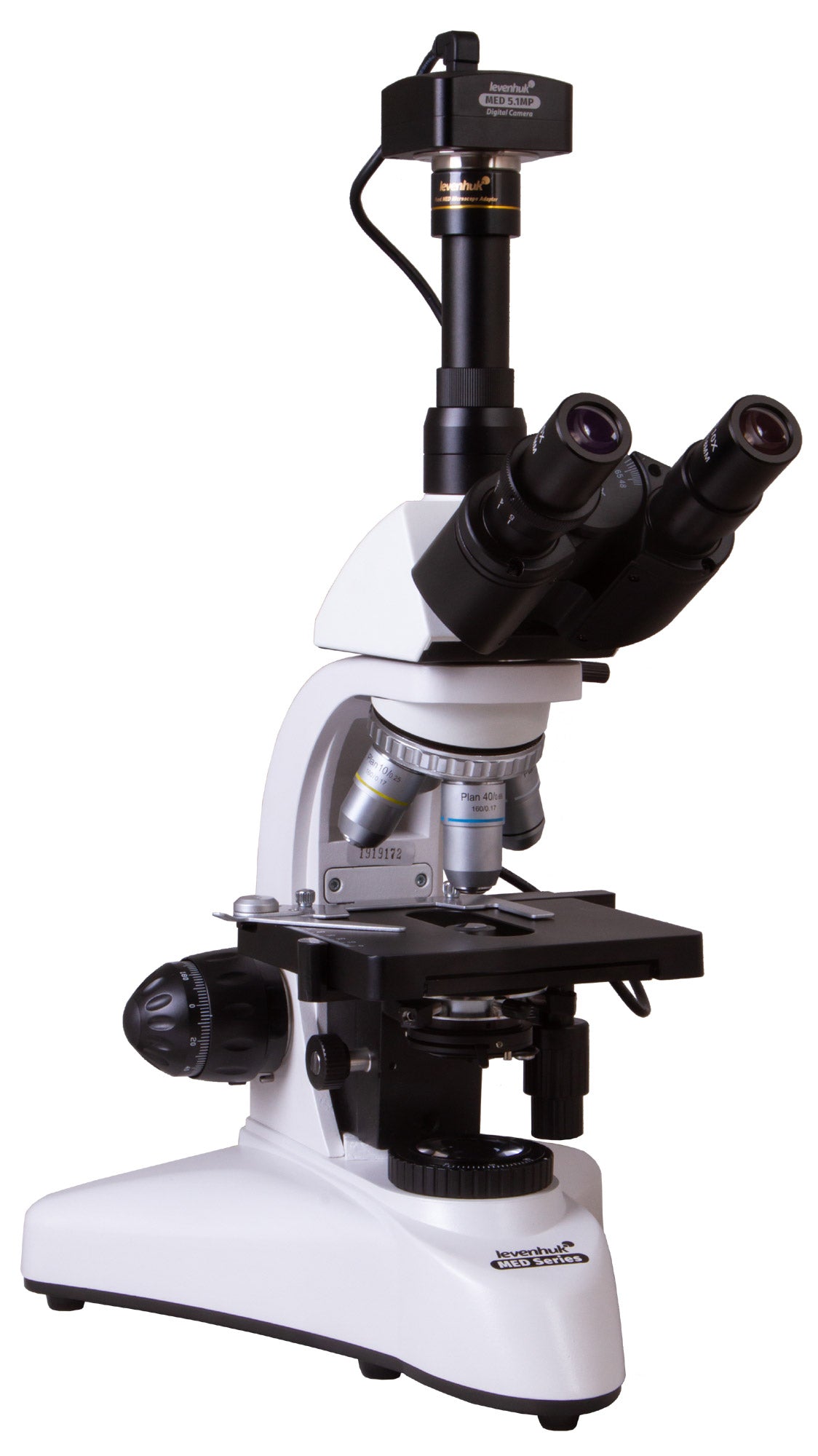

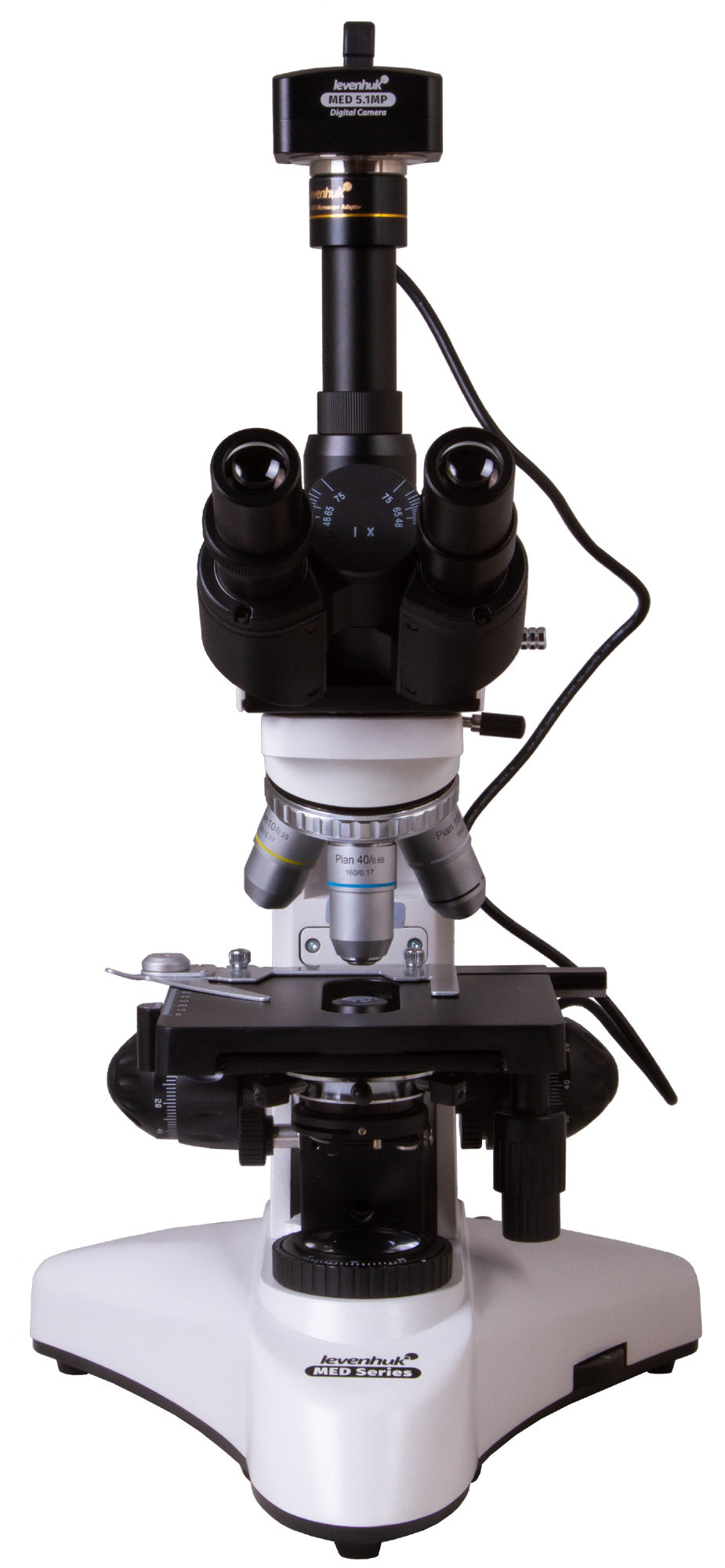

Levenhuk MED D25T is a digital trinocular microscope with a 5.1M camera with plan achromatic optics and two condensers (bright field and dark field). It can be used in various scientific fields: medicine, biochemistry, microbiology, and others. This microscope is a great choice for a laboratory worker, university professor, and a staff member of a medical center or research institute.

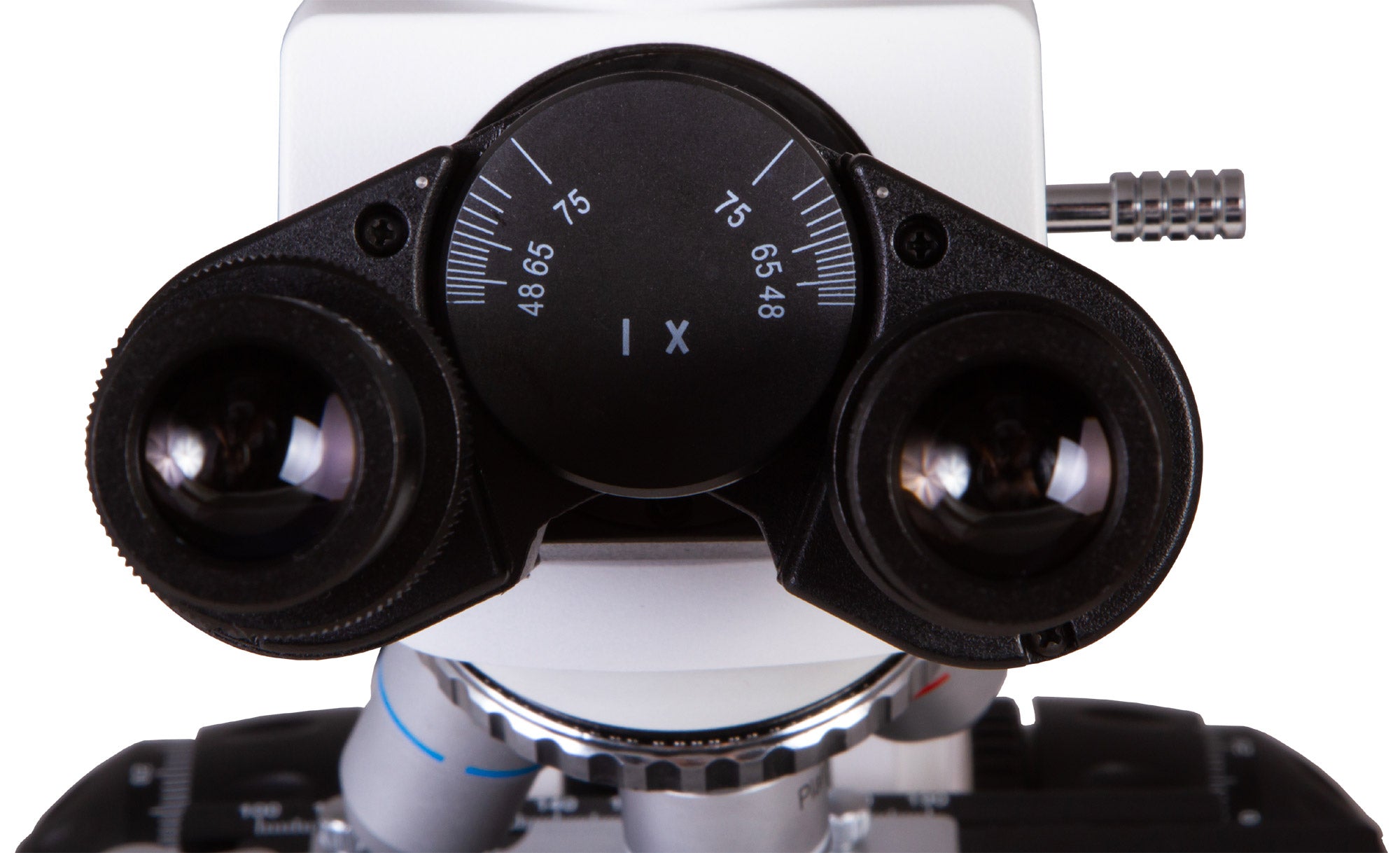

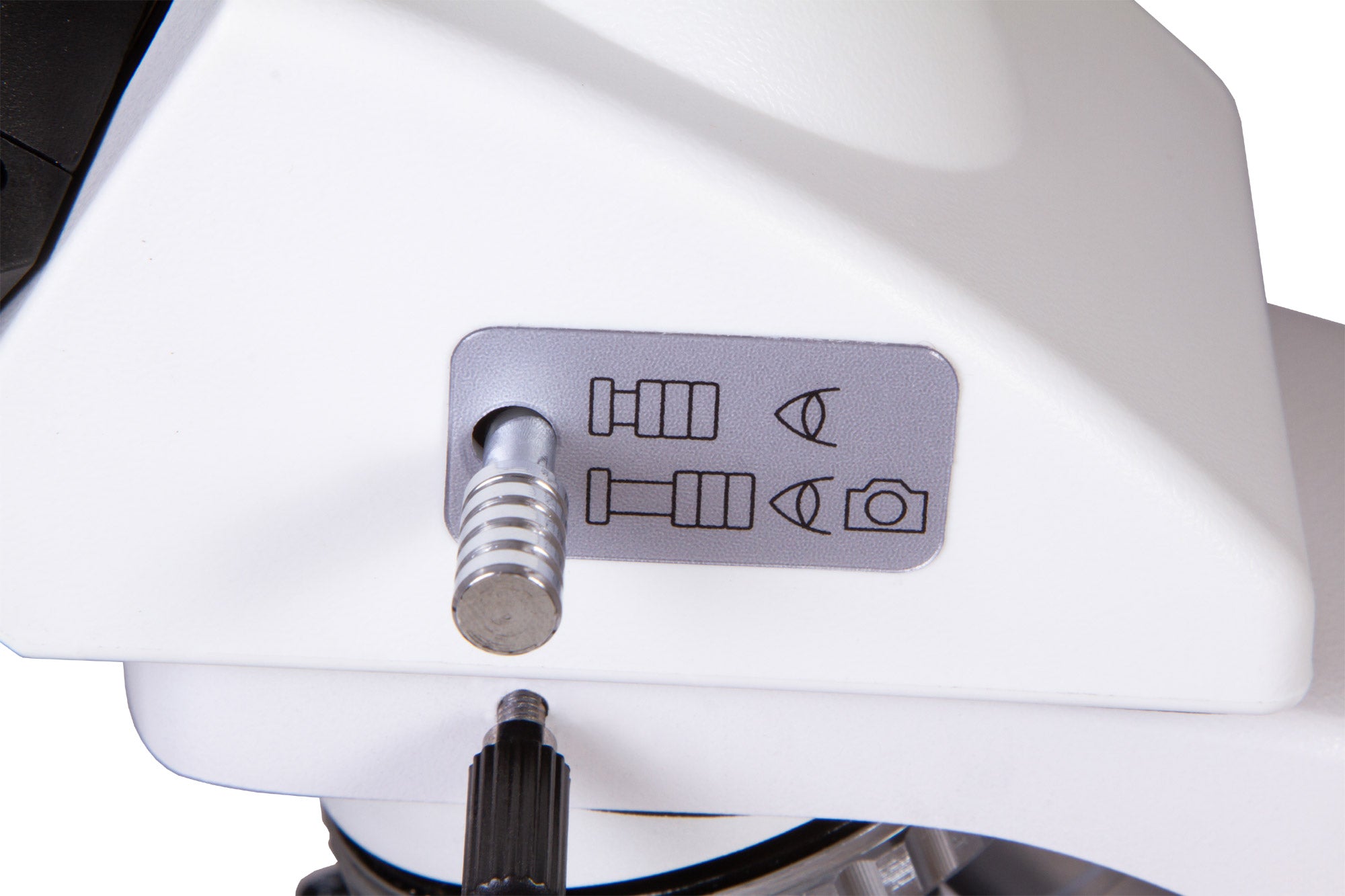

A rotatable head with a beam splitter
The microscope comes with a trinocular head with a beam splitter. The binocular visual part has a practical 30° inclination angle, and a third ocular tube for a digital camera is vertical. Such a design allows for conducting regular observations and using a camera for transmitting an image to an external screen while also shooting videos and photos at the same time. This head is also practical to use due to its 360° rotatable head.
Observations without optical aberrations

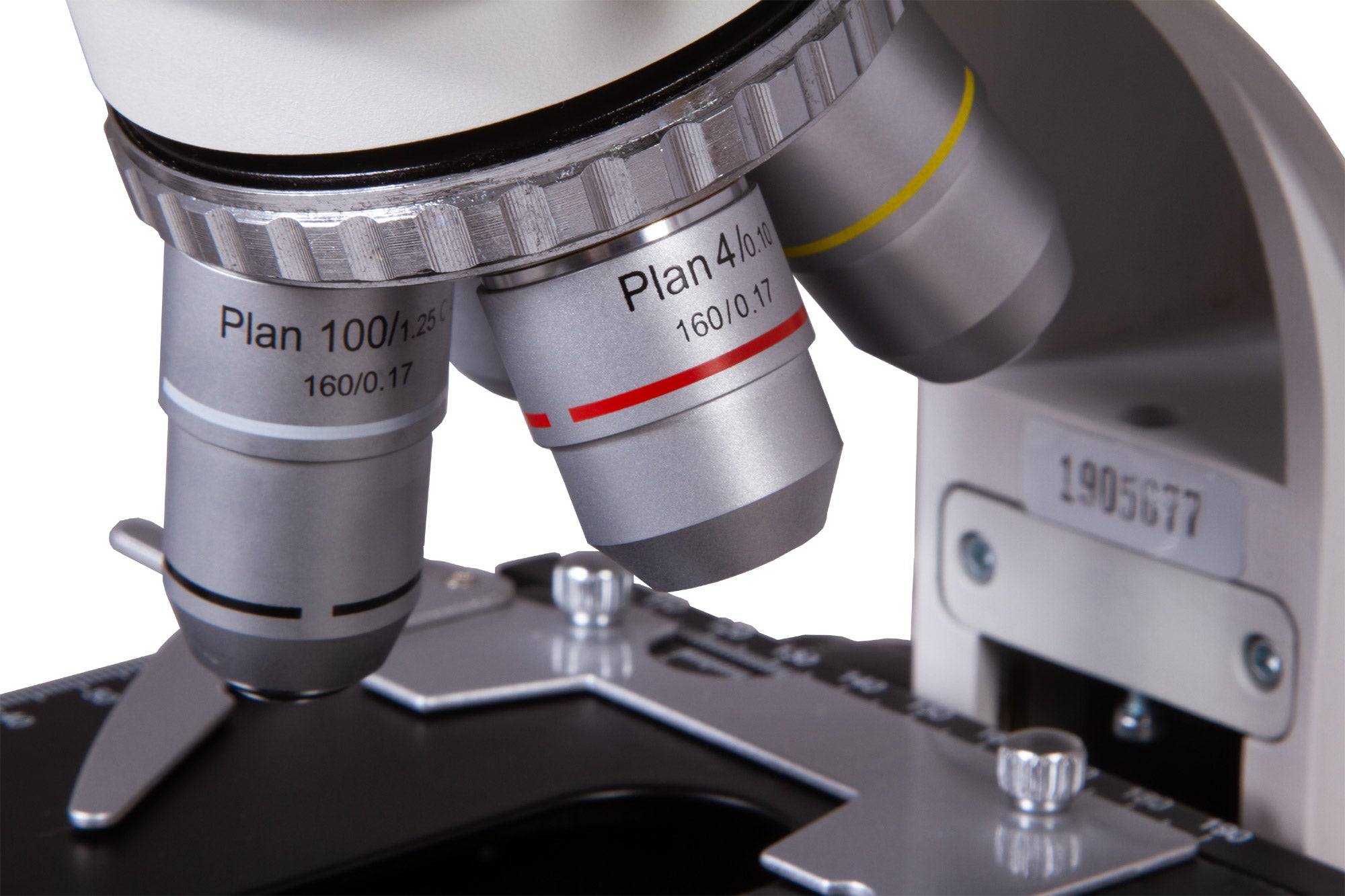

The microscope uses plan achromatic objective lenses, which create a nearly flat field of view and reduce chromatic aberrations. The objective lenses with 40x and 100 magnification are equipped with spring-loaded frames. In addition, a 100x objective lens can also be used for oil immersion. Wide-field eyepieces feature diopter adjustment and provide 10x magnification. The objective lenses and eyepieces have a protective anti-fungal coating.

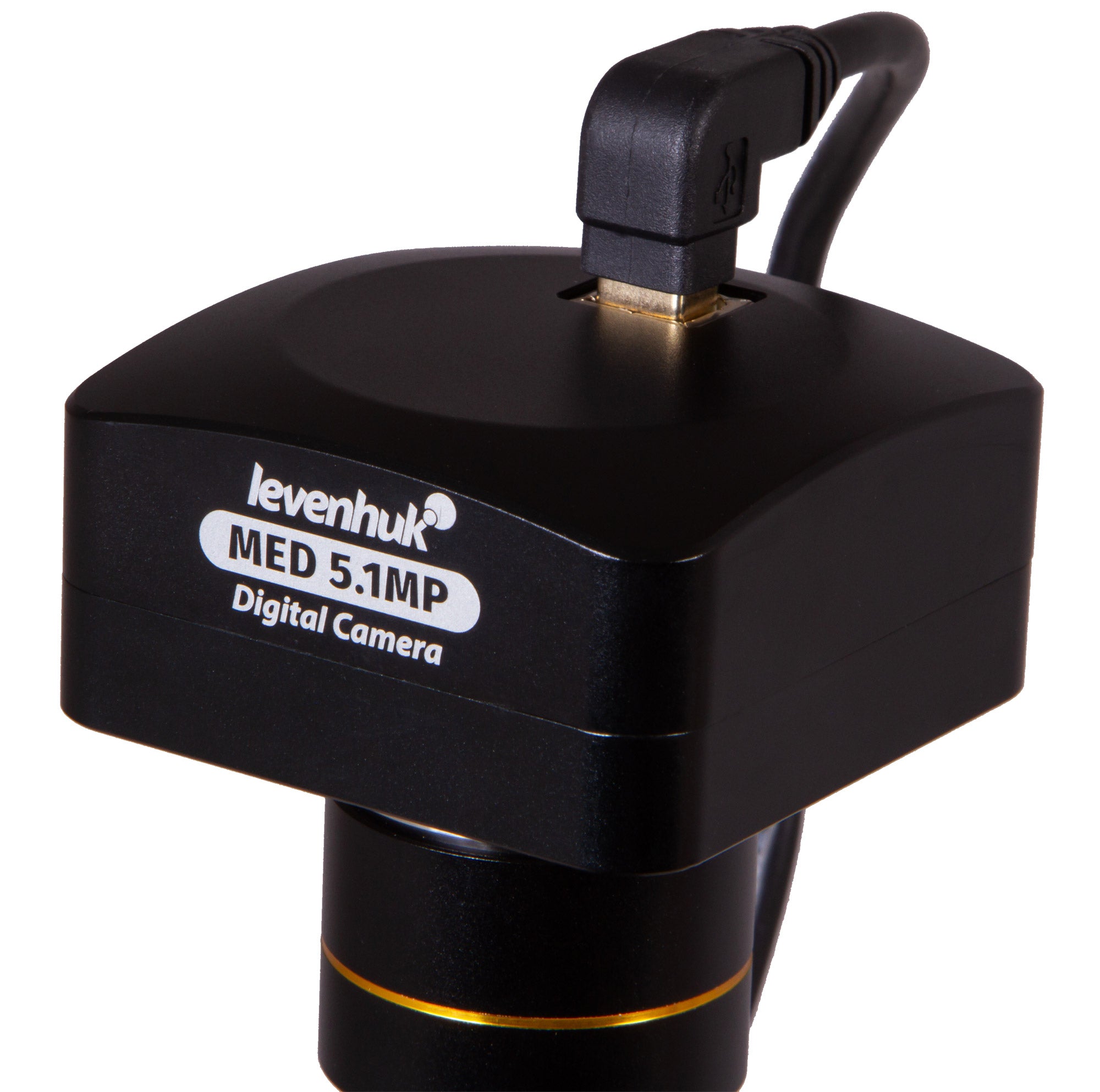

Digital capabilities
A sensor in the digital camera allows for delivering sharp and detailed images of research. You can shoot videos at a high frame rate, which is why the recorded videos are very smooth. Software included in the kit allows for processing recorded videos and photos and setting up a digital camera. The software allows for adjusting size, image brightness and contrast, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available). An included USB cable is used for connecting it to a computer. A trinocular microscope with a digital camera provides for easier lengthy work in a laboratory. An image observed through an objective lens is also transmitted to an external screen. That removes the necessity to continuously observe through the eyepieces and strain the eyes and the rotator cuff.
The Levenhuk MED 25 series includes optimal microscopes for cytology that allow for the observations using oil immersion in the bright field and dark field.
Features:
Trinocular head with a beam splitter
Plan achromatic optics provides magnification of 40x to 1000x
Anti-fungal coating of all the optical surfaces

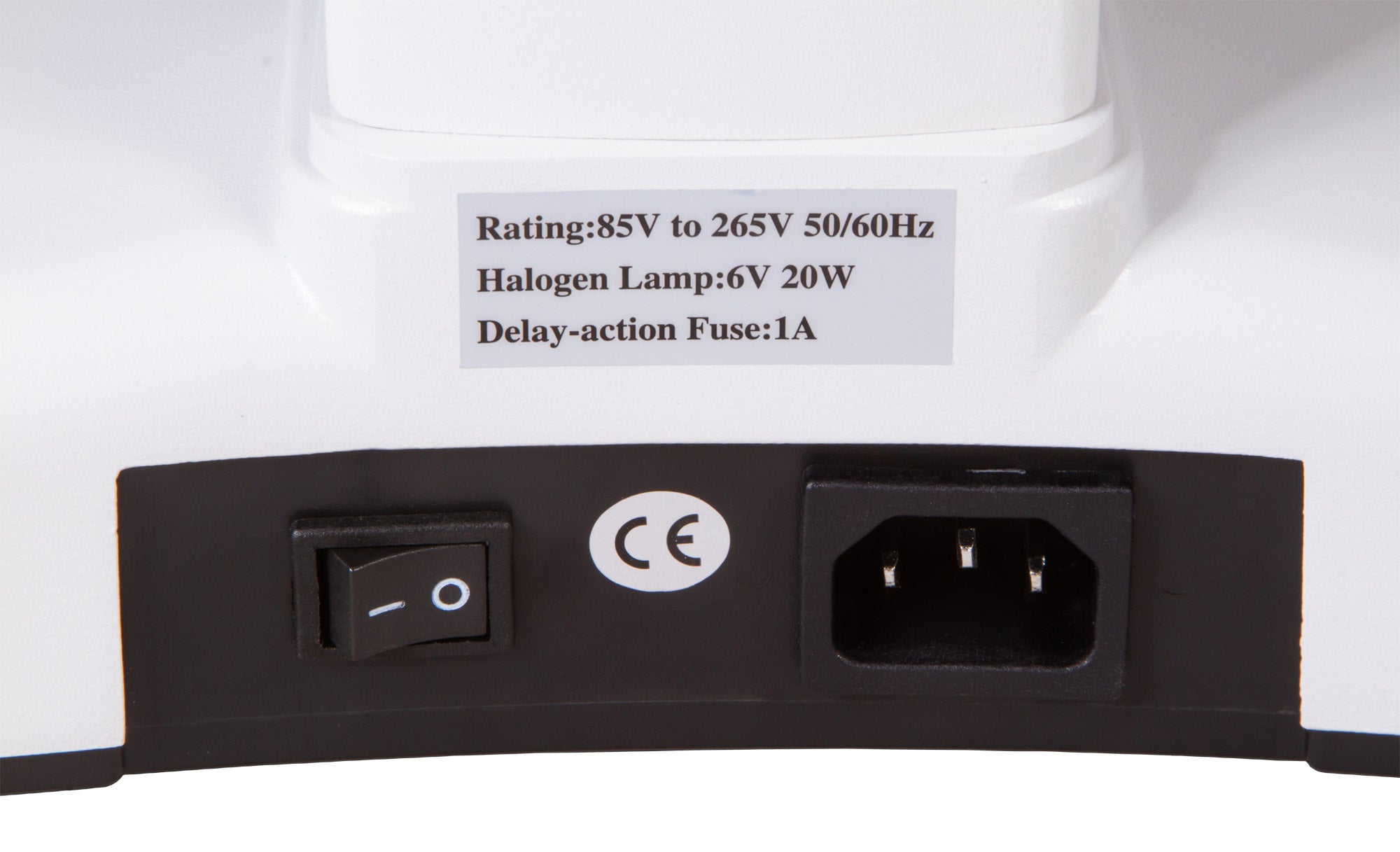

20W halogen light is powered by an AC power supply
Köhler illumination is available
Bright field and dark field observations are available
5.1MP digital camera is included

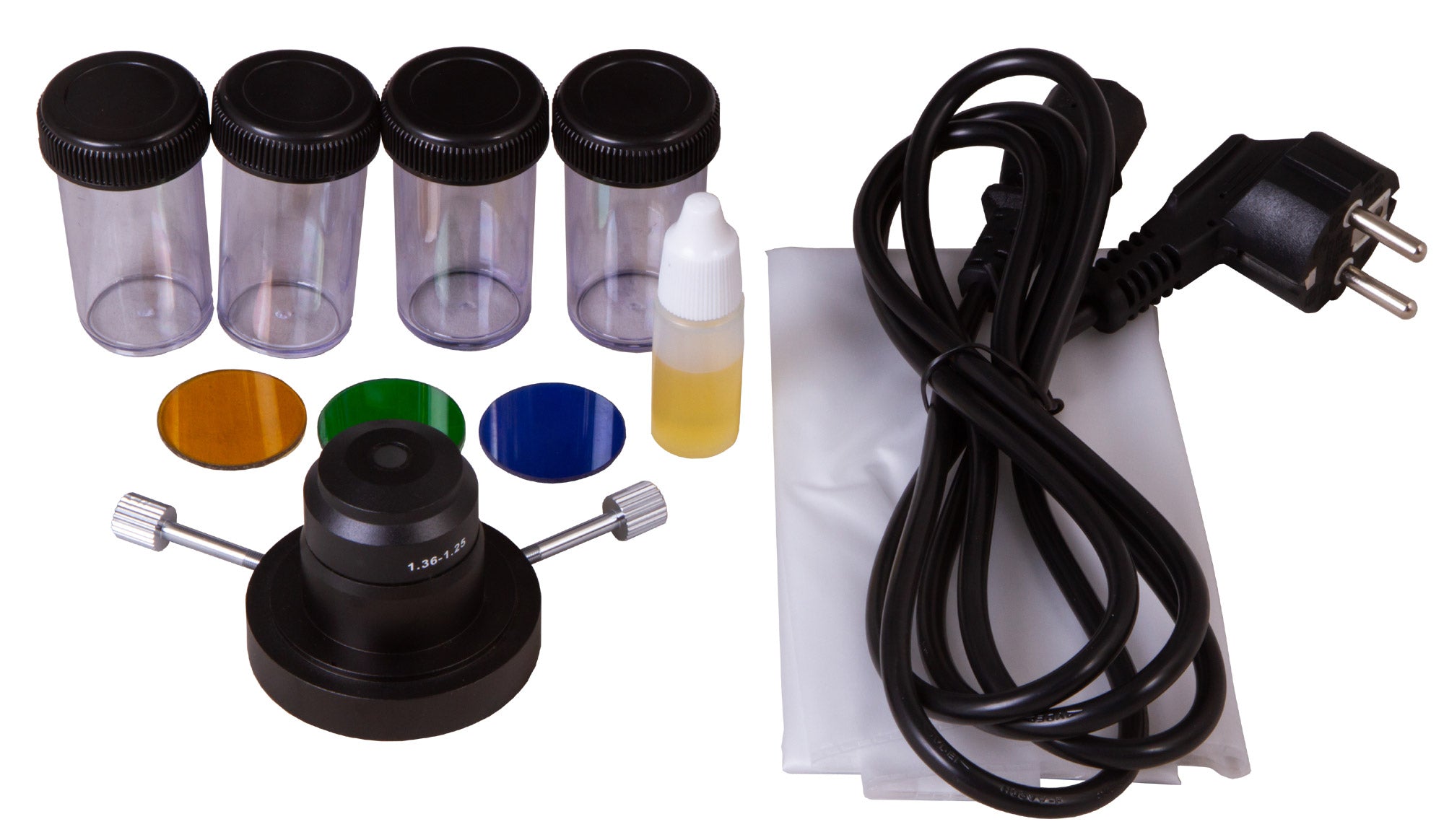

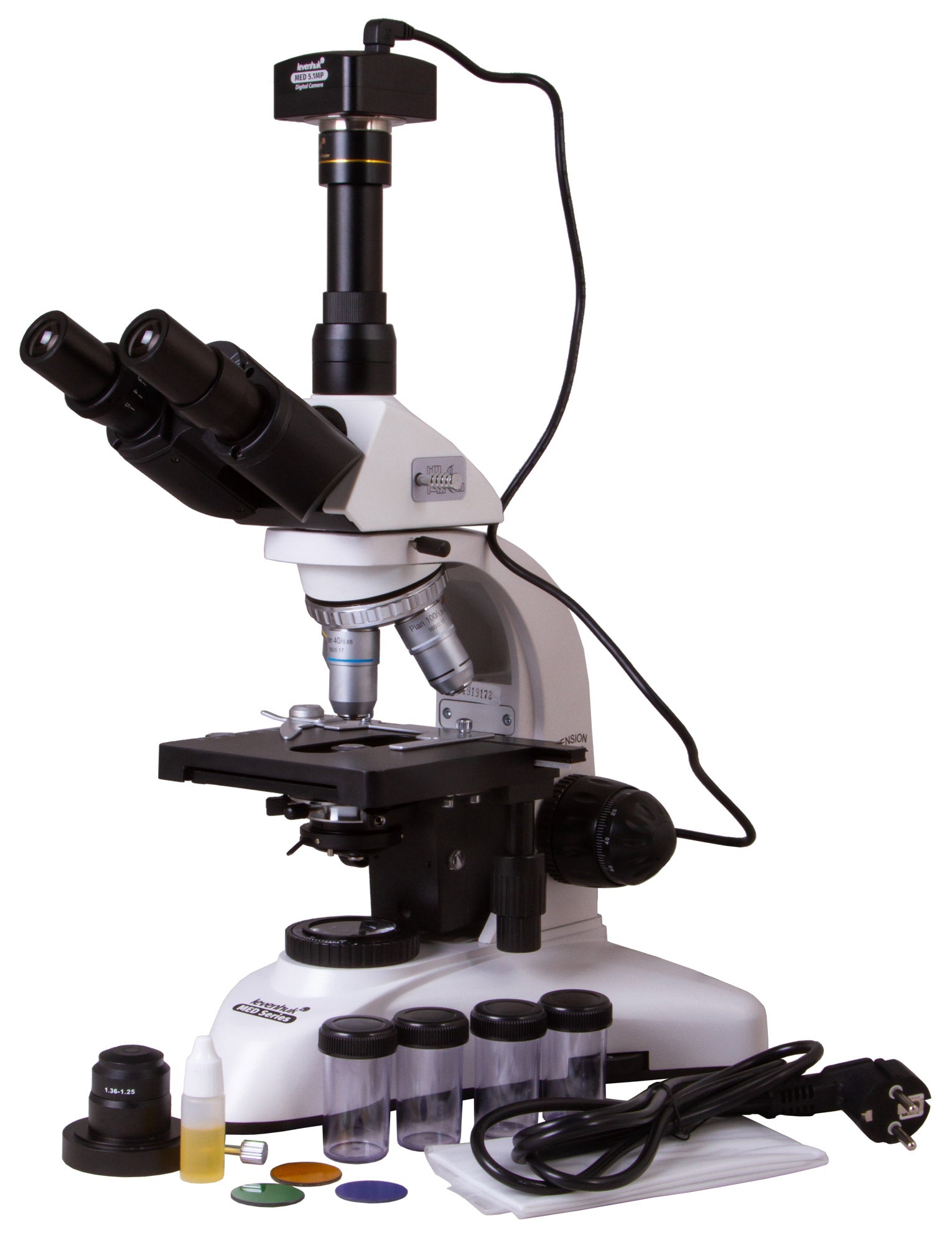

The kit includes:
Microscope base with a stand
360° rotatable trinocular head
Plan achromatic objective lenses: 4x, 10x, 40xs, 100xs (oil) with an anti-fungal coating
Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)

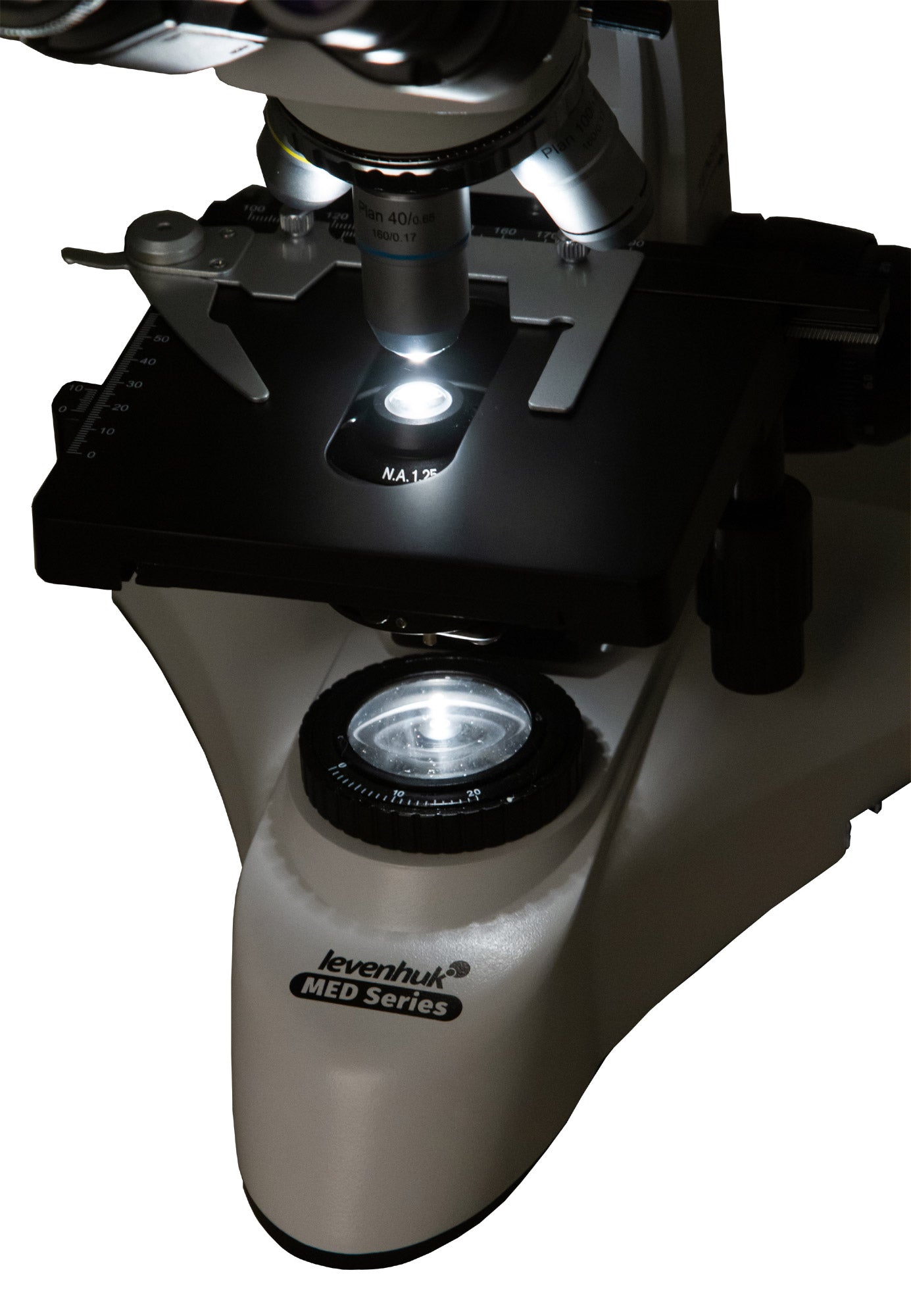

Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder

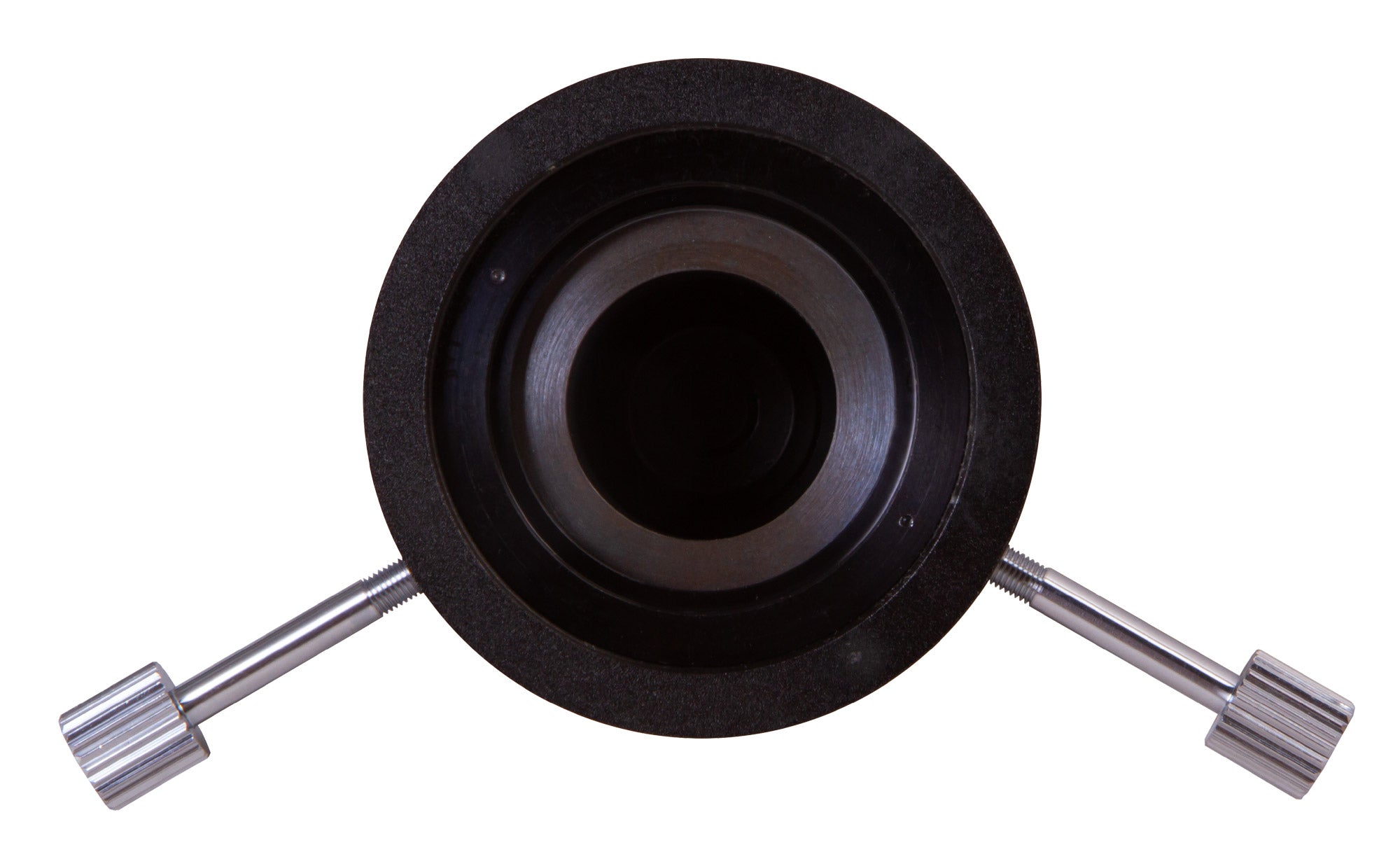

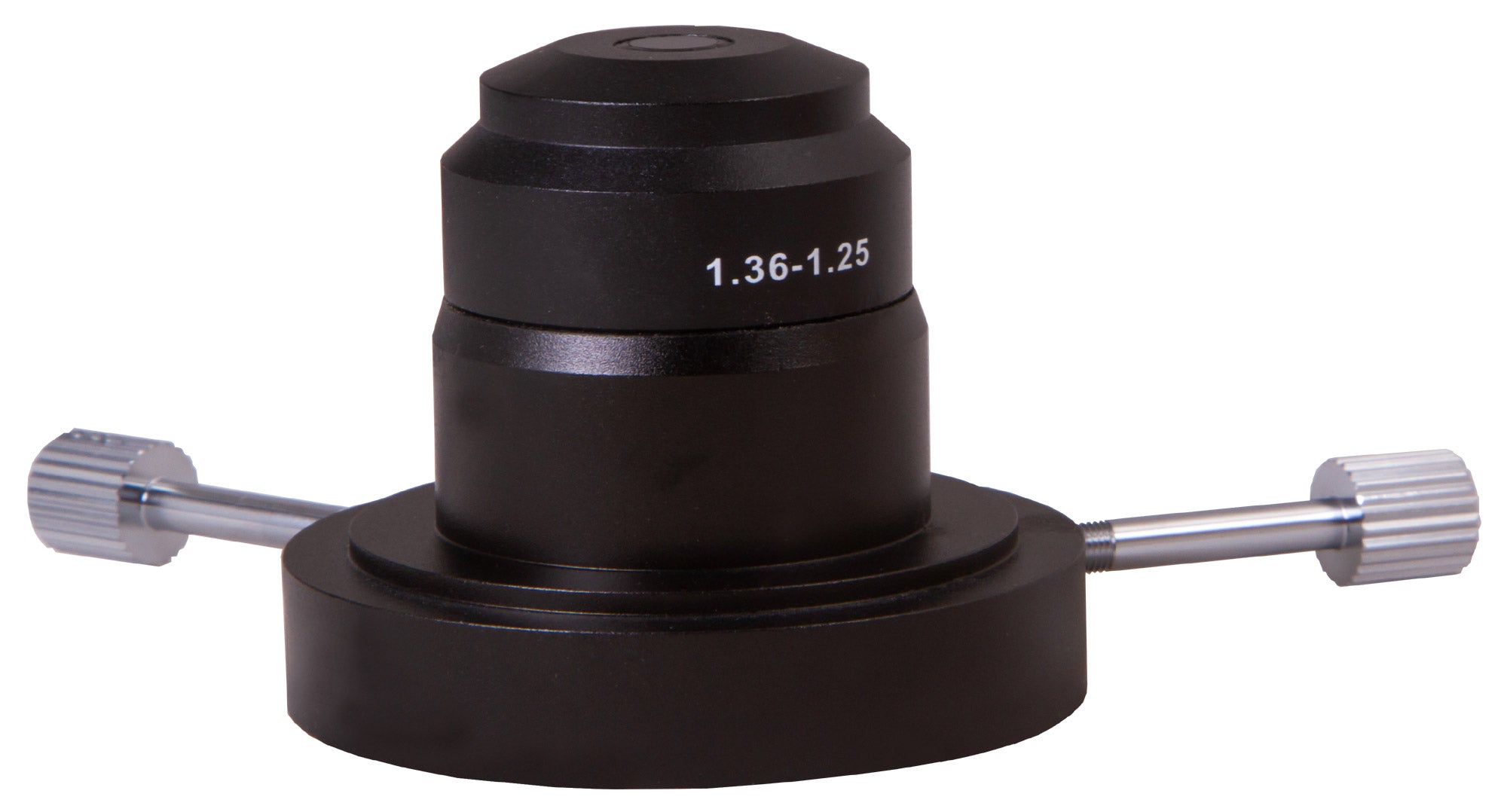

Dark field condenser (oil)
Filters: blue, green, yellow
Vial of immersion oil
Fuse (2 pcs)
Power cord for microscope
Dust cover

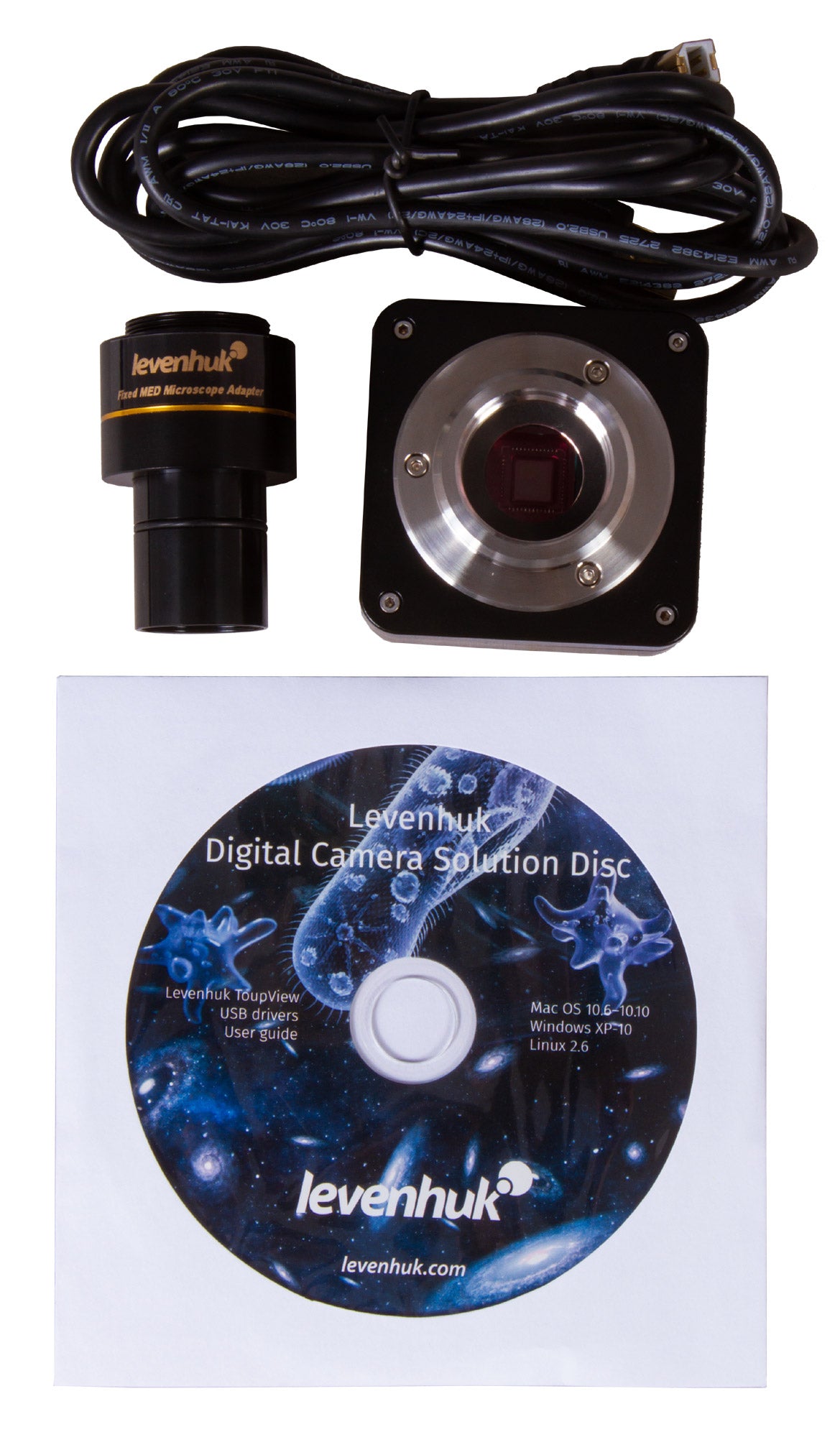

5.1MP digital camera
Camera adapter
Camera mount
USB cable for connecting and powering camera
Software CD and drivers
User manual and lifetime warranty
