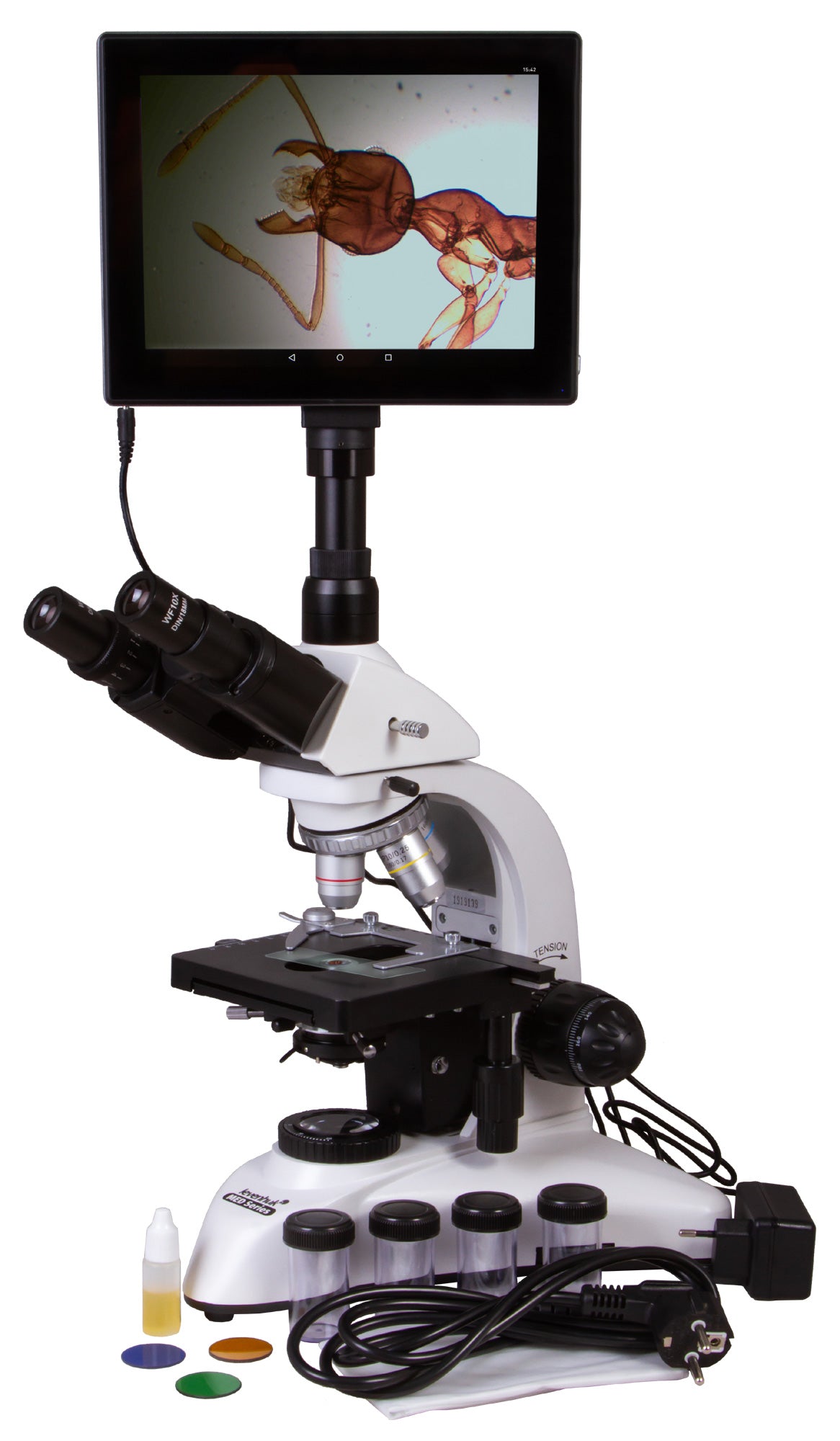

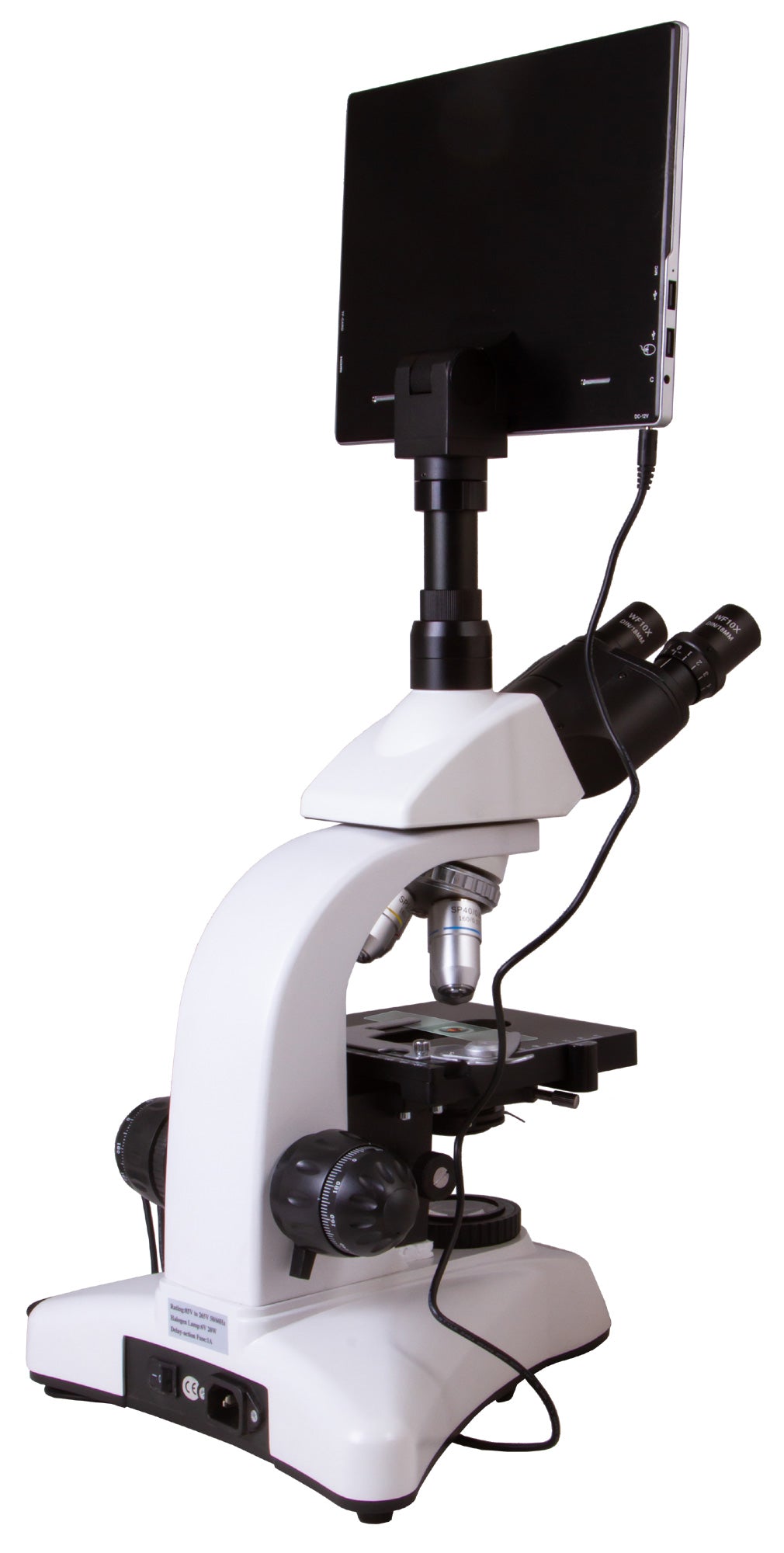

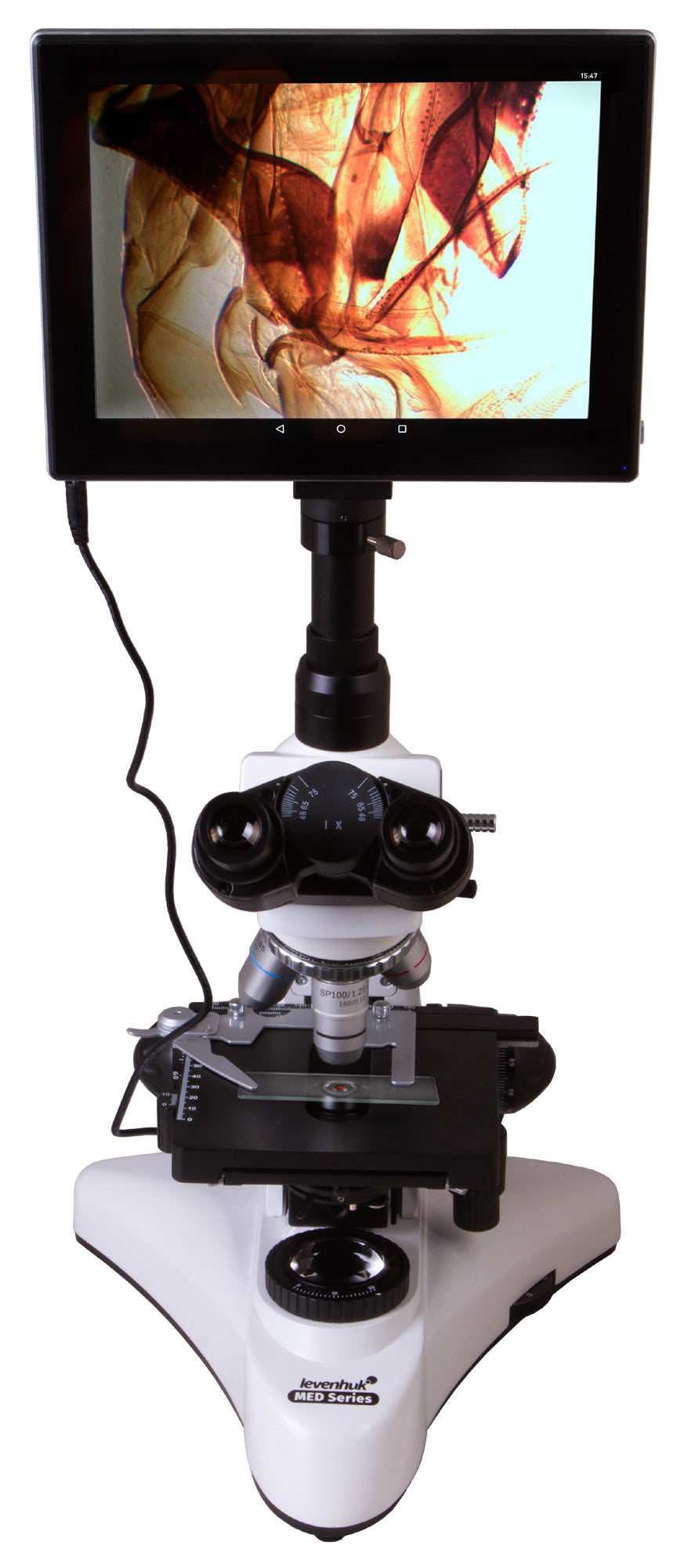

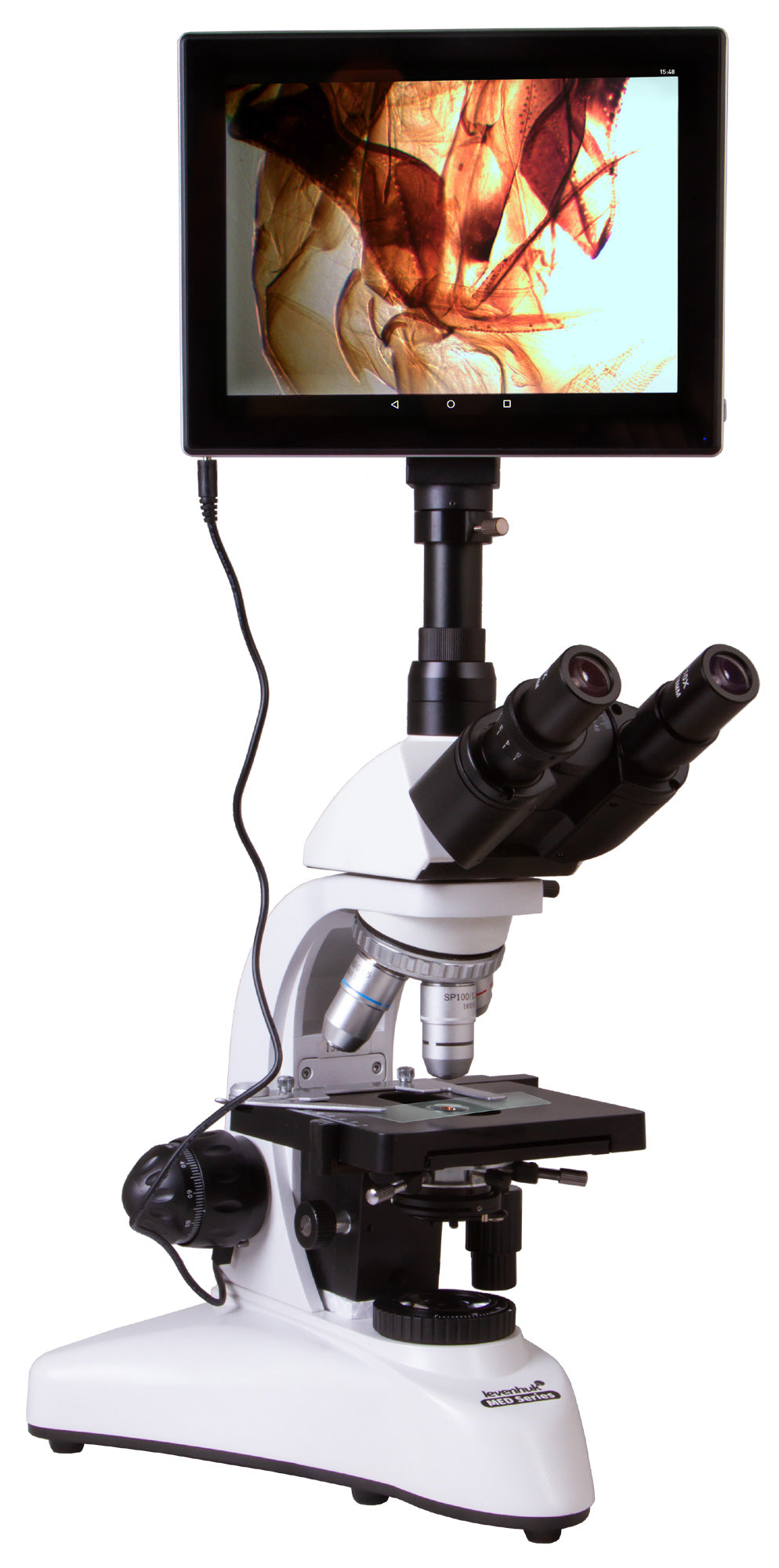

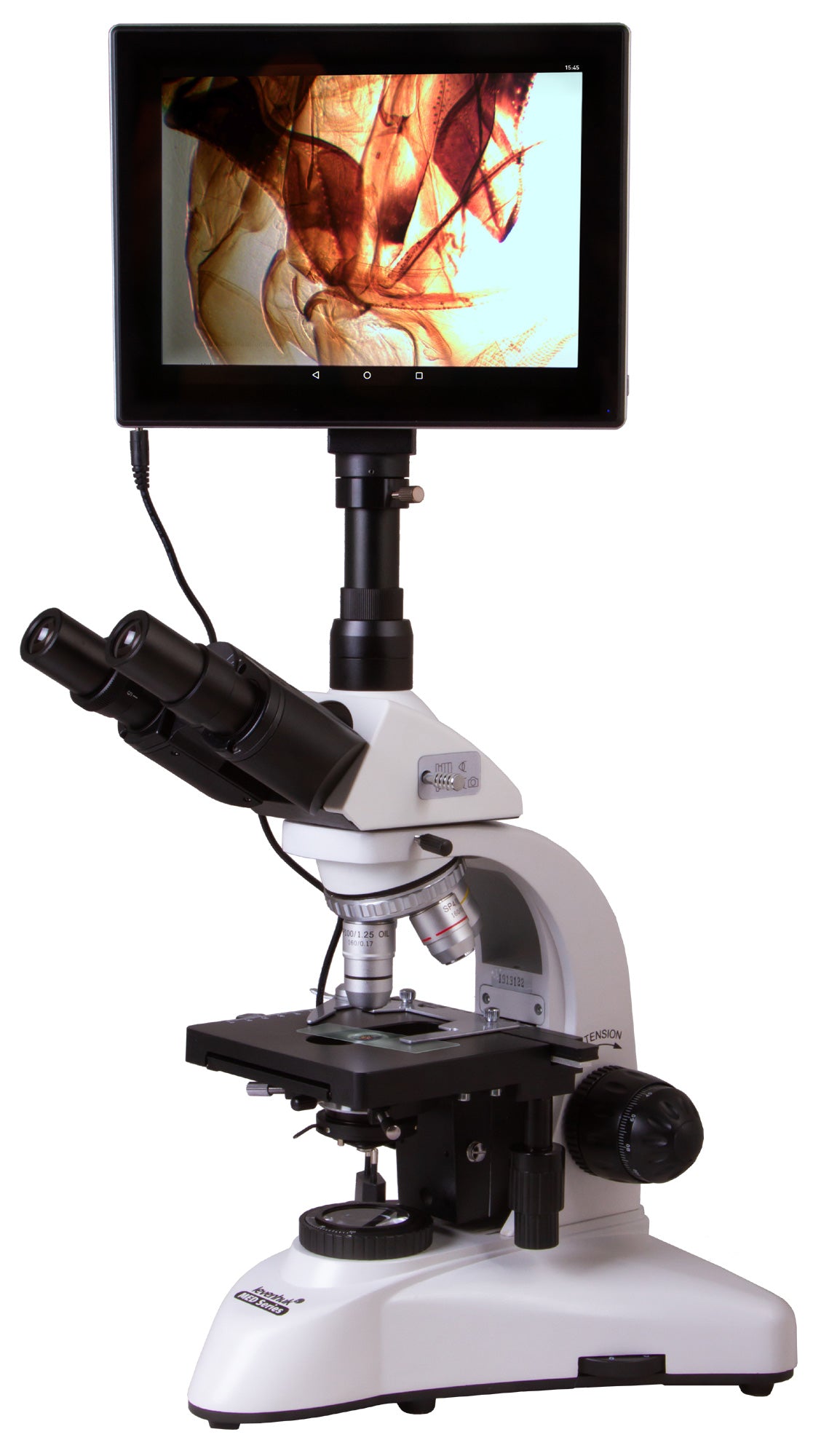

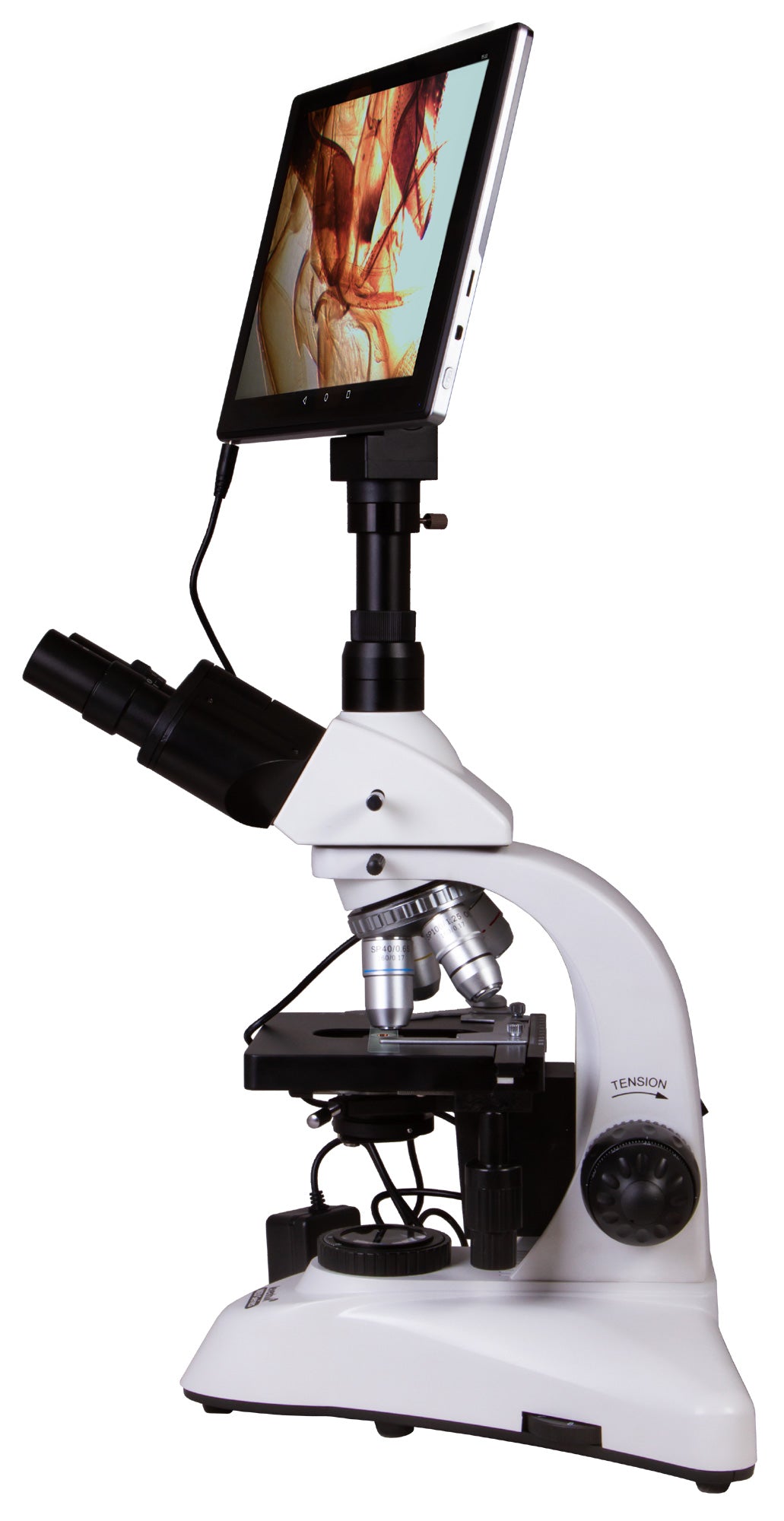

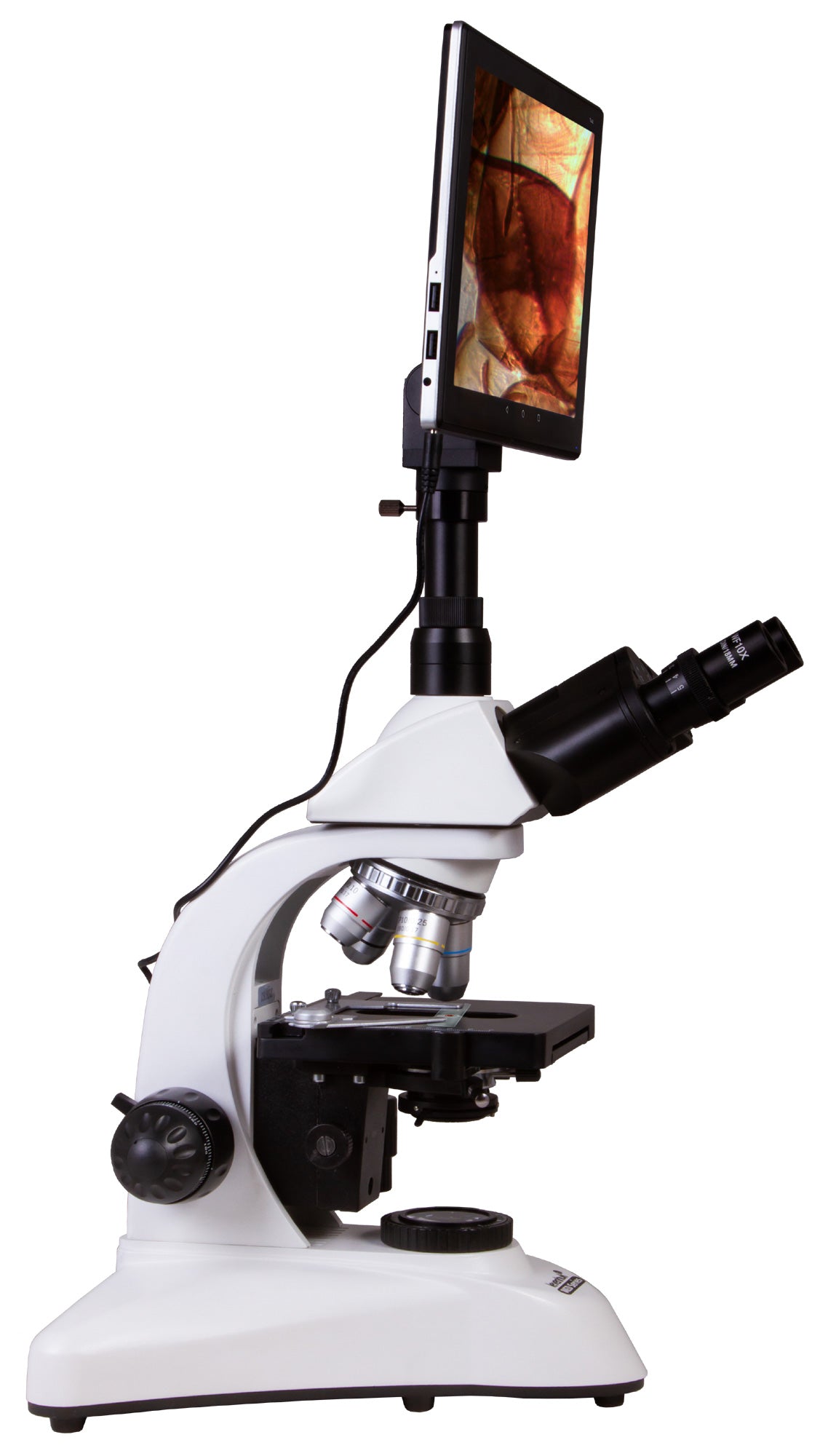

Levenhuk MED D20T LCD Digital Trinocular Microscope
Magnification: 40–1000x. Trinocular head, 5MP digital camera with an LCD screen, semi-plan achromatic objective lenses, an Abbe condenser with an iris diaphragm, and a filter holder
Levenhuk MED D20T LCD Microbiology Digital Microscope is a professional optical instrument for bright field observations. Its main feature is a 5MP digital camera with an LCD screen that can transmit an image from a microscope objective in a real-time mode, and it allows for shooting videos and taking pictures of research. In addition, the microscope uses semi-plan achromatic optics and allows for setting up Köhler illumination. This microscope is useful in solving a wide range of problems in a field of microbiology, medicine, and research in various scientific fields.
High-class semi-plan achromatic optics

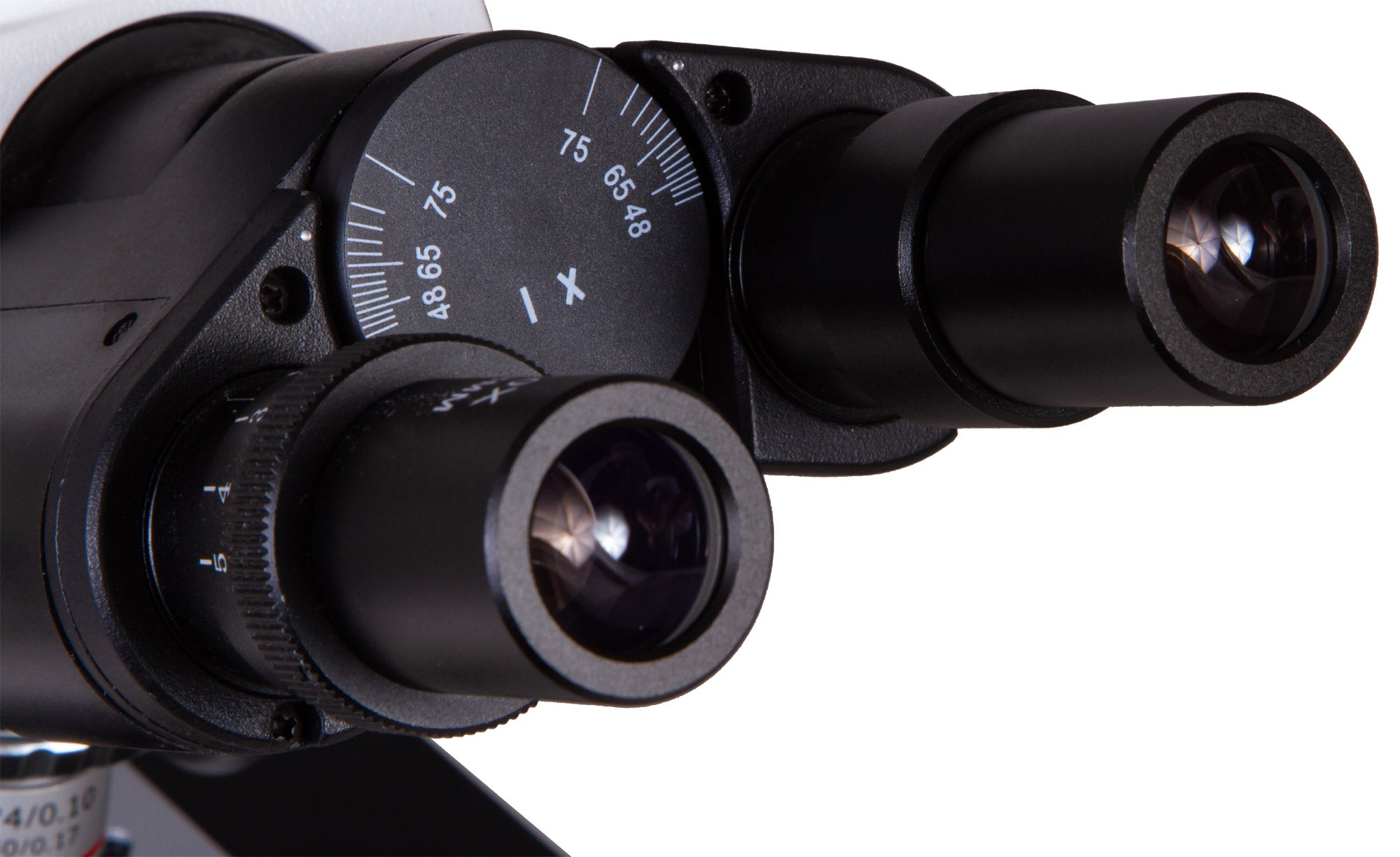

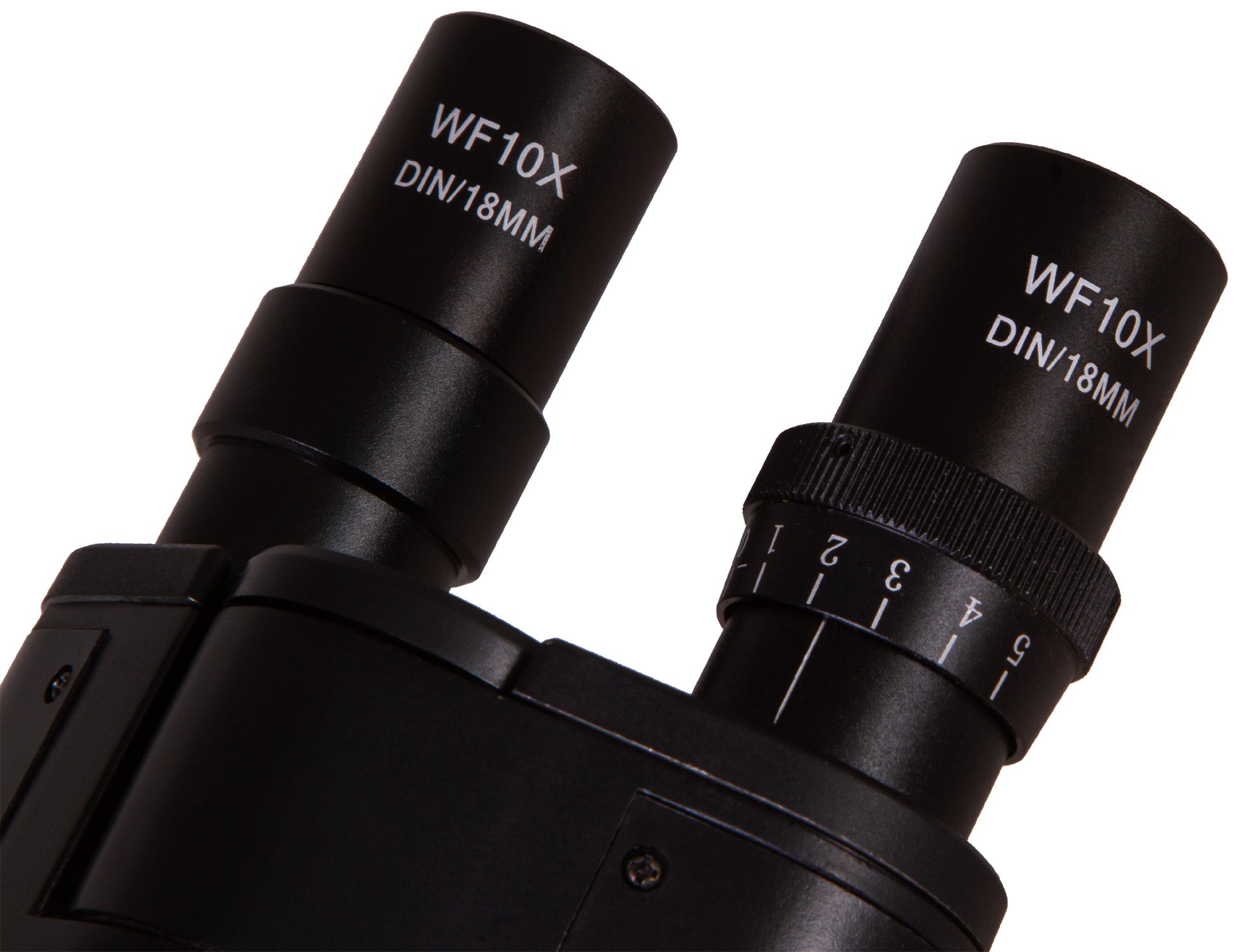

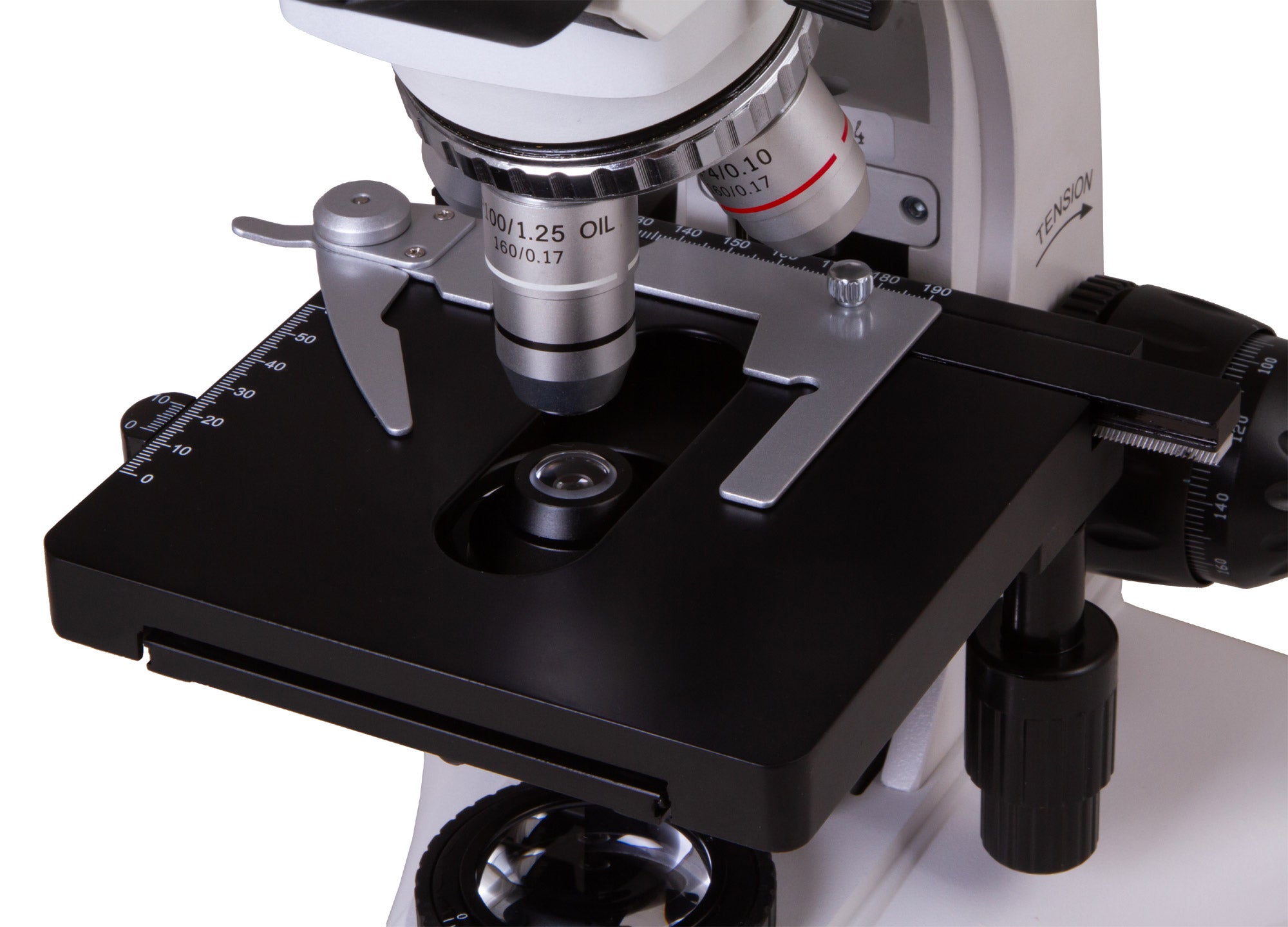

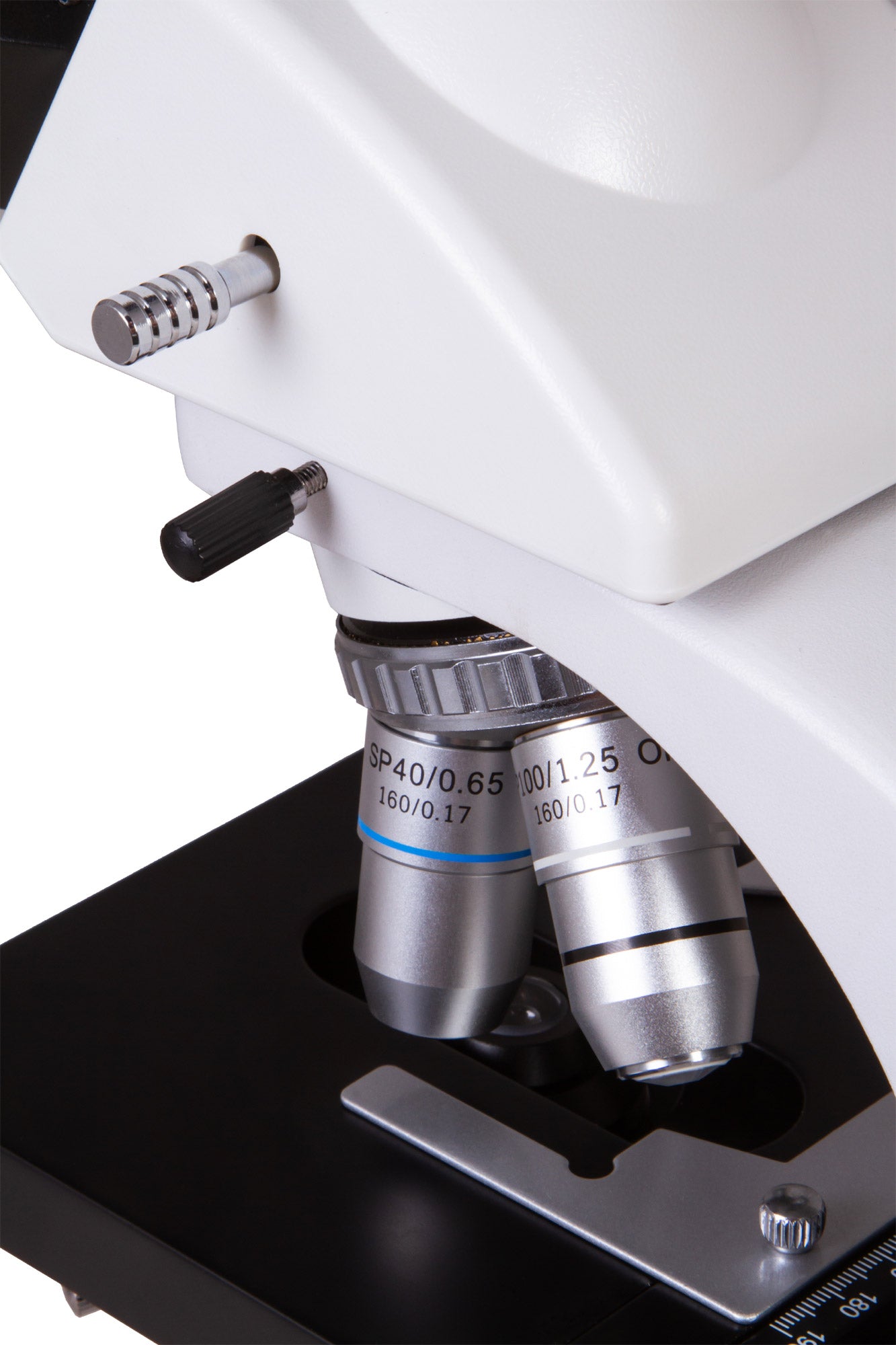

Trinocular 360° rotatable head has a binocular visual part, which is inclined at 30°. There is a beam splitter. A digital camera is installed in the vertical tube by means of the included camera mount. Wide-field eyepieces provide good visibility and allow for diopter adjusting. The objective lenses feature various magnifications; 40x and 100x objectives have protective spring-loaded frames. You can conduct observations at maximum magnification using oil immersion (a vial of immersion oil is included). The optics are protected by an anti-fungal coating.
Levenhuk MED D20T LCD is a modern microscope for microbiology research

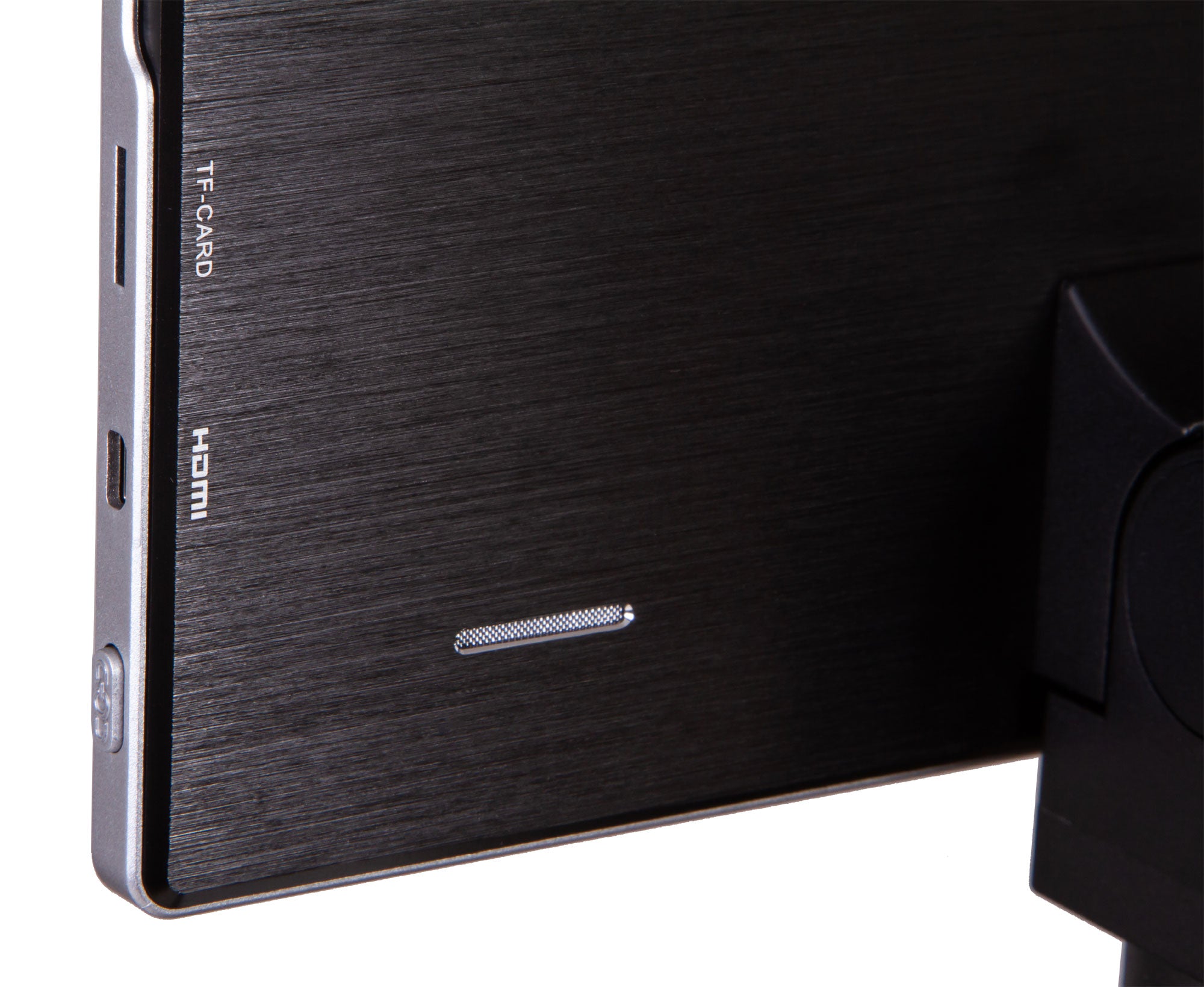

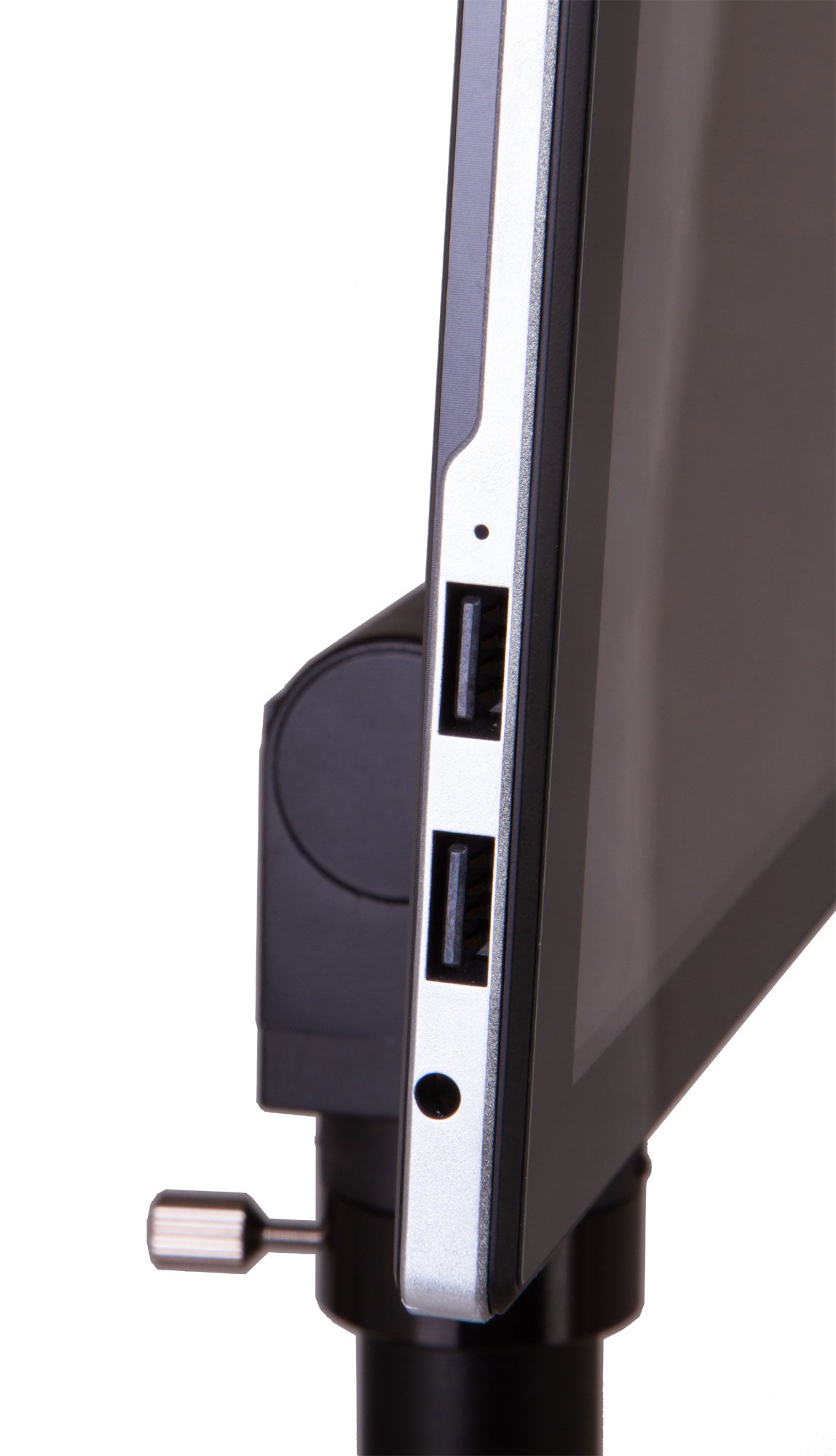

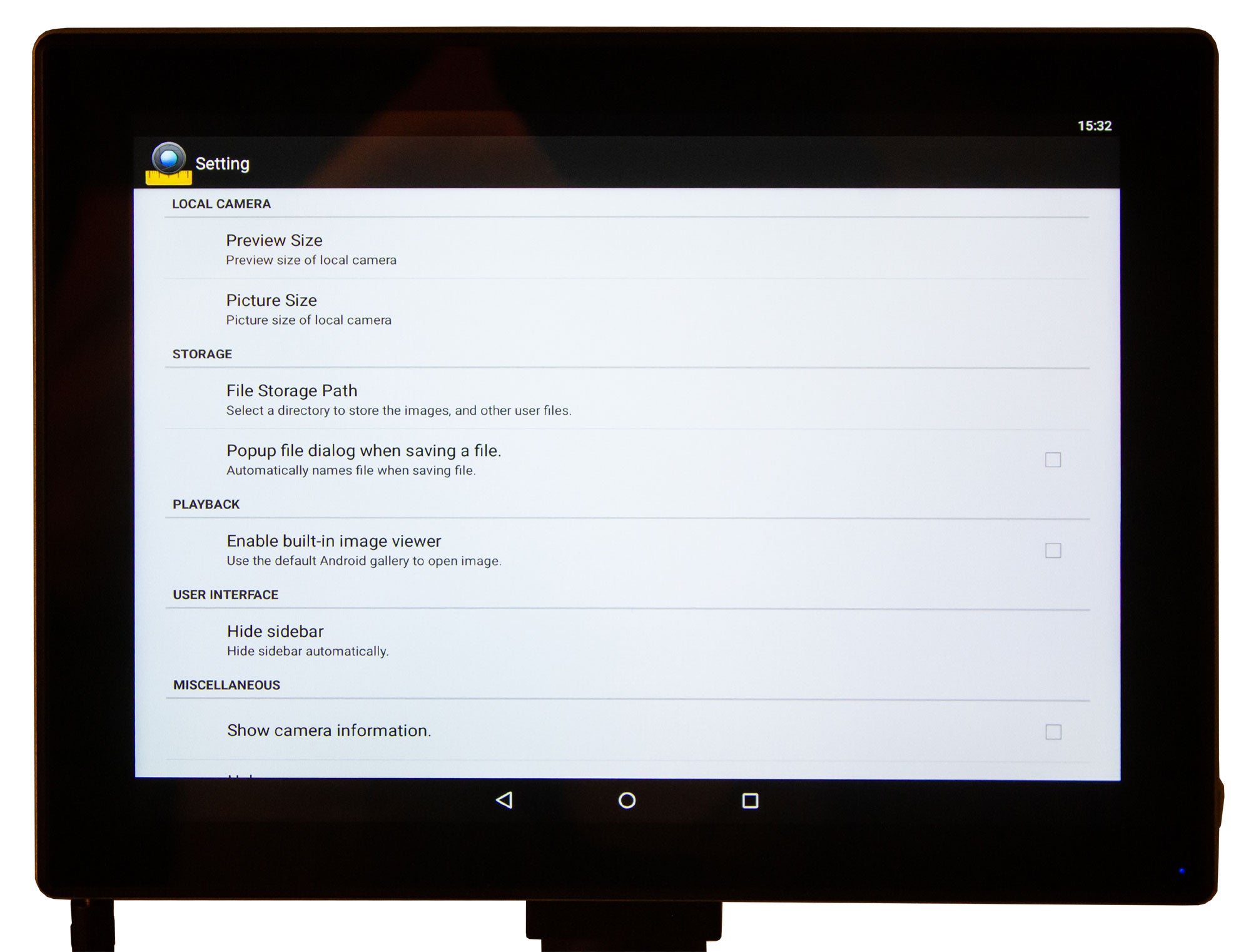

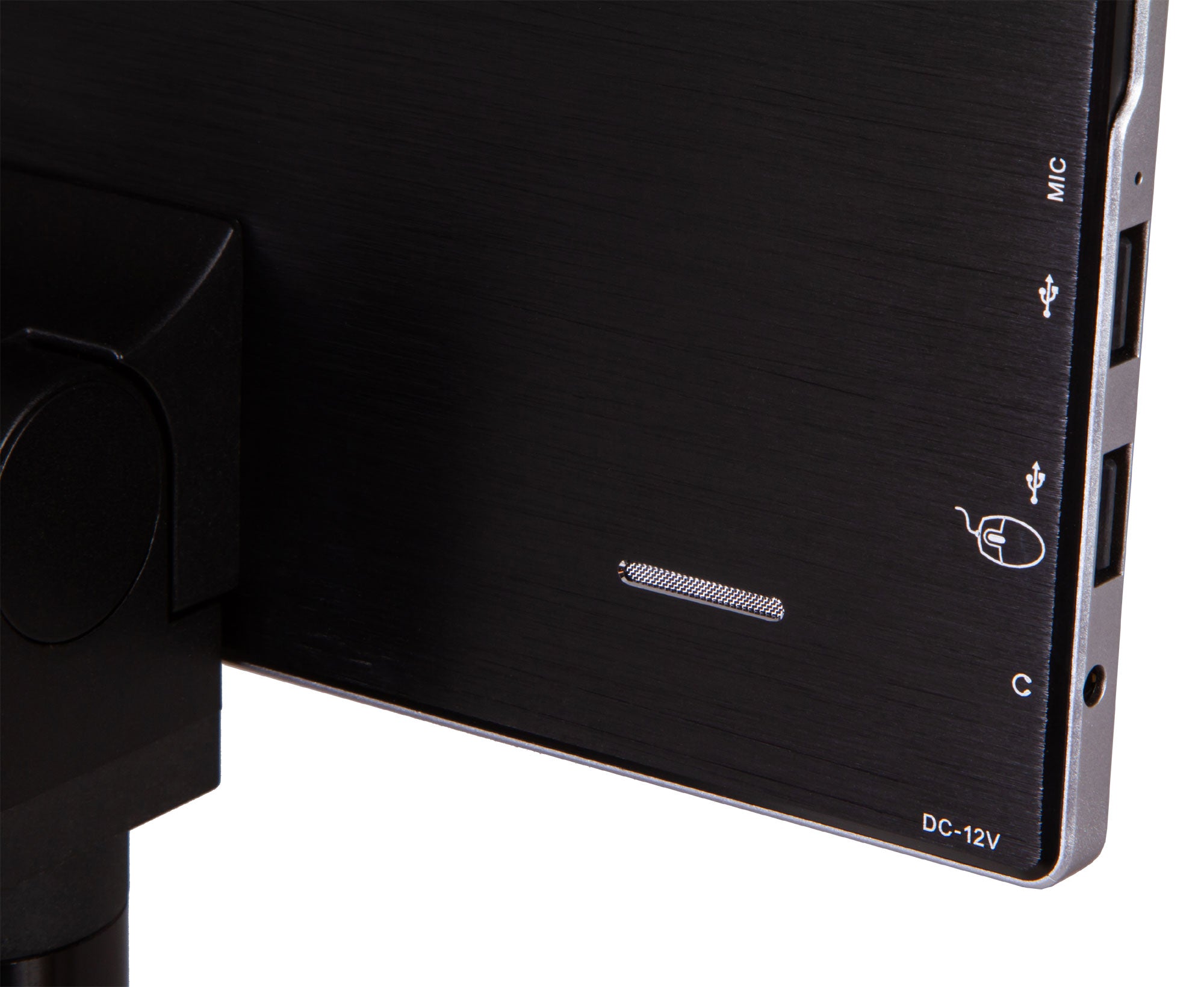

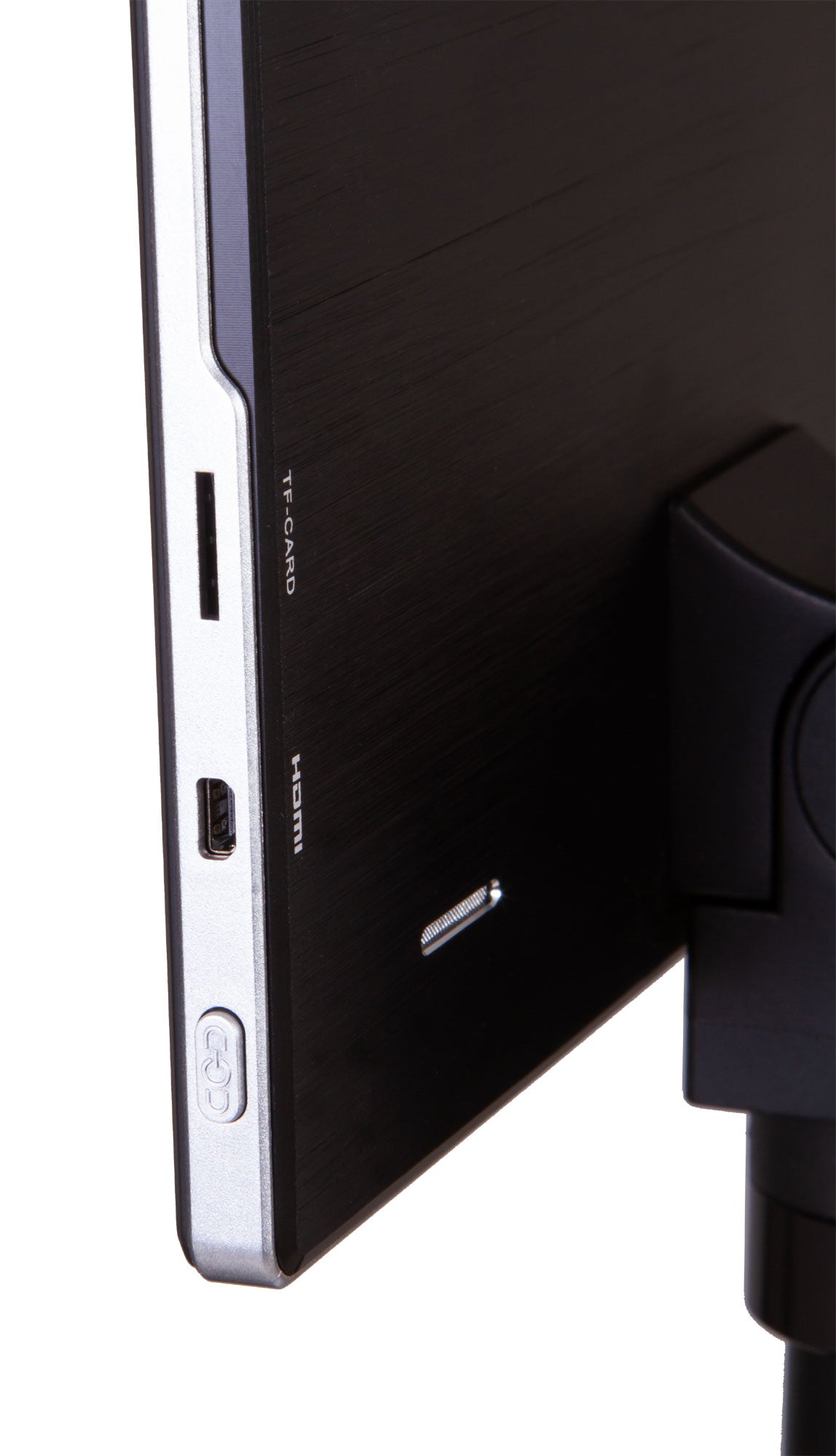

A digital camera is also worth mentioning. In addition to an LCD screen, this camera is compatible with a lot of additional equipment. You can connect a mouse, keyboard, and headphones to the camera. An image from an objective lens can be transmitted to a built-in or external screen; flash drives and memory cards are supported. The camera does not require installing additional software. With the help of the utility software, you can edit recorded photos and videos, choose location for files storage, change camera settings, or perform simple processing of photos and videos. The software allows for adjusting size, image brightness and contrast, gamma, sharpness and saturation, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available). In addition, the program allows for carrying out a particle analysis. The camera makes working in a laboratory easier and more practical for an explorer: there is no need to observe sl ides through eyepieces as an image can be seen on a built-in LCD screen with sensor control.
The Levenhuk MED 20 series includes high-class microscopes for a microbiology laboratory.
Features:
Trinocular laboratory microscope
Semi-plan achromatic optics, magnification of 40x to 1000x
Anti-fungal coating of all optical surfaces

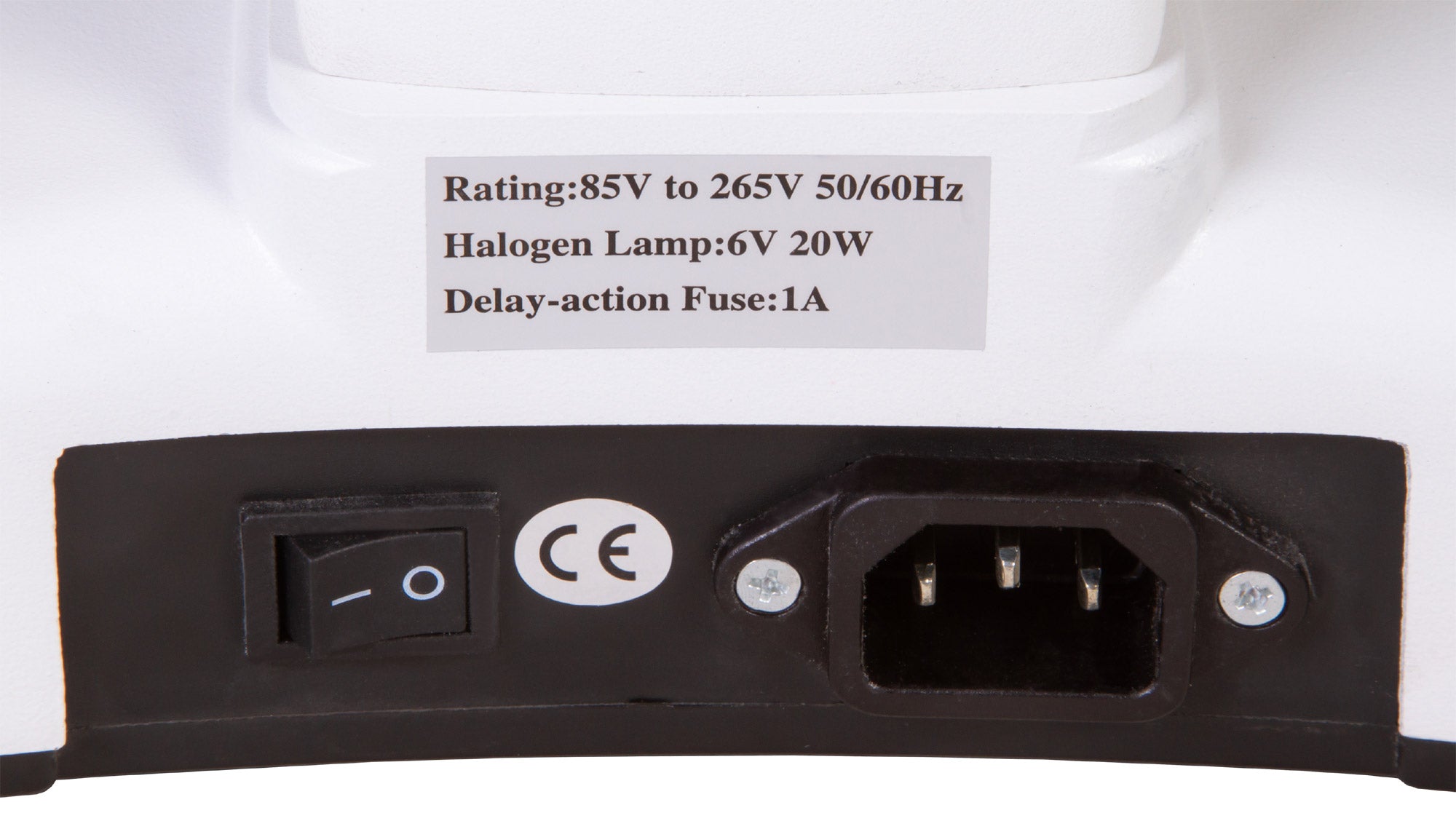

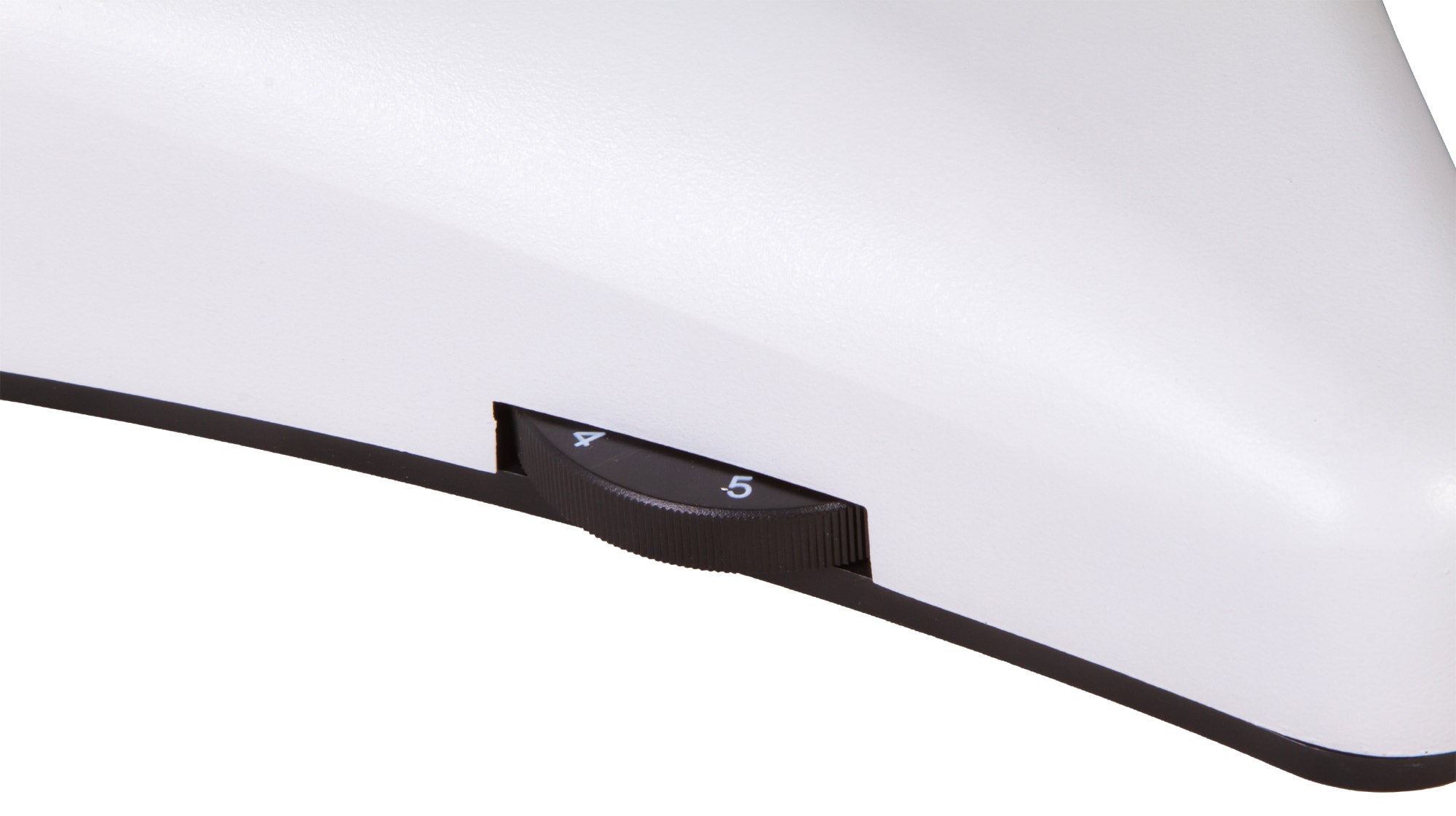

Halogen light powered by an AC power supply

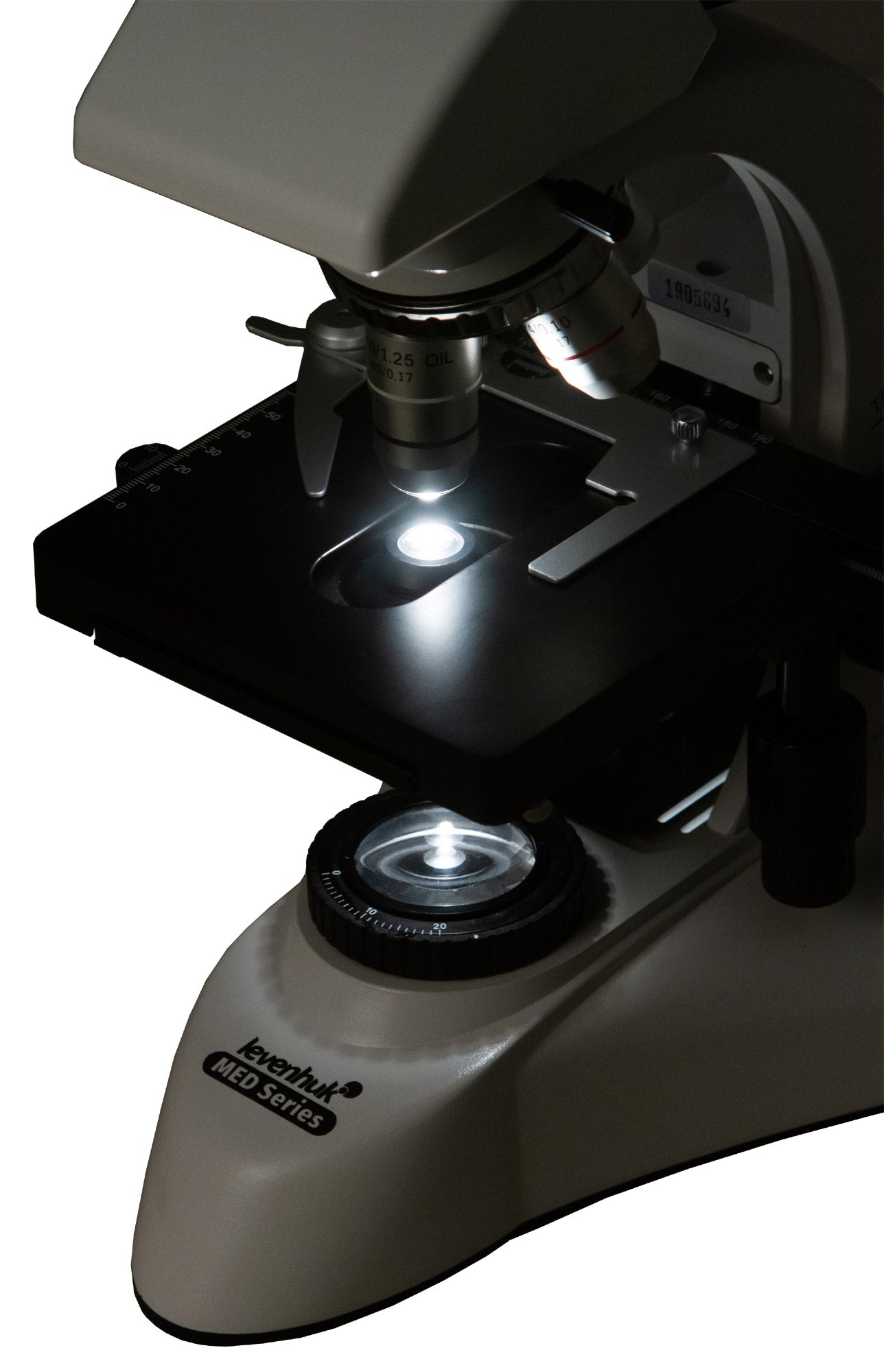

Köhler illumination is available
The kit includes a 5MP digital camera with an Android-based LCD screen
The kit includes:
Microscope base with a stand
360° rotatable trinocular head
Semi-plan achromatic objective lenses 4x, 10x, 40xs, 100xs (oil) with an anti-fungal coating
Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)
Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Filters: blue, green, yellow
Vial of immersion oil
Fuse (2 pcs)
Power cord for microscope
Dust cover
5MP digital camera with an LCD screen
Camera mount
Power cord for camera
User manual and lifetime warranty
