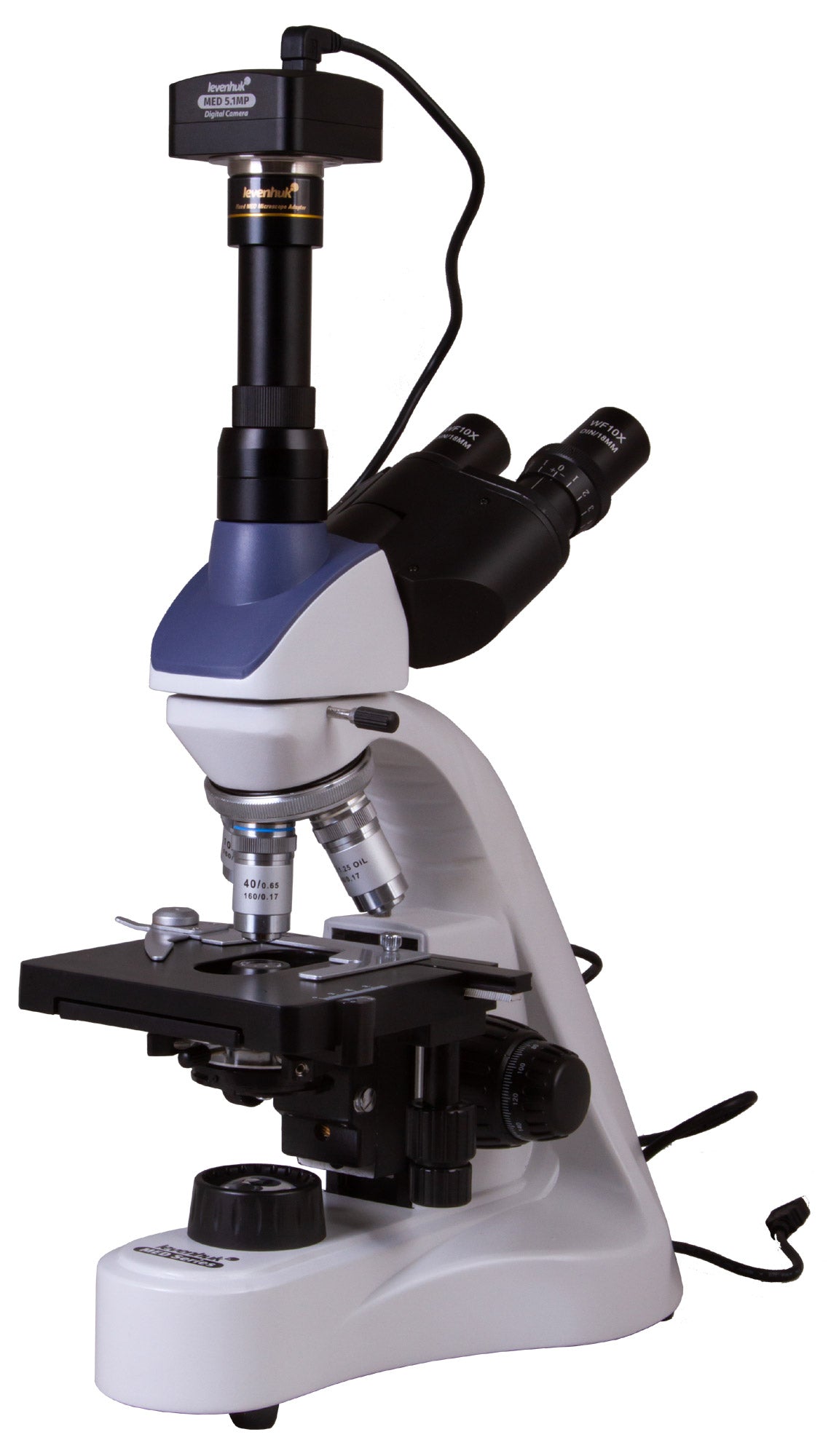

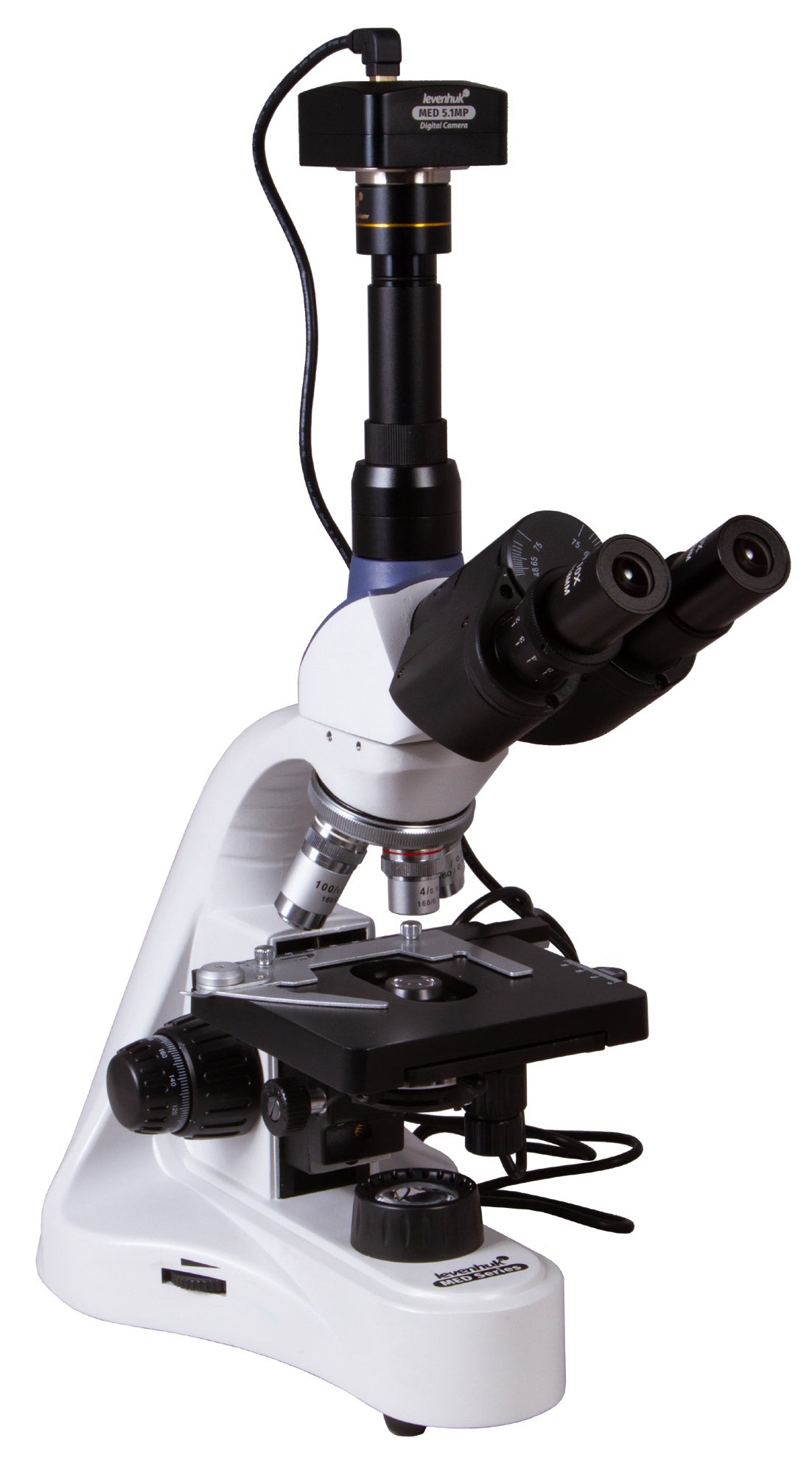

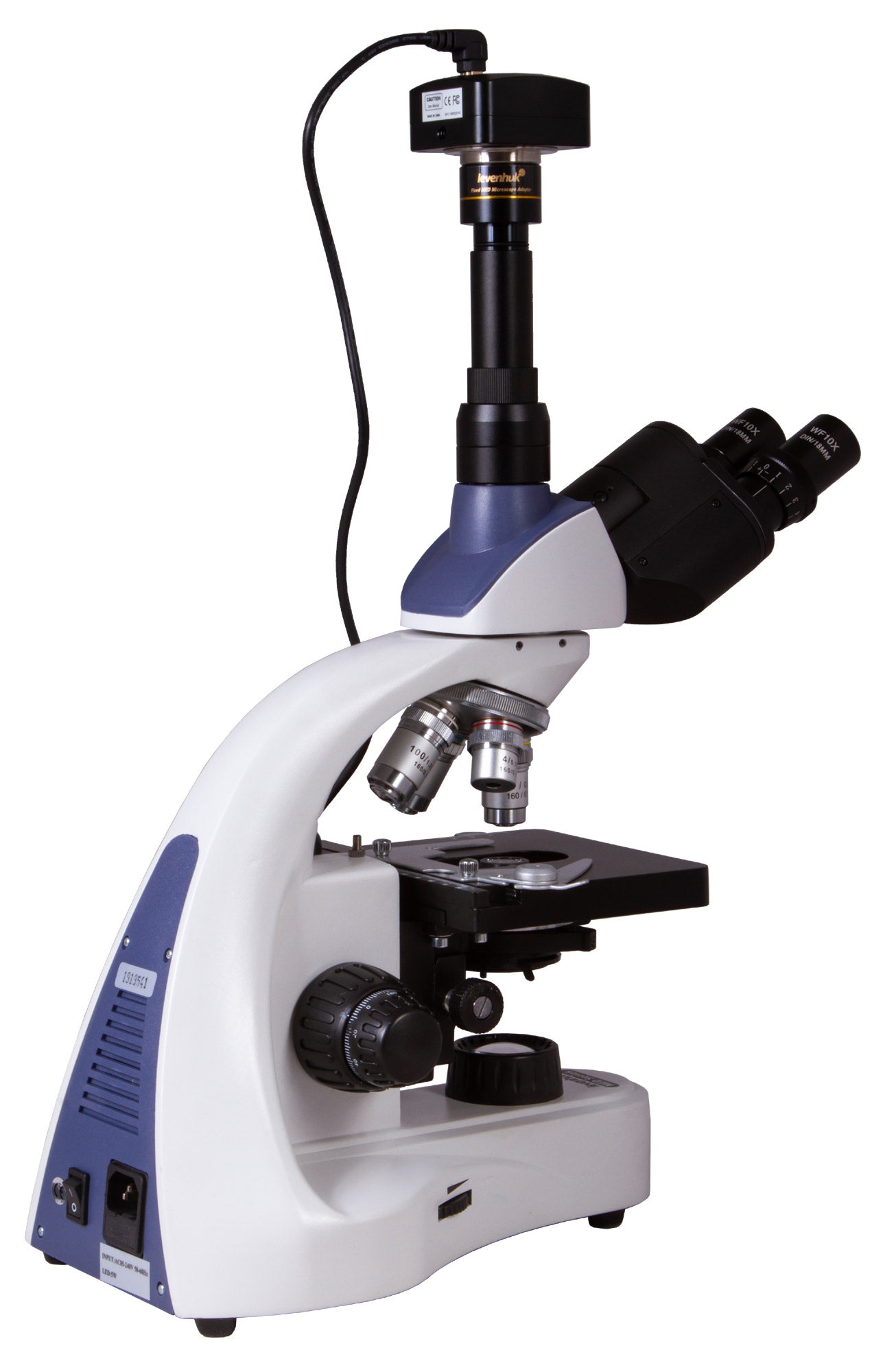

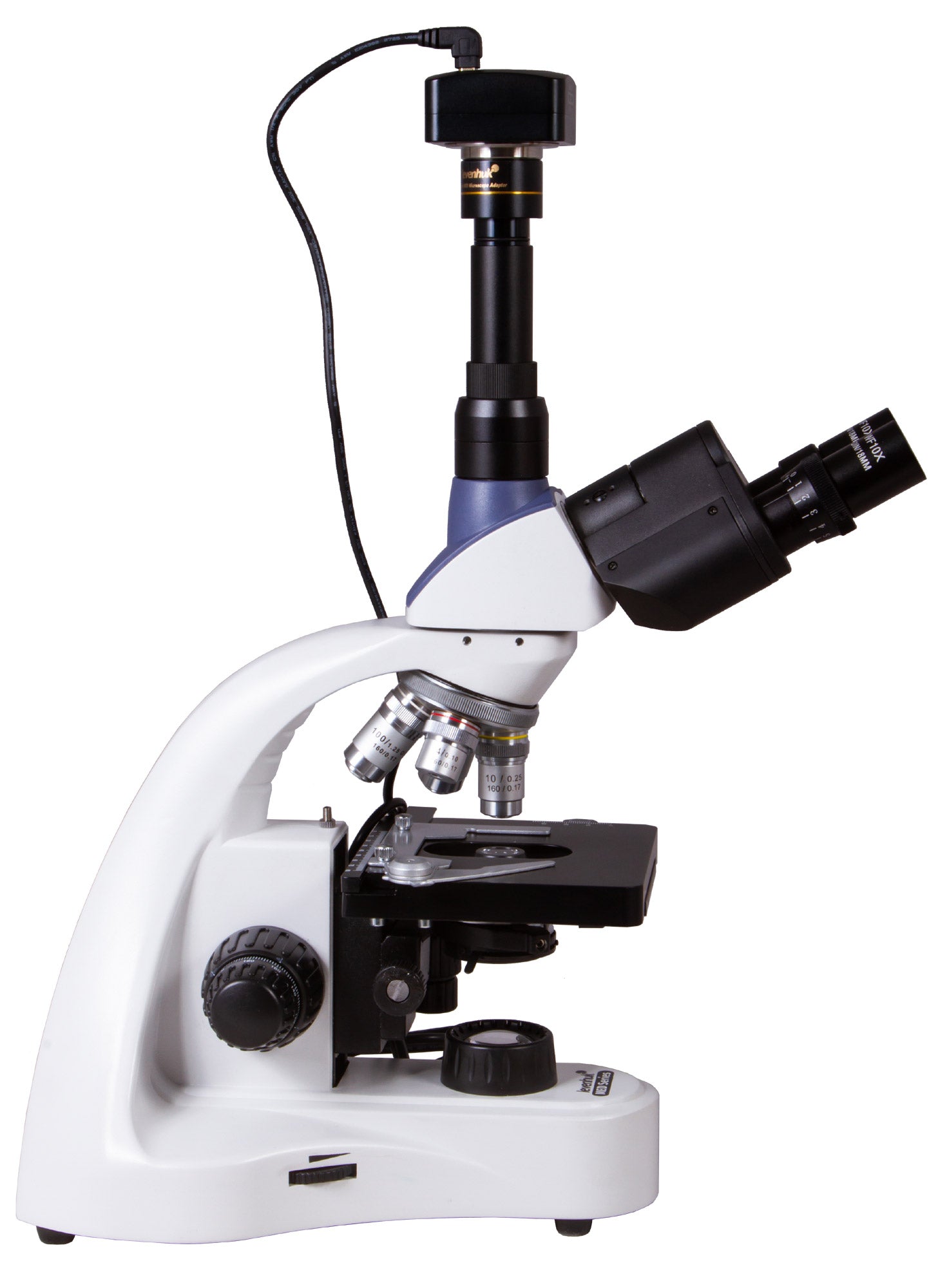

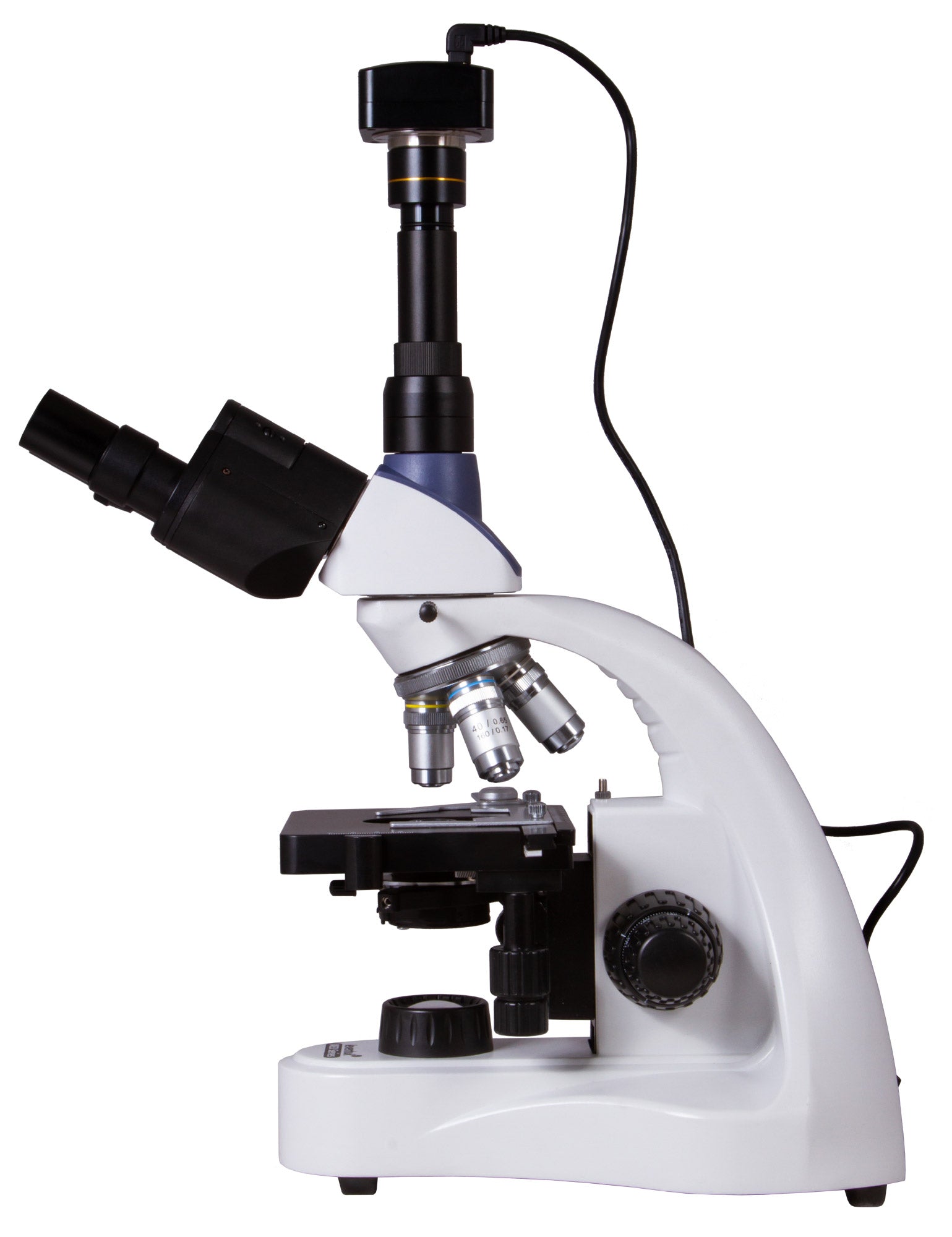

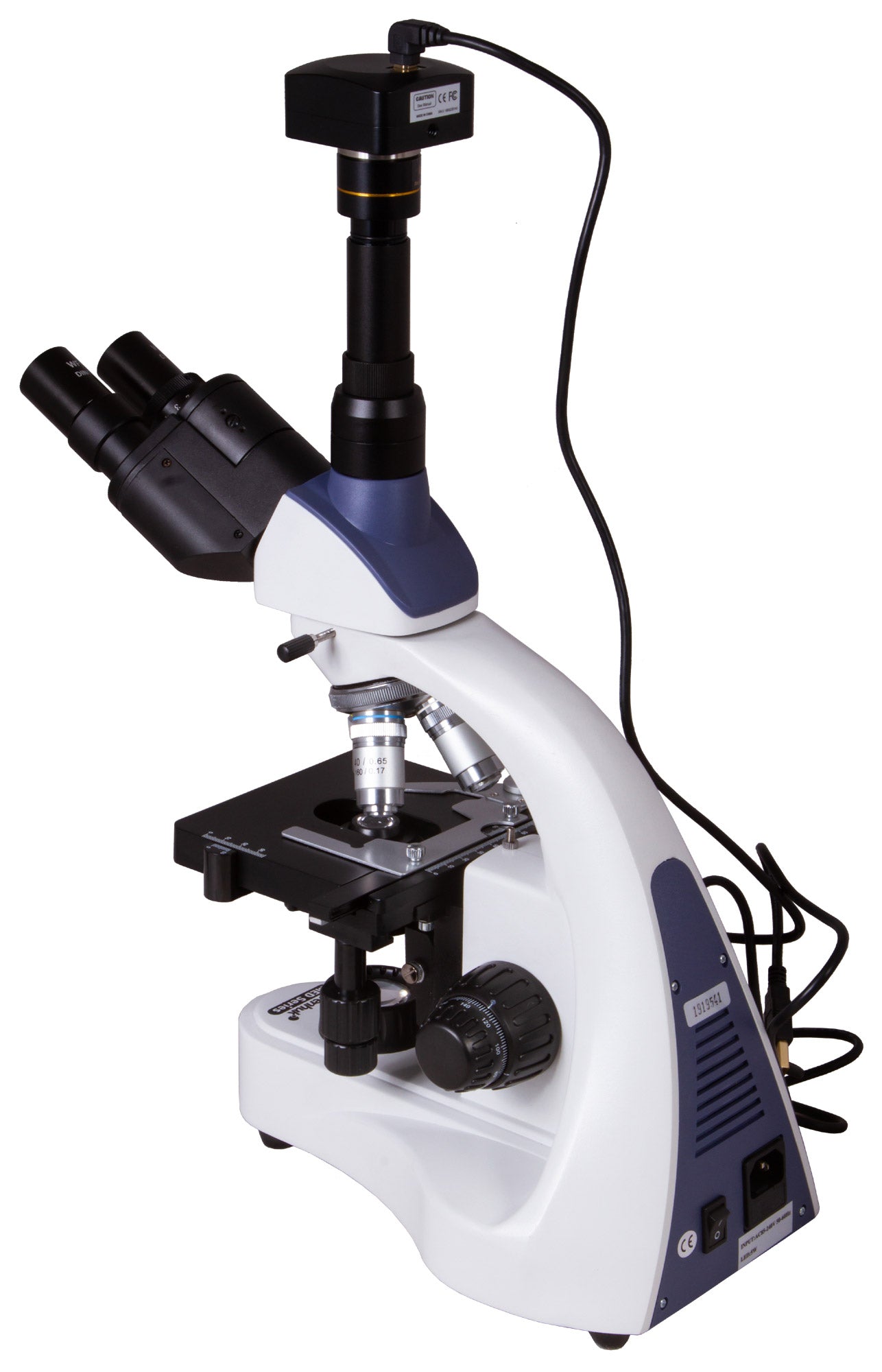

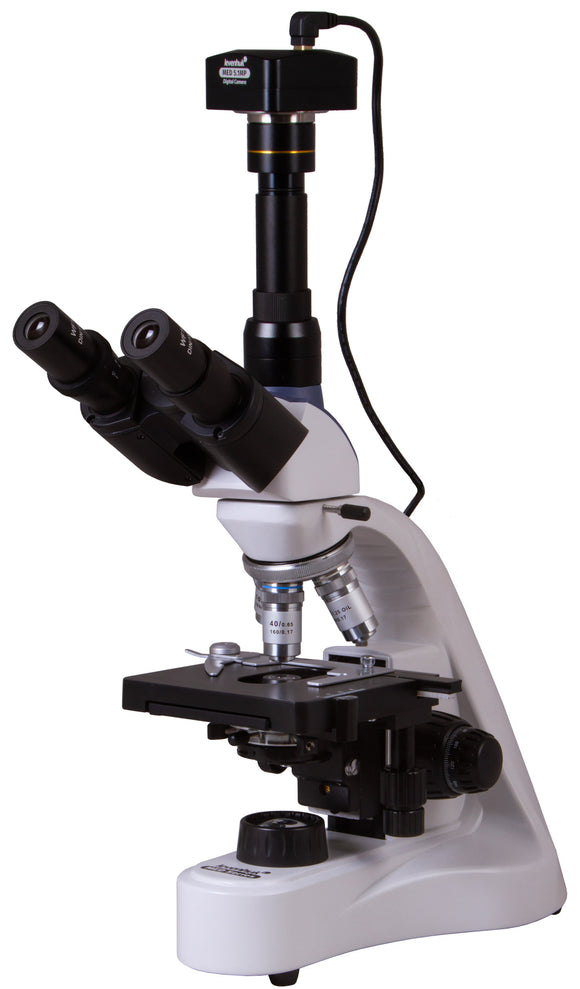

Levenhuk MED D10T Digital Trinocular Microscope
Magnification: 40–1000x. Trinocular head, 5.1MP digital camera, achromatic objective lenses, and an Abbe condenser with an iris diaphragm, and a filter holder
Levenhuk MED D10T Digital Microscope is a classic trinocular model with a digital camera in the kit. It is a great assistant in studying the micro world at magnifications in a range from 40x to 1,000x and recording observations in photo- or video mode. The microscope is suitable for holding lectures and seminars, conducting professional biological, clinical and diagnostic research as well as research in various scientific fields. The achromatic microscope optics is excellent for high-precision work with specimens.

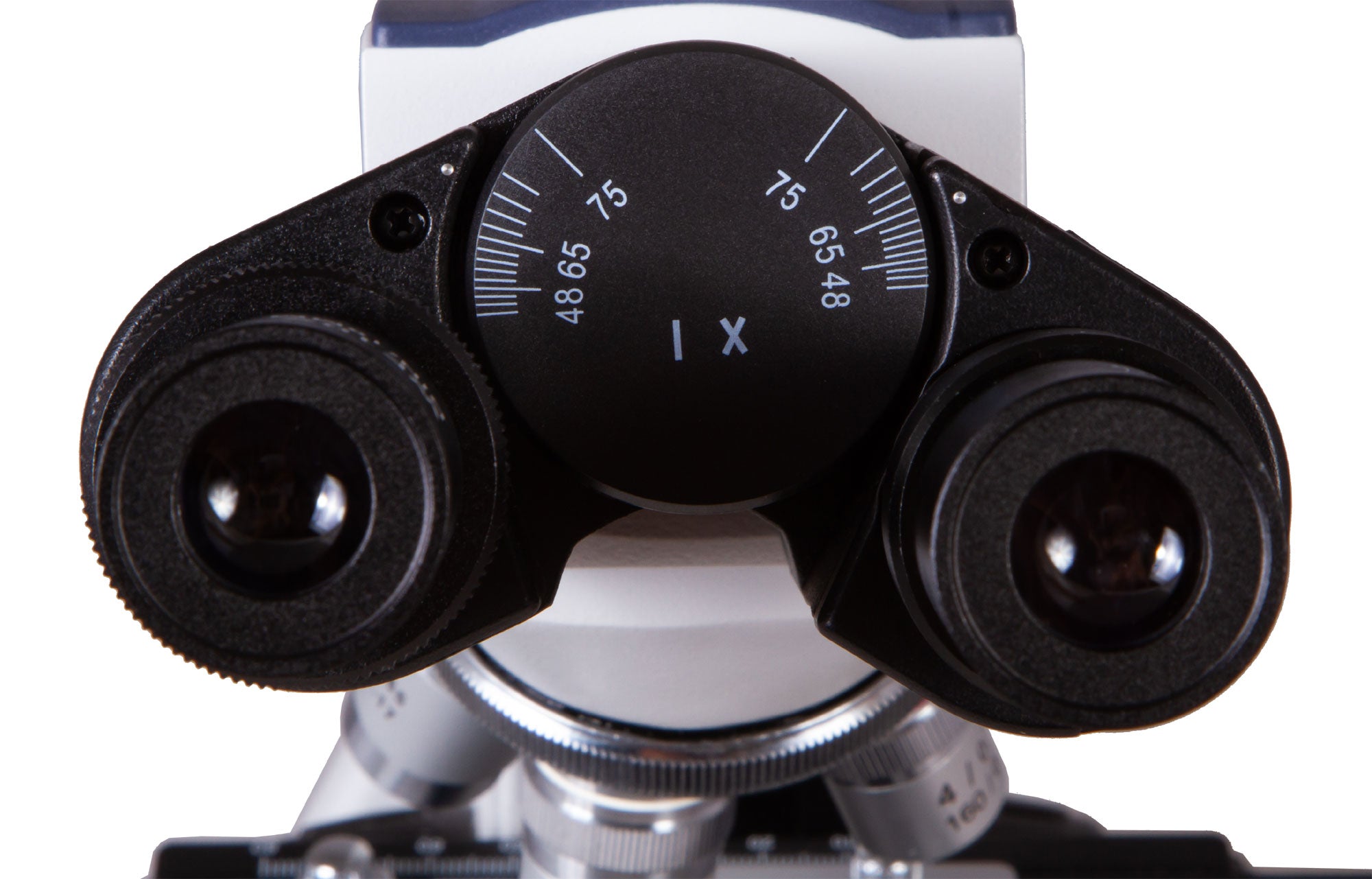

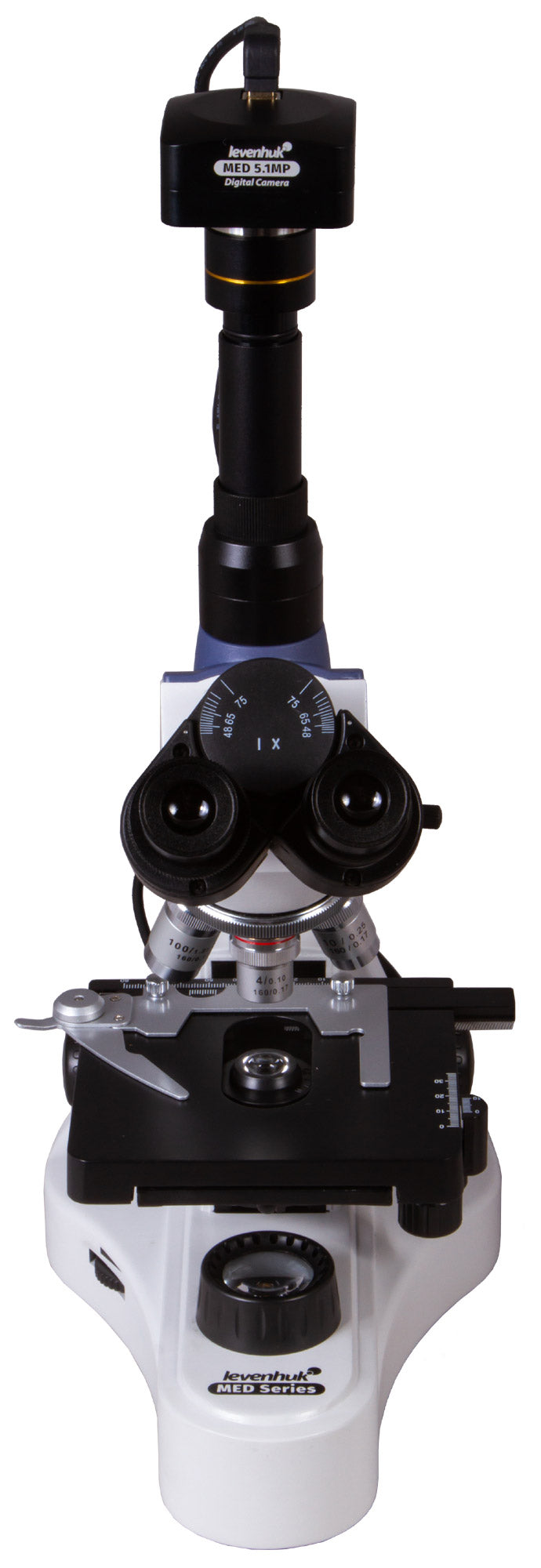

A practical rotatable head The trinocular head consists of a binocular visual part (it is intended for observations) and an ocular tube (for installing a digital camera in it). Due to that, you can study a specimen and transmit an image to an external screen simultaneously. This microscope design makes it a perfect choice for group research, when several people observe the same specimen. A visual part has 30° inclination. It is convenient to use during lengthy observations and, moreover, it reduces tension on the neck muscles and shoulder girdle. What’s more, this head is 360° rotatable.

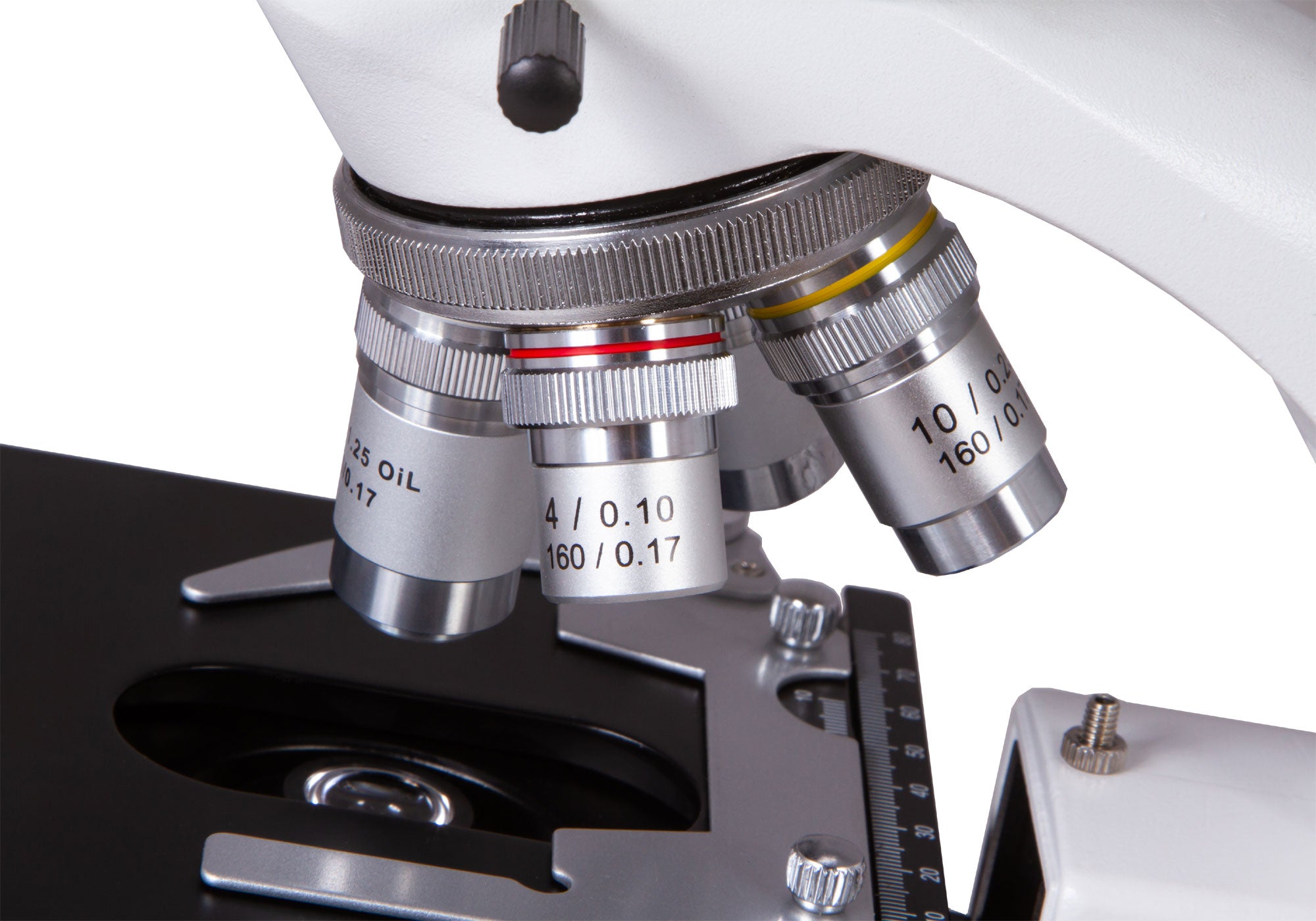

High-class optics The revolving nosepiece is designed for four objective lenses. The kit includes objective lenses of various magnification; the 40x and 100x objective lenses are equipped with spring-loaded frames for protecting the optics from accidental damage. A 100x objective lens is suitable for observations using oil immersion (a vial of immersion oil is included). Wide-field eyepieces provide a good view and provide 10x magnification. All of the optical elements of the microscopes have an anti-fungal coating.

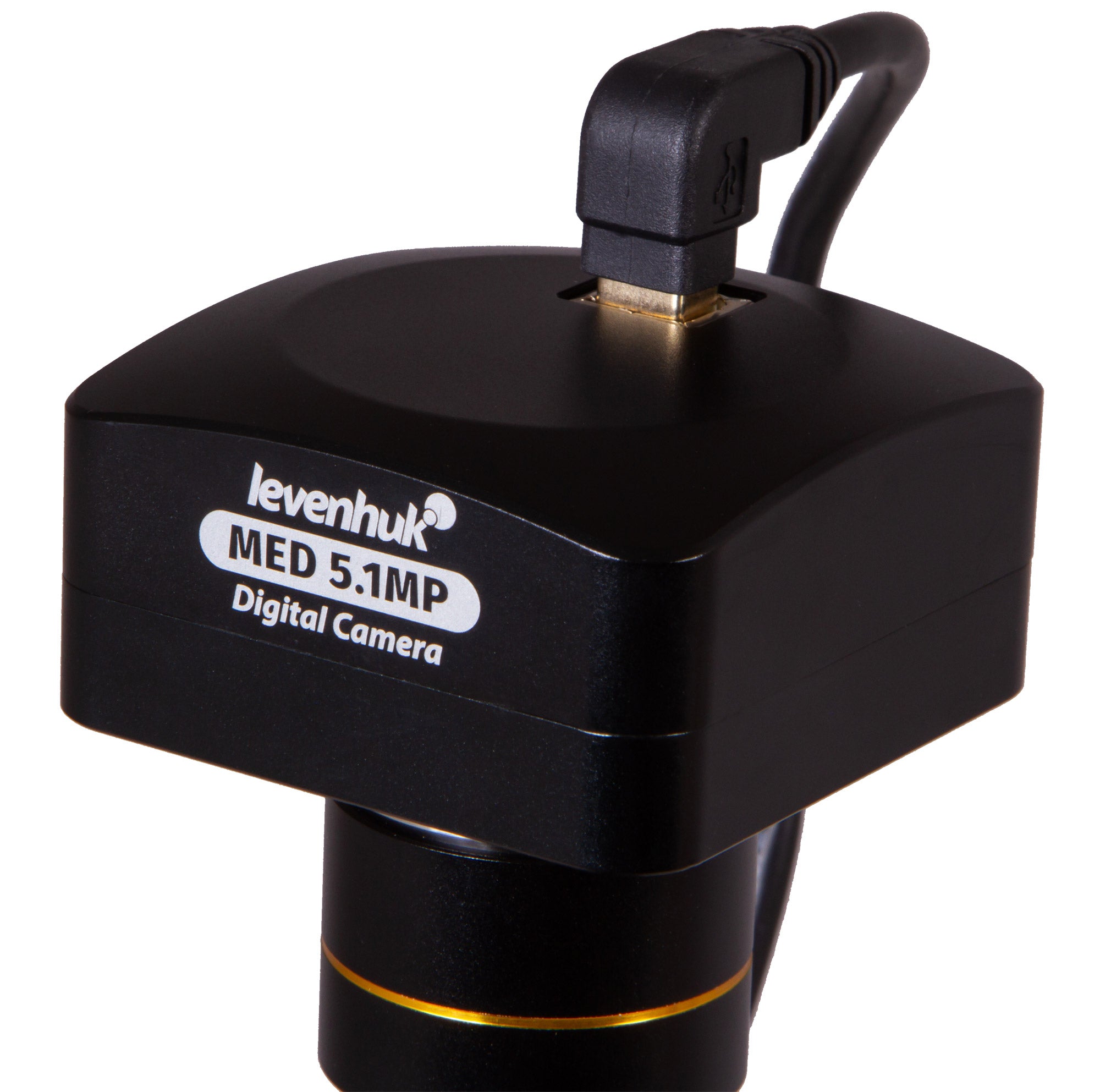

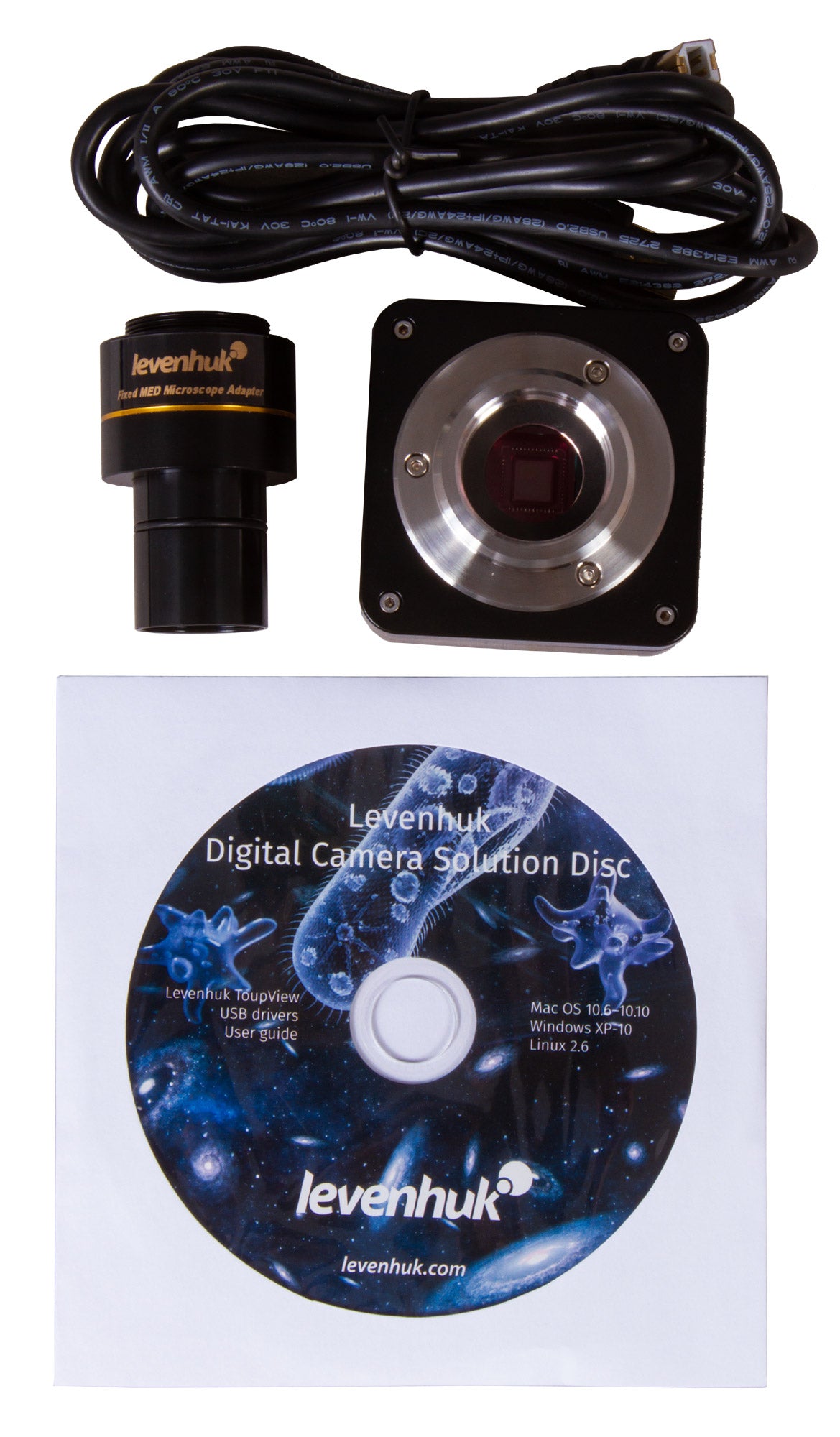

Digital capabilities The 5.1MP digital camera has an adapter and is installed in the vertical ocular tube of the microscope. The camera can work in a photo and video mode. The camera is connected to a computer with a pre-installed image processing software (a software CD and USB cable are included in the kit). The camera makes working in a laboratory easier and more practical for an explorer: there is no need to strain your eyes when observing slides through eyepieces, as everything can be seen on a computer screen. This special program allows for the simple processing of photos and videos, setting up shooting parameters, and saving data for further work. The software allows for adjusting the size, image brightness and contrast, exposure time, calibrating a camera and objective lenses as well as measuring specimens or structures (several measurement units are available). High image quality allows for using them for professional research.
Features:
Laboratory microscope with 40–1000x magnification
360° rotatable trinocular head, inclined at 30°
Achromatic optics with an anti-fungal coating

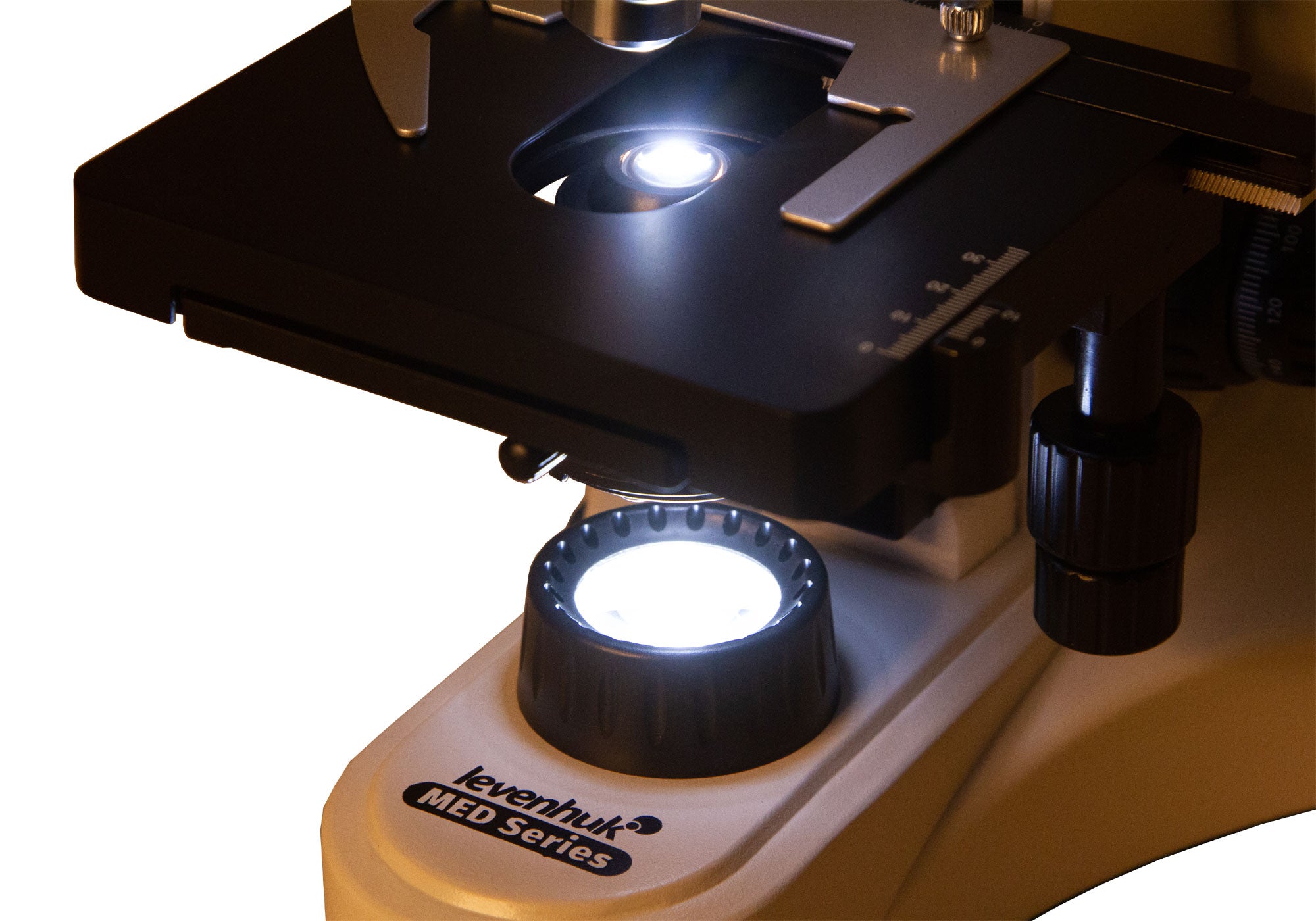

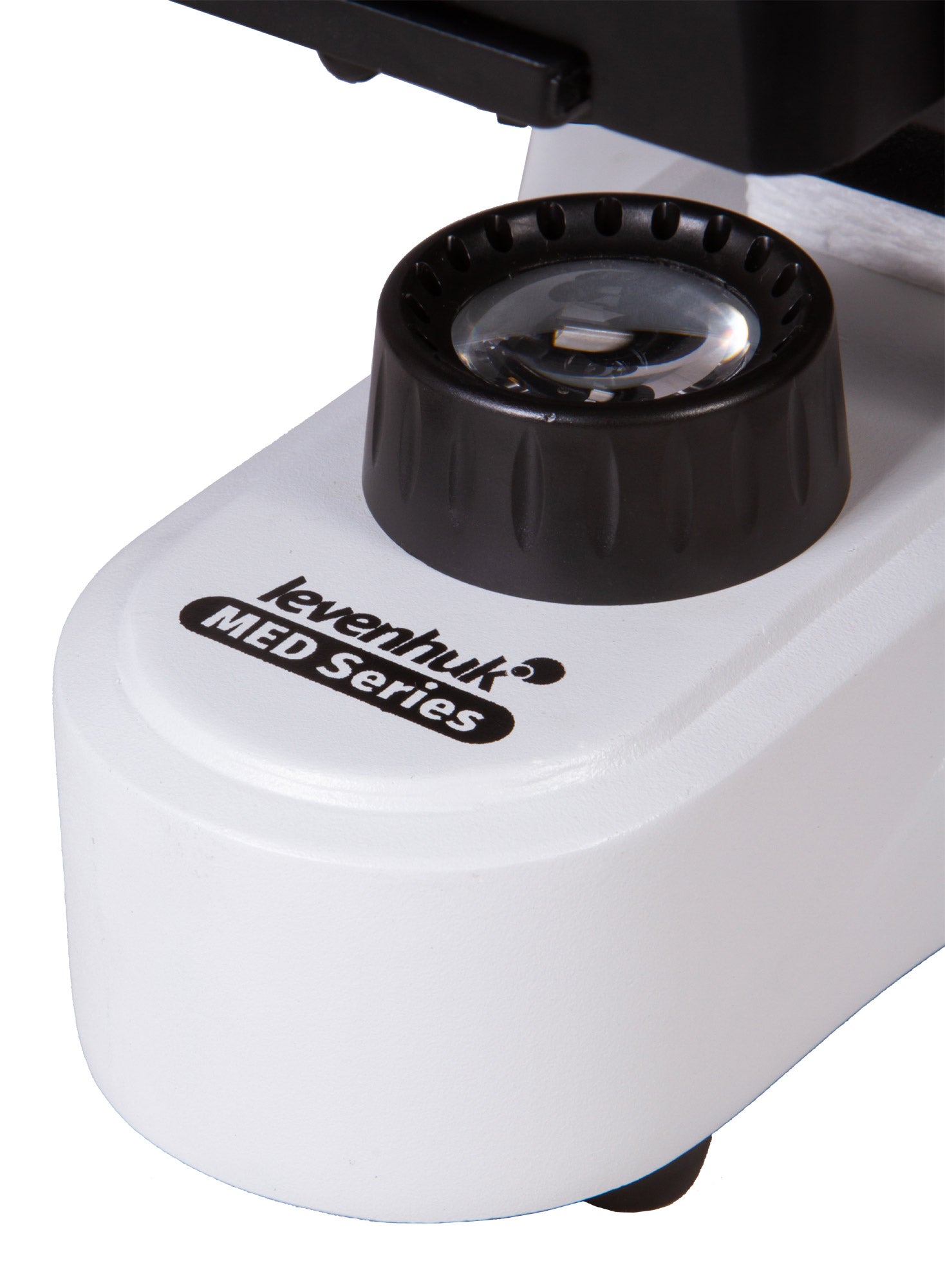

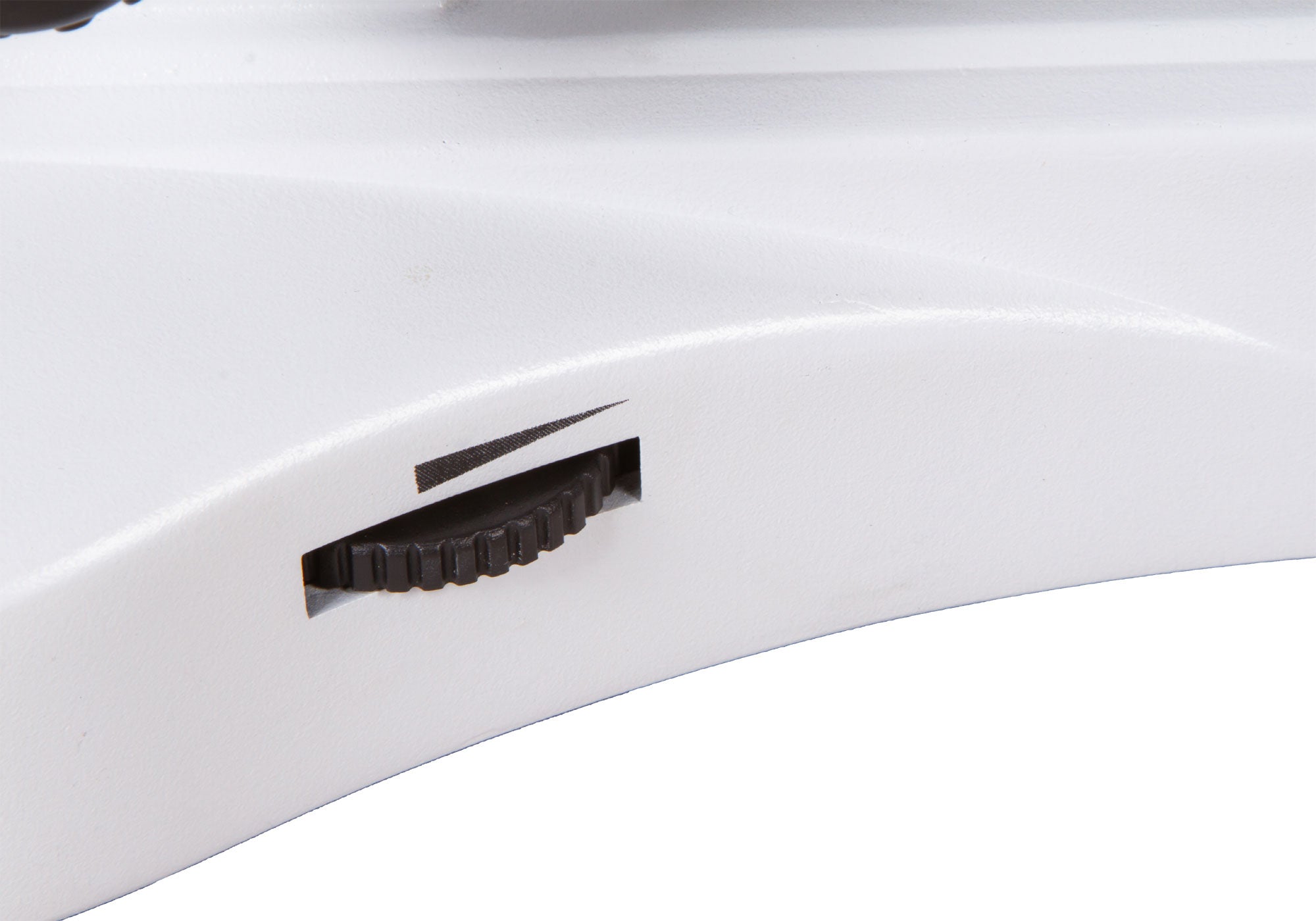

Lower 5W LED light with brightness adjustment

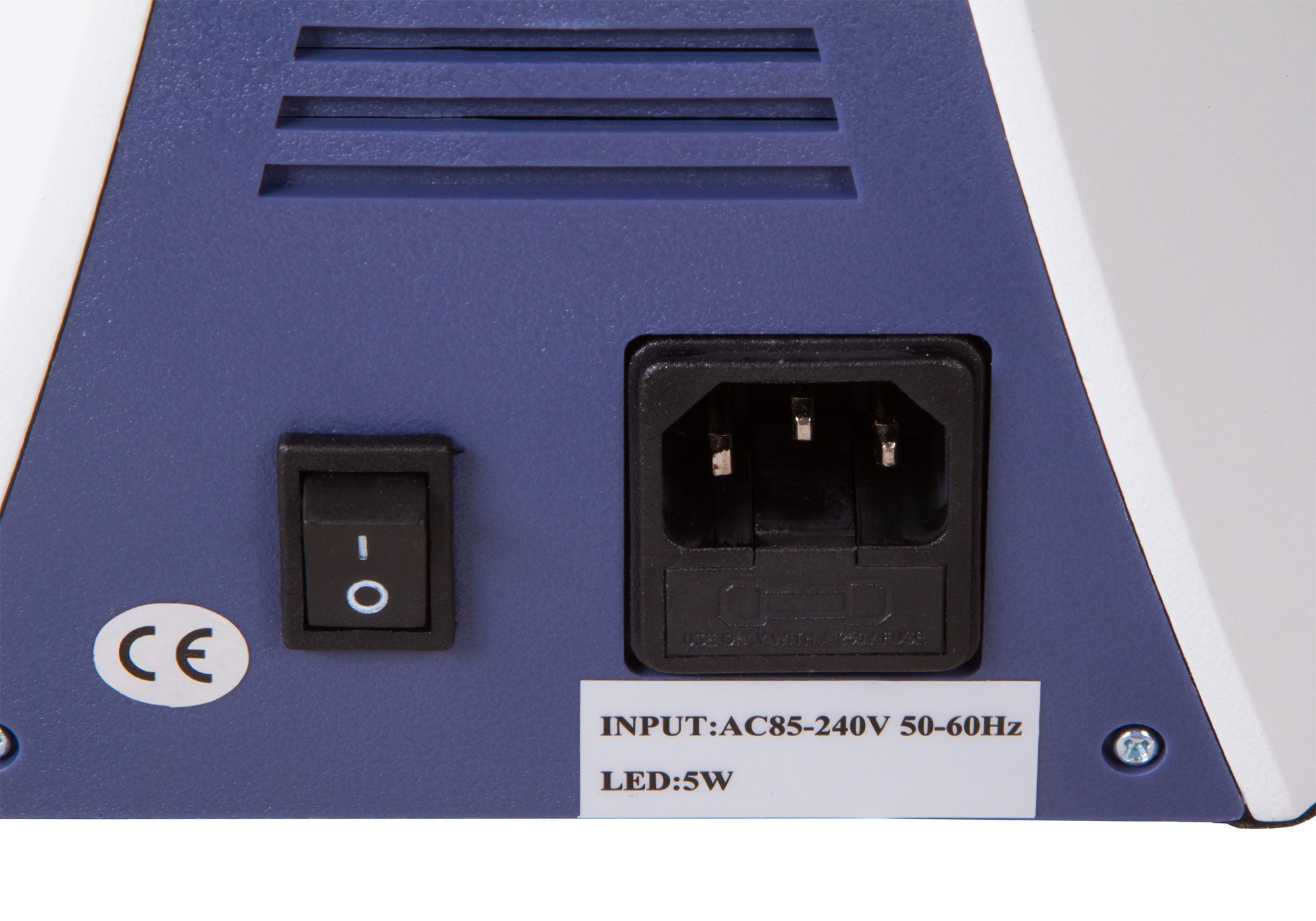

Powered by an AC power supply
5.1MP digital camera is included in the kit

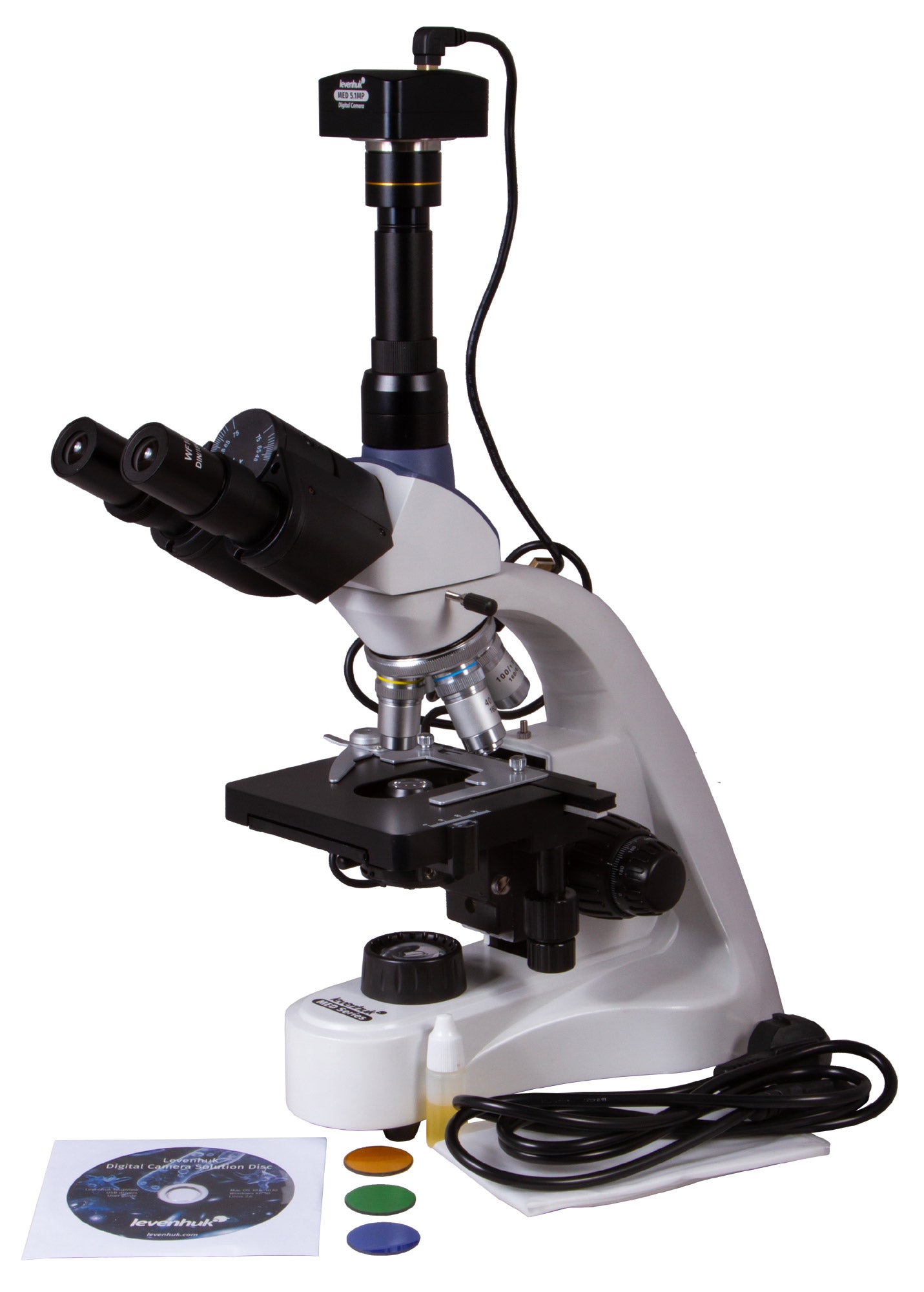

The kit includes:
Microscope base with a stand
360° rotatable trinocular head
Achromatic objective lenses: 4х, 10х, 40xs, 100хs (oil) with an anti-fungal coating
Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)
Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Filters: blue, green, yellow
Vial of immersion oil
Fuse (2 pcs)
Power cord for microscope
Dust cover
5.1MP digital camera
Camera adapter
Camera mount
USB cable for connecting and powering camera
Software CD and drivers
User manual and lifetime warranty
