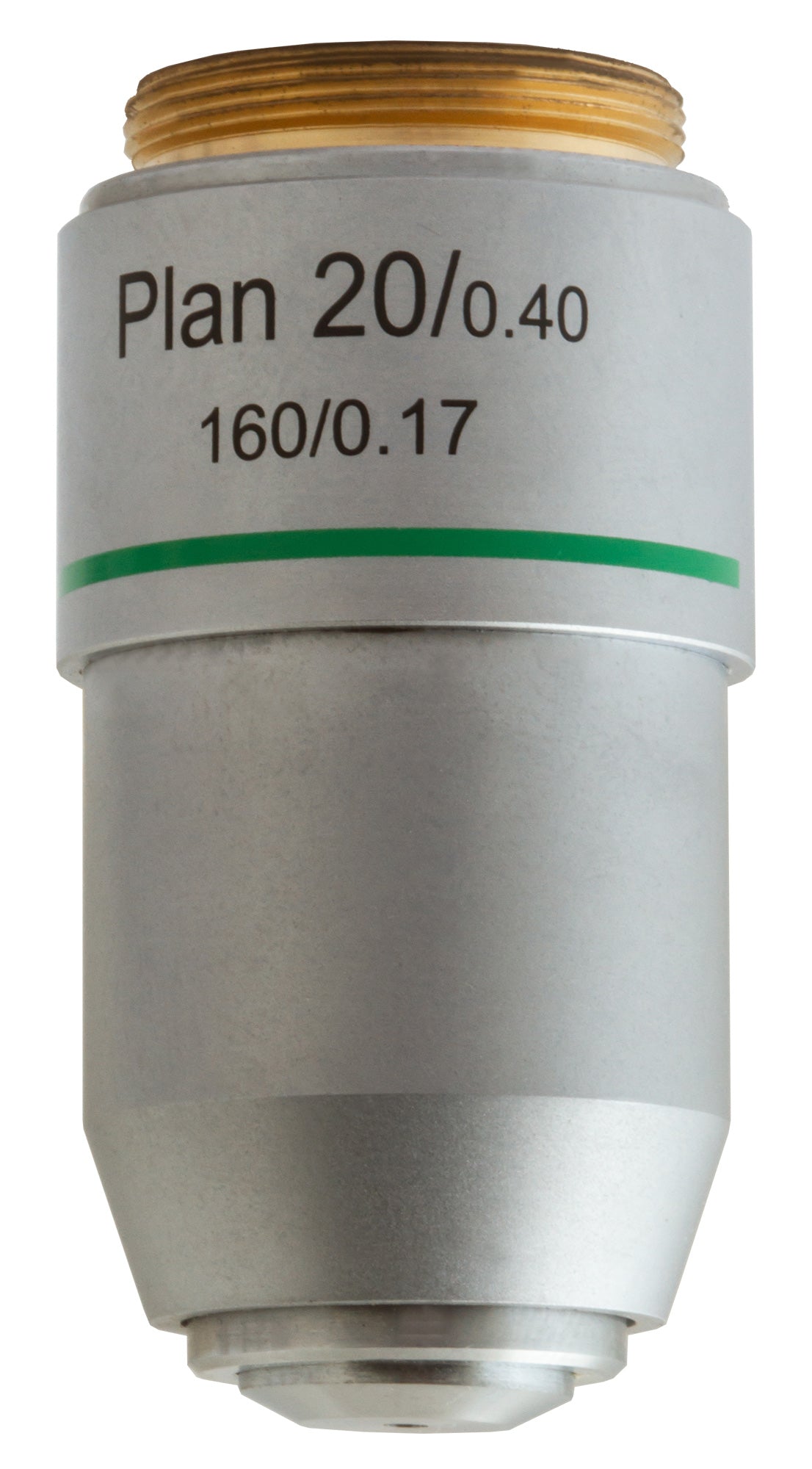

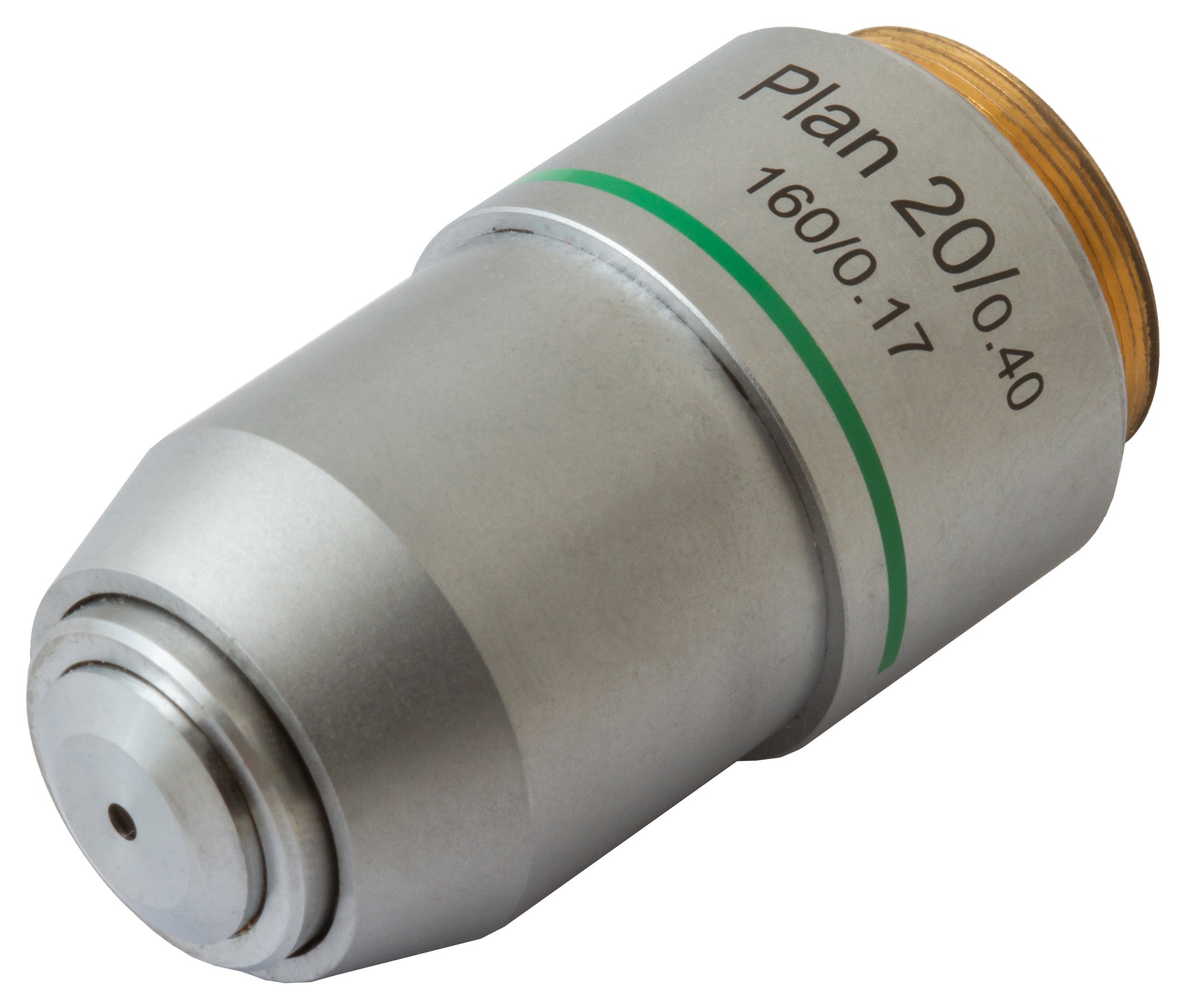

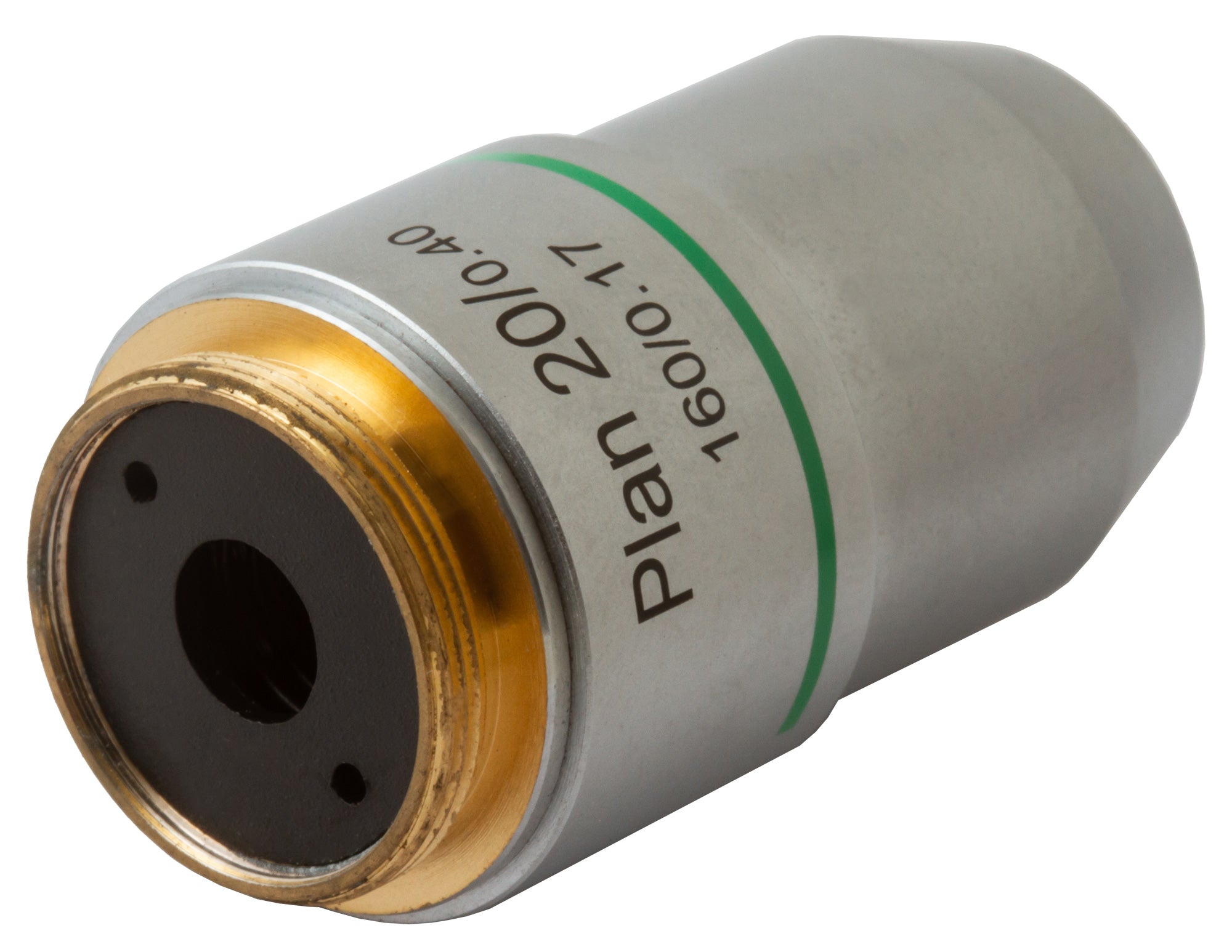

Levenhuk MED 20x Plan Achromatic Objective
Levenhuk MED 20x is a plan achromatic objective. Its optics eliminate spherical aberrations as well as significantly flatten the field of view. The researcher sees a sharp, detailed, and clear image even when working with complex microstructures. The glass lenses provide 20x magnification. The body is made of metal.
The Levenhuk MED 20x objective can be used with any brand of microscopes.
The kit includes:
- Objective
- Plastic case
| Specifications | |
|---|---|
| Lens material | optical glass |
| Body material | copper |
| Optical design | plan achromatic |
| Magnification, x | 20 |
| Aperture | 0.4 |
| Working distance, mm | 1.16 |
| Parfocal distance, mm | 195 |
| Cover glass thickness, mm | 0.17 |
| Compatible tube length, mm | 160 |
| Thread type | WJ 4/5”*1/36” |
| Spring-loaded frame | no |
| Oil immersion | no |
| Brand | Levenhuk, Inc., USA |
| Warranty, years | 0.5 |
| Package size (LxWxH), cm | 3.5x6x3.5 |
| Shipping Weight, kg | 0.1 |
