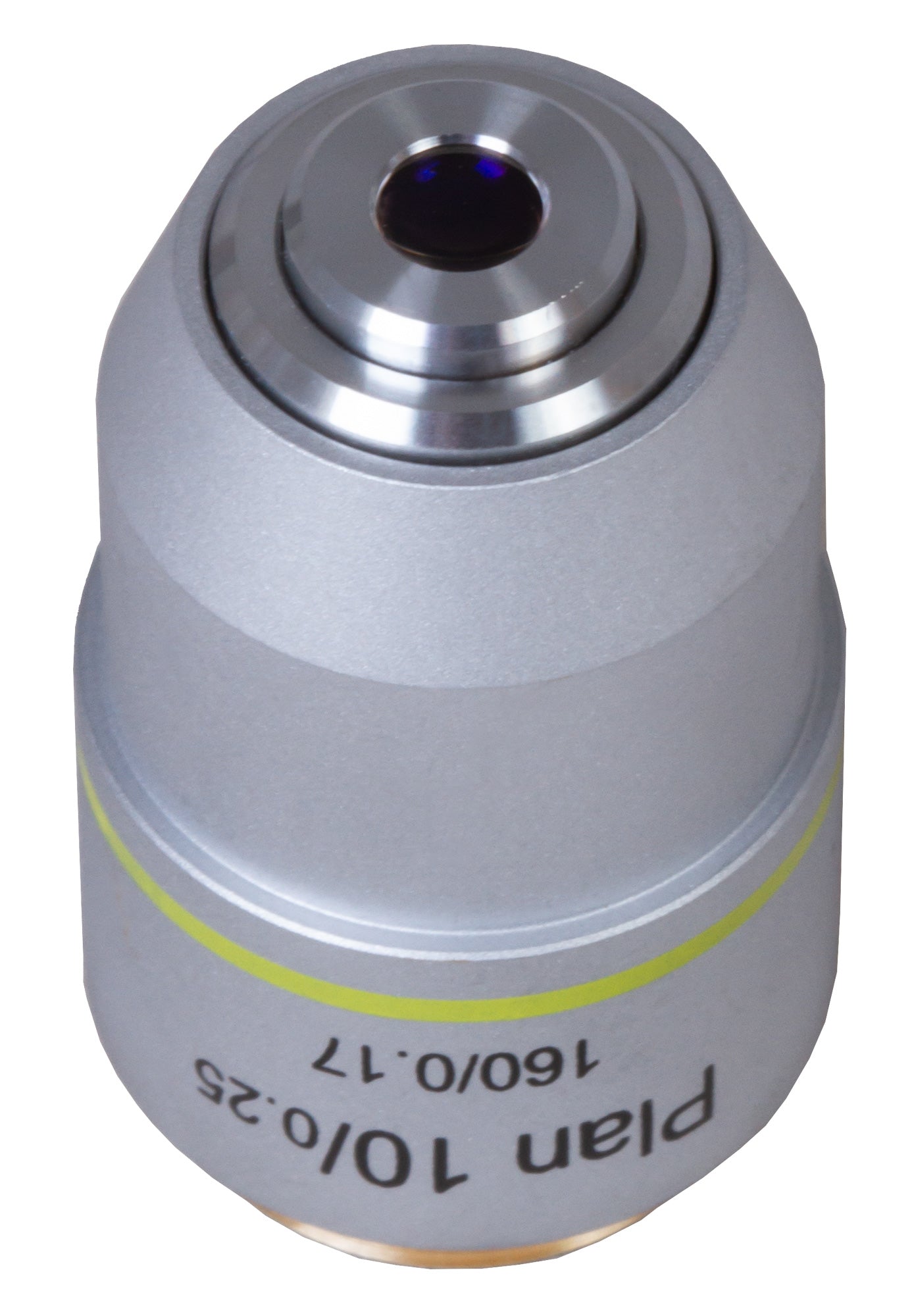

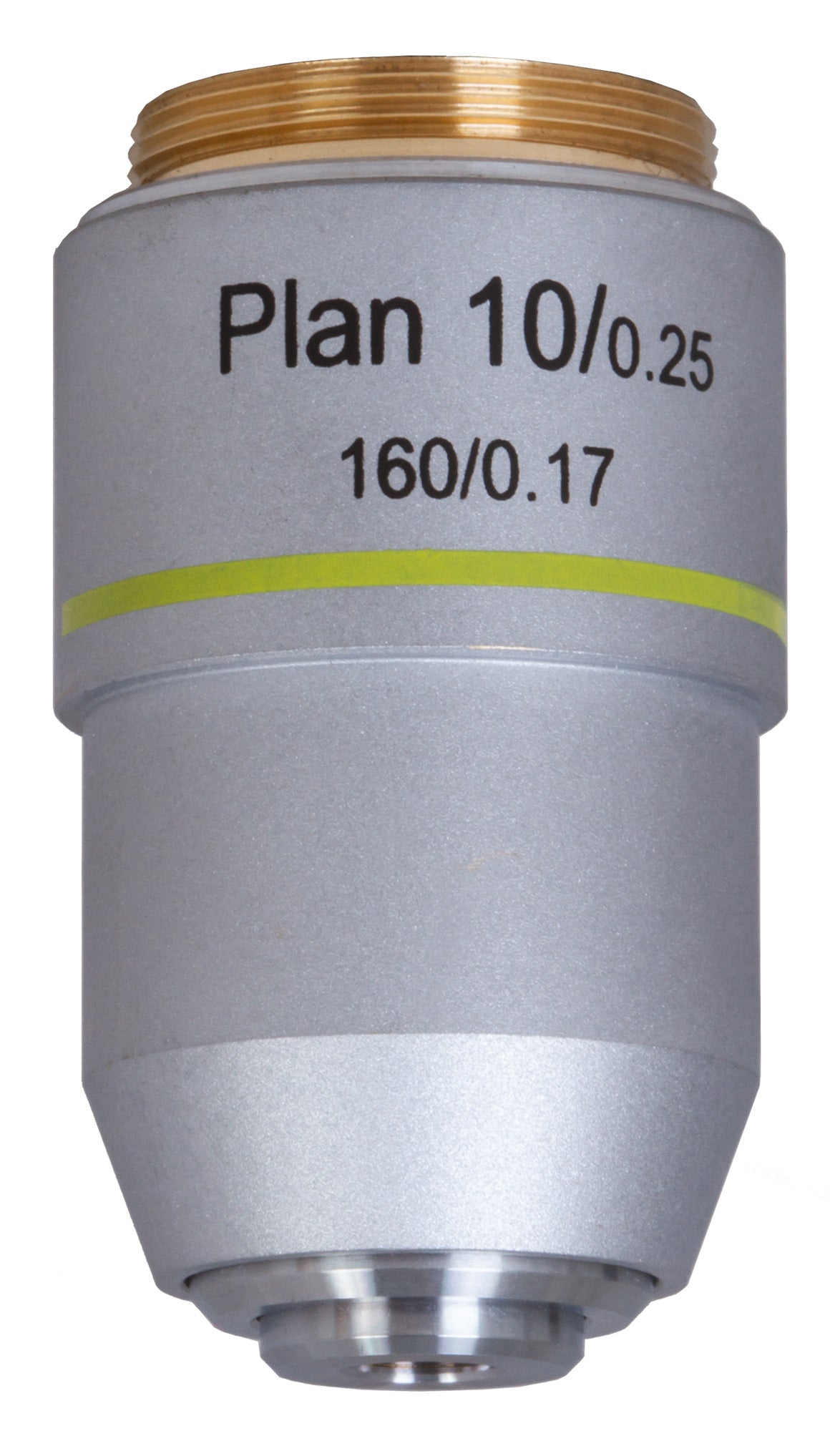

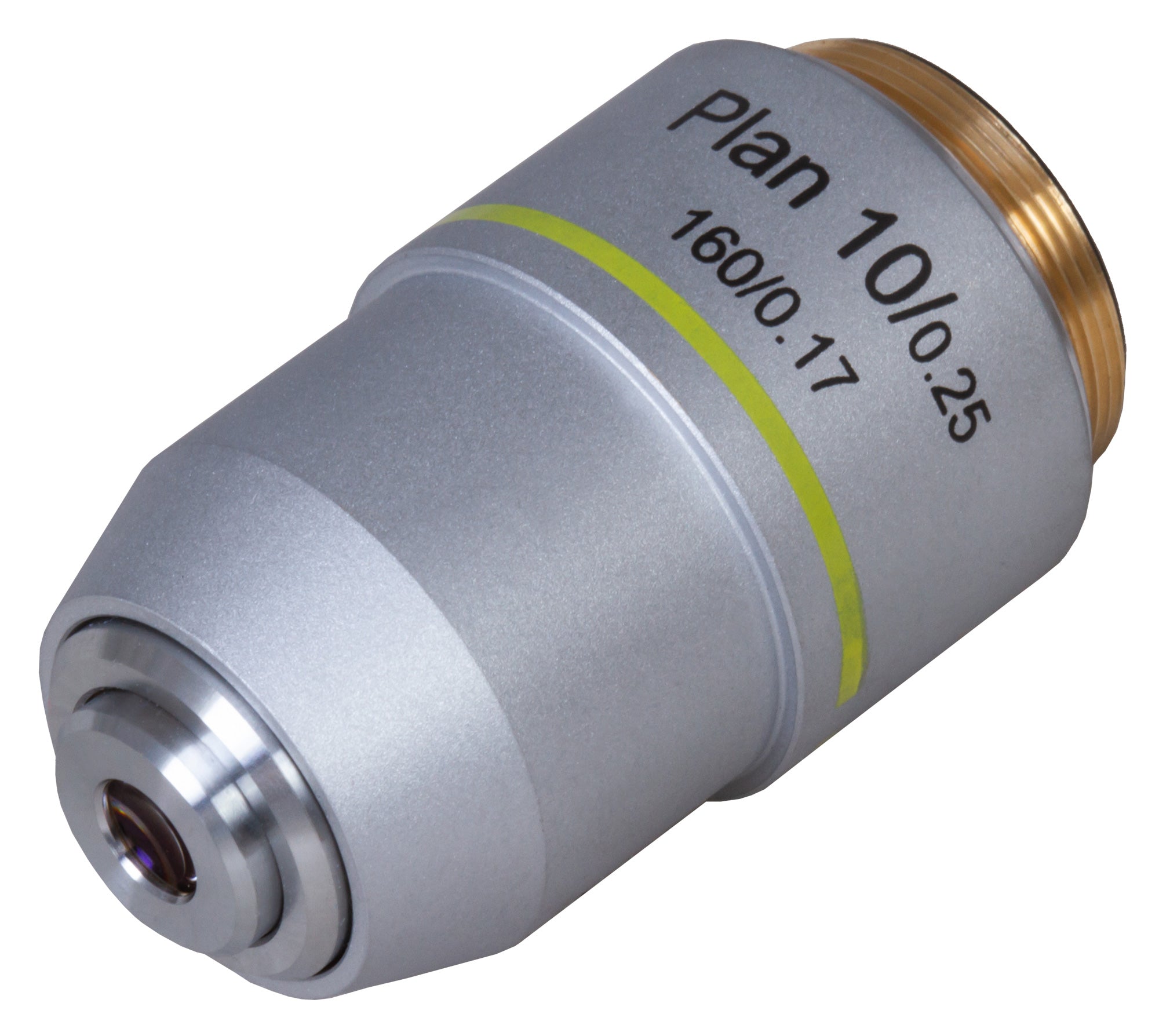

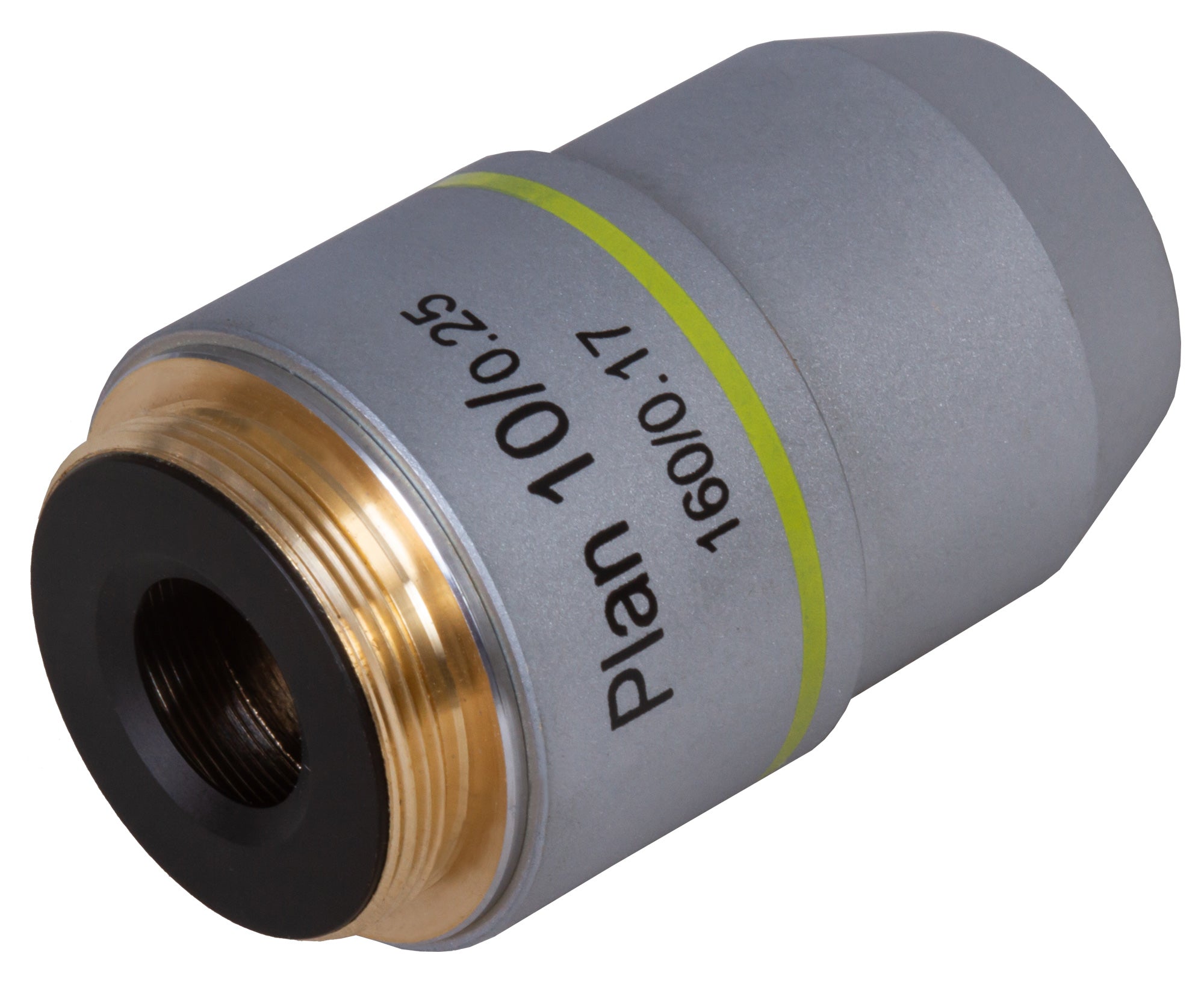

Levenhuk MED 10x Plan Achromatic Objective
The Levenhuk MED 10x plan achromatic objective is a high-quality microscope accessory. It is designed for studying complex microstructures. This plan achromatic objective allows for transmitting a quality, contrast, and clear picture without spherical aberrations. The field of view is flat. The objective provides 10x magnification.
The objective’s optics are made of glass, and the body is metal. Levenhuk MED 10x is perfect for work in a laboratory.
The kit includes:
- Objective
- Plastic case
| Specifications | |
|---|---|
| Lens material | optical glass |
| Body material | copper |
| Optical design | plan achromatic |
| Magnification, x | 10 |
| Aperture | 0.25 |
| Working distance, mm | 5.84 |
| Parfocal distance, mm | 195 |
| Cover glass thickness, mm | 0.17 |
| Compatible tube length, mm | 160 |
| Thread type | WJ 4/5”*1/36” |
| Spring-loaded frame | no |
| Oil immersion | no |
| Brand | Levenhuk, Inc., USA |
| Warranty, years | 0.5 |
| Package size (LxWxH), cm | 3.5x6x3.5 |
| Shipping Weight, kg | 0.1 |
