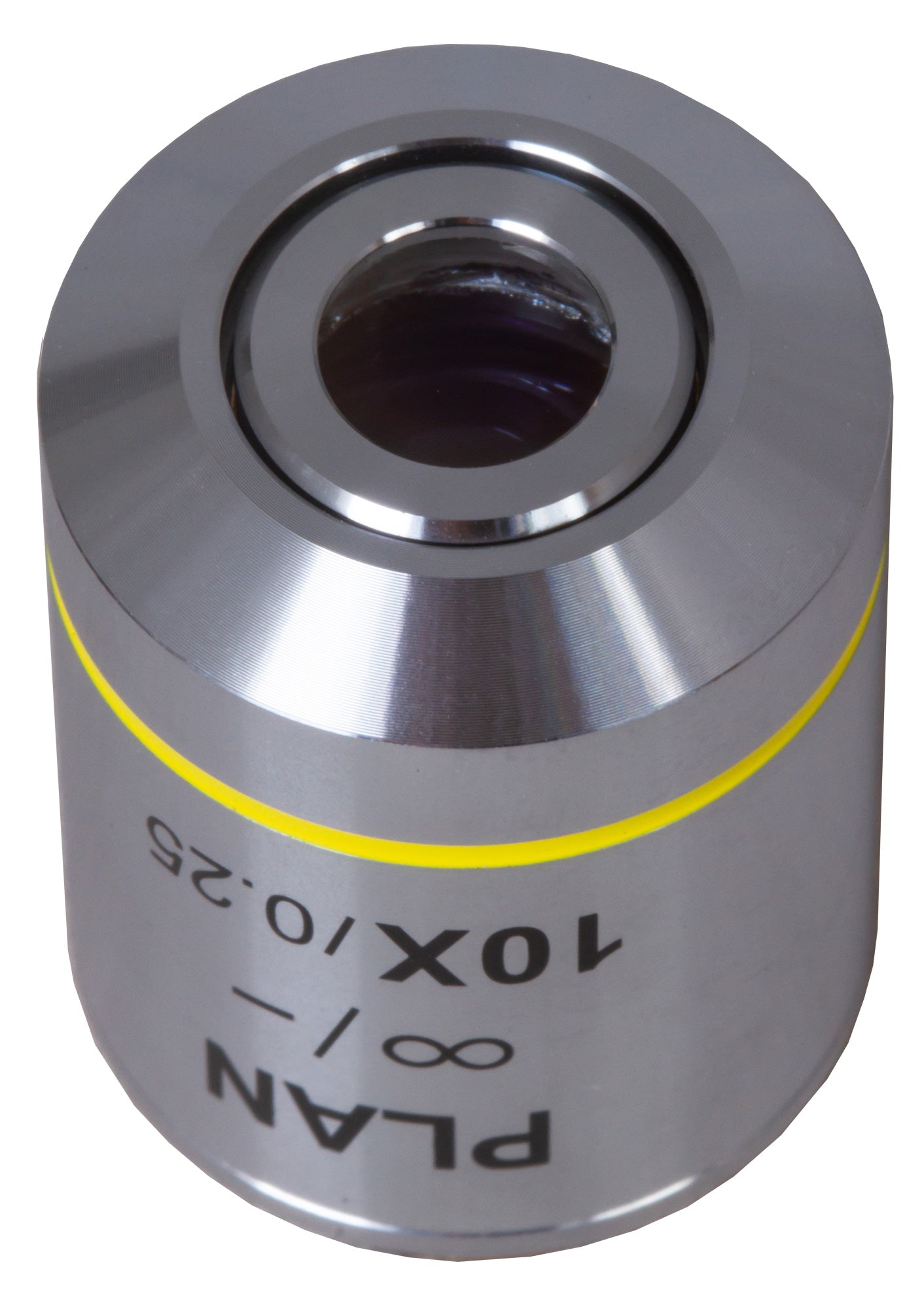

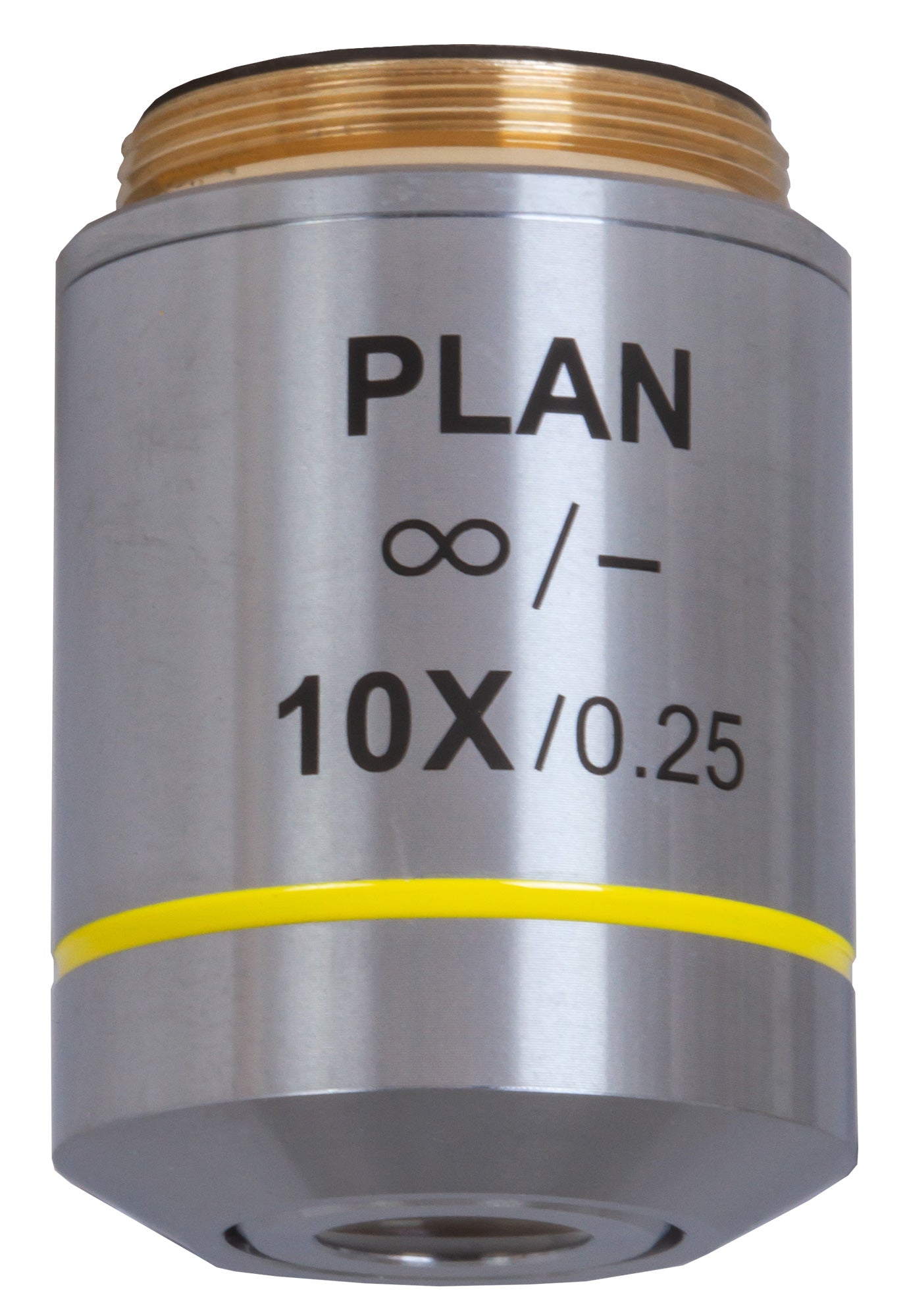

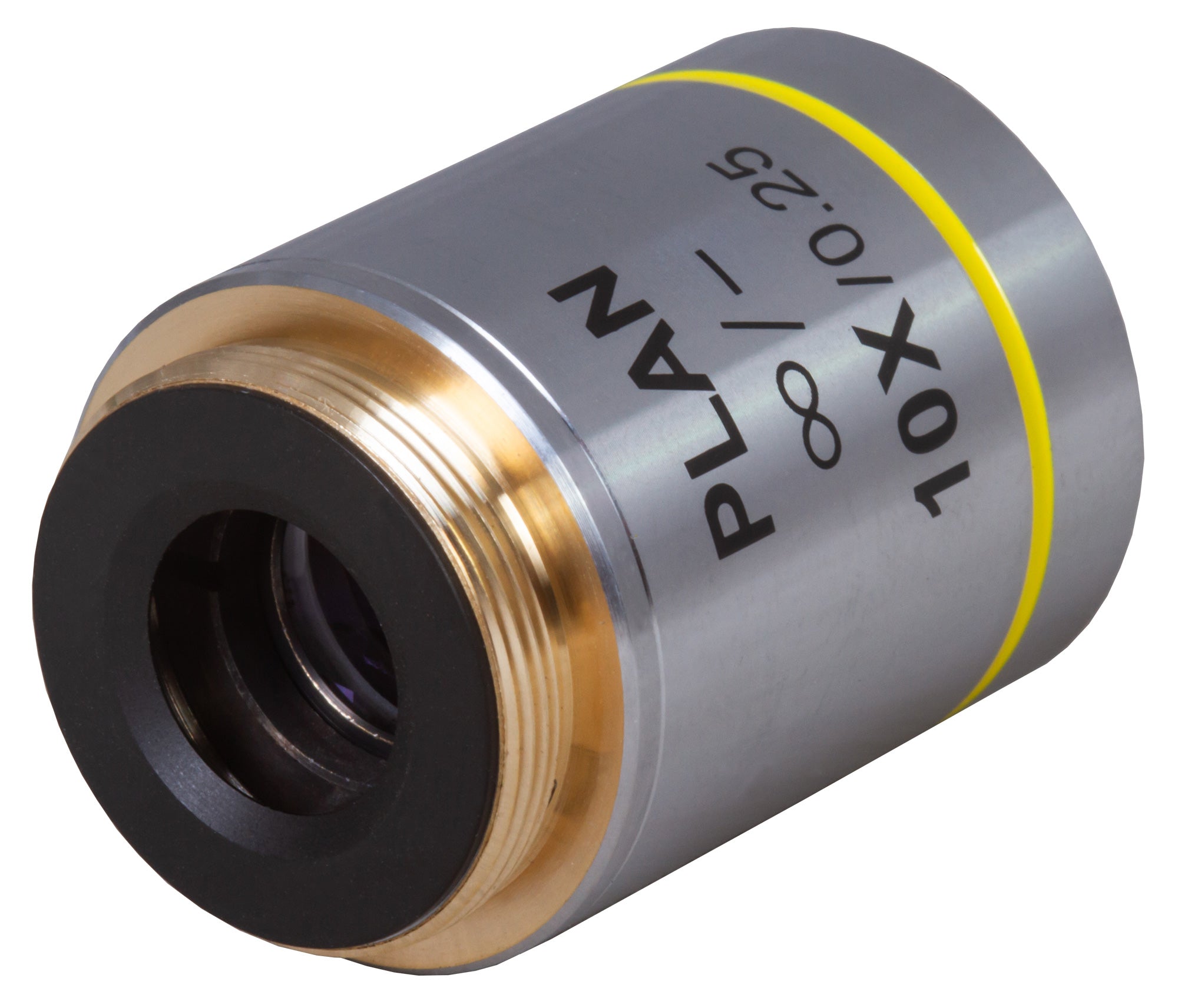

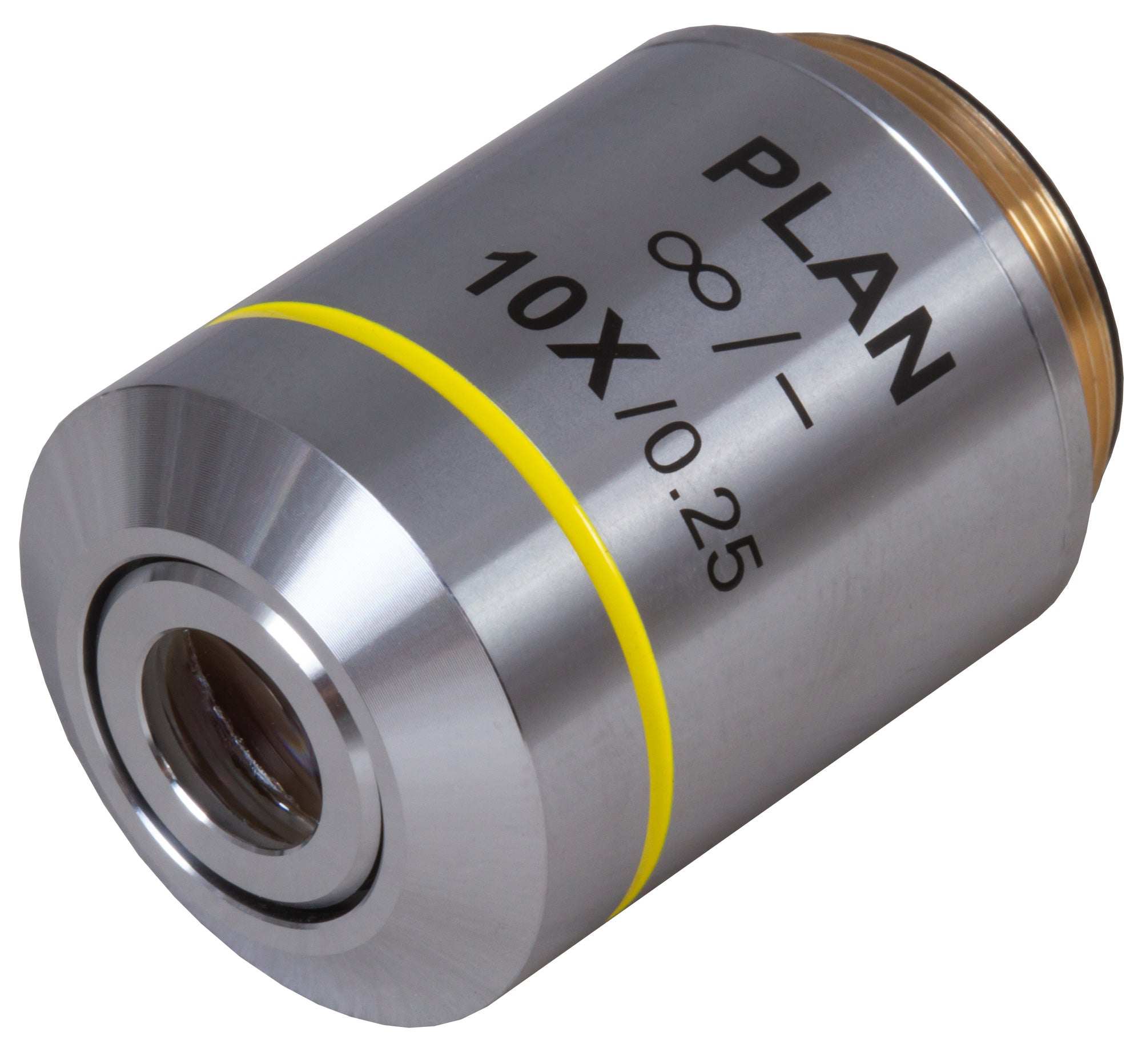

Levenhuk MED 10x Infinity Plan Achromatic Objective
The Levenhuk MED 10x infinity plan achromatic objective is an accessory for infinity-corrected microscopes. These microscopes are great for clinical and diagnostic laboratory professionals as they allow for utilizing additional research instruments, such as polarizers, phase contrast devices, and others.
The objective’s plan achromatic optics are made of glass, they perfectly correct the field curvature by flattening up the field of view, and greatly improve the contras, clarity, and color rendering. The objective provides 10x magnification. Its body is made of metal.
The kit includes:
- Objective
- Plastic case
| Specifications | |
|---|---|
| Lens material | optical glass |
| Body material | copper |
| Optical design | plan achromatic |
| Magnification, x | 10 |
| Aperture | 0.25 |
| Working distance, mm | 15.86 |
| Parfocal distance, mm | 180 |
| Cover glass thickness, mm | 0.17 |
| Compatible tube length, mm | infinity |
| Thread type | WJ 4/5”*1/36” |
| Spring-loaded frame | no |
| Oil immersion | no |
| Brand | Levenhuk, Inc., USA |
| Warranty, years | 0.5 |
| Package size (LxWxH), cm | 3.5x6x3.5 |
| Shipping Weight, kg | 0.08 |
