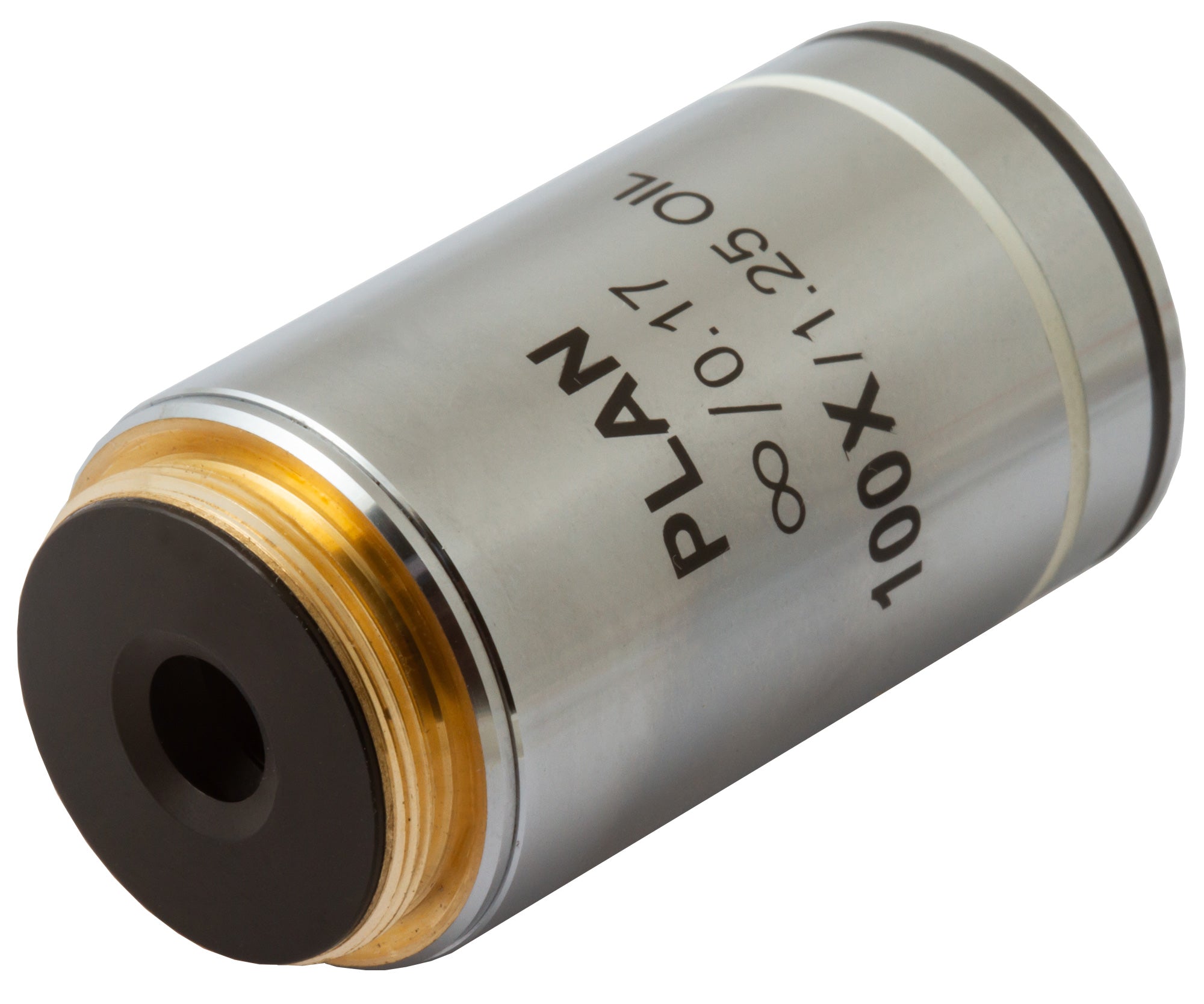

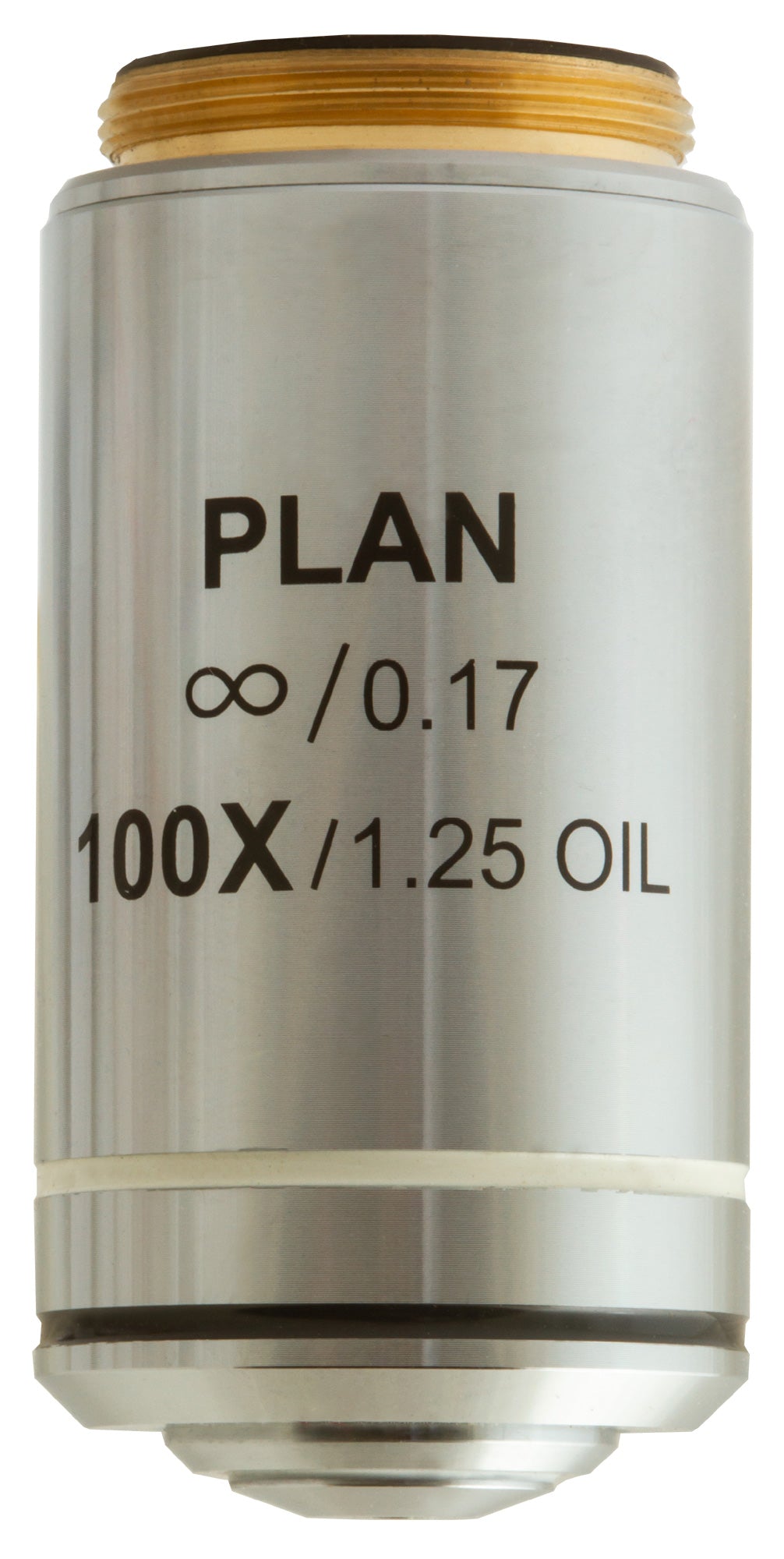

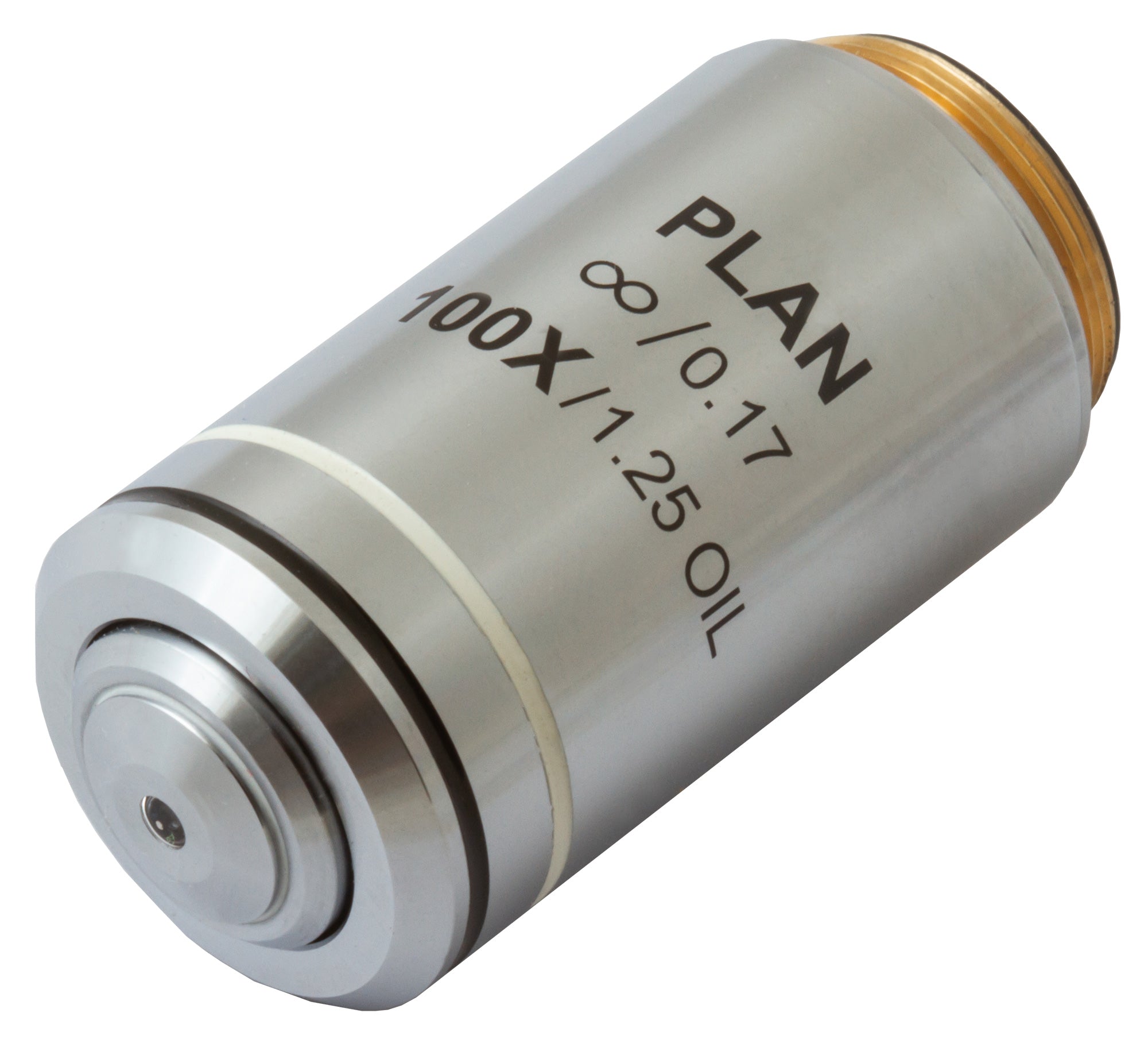

Levenhuk MED 100x Infinity Plan Achromatic Objective
The Levenhuk MED 100x infinity plan achromatic objective is an accessory for laboratory microscopes. It is designed for infinity-corrected optical systems and allows you to conduct high-precision research at high magnification. It features 100x magnification. The plan achromatic optics perfectly correct the field curvature by flattening up the field of view. It allows for transmitting a quality and sharp picture without spherical and chromatic aberrations. You can use the objective for classic “dry” observations. In addition, it allows you to observe using oil immersion.
The objective’s lenses are made of glass, and the front lens is protected by a spring-loaded frame. The objective’s body is made of metal. The Levenhuk MED 100x infinity plan achromatic objective is perfect for the professional work of a microbiologist.
The kit includes:
- Objective
- Plastic case
| Specifications | |
|---|---|
| Lens material | optical glass |
| Body material | copper |
| Optical design | plan achromatic |
| Magnification, x | 100 |
| Aperture | 1.25 |
| Working distance, mm | 0.25 |
| Parfocal distance, mm | 180 |
| Cover glass thickness, mm | 0.17 |
| Compatible tube length, mm | infinity |
| Thread type | WJ 4/5”*1/36” |
| Spring-loaded frame | yes |
| Oil immersion | yes |
| Brand | Levenhuk, Inc., USA |
| Warranty, years | 0.5 |
| Package size (LxWxH), cm | 3.5x6x3.5 |
| Shipping Weight, kg | 0.1 |
