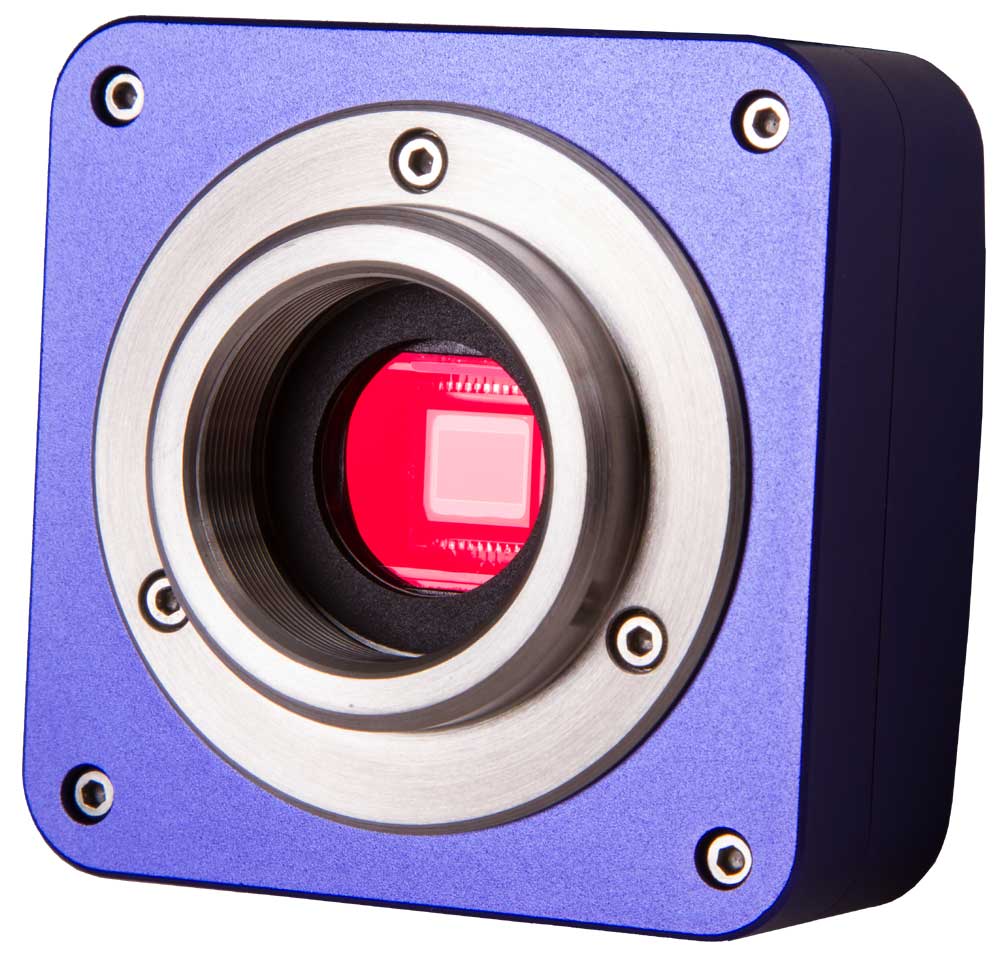

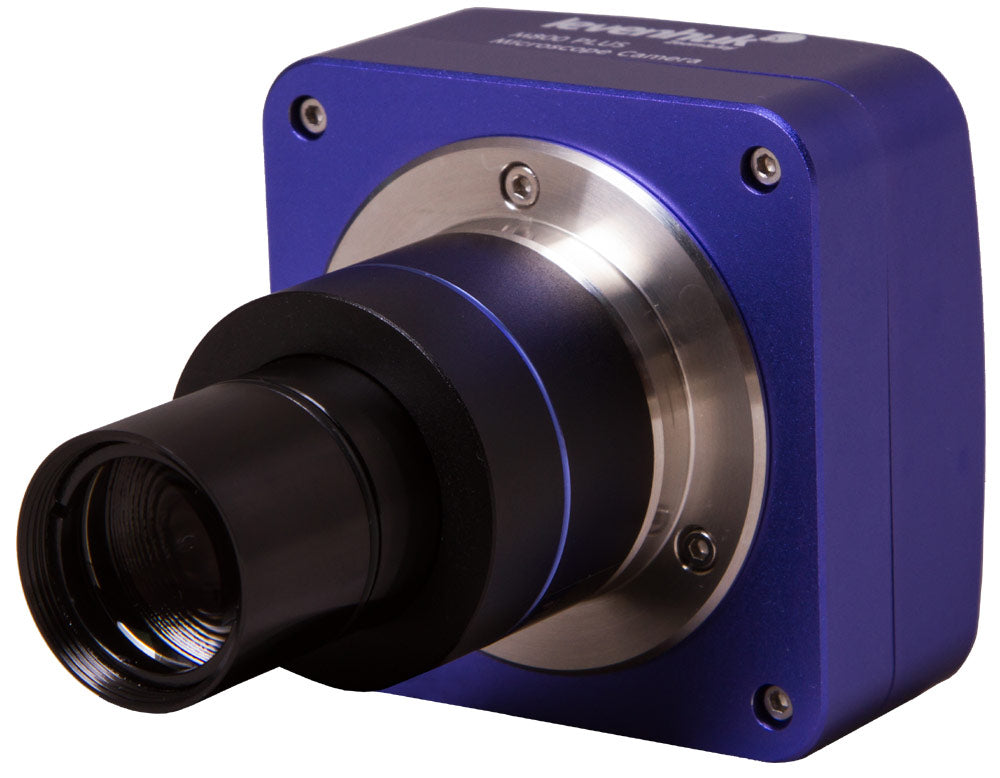

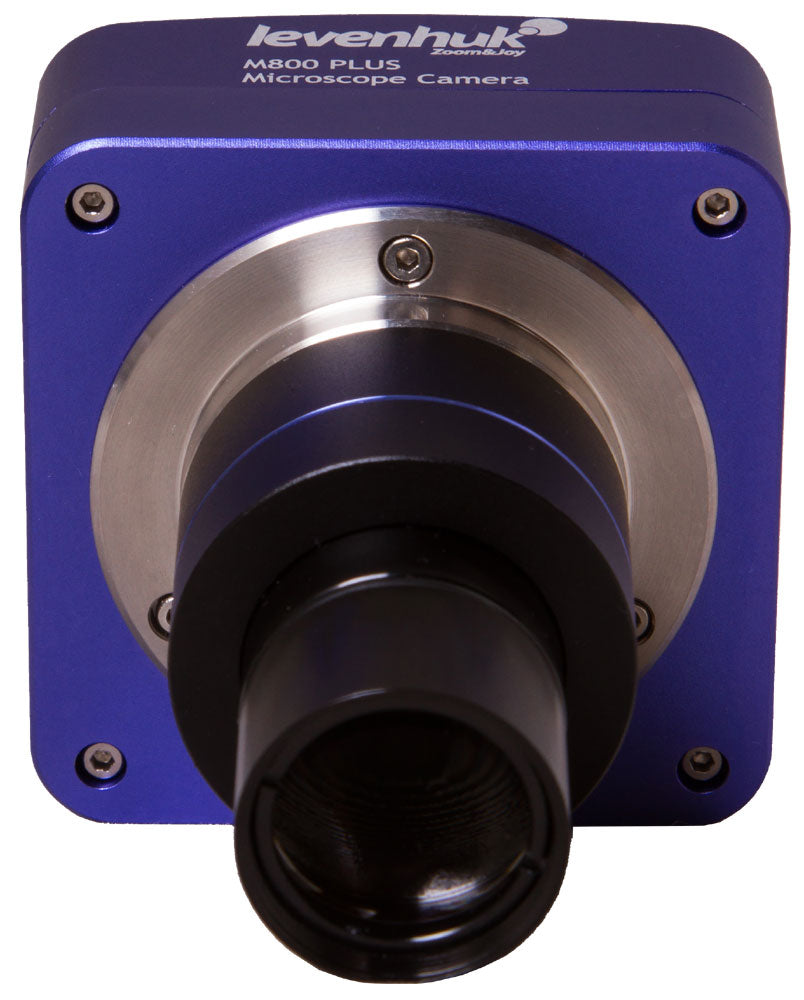

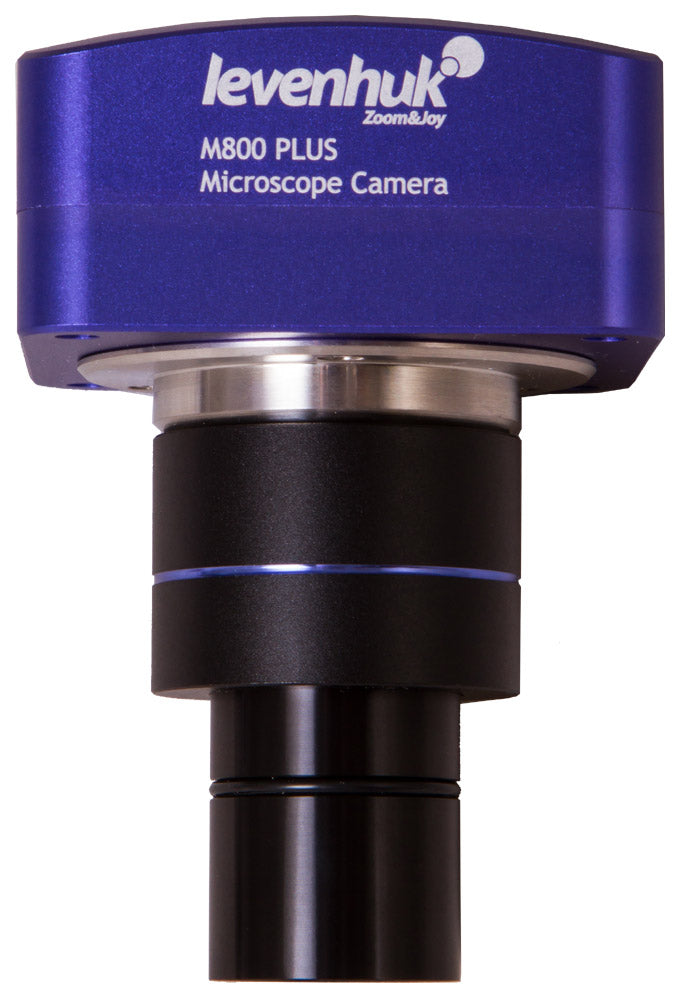

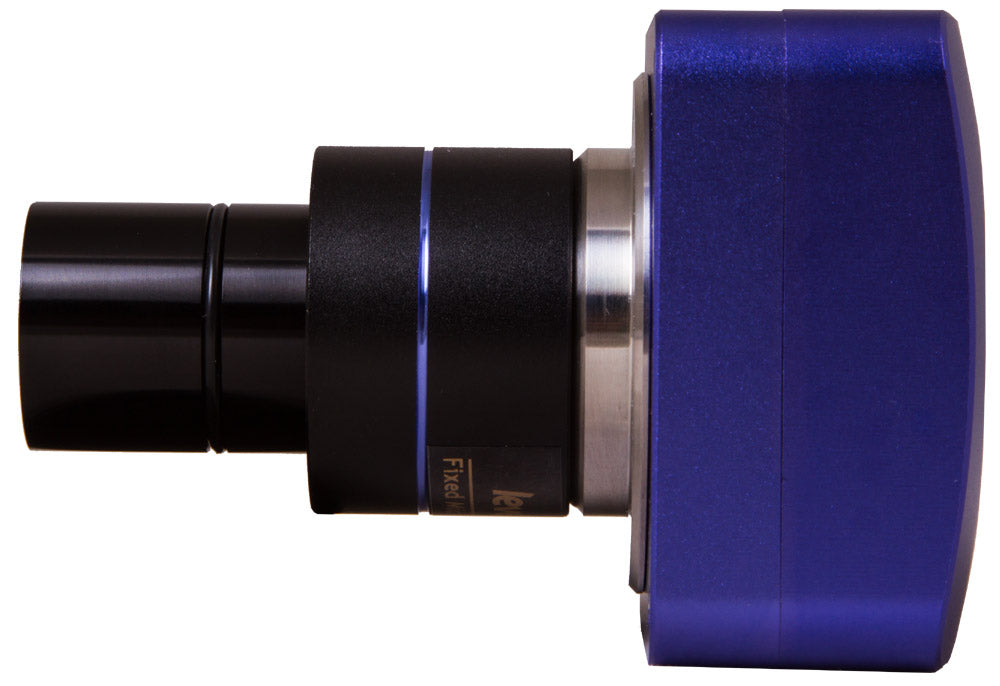

Levenhuk M800 PLUS Digital Camera
A modern microscope digital camera
The Levenhuk M800 PLUS Digital Camera for microscopes is a professional level model. It can be used as a digital eyepiece, as well as for taking photos and video of observed samples. This digital camera is compatible with microscopes of any brand and is equipped with all necessary accessories.
The 8-megapixel camera gives an image resolution up to 3264x2448 pixels. The maximum frame rate is 27 frames per second. The camera allows you to make sharp photos and smooth videos. To process the received images and videos, use the included Levenhuk software.
The Levenhuk M800 PLUS Digital Camera should be installed directly into the 23.2mm eyepiece tube of the microscope instead of a standard eyepiece. To install the camera on microscopes of different diameters, use the adapters that are included in the kit.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection. If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.

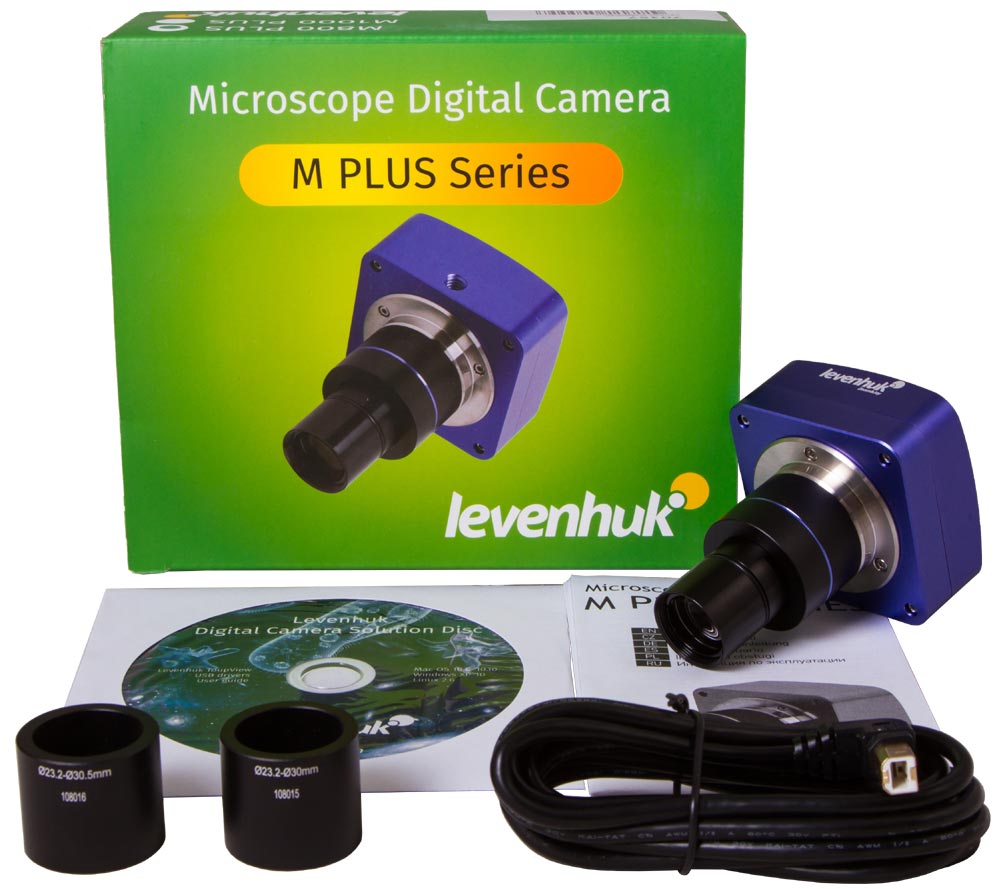

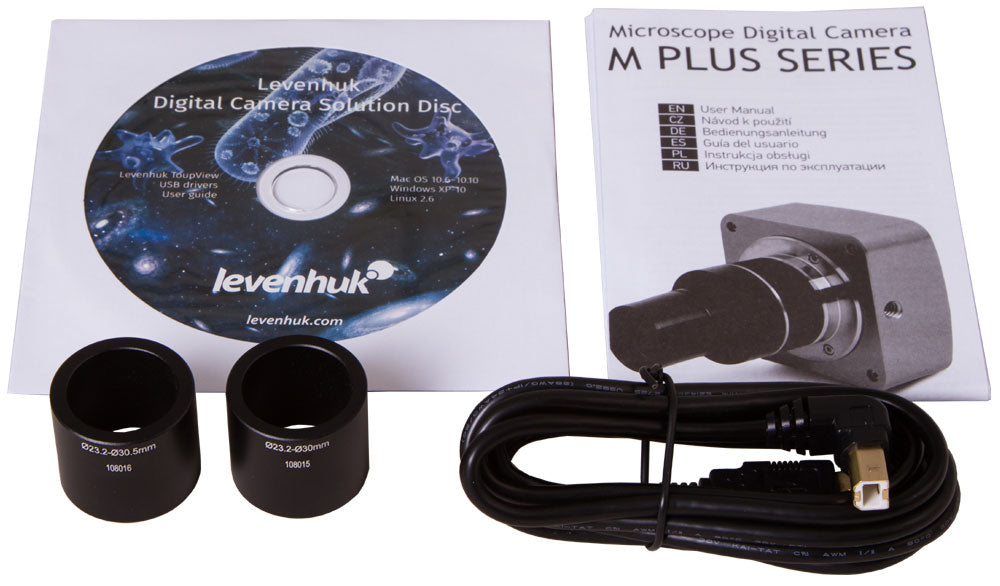

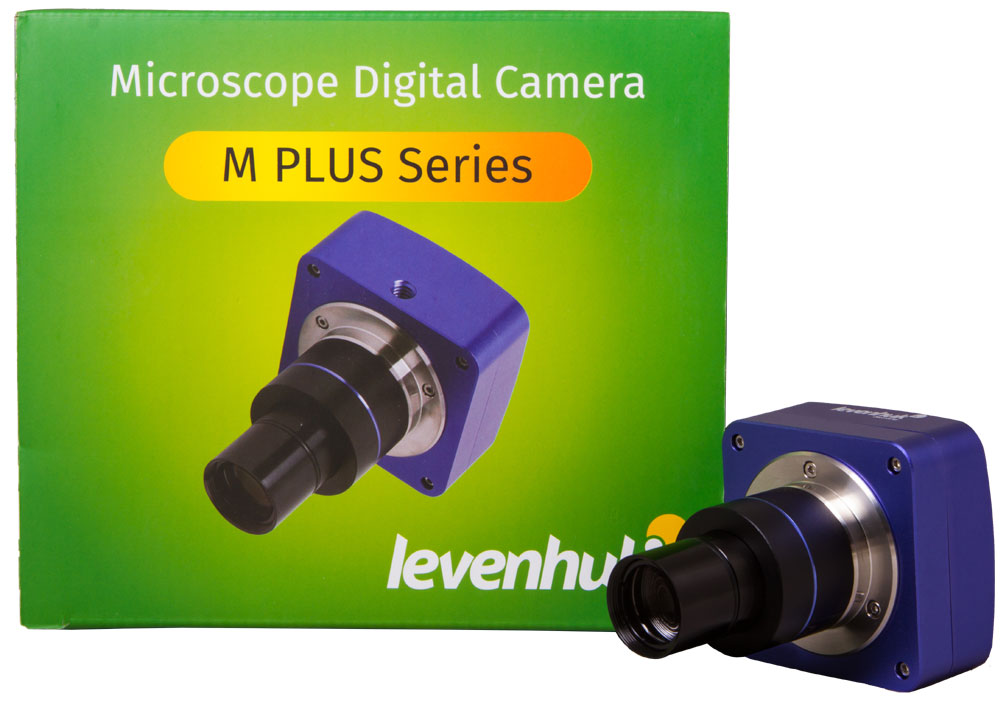

The kit includes:
Digital camera Levenhuk for microscopes
Adapter (23.2mm)
2 adapters for microscopes with different diameters of an eyepiece tube (23.2-30mm and 23.2–30.5mm)
USB cable for connection to PC or laptop and power supply
Installation CD with Levenhuk image editing software and the required drivers
User manual and lifetime warranty
Specifications:
Maximum resolution: 3264x2448
Megapixels: 8
Sensor: 1/2.5'' CMOS
Pixel size: 1.67x1.67
Sensitivity, v / lux.sec @ 550 nm: 0.31
Exposure time, ms: 0.4–2000
Video recording: yes
Sensitivity, v / lux.sec @ 550 nm: 1.9@3264x2448; 8@1600x1200; 27@800x600
Active range, dB: 65.2
Application: eyepiece tube of 23.2mm diameter, instead of the actual eyepiece
Image format: *.jpg, *.bmp, *.png, *.tif
Video format: recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later)
Spectral range: 380–650nm (built-in infrared filter)
Method of exposure: ERS (Electronic Rolling Shutter)
White balance: auto/manual
Exposure control: auto/manual
Software features: image size, brightness, exposure time

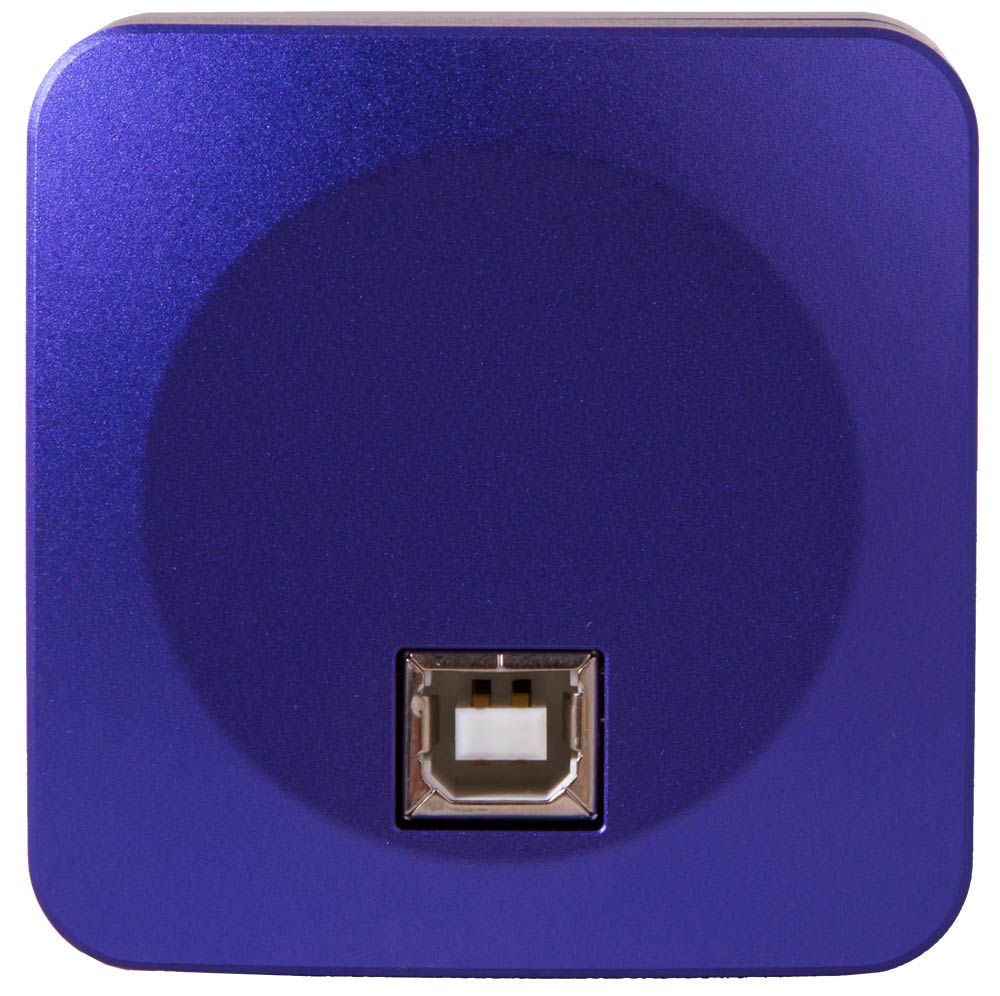

USB features: USB 2.0, 480 Mb/sec.
System requirements: Mac OS 10.12, Linux Ubuntu 14.04, Windows XP/Vista/7/8/10 (32bit or 64-bit), CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM.
Software: Levenhuk
Casing: metal
Power supply: via USB 2.0 cable
Operating temperature range: -10... 50°C; 14… 122°F
