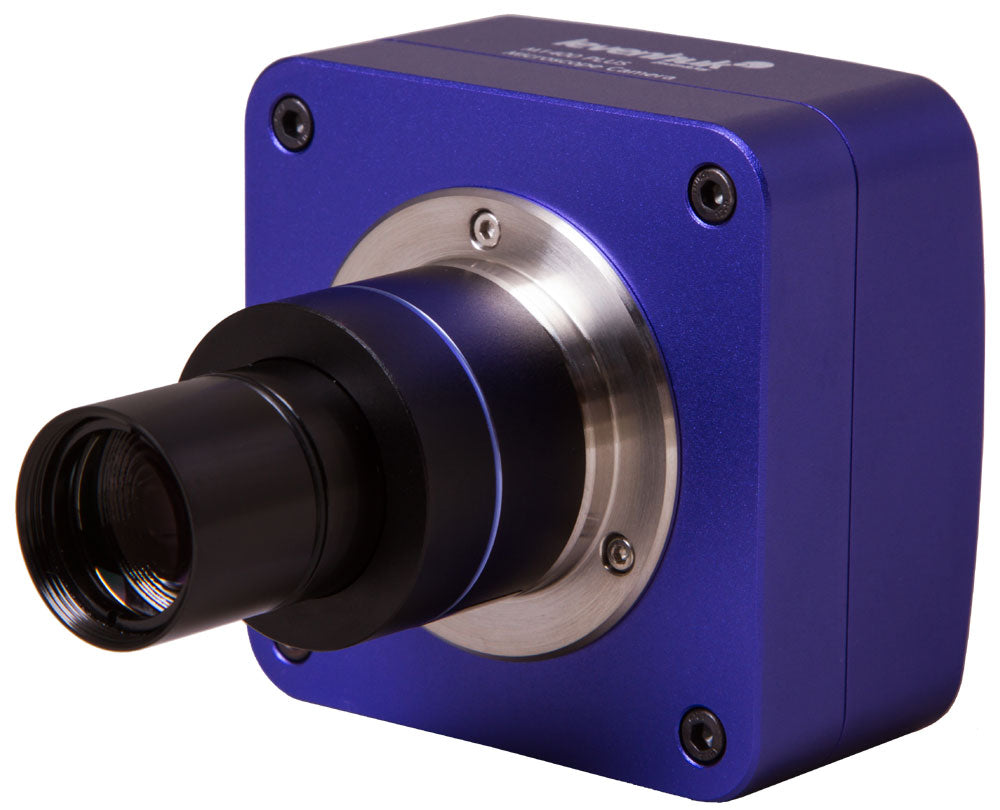

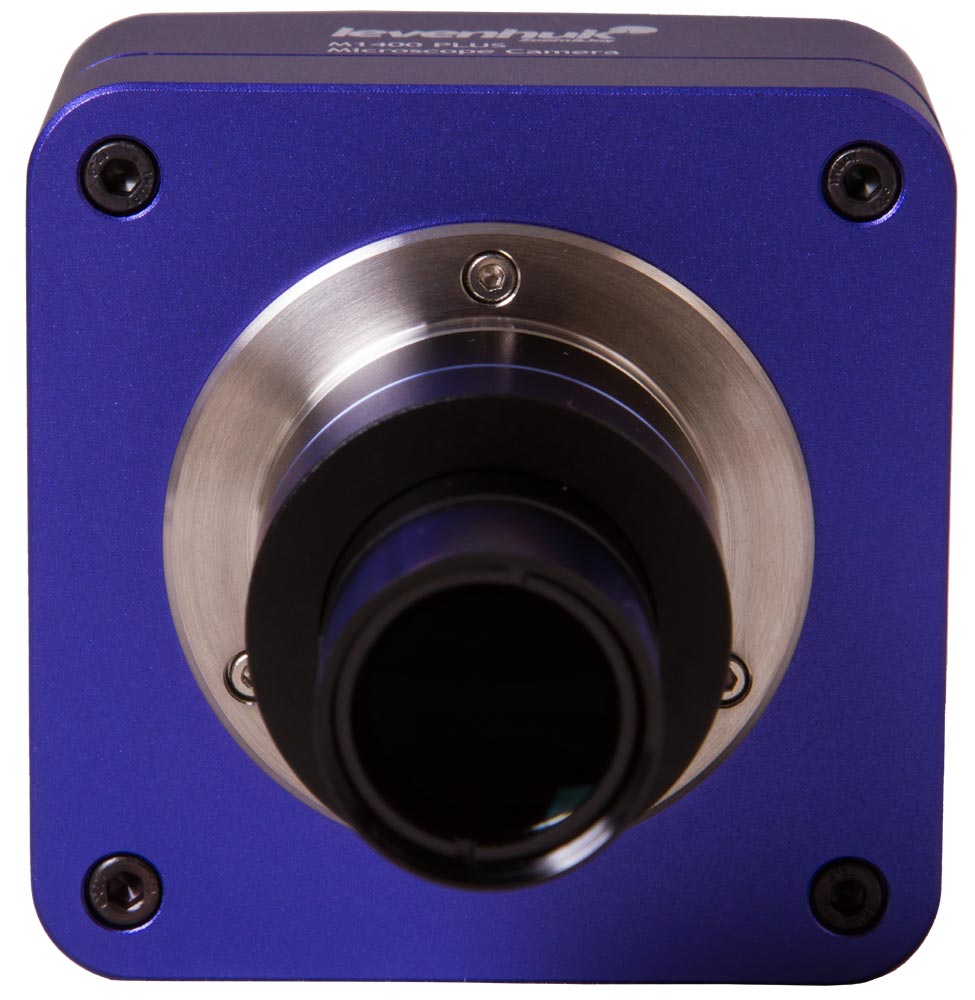

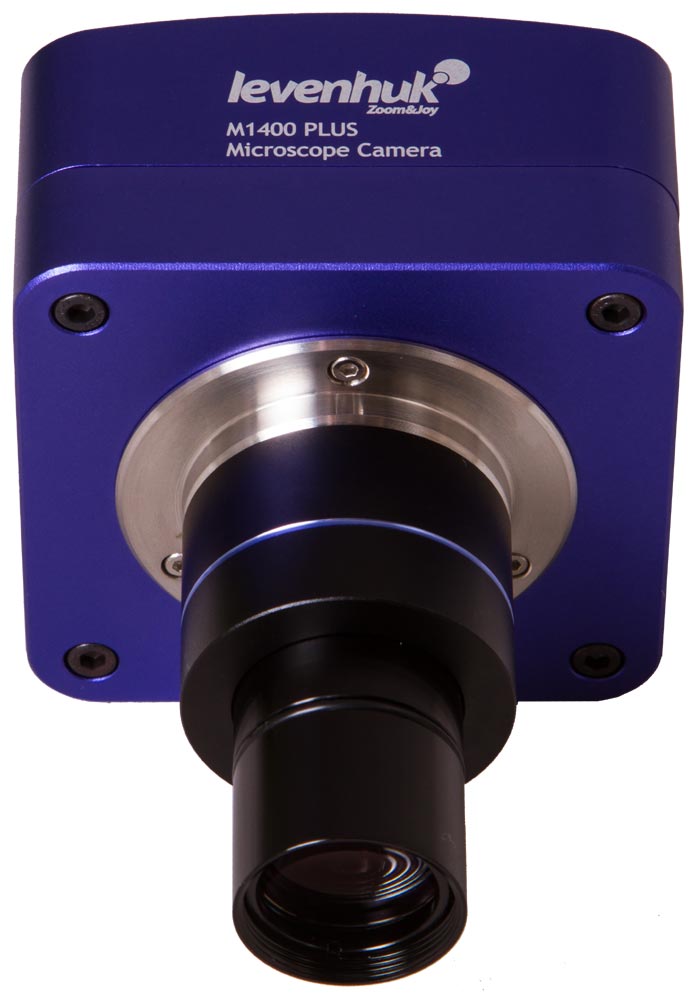

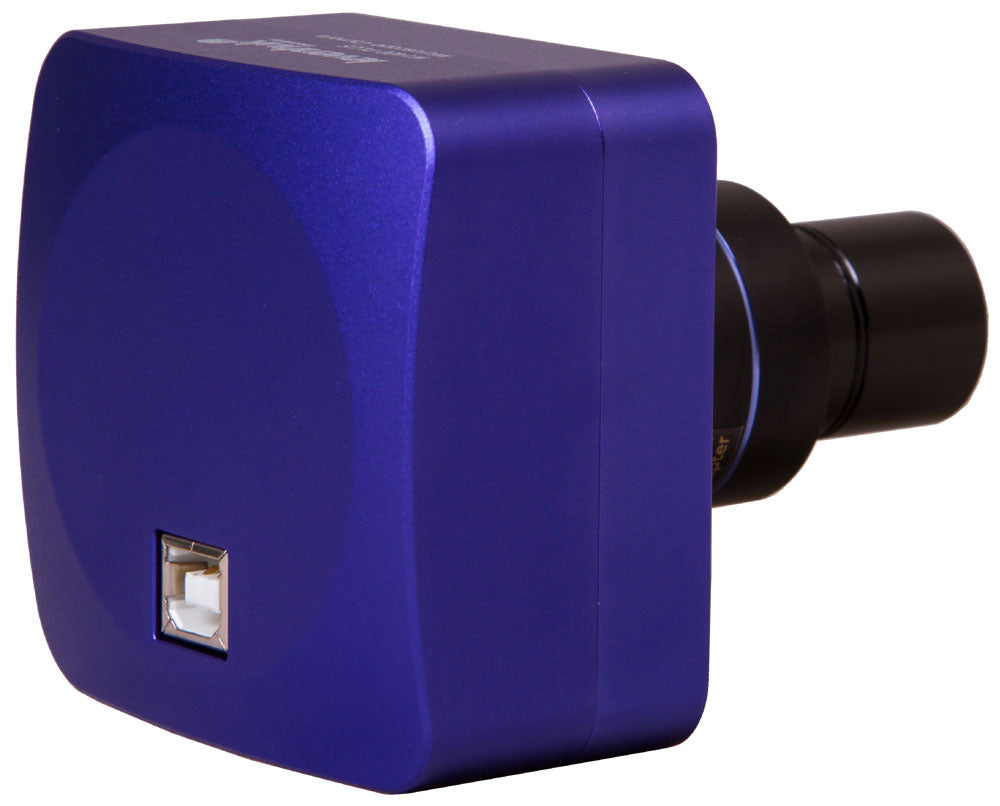

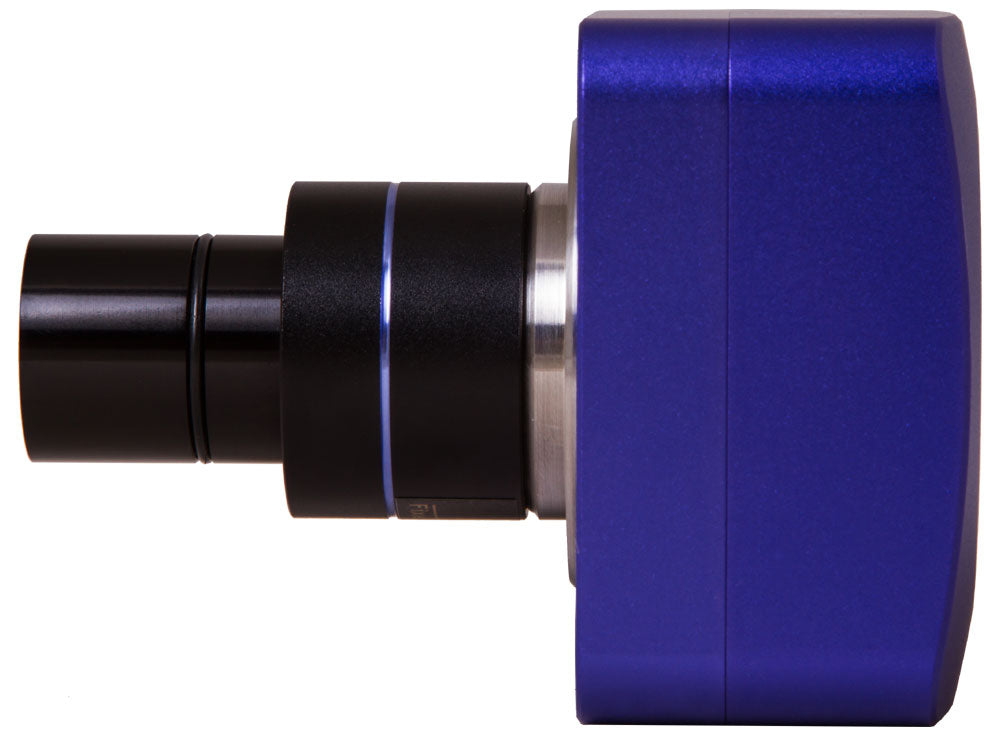

Levenhuk M1400 PLUS Digital Camera
A modern microscope digital camera
The Levenhuk M1400 PLUS Digital Camera is a modern technology tool for microworld studies. You can use the camera as a digital eyepiece, take pictures or shoot video and improve received files with the help of Levenhuk software. The image will be transmitted to the computer in real time, without delays and jerks. The camera will become an excellent assistant in studies and professional activities.
The 14-megapixel camera gives a resolution of up to 4096x3288 pixels. You can record video in three modes at a rate of 27 frames per second. All the data saved to a computer hard drive can be processed later with the use of the special Levenhuk software included in the kit.
The adapters included in the kit allow the camera to be mounted on any microscope having an eyepiece tube of 23.2mm diameter, or of other diameters.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection. If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.

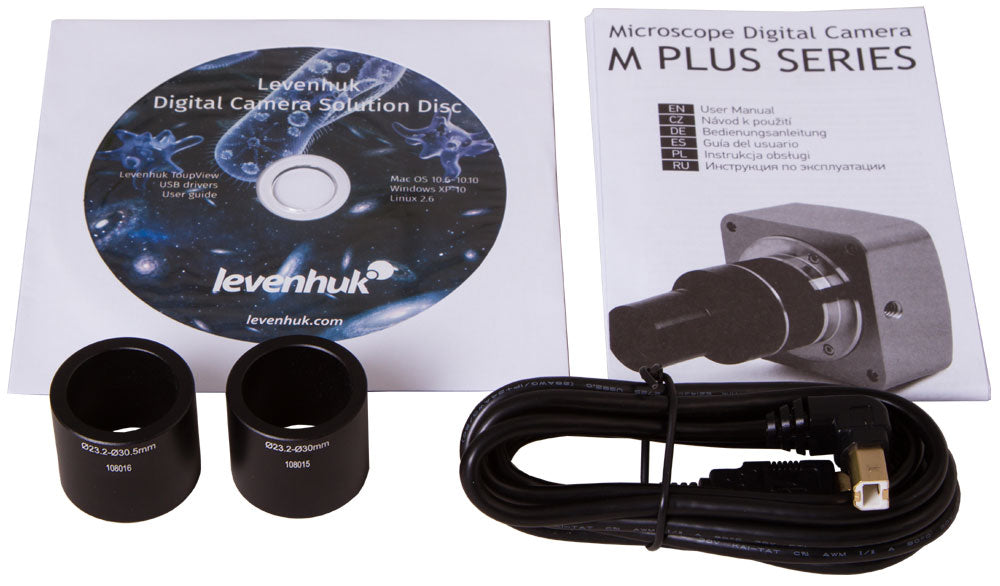

The kit includes:
Digital camera Levenhuk for microscopes
Adapter (23.2mm)
2 adapters for microscopes with different diameters of an eyepiece tube (23.2-30mm and 23.2–30.5mm)
USB cable for connection to PC or laptop and power supply
Installation CD with Levenhuk image editing software and the required drivers
User manual and lifetime warranty
Specifications:
Maximum resolution: 4096x3288
Megapixels: 14
Sensor: 1/2.3'' CMOS
Pixel size: 1.4x1.4
Sensitivity, v / lux.sec @ 550 nm: 0.724
Exposure time, ms: 0.4–2000
Video recording: yes
Frame rate, frames per second@resolution: 1.8@4096x3288; 10@2048x1644; 27@1024x822
Active range, dB: 65.2
Application: eyepiece tube of 23.2mm diameter, instead of the actual eyepiece
Image format: *.jpg, *.bmp, *.png, *.tif
Video format: recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later)
Spectral range: 380–650nm (built-in infrared filter)
Method of exposure: ERS (Electronic Rolling Shutter)
White balance: auto/manual
Exposure control: auto/manual
Software features: image size, brightness, exposure time

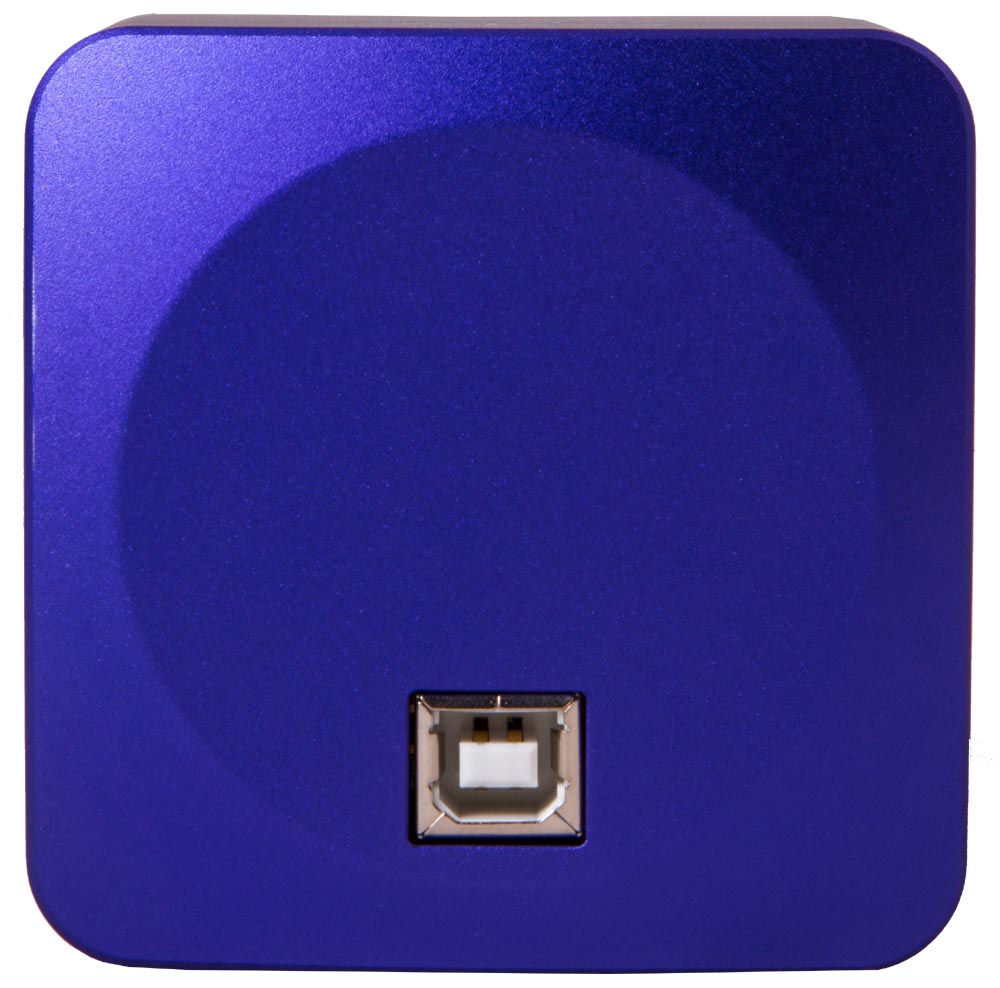

USB features: USB 2.0, 480 Mb/sec.
System requirements: Mac OS 10.12, Linux Ubuntu 14.04, Windows XP/Vista/7/8/10 (32bit or 64-bit), CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM.
Software: Levenhuk
Casing: metal
Power supply: via USB 2.0 cable
Operating temperature range: -10... 50°C; 14… 122°F
