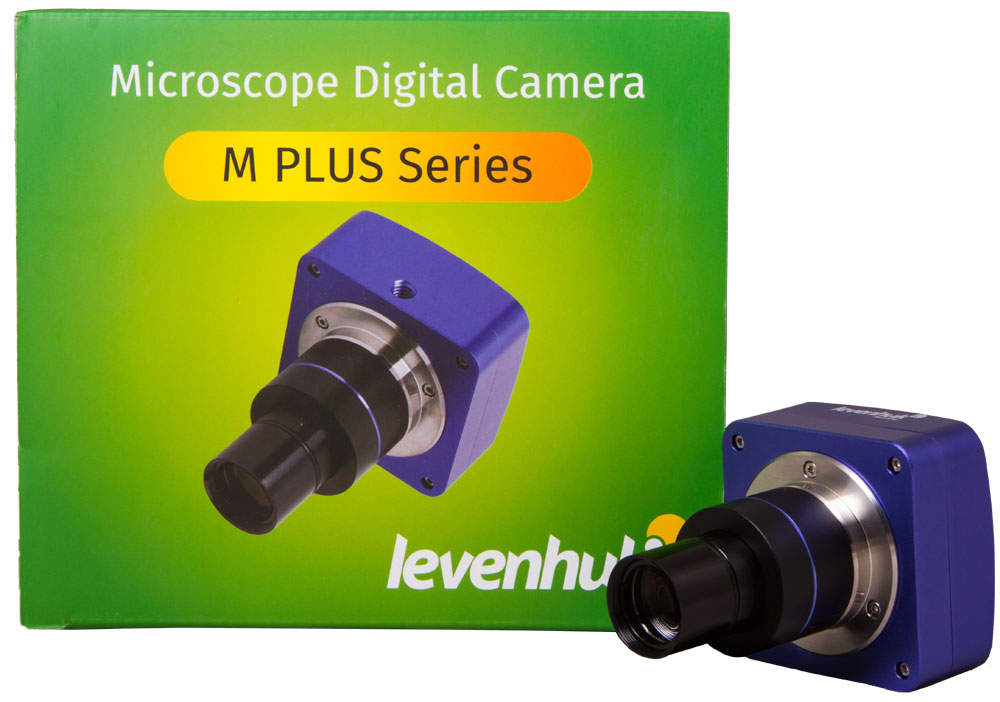

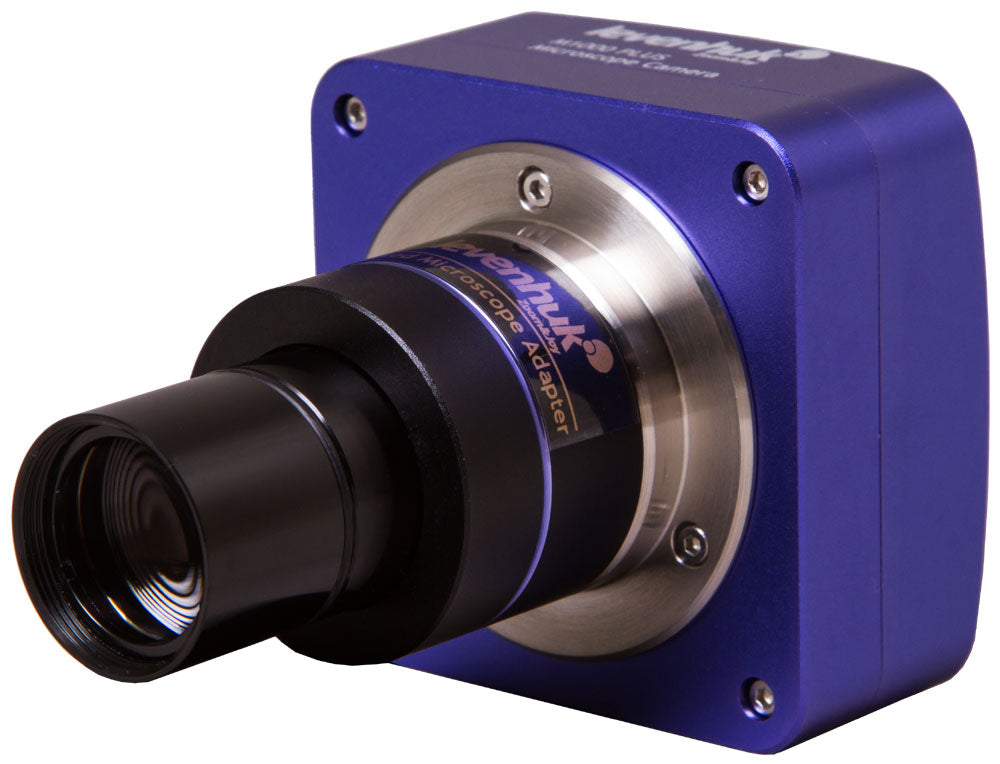

Levenhuk M1000 PLUS Digital Camera
A modern microscope digital camera

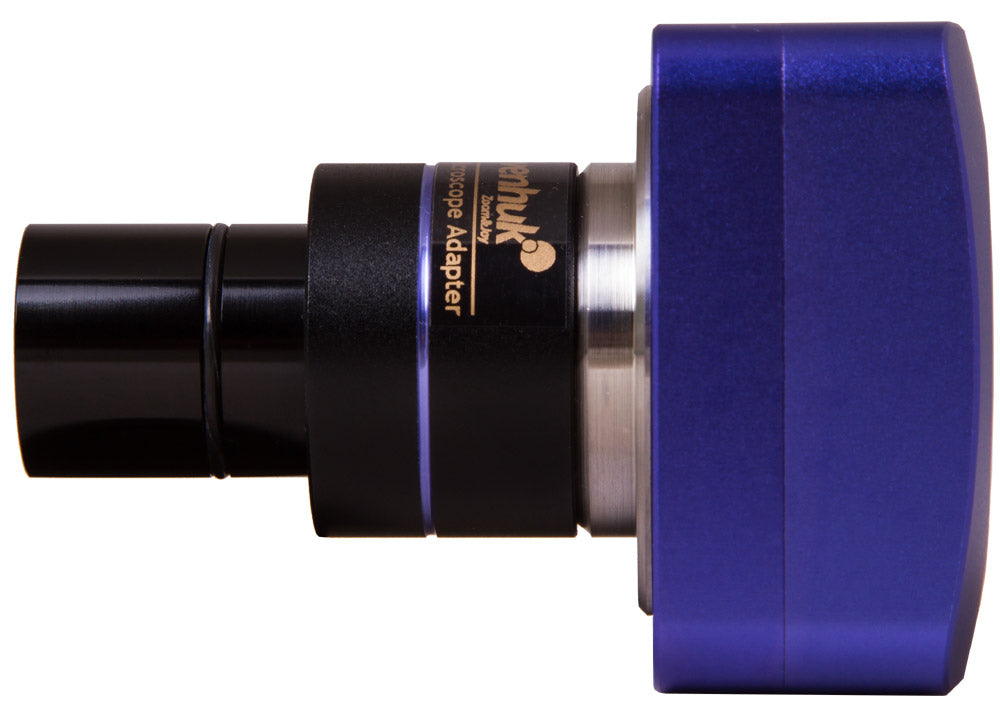

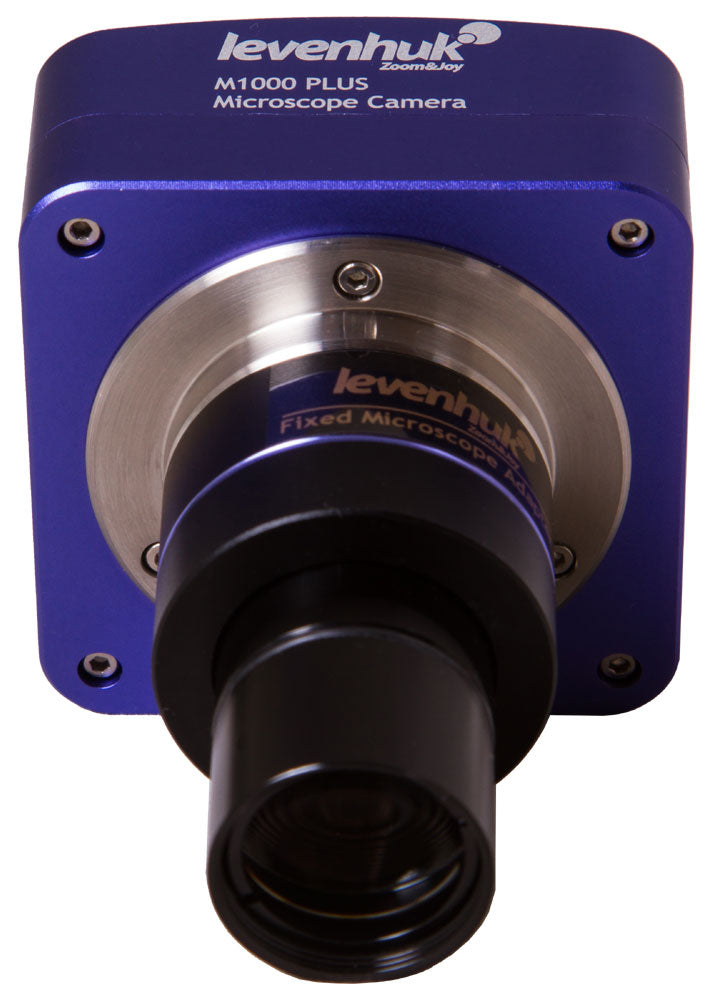

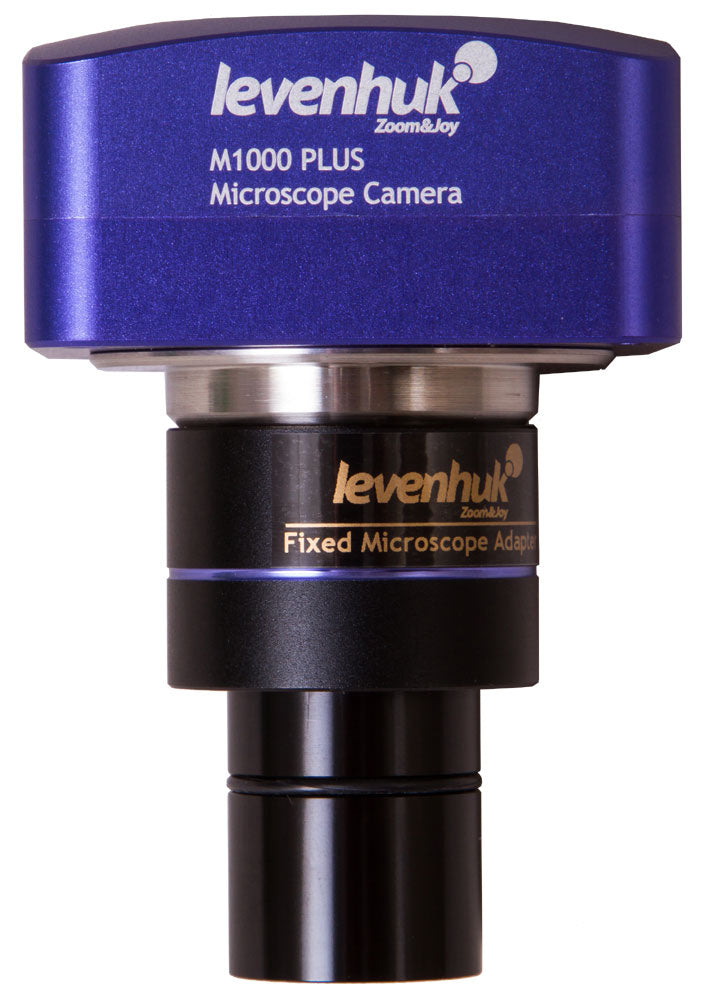

Levenhuk M1000 PLUS is a 10-megapixel digital camera for microscopes that allows you to photograph microscope samples and record research to the computer’s memory. The camera is installed in the eyepiece tube and works as a digital eyepiece. It transmits the image from the microscope lens to the computer screen in real time. In addition, the Levenhuk image processing software is included in the kit.
The Levenhuk M1000 PLUS camera allows you to record photos and videos with an image resolution of up to 3584x2748 pixels. The maximum frame rate reaches 27 frames per second. With the help of Levenhuk M1000 PLUS, you will get sharp and contrast photos and will record highly detailed, smooth videos.
The camera can be mounted on a microscope of any brand. The kit includes adapters that allow you to use the camera with eyepiece tubes of different diameters; the basic compatible diameter is 23.2mm.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection. If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.

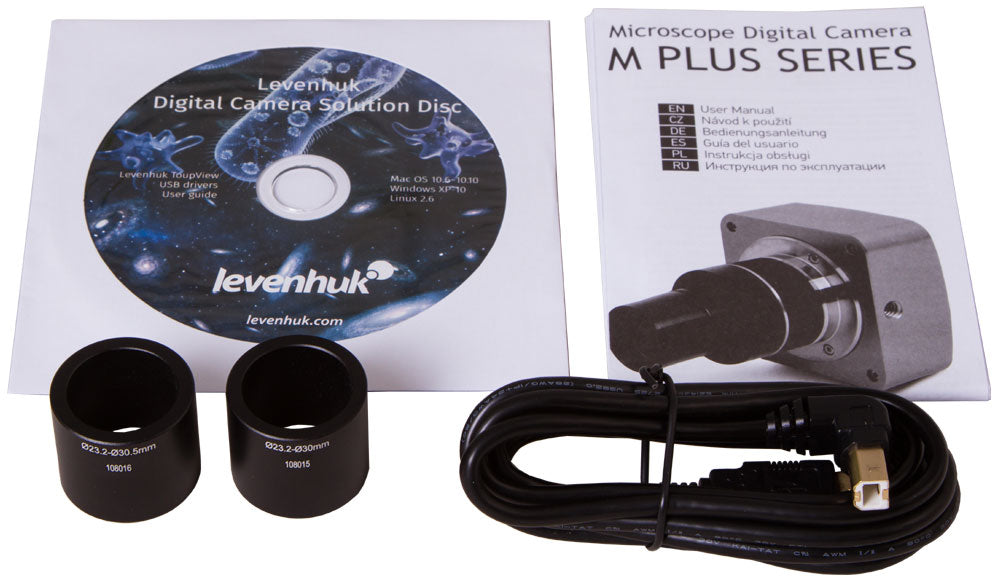

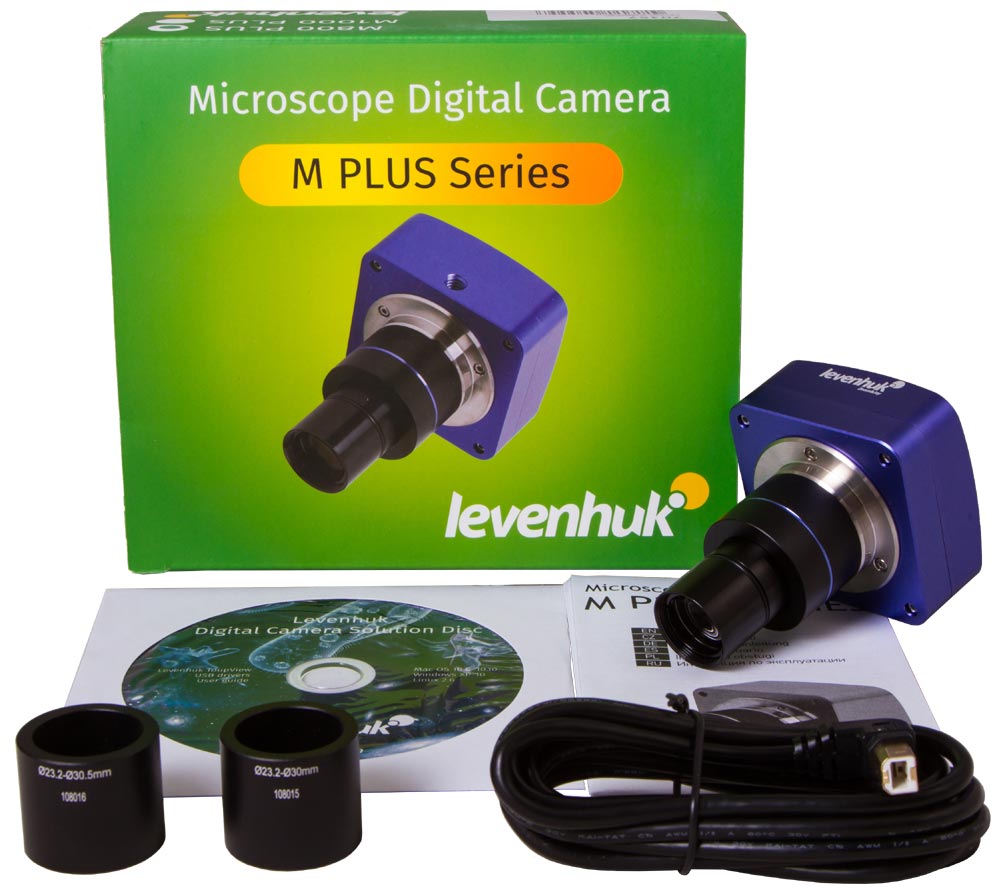

The kit includes:
Digital camera Levenhuk for microscopes
Adapter (23.2mm)
2 adapters for microscopes with different diameters of an eyepiece tube (23.2-30mm and 23.2–30.5mm)
USB cable for connection to PC or laptop and power supply
Installation CD with Levenhuk image editing software and the required drivers
User manual and lifetime warranty
Specifications:
Maximum resolution: 3584x2748
Megapixels: 10

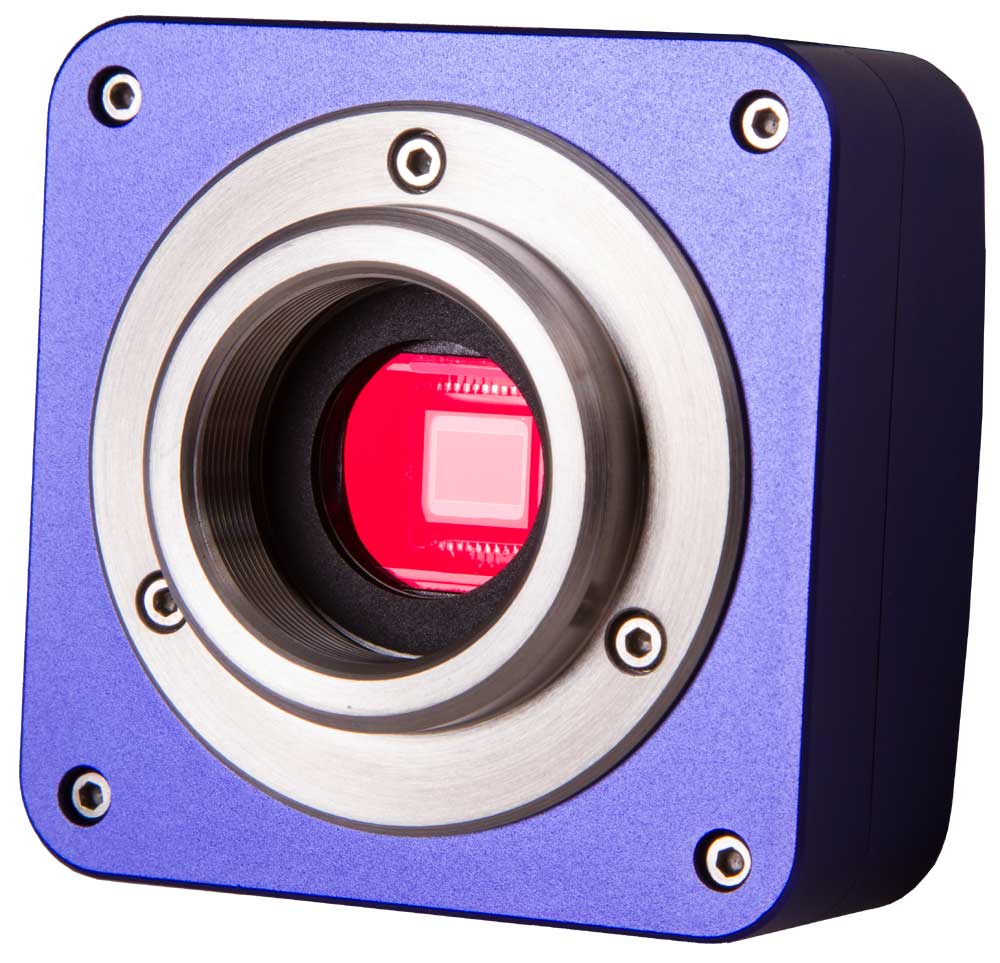

Sensor: 1/2.3'' CMOS
Pixel size: 1.67x1.67
Sensitivity, v / lux.sec @ 550 nm: 0.31
Exposure time, ms: 0.4–2000
Video recording: yes
Sensitivity, v / lux.sec @ 550 nm: 1.9@3584x2748; 8@1792x1374; 27@896x684
Active range, dB: 65.2
Application: eyepiece tube of 23.2mm diameter, instead of the actual eyepiece
Image format: *.jpg, *.bmp, *.png, *.tif
Video format: recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later)
Spectral range: 380–650nm (built-in infrared filter)
Method of exposure: ERS (Electronic Rolling Shutter)
White balance: auto/manual
Exposure control: auto/manual
Software features: image size, brightness, exposure time

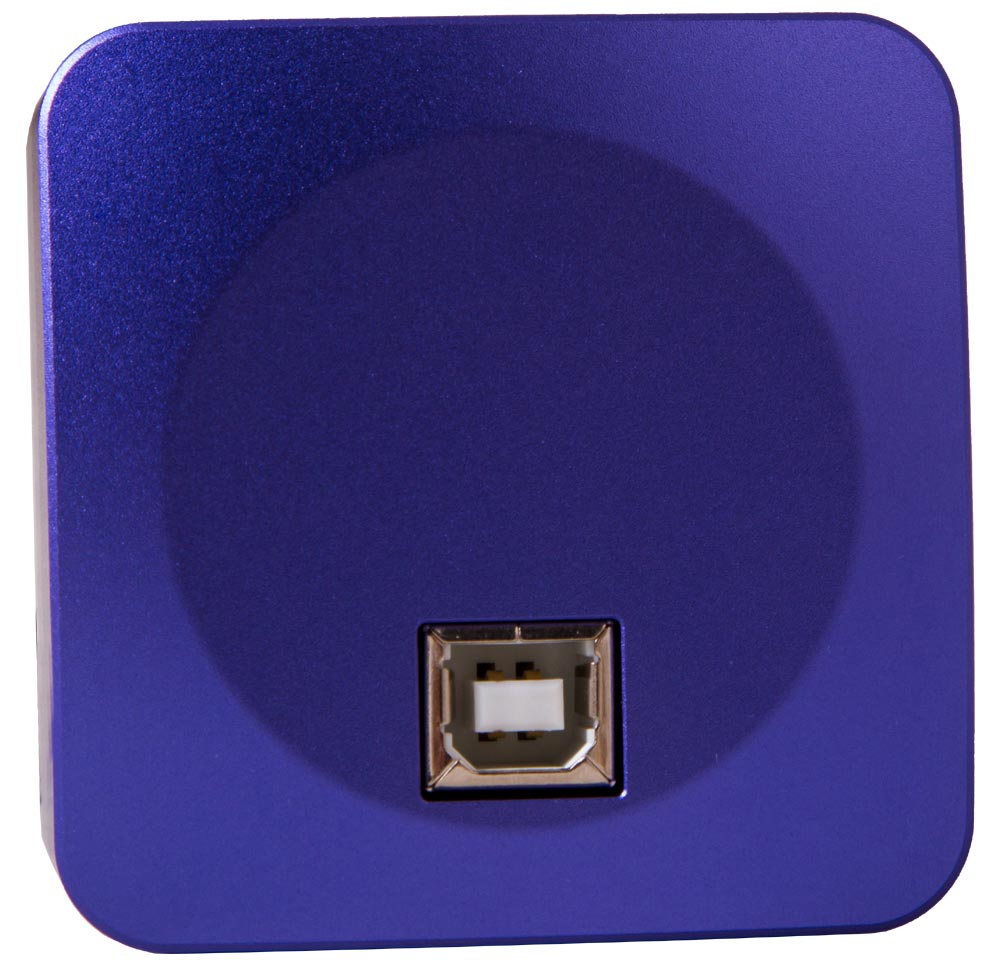

USB features: USB 2.0, 480 Mb/sec.
System requirements: Mac OS 10.12, Linux Ubuntu 14.04, Windows XP/Vista/7/8/10 (32bit or 64-bit), CPU IntelCore 2 or above; RAM 2GB, USB port 2.0, CD-ROM.
Software: Levenhuk
Casing: metal
Power supply: via USB 2.0 cable
Operating temperature range: -10... 50°C; 14… 122°F
