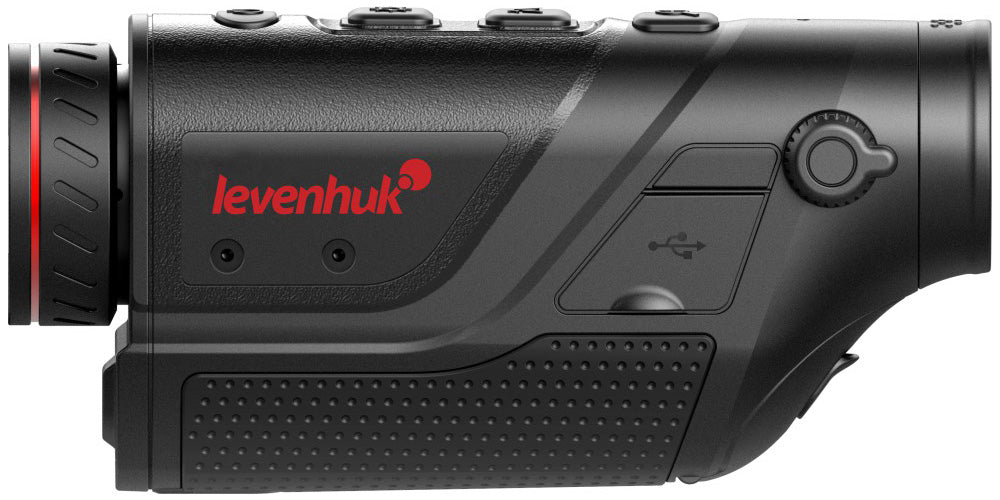

The Levenhuk Fatum Z100 Thermo Vision Monocular is designed for viewing at close to medium distances. The device can detect an object the size of a car at a distance of up to 1000m (3280ft). The optimal shooting distance for hunters is about 250–330m (820–1080ft) – you can spot a deer or wild boar at this distance. The device will prove itself reliable when used during sports orienteering hiking search operations and is a good choice for territory protection and taking care of farm animals

The monocular provides optical and digital magnification that can be adjusted with a discrete change (the minimum is 1.5x and the maximum is 3x). Five color palettes that are available can be changed during the observation process by pressing a button. There is a hot spot detection function. The device is also equipped with a laser designator which can be used to illuminate the object at a distance of up to 200m (650ft).

The thermo vision monocular is powered by a removable rechargeable battery with a single charge that lasts up to 8 hours of operating time. The device is waterproof and the IP66 rating allows you to use the device in bad weather conditions without compromising its performance. The device can be mounted on a tripod (a standard 1/4' thread).

The Wi-Fi module: You can also establish a connection between the monocular and your smartphone to control the device with the TrackIR app. The app can be used to control the thermo vision monocular obtain real-time images record photos and videos on your smartphone (a recorder function) and determine the distance to the specified target (a rangefinder function). The thermo vision monocular can be paired with other devices via Bluetooth or a cable through the Type-C port.

Key features:

  • Two magnification options: 1.5x and 3x
  • Maximum detection range: 1000m (3280ft)
  • Matrix resolution: 256x192pix 5 color palettes laser designator
  • Wi-Fi and Bluetooth Type-C wired connection
  • TrackIR mobile app support with recorder and rangefinder functions
  • Powered by a rechargeable battery 8 hours of operating time on a single charge
  • Waterproof body tripod mountable
  • Lightweight – 0.3kg

The kit includes:

  • Thermo vision monocular
  • Micro USB cable
  • Video cable
  • Pouch
  • Strap
  • Battery
  • Battery charger
  • Eyepiece protective cap
  • User manual and warranty card
Brand Levenhuk Inc. USA
Warranty years 2
EAN 4620137486575
Package size (LxWxH) cm 30x17x17
Shipping Weight kg 1.25
Type of thermo vision device monocular
Detection range 1000m/3280ft (car 2.3x2.3m/7.5x7.5ft) 400m/1310ft (person 1.8x0.5m/5.9x1.6ft) 330m/1080ft (deer 1.5x0.5m/5x1.6ft) 250m/820ft (boar 0.9x0.7m/3x2.3ft)
Recognition range 400m/1310ft (car 2.3x2.3m/7.5x7.5ft) 200m/650ft (person 1.8x0.5m/5.9x1.6ft) 170m/560ft (deer 1.5x0.5m/5x1.6ft) 130m/425ft (boar 0.9x0.7m/3x2.3ft)
Resolution of microbolometer matrix pix 256х192
Pixel size μm 12
Spectral range μm 8–14
Frame rate 50Hz
Temperature sensitivity (NETD) mK ≤50
Calibration automatic shutter (shooter) manual
Color palettes hot black hot white hot red hot iron hot blue
Laser designator + range – up to 200m (650ft)
Objective lens diameter (aperture) mm 10
Aperture ratio f/1
Optical magnification 1.5x
Digital magnification 1x/2x
Total magnification 1.5x/3x
Field of view (horizontal)x(vertical) ° 17.1х13
Focus automatic
Close focus m 0.5
Eye relief mm ≥12
Eyepiece diopter adjustment diopters -4/+2
Display FLCOS brightness adjustable (5 levels)
Display resolution pixels 1280x960
Power supply removable battery 18650 2200mAh (included)
Battery life h 8
Body plastic
Waterproof IP66; full dust protection; protection against strong jets of water
Operating temperature range °C -10 – 50
Operating humidity range % 10 – 95
Ability to connect additional equipment iOS and Android mobile devices (TrackIR app) external screen Bluetooth remote control
Bluetooth yes
Wi-Fi yes
Wi-Fi settings 2.4Hz range – 15m (50ft) (in direct line of sight)
Interface connectors Type-C (USB 2.0) for video output (analog mode) and charging
Adaptable to a tripod standard 1/4' thread
Pouch/case/bag in set pouch
Additional AUTO OFF function hot spot detection auto sleep mode energy saving mode image enhancement function
