Levenhuk DTX 90 Digital Microscope

  • $133.23
    Unit price per
Tax included. Shipping calculated at checkout.

Levenhuk DTX 90 Digital Microscope

USB digital microscope with professional tripod. Magnification: 10-300x. Digital camera: 5Mpx.

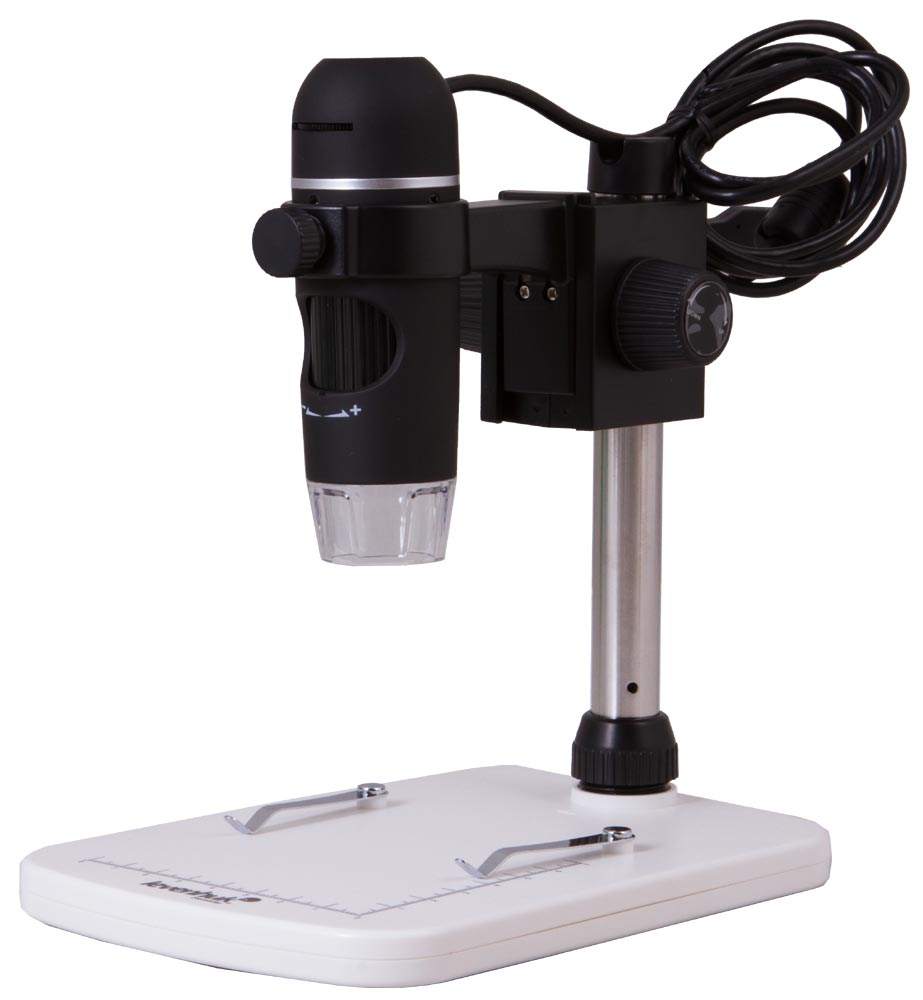

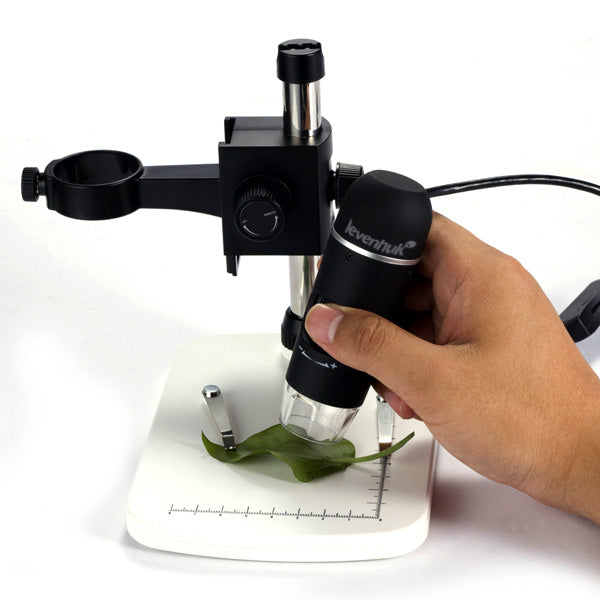

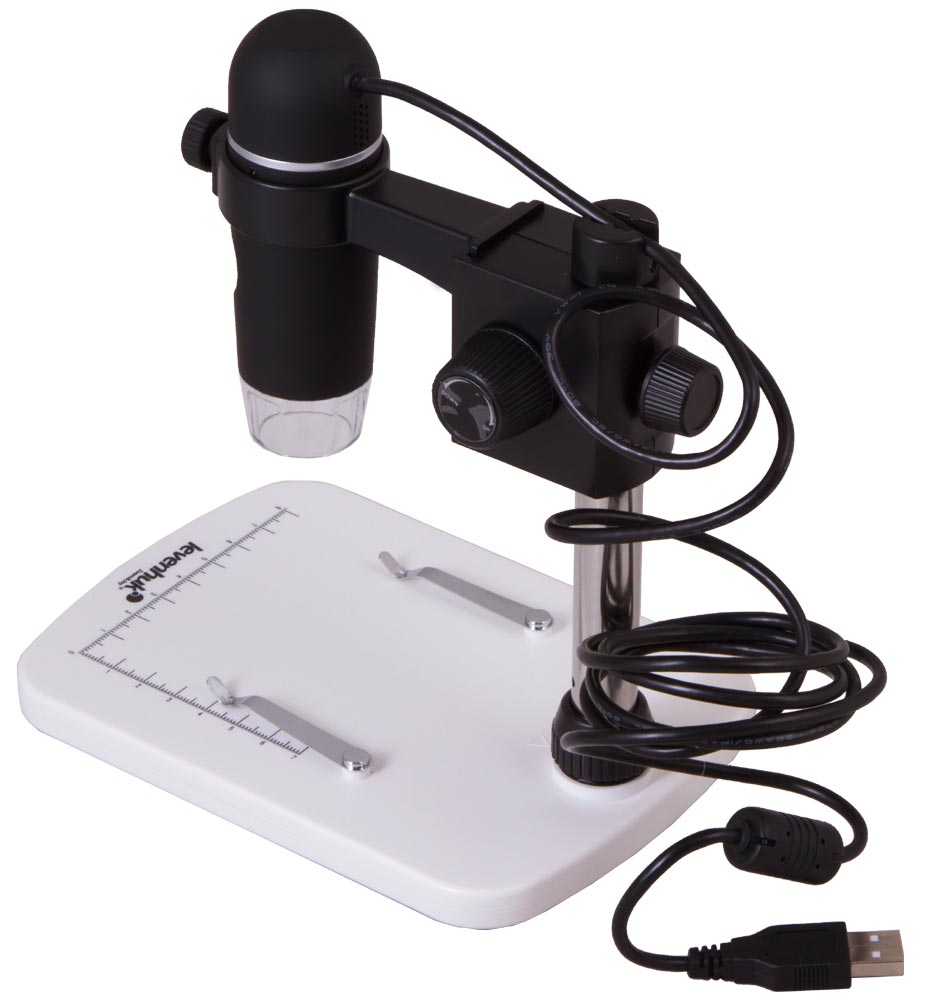

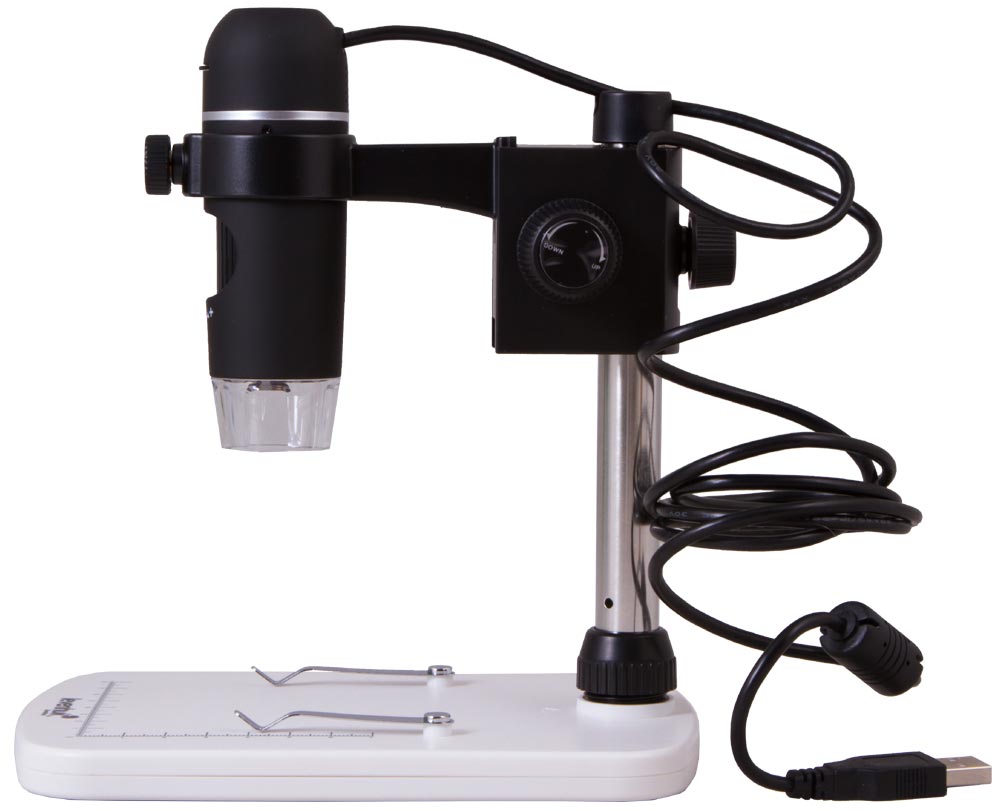

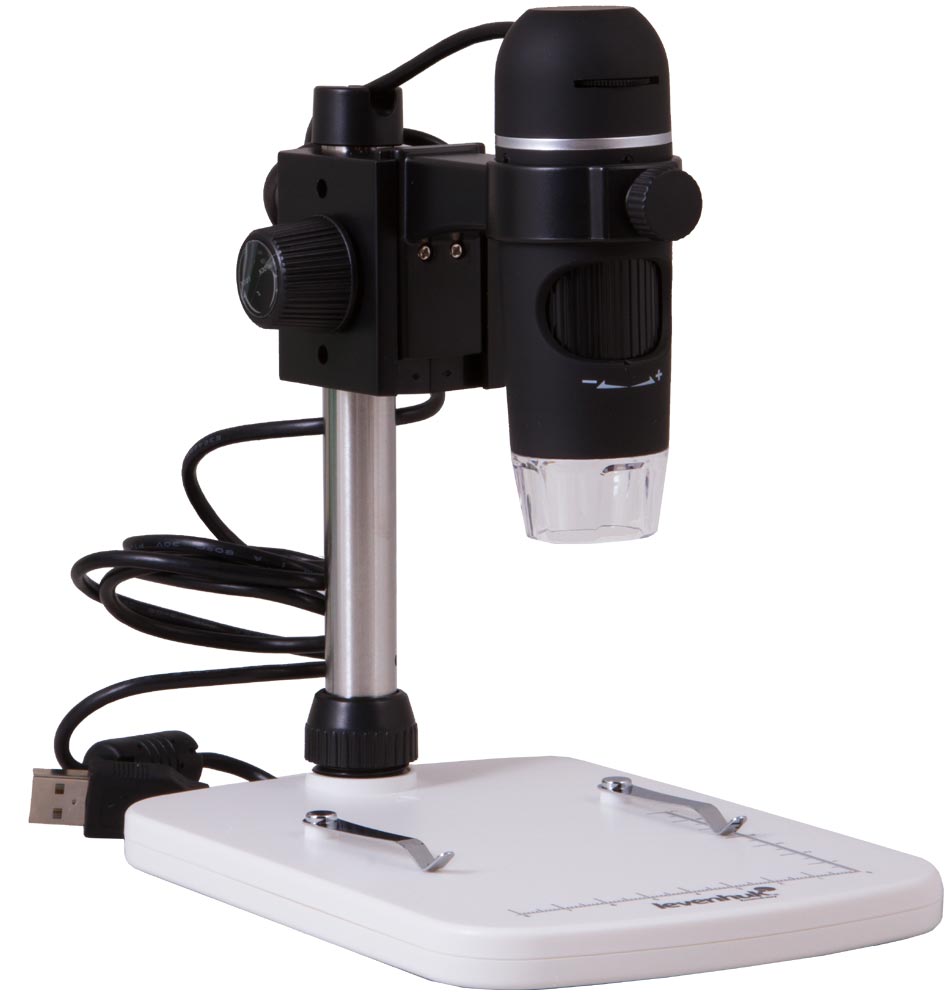

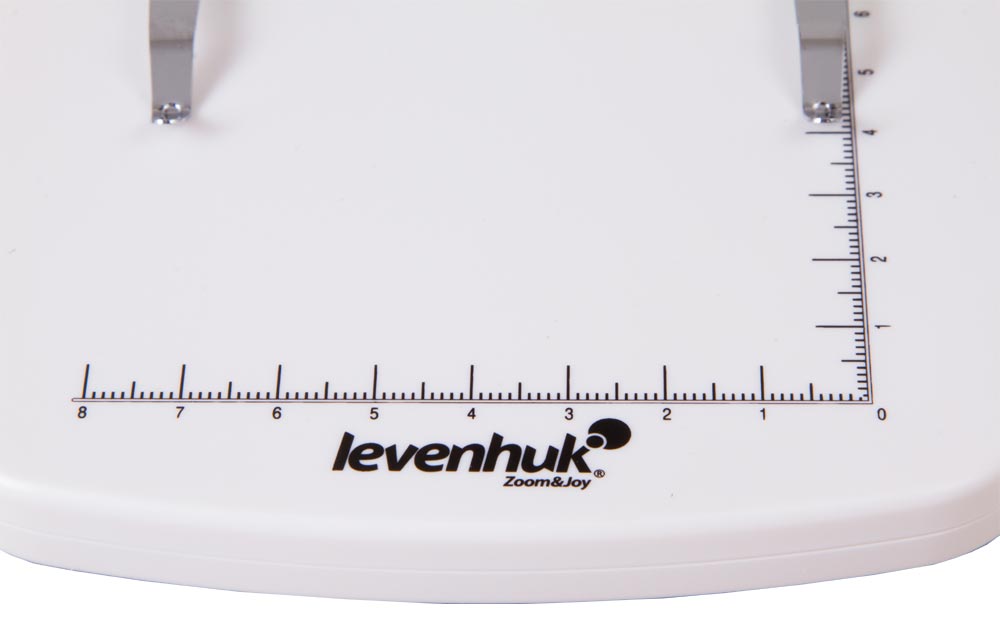

Levenhuk DTX 90 is an ideal instrument for measuring procedures that require high-precision and accurate results. The microscope is capable of producing magnification from 10x to 300x. With its 5 Mpx digital camera you can take pictures and make videos of observed samples. The kit includes a professional tripod and a stage with a measuring scale (8 cm along the x - axis, 7 cm along the y-axis).

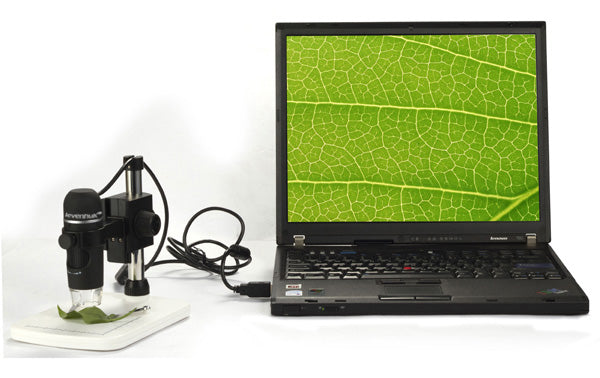

To start an observation you need to connect the microscope to your PC or notebook using USB 2.0 interface. Levenhuk photo editing software that comes with the microscope allows for further work with received images and videos. Using this program, you can not only edit resulting image and video files, but also obtain precise information about sample dimensions, perimeters, radiuses and other characteristics.

Please start the software only when your microscope is connected to a PC and ready for observations.

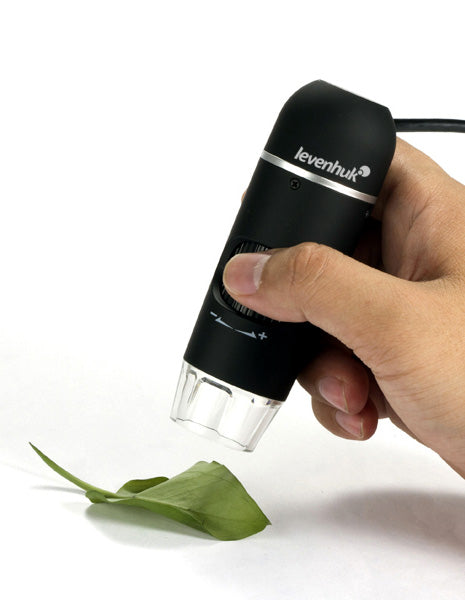

Levenhuk DTX 90 digital microscope is quite compact and portable; you can easily use it at home. The microscope’s shell is rubber-armored, which provides for additional comfort of use.


- Power supply via USB

- 5 Mpx digital camera

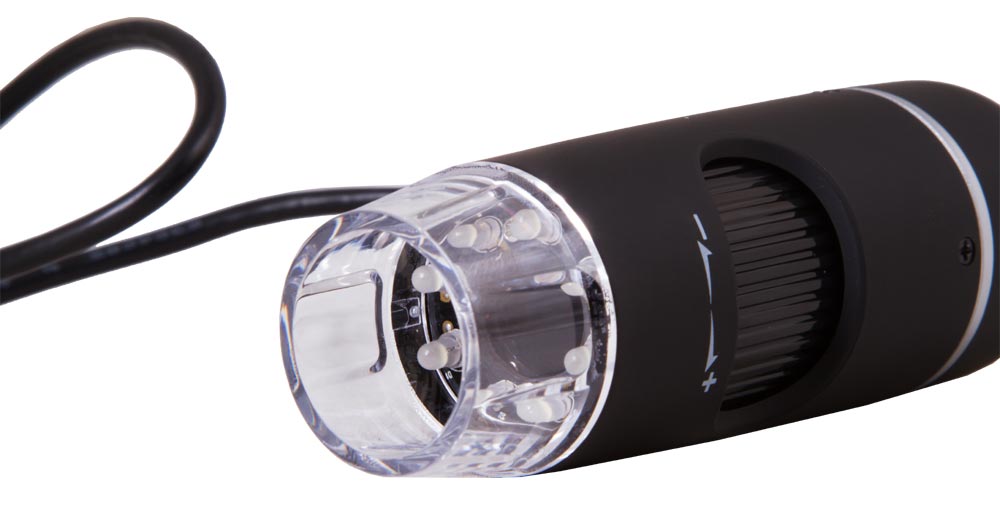

- Variable brightness LED illumination

- Allows observing microscope samples in real time on your PC monitor and making photos and videos of observed objects

- Special photo editing software allows measuring linear sizes, areas, angles and radiuses

- Wide range of applications

- Ease of use

- Supported platforms: Windows and Mac OS

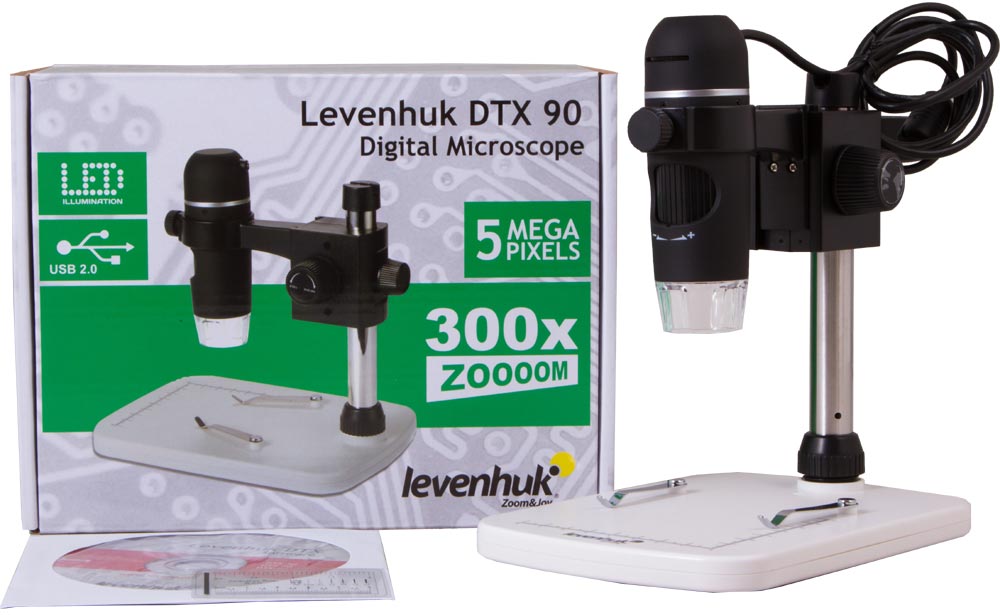

The kit includes:

- Levenhuk DTX 90 Microscope

- Professional tripod

- Stage with measuring scale

- Calibrating scale

- Software CD

- USB-cable

- User manual and lifetime warranty


Optics material: glass

Magnification, x: 10–300

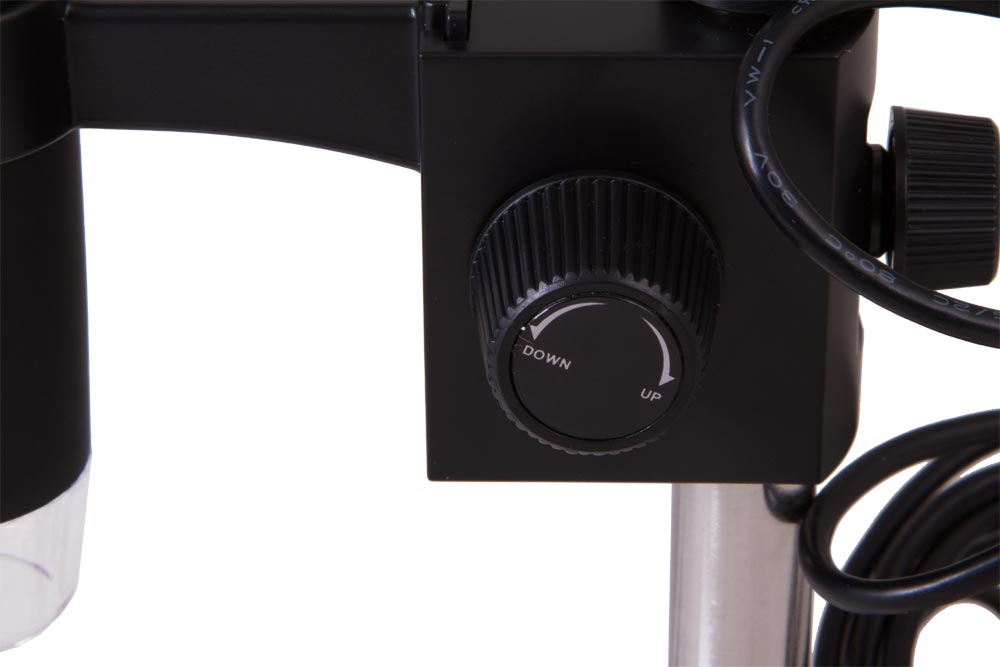

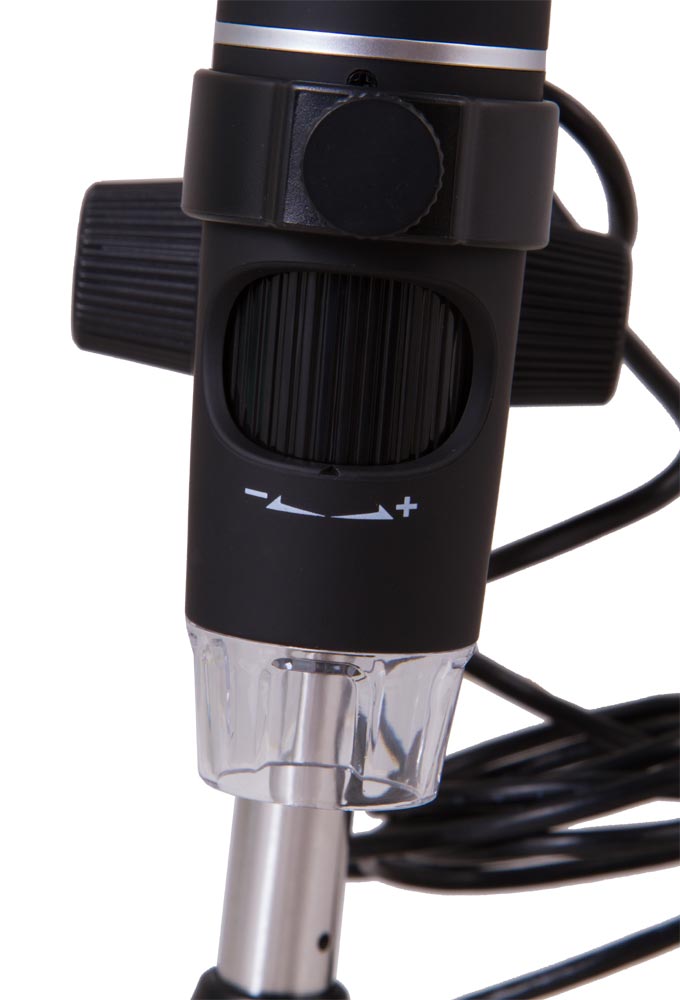

Focus: manual, 0-150 mm

Body material: black, rubber-armored

Illumination: LED

Brightness adjustment: yes

Power supply: USB cable

Megapixels: 5

Video recording: yes

Image format: *.jpeg, 2592x1944, 2320x1744, 2048x1536, 1920x1080, 1280x1024

Software: image processing software with measurement function

Camera slot: USB 2.0

System requirements: Windows 7/8/10, Mac 10.6~10.10; minimum P4 1.8 GHz, 512 Mb RAM, 64 Mb video card, USB 2.0 port, CD-ROM

Camera power supply: via USB 2.0 cable

Software language: English, German, French, Spanish, Russian, Italian, Portuguese, Polish, Dutch, Japanese, Korean, Chinese

Video format: *.avi, 2592x1944, 2320x1744, 2048x1536, 1920x1080, 1280x1024

Maximal resolution: 2592x1944, 2048x1536, 1600x1200, 1280x960
