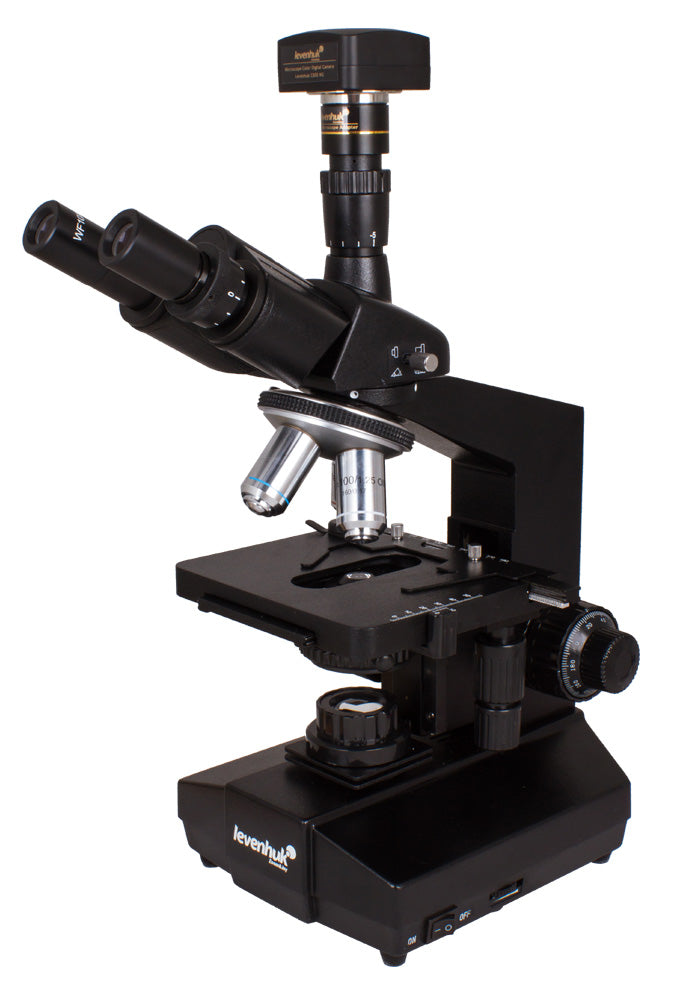

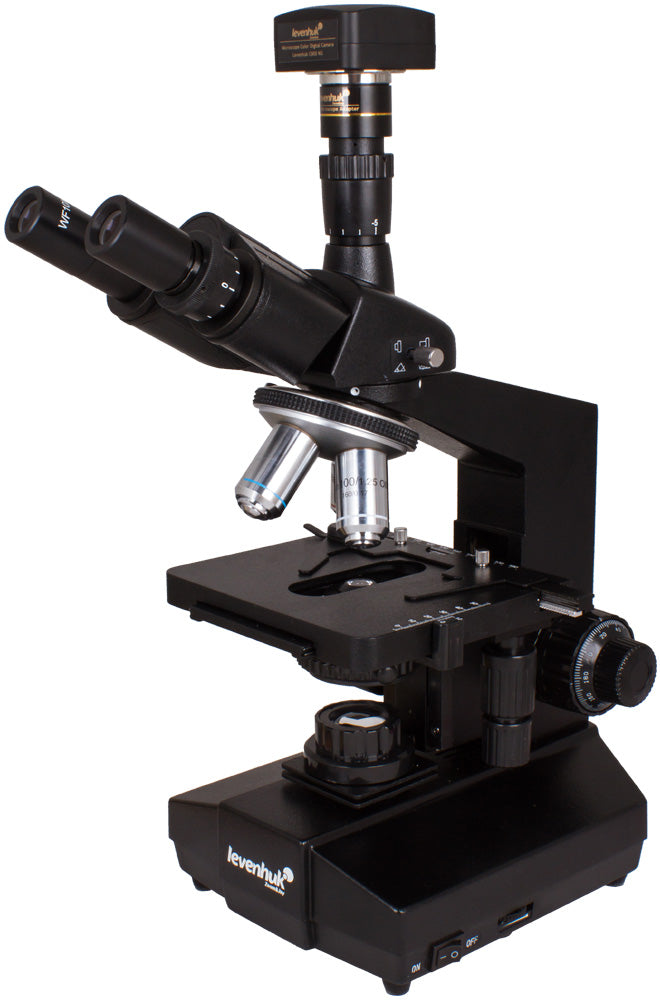

Levenhuk D870T 8M Digital Trinocular Microscope
Levenhuk D870T 8M Digital Trinocular Microscope
Digital microscope with a trinocular head and an 8-Mpx camera
Levenhuk D870T 8M Digital Trinocular Microscope is a high-quality digital microscope with a very wide field of application: from biological sciences where maximum magnification is required to the jewelry industry with a need for relatively strong magnification values. This microscope is reliable and sturdy, and you don't have to be a professional scientist to use Levenhuk D870T Digital Trinocular Microscope: just turn on the camera, put the sample on the stage, adjust the focus and you are ready to start your research. In the kit you will find a user manual that will help you in case you have any questions. Levenhuk D870T yields magnifications from 40x to 2000x and also comes with four objective lenses: 4x, 10x, 40x and 100x – as well as pairs of WF10x and WF20x eyepieces with wide FOV. Levenhuk D870T Digital Trinocular Microscope comes with an 8-Mpx digital camera and necessary drivers and software.
Features:
Magnification: 40–2000x
Oil immersion
Condenser: Abbe with iris diaphragm
Two-axes stage
Fine and coarse focusing
Halogen illumination with brightness adjustment
Household power supply

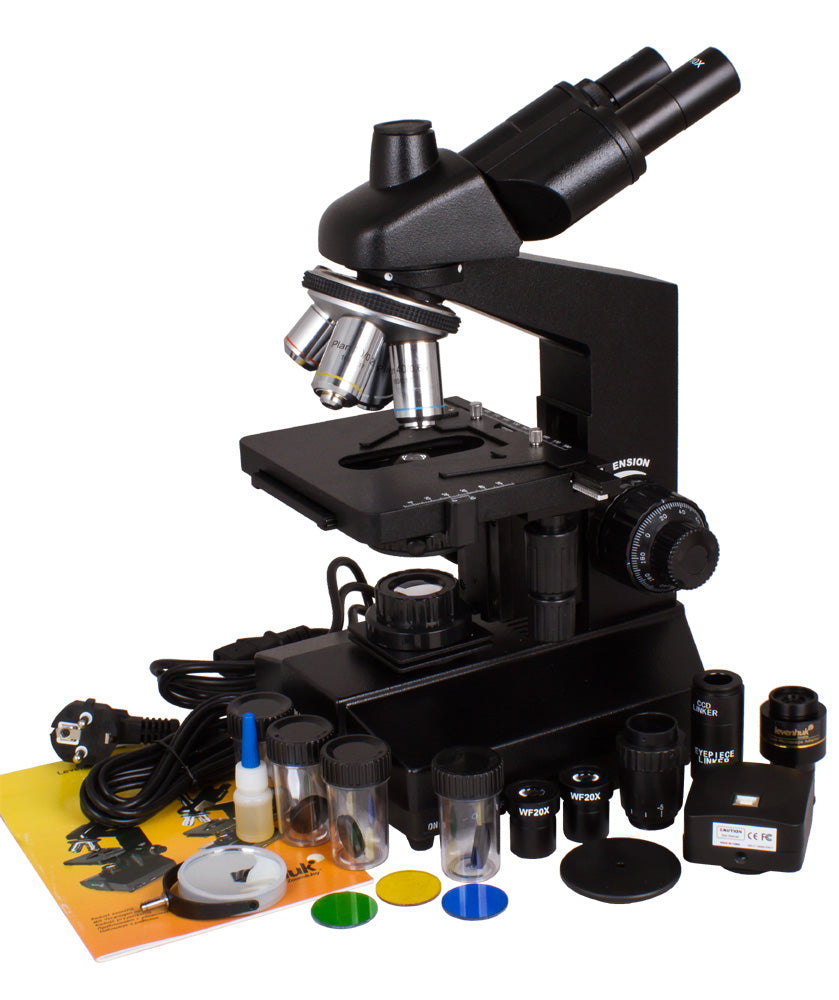

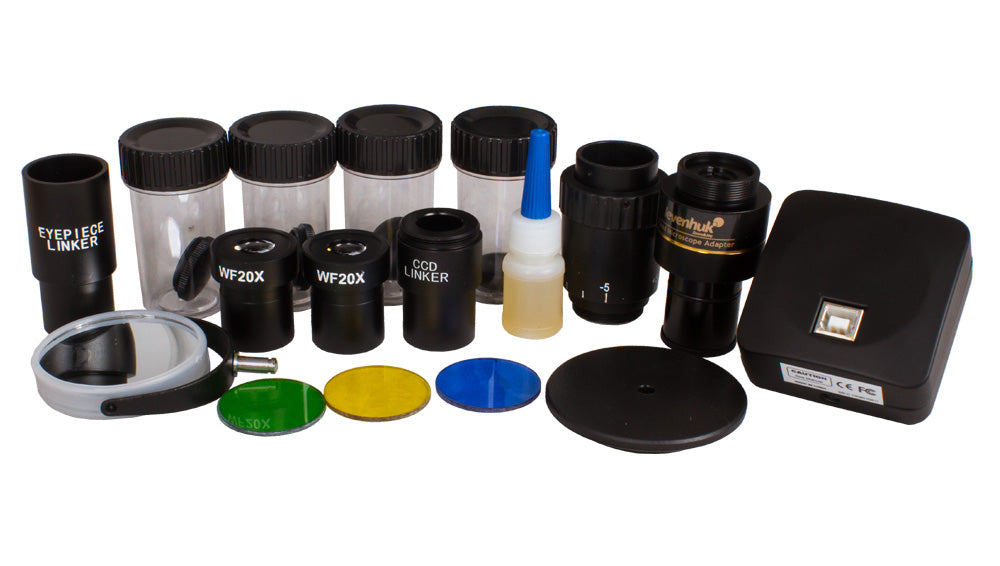

Levenhuk D870T 8M Digital Trinocular Microscope kit includes:
Levenhuk digital microscope

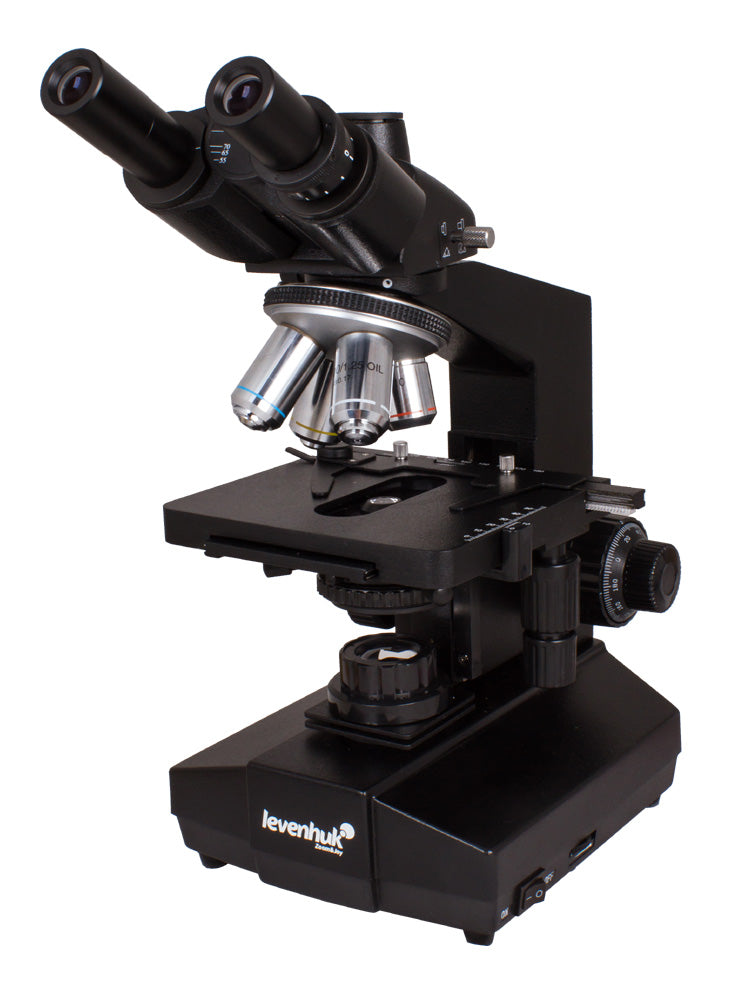

Rotatable trinocular head

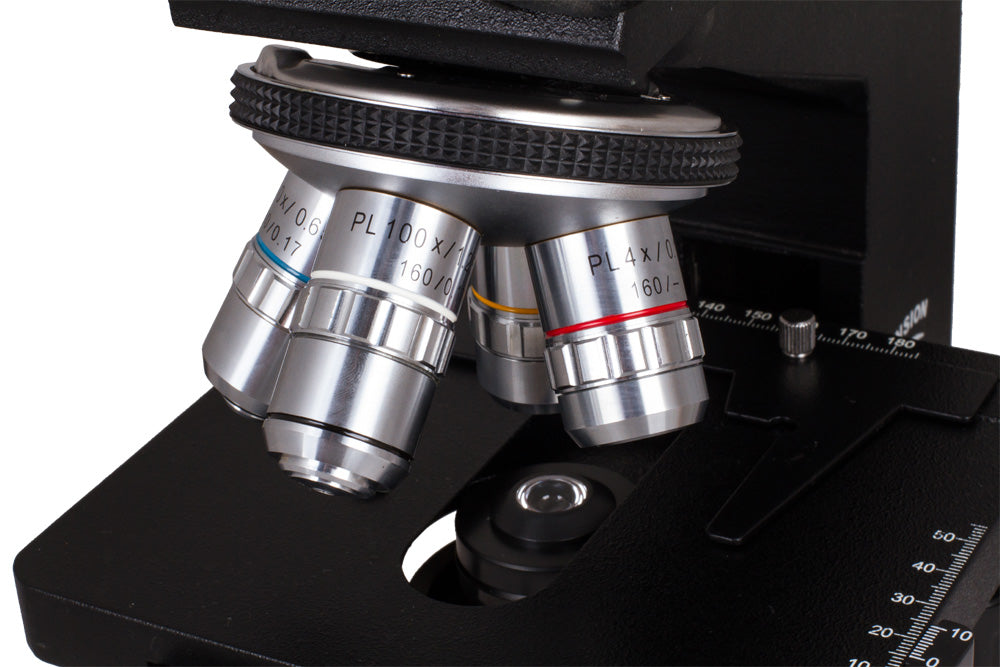

Revolving nosepiece with four objective lenses
8Mpx digital camera

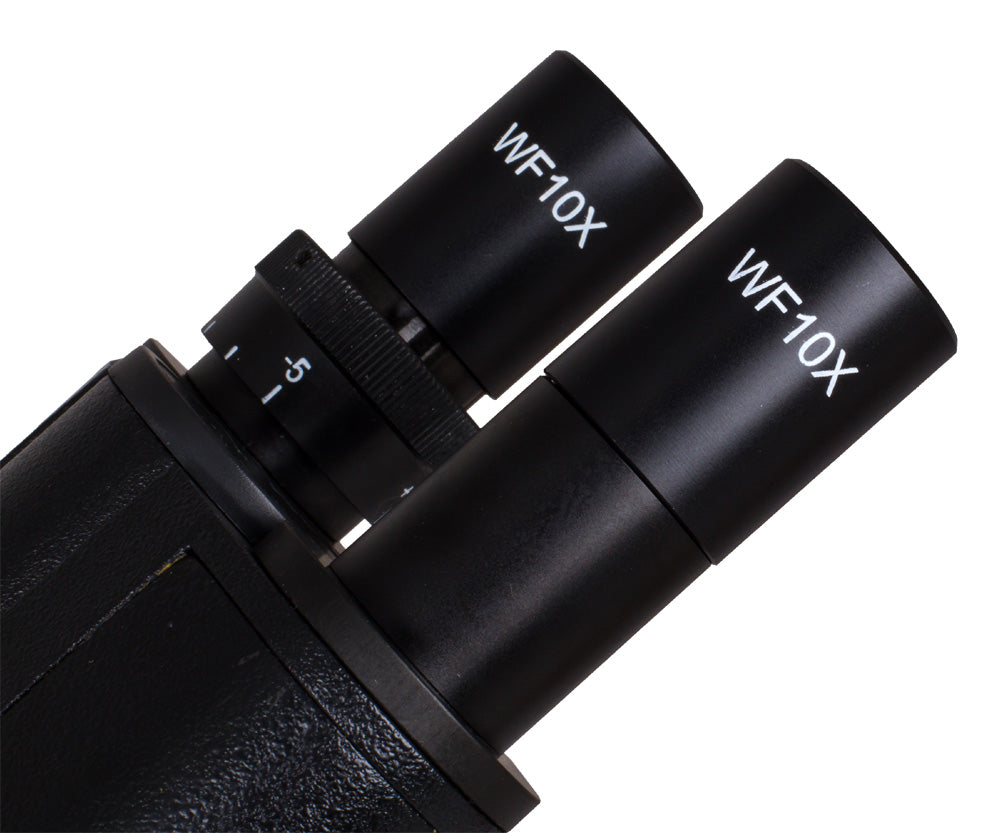

Paired WF10x and WF20x eyepieces
Bottle of immersion oil
Mirror
Filters (blue, yellow, green)
Plan achromatic objective lenses: 4x, 10x, 40x and 100x (oil immersion)

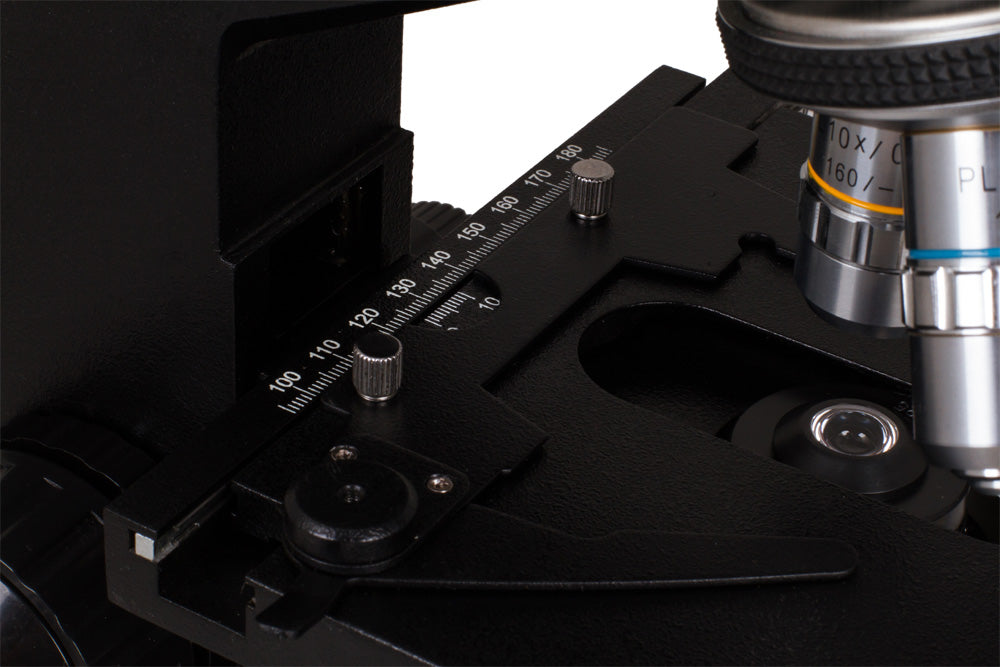

Stage: 140x155 mm, movable
Condenser: Abbe with iris diaphragm
Power cable*
AC adapter
Installation CD with software and drivers
Dust cover
User manual and lifetime warranty
Specifications:

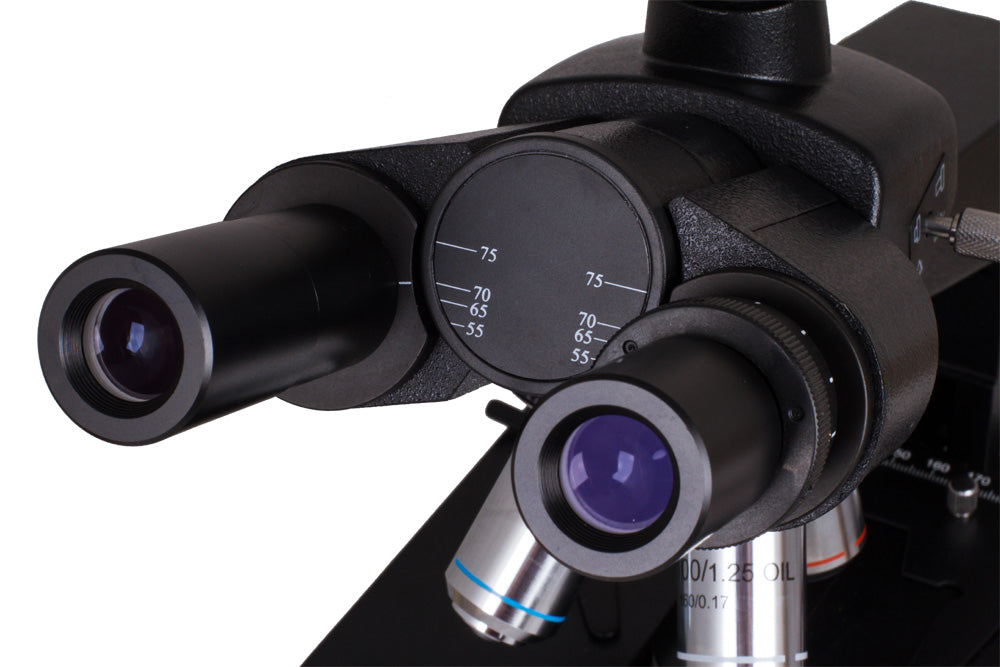

Head: trinocular, rotatable
Magnification, x: 40–2000
Eyepieces: paired WF10x, WF20x
Objective lenses: plan achromatic: 4x, 10x, 40x, 100x (oil immersion)
Focus: fine (0,002 mm), coarse (25 mm)
Stage dimensions, in: 5.5x6.1
Illumination: 6V/20W halogen lamp, variable brightness
Power supply: 220V power cable
Levenhuk Digital Camera specifications:
Megapixels: 8
Location: third tube of the trinocular head
Sensor: 1/2.5" CMOS
Compatible OS: Windows (XP to 10), Mac, Linux 2.6*
Software: USB 2.0 driver, Levenhuk software (Levenhuk Image Editor software for Mac and Linux
Software language: Levenhuk (Windows): EN, FR, DE, PL, RU, ZH, TR; Levenhuk Image Editor (Mac and Linux): EN
Power supply: via USB 2.0 cable
* Levenhuk Image Editor for Linux was compiled on Ubuntu 10.04 with kernel 2.6.32-50-generic-pae.
