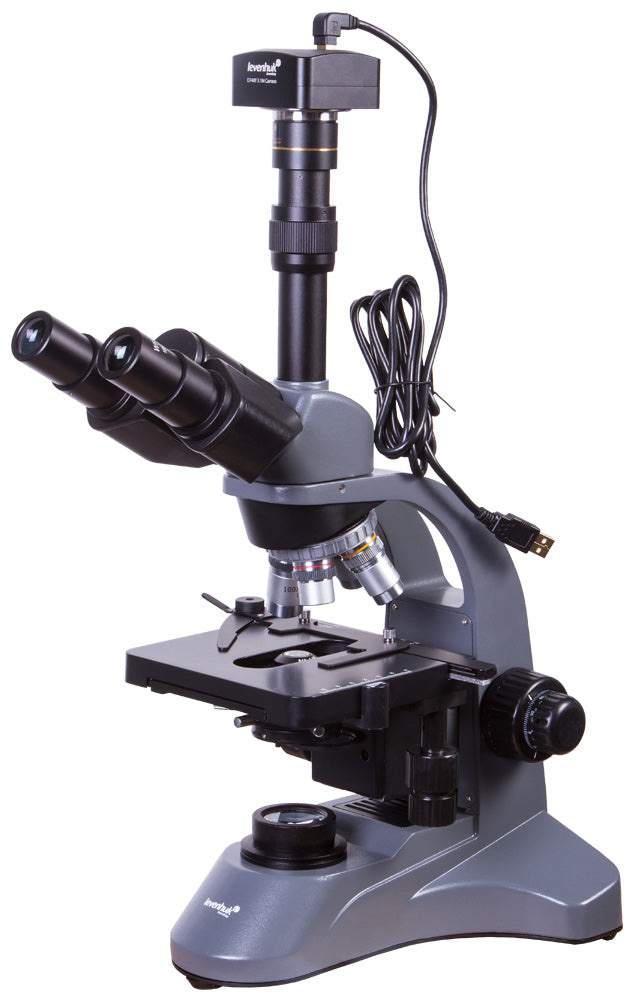

Levenhuk D740T 5.1M Digital Trinocular Microscope Magnification: 40–2000x. Comes with 5 Mpx digital camera, high-quality achromatic objective lenses, and Abbe condenser with iris diaphragm.
Levenhuk D740T digital microscope allows for visual observations and for viewing images on your PC monitor. For this purpose the kit includes a modern 5Mpx camera and special software for further image processing.
Levenhuk D740T microscope features trinocular head, comes with achromatic objective lenses and interchangeable eyepieces of different magnifications. The microscope magnification ranges from 40x to 2000x. The Levenhuk D740T microscope allows for the use of oil immersion technique.
Illumination is located in the lower part of the microscope. It is a bright LED light with adjustable brightness. The illuminating system also includes an Abbe condenser with iris diaphragm. That helps to focus the light beam and evenly illuminate the observed sample.
The coordinate moving stage goes vertically and horizontally. The stage is equipped with two metal clips for sample fixation. The convenient fine and coarse adjustment knob allows for quick sharpness adjustment.
The Levenhuk software allows you to perform various manipulations with images obtained with the digital camera: save them as photos or videos, change brightness and sharpness; crop and resize.
Features: Trinocular microscope 5Mpx digital camera in the kit Coordinate moving stage Coaxial coarse and fine focusing mechanism Oil immersion Abbe condenser with iris diaphragm illumination with adjustable brightness Achromatic objectives Metal body Household current power supply (cord included)
The kit includes: Microscope stand with base Trinocular head Achromatic objective lenses: 4x, 10x, 40xs, and 100xs (oil) Eyepieces: WF10x and H20x Filters (blue, yellow, green) Bottle of immersion oil 5Mpx digital camera USB cable Installation CD with Levenhuk software and drivers Dust cover User manual and lifetime warranty
Specifications: Head: trinocular, rotatable 360°, inclined 45° Optics material: optical glass Magnification, x: 40–2000 Eyepiece tube diameter, mm: 23.2 Eyepieces: WF10x/18mm, H20x Objectives: achromatic: 4x, 10x, 40xs, 100xs (oil immersion) Revolving nosepiece: 4 objectives Stage, mm: 140x130, double layer mechanical stage with coordinate scale and clips Stage moving range, using focusing mechanism, mm: vertically: 24mm; horizontally: 75mm Eyepiece diopter adjustment, diopters: ±6 Condenser: Abbe N.A. 1.25 Diaphragm: iris Focus: coaxial, coarse and fine (coarse: 22mm; fine: 0.002mm) Body material: aluminum Illumination: LED Brightness adjustment: yes Power supply: 220 V/50 Hz Light source type: LED 3W Filters: blue, yellow, green Additional: eyepiece tube length: 160mm Camera model: D740T Megapixels: 5.1 Sensor: 1/2.5'' CMOS Pixel size, µm: 2.2x2.2 Sensitivity, v/lux.sec@550 nm: 0.53 Video recording: yes Usage location: eyepiece tube (replaces the eyepiece) Image format: *.bmp, *.jpg, *.jpeg, *.png, *.tif, *.tiff, *.gif, *.psd, *.ico, *.emf, *.wmf, etc. Spectral range, nm: 380–650 Method of exposure: ERS (Electronic Rolling Shutter) White balance: auto/manual Exposure control: auto/manual Software: USB 2.0 driver, Levenhuk software Programmable options: image size, brightness, exposure control Camera slot: USB 2.0, 480 Mb/s System requirements: Windows 7/8/10 (32, 64 bit), processor up to 2.8GHz Intel Core 2 or higher, USB 2.0 port, compatible with Mac OS, Linux Camera power supply: via USB cable Video format: *.wmv, *.h264, *.avi, etc. Max resolution: 2592х1944
