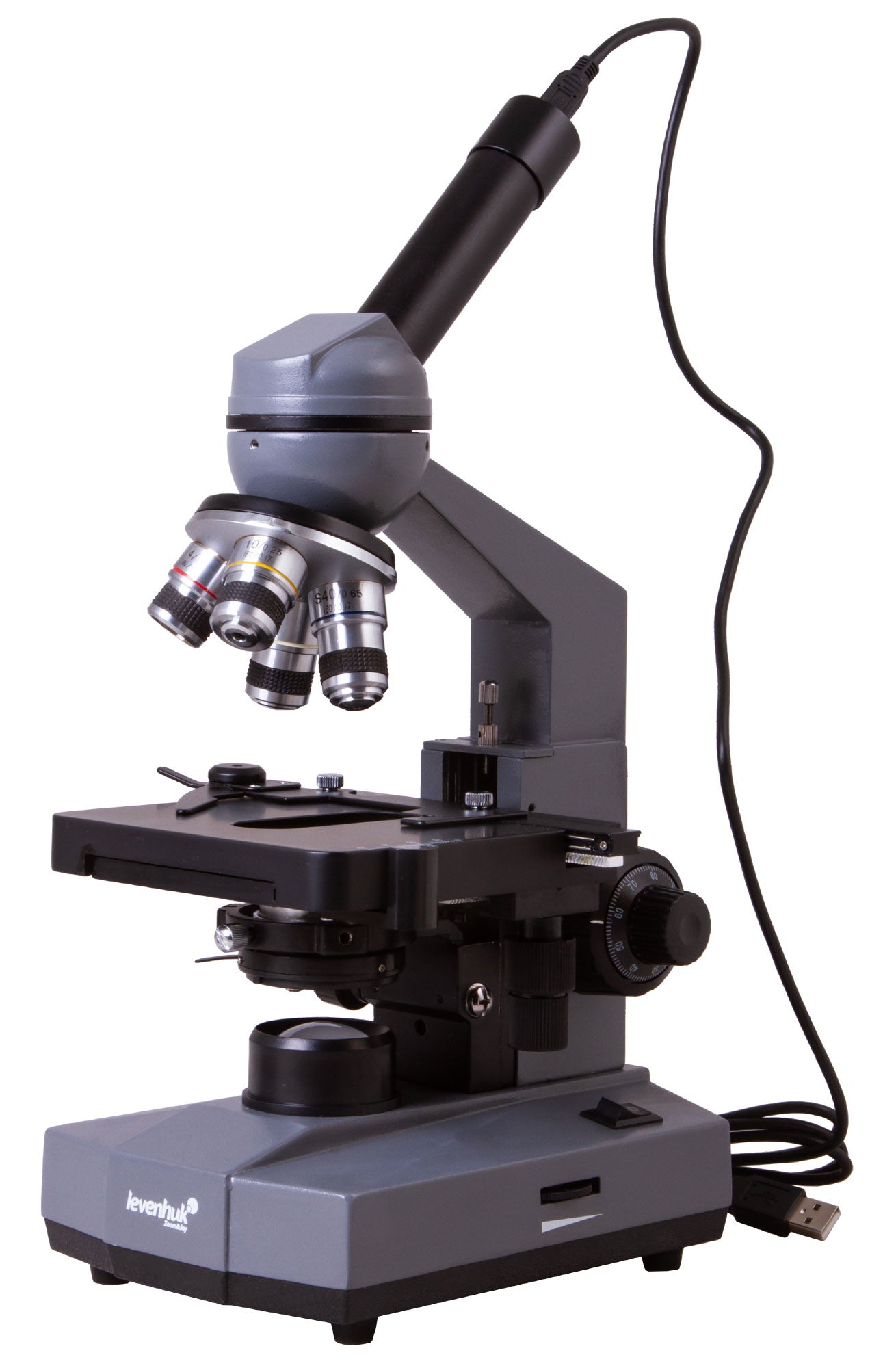

Levenhuk D320L BASE 3M Digital Monocular Microscope
Monocular laboratory microscope with a digital camera and halogen illumination. Magnification: 40–1000x

Levenhuk D320L BASE is a digital microscope with a 3M camera. It is great for performing observations in medical and clinical and diagnostic laboratories, holding seminars and lectures in academies and universities as well as in colleges, creating digital observational records. This microscope is very interesting to specialists of different scientific fields. It will become an excellent choice for professional microscopy observations.

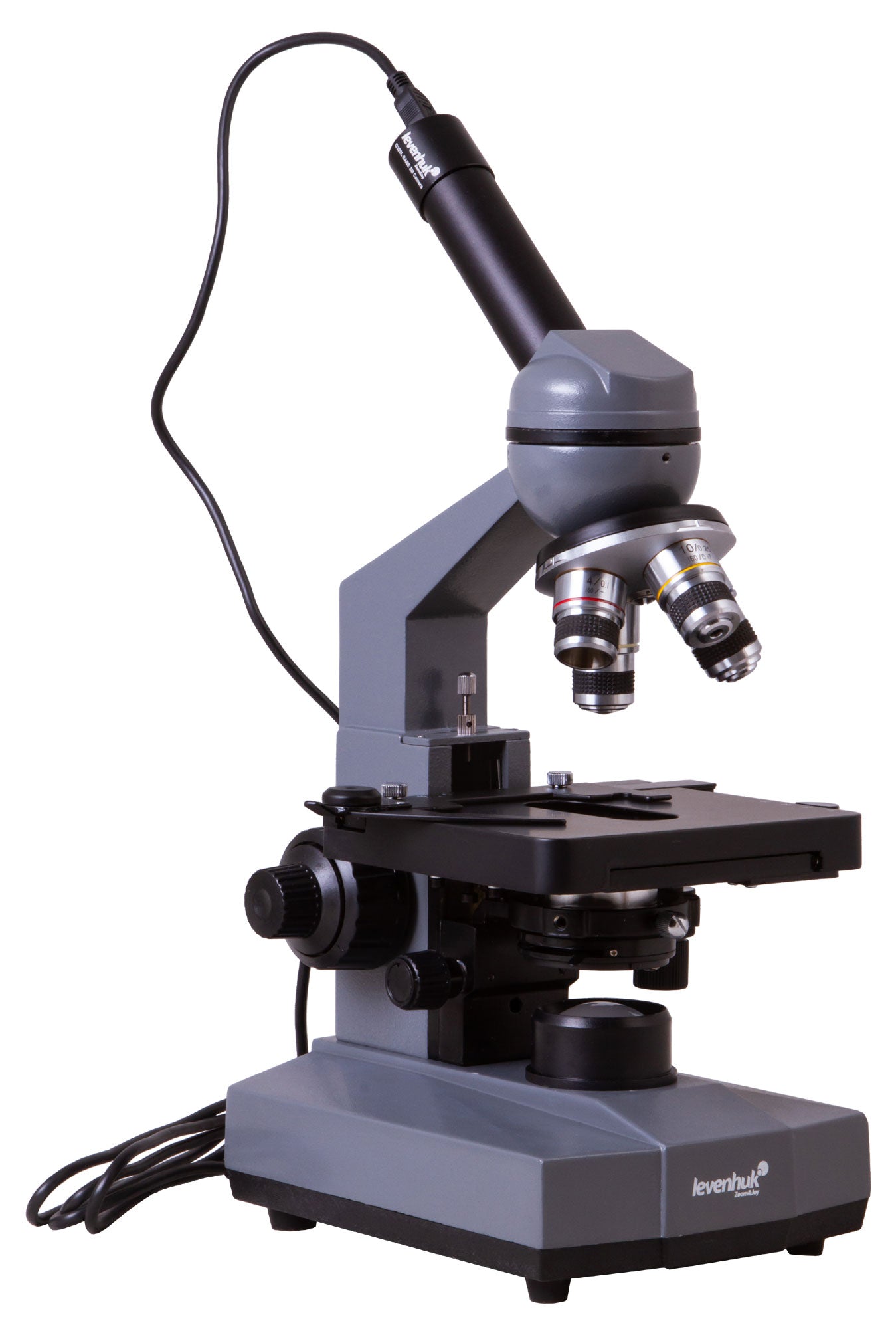

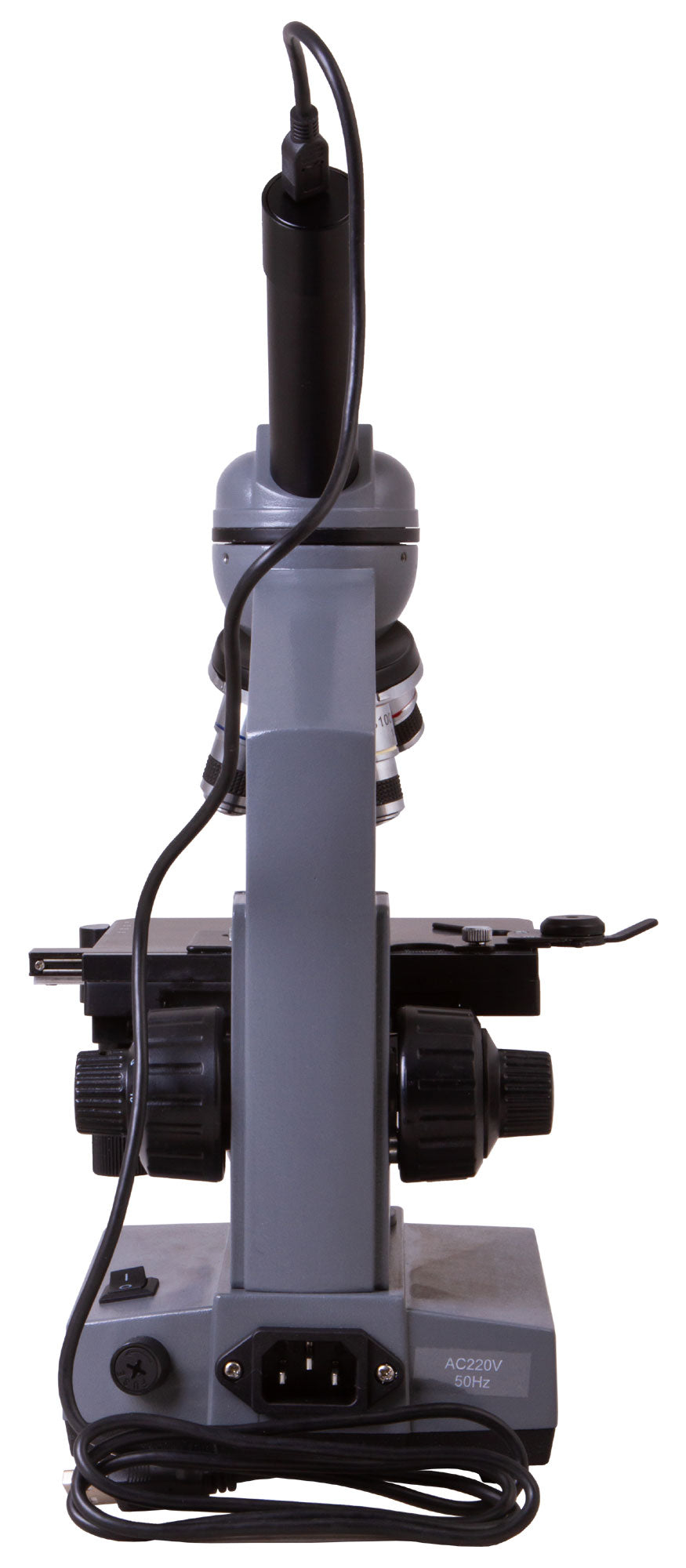

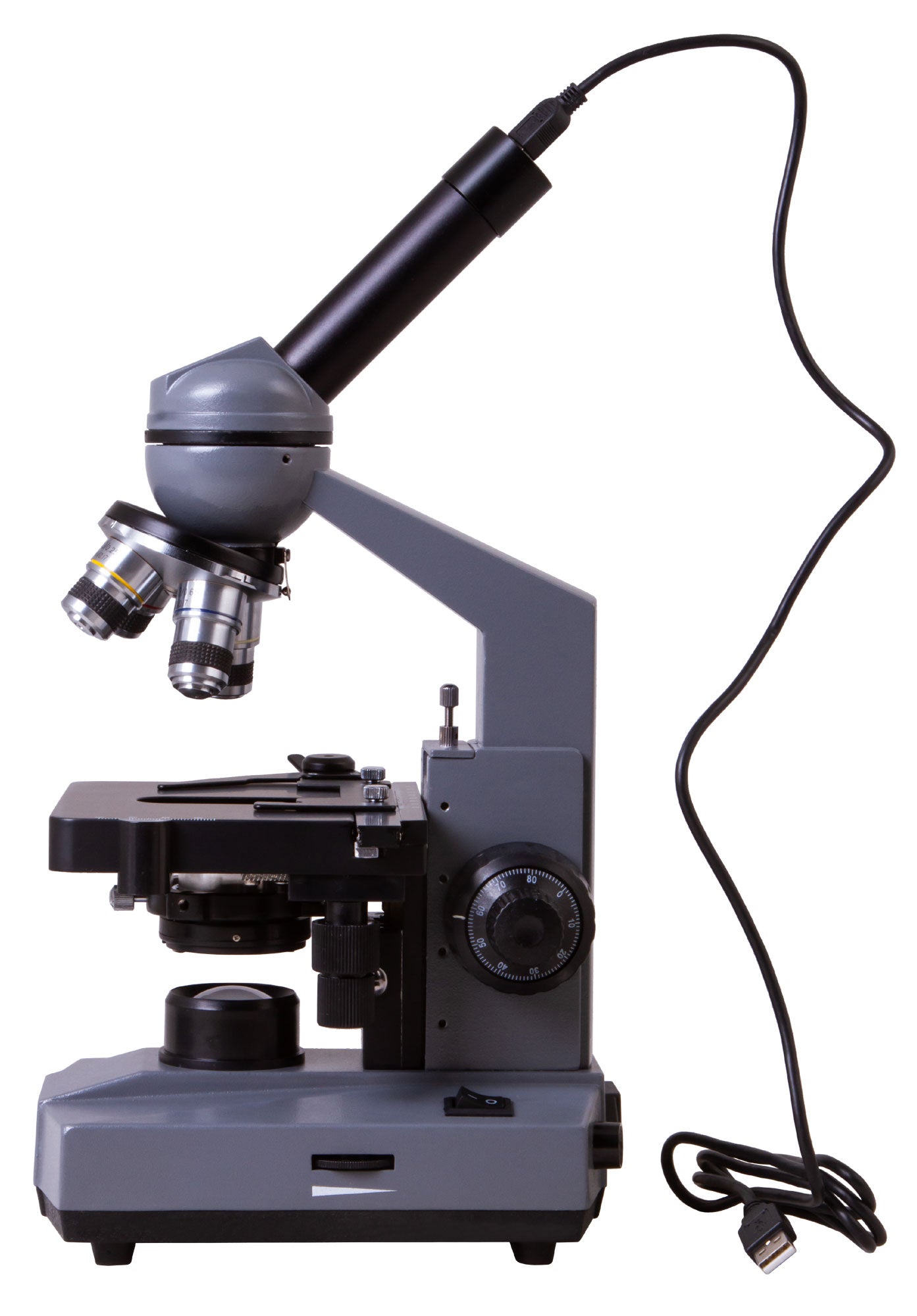

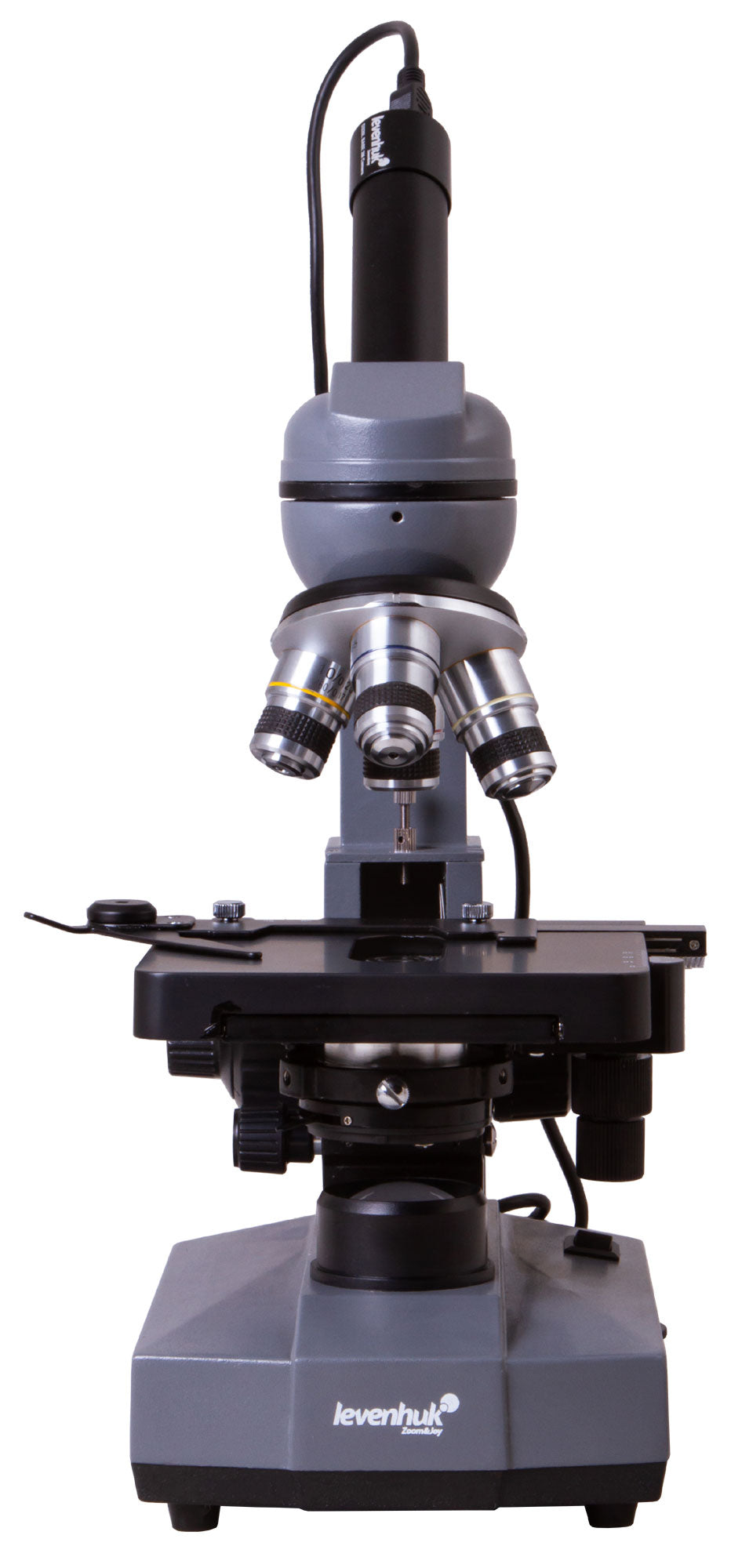

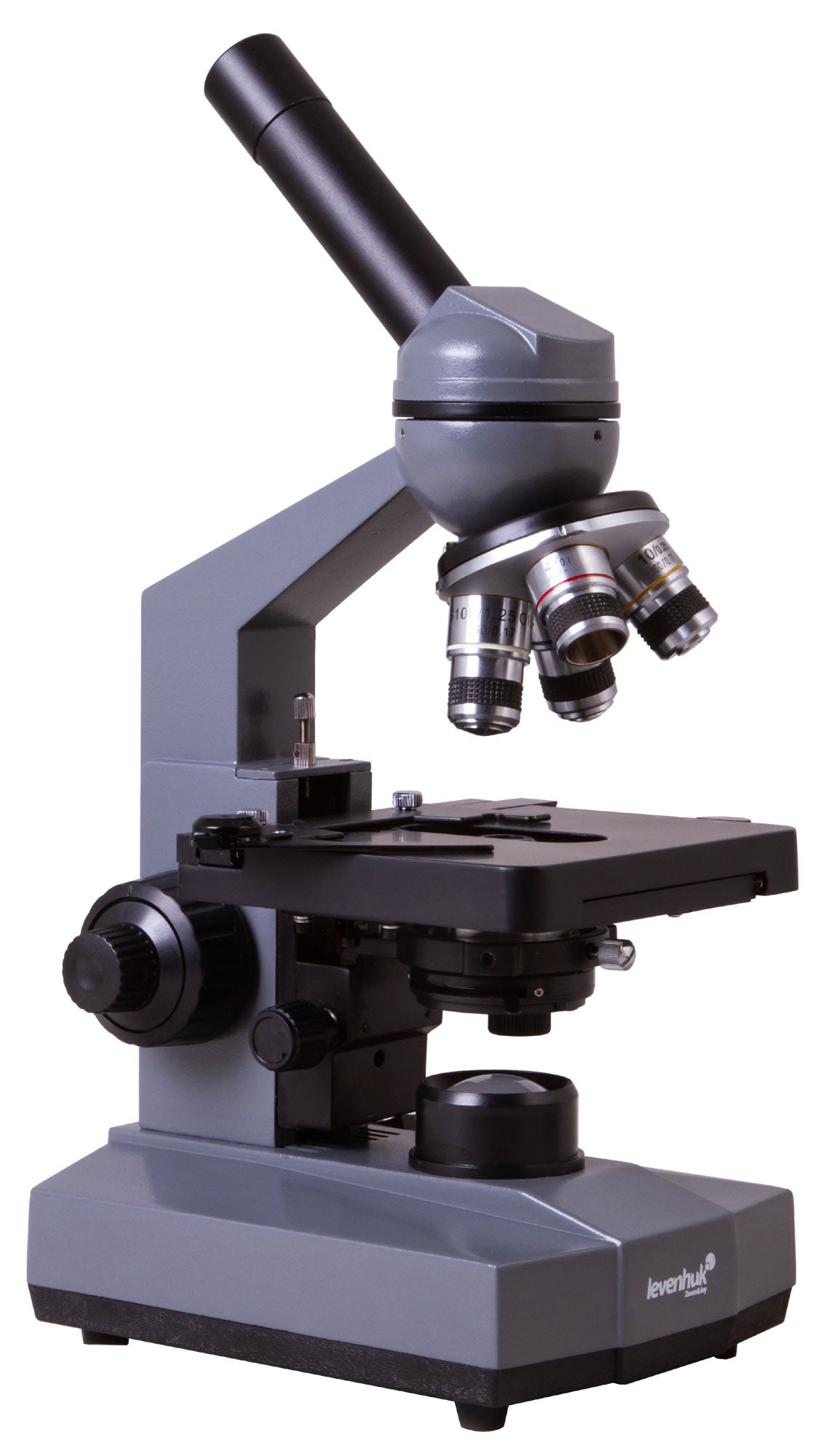

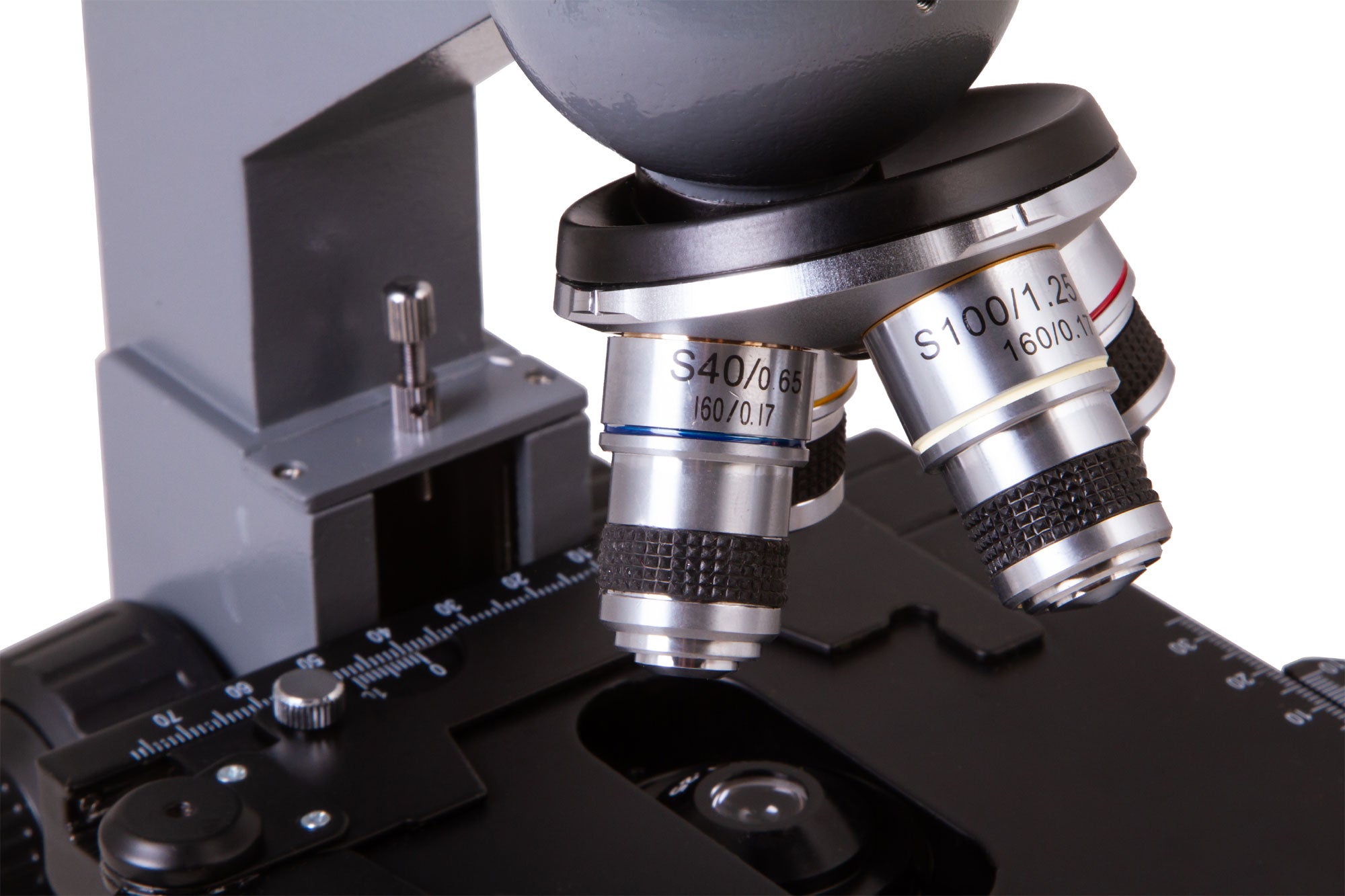

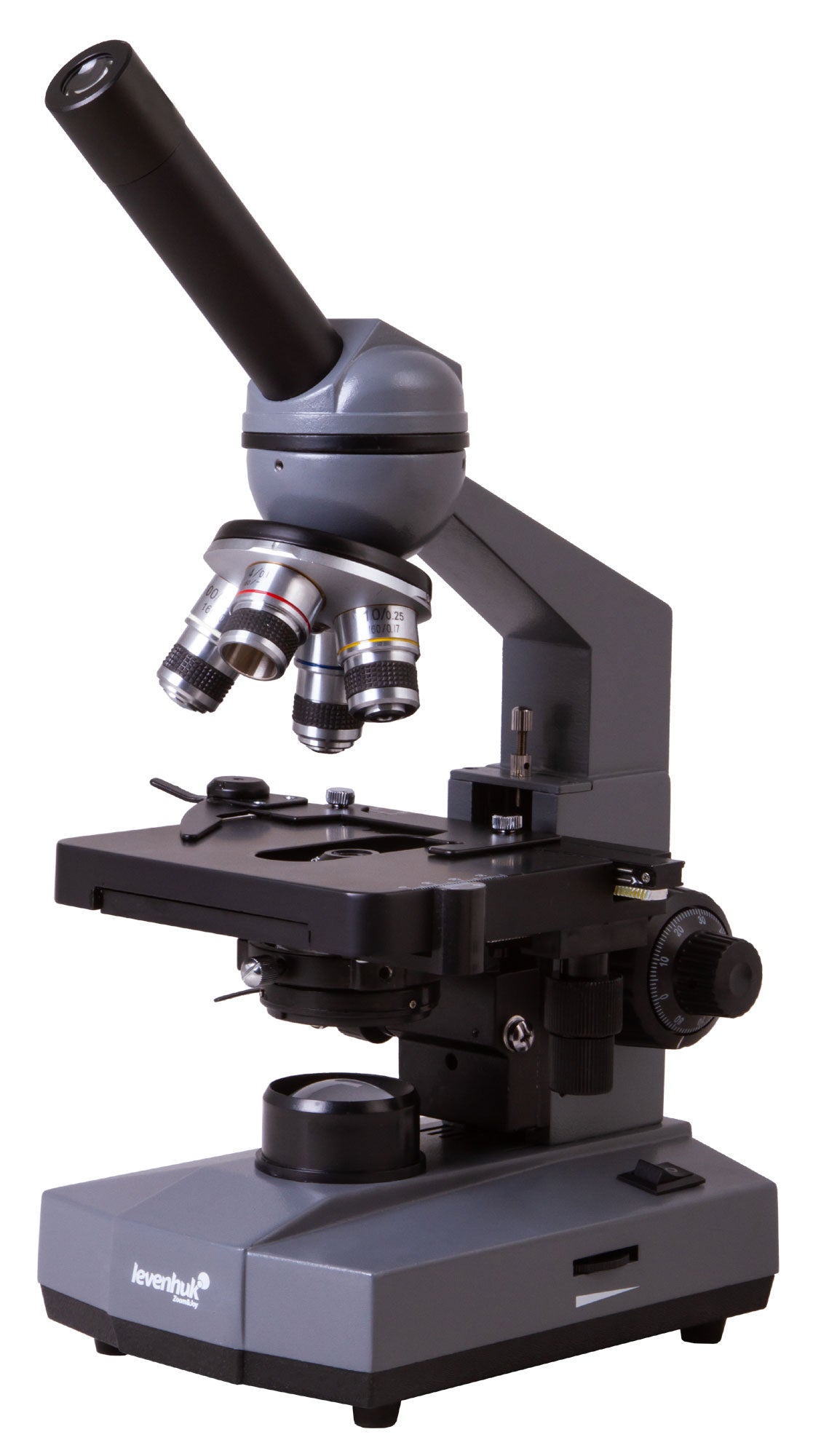

Levenhuk D320L BASE is a monocular microscope with a 360° rotatable head. A wide-angle 10x eyepiece and four achromatic objectives of different magnifications are used for observations. The magnification range varies from 40x to 1000x. You can apply oil immersion at maximum magnification (when using a 100x objective). A bottle of immersion oil comes included in the kit.

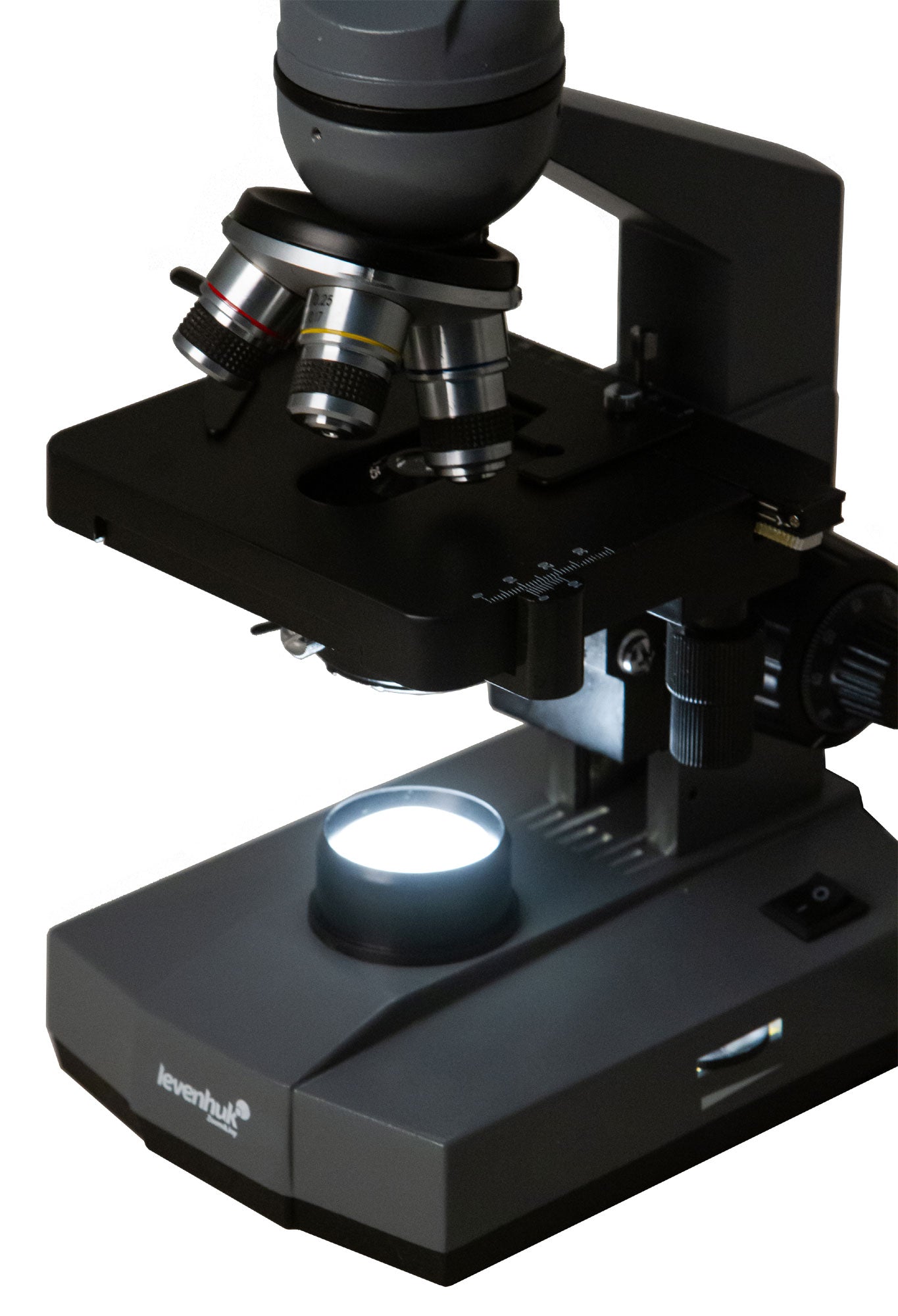

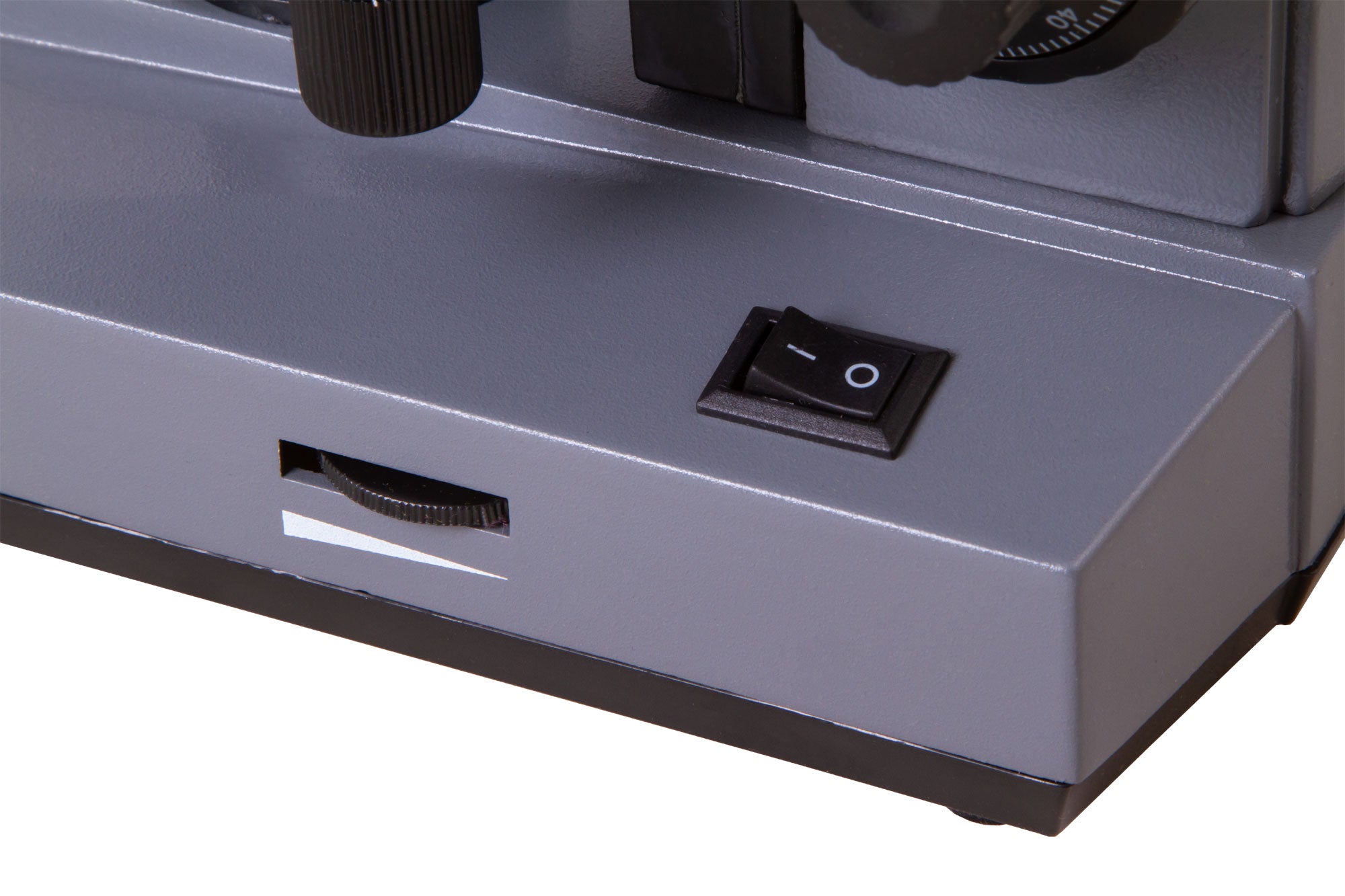

The illumination system is located in the lower part of the microscope. It consists of a powerful halogen lamp with adjustable brightness and an Abbe condenser with an iris diaphragm. Illumination is powered by an AC supply. You can use light filters for adjusting image contrast. Specimens are fixed on a stage, which is equipped with a mechanical scale. Sharpness adjustment is performed by rotating coarse and fine focusing adjustment knobs.

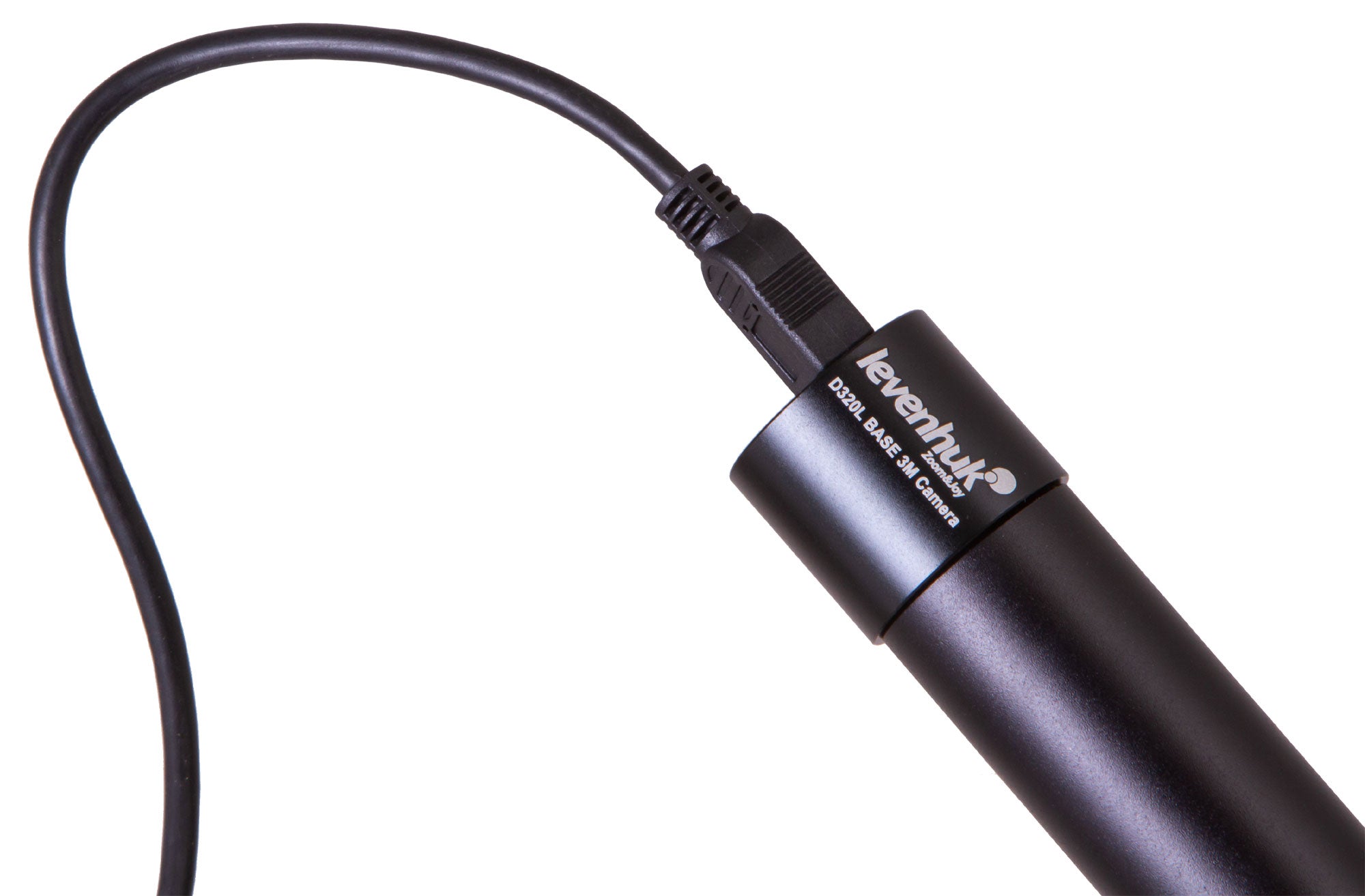

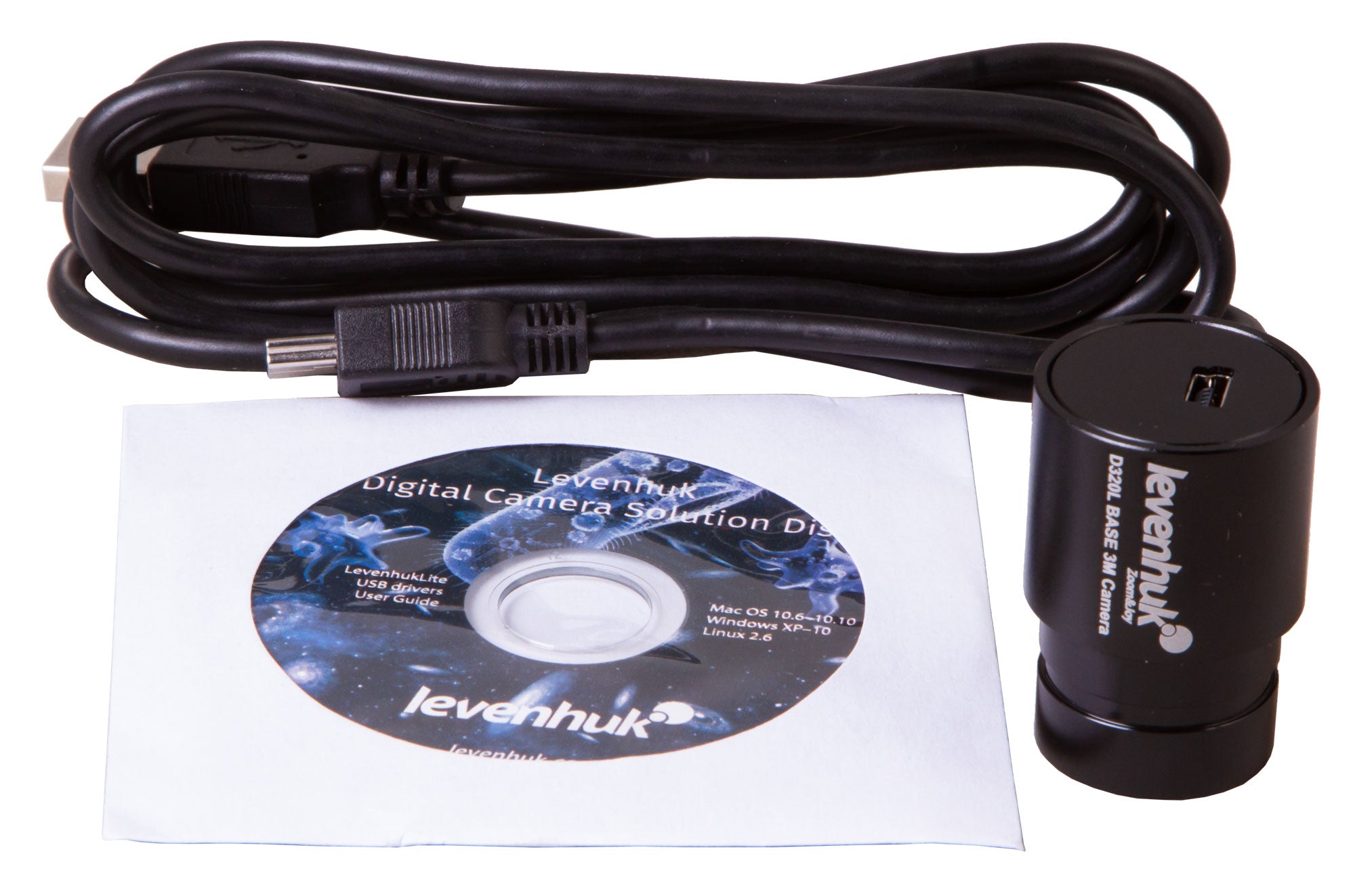

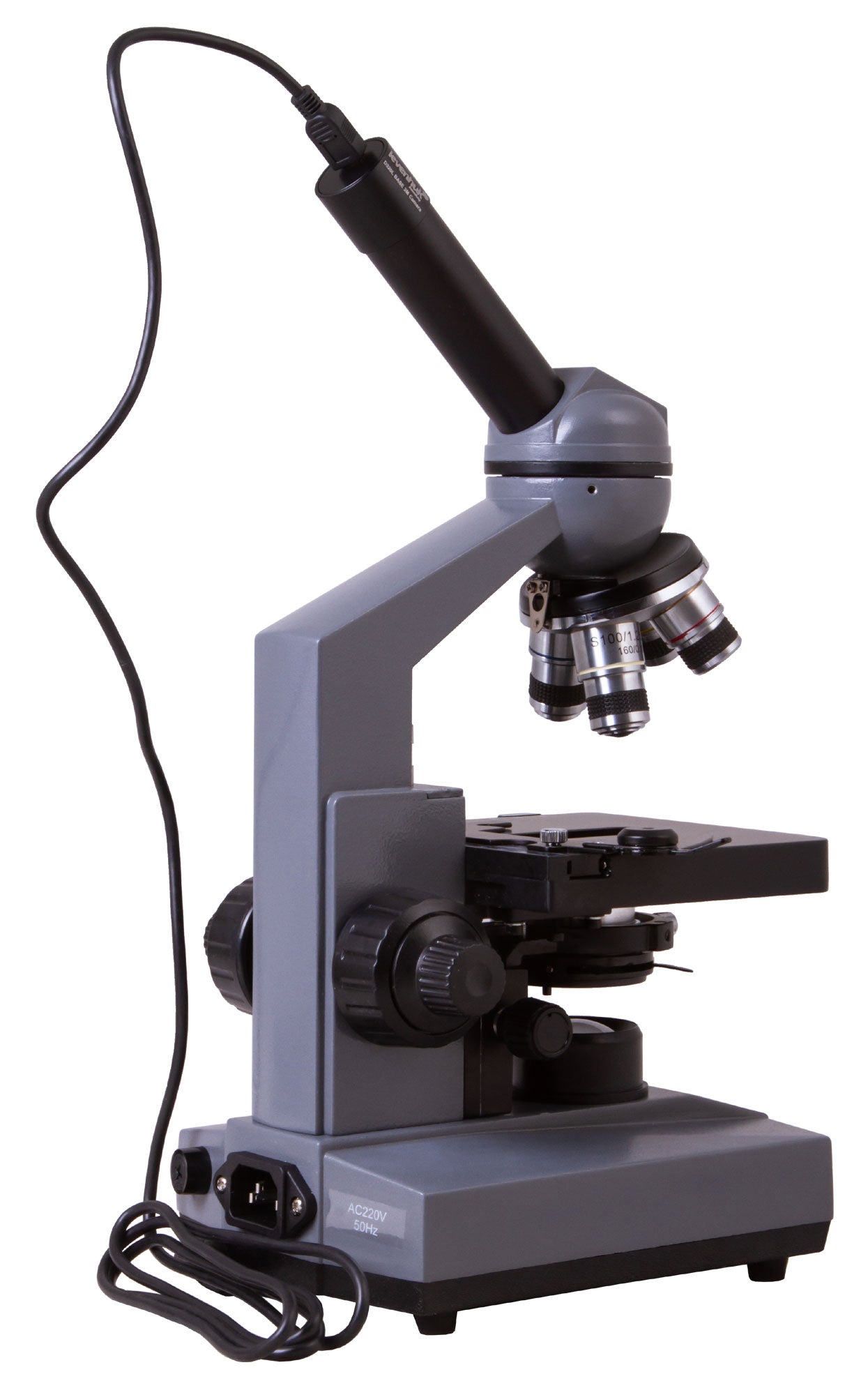

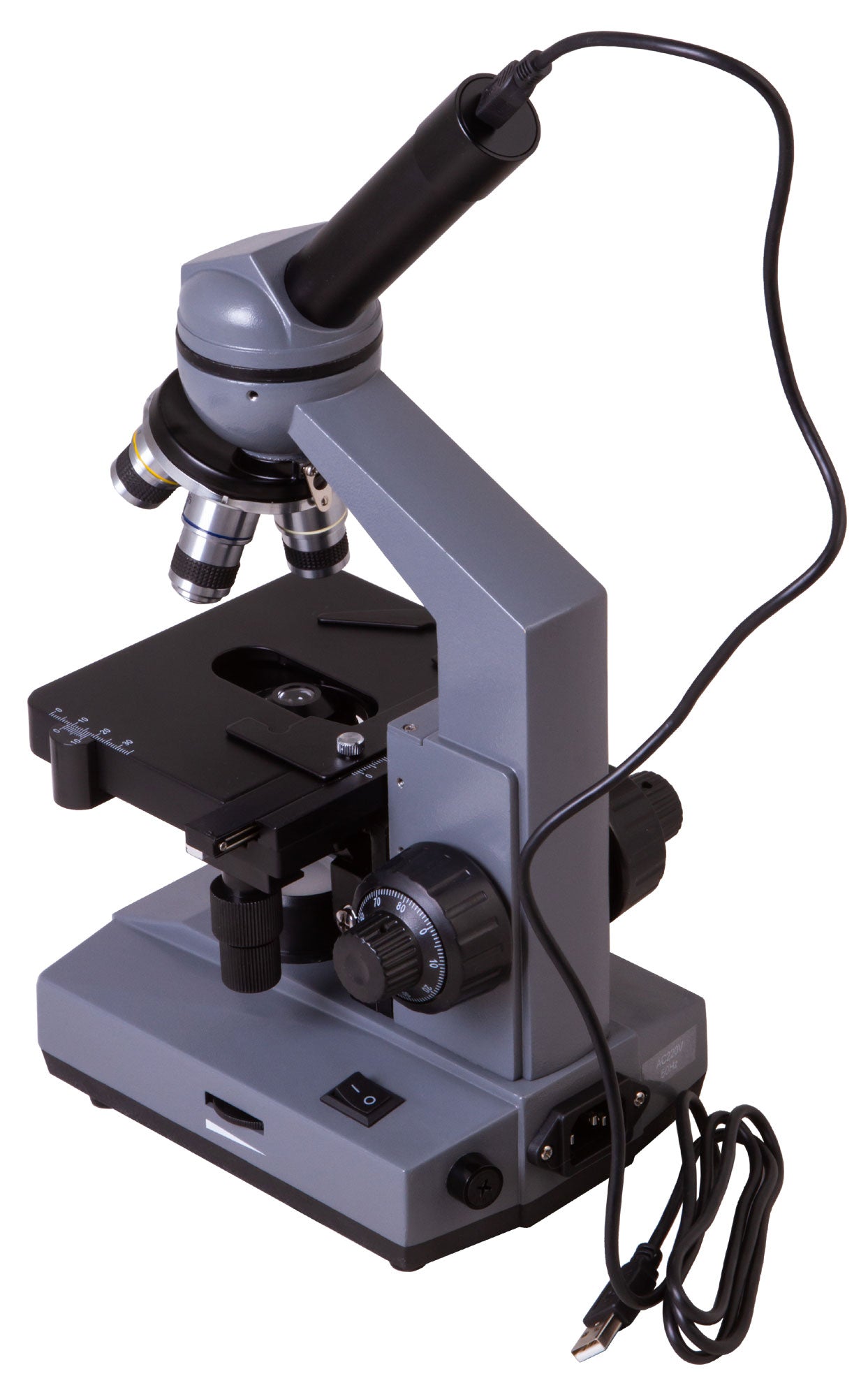

The kit includes a 3M digital camera. It allows for transmitting an image from a microscope to an external screen, e.g. a computer screen. You can make videos, take snapshots and process them with a special software program (an installation CD is included). The camera is powered by a computer with the help of a USB cable.

Laboratory microscopes for observations in the transmitted light
Rotatable monocular head, achromatic optics
Magnification range: 40–1000x
3M digital camera is included in the kit
20W halogen illumination with brightness adjustment powered by an AC supply

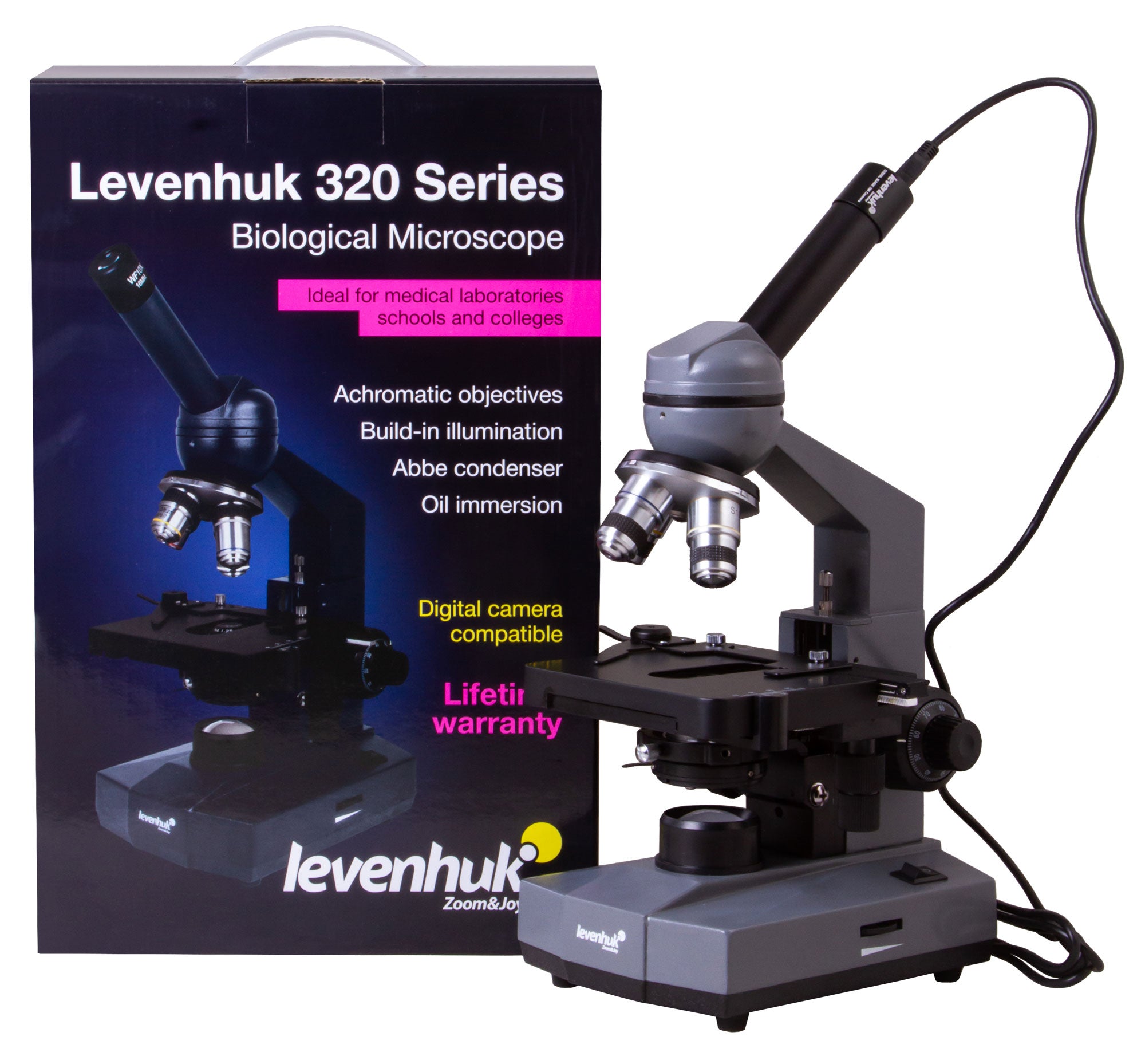

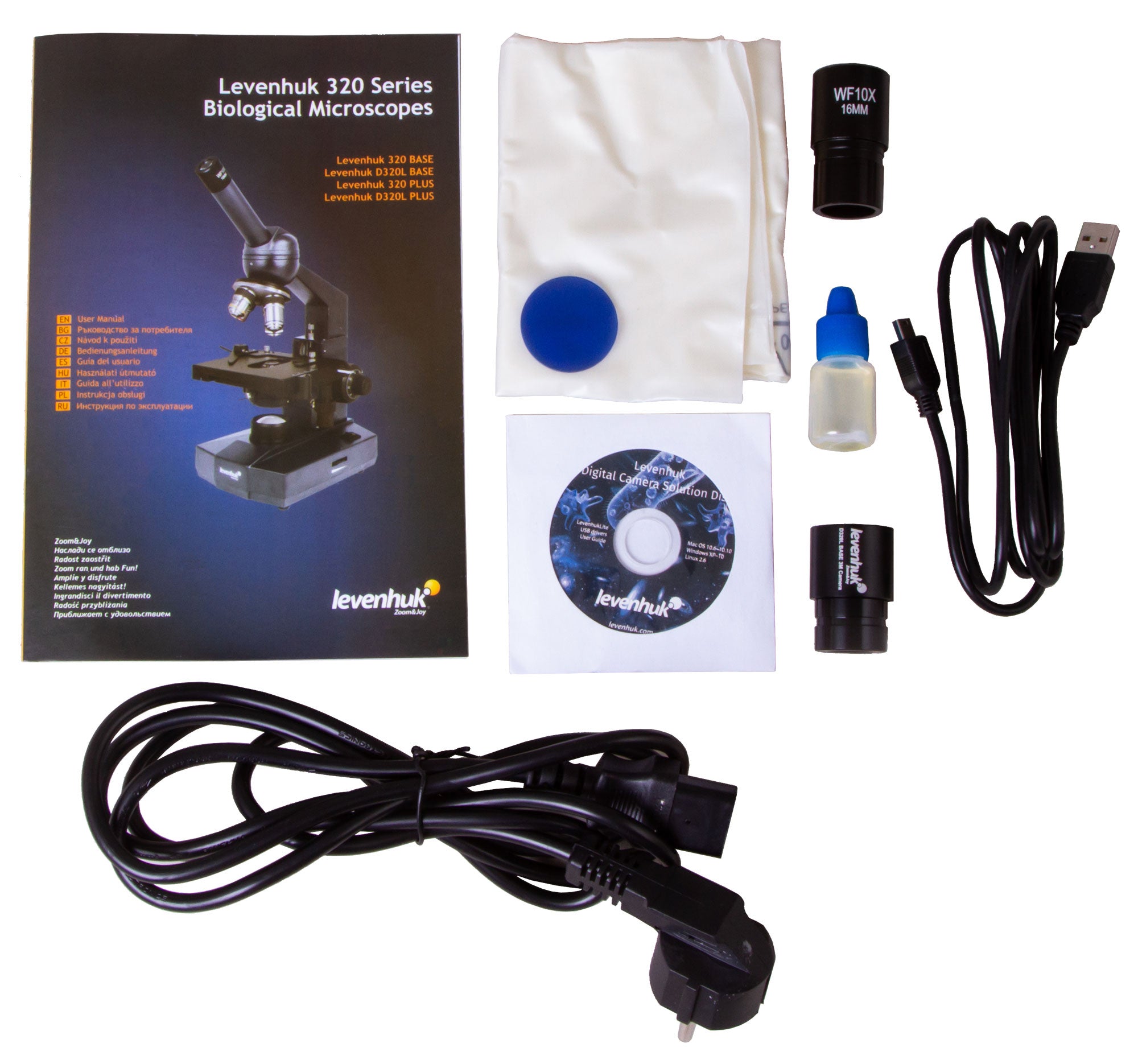

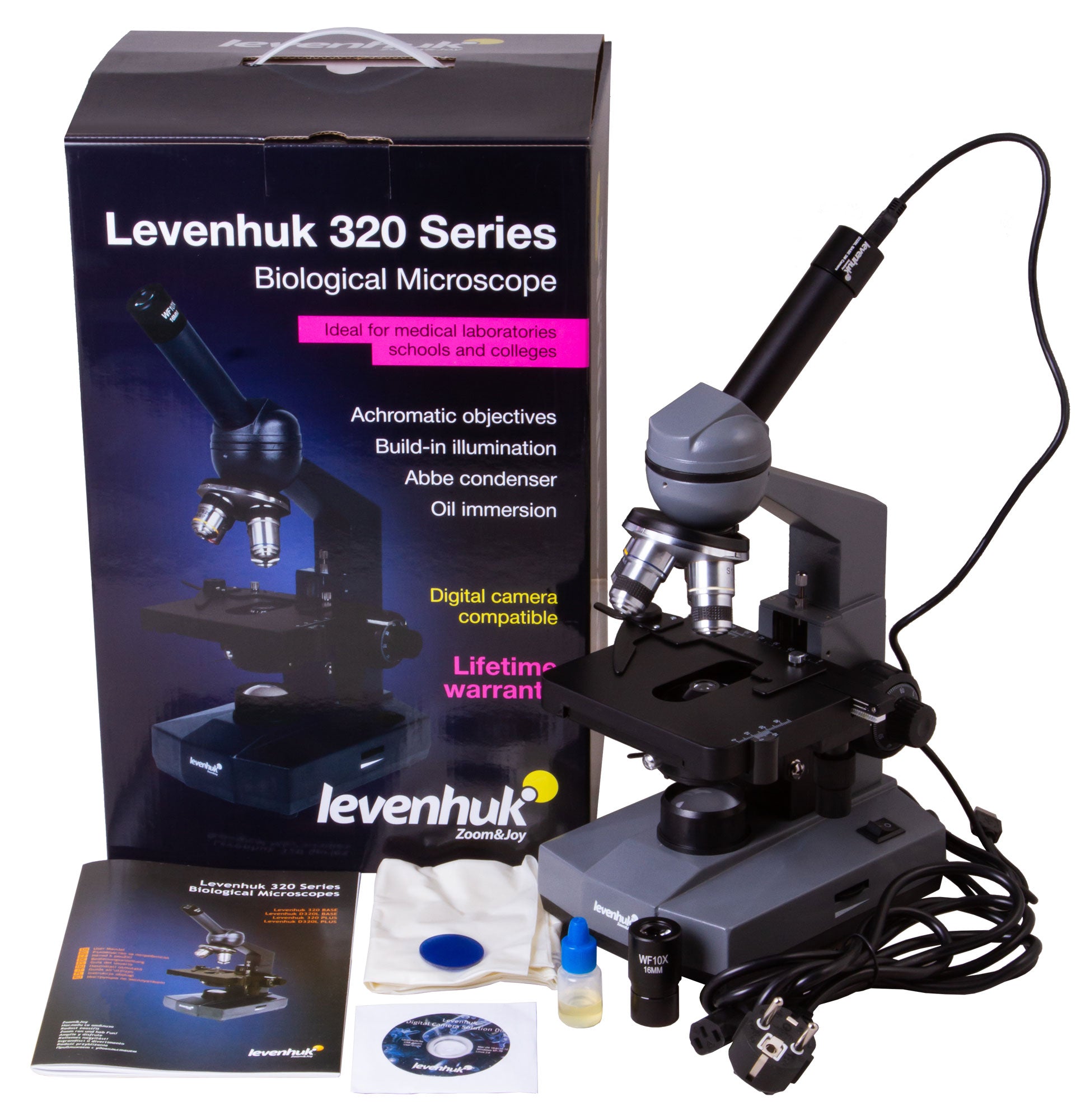

The kit includes:
Achromatic objective lenses: 4x, 10x, 40x and 100x (oil immersion)
Wide-angle WF10x eyepiece
Blue filter
Bottle of immersion oil
AC adapter
Dust cover
Digital camera
USB cable for camera
Software CD
User manual and lifetime warranty

Optics material: optical glass
Eyepiece tube diameter, mm: 23.2
Revolving nosepiece: 4 objectives

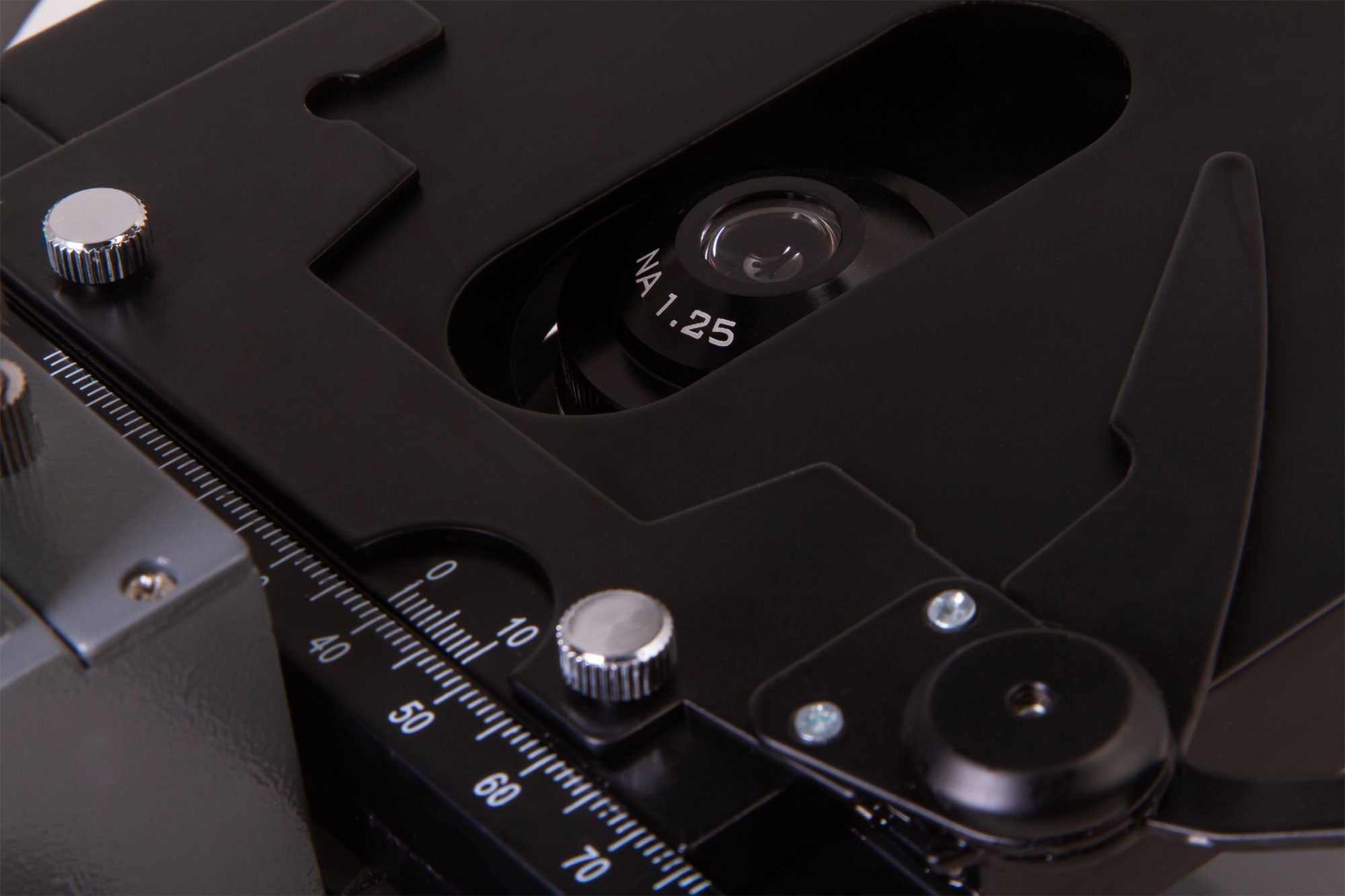

Stage, mm: mechanical two-layer, 110х125mm, with a mechanical scale
Stage moving range, using focusing mechanism, mm: 58x25
Condenser: Abbe N. A. 1.25 with an iris diaphragm
Diaphragm: iris
Focus: coaxial, coarse (20mm) and fine (0.02mm)
Body: metal
Brightness adjustment: yes
Power source: 220V/50Hz
Additionally: research method: bright field, immersion oil included
Sensor: 1/2.7"
Pixel size, µm: 2.2x2.2
Speed: 2048x1536 p at 3 fps, 1600x1200 p at 5 fps, 1280x1024 p at 7.5 fps
Usage location: ocular tube, instead of the eyepiece
Image format: *.jpg, *.bmp, *.png and others
Spectral range, nm: 380–650
Method of exposure: ERS (Electronic Rolling Shutter)
White balance: auto/manual
Exposure control: auto
Programmable options: image size, brightness
Camera slot: USB 2.0, 480 Mb/s
System requirements: Windows 7/8/10 (32 and 64 bit), compatible with Mac OS 10.12 and Linux Ubuntu 14.04, processor up to 2.8GHz Intel Core 2 or higher, 2GB RAM and higher, USB port, CD-ROM
Software language: Windows: Russian, English, French, German, Polish, Chinese, Turkish; Mac and Linux: English
Video format: output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
Maximum resolution: 2048x1536
