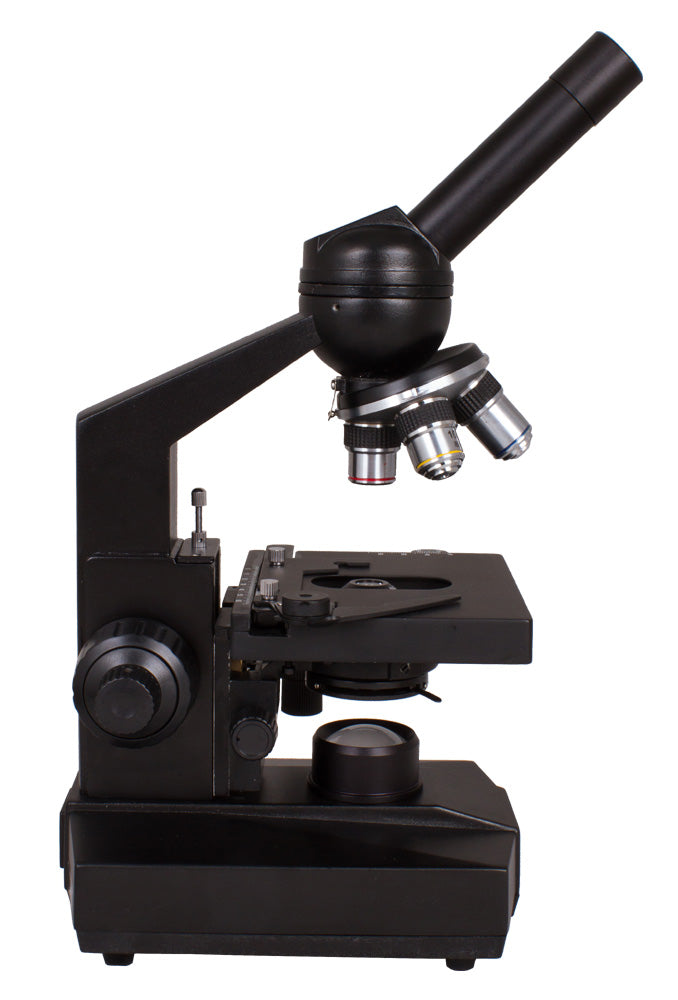

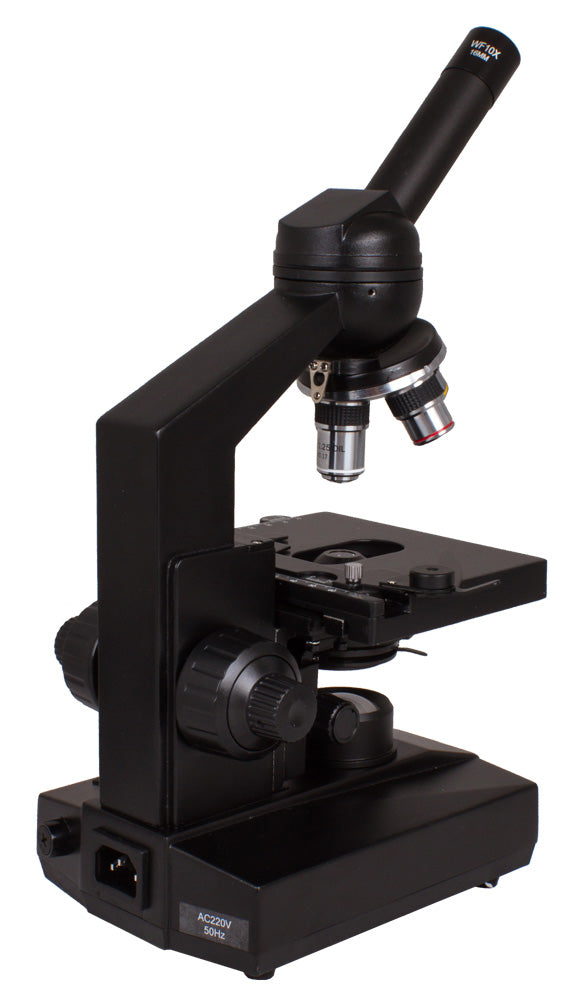

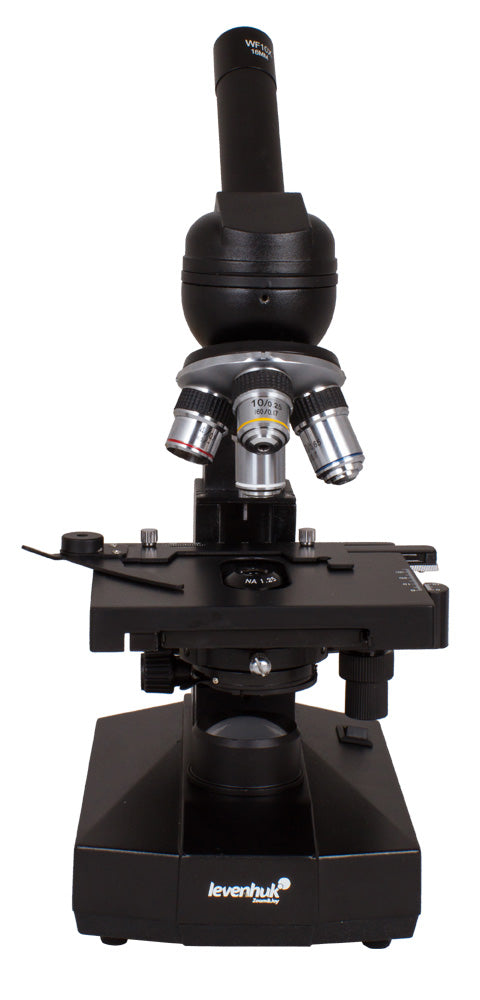

Levenhuk D320L 3.1M Digital Monocular Microscope
Levenhuk D320L 3.1M Digital Monocular Microscope
Professional digital laboratory microscope
Levenhuk D320L 3.1M Digital Monocular Microscope is a digital microscope that is ideal for biological studies and laboratory researches such as biochemical, pathologo-anatomic, hematologic, cytologic, urologic, dermatologic, biologic, and general clinical researches.

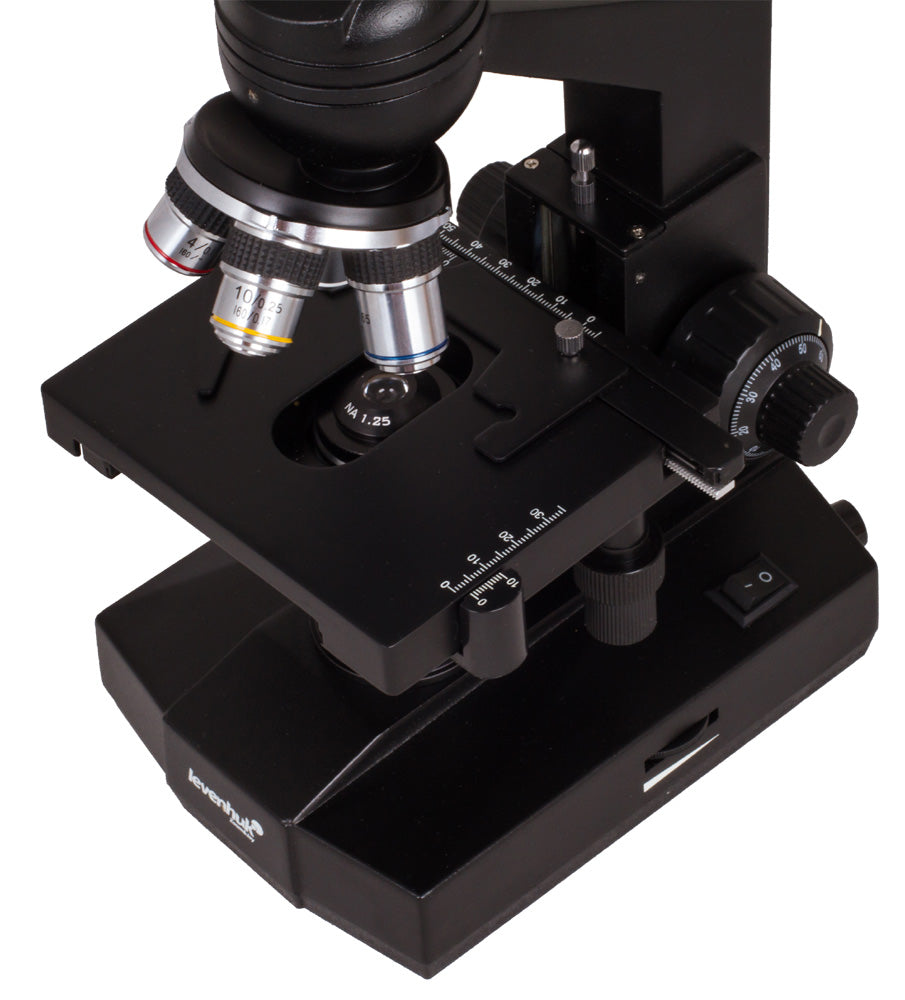

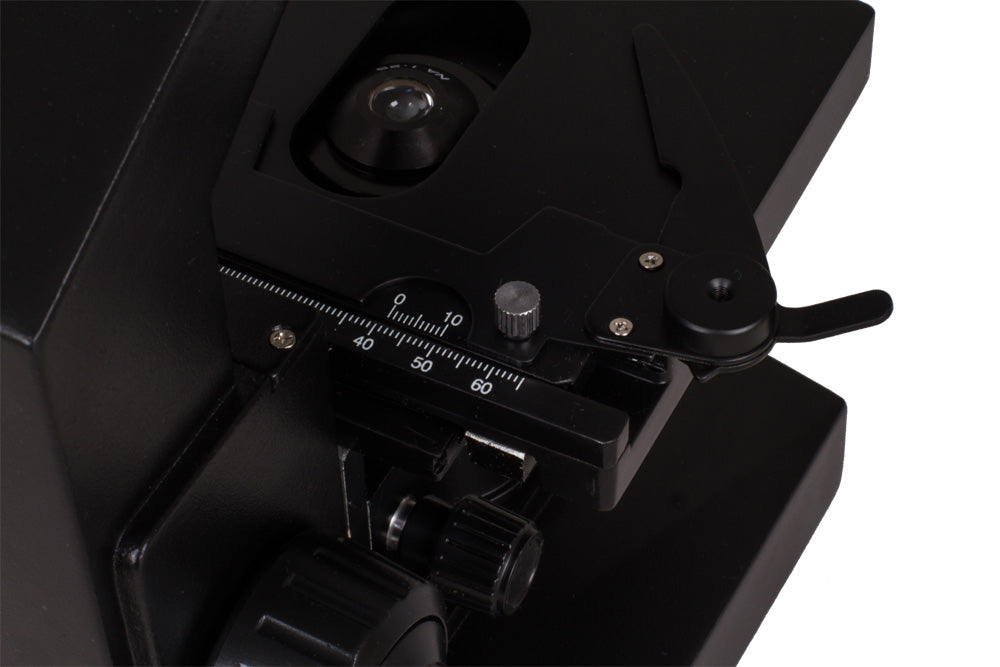

The microscope operates in bright field mode using transmitted light. It's a good choice for small labs, medical schools and colleges due to its relatively low cost. The model features immersion, Abbe condenser, four objectives and two eyepieces, adjustable brightness and sharpness, moving stage; coarse- and fine-adjustment screws.

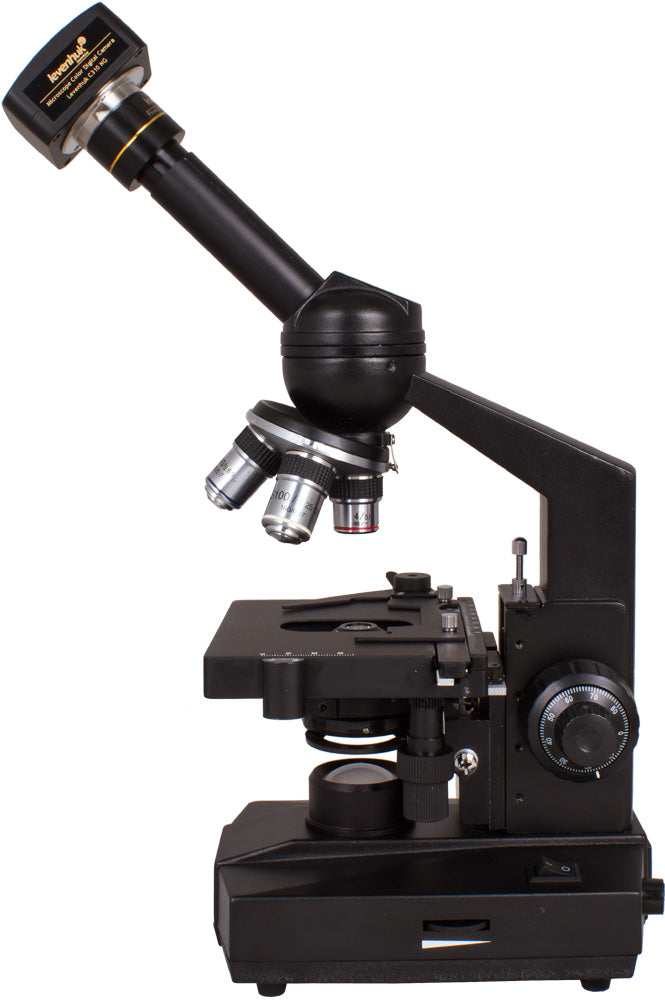

Connect a microscope with a camera to a computer and you will be able to take a picture of a certain object and then save the image and continue working on it on your PC.

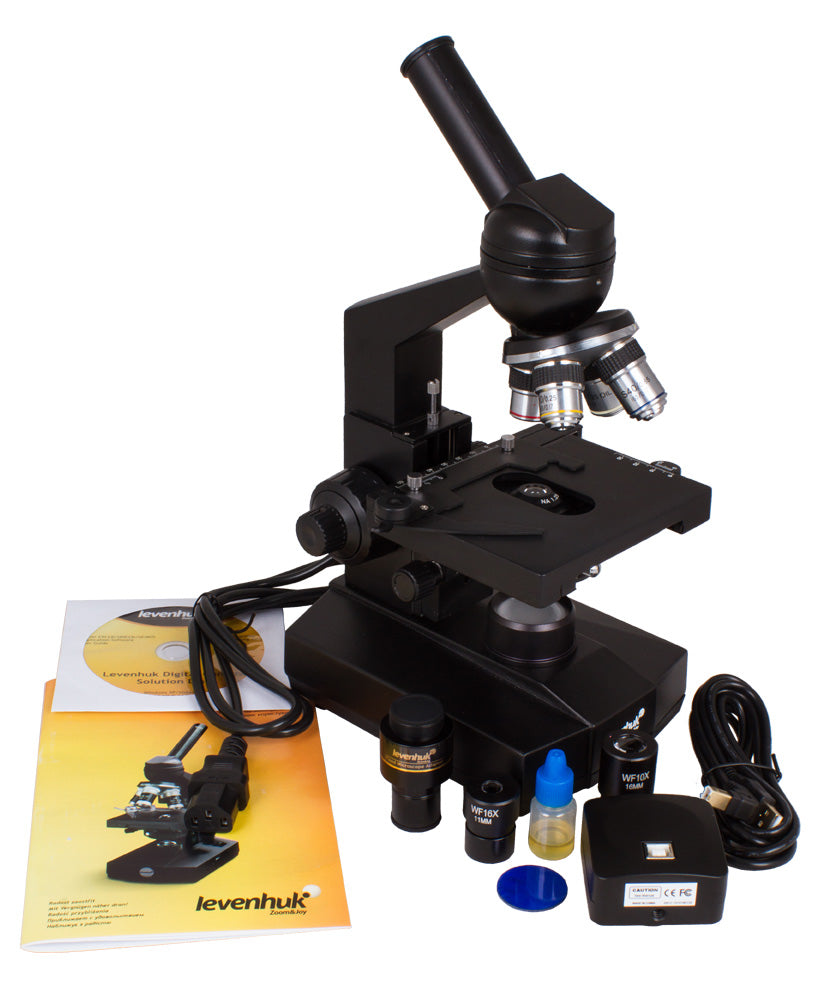

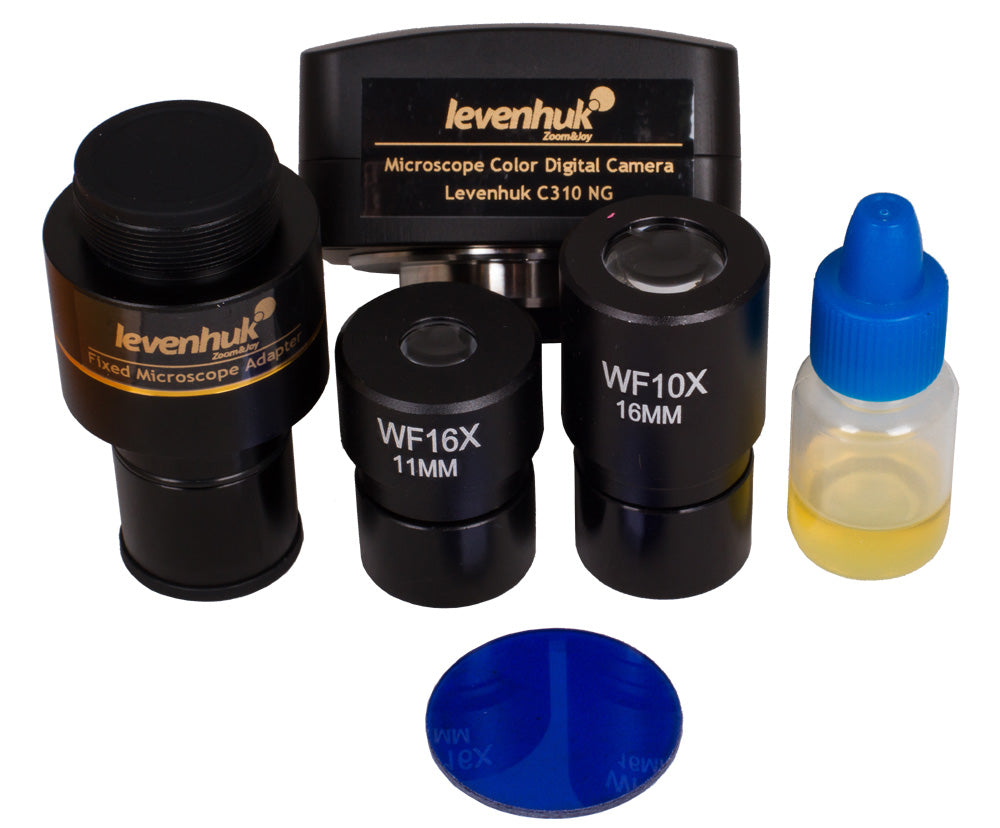

The kit includes:
- Microscope
- Levenhuk C310 Digital Camera
- 4 Objectives: 4x, 10x, 40x, 100x
- 2 Eyepieces: WF 10x, WF 16x
- 1.25 Abbe condenser
- Immersion oil
- Levenhuk software
- USB cable
- Power cable
- User manual and lifetime warranty
Specifications:
Magnification, x: 40-1600
Head: monocular

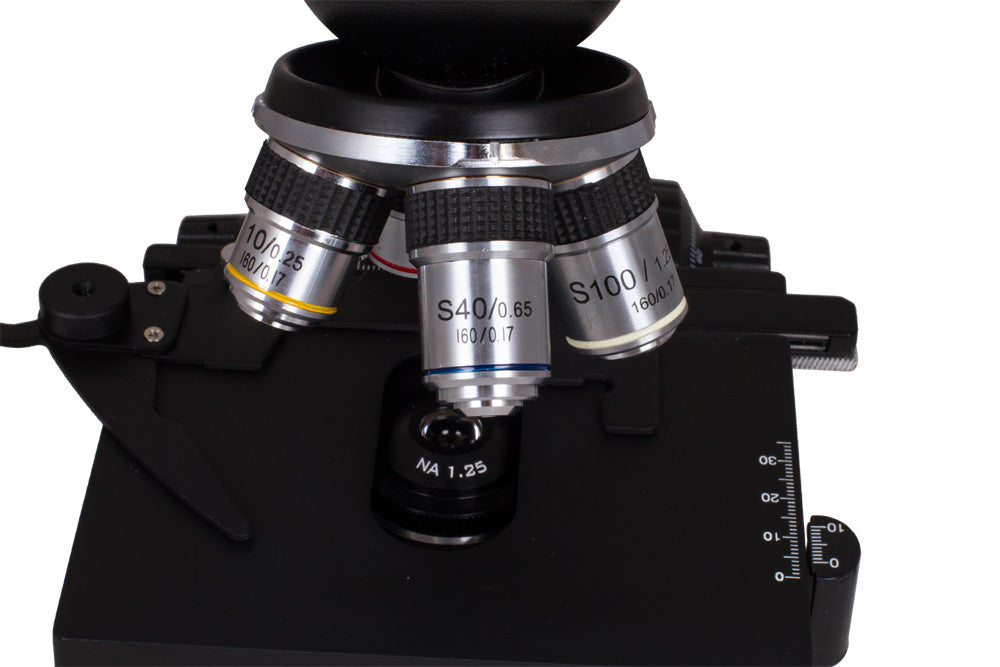

Objectives: 4x, 10x, 40x, 100x

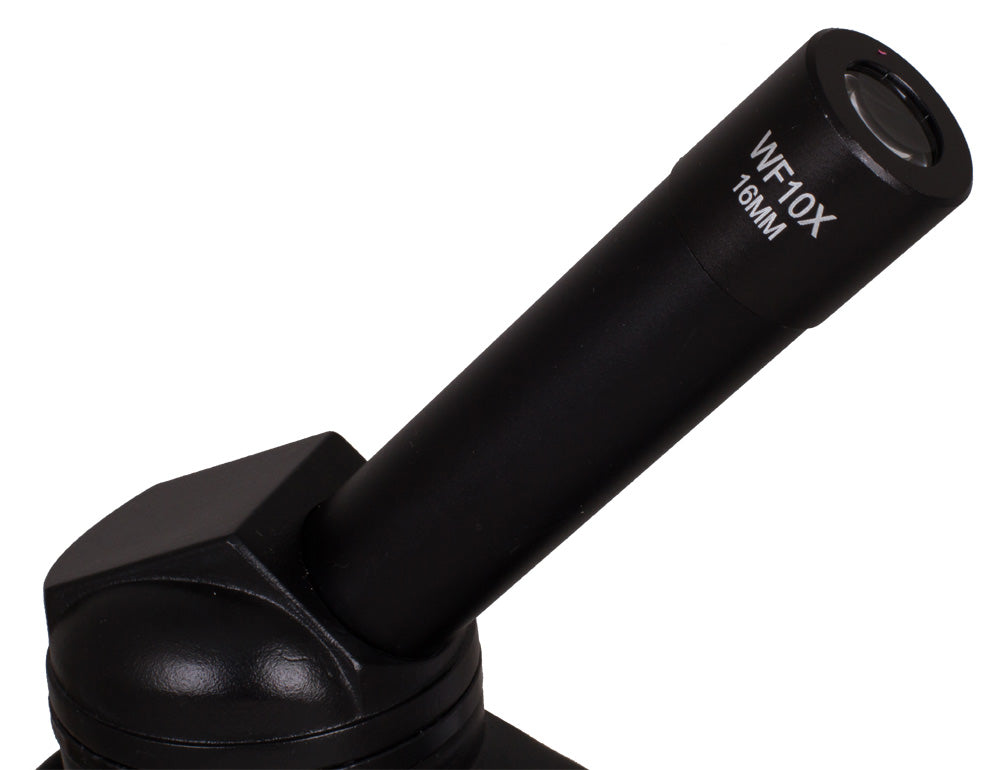

Eyepieces: WF 10x, WF 16x
Revolving nosepiece: 4 objectives
Condenser: Abbe N.A. 1.25 with iris diaphragm
Illumination: halogen lamp 20W (220V)

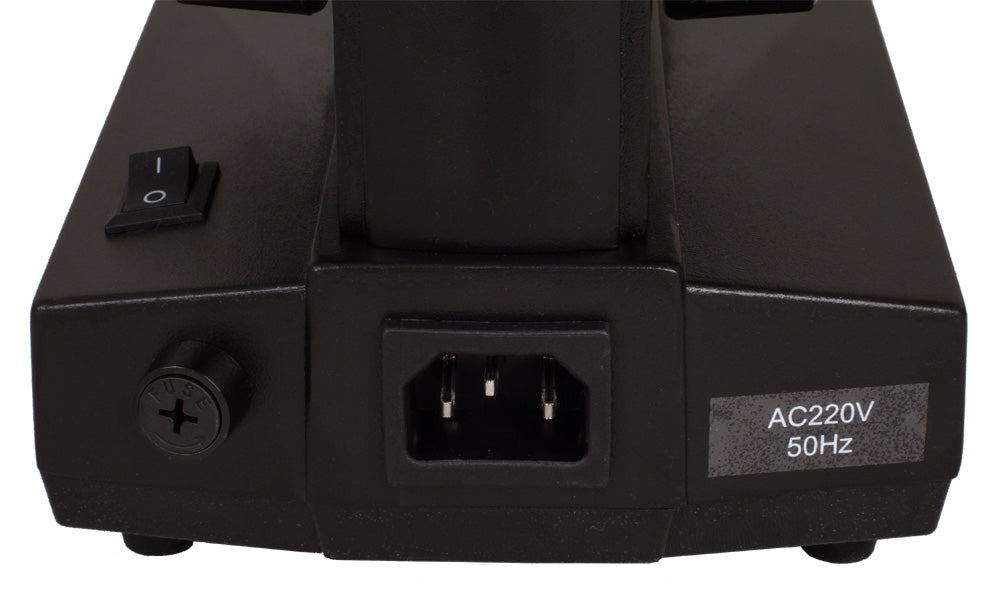

Power supply: 220V power cable

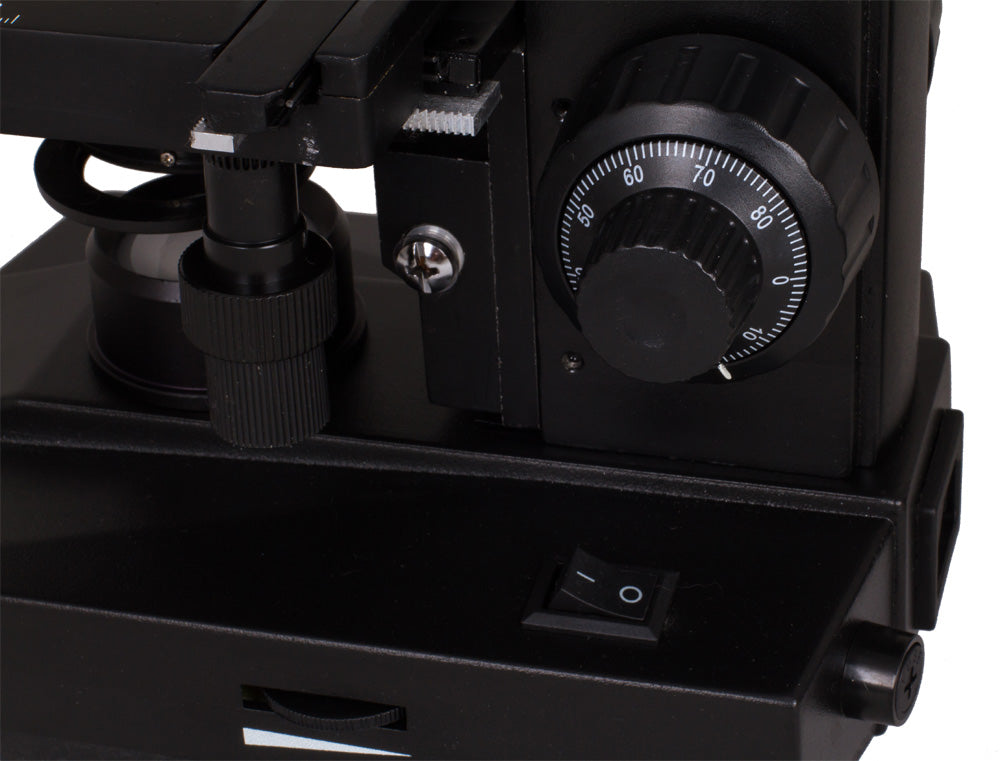

Focus: coaxial with coarse and fine adjustment
Weight, lbs: 6.6

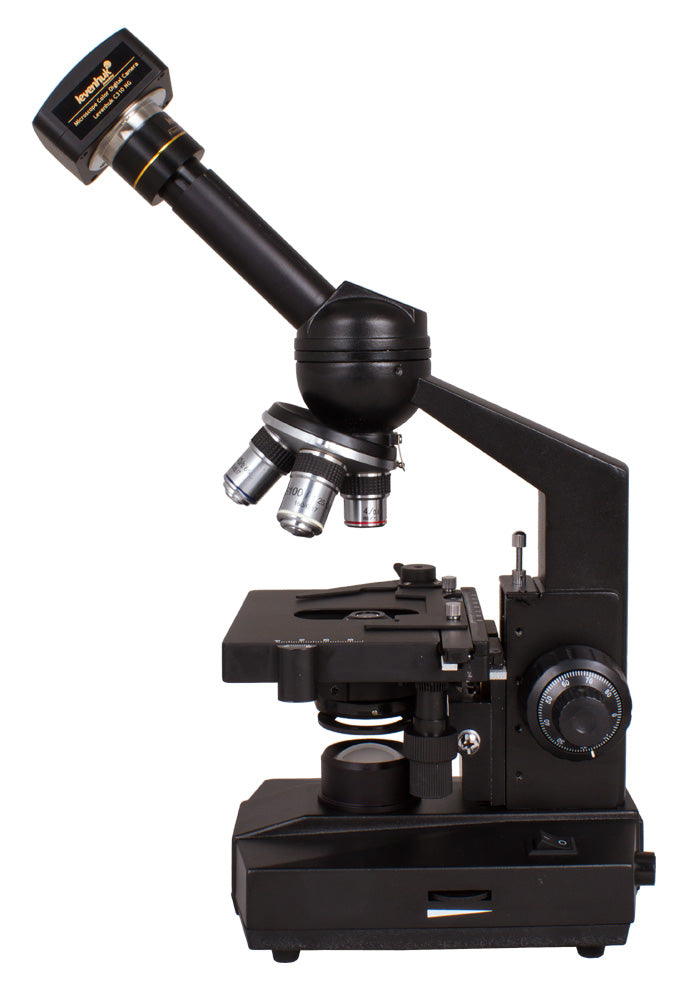

Levenhuk C310 Digital Camera:
Maximal resolution: 2048x1536
Megapixels: 3
Sensor: 1/2" CMOS
Pixel size: 3.2x2.3
Sensitivity, v/lux.sec@550 nm: 1.5
Location: ocular tube (not eyepiece)
Spectral range: 400-650 nm
Exposition: ERS
White balance: auto/manual
Exposure control: auto/manual
Slot: USB 2.0, 480 Mb/s
System requirements: Windows 2000/XP/2003/Vista/7/8/10, Mac OS, Linux 2.6*; USB port
Software: Levenhuk (Levenhuk Image Editor for Mac and Linux)
Software language: Levenhuk (Windows): EN, FR, DE, PL, RU, ZH, TR; Levenhuk Image Editor (Mac and Linux): EN
* Levenhuk Image Editor for Linux was compiled on Ubuntu 10.04 with kernel 2.6.32-50-generic-pae.
