Levenhuk Army 10x40 Binoculars with Reticle – Madeira Optics

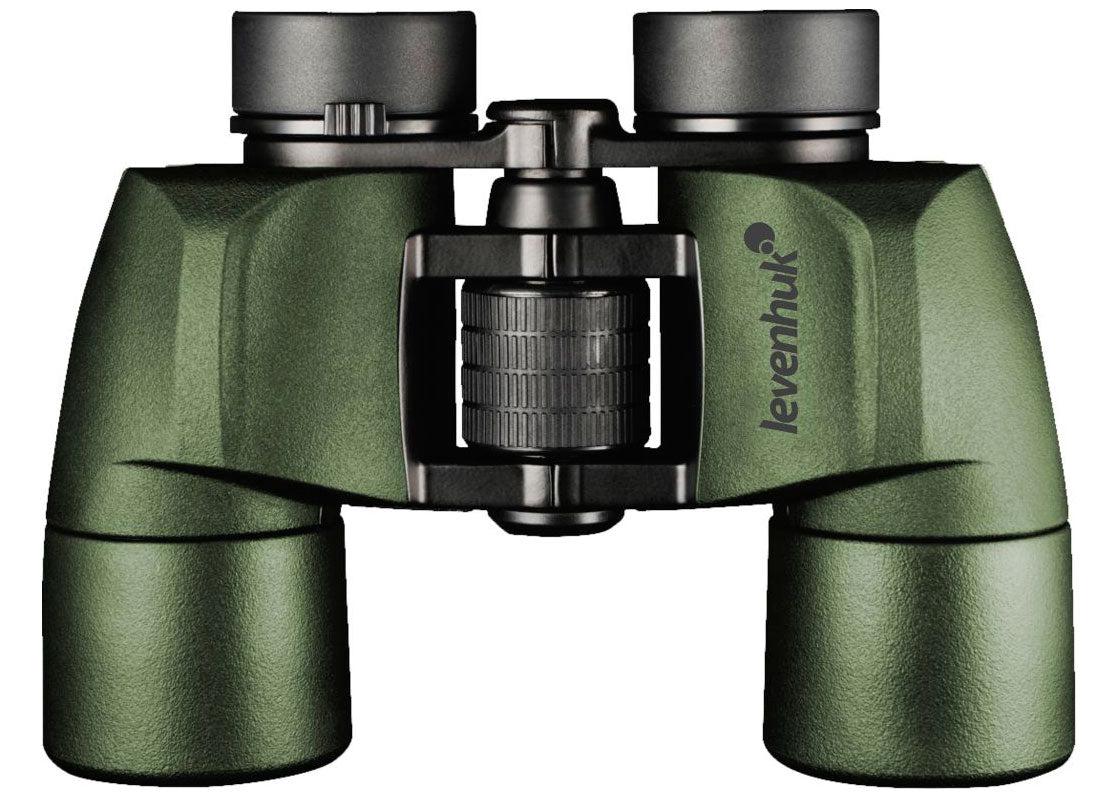

Levenhuk Army 10x40 Binoculars with Reticle

  • $174.24
    Unit price per
Tax included. Shipping calculated at checkout.

Introducing Levenhuk Army 10x40 – field binoculars with scales that are great for hunting extreme tourism tactical and security purposes and surveying. The device can be used not only to explore the area and locate distant targets at 10x magnification but also to make a number of measurements: distances and heights as well as horizontal and vertical angles. It is possible thanks to the scaled reticle and range-finding scale in one of the binoculars' eyepieces.

The optical scheme is based on Porro prisms. All optical surfaces are multi-coated with a special compound that enhances the brightness contrast and image clarity. You can focus on the target using a large convenient central focusing wheel. The short close focus limit allows you to see objects on the horizon as well as those just a few steps away equally well. The eyecups whose position can be adjusted and the diopter adjustment ring help you adjust the optics to your eyes.

A durable metal body of the Levenhuk Army 10x40 is waterproof and the optical channels are nitrogen-filled to prevent the lenses from fogging up. There is a 1/4' tripod mount.

Key features:

  • Porro prism optics made of fully coated BaK-4 glass

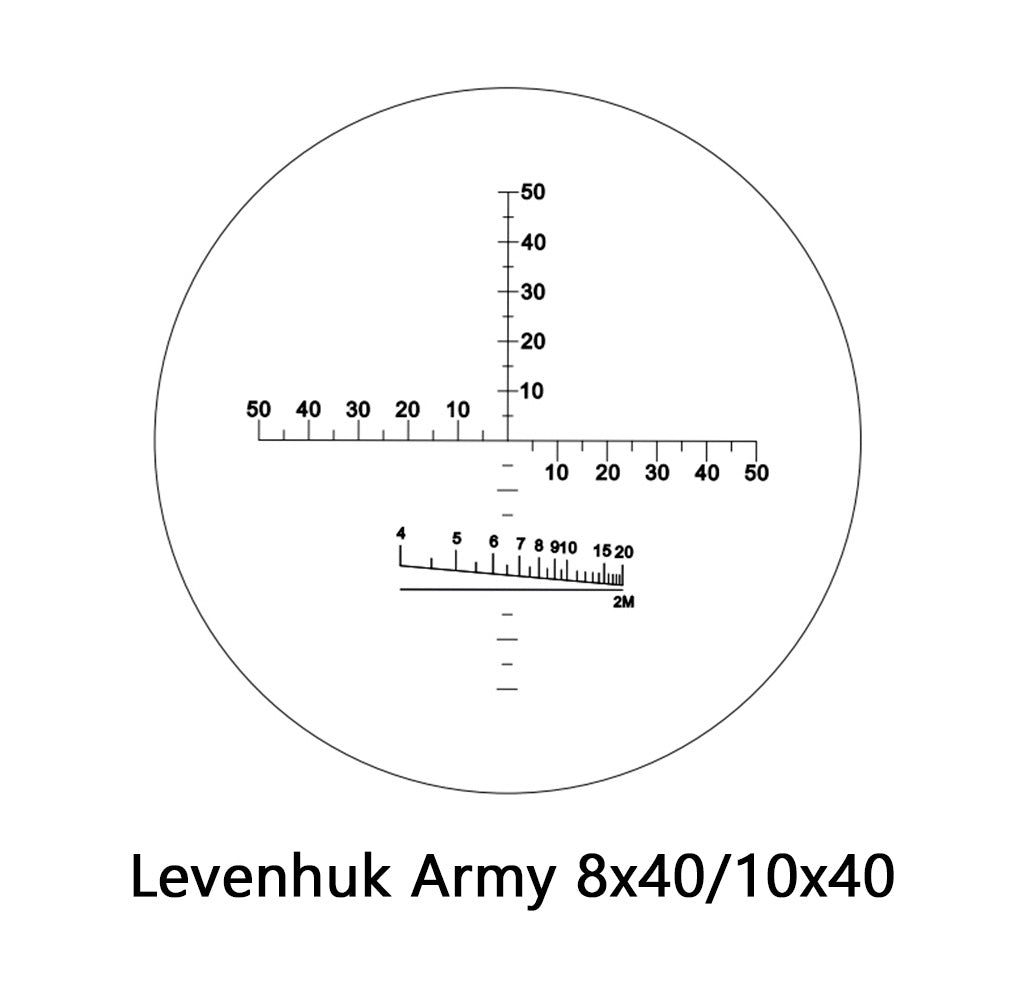

  • Scales in the eyepiece to calculate distance elevation and angles
  • Diopter correction and central focusing at a distance of 4 meters (13ft)
  • Nitrogen-filled aluminum alloy body can withstand water immersion
  • Rubberized surface comfortable handheld observation and tripod mounting

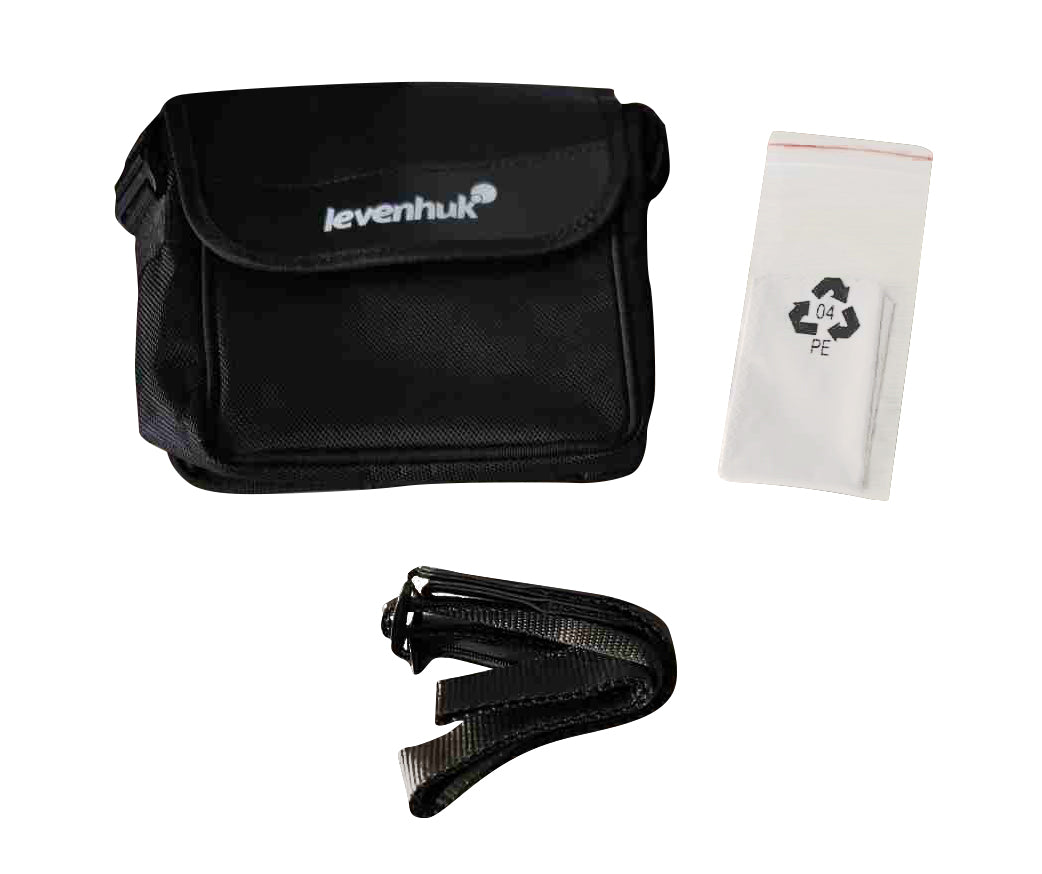

The kit includes:

  • Binoculars
  • Strap
  • Pouch
  • Eyepiece and objective lens protective caps
  • Cleaning wipe
  • User manual and warranty card
Brand Levenhuk Inc. USA
Warranty years lifetime
EAN 5905555000268
Package size (LxWxH) cm 20x17x8
Shipping Weight kg 1.1
Prism type Porro
Magnification x 10
Objective lens diameter (aperture) mm 40
Optics material BaK-4
Lens coating fully multi-coated
Exit pupil diameter mm 4
Eye relief mm 18
Twilight factor 20
Relative brightness 16
Field of view ° 6.3
Field of view m/1000 m 110
Close focus m 4
Eyepiece diopter adjustment diopters ±4
Interpupillary distance mm 56 — 73
Focusing central
Eyecups twist-up
Body aluminum
Body filling nitrogen
Moisture resistance yes
Degree of moisture/water protection IP67 dustproof protection against short-term water immersion
Operating temperature range °C -10 — 50
Adaptable to a tripod standard 1/4' thread; mounted with an adapter (no adapter included)
Measuring scale yes
Size compact
Application military/field hunting and fishing
Additional rubberized body a scaled reticle and range-finding scale
Mounting on a tripod yes
Pouch/case/bag in set pouch
