Levenhuk 950T DARK Trinocular Microscope

  • $707.36
    Unit price per
Tax included. Shipping calculated at checkout.

Levenhuk 950T DARK Trinocular Microscope
Magnification: 40–1000x. Trinocular head, achromatic objectives, LED light with a collector, bright field and dark field condensers

The Levenhuk 950T DARK Microscope is designed for bright field and dark field observations. Due to this, the scope of its application is much wider than that of a standard laboratory microscope, since dark-field studies allow for live blood analysis and studying transparent samples that are poorly discernible during ordinary observations. This model is an excellent addition to the range of optical devices in a medical clinic, research center, or a veterinary office.

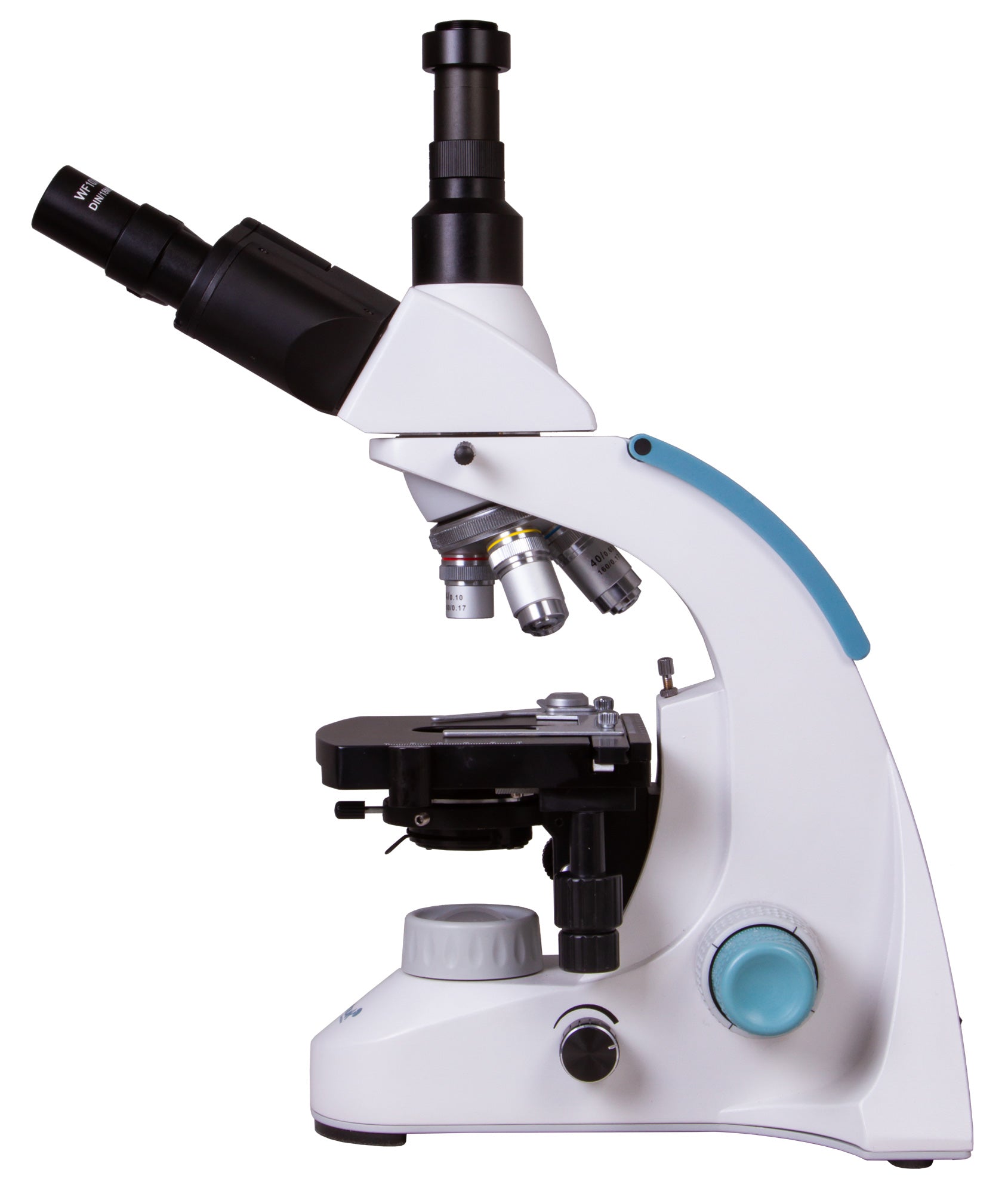

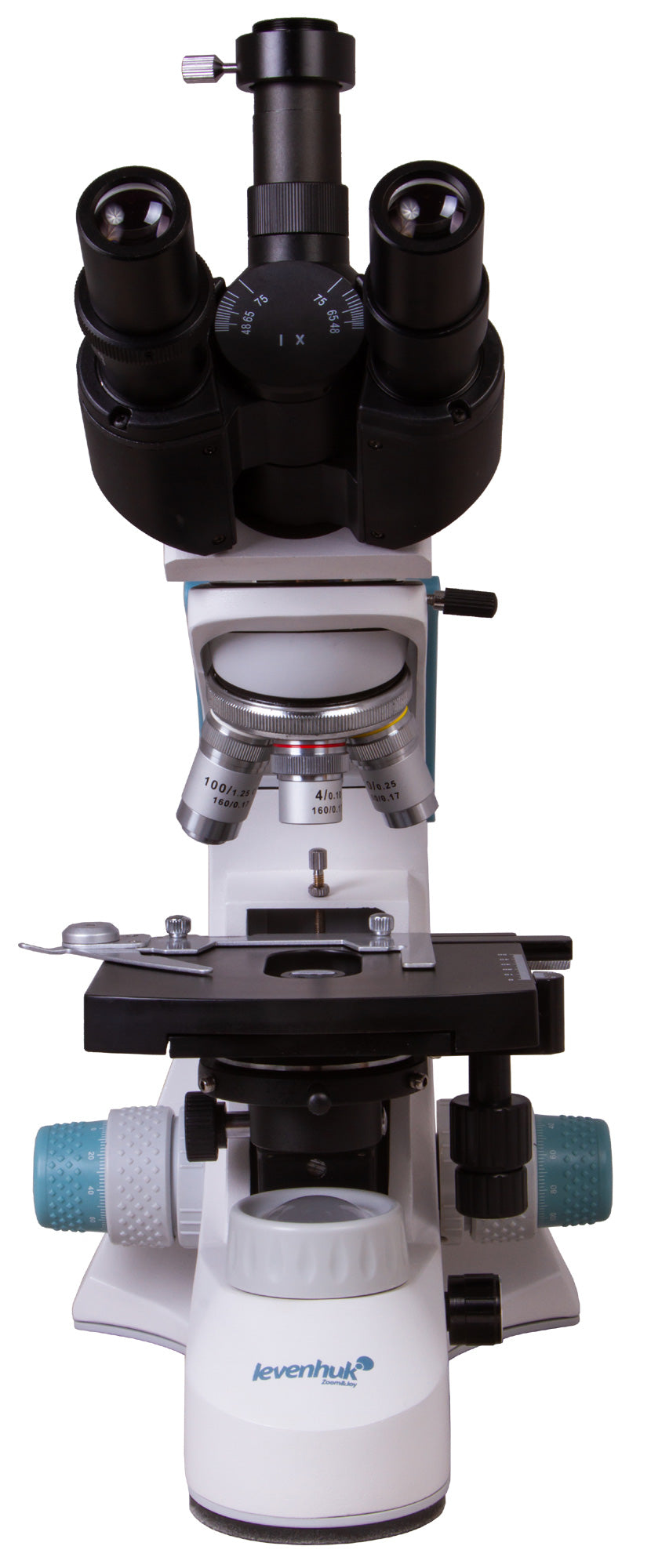

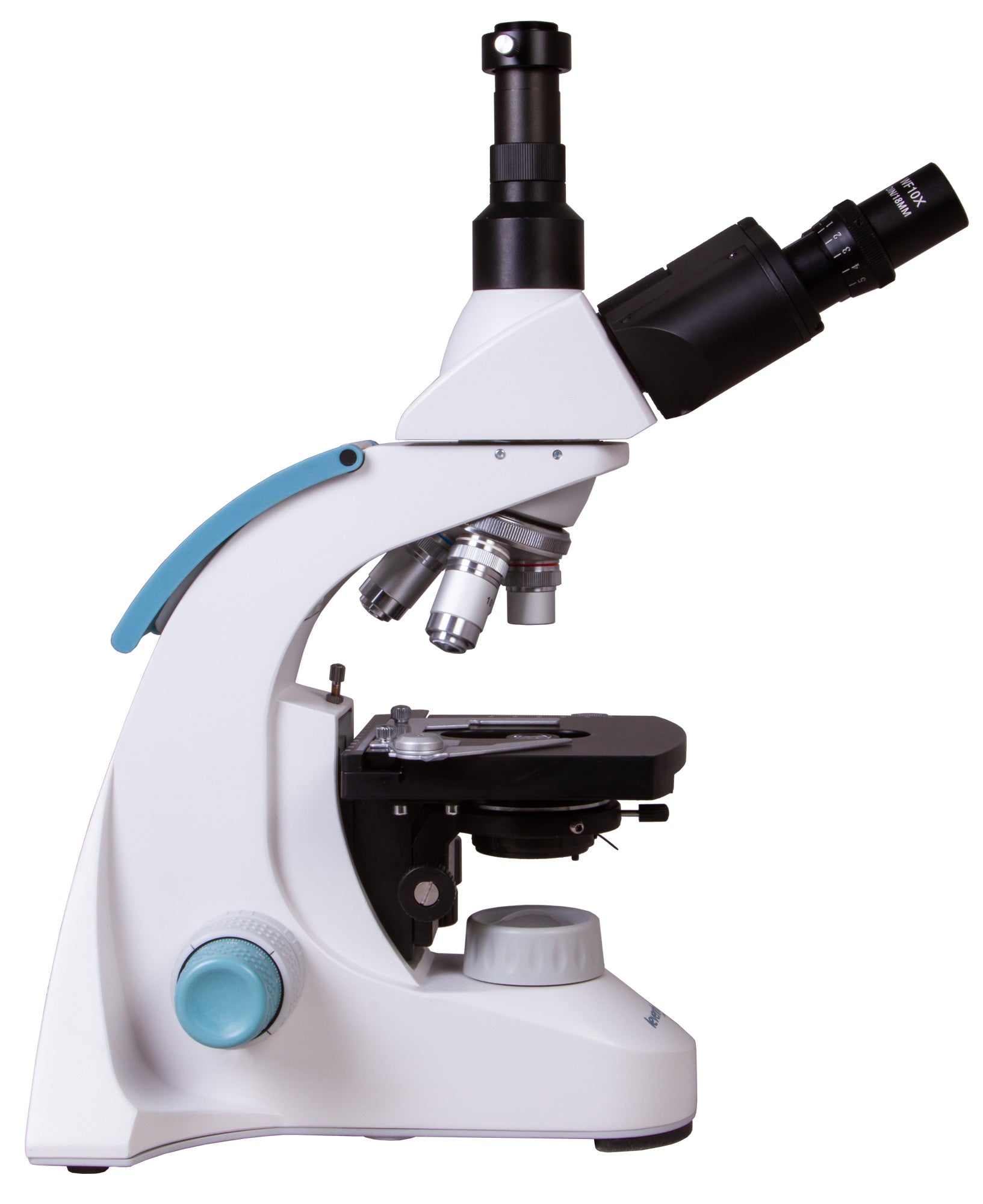

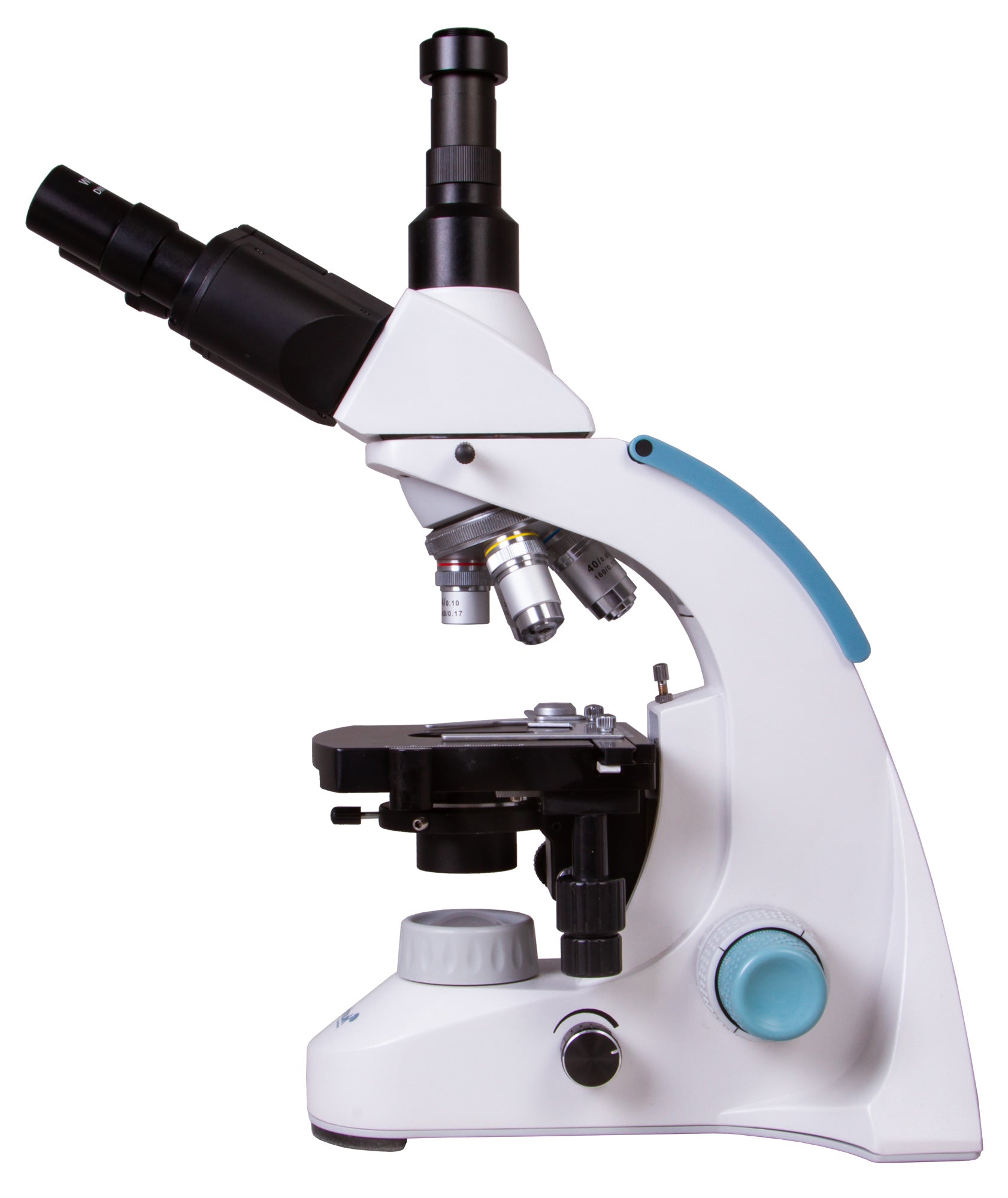

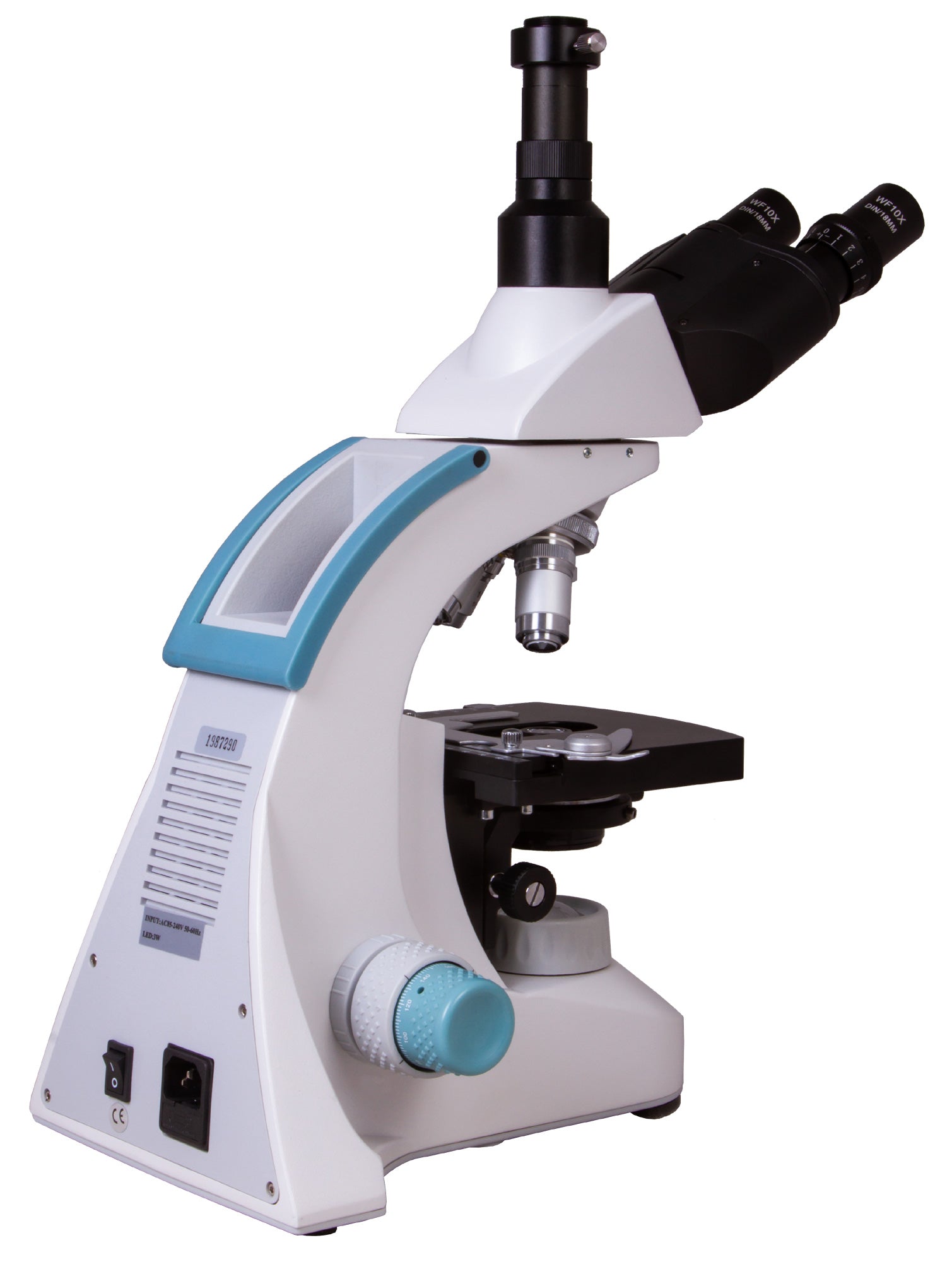

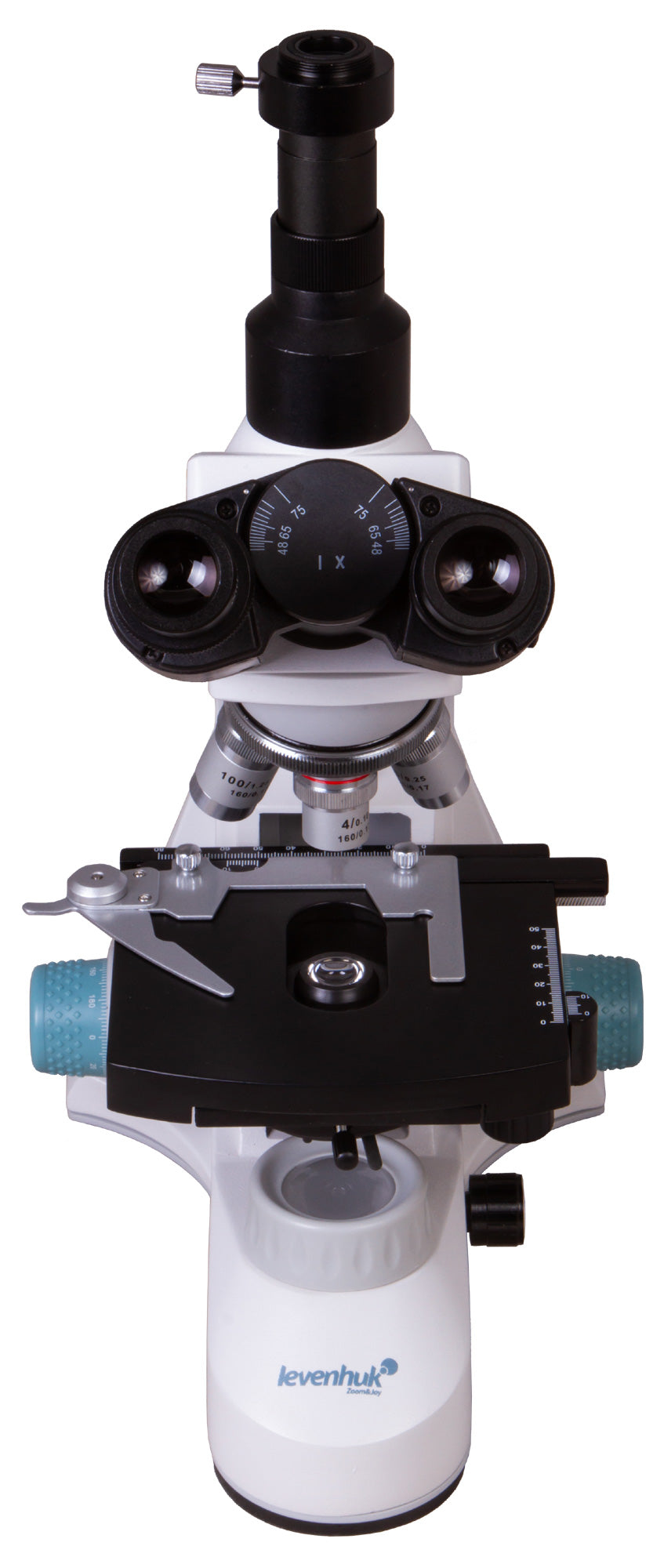

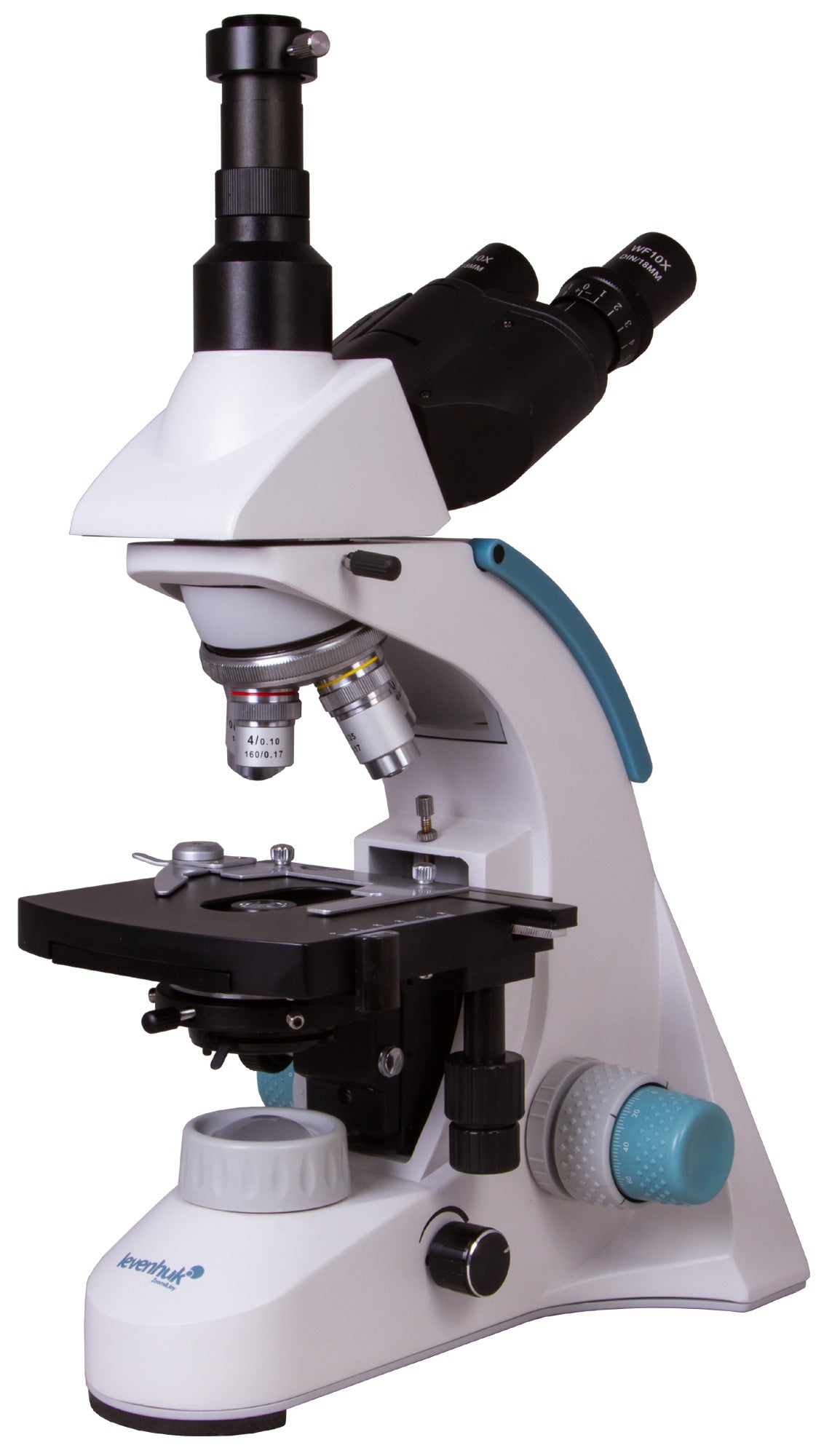

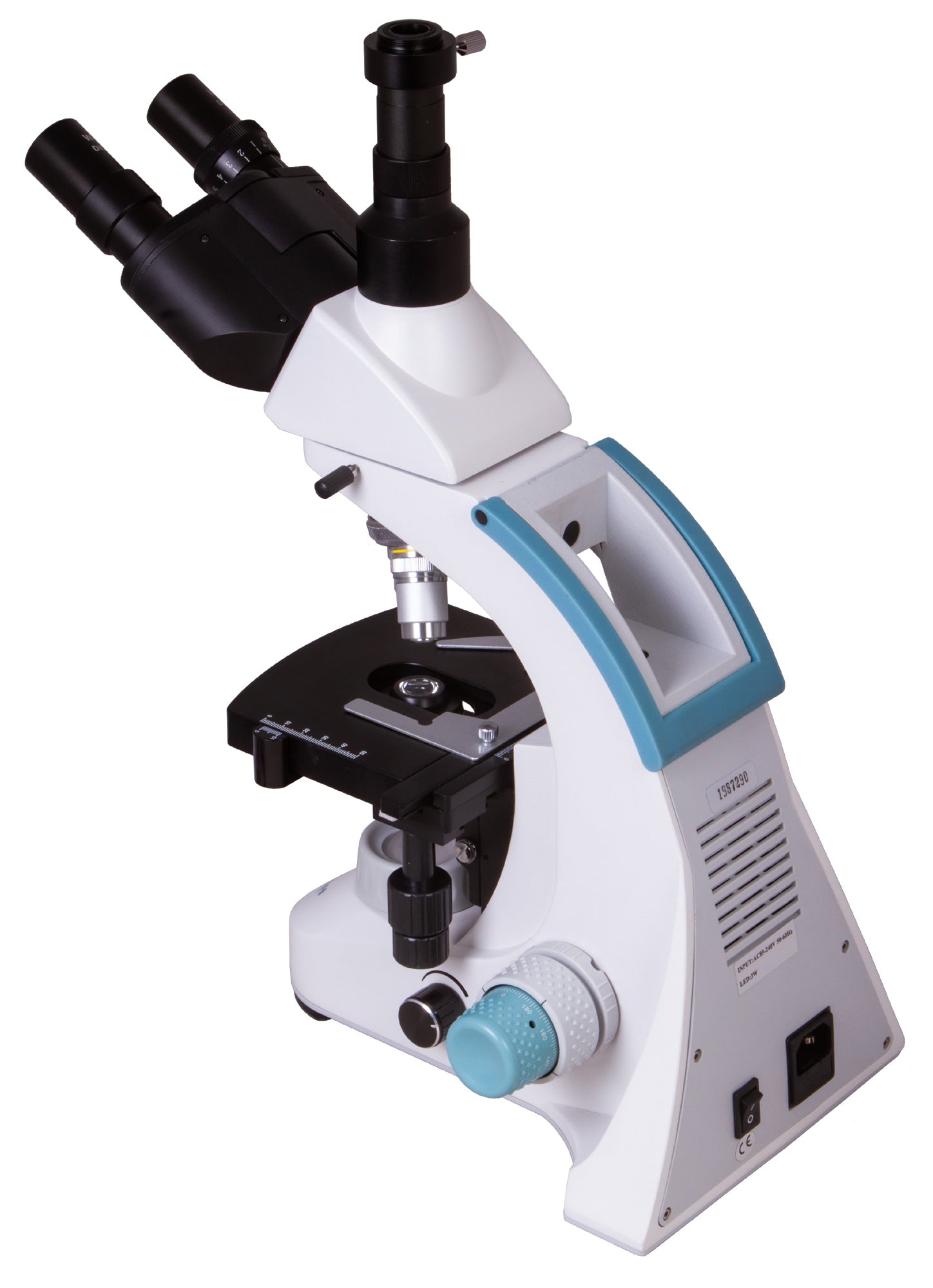

A rotating trinocular head is installed in the microscope. A digital camera (purchased separately) can be installed in a vertical tube. A digital camera is used for transmitting an image to an external screen and taking pictures of the samples. The visual node is slightly inclined, which makes extended observations more comfortable. The wide-field eyepieces provide a good view, and achromatic objectives create a clear and contrast image throughout the field of view. Overall microscope magnification varies in a range from 40x to 1000x. The 40x and 100x objectives are equipped with protective spring-loaded frames.

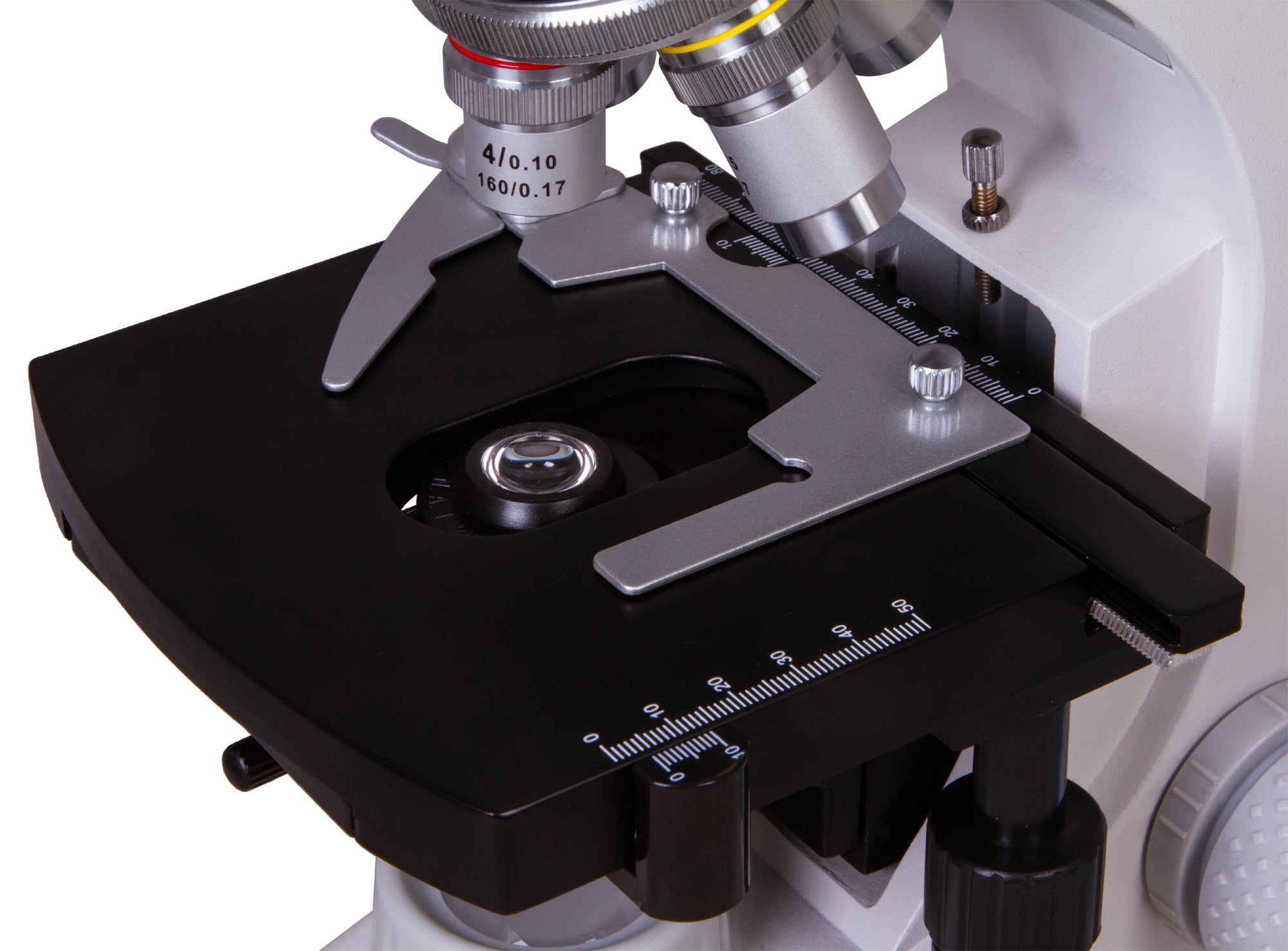

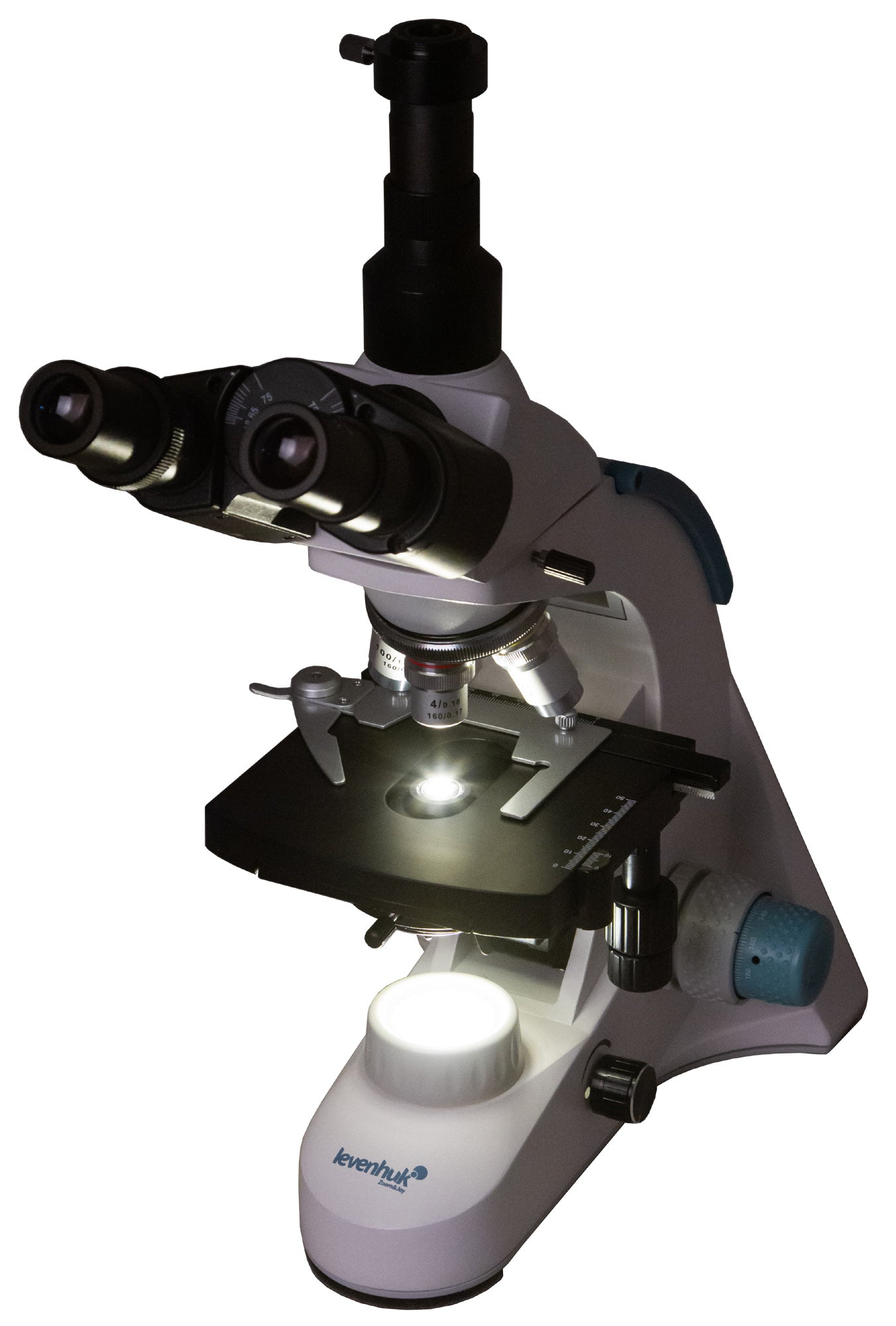

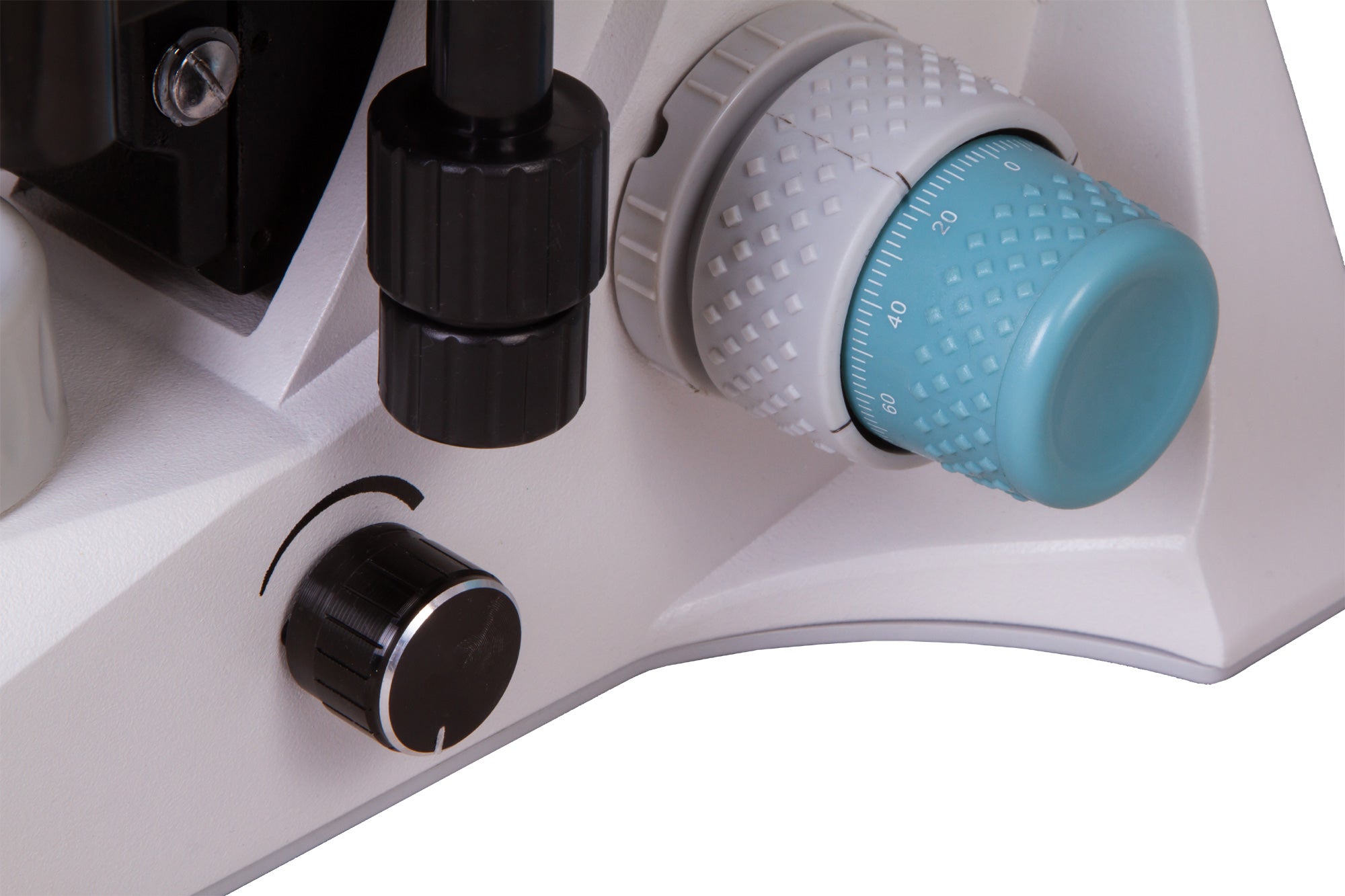

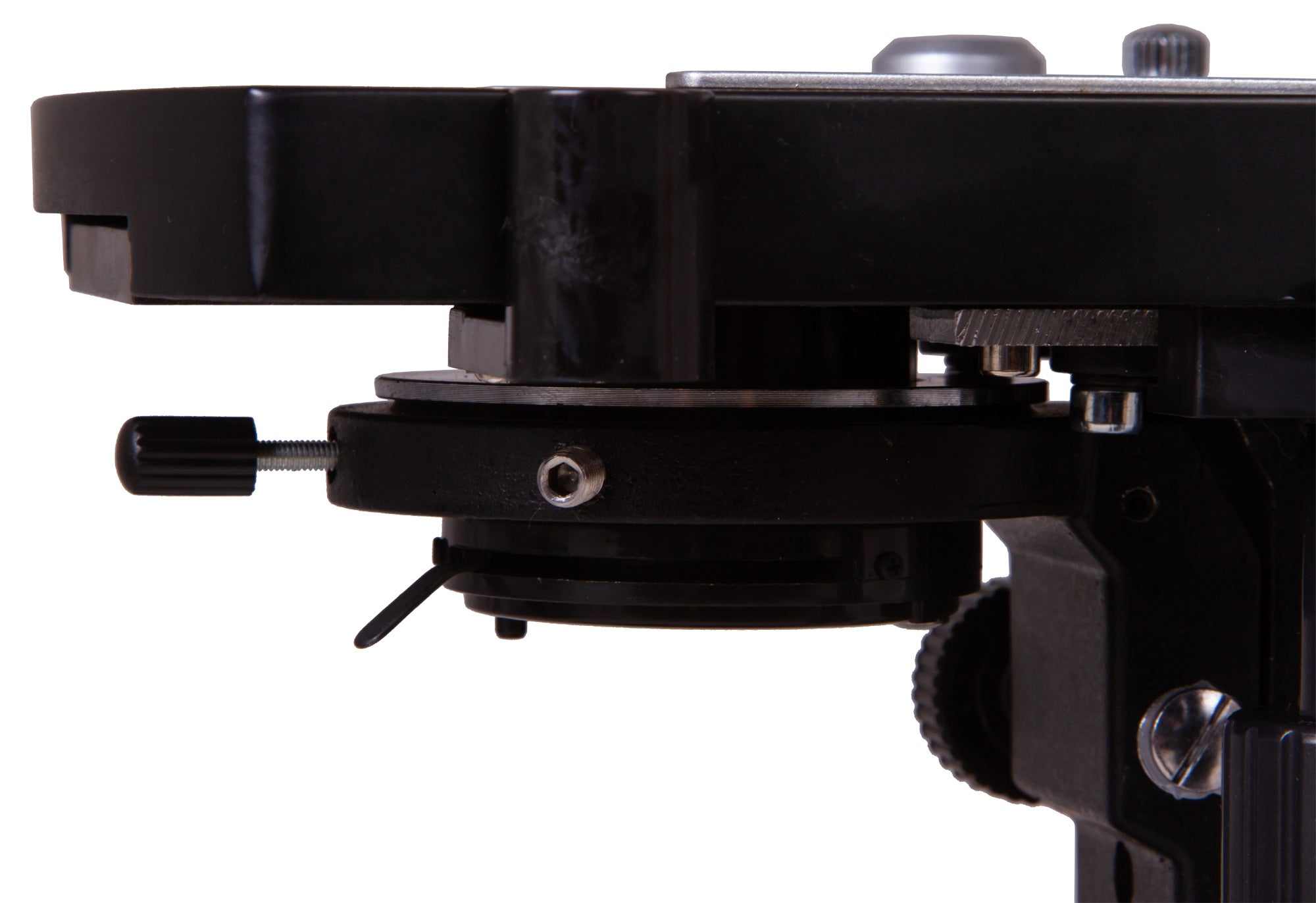

The stage has a mechanical scale. Next to the stage, there are the coarse and fine focusing knobs. Under the table, there is a place for installing a condenser. The microscope is equipped with two condensers: a bright field Abbe with an iris diaphragm (for dry and oil observations) and a dry dark field condenser. The lighting is located at the bottom, the lighting source is a powerful LED light with adjustable brightness. There is a collector.

The lighting is powered by an AC power supply.

Laboratory microscope with a magnification range from 40x to 1000x
Achromatic objectives, wide-field eyepieces
3W lower LED lighting
Brightness adjustment; AC power supply
Bright field and dark field condensers are included

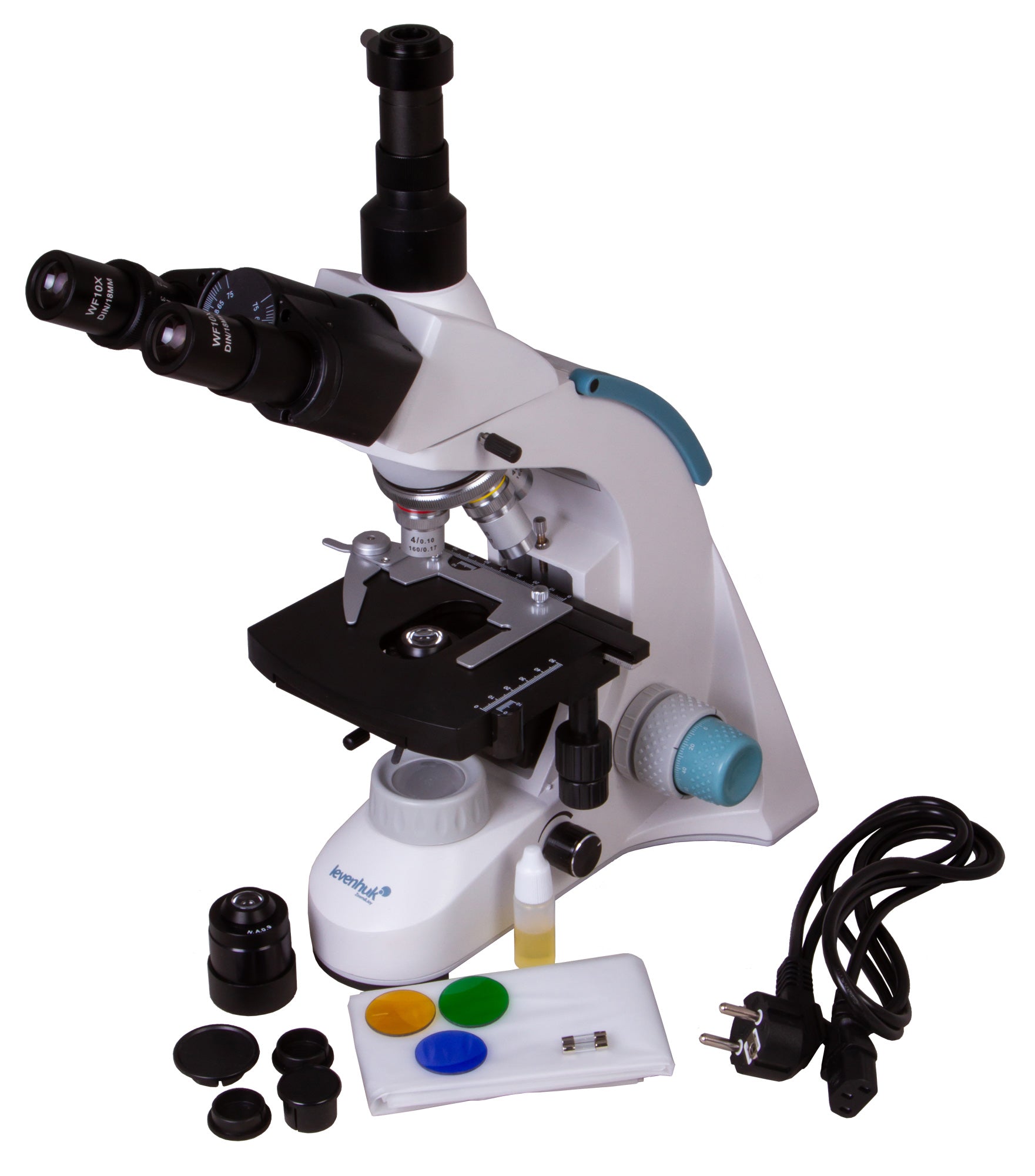

The kit includes:
4x, 10x, 40xs, 100xs (oil) achromatic objectives

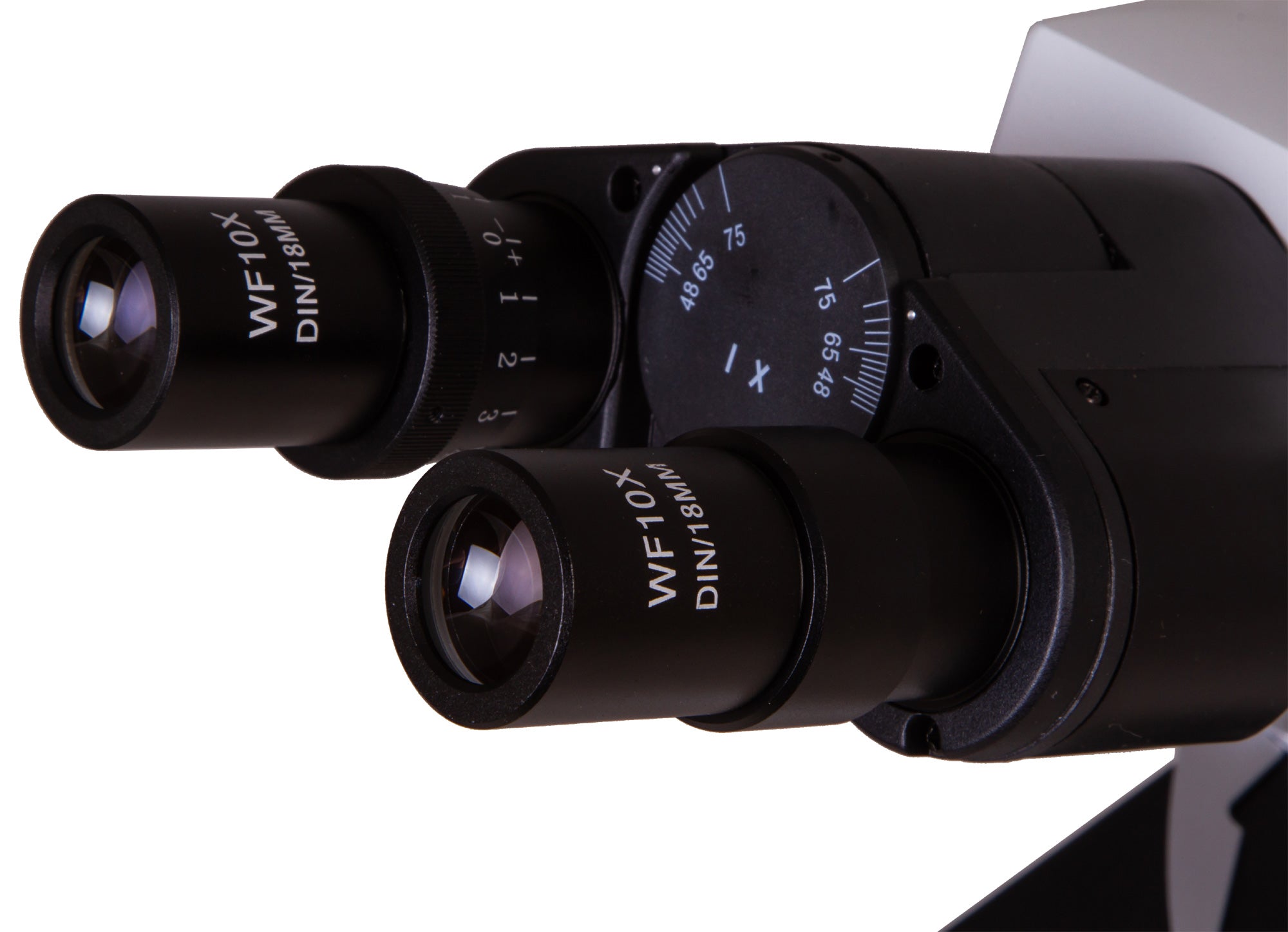

WF10x/18mm eyepieces (2 pcs)

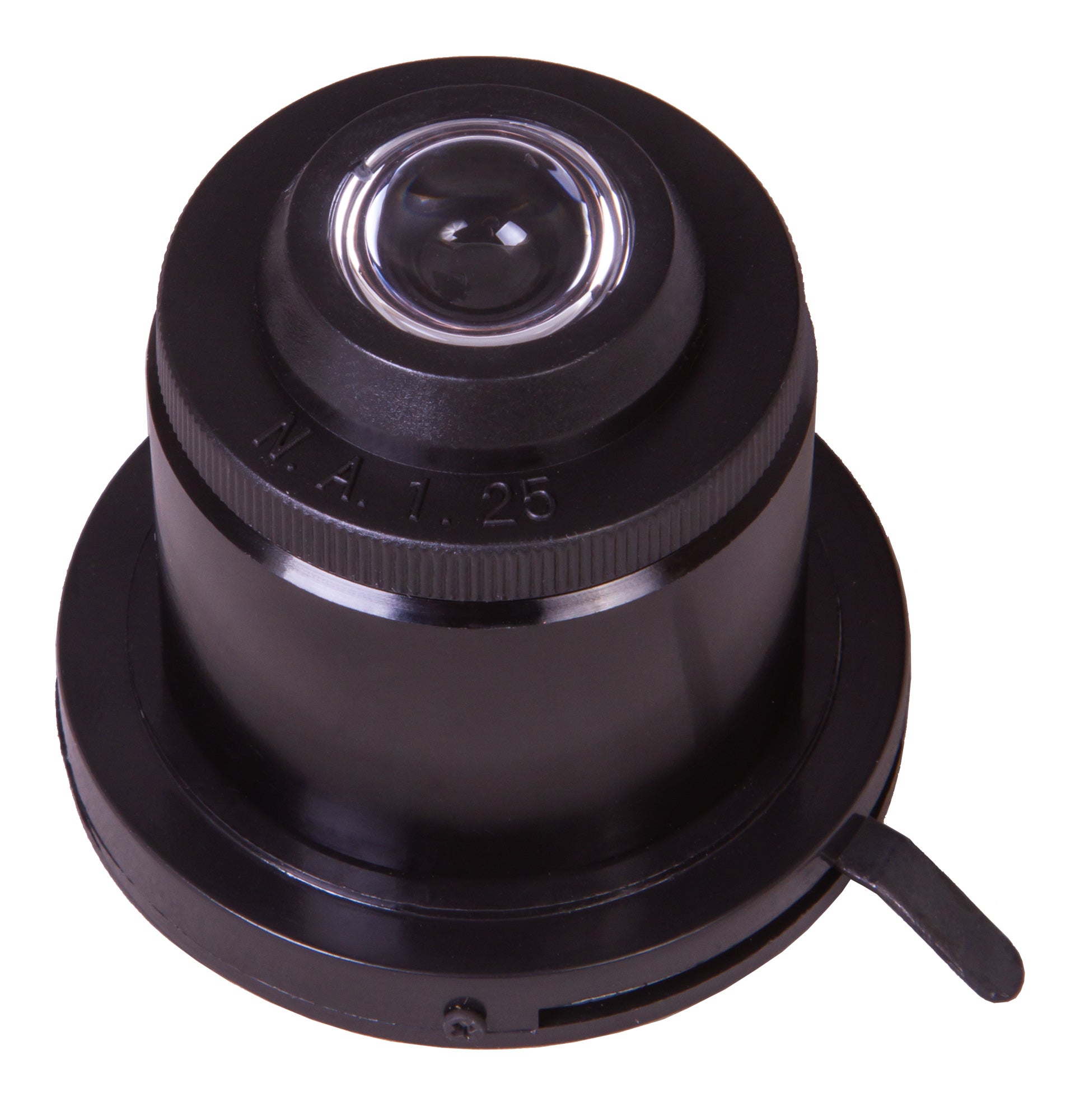

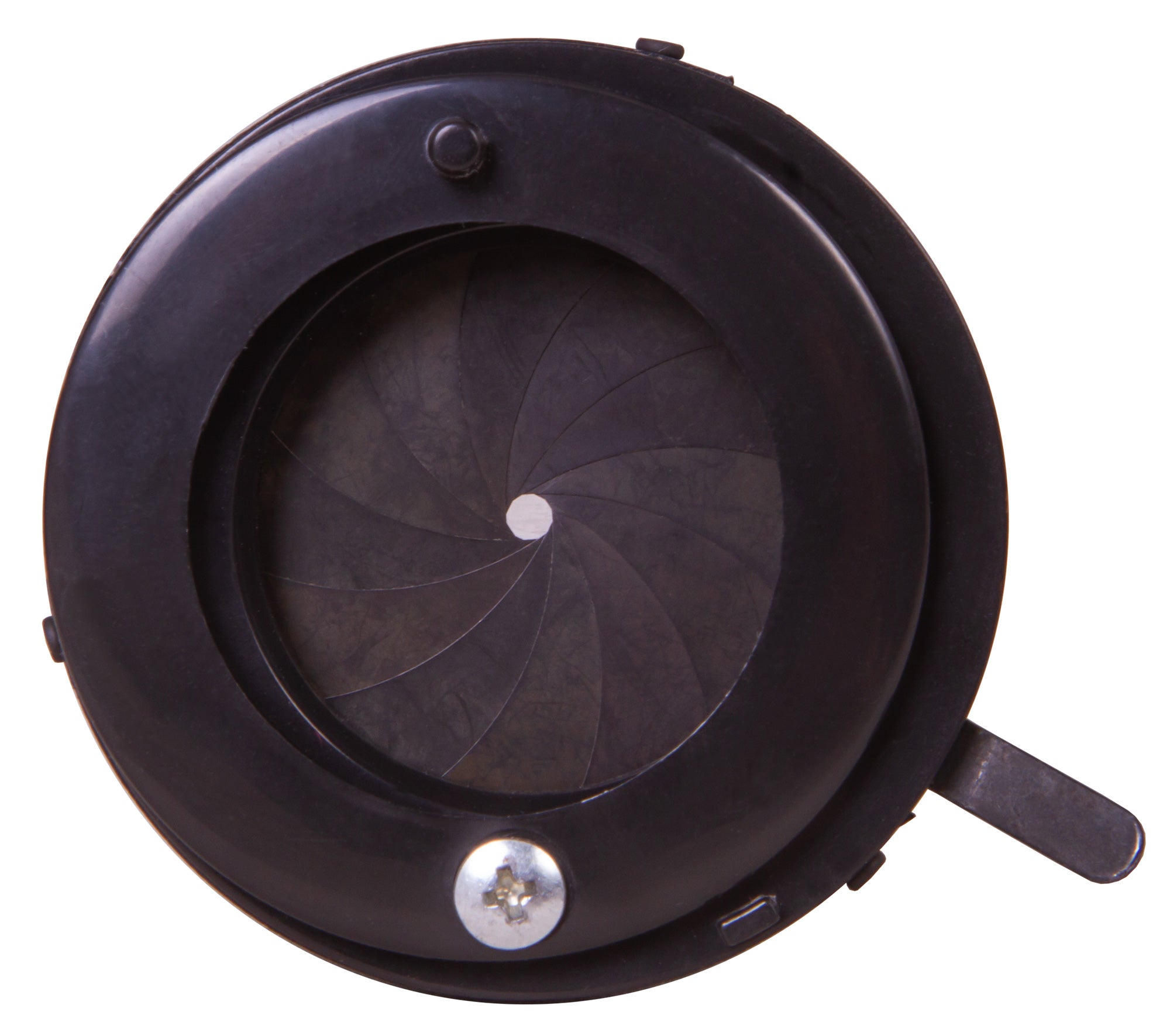

Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder

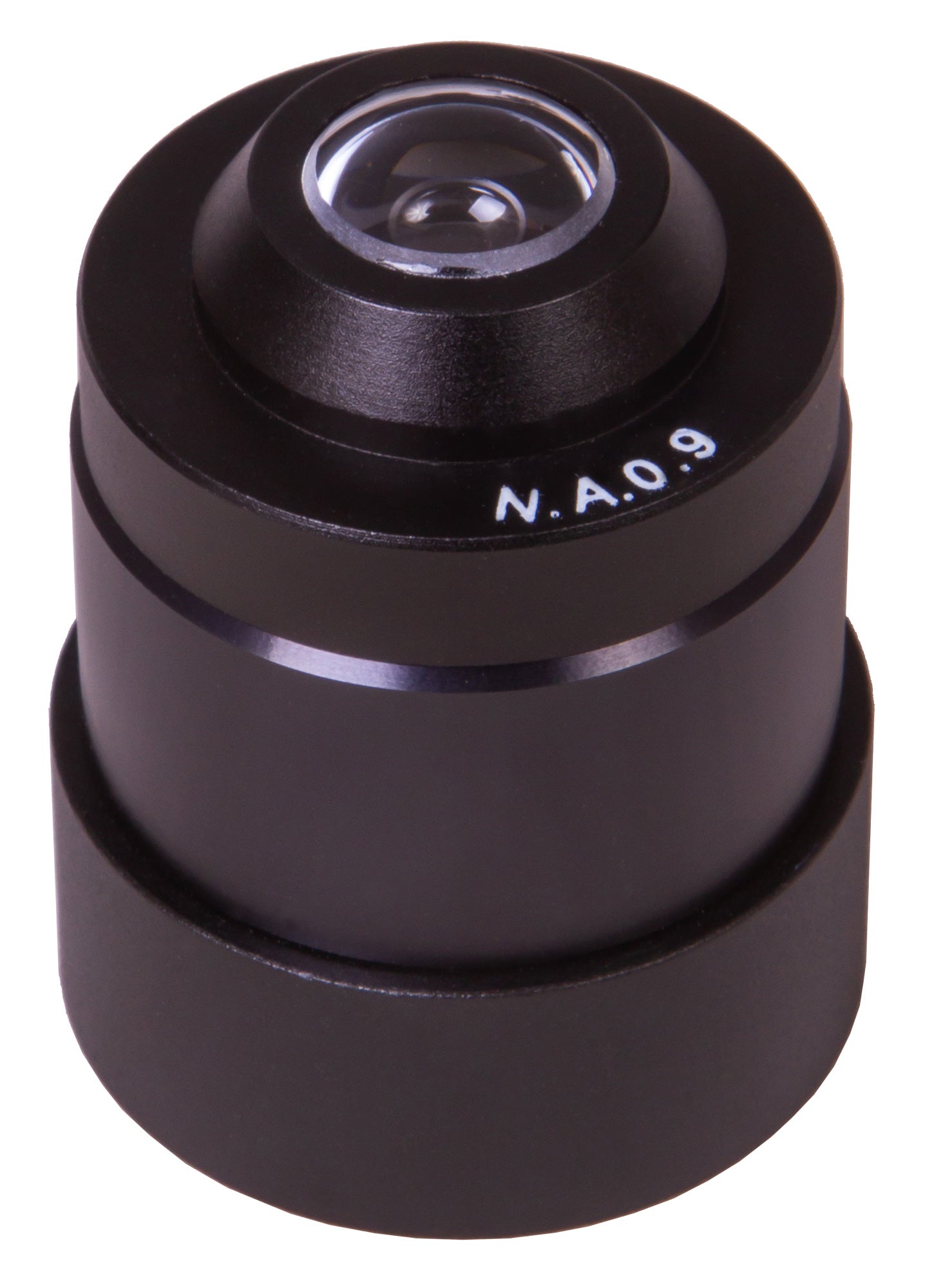

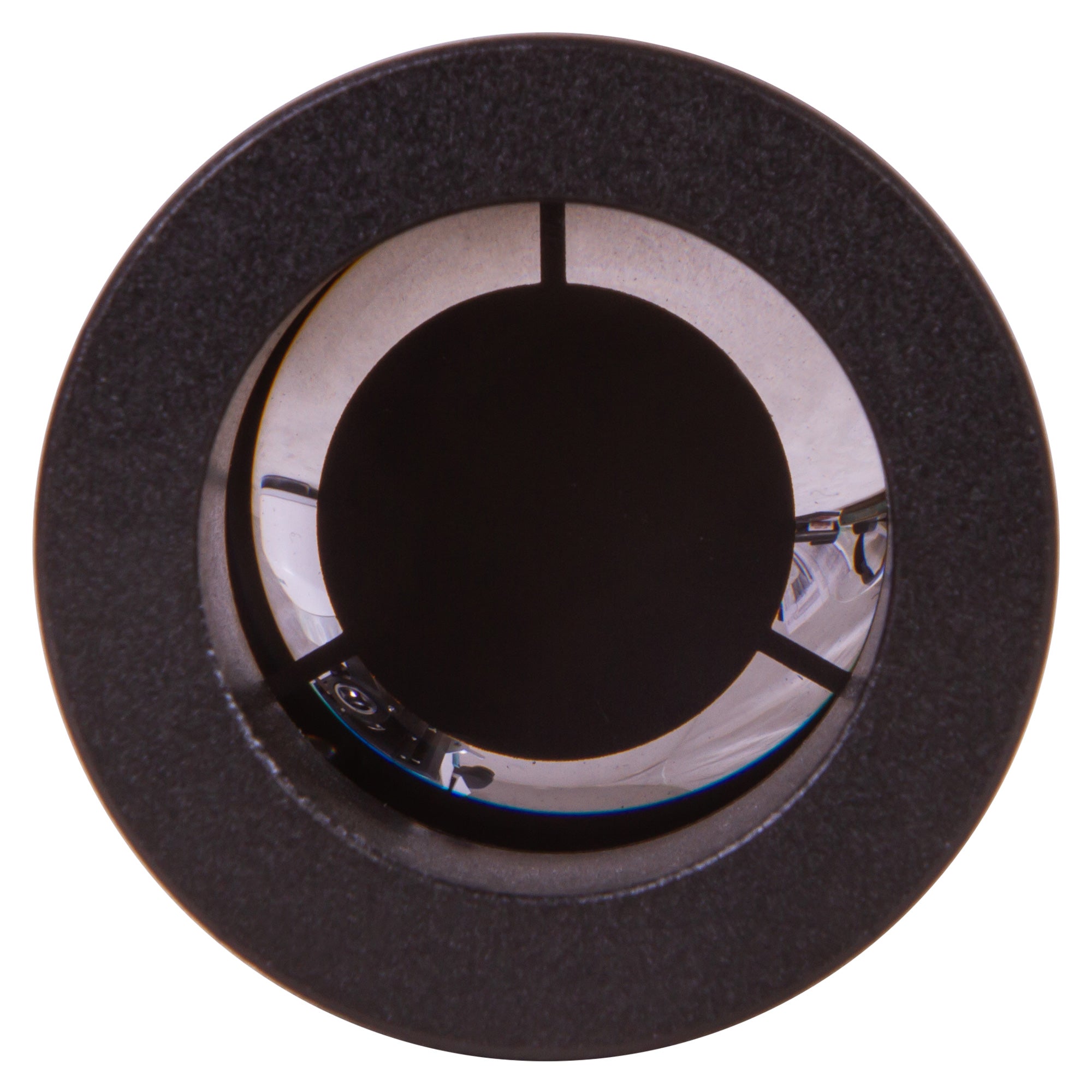

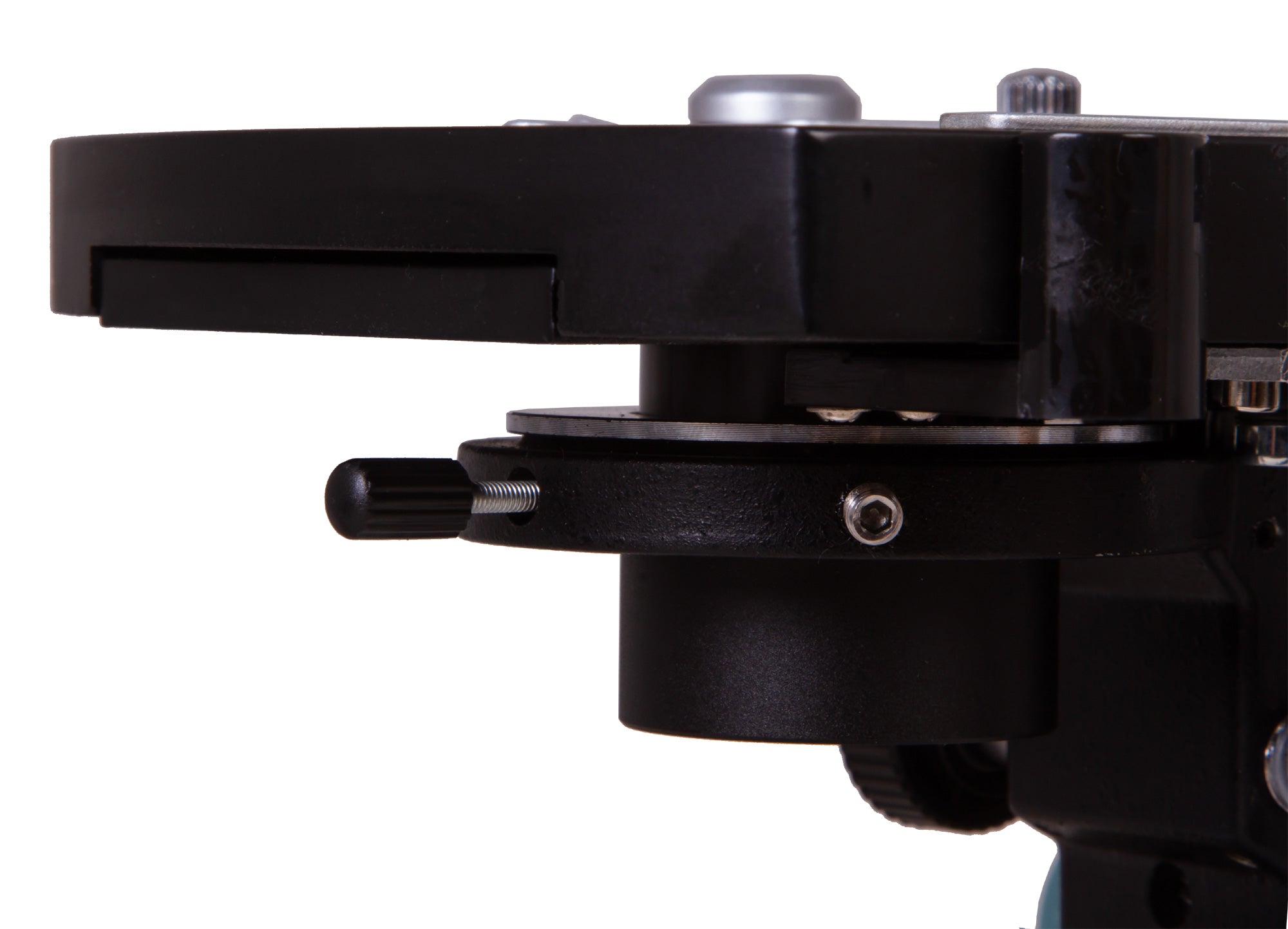

Dark field condenser N.A. 0.9 (dry)
Filters: blue, green, yellow
Fuse (2 pcs)
Vial of immersion oil
Power cord
Dust cover
User manual and lifetime warranty

Head: trinocular, rotatable 360°, inclined 30°
Optics material: optical glass
Magnification, x: 40–1000
Eyepiece tube diameter, mm: 23.2
Eyepieces: WF10x/18mm (2 pcs)
Objectives: achromatic: 4x, 10x, 40xs, 100xs (oil)
Revolving nosepiece: 4 objectives
Interpupillary distance, mm: 48–75
Stage, mm: mechanical double-layer, 130x120mm, with a mechanical scale
Stage moving range, using focusing mechanism, mm: 70/30
Eyepiece diopter adjustment, diopters: ±5
Condenser: bright field Abbe N.A. 1.25 with an iris diaphragm and a filter holder; dark field N. A. 0.9, dry
Diaphragm: iris
Focus: coaxial, coarse (25mm) and fine (0.002mm)
Body: metal
Backlight: LED
Brightness adjustment: yes
Power source: 110–220V, via a network adapter
Light source type: with a collector, 3W LED
Filters: blue, green, yellow
Usage: General use product. May be used by kids over 3 years old.
Application: Lab Research
Pouch/case/bag in set: yes
