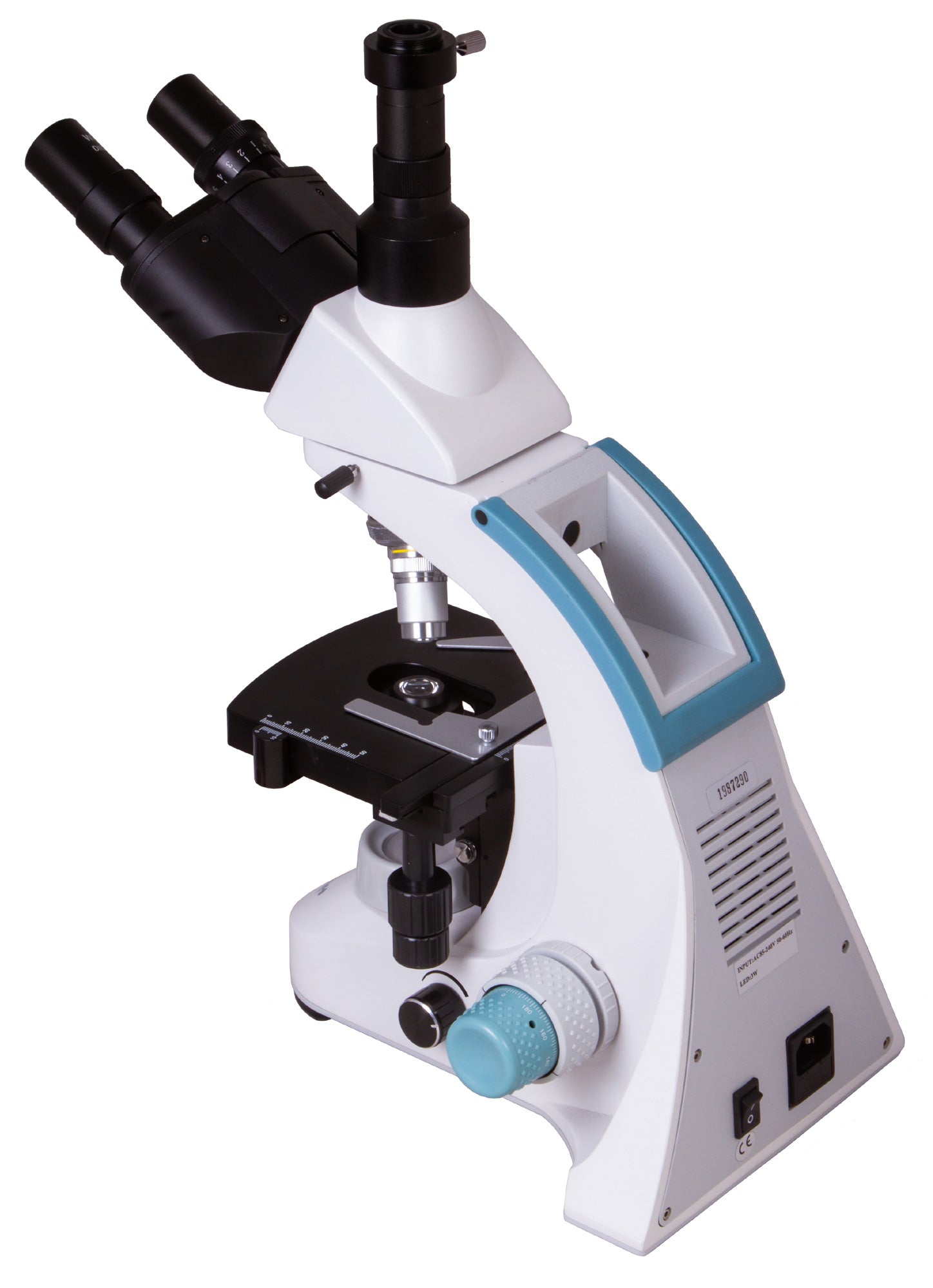

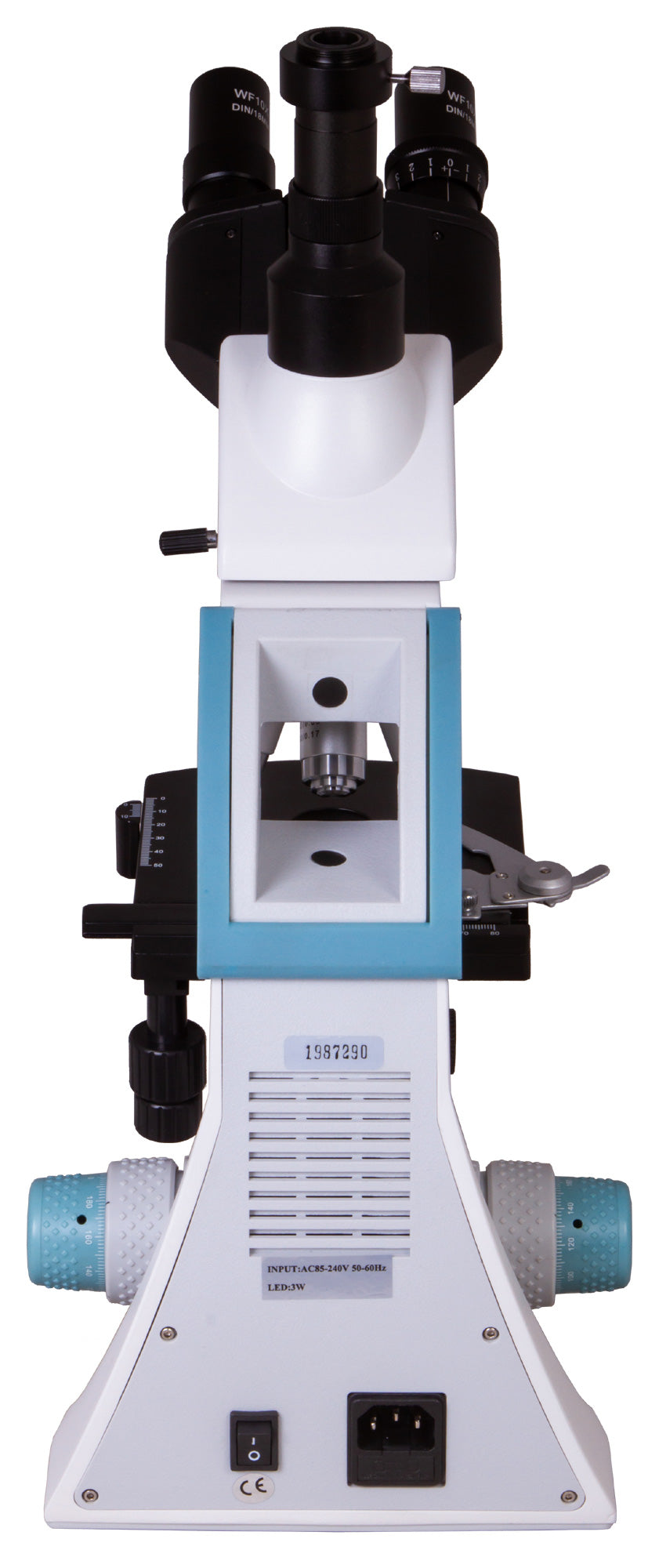

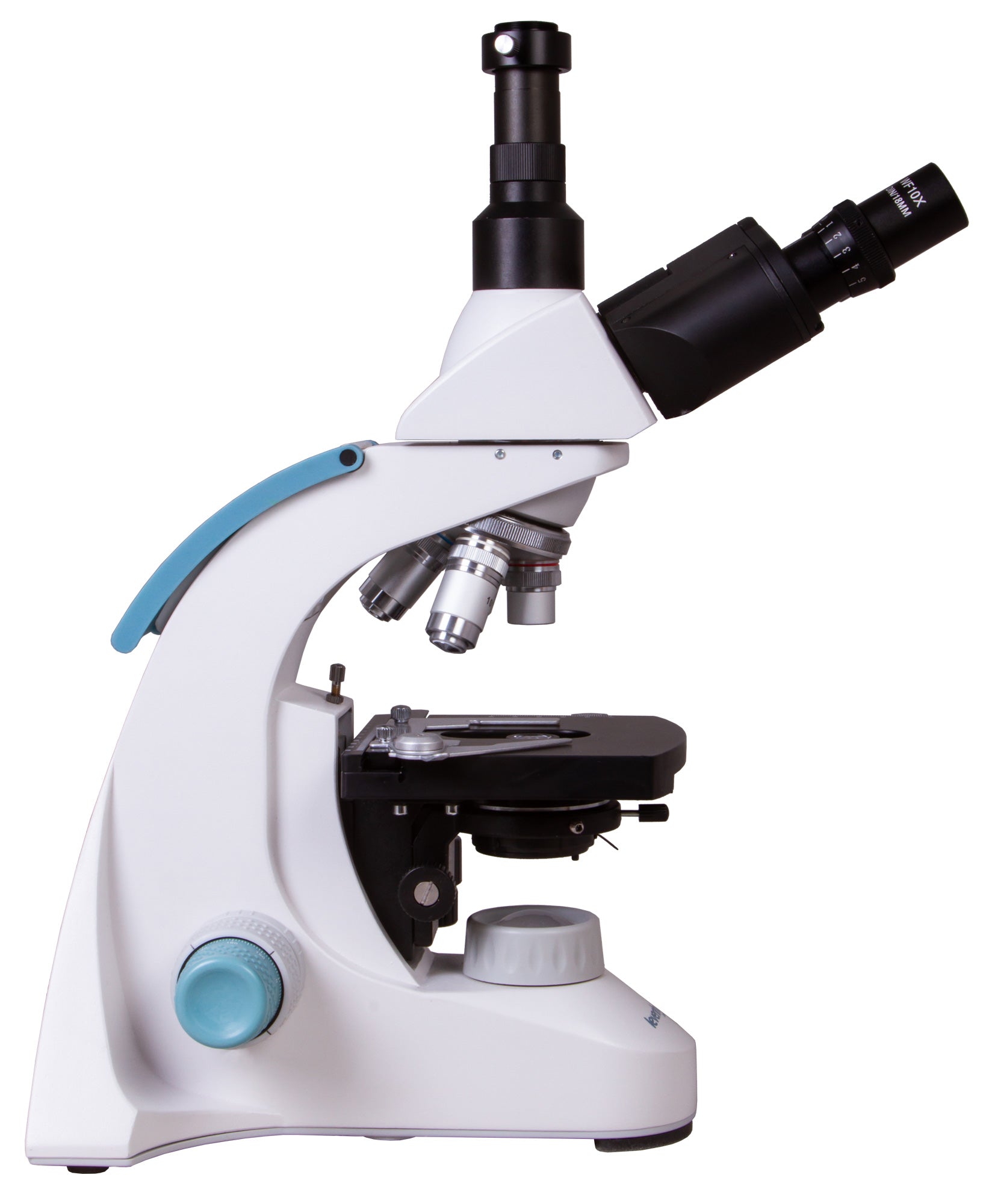

Levenhuk 900T Trinocular Microscope

  • $615.08
    Unit price per
Tax included. Shipping calculated at checkout.


Levenhuk 900T Trinocular Microscope
Magnification: 40–1000x. Trinocular head, achromatic objectives, LED light with a collector

Levenhuk 900T is a trinocular model, which allows for installing a digital camera. The microscope performs great in laboratory research and can be used for educational purposes. All observations are conducted in a bright field in incident light; oil immersion is available as well. The microscope can be used for general clinical, histological, cytological, bacteriological, and other microbiological research.

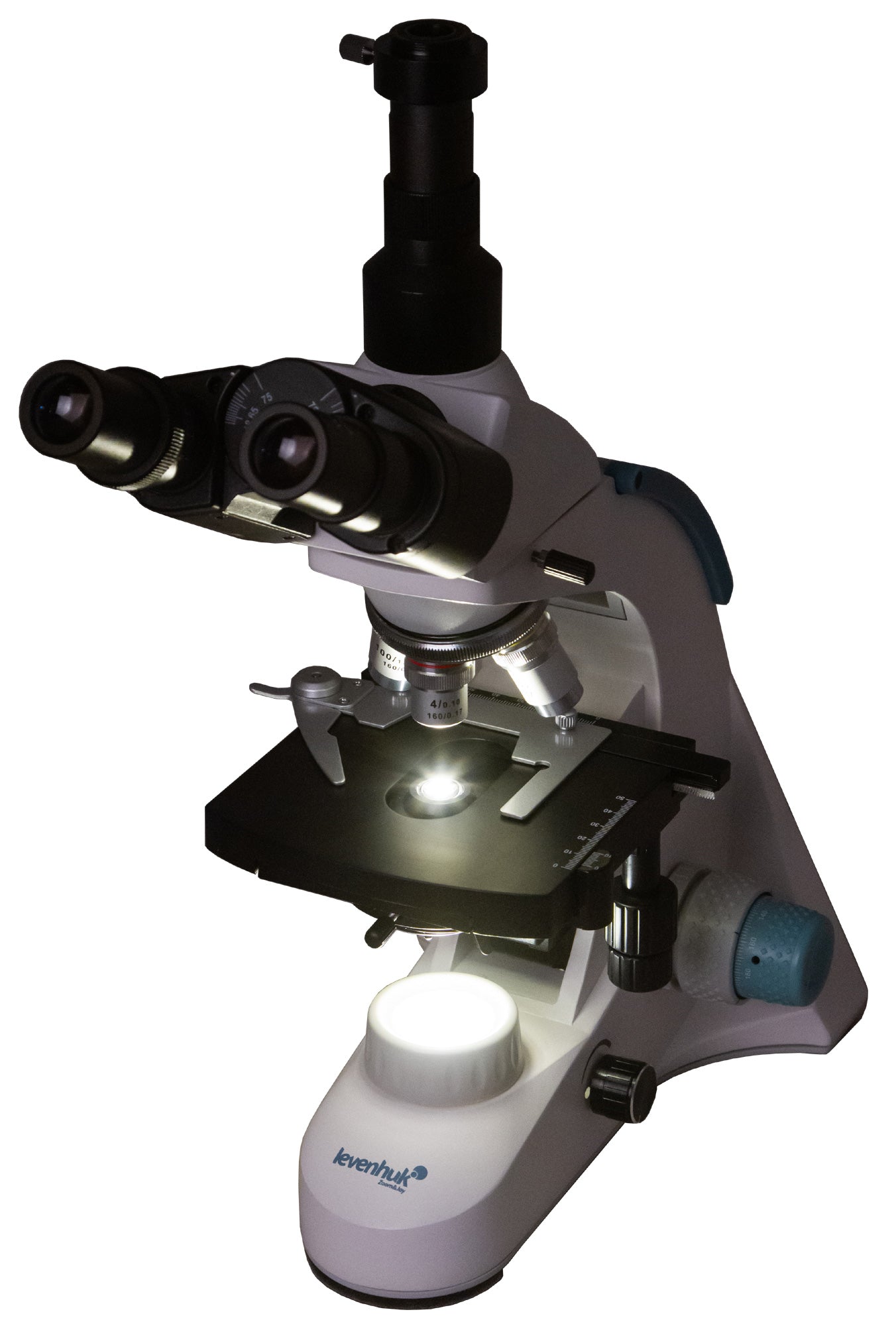

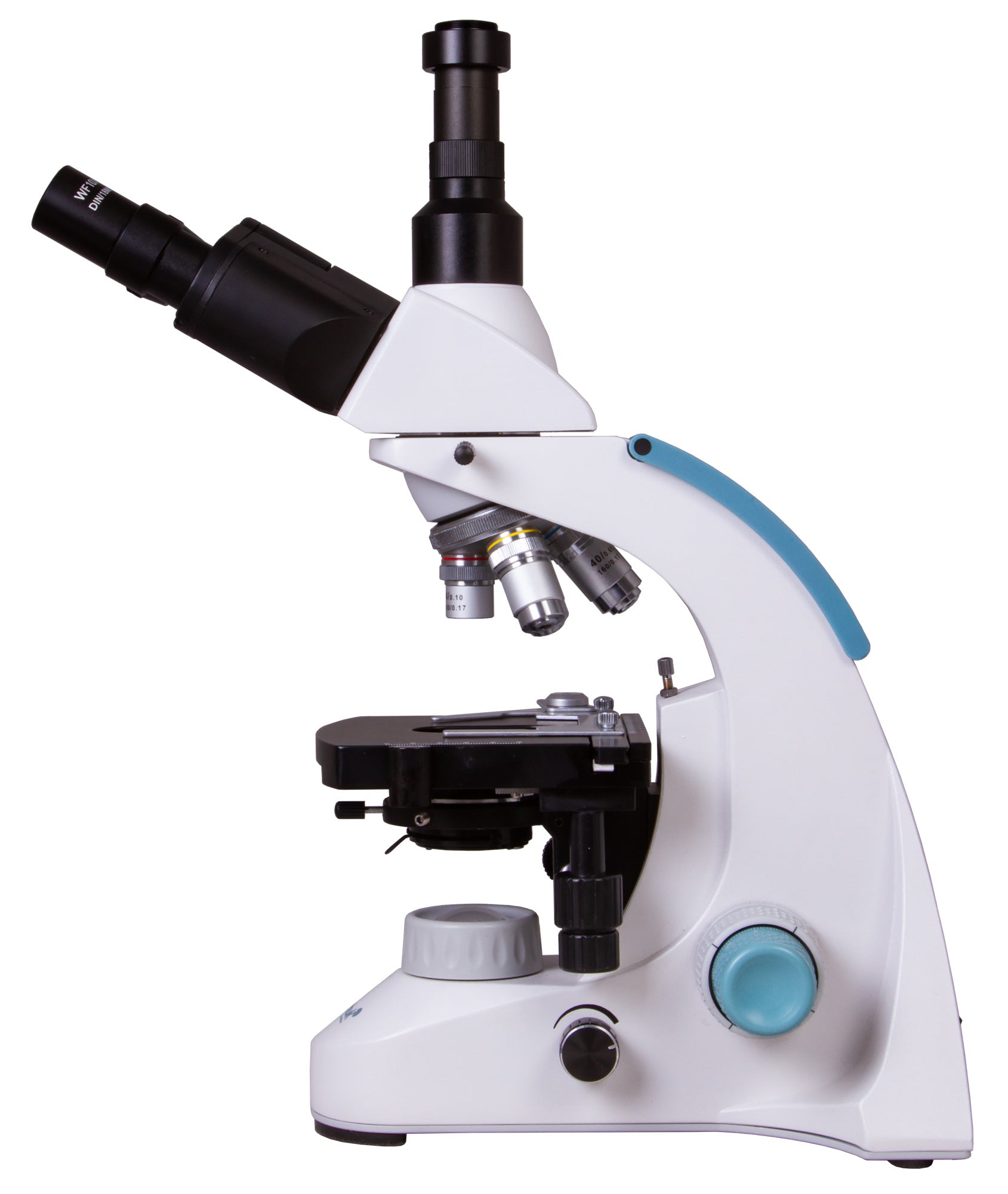

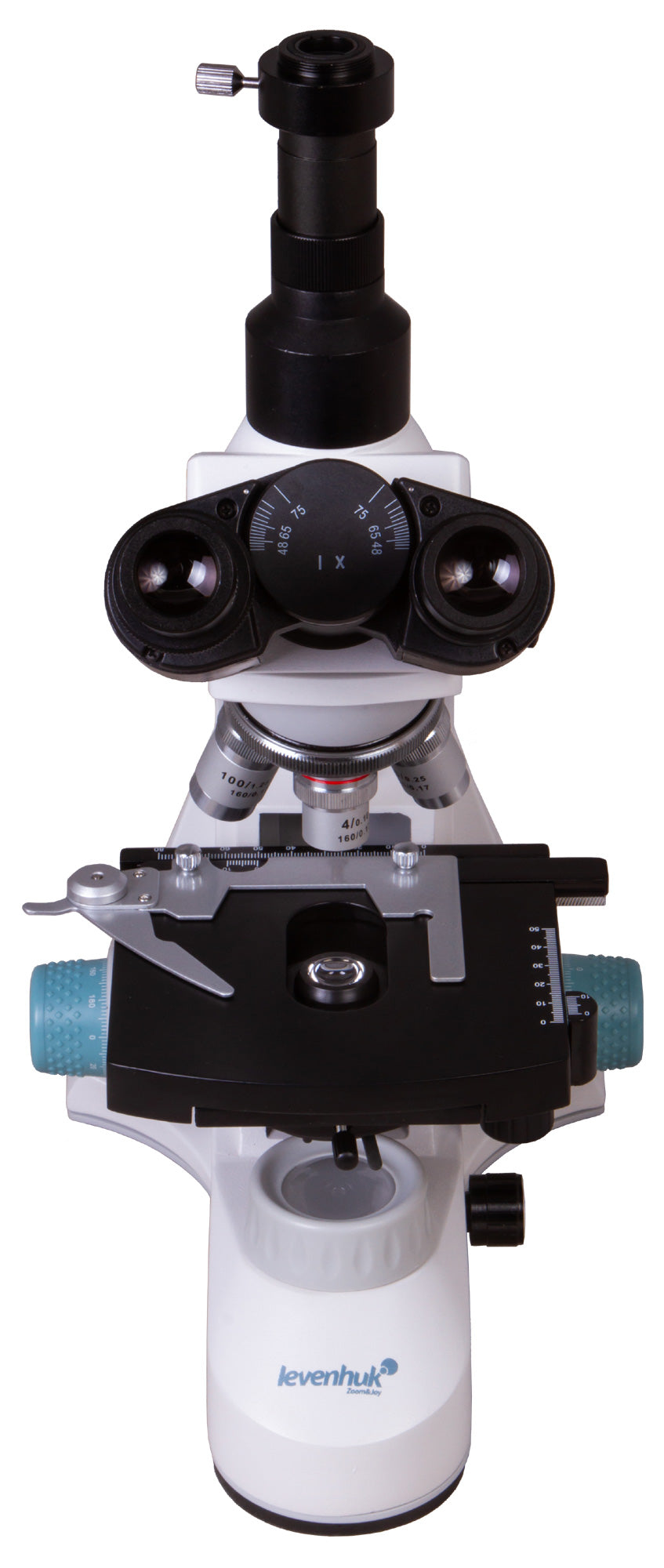

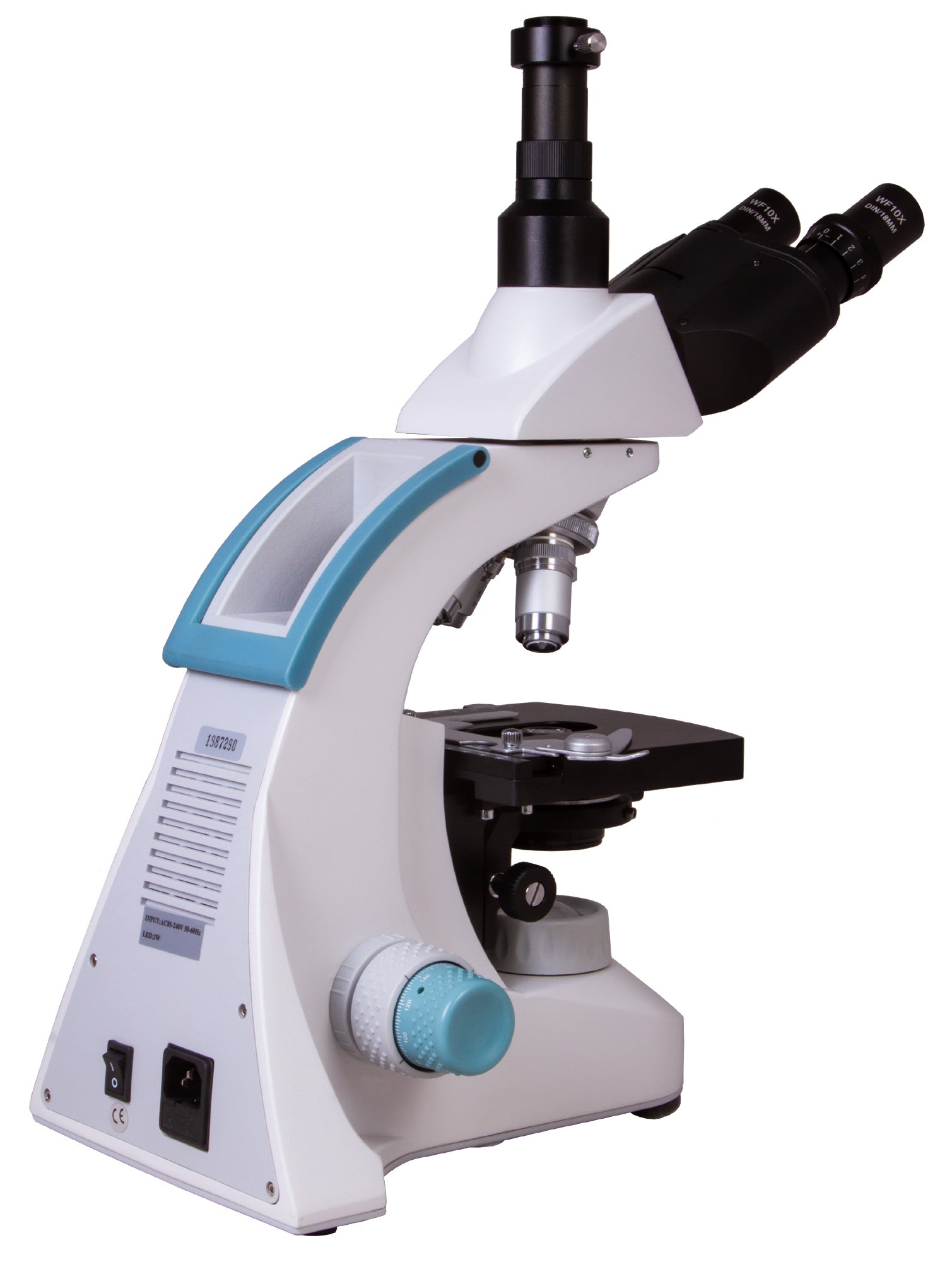

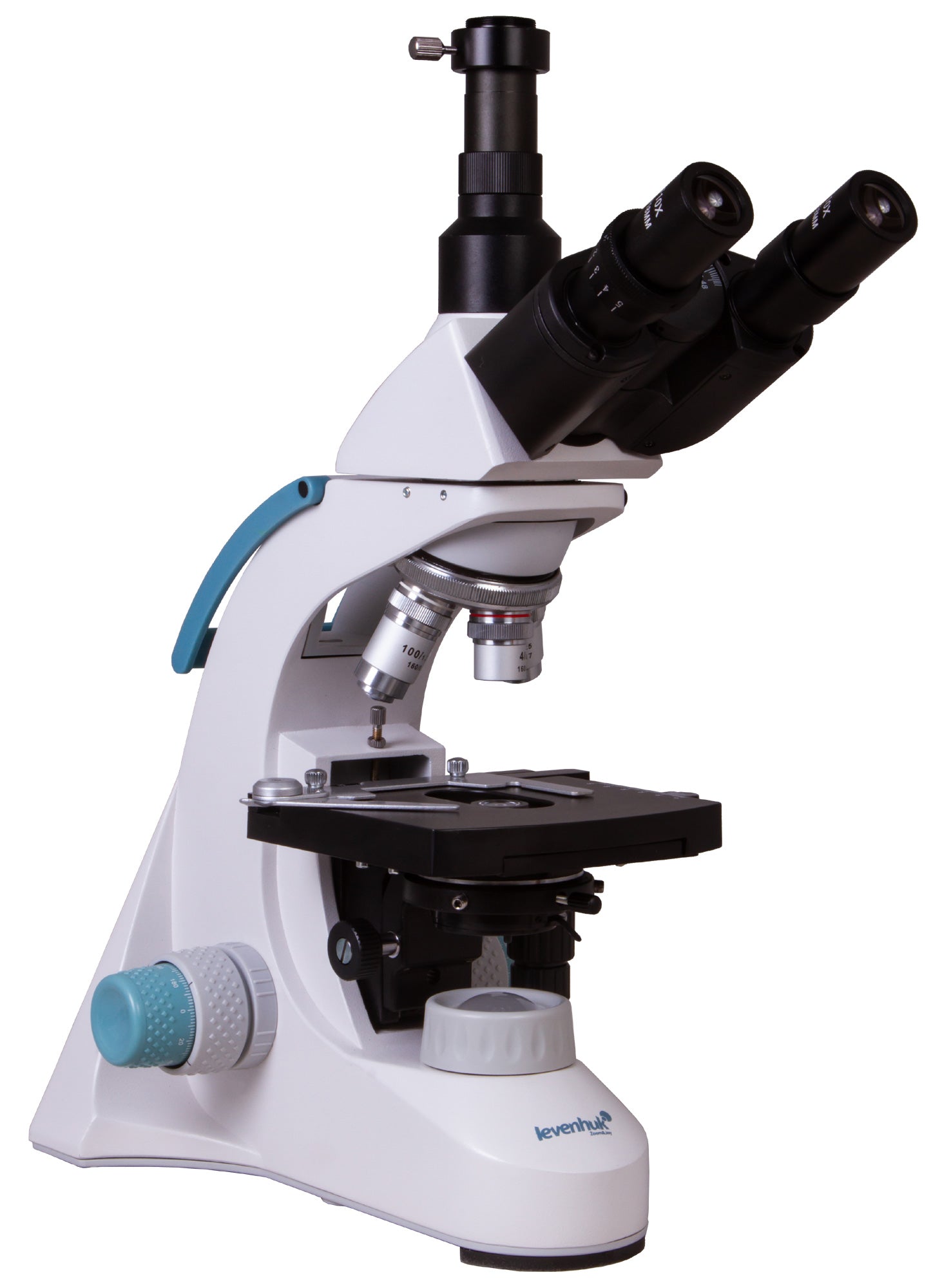

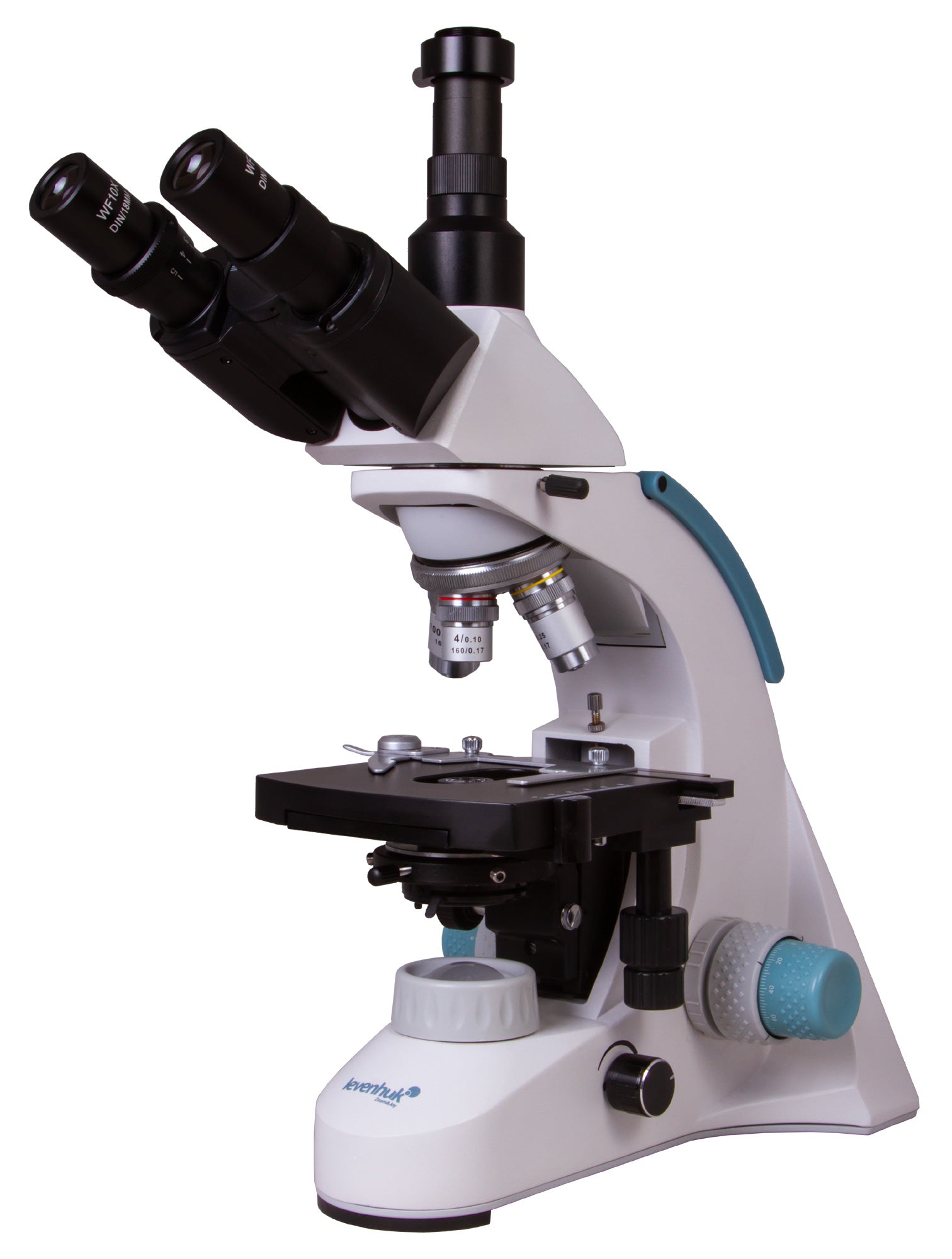

The microscope head consists of a binocular part for visual observations and a vertical tube for a video eyepiece. This allows you to simultaneously study the sample and record observations to the camera (the camera is purchased separately). The head can be rotated 360°, which is convenient for group work. The wide-field achromatic optics provide magnification from 40x to 1000x. The kit includes 10x eyepieces and 4x, 10x, 40x, and 100x objectives. The 40x and 100x objectives are equipped with spring-loaded frames. There is fine and coarse focusing adjustment.

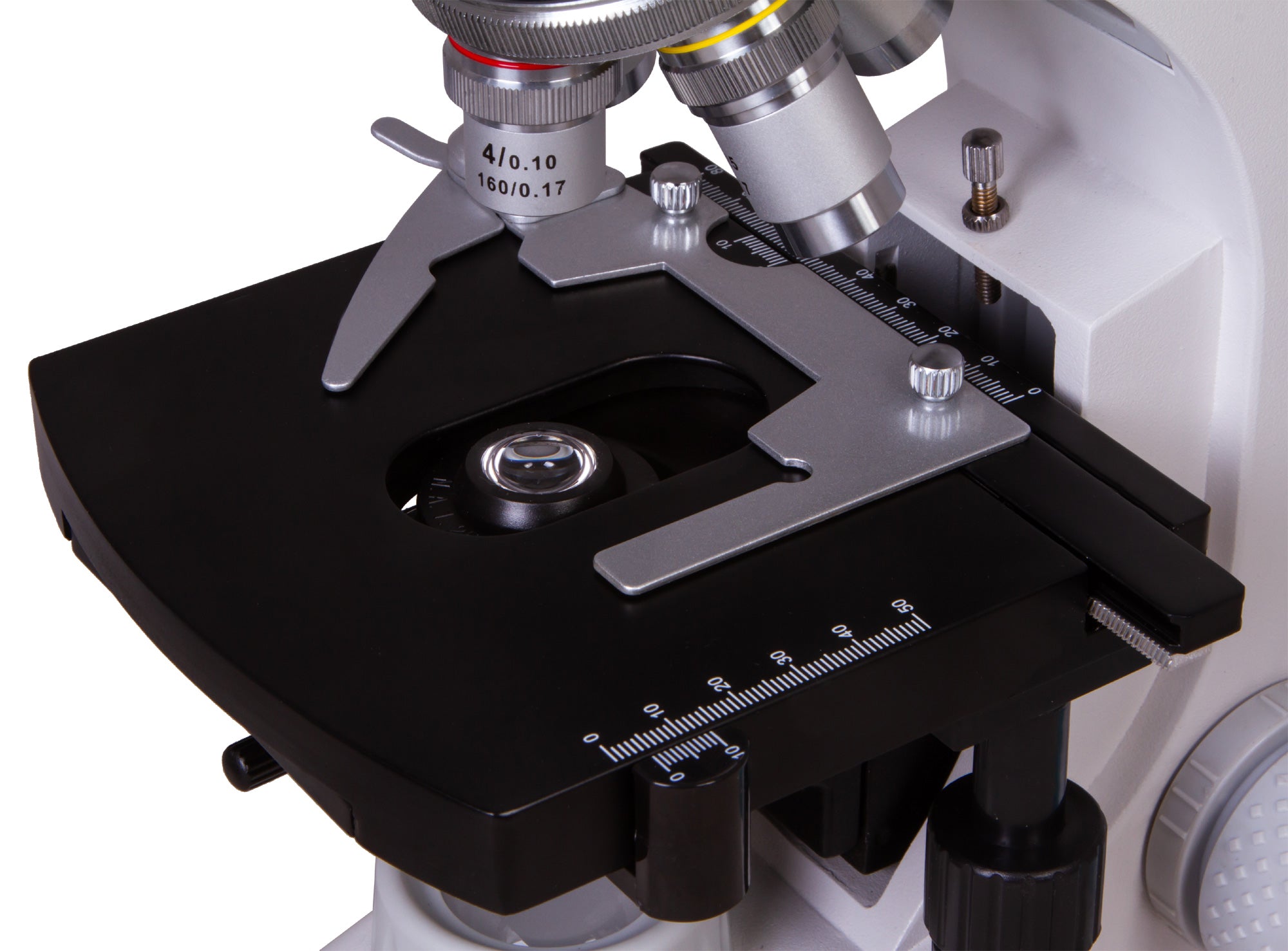

The microscope stage is equipped with a mechanical scale. Under the stage, there is an Abbe condenser with an iris diaphragm and a filter holder. Powerful LED lighting is supplemented by a collector, the brightness of the lighting is adjustable. AC power is used for the power supply.

Features:
Trinocular head with 360° rotation
Achromatic objectives, wide-field eyepieces, magnification from 40x to 1000x
3W lower LED lighting
Brightness adjustment; AC power supply
Metal body, standard eyepiece barrel diameter

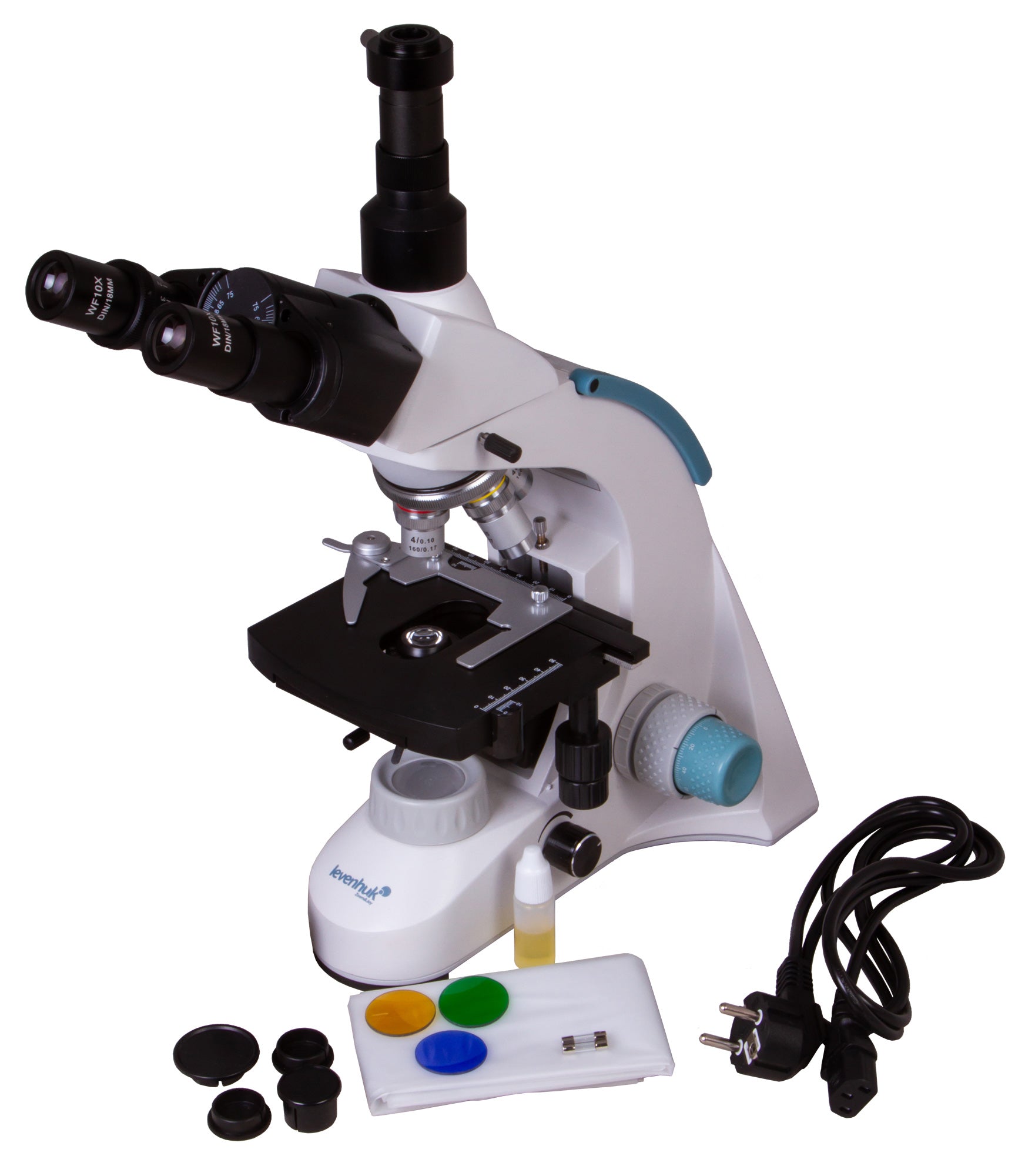

The kit includes:
Microscope
4x, 10x, 40xs, 100xs (oil) achromatic objectives
WF10x/18mm eyepieces (2 pcs)
Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Filters: blue, green, yellow
Fuse
C-mount
Vial of immersion oil
Power cord
Dust cover
User manual and lifetime warranty

Specifications:
Head: trinocular, rotatable 360°, inclined 30°
Optics material: optical glass
Magnification, x: 40–1000
Eyepiece tube diameter, mm: 23.2
Eyepieces: WF10x/18mm (2 pcs)
Objectives: achromatic: 4x, 10x, 40xs, 100xs (oil)
Revolving nosepiece: 4 objectives
Interpupillary distance, mm: 48–75
Stage, mm: mechanical double-layer, 130x120mm, with a mechanical scale
Stage moving range, using focusing mechanism, mm: 70/30
Eyepiece diopter adjustment, diopters: ±5
Condenser: Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Diaphragm: iris

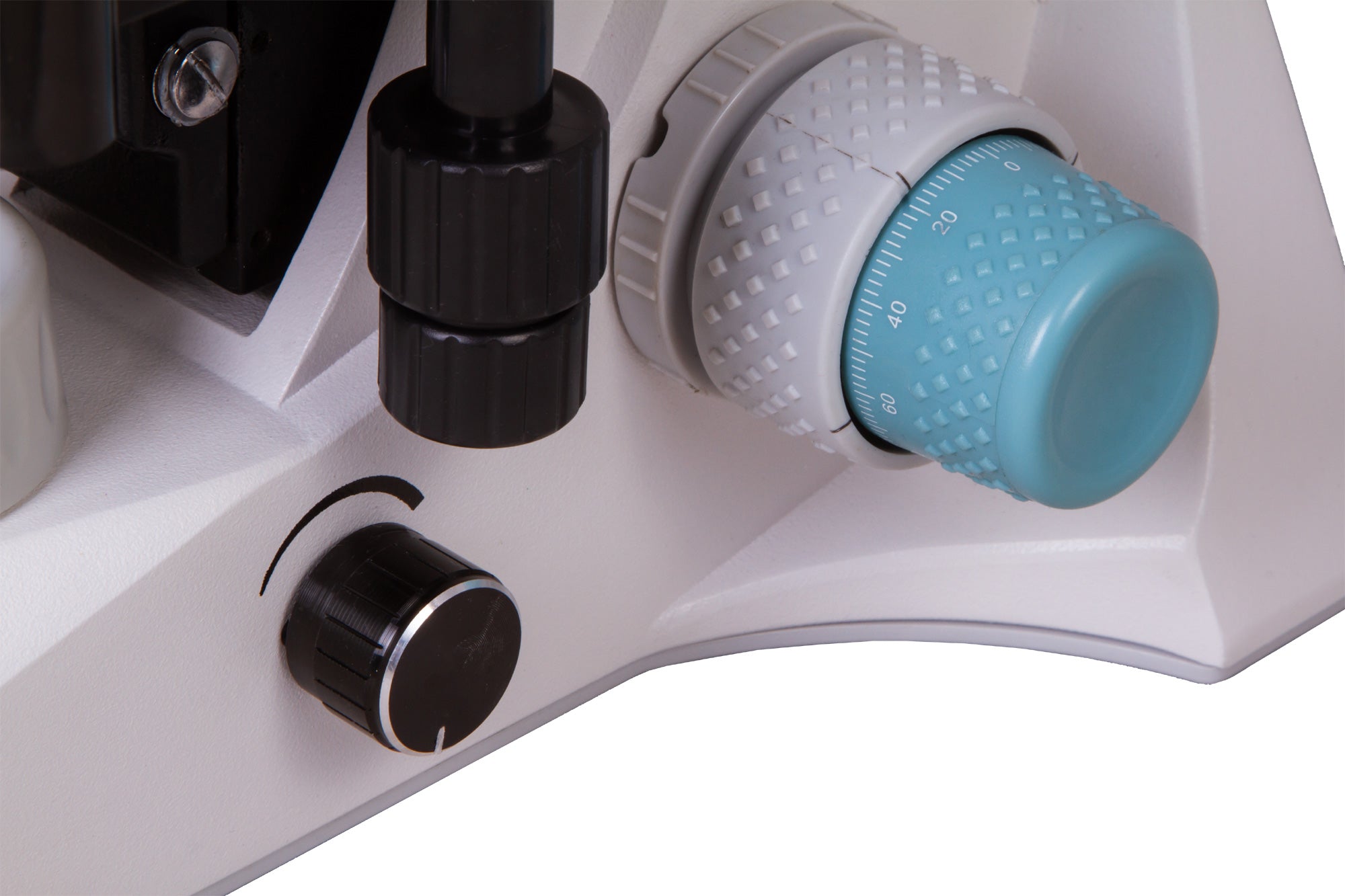

Focus: coaxial, coarse (25mm) and fine (0.002mm)
Body: metal
Backlight: LED
Brightness adjustment: yes
Power source: 110–220V, via a network adapter
Light source type: with a collector, 3W LED
Filters: blue, green, yellow
Usage: General use product. May be used by kids over 3 years old.
Application: Lab Research
Pouch/case/bag in set: yes
