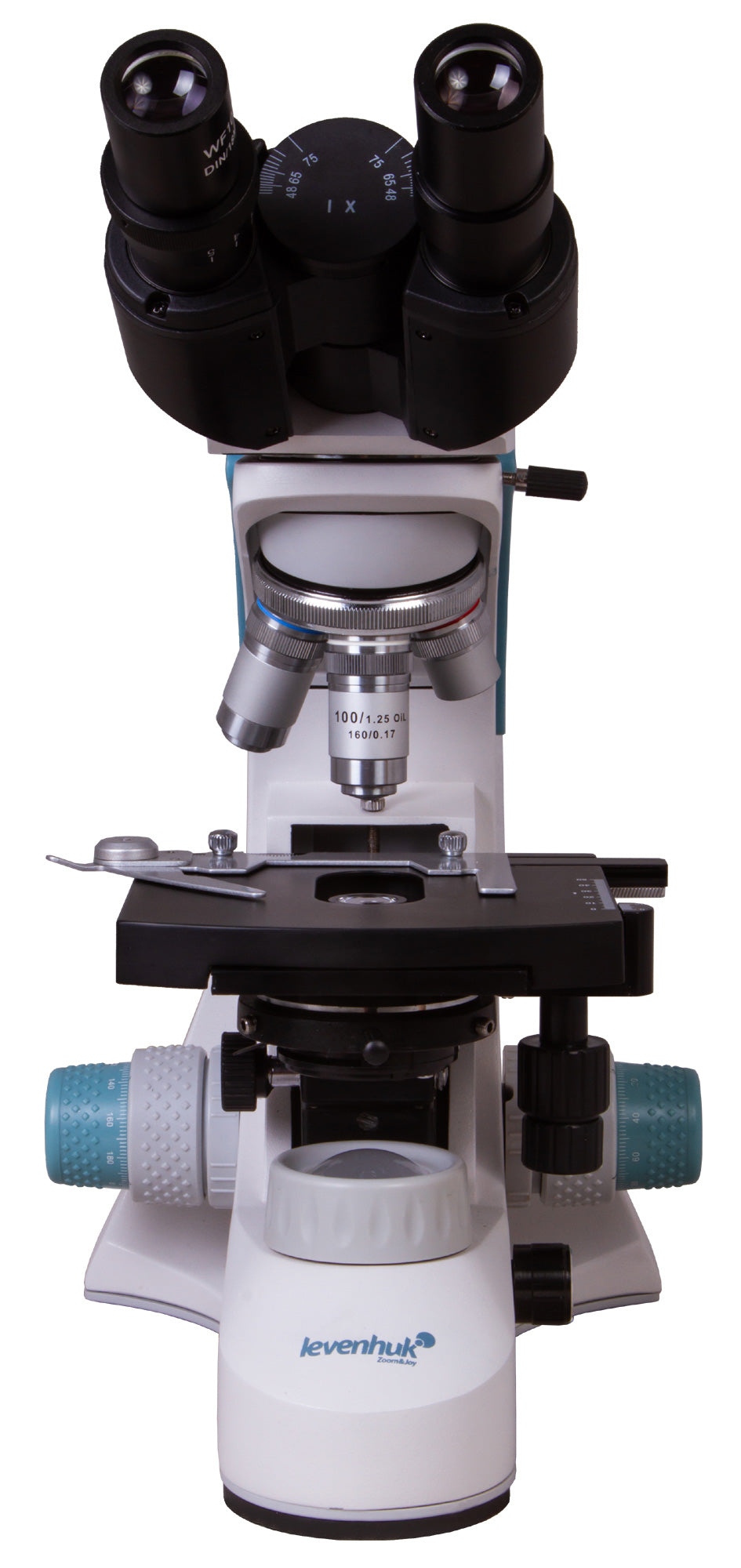

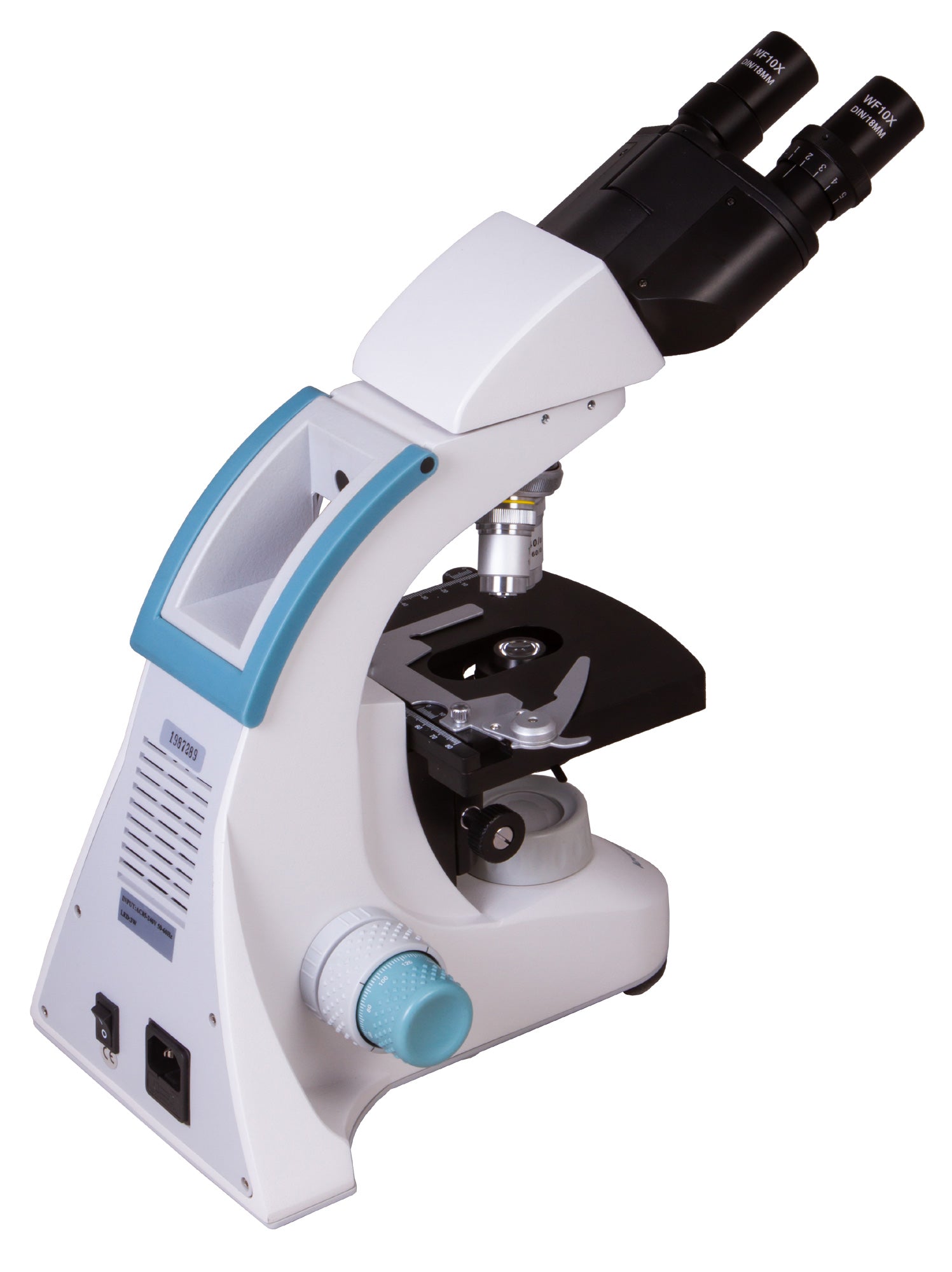

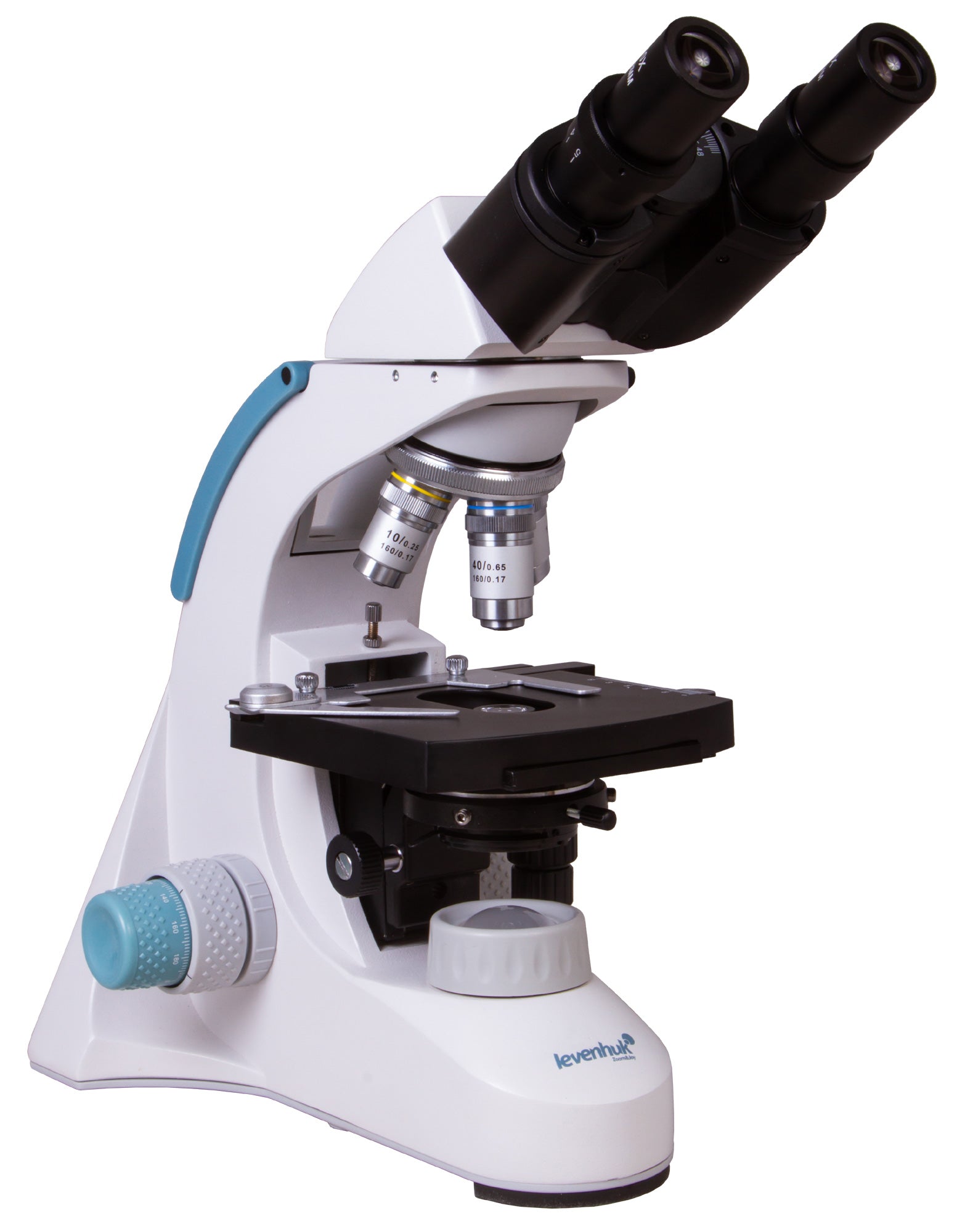

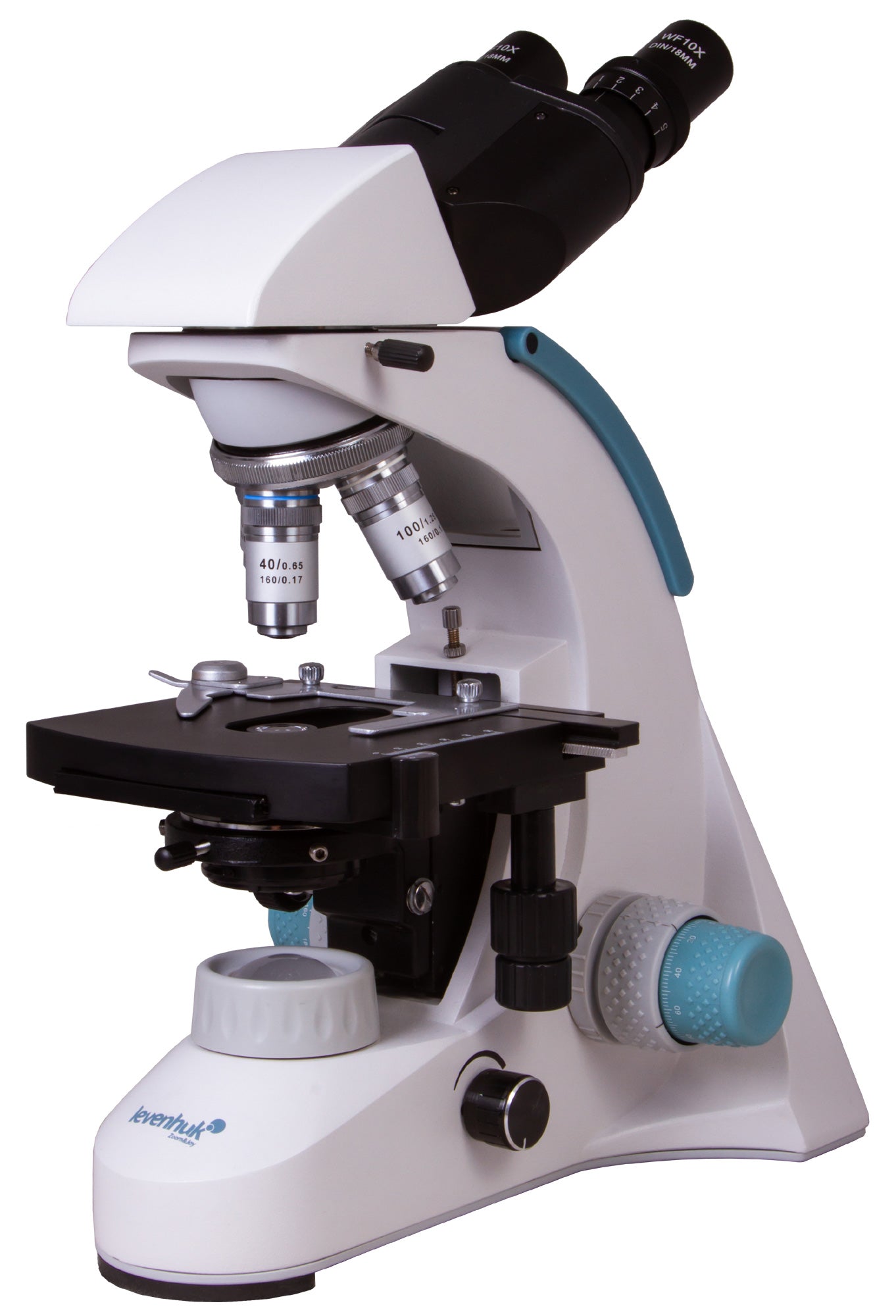

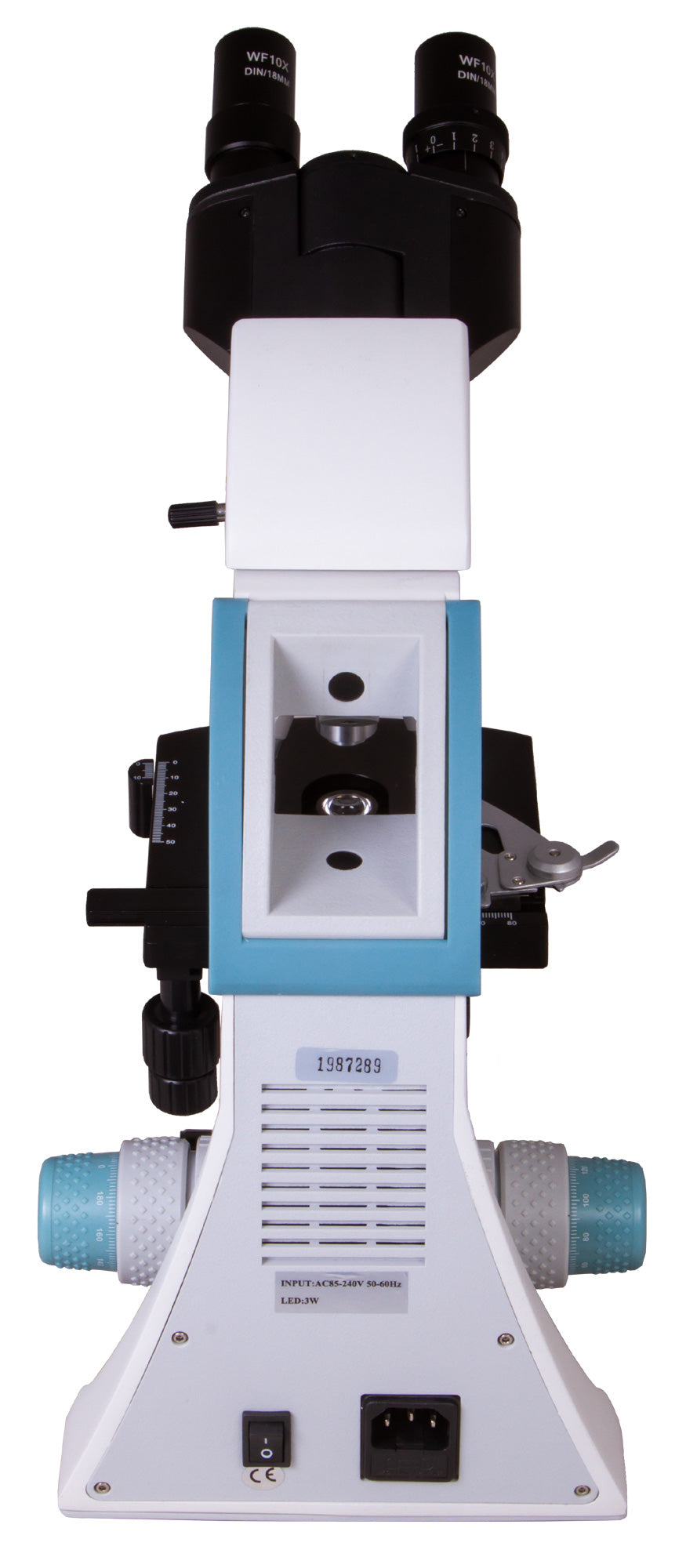

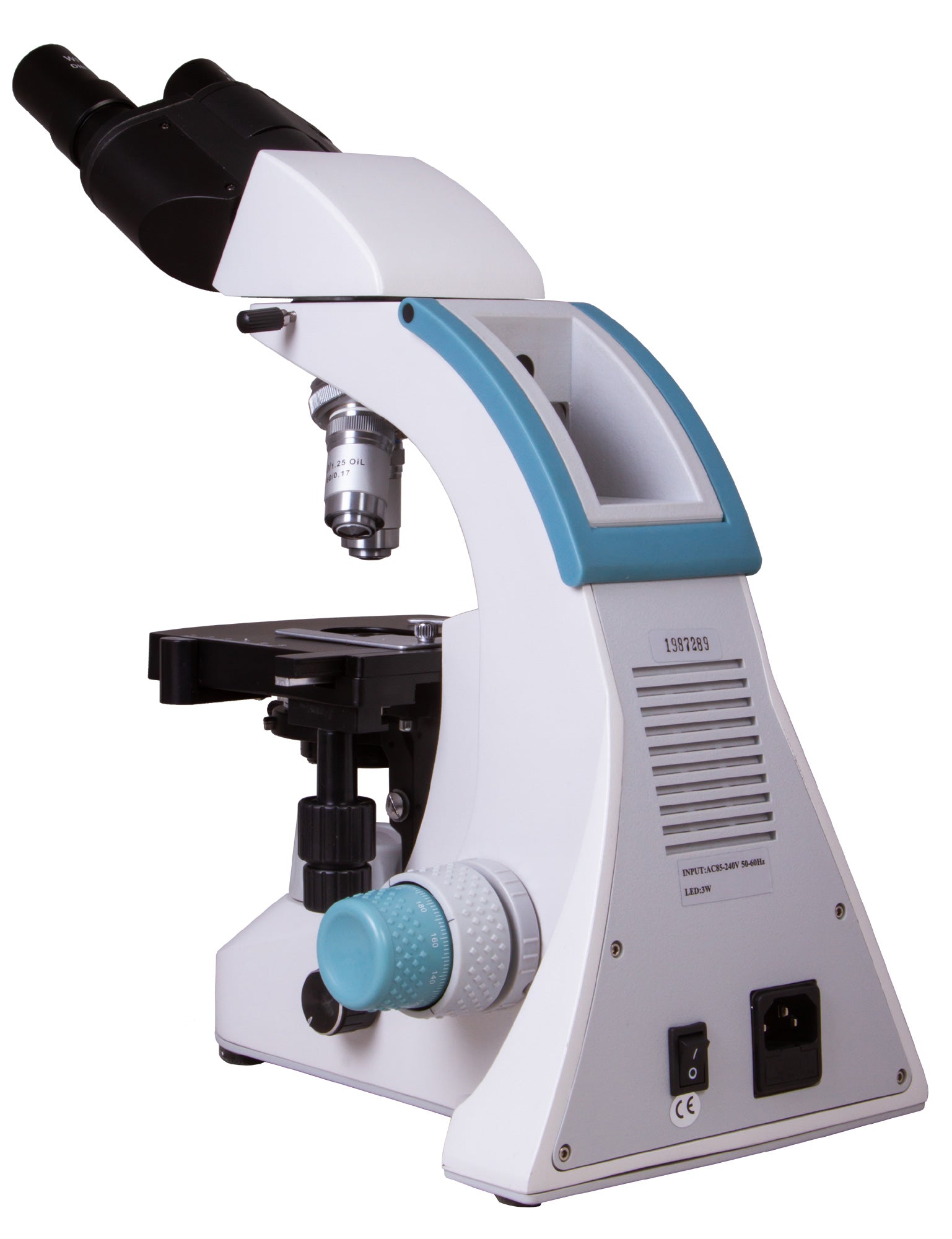

Levenhuk 900B Binocular Microscope
Magnification: 40–1000x. Binocular head, achromatic objectives, LED light with a collector

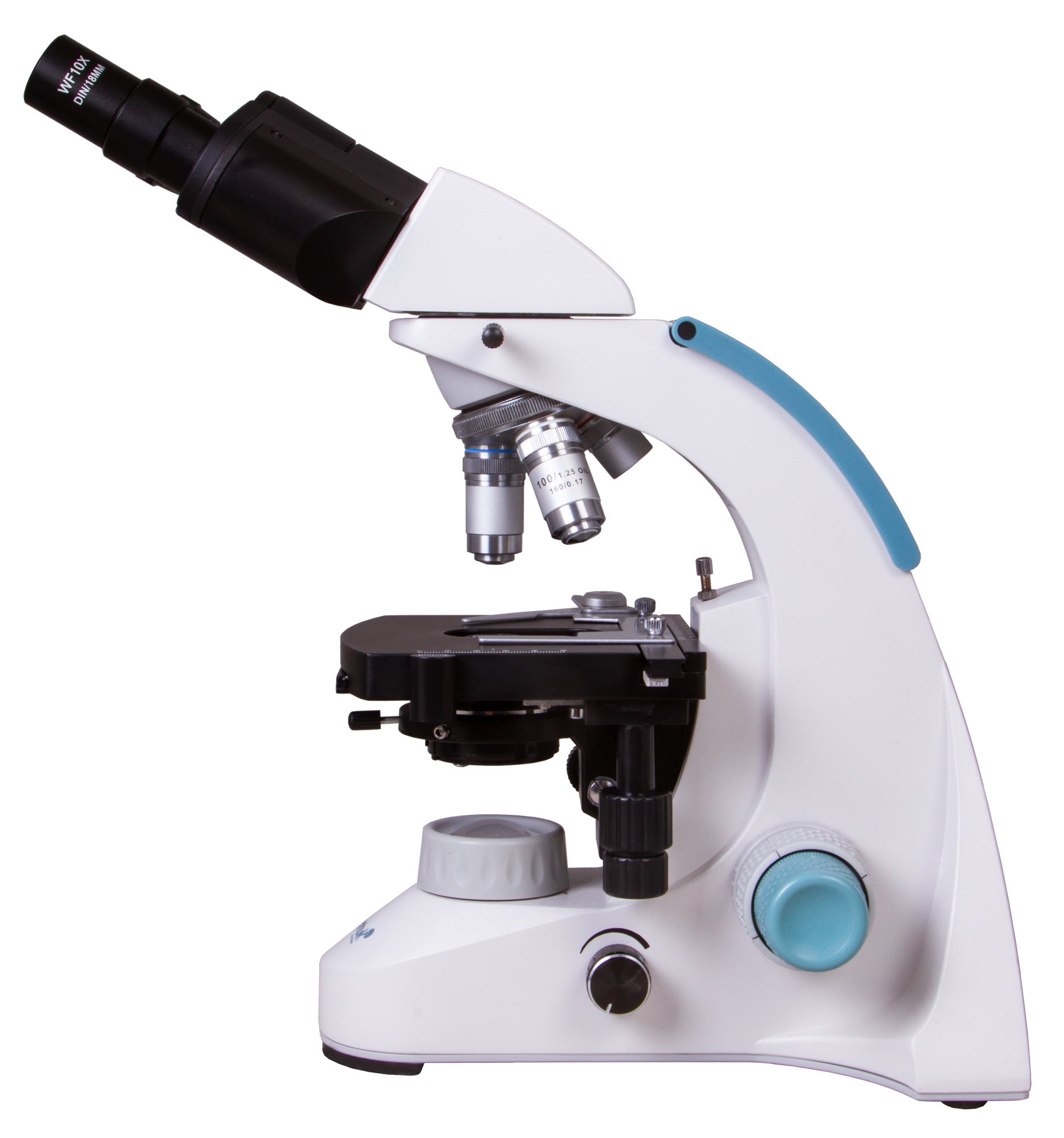

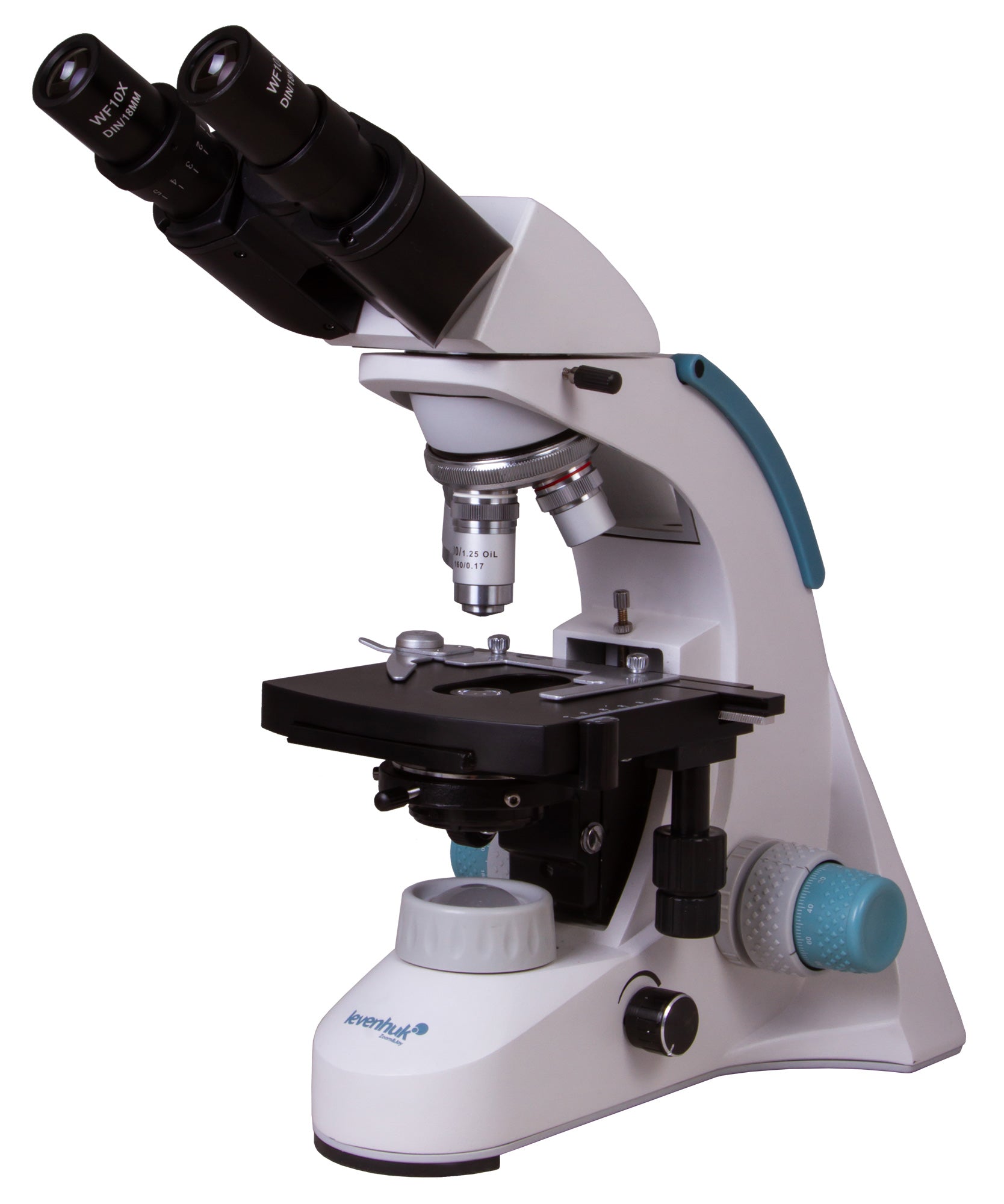

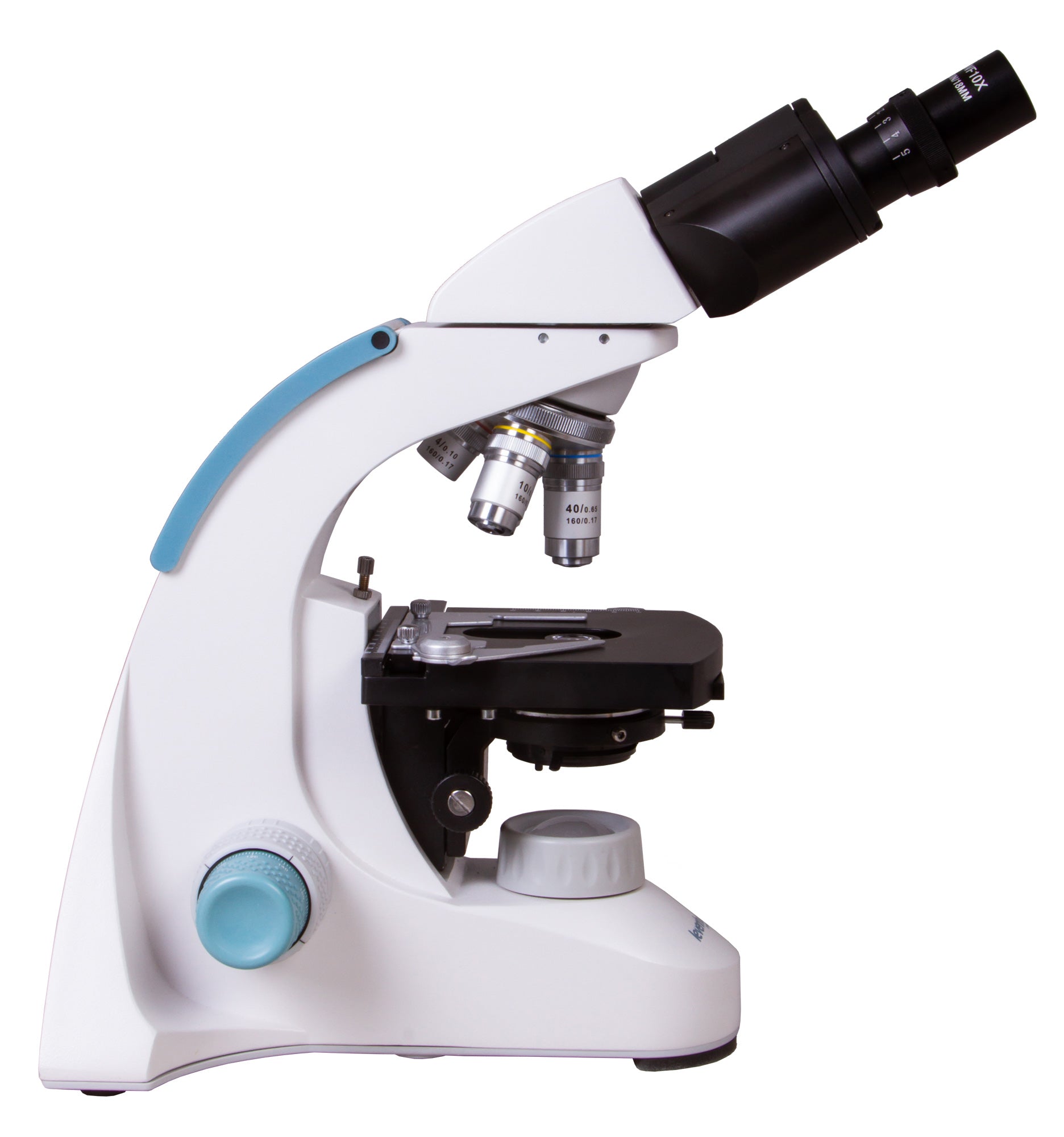

Levenhuk 900B is a binocular laboratory microscope with a powerful LED light and magnification range from 40 to 1,000 times. It is perfect for medical, microbiological, veterinary, and biochemical research. It can be applied in a clinic and in a higher education department. The microscope can be used for a wide range of works.

A binocular microscope head is inclined at 30°, which is practical for lengthy observations. The achromatic optics provide a good view. The kit includes two wide-field eyepieces with 10x magnification and four objectives with 4x, 10x, 40x, and 100x magnification. The 100x objective is adapted for oil immersion. Two objectives feature front lens protection (a spring-loaded frame): 40x and 100x ones. Use focusing knobs on the microscope body for coarse and fine focusing adjustment.

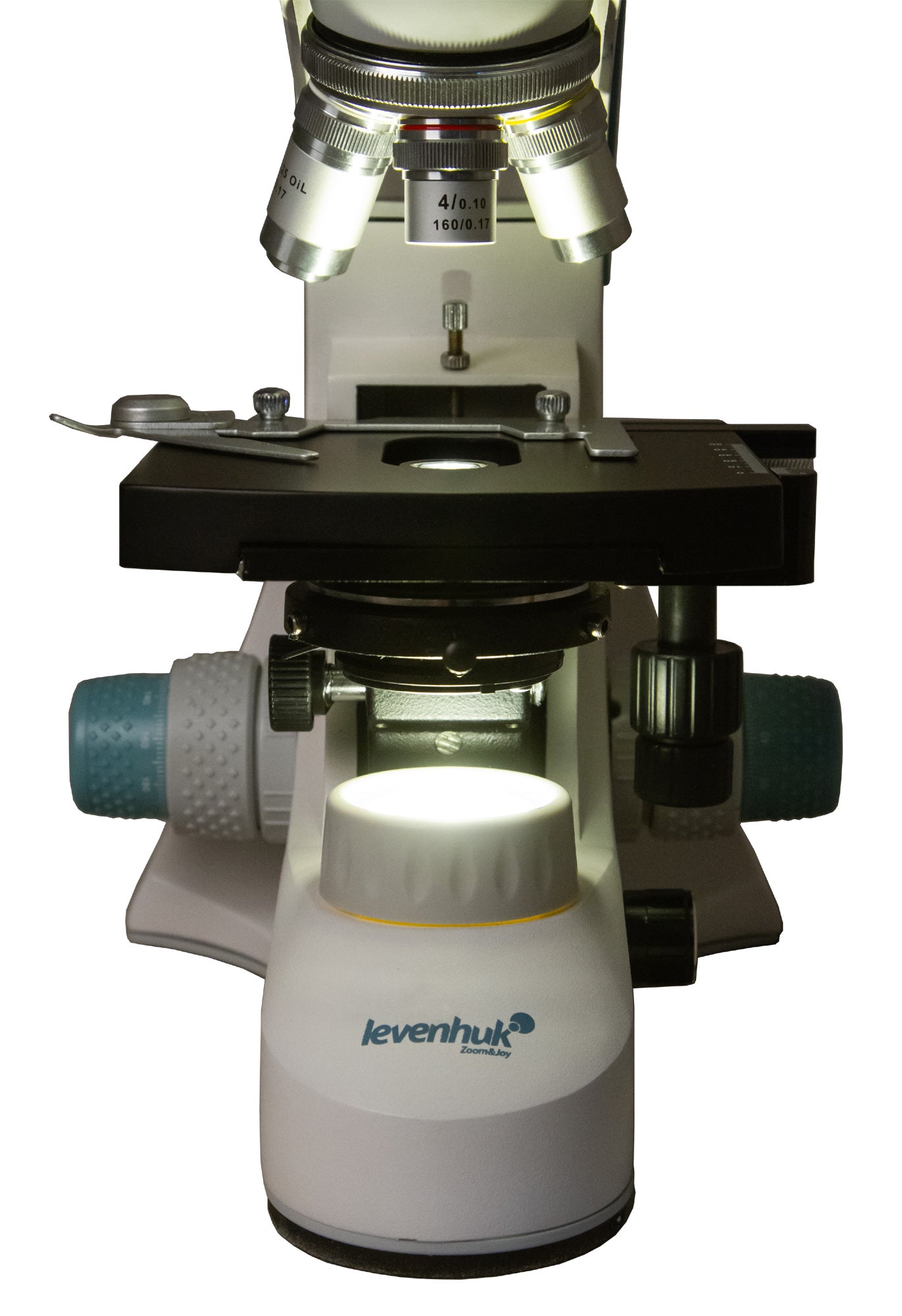

The lighting unit illuminates the stage from below. The microscope slides are placed on the table with the help of a mechanical scale. The light beam is controlled by an Abbe condenser with an iris diaphragm, while the lighting itself is powered by an AC power supply. The lighting source is a powerful 3-watt LED light with a collector.

Levenhuk 900B is a reliable optical tool with the high-quality optics.

Binocular rotatable head
Wide-field eyepieces, achromatic objectives
Optics magnification range: 40–1000x
Powerful 3W LED light with a collector
Brightness adjustment; an AC power supply

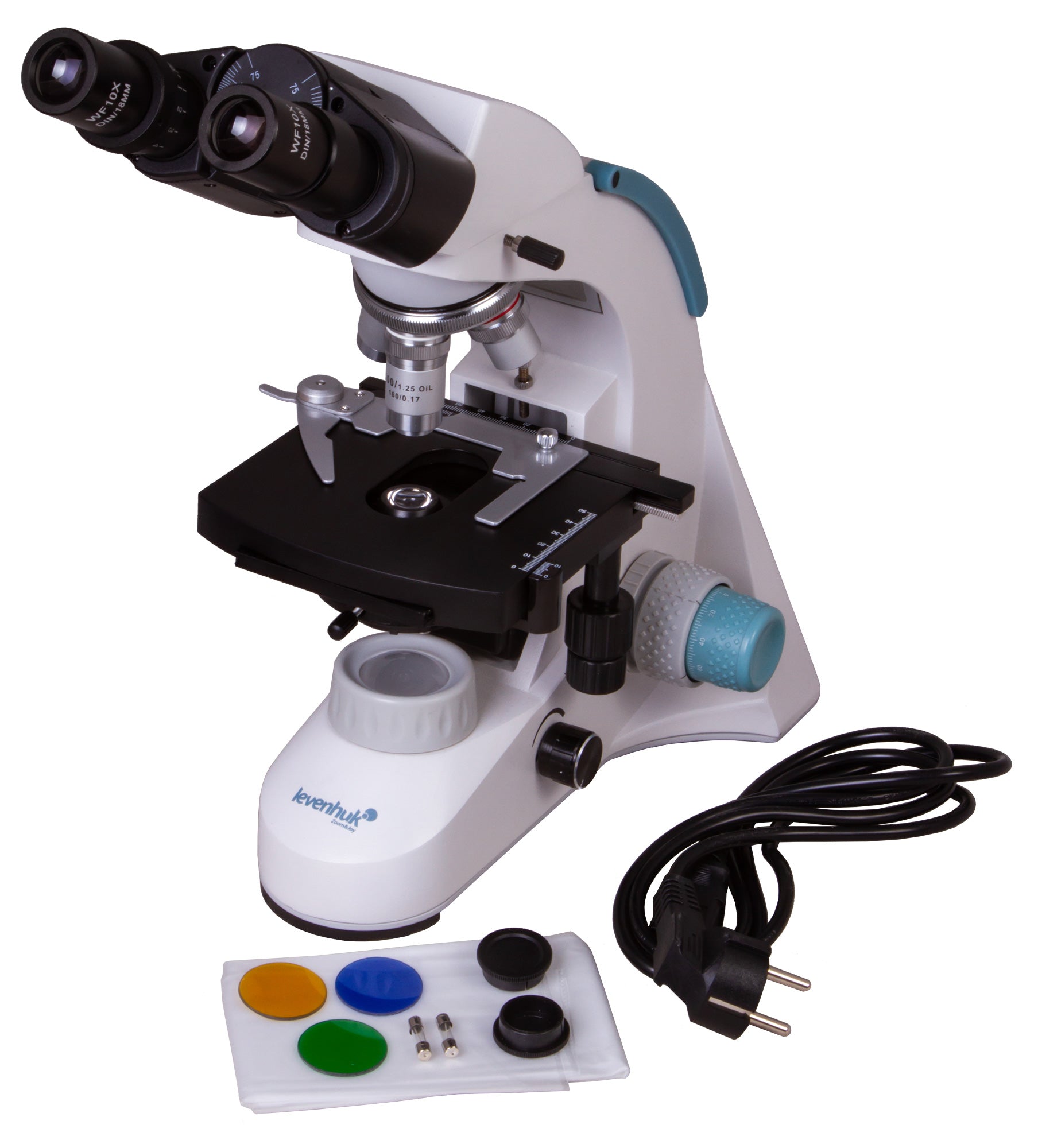

The kit includes:
4x, 10x, 40xs, 100xs (oil) achromatic objectives
WF10x/18mm eyepieces (2 pcs)
Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Filters: blue, green, yellow
Vial of immersion oil
Power cord
Dust cover
User manual and lifetime warranty

Head: binocular, rotatable 360°, inclined 30°
Optics material: optical glass
Magnification, x: 40–1000
Eyepiece tube diameter, mm: 23.2

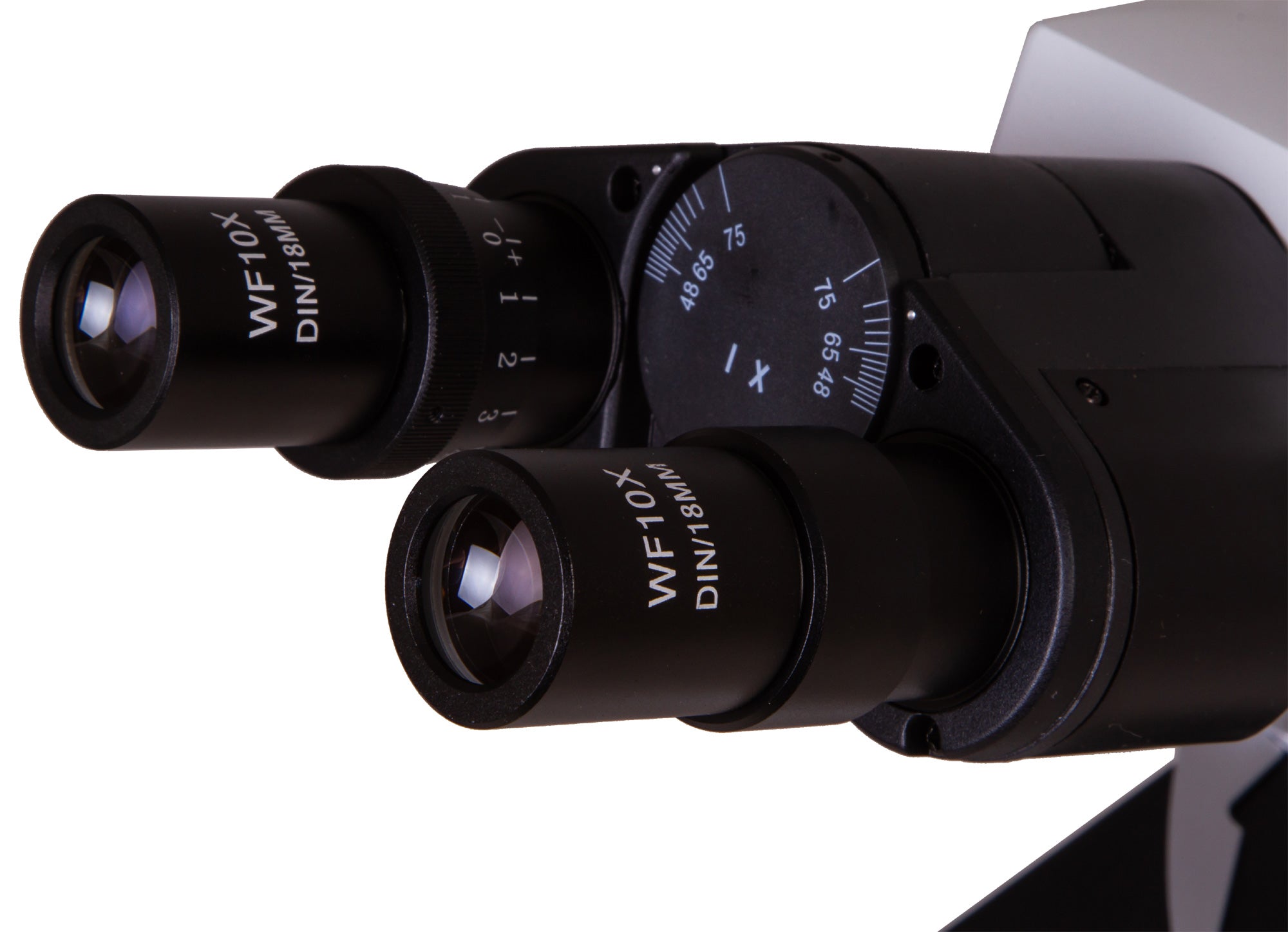

Eyepieces: WF10x/18mm (2 pcs)
Objectives: achromatic: 4x, 10x, 40xs, 100xs (oil)
Revolving nosepiece: 4 objectives
Interpupillary distance, mm: 48–75

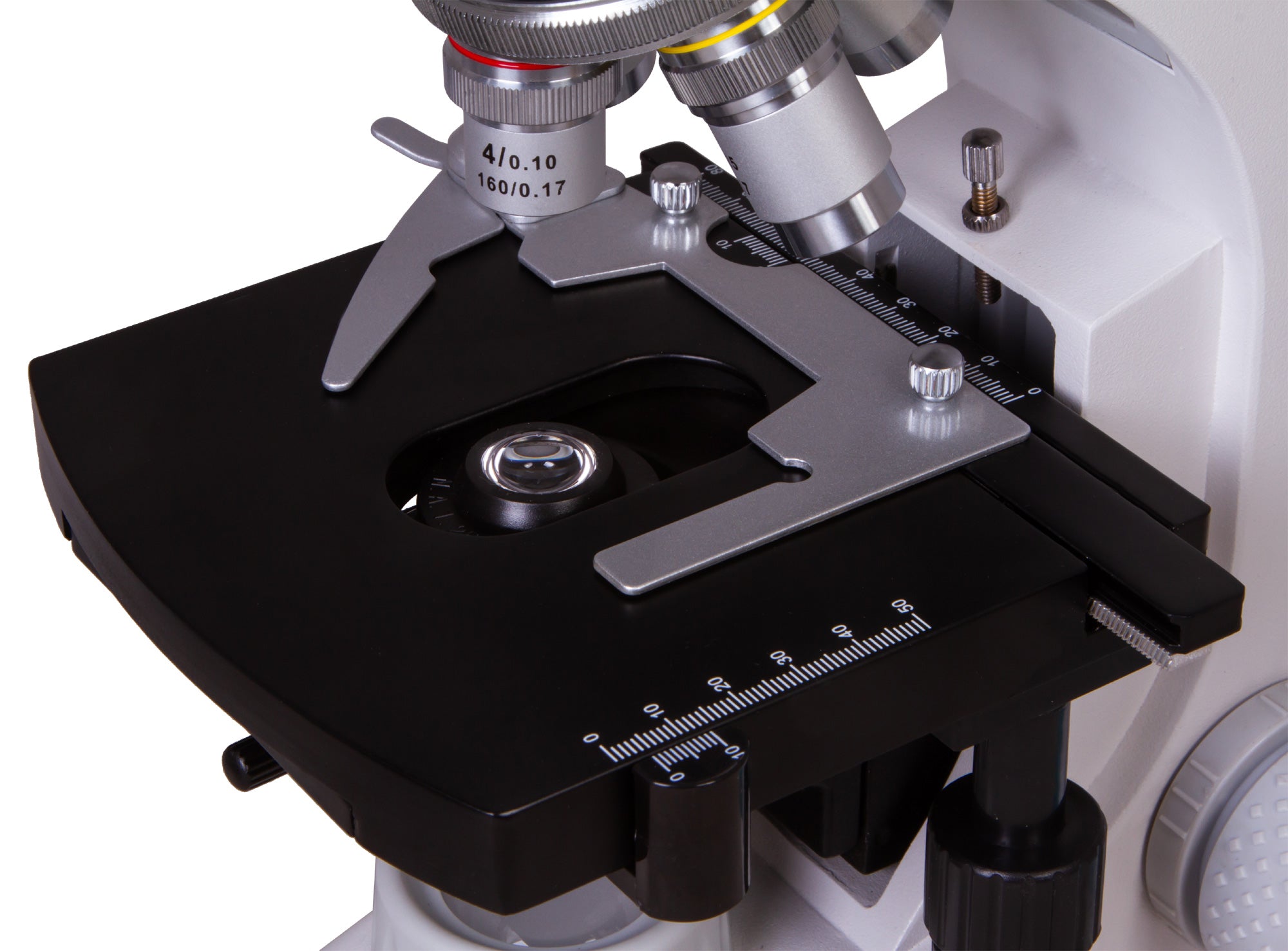

Stage, mm: mechanical double-layer, 130x120mm, with a mechanical scale
Stage moving range, using focusing mechanism, mm: 70/30
Eyepiece diopter adjustment, diopters: ±5
Condenser: Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Diaphragm: iris

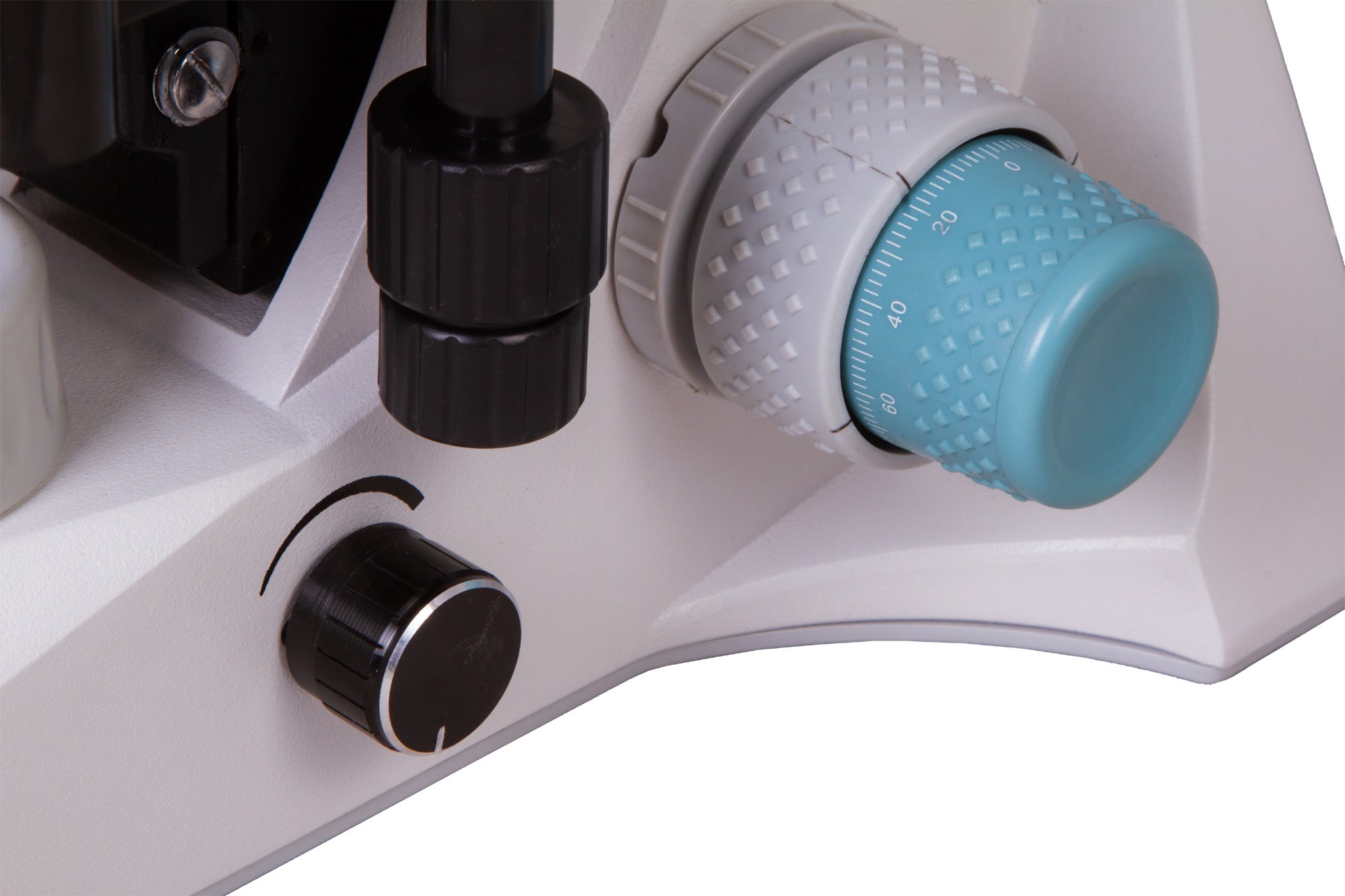

Focus: coaxial, coarse (25mm) and fine (0.002mm)
Body: metal
Backlight: LED
Brightness adjustment: yes
Power source: 110–220V, via a network adapter
Light source type: with a collector, 3W LED
Filters: blue, green, yellow
Usage: General use product. May be used by kids over 3 years old.
Application: Lab Research
Pouch/case/bag in set: yes
