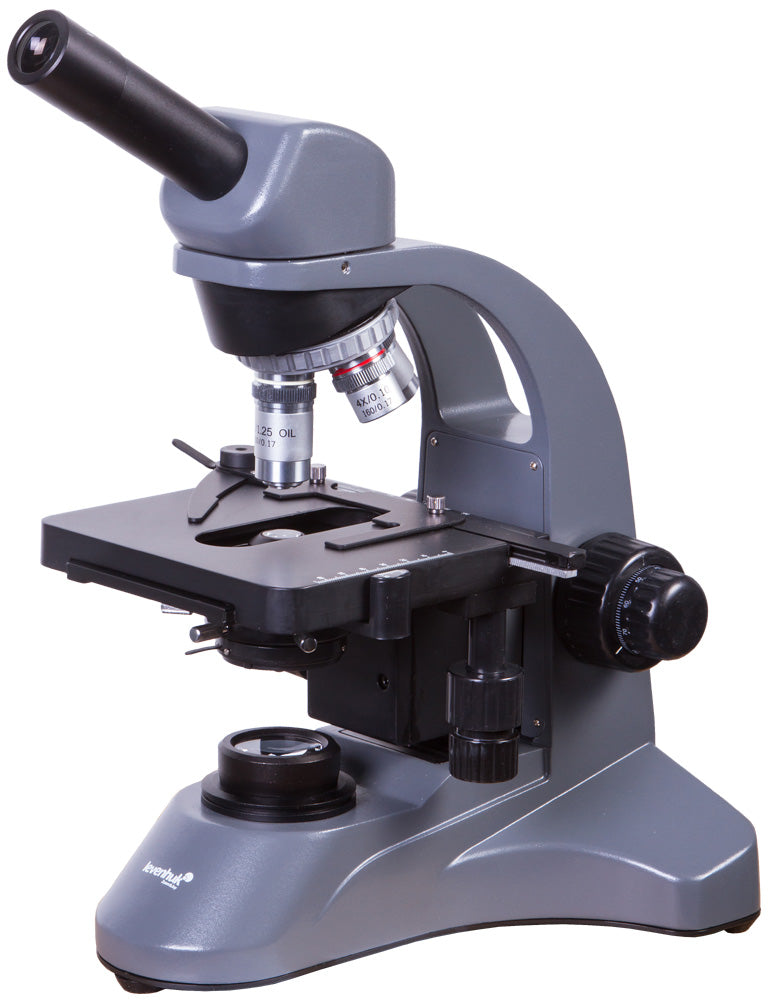

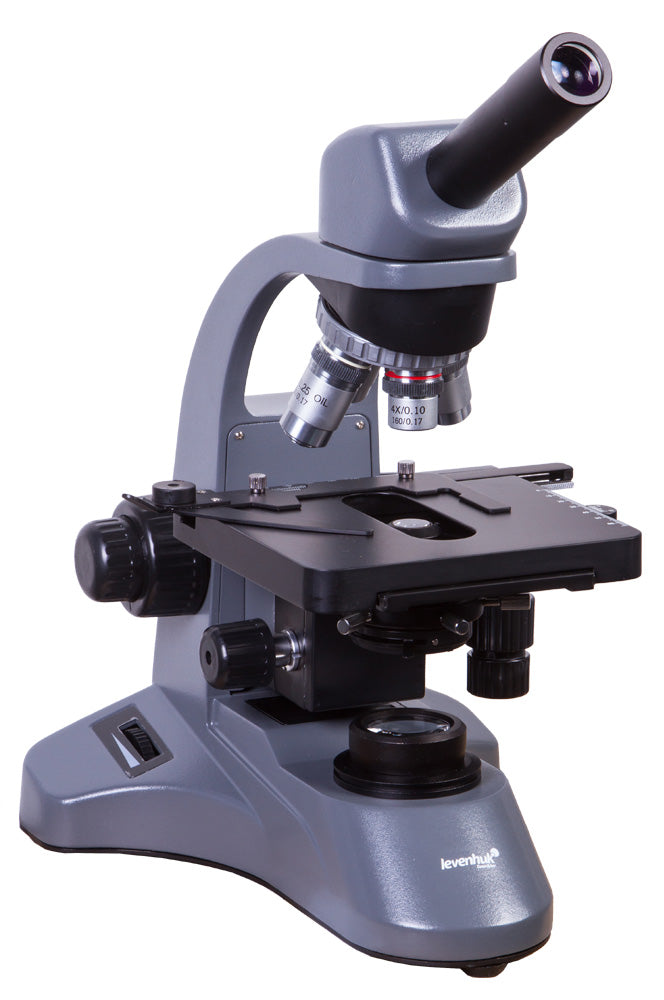

Levenhuk 700M Monocular Microscope
Magnification: 40–2000x. Comes with high-quality achromatic objective lenses and Abbe condenser with iris diaphragm.

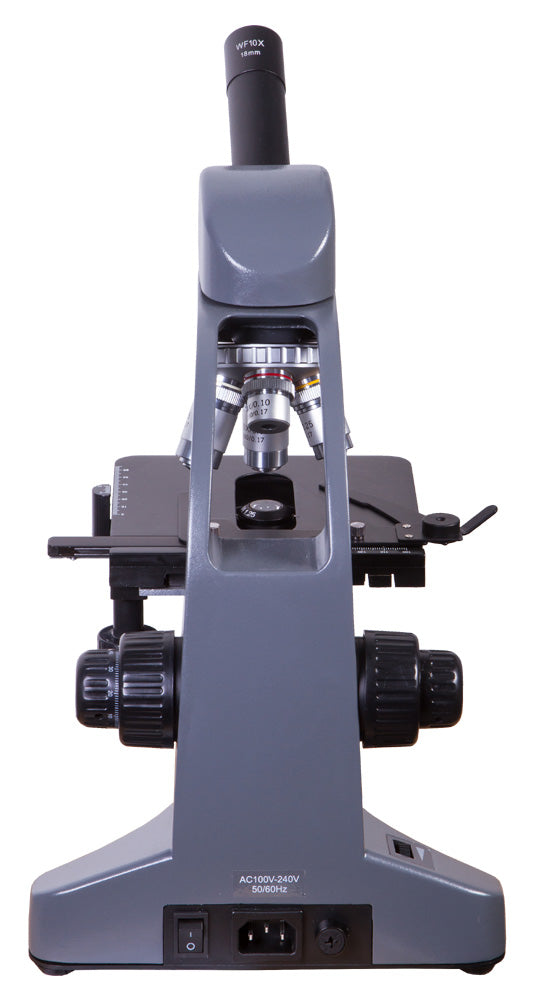

Levenhuk 700M Microscope can be applied in many different fields: cystoscopy, bacterioscopy, medicine, clinical research and trials. Such a microscope will take a worthy place in a laboratory, medical institution, or university. Science lovers can also use Levenhuk 700M Microscope for home research. Levenhuk 700M biological microscope features a revolving monocular head. It moves 360° around its axis, allowing students or colleagues to follow the progress of research. The head is inclined at 45°– a comfortable angle for conducting lengthy microscopic research.

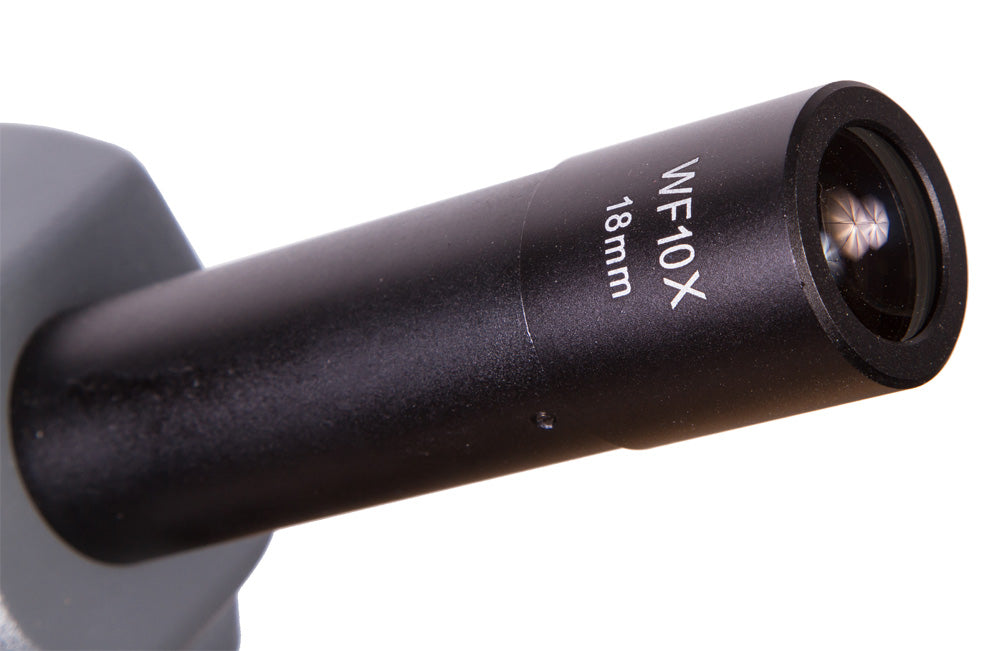

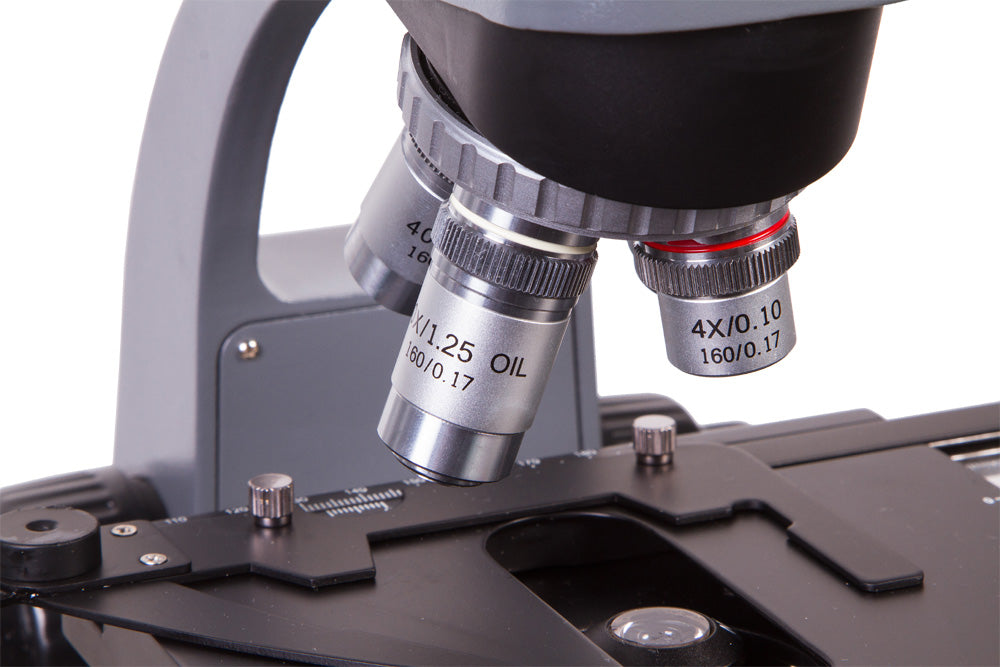

The revolving nosepiece is designed to accommodate 4 objectives. The kit includes achromatic lenses. The most powerful lens can be used for the oil immersion observing method. This method allows for increased brightness and sharpness of observed images. The microscope also comes with a pair of eyepieces: standard 20x eyepiece and 10x wide field eyepiece.

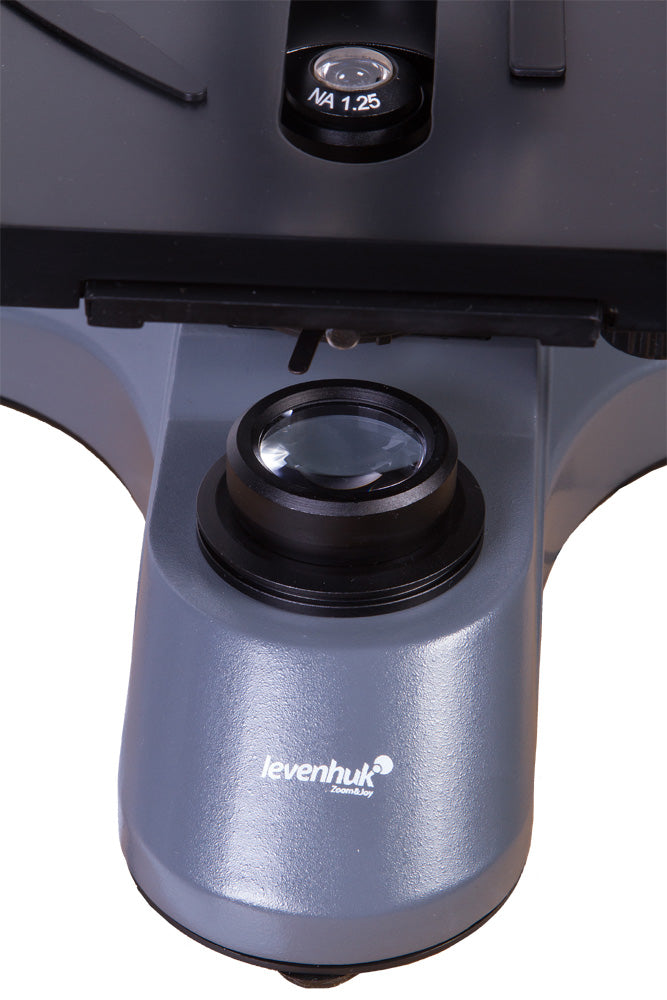

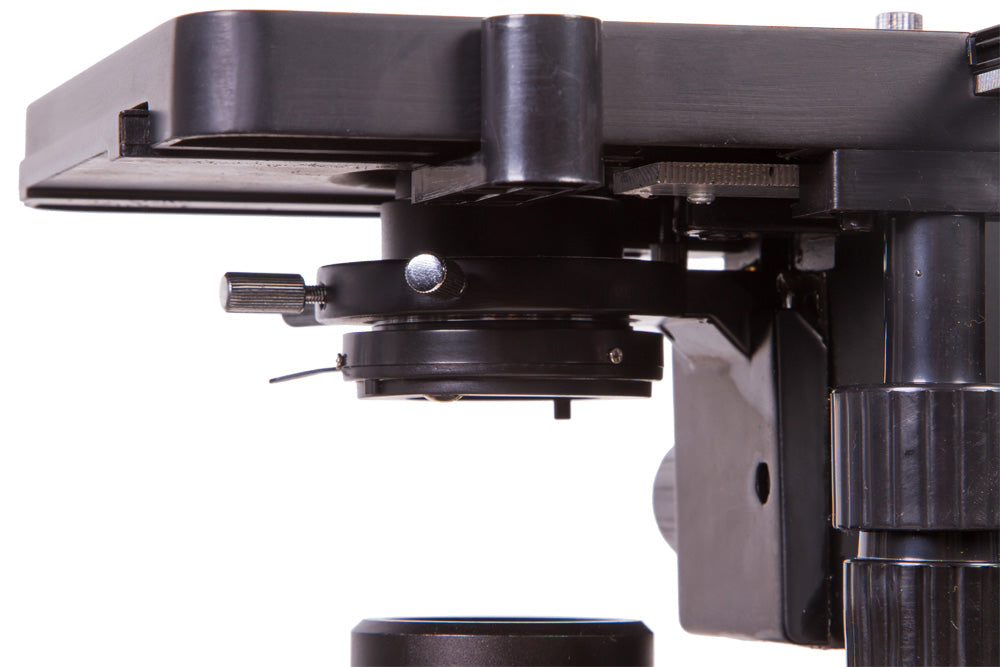

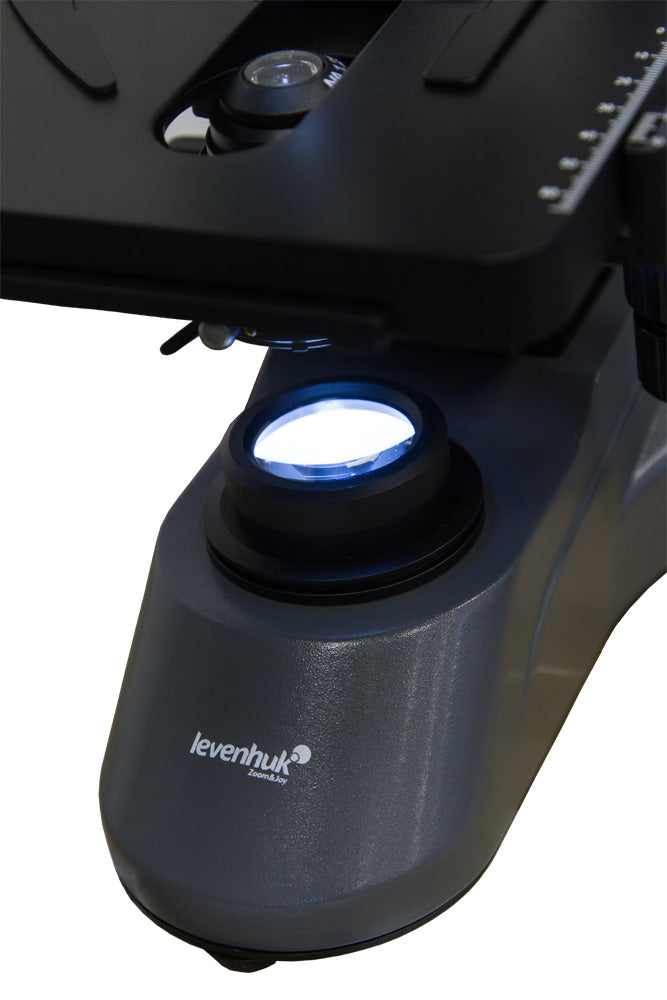

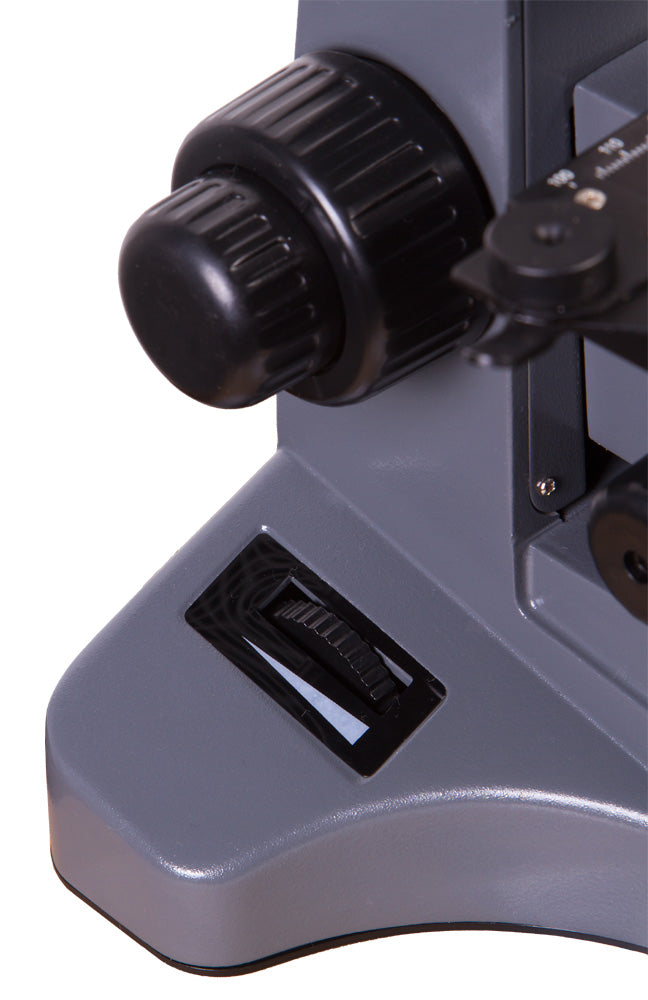

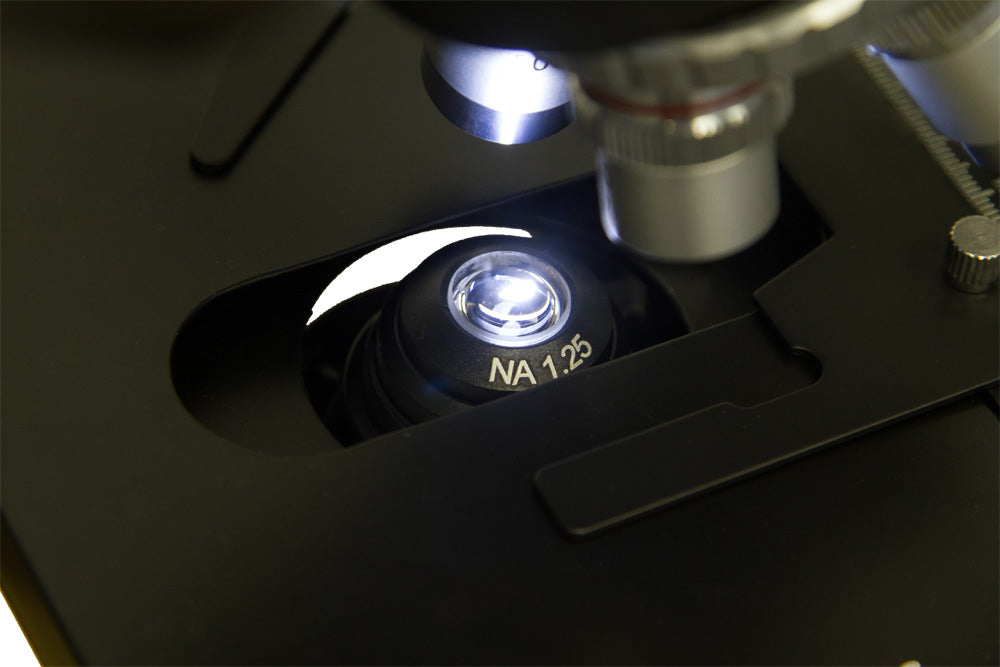

The microscope is equipped with built-in LED illumination with adjustable brightness. The Illumination is located below the stage and allows for viewing any transparent samples in transmitted light. A built-in Abbe condenser with iris diaphragm is used for accurate focusing of the light beam on the observed microscope sample. There are special levers to use for accurate centering.

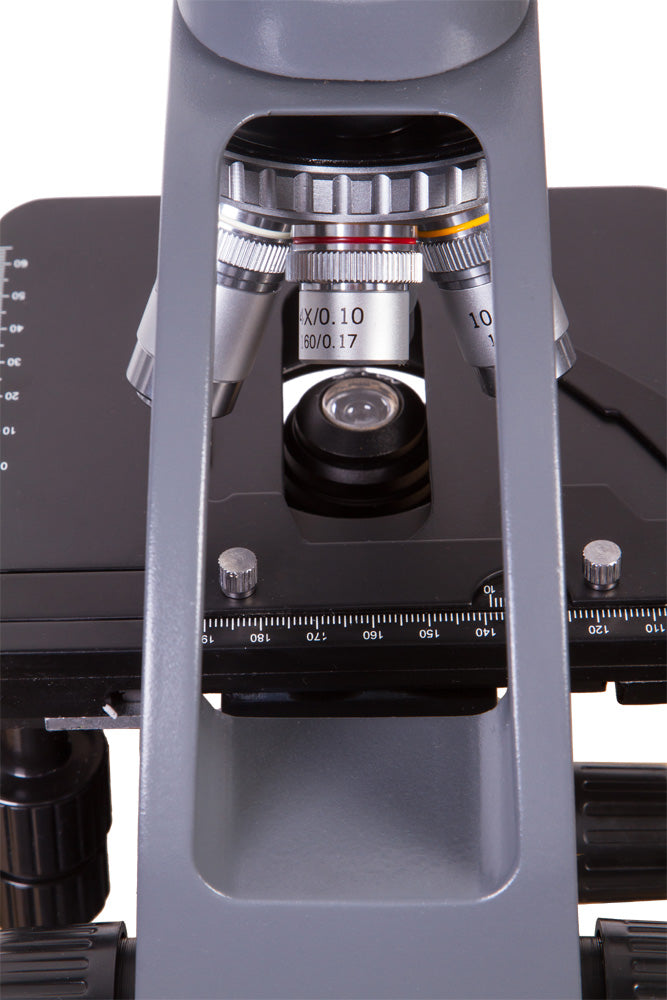

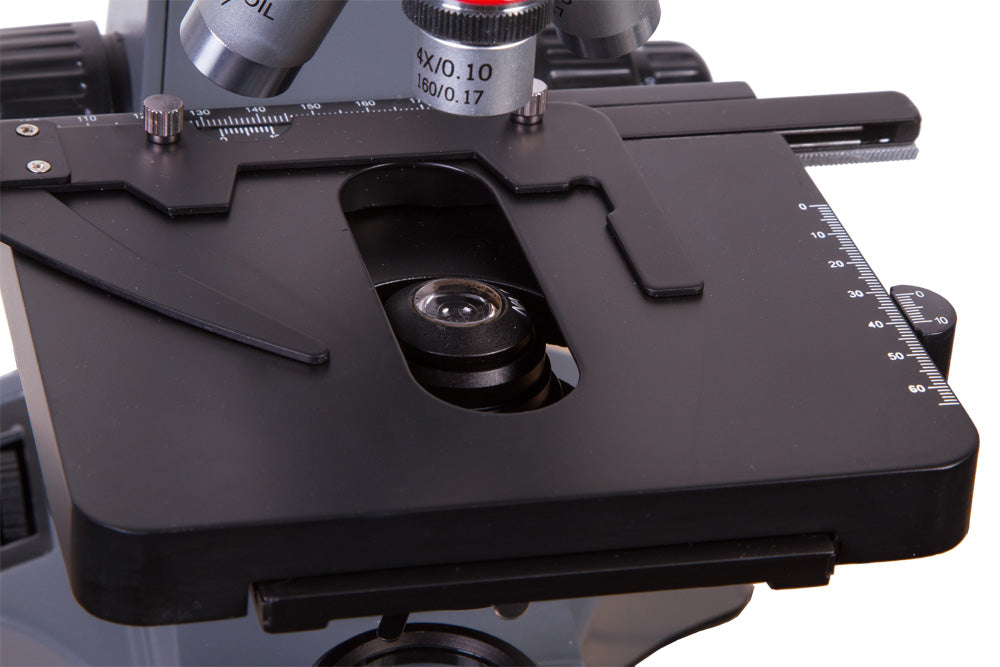

The stage moves along horizontal and vertical axes. The coordinate scale allows you to check the accuracy of movement. The focusing mechanism includes a coarse and fine sharpness adjustment. The microscope body is made of metal.
Features:
Magnification: from 40x to 2000x
Rotatable monocular head
Metal body
Coordinate moving stage
Coaxial coarse and fine focusing mechanism
LED illumination with adjustable brightness
Oil immersion
Abbe condenser
Iris diaphragm
Achromatic objectives
Interchangeable eyepieces

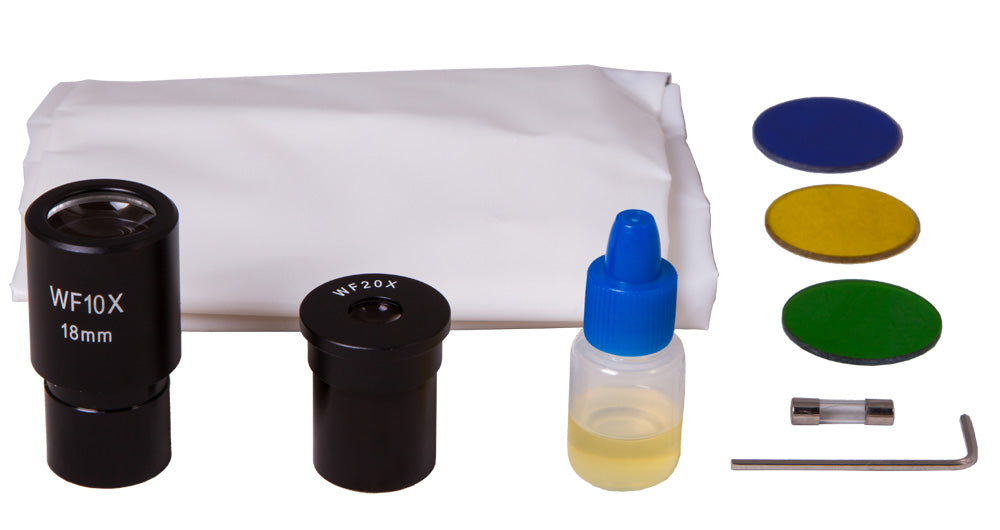

The kit includes:
Microscope stand with base
Monocular head
Achromatic objective lenses: 4x, 10x, 40xs, and 100xs (oil)
Eyepieces: WF10x and H20x
Filters (blue, yellow, green)
Bottle of immersion oil
Dust cover
User manual
Lifetime warranty
Specifications:
Head: monocular, rotatable 360°, inclined 45°
Optics material: optical glass
Magnification, x: 40–2000
Eyepiece tube diameter, mm: 23.2
Eyepieces: WF10x/18, H20x
Objectives: achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolving nosepiece: 4 objectives
Stage, mm: 140x130, double layer mechanical stage with coordinate scale and clips
Stage moving range, using focusing mechanism, mm: vertically: 24mm; horizontally: 75mm
Eyepiece diopter adjustment, diopters:±6
Condenser: Abbe N.A. 1.25
Diaphragm: iris
Focus: coaxial, coarse and fine (coarse: 22 mm; fine: 0.002 mm)
Body material: aluminum
Illumination: LED
Brightness adjustment: yes

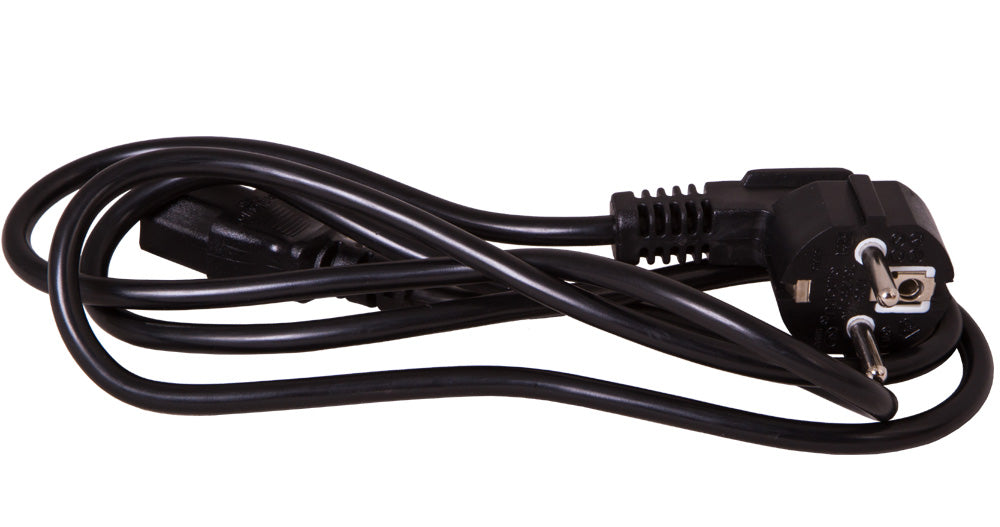

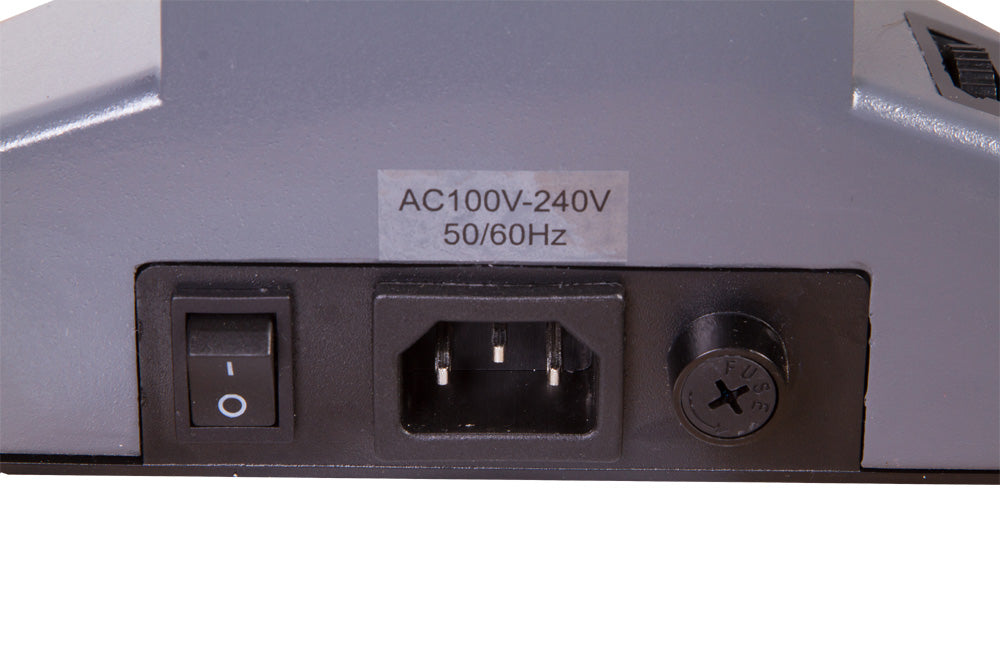

Power supply: 220 V/50 Hz
Filters: blue, yellow, green
Light source type: LED 3W
Filters: yes
Additional: eyepiece tube length: 160mm
