Levenhuk 400T Trinocular Microscope

  • $472.05
    Unit price per
Tax included. Shipping calculated at checkout.

Levenhuk 400T Trinocular Microscope
Magnification: 40–1000x. Trinocular head, achromatic objectives, LED light with a collector

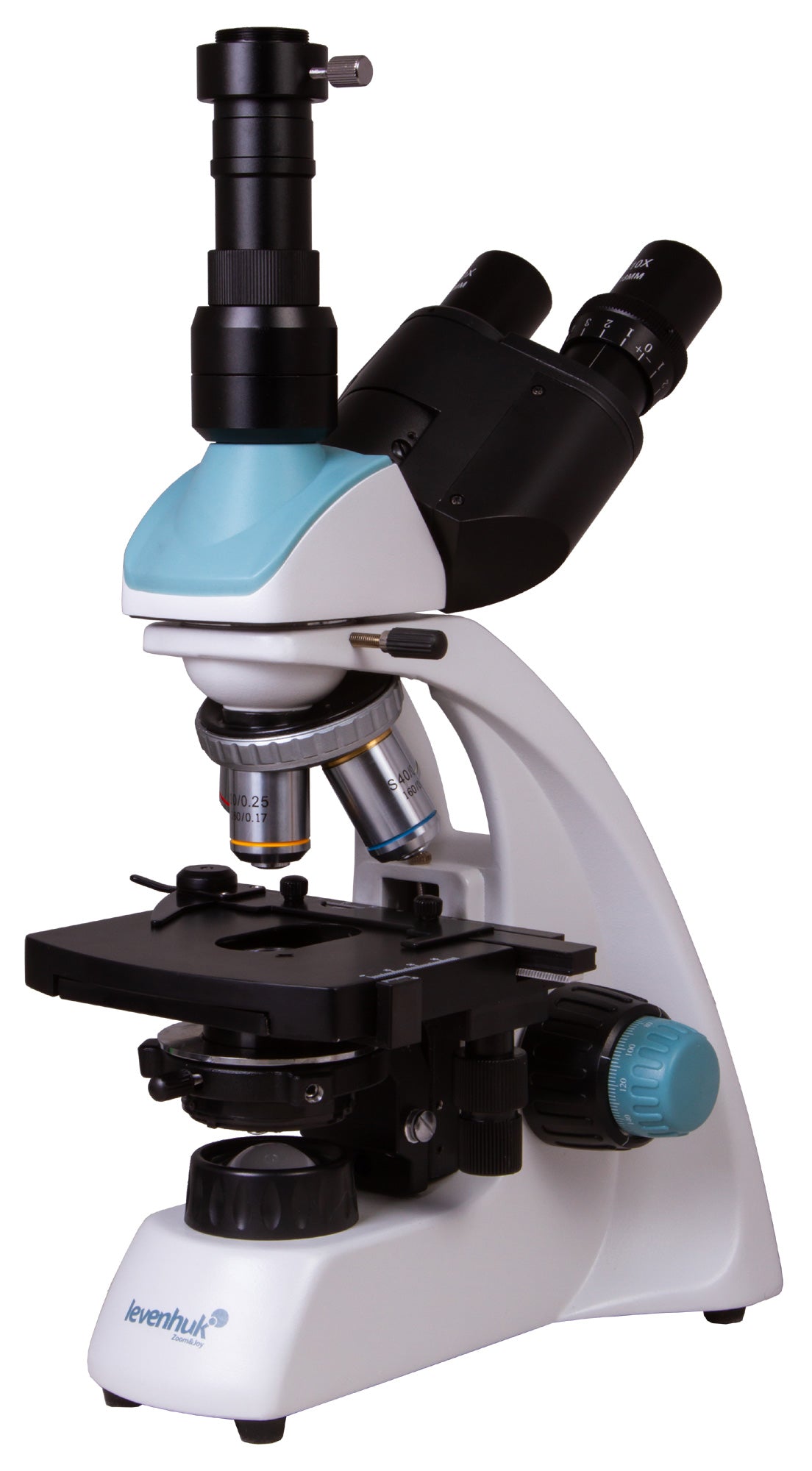

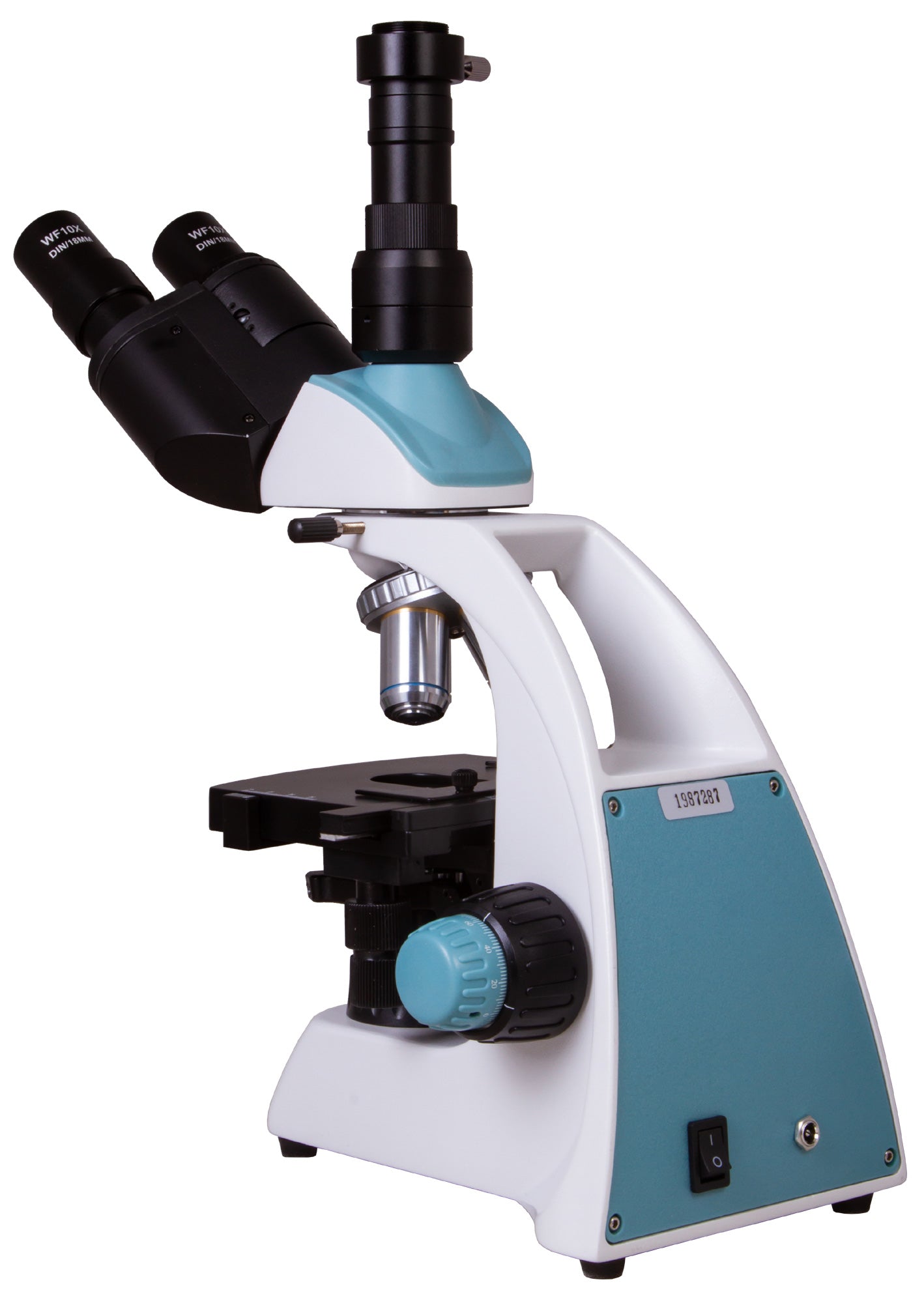

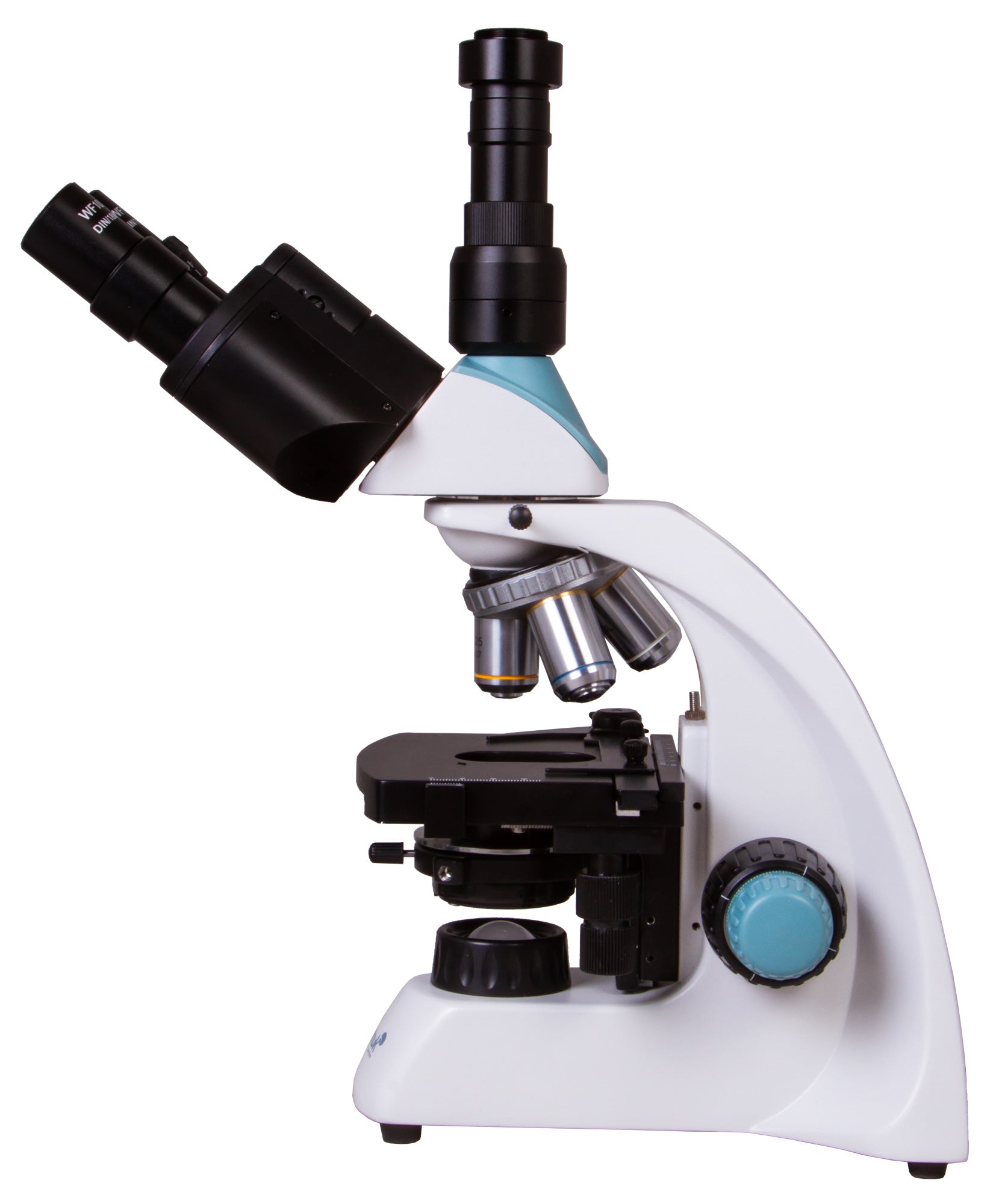

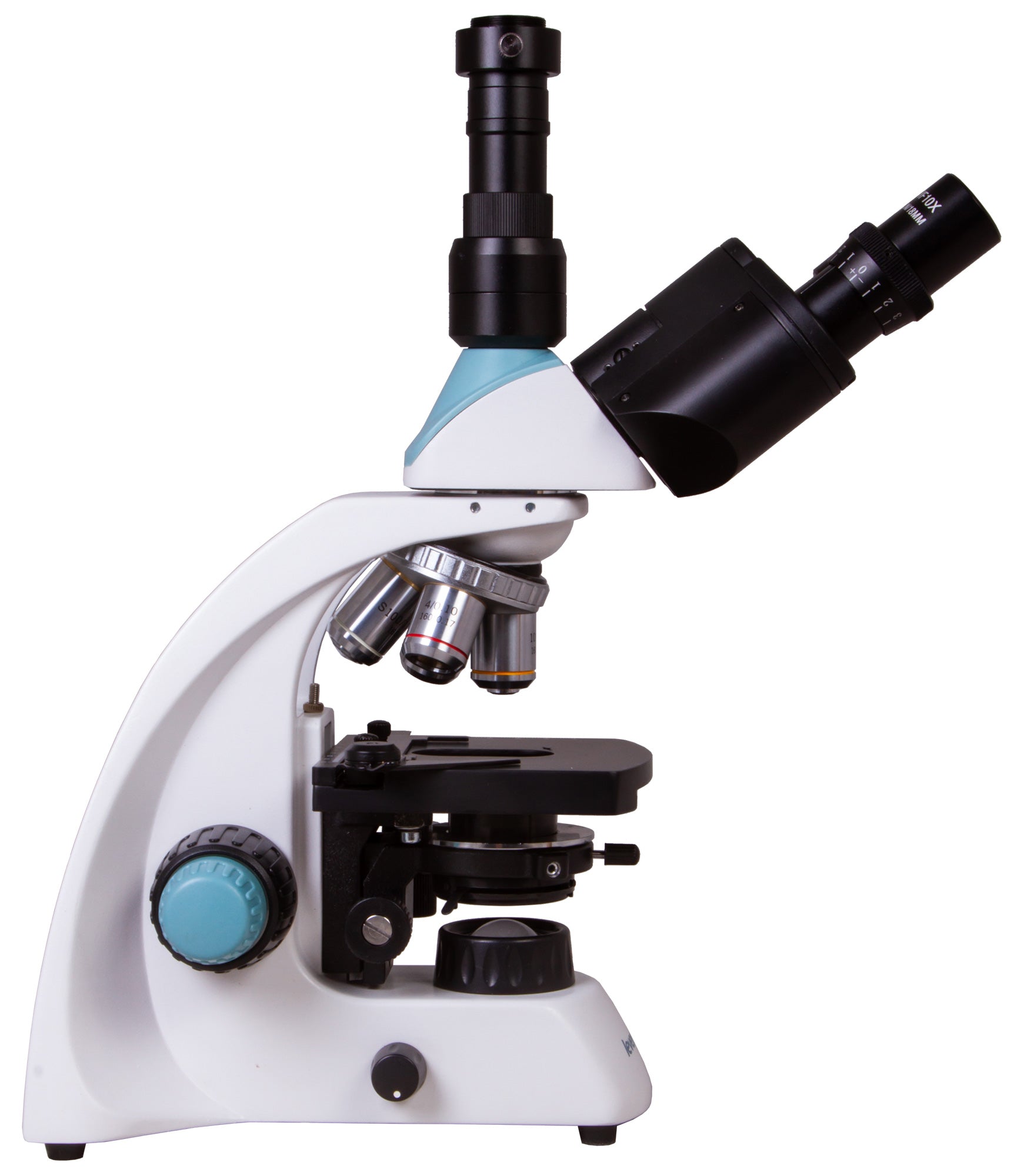

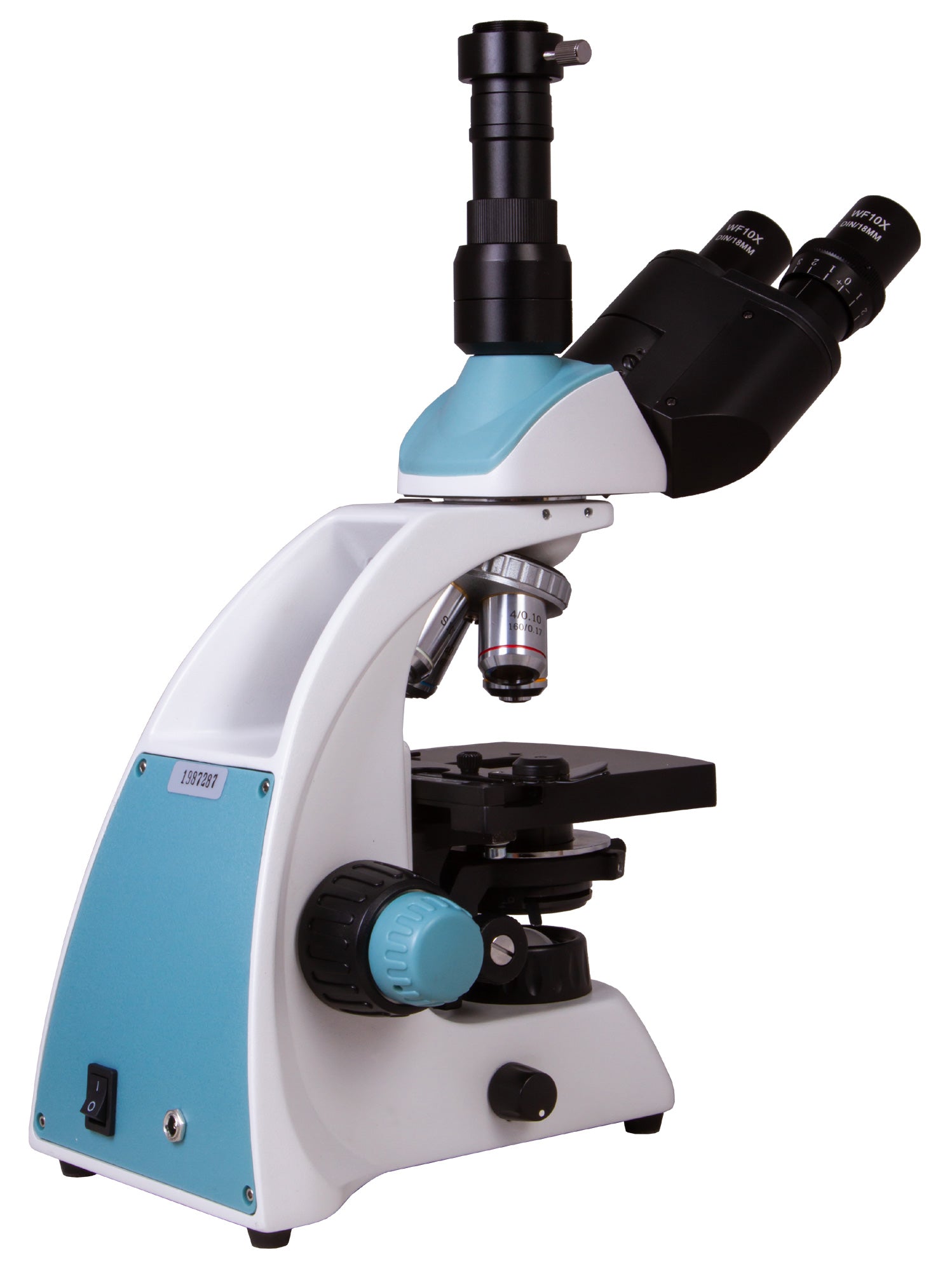

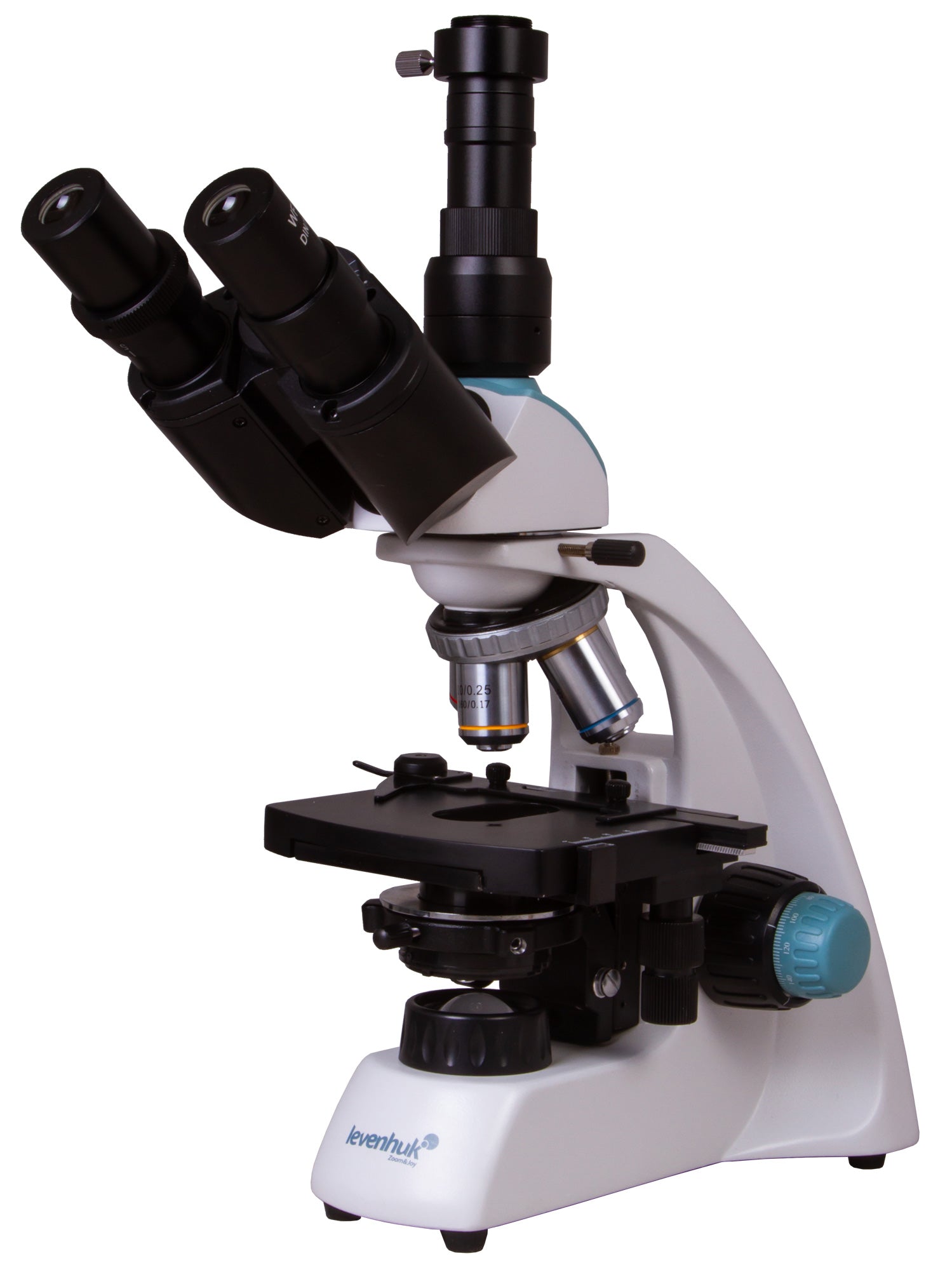

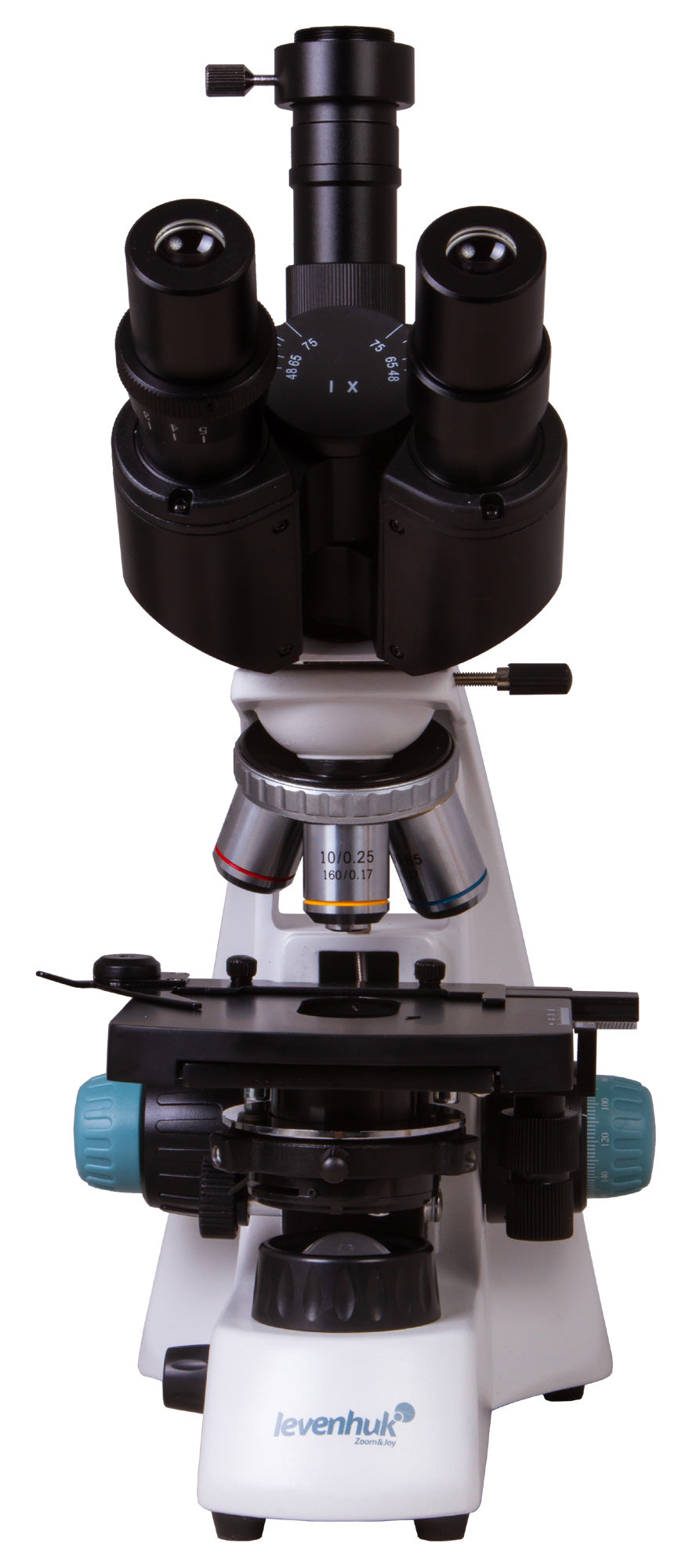

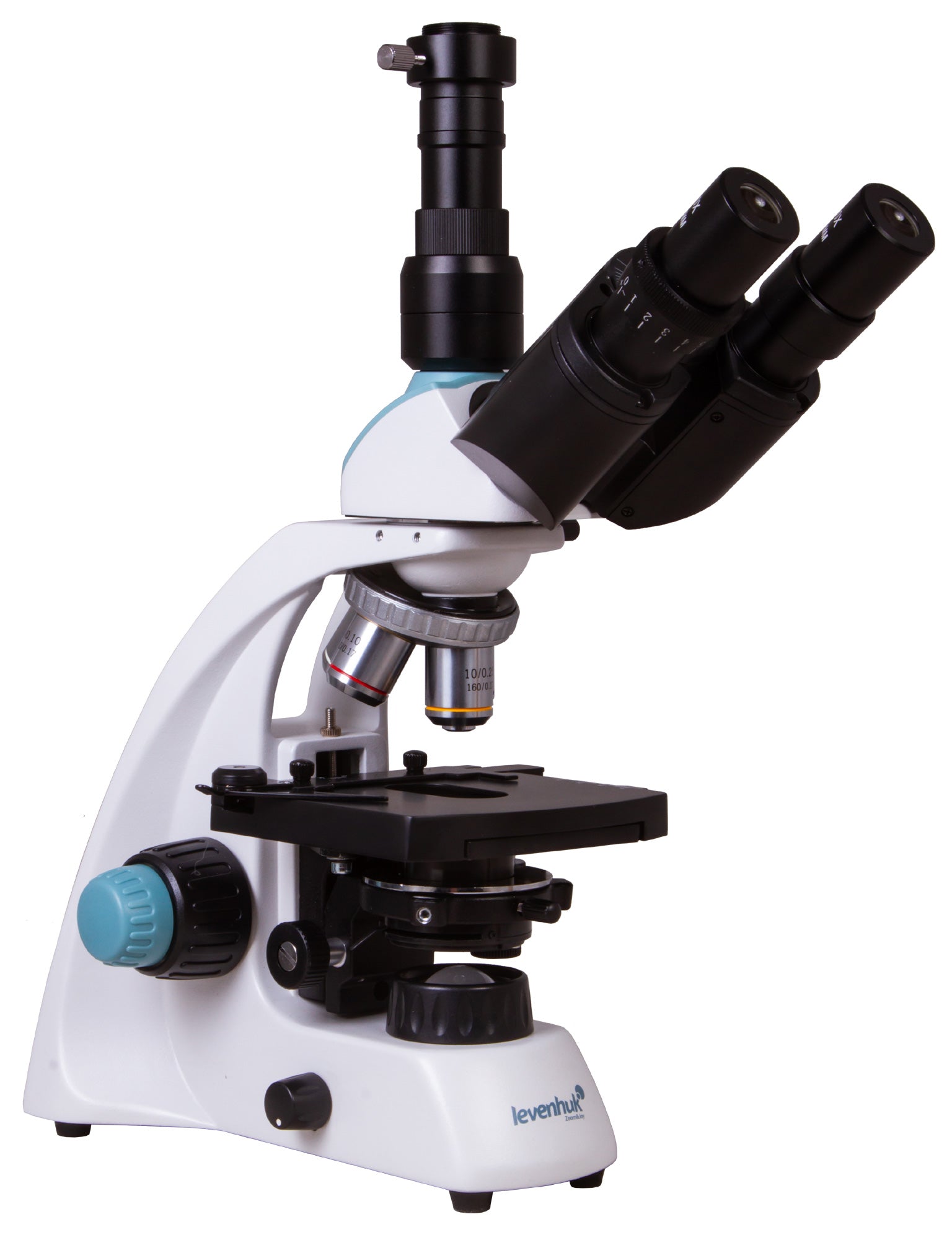

The Levenhuk 400T is a classic trinocular microscope with a binocular visual part and a vertical tube for installing a digital camera in it. This microscope is an excellent choice for a laboratory. It will help a medical worker, microbiologist, biochemist, or any other specialist who studies biological samples. The microscope uses the achromatic optics and comes with an LED light. A bright field method and oil immersion can be used for research.

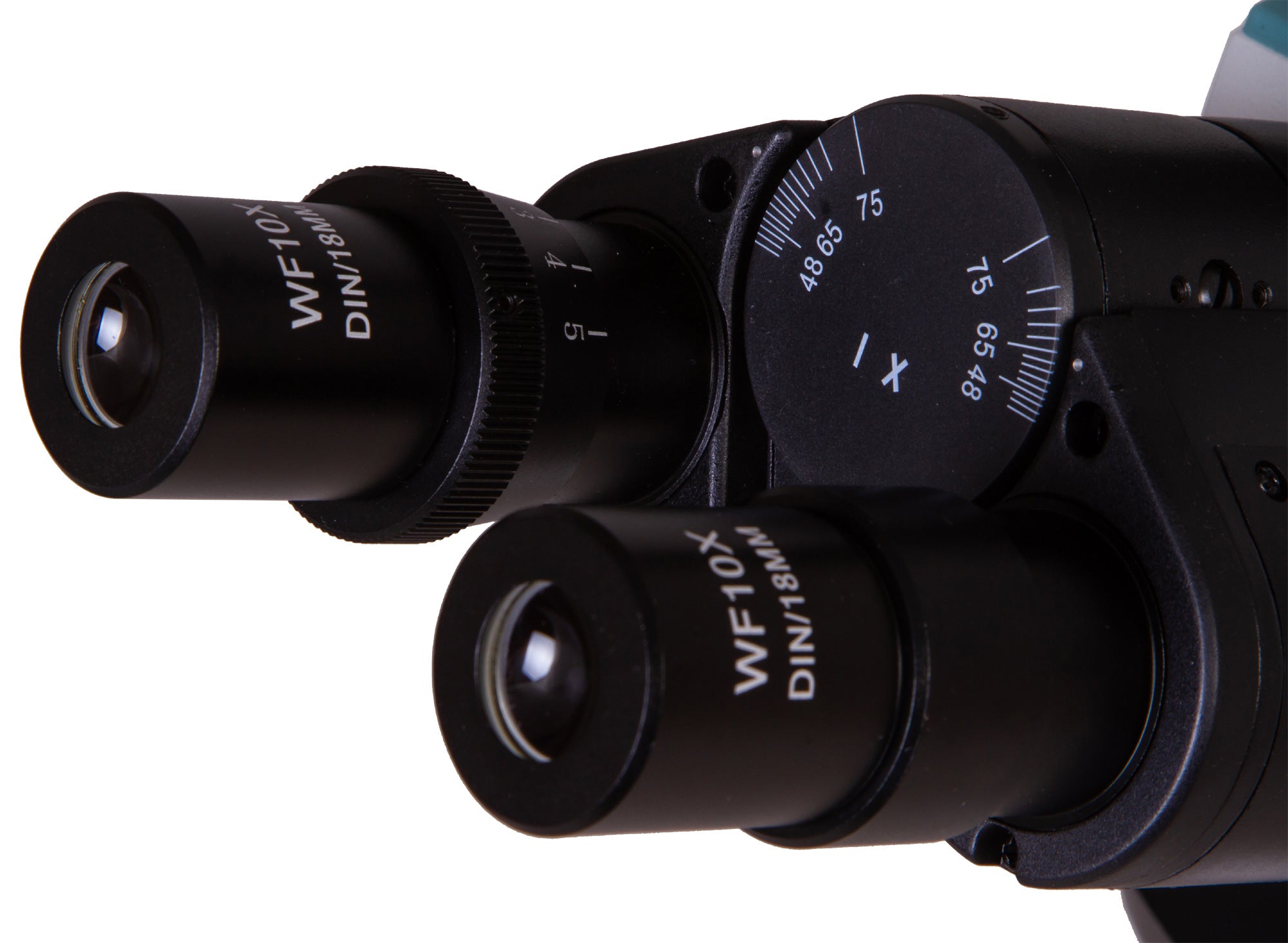

A microscope head is rotatable, which is practical for group work. A visual part is inclined at 30°: that makes lengthy work with a microscope more comfortable. The 10x eyepieces provide a wide field of view, while achromatic optics deliver details of small structures clearly and sharply. The objectives with 4x, 10x, 40x, and 100x magnification are installed in a revolving nosepiece. Overall microscope magnification varies from 40x to 1000x. Please note that this microscope allows for applying oil immersion research method using a 100x objective. What is more, 40x and 100x objectives feature protective spring-loaded frames.

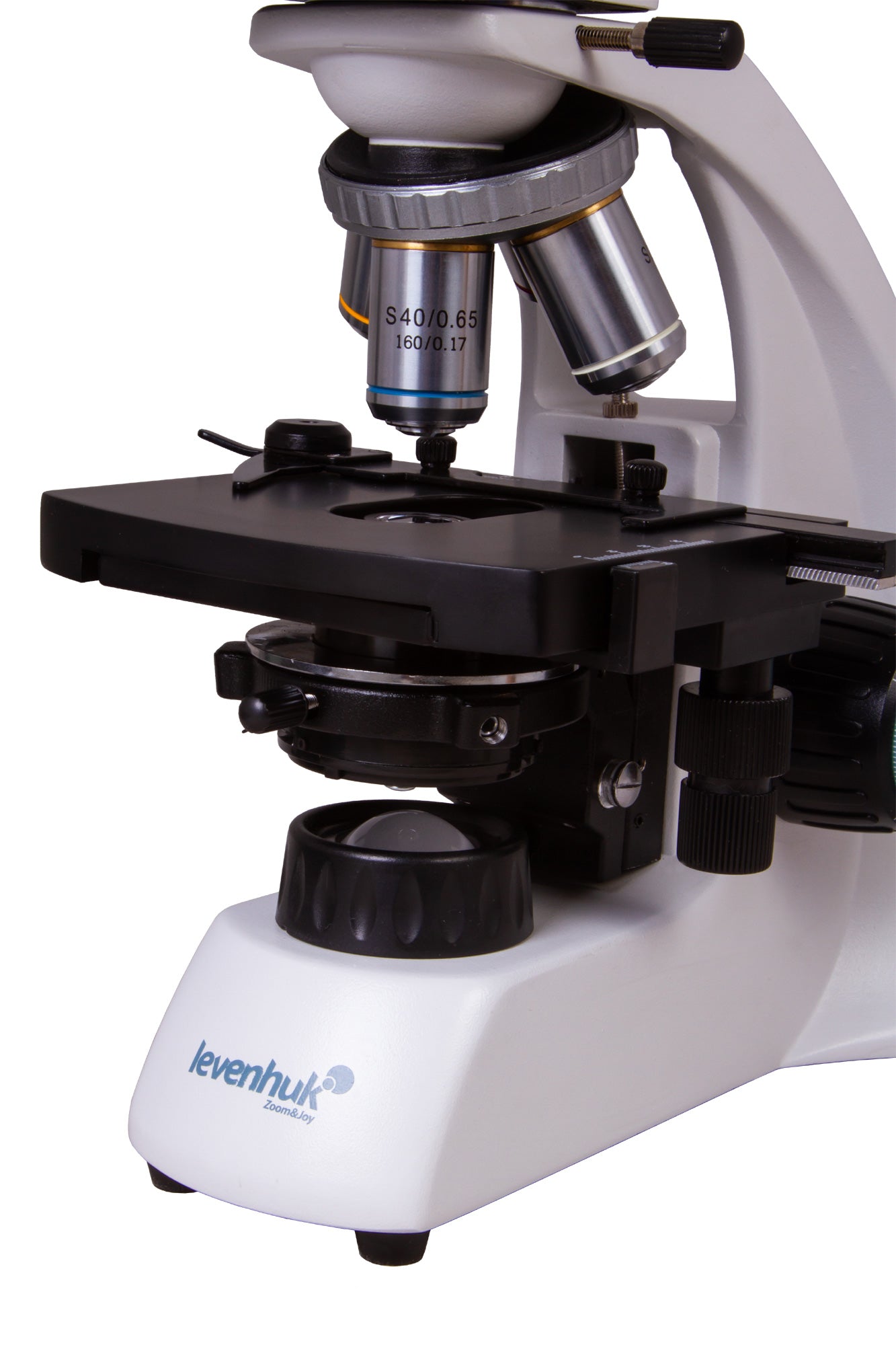

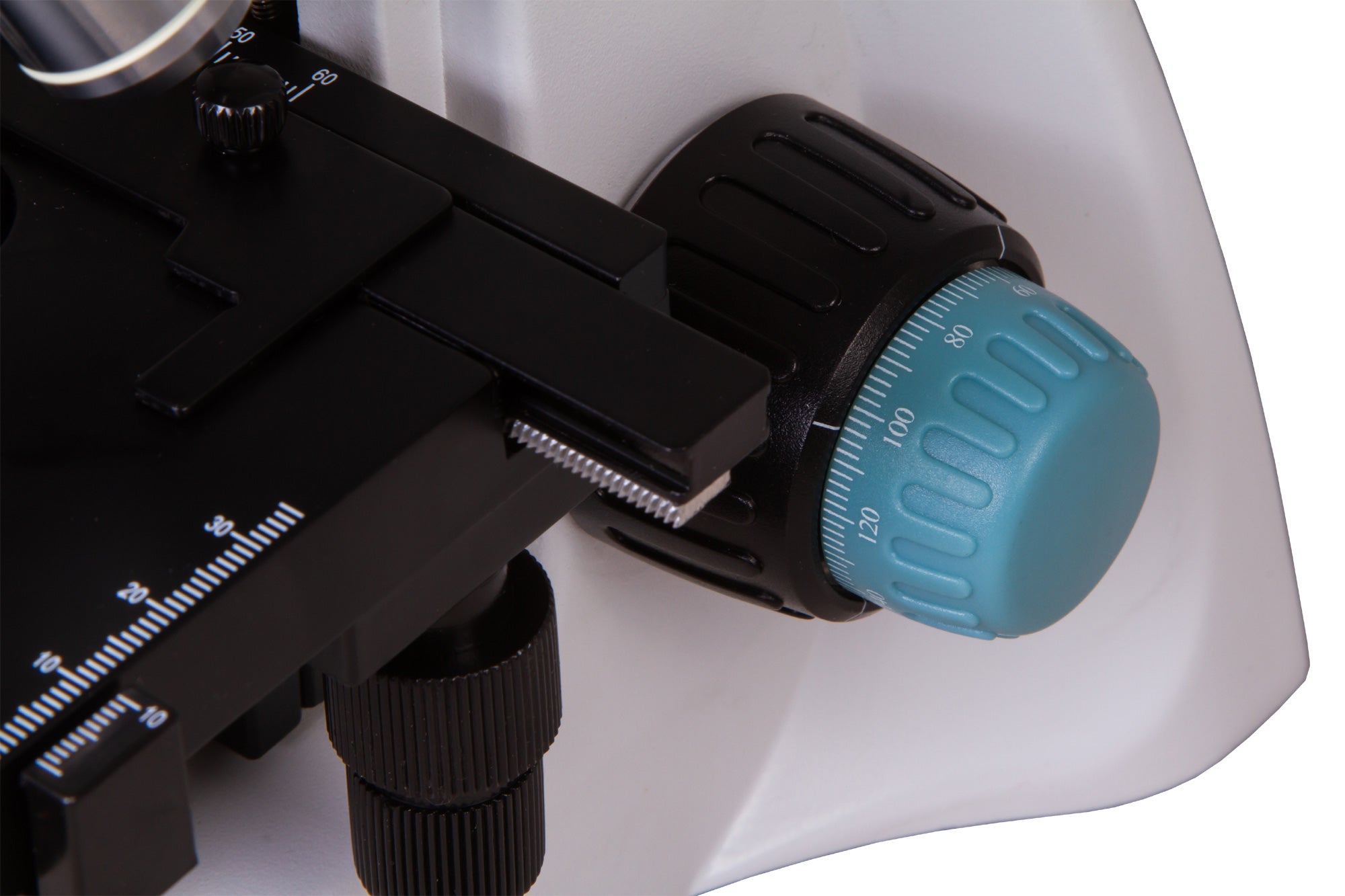

The stage is equipped with a mechanical scale. Next to the stage, there are fine and coarse focusing knobs. Right underneath, there is a bright field Abbe condenser with an iris diaphragm and a filter holder. The lighting system consisting of an LED light and collector is located even lower. The lighting features brightness adjustment and is powered by rechargeable batteries (included in the kit) or an AC power supply. The microscope body is made of metal.

Trinocular rotatable head with a tube for installing a digital camera
The wide-field achromatic optics with 40–1000x magnification

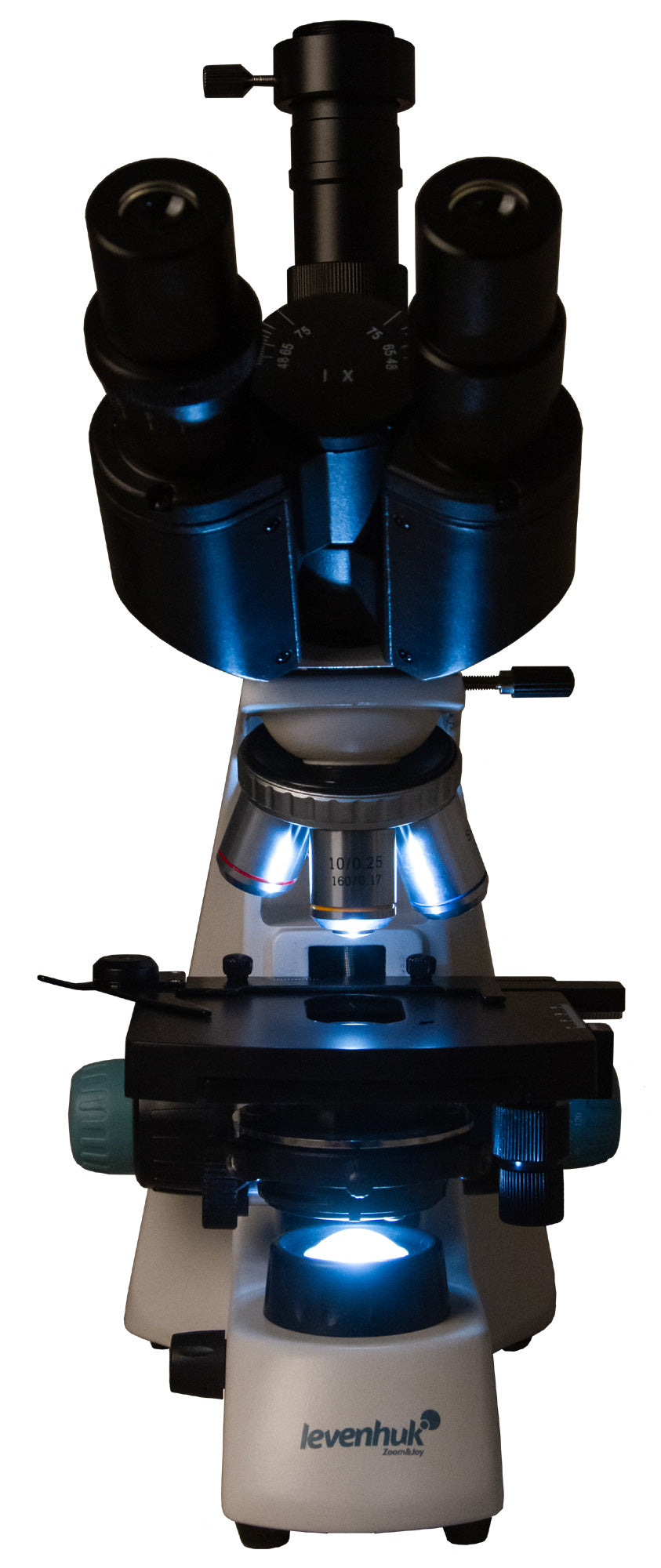

Lower LED lighting with a collector and brightness adjustment
Power supply is variable: by batteries or AC power supply
Metal body, practical coarse and fine focusing

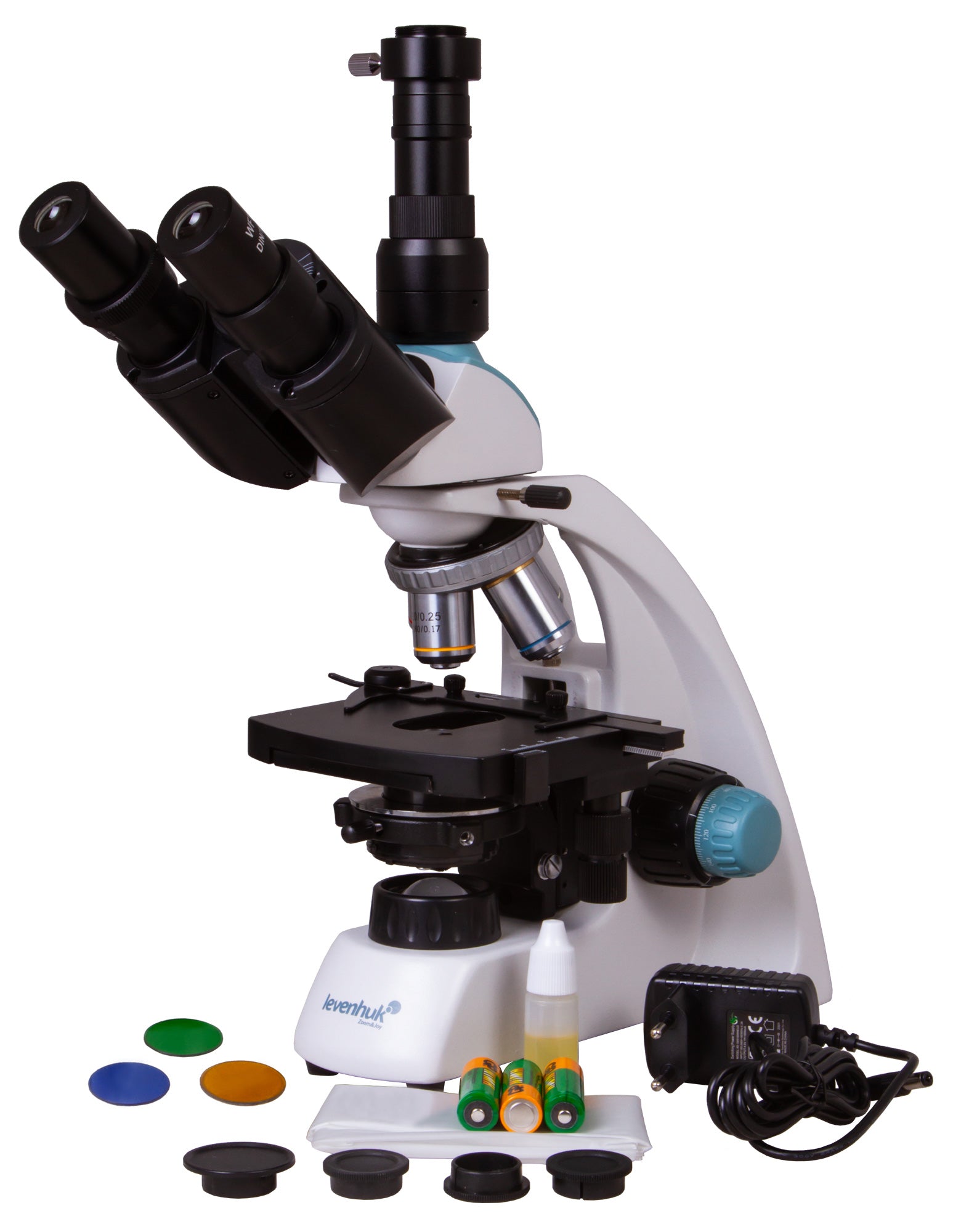

The kit includes:
4x, 10x, 40xs, 100xs (oil) achromatic objectives
WF10x/18mm eyepieces (2 pcs)
Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Rechargeable AA batteries (3 pcs)
Charging power cord
Vial of immersion oil
Filters: blue, green, yellow
Dust cover
User manual and lifetime warranty

Head: trinocular, rotatable 360°, inclined 30°
Optics material: optical glass
Magnification, x: 40–1000
Eyepiece tube diameter, mm: 23.2
Eyepieces: WF10x/18mm (2 pcs)
Objectives: achromatic: 4x, 10x, 40xs, 100xs (oil)
Revolving nosepiece: 4 objectives
Interpupillary distance, mm: 48–75
Stage, mm: mechanical double-layer, 115x110mm, with a mechanical scale
Stage moving range, using focusing mechanism, mm: 55/20
Eyepiece diopter adjustment, diopters: ±5
Condenser: Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Diaphragm: iris
Focus: coaxial, coarse (12mm) and fine (0.002mm)
Body: metal
Backlight: LED
Brightness adjustment: yes
Power source: 110–220V via an AC power supply or 3 rechargeable AA batteries, 1300mAh, 1.2V; work time: 4 hours, charging time: 3 hours
Light source type: with a collector, 1W LED
Filters: blue, green, yellow
Usage: General use product. May be used by kids over 3 years old.
Application: Lab Research
Pouch/case/bag in set: yes
