Ermenrich Verk LQ40 Digital Level

  • $28.68
    Unit price per
Tax included. Shipping calculated at checkout.

Meet the Ermenrich Verk LQ40 a magnetic digital level that is suitable for a wide variety of applications. It can be used to level metal structures in construction and repair work as well as in manufacturing in order to measure the slope of some elements or sharpen knives. The slope is measured in a range of 0–360° (4x90°) and the buzzer helps you to precisely align the object horizontally or vertically. The measurements are given in degrees percent or other units of measurement – can be selected by the user.

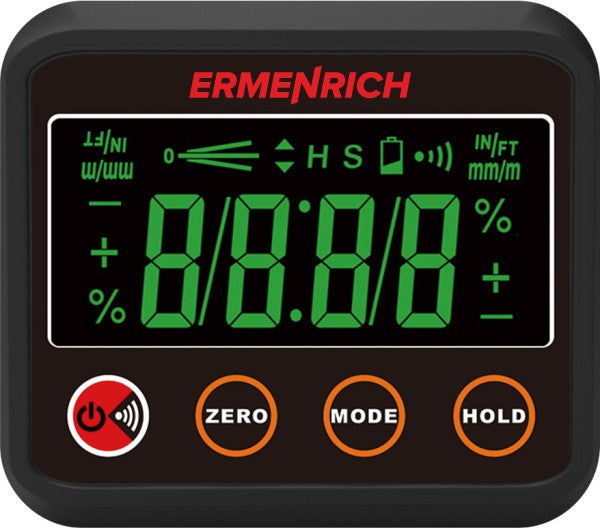

The readings are displayed on the built-in LCD screen the control buttons located underneath. The Ermenrich Verk LQ40 Digital Level is easy to work with thanks to some extra functions – there is a possibility to “freeze” the readings and set the device to zero if you want to measure relative angles. The magnetic V-Groove base helps to secure the placement of the device on a metal surface. The high-strength ABS-plastic and polycarbonate body is impact-resistant and protected against falling drops of water. The device is powered by two standard AAA batteries and has an auto-off function that turns on after 3 minutes of inactivity.

Key features:

  • High-precision measurement with an option to choose the units of measurement
  • Audible buzzer alert magnetic base with V-Groove
  • Impact-resistant body with LCD screen
  • Powered by batteries a low battery indicator
Brand Ermenrich
Warranty years lifetime
EAN 5905555003184
Package size (LxWxH) cm 9x8x4.5
Shipping Weight kg 0.146
Level type digital
Accuracy ±0.1° at 0° and 90° the rest – ±0.2°
Units of measurement mm m ft in degrees percent
Measuring range m 0 — 360
LCD screen yes
Maximum resolution 0.05°
Calibration manual
Hold function yes
Zero set function yes
Magnetic base yes
V-Groove yes
Power supply 2 AAA batteries 1.5V (not included)
Low battery status indicator yes
Auto power off 3 min
IP water and dustproof rating IP42 protected against vertically falling water drops (when tilted up to 15°)
Body polycarbonate high-strength ABS plastic
Operating temperature range °C 0 — 40
Additional audible buzzer alert
