Discovery Nano Terra Microscope with book

  • $81.22
    Unit price per
  • Save $12.19
Shipping calculated at checkout.


discovery_logo_02

Discovery Channel informs, entertains and inspires its audiences around the globe about the world in all its wonder, diversity and amazement. Offering millions of people the chance to discover, and satisfy their curiosity, Discovery offers a compelling mix of stories across genres including science and technology, exploration, adventure, history and in depth behind-the-scenes glimpses at the people, places and organisations that shape and share the world we live in.

We proudly present the Discovery optics series that is produced by Levenhuk and endorsed by Discovery.


Check out a brief comparison of the Discovery microscope series »

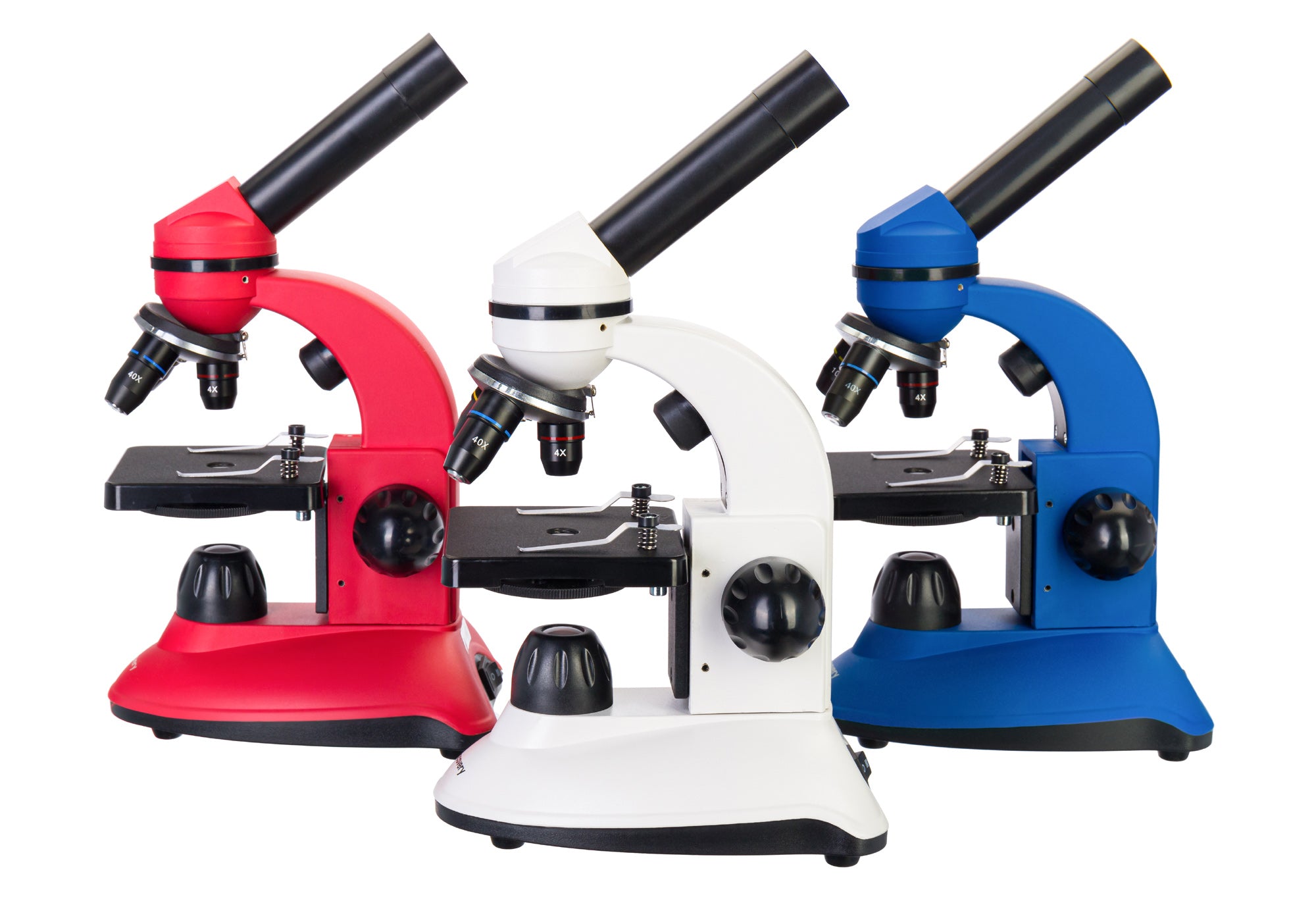

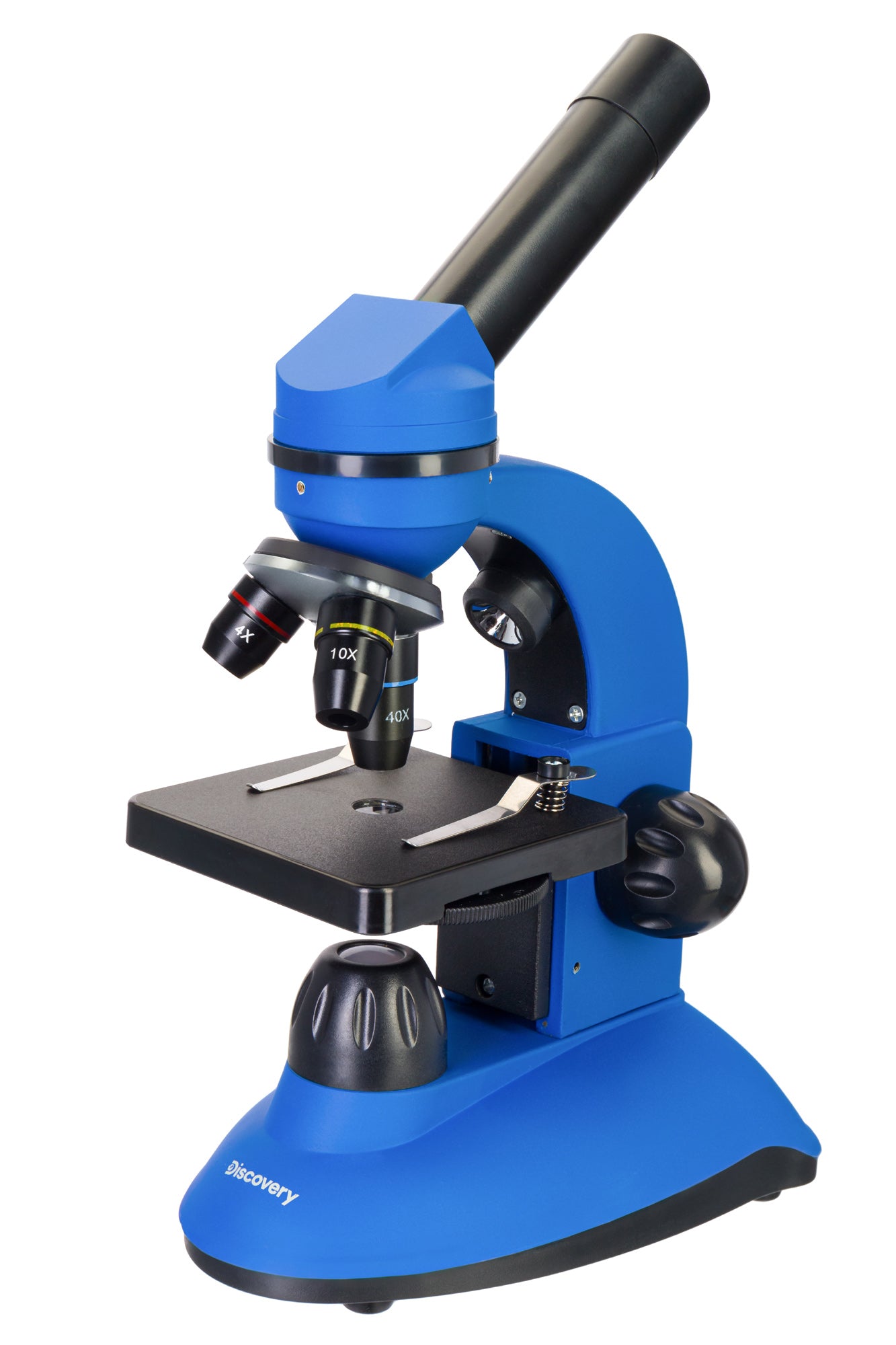

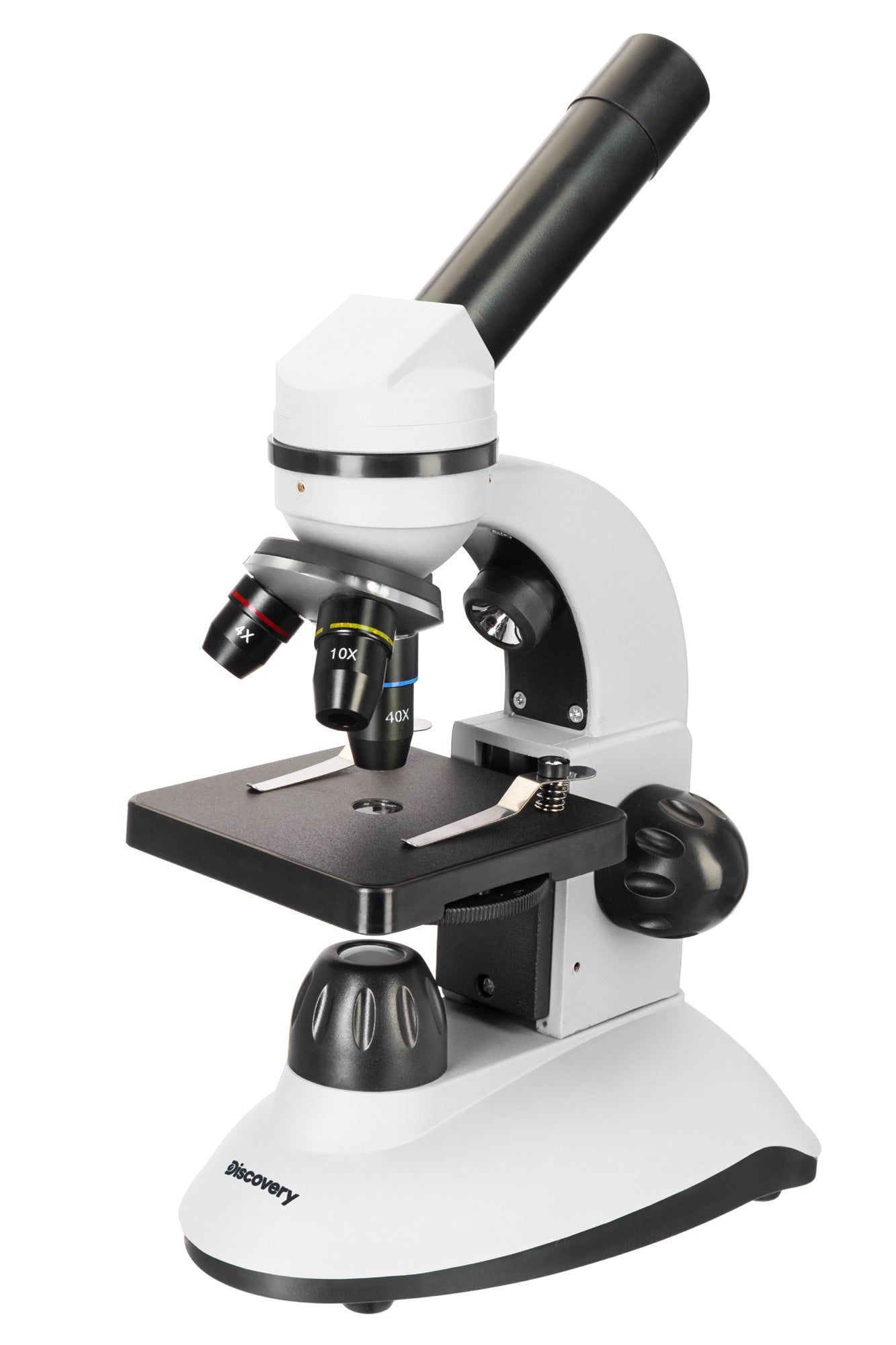

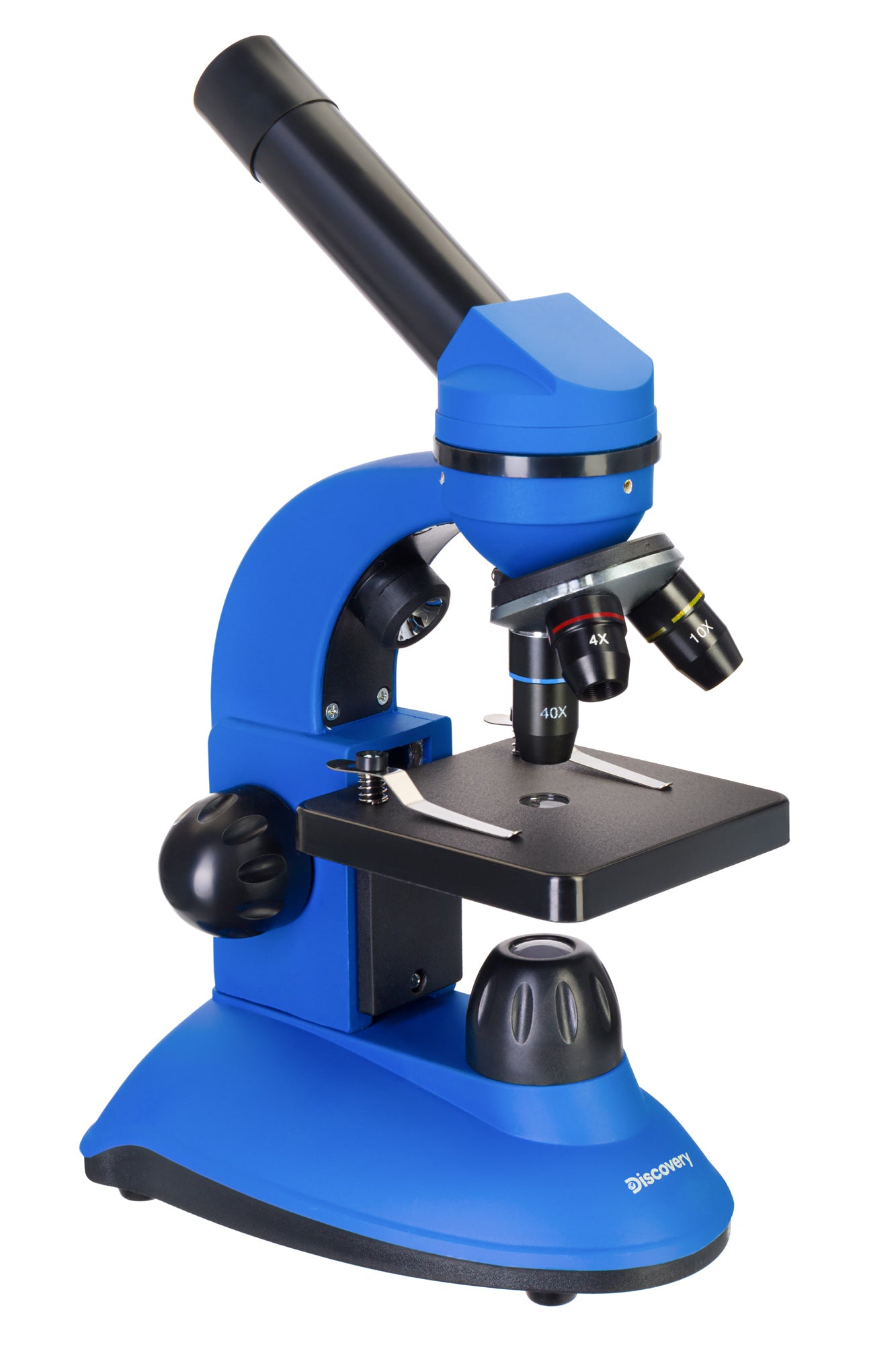

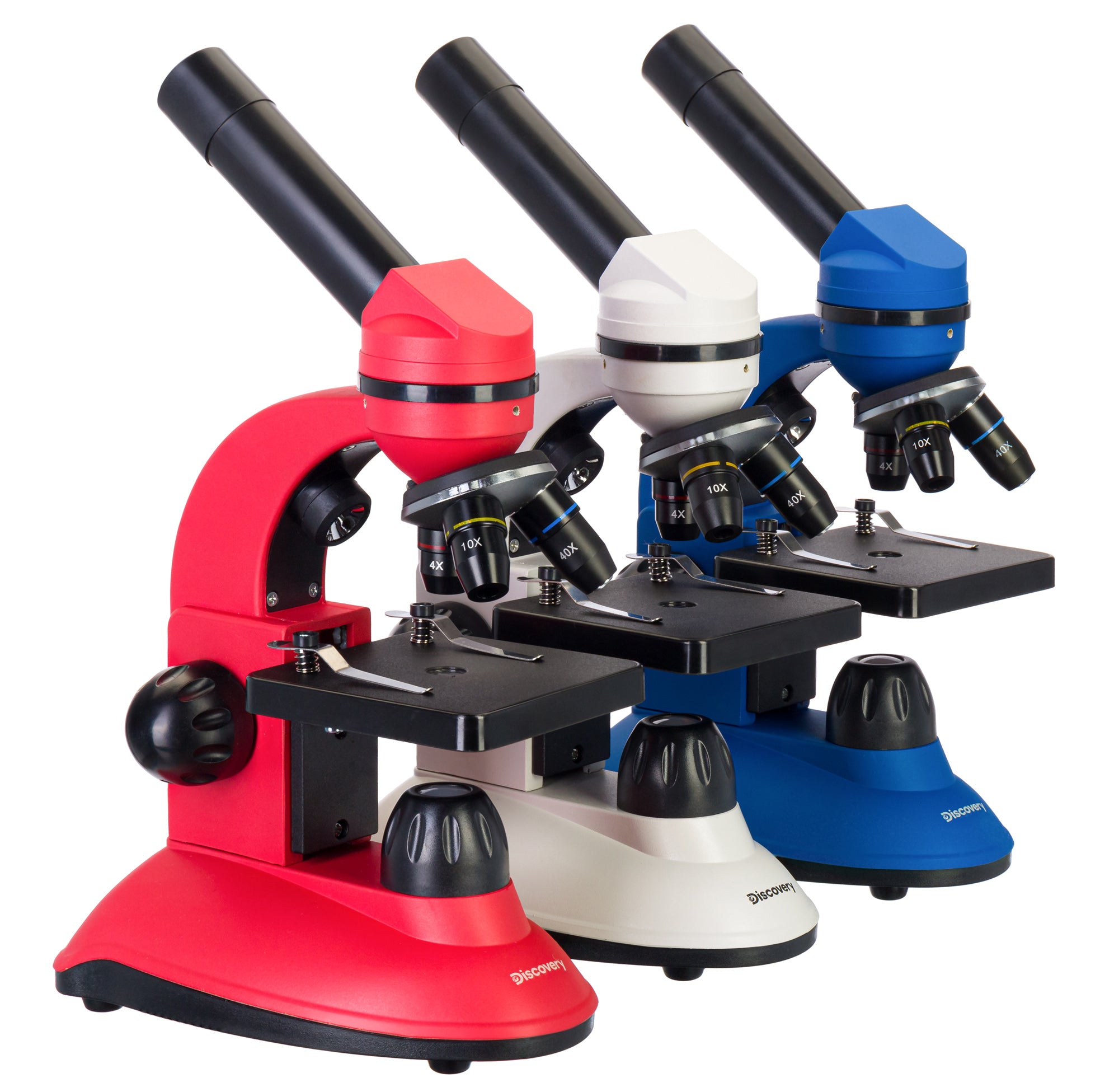

The Discovery Nano monocular microscope will help you to delve into the school course of biology and become an indispensable tool for scientific hobbies. It allows for studying prepared slides as well as self-made ones at 40-400x magnification. The microscope features dual LED lights for observations in transmitted and reflected light. It also comes with a knowledge book about the microbial world. The achromatic optics renders a sharp and clear image, the illumination is powered by batteries (not included), and the sample holding clips are included. The microscope is available in different body colors.

An important feature of the microscope: it comes with the Discovery Flora and Fauna set that includes 24 prepared slides with specimens.

Features:

  • Monocular microscope with 40–400x magnification

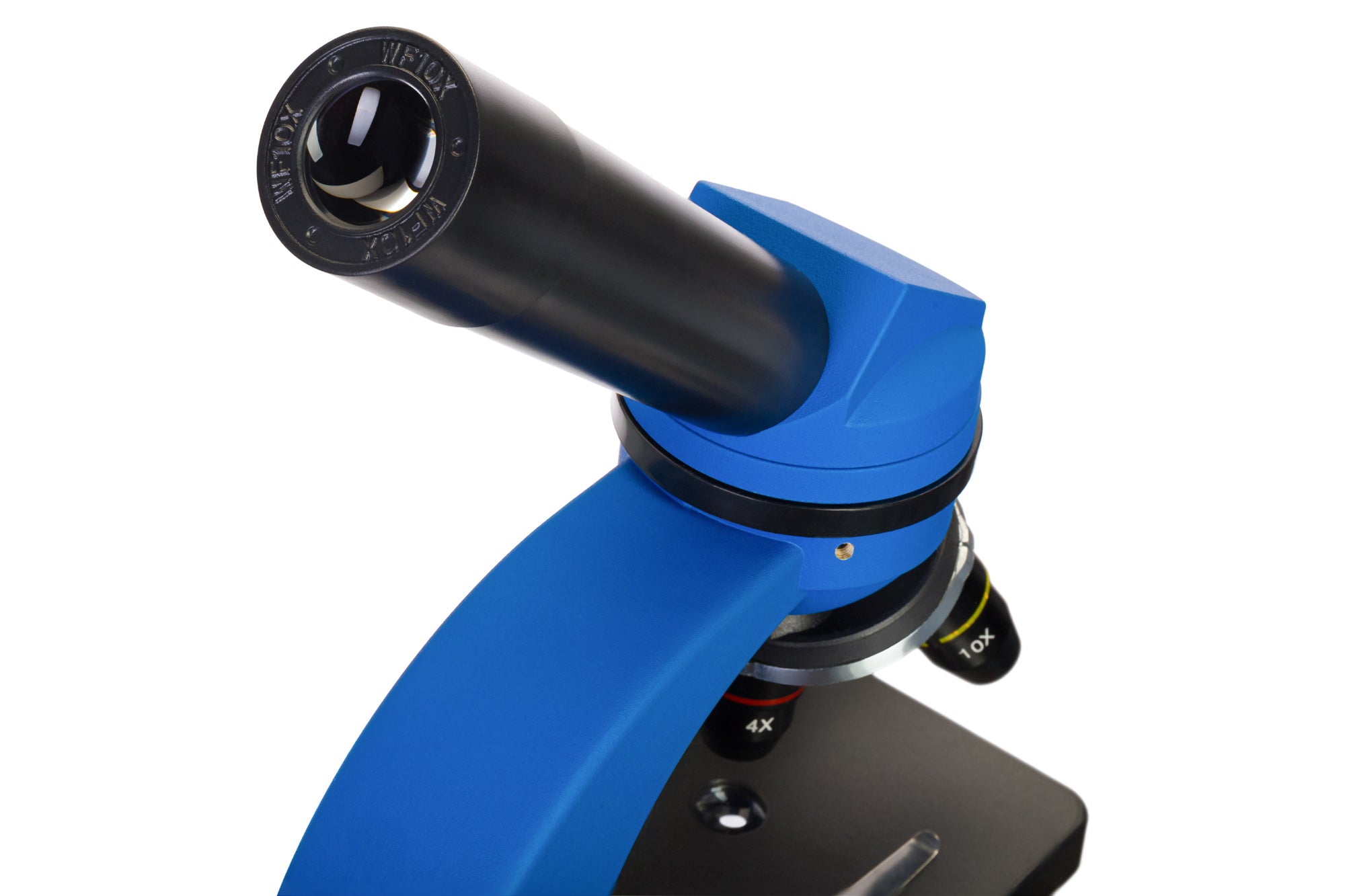

  • Monocular head can be tilted 30°
  • Glass lenses; achromatic objectives; wide-field eyepiece

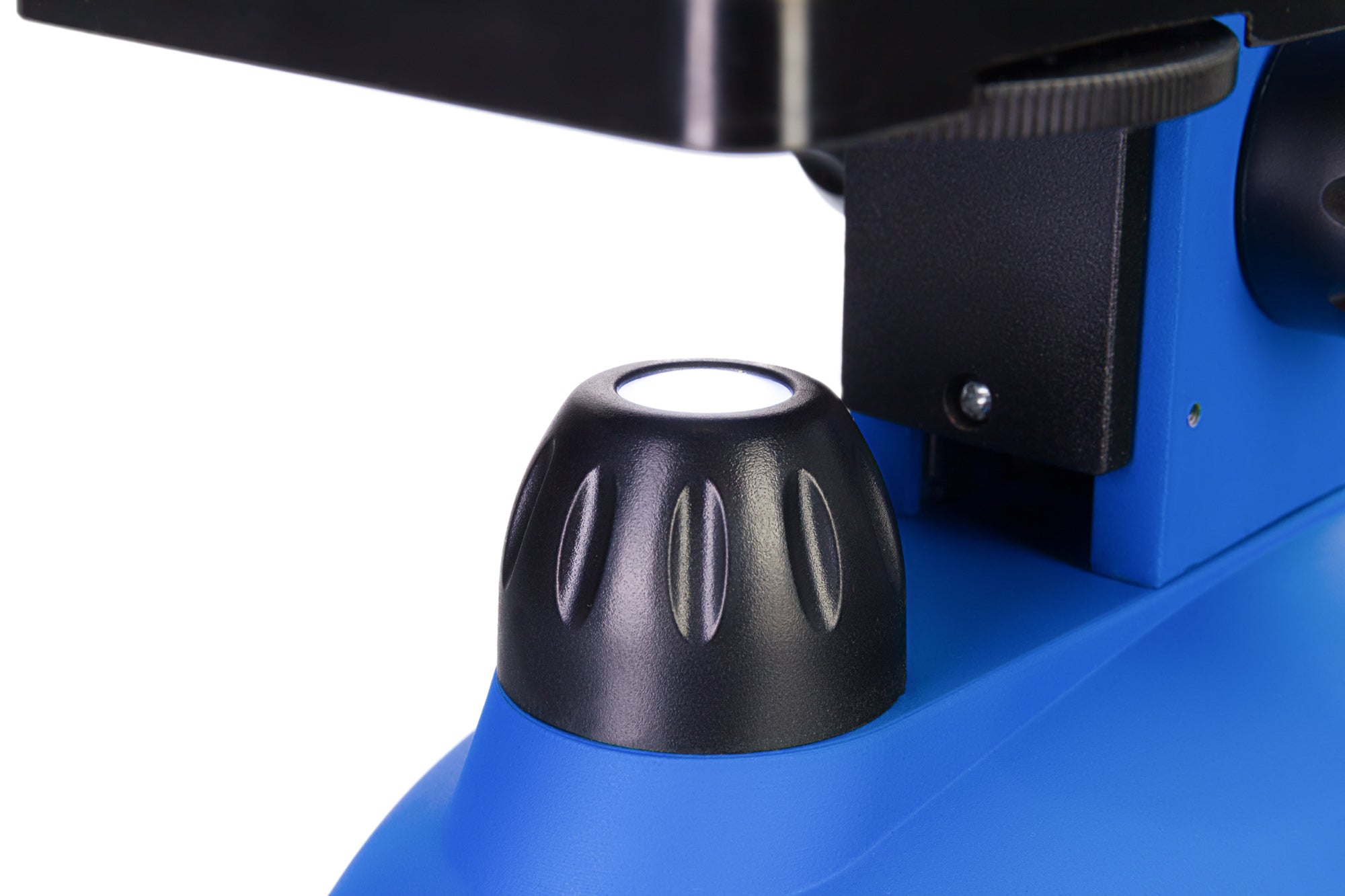

  • Dual LED lights are powered by batteries
  • Classic entry-level microscope for study and hobbies
  • Comes with a colorful knowledge book

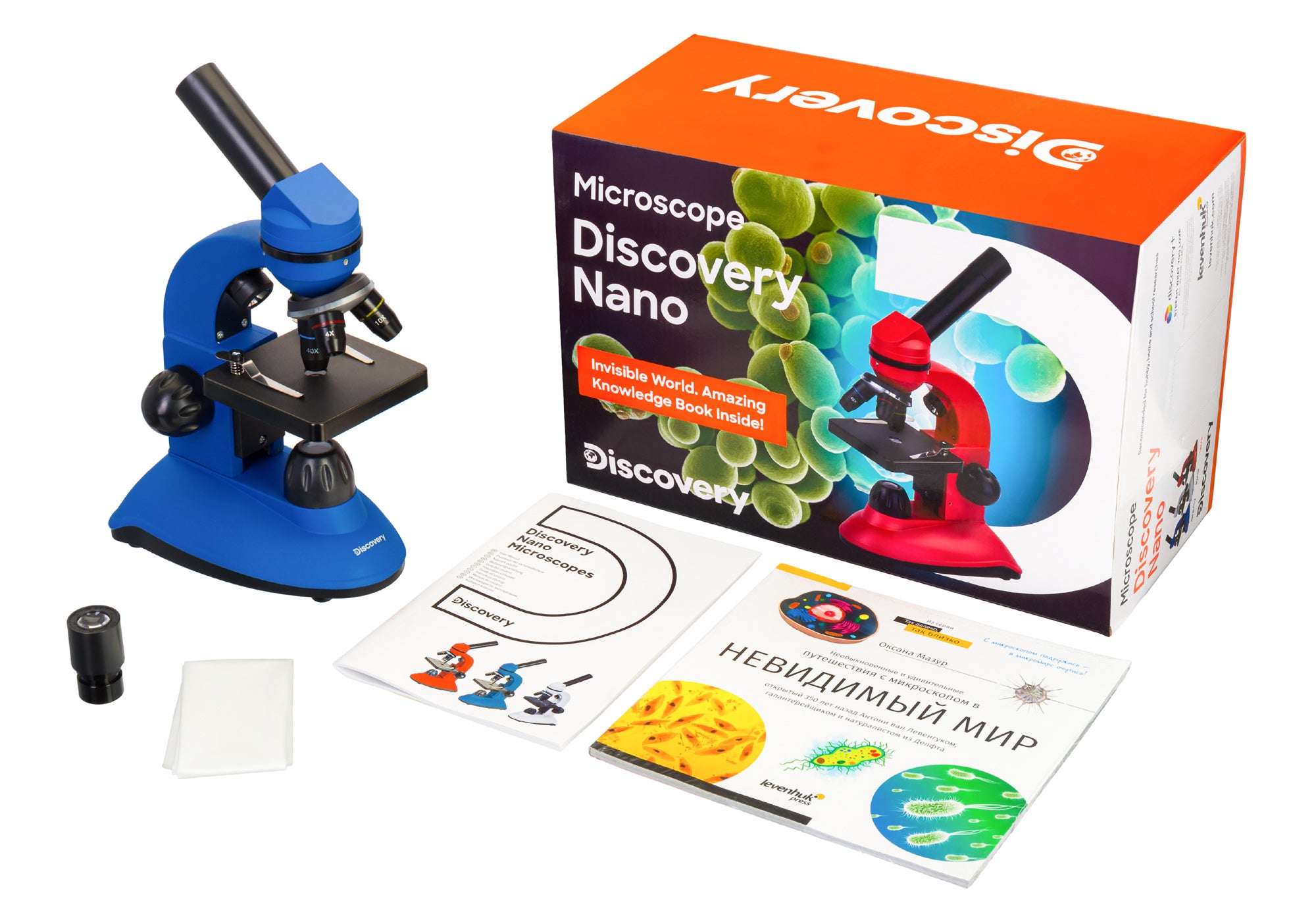

The kit includes:

  • Microscope
  • WF10x eyepiece

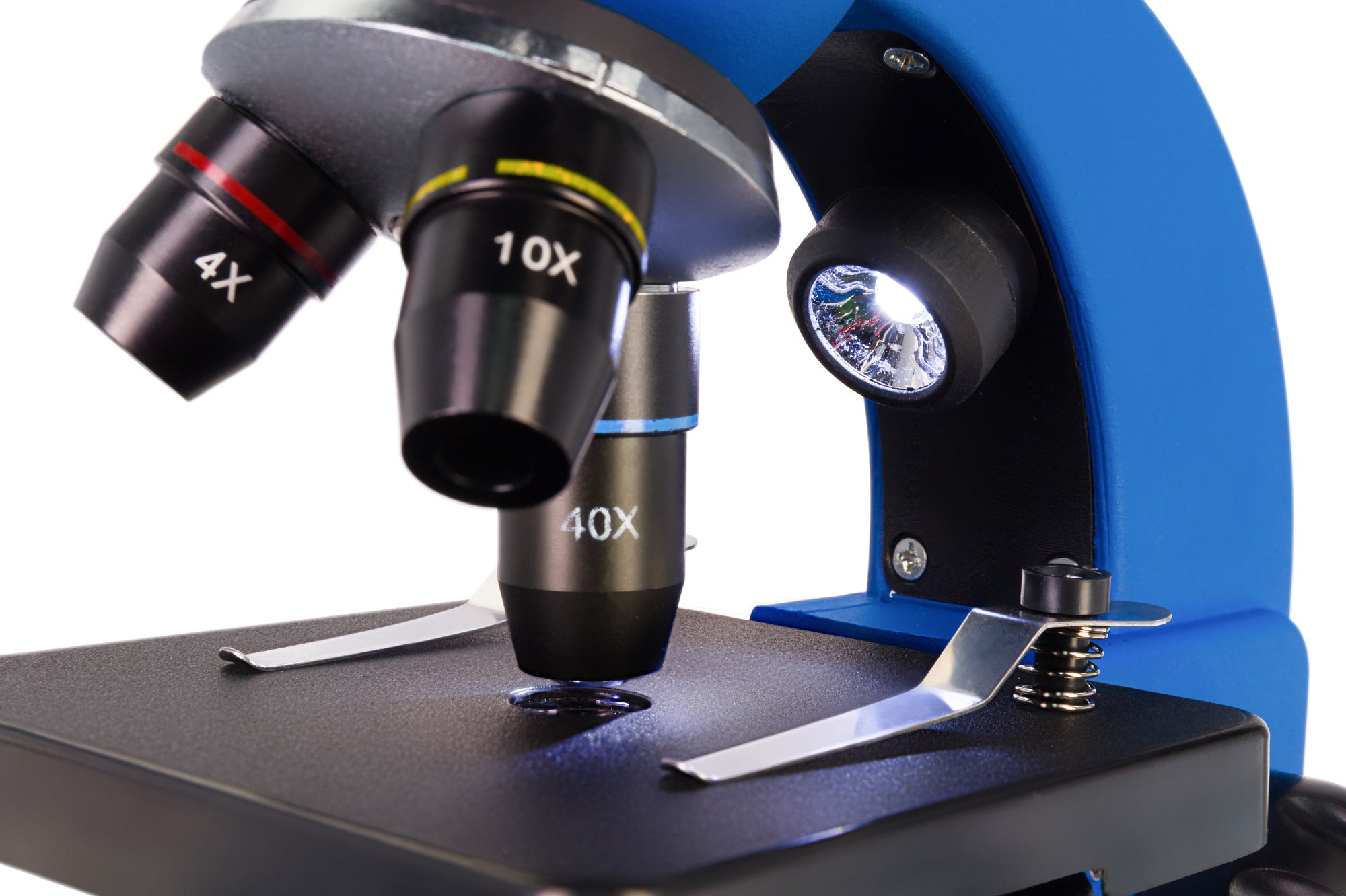

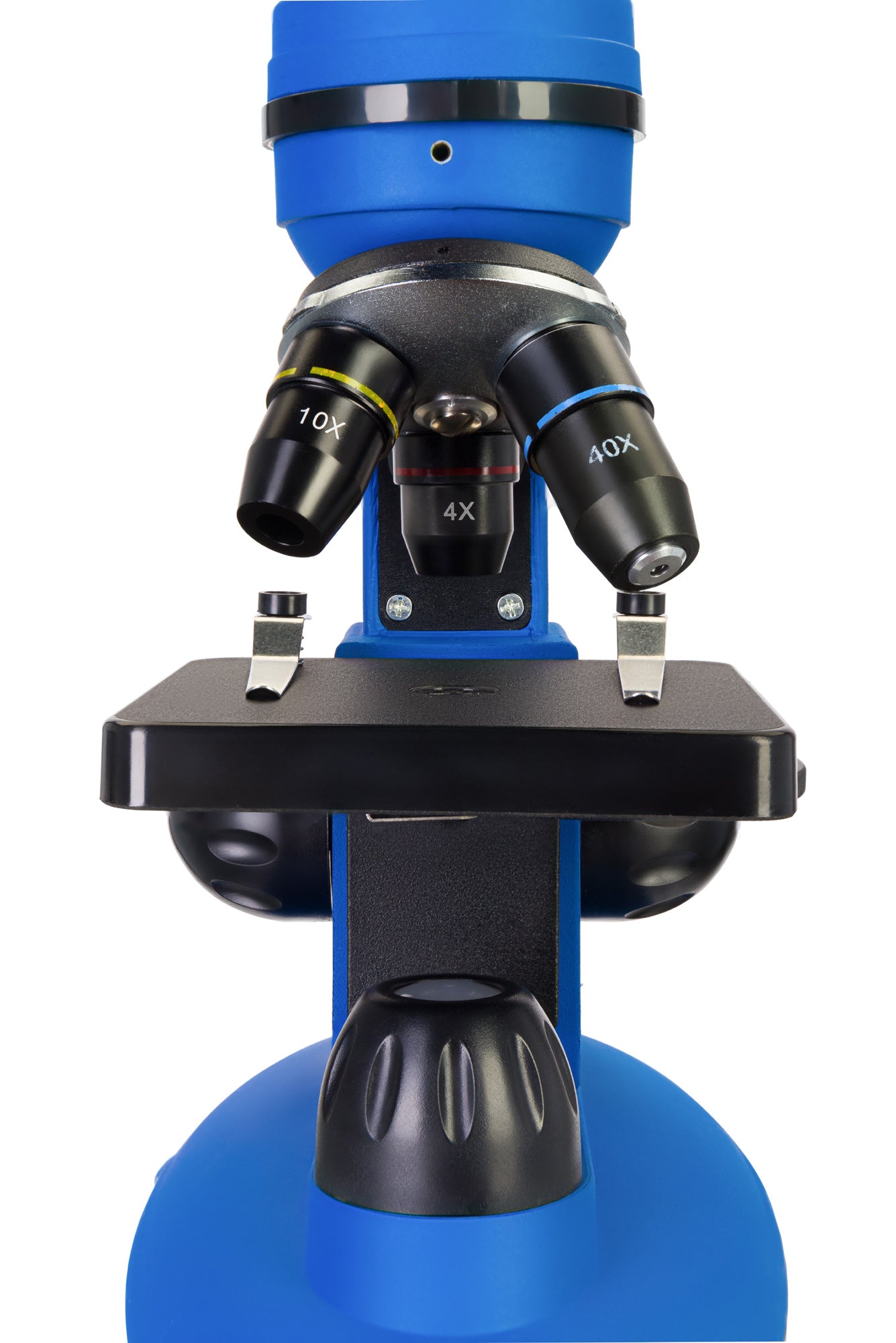

  • Achromatic objectives: 4x, 10x, 40xs
  • Dust cover
  • “Invisible World” knowledge book
  • Discovery Flora & Fauna 24 Prepared Slides Set
  • User manual and warranty card
Brand Discovery
Warranty, years 10
EAN 4620137481624
Package size (LxWxH), cm 15.5x33.5x22.5
Shipping Weight, kg 1.69
Type light/optical, biological
Head monocular
Optics material optical glass
Nozzle fixed (non-rotatable)
Head inclination angle 30 °
Magnification, x 40—400
Eyepiece tube diameter, mm 23.2
Eyepieces WF10x
Objectives achromatic: 4x, 10x, 40xs (spring)
Revolving nosepiece for 3 objectives
Stage, mm 90x90
Stage moving range, mm 0–16, vertical
Stage features with clips
Condenser N.A. 0.65
Diaphragm diaphragm disc (6 apertures)
Focus coarse (0.5mm)
Body plastic, metal
Illumination LED

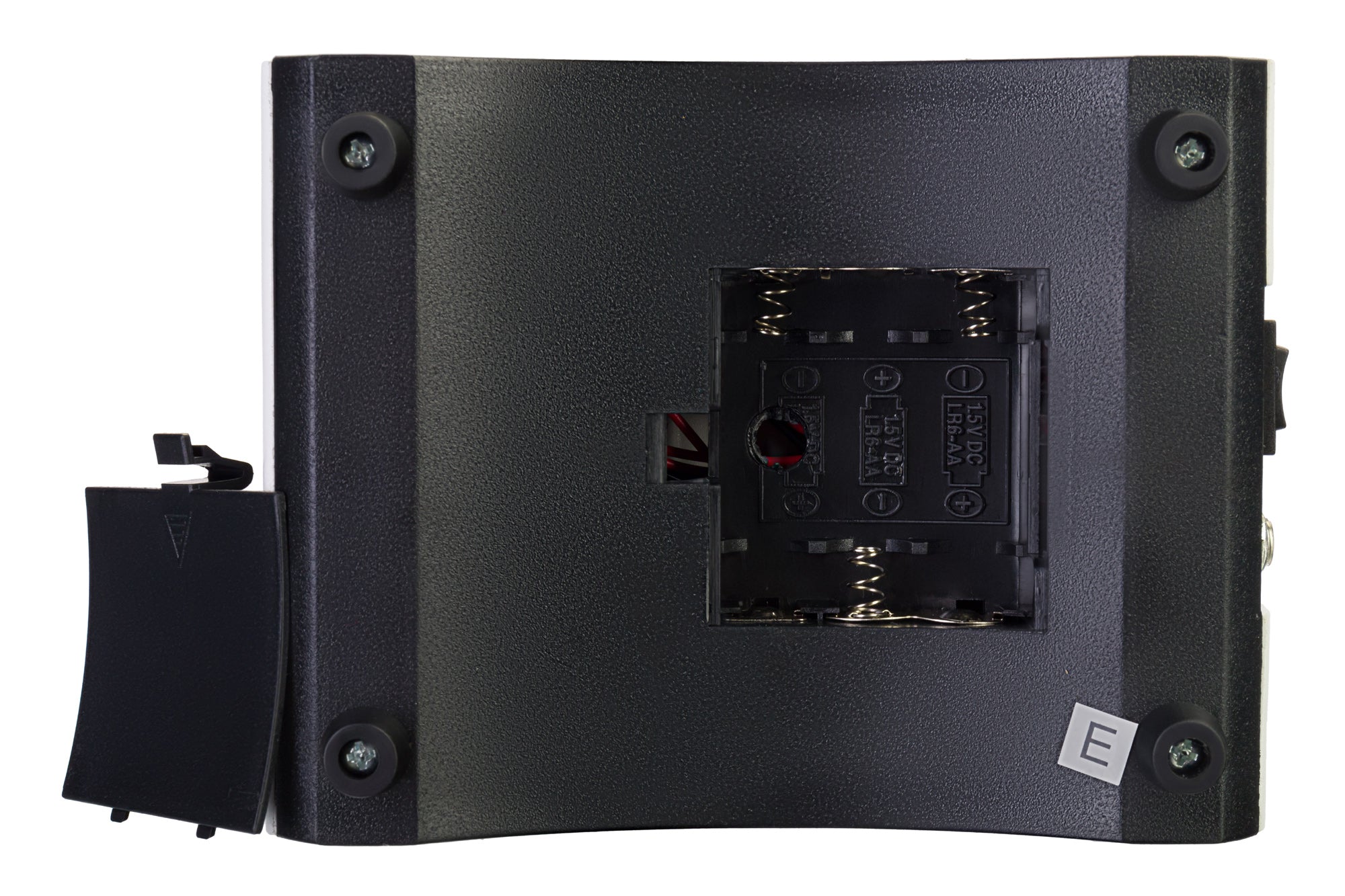

Power supply 3 AA batteries (not included)
Power supply: batteries/built-in battery yes
Light source type lower: 0.2W, upper: 0.1W
Operating temperature range,°C 5—40
User level beginners
Assembly and installation difficulty level easy
Application school/educational
Illumination location combined
Research method bright field
Experiment kit included True
