Discovery Femto Polar Digital Microscope with book
Discovery Channel informs entertains and inspires its audiences around the globe about the world in all its wonder diversity and amazement. Offering millions of people the chance to discover and satisfy their curiosity Discovery offers a compelling mix of stories across genres including science and technology exploration adventure history and in depth behind-the-scenes glimpses at the people places and organisations that shape and share the world we live in.
We proudly present the Discovery optics series that is produced by Levenhuk and endorsed by Discovery.

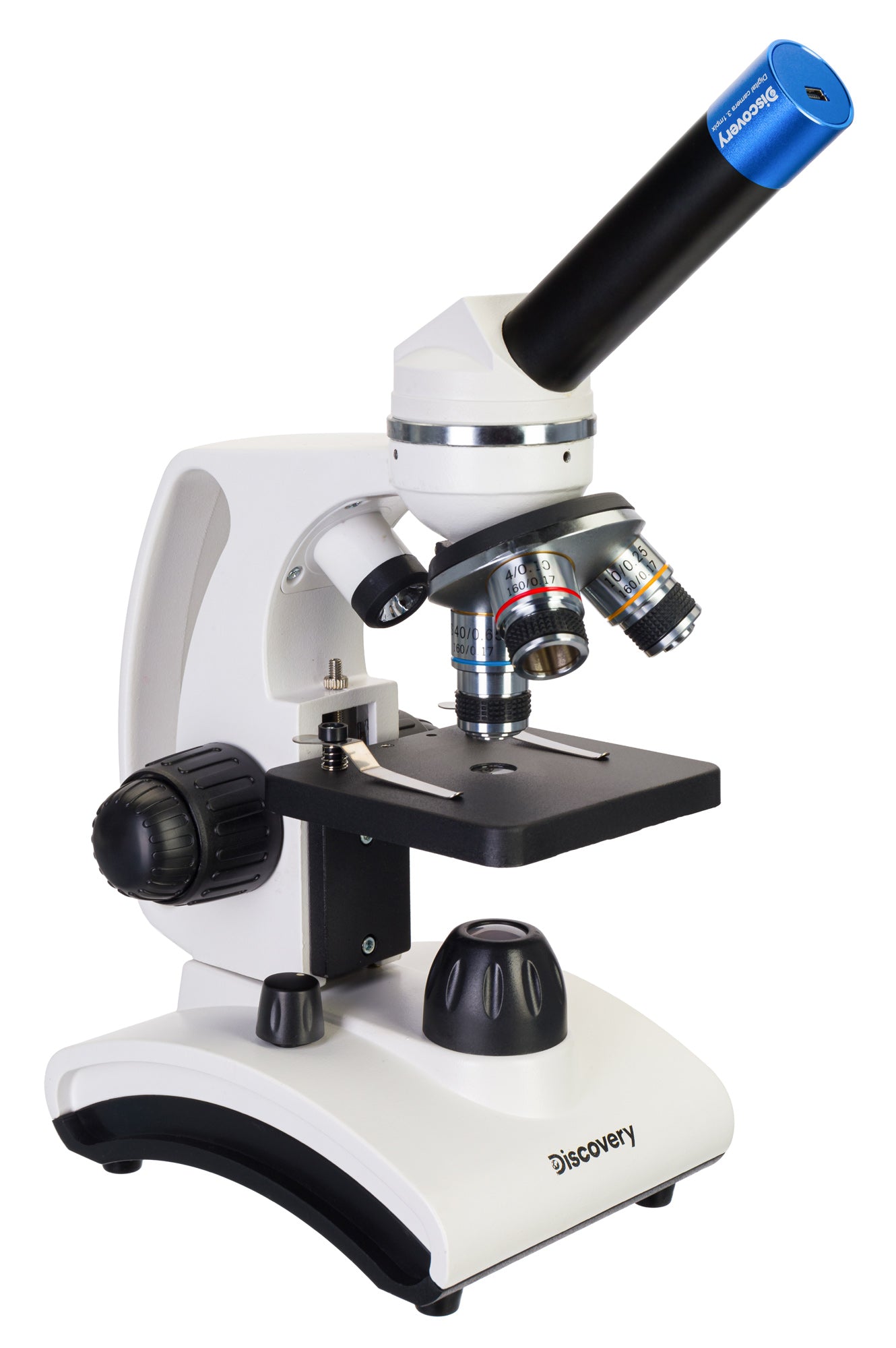

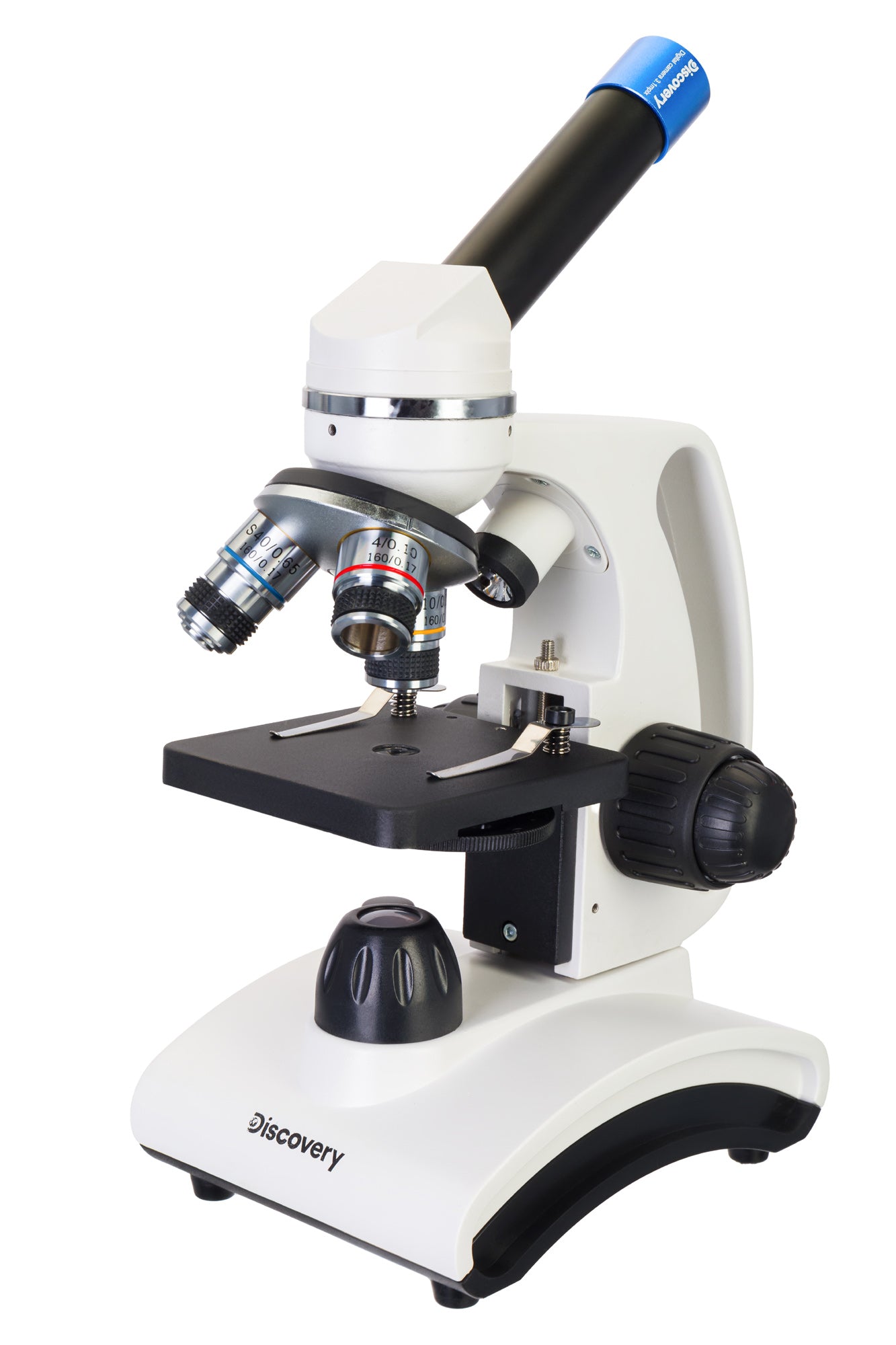

The Discovery Femto Polar digital microscope enables you to examine the microbial world as well as record specimens as pictures or videos. The 3Mpx camera can keep an archive of recordings and display an image of the specimen on the main screen. The microscope operates easily creates clear and contrast images and includes suits hobbyists and students. An illustrated knowledge book about the microbial world entitled 'The Invisible World' is included in the kit.
Achromatic optics with 40x to 400x magnification

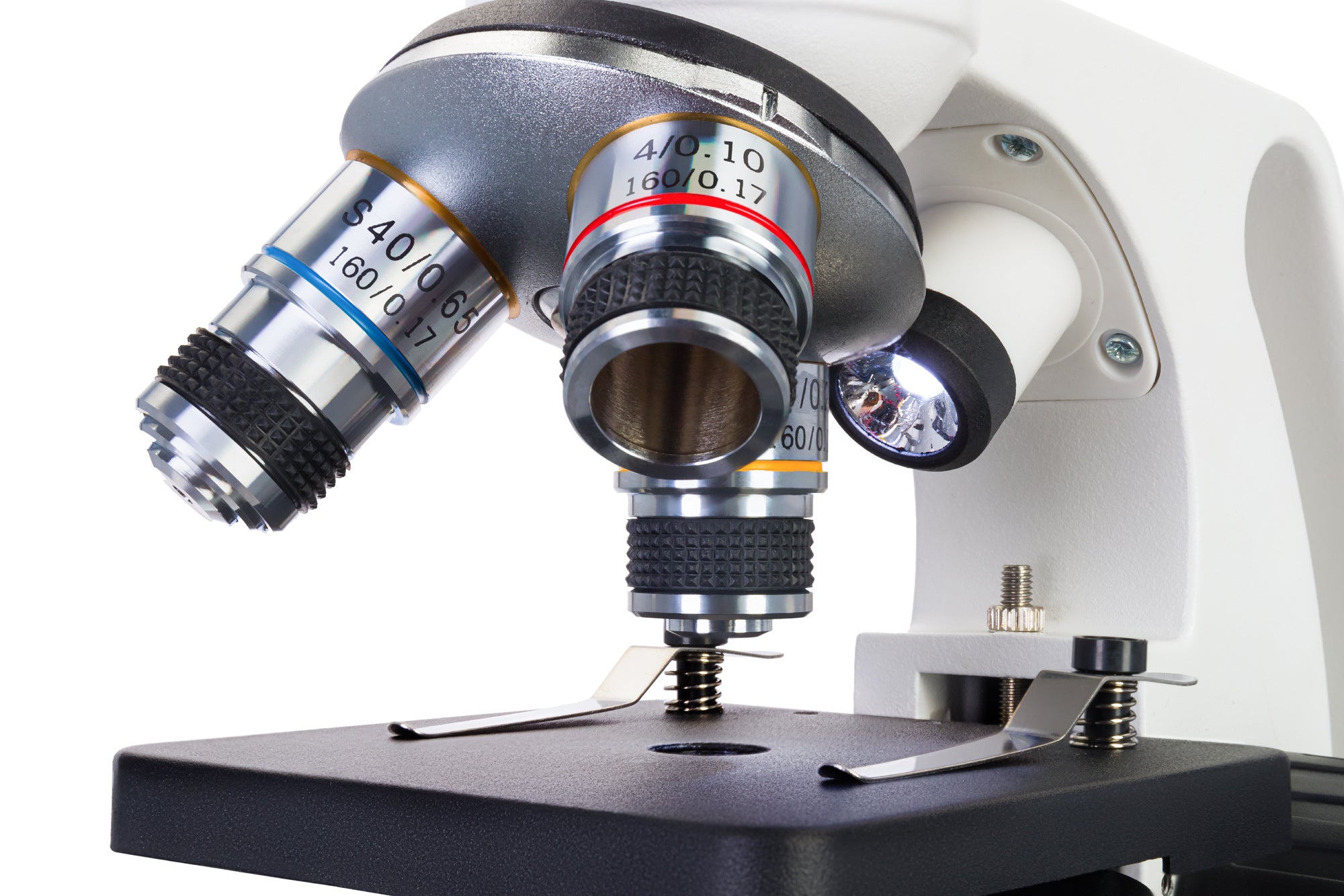

The microscope is equipped with a monocular head that can be rotated 360°. It’s comfortable to use in groups especially when needing to share images with others. Instead of moving the entire device the head can be turned accordingly. The head is inclined at 45° making it comfortable for long periods of use. The microscope’s optics are made out of glass: the wide-field eyepiece and achromatic objectives. The 40x objective is layered with a protective lens and spring action that make it more protected against possible damage. The device can be adjusted with coarse and fine focusing.

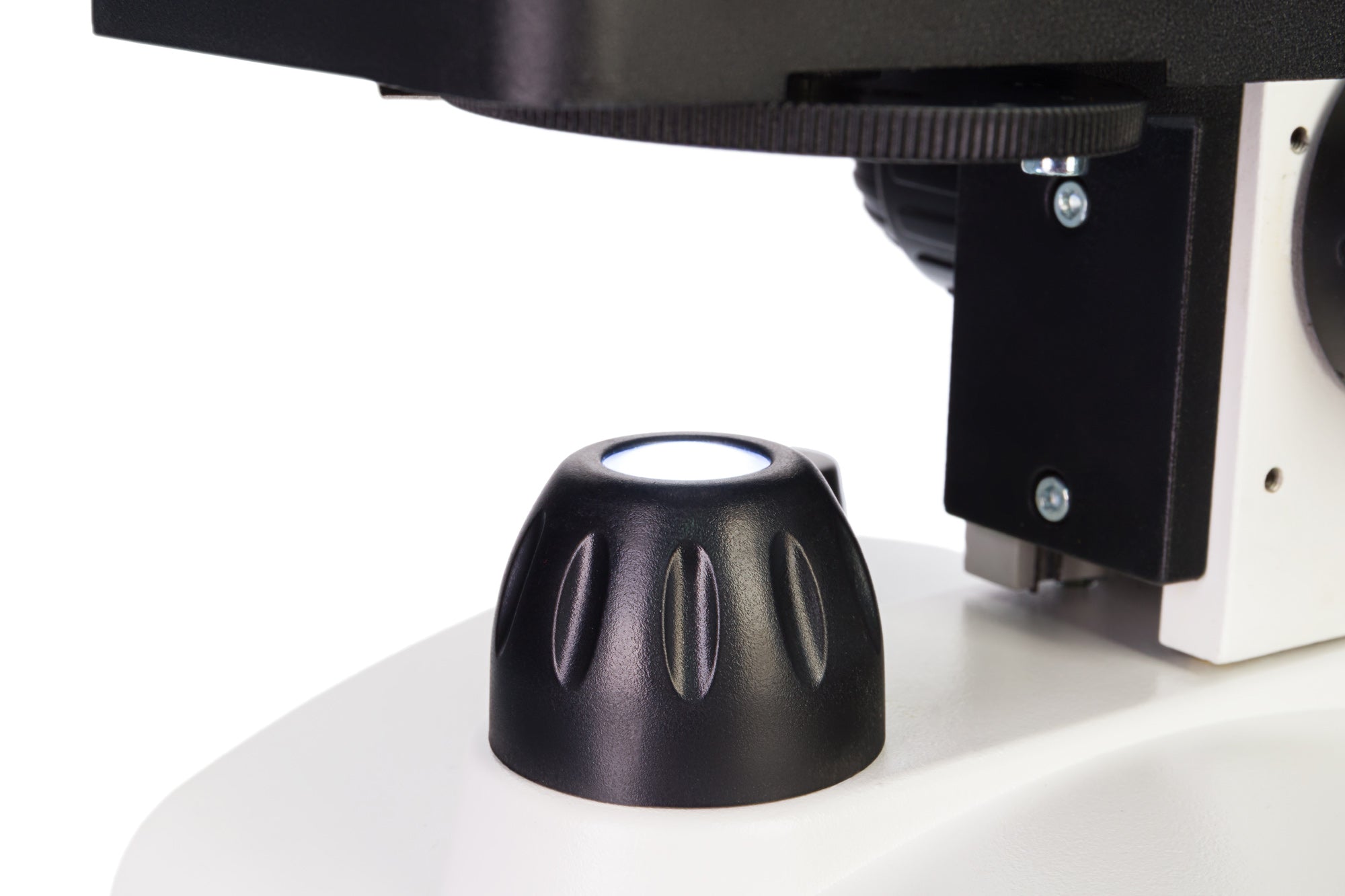

Dual LED illumination with brightness adjustment

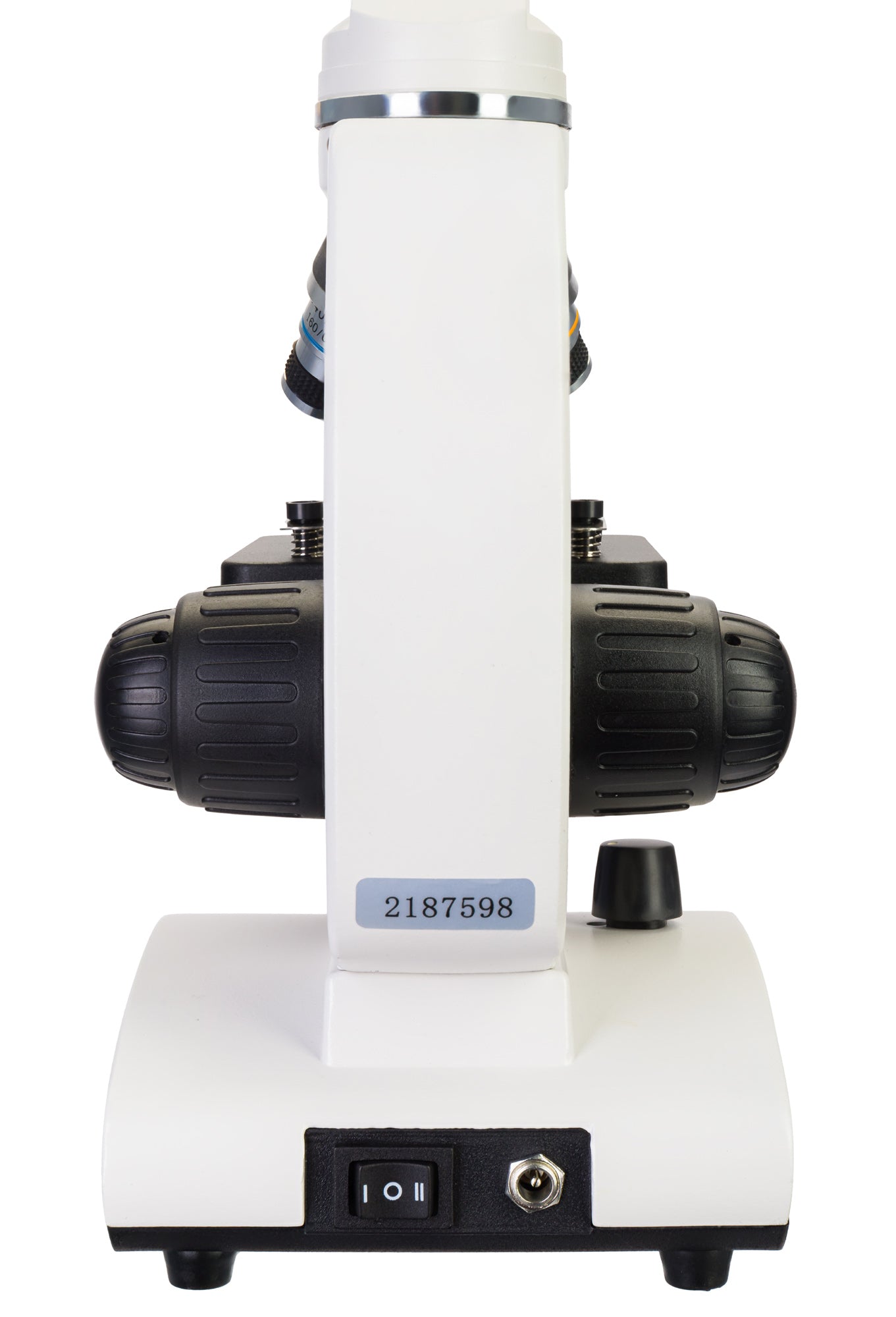

Stage with clips a disc diaphragm under the stage for controlling luminous flux from lower illumination. Adjustable dual illumination. Illumination can be plugged into the wall with the provided AC adapter or battery-powered (not included).

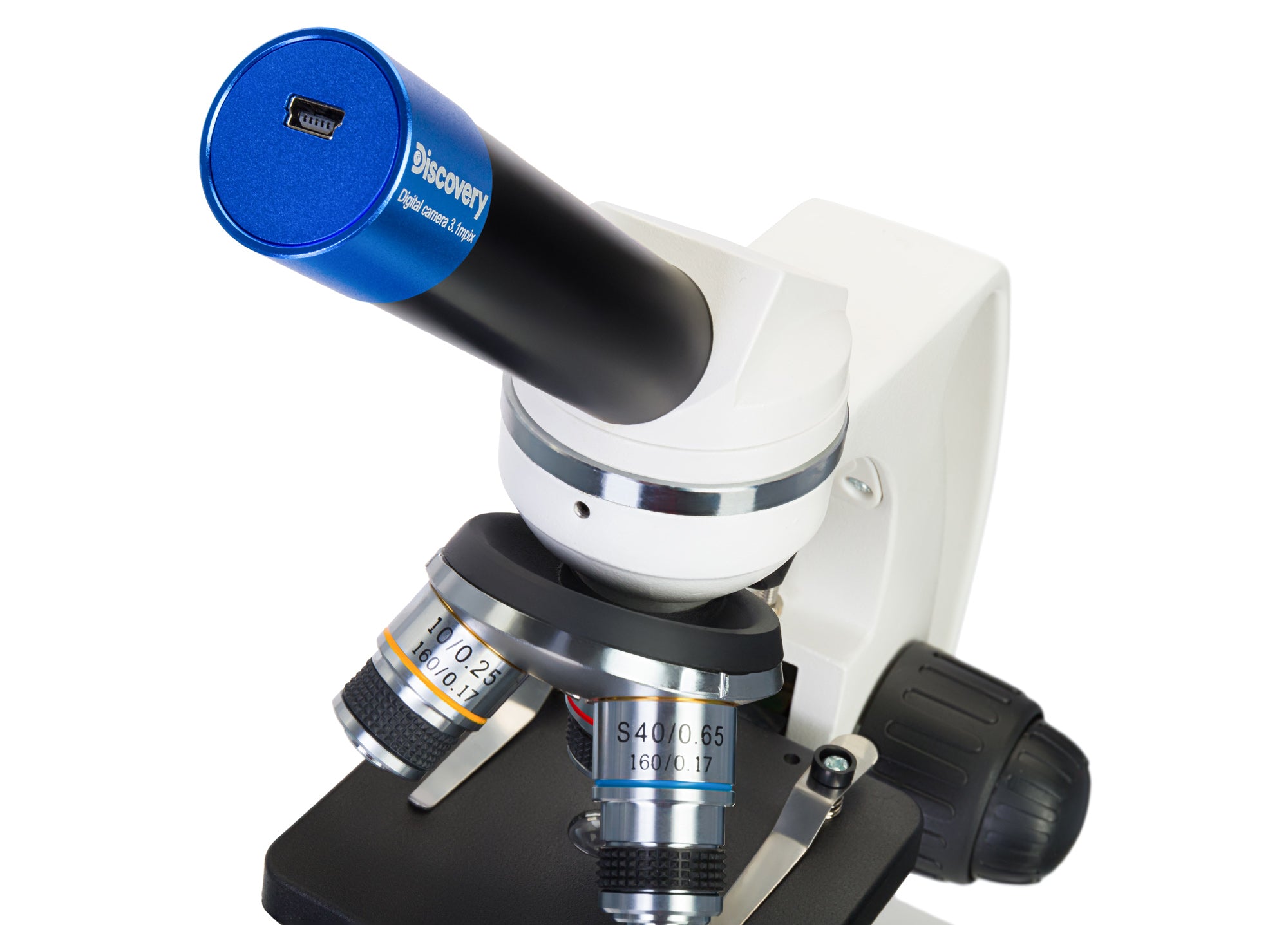

The kit includes a 3Mpx camera for pictures and video recording
The digital camera 3Mpx can take pictures with 2048x1536 pixel resolution that enables the visibility of numerous minor specimen details. It has a video recording function. To use the camera attach it onto the ocular tube in place of the eyepiece connect it to a computer with a USB cord and open the program (see software installation CD). The image processing function is available for both pictures and videos.
An illustrated knowledge book 'The Invisible World' is a delightful addition to the kit. It is written with easy-to-understand language and illustrations. It provides a lot of interesting information such as how to adjust the microscope to see inside a drop of water or how to conduct experiments at home. This wonderful scholastic book enhances the experimentation experience.
- Biological microscope with a 3Mpx digital camera
- Inclined monocular head 360° rotatable
- Achromatic optics 40x to 400x magnification
- LED illumination with brightness adjustment cord or battery powered
- Coarse and fine focusing metal body
- Illustrated knowledge book included in the kit

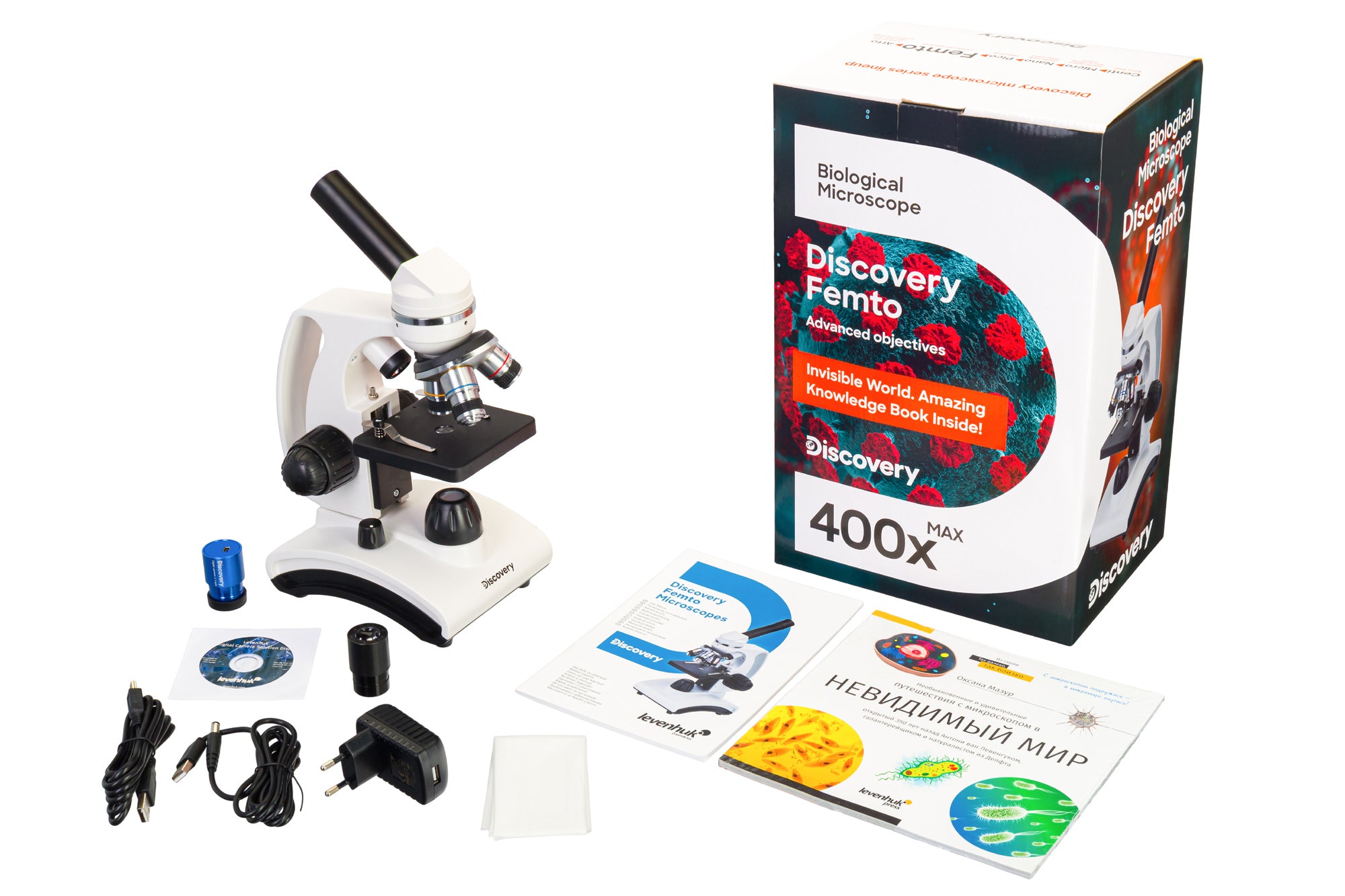

The kit includes:
- One microscope
- One eyepiece WF 10x

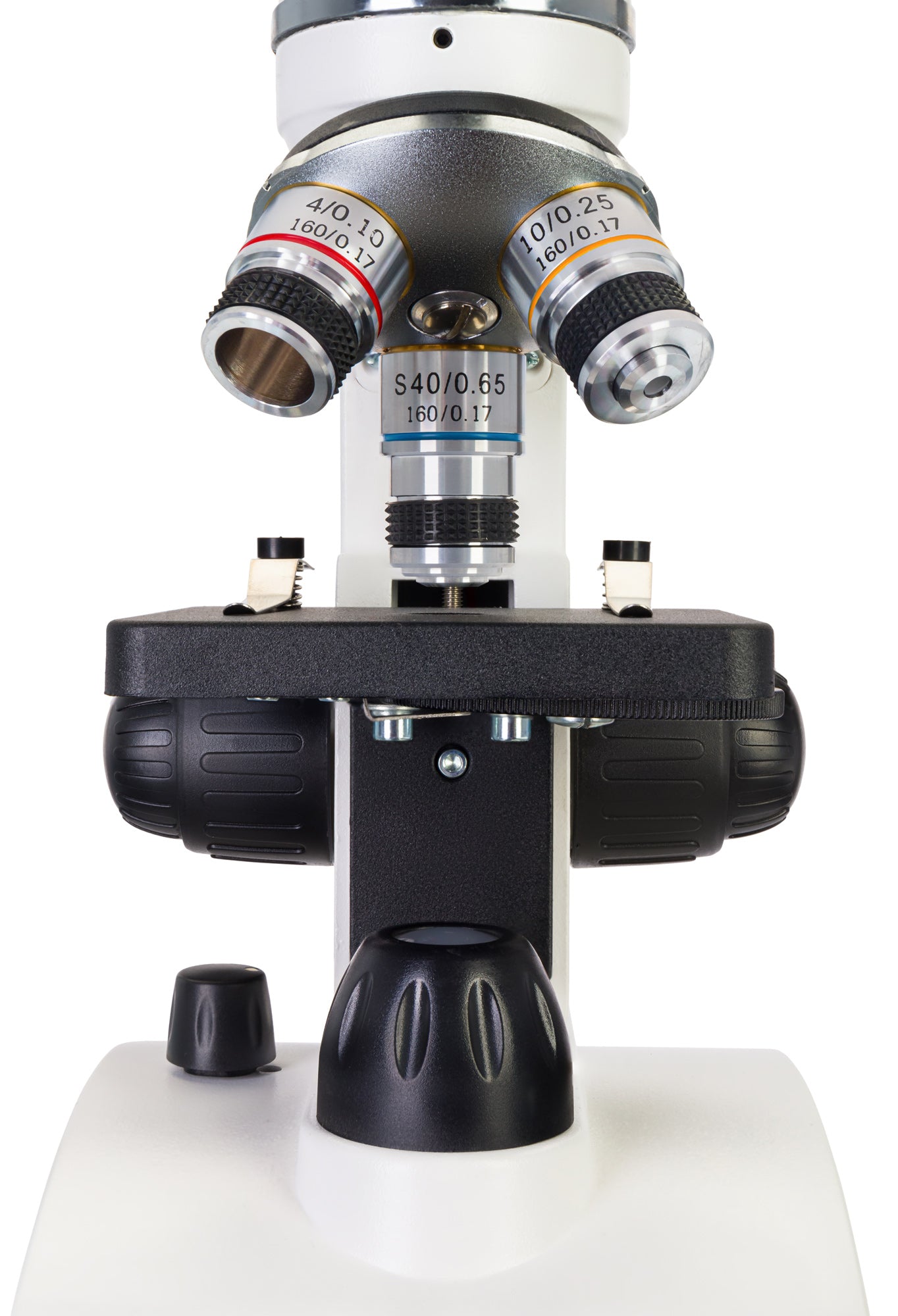

- Three achromatic objectives 4x 10x 40x
- One digital 3Mpx camera
- One USB 2.0 cable
- Software CD
- One AC adapter and power cord
- One dust cover
- One illustrated knowledge book 'The Invisible World'
- User manual and warranty card
|Package size (LxWxH) cm||35x22x17|
|Shipping Weight kg||2.42|
|Type||biological light/optical digital|
|Optics material||optical glass|
|Nozzle||360 ° rotatable|
|Head inclination angle||45 °|
|Magnification x||40 – 400|
|Magnification range||200x to 800x|
|Eyepiece tube diameter mm||23.2|
|Objectives||achromatic: 4x 10x 40xs (spring)|
|Revolving nosepiece||for 3 objectives|
|Stage moving range mm||0–10 vertical|
|Stage features||with clips|
|Diaphragm||diaphragm disc (6 apertures)|
|Focus||coaxial coarse (0.5 mm) and fine (0.002 mm)|

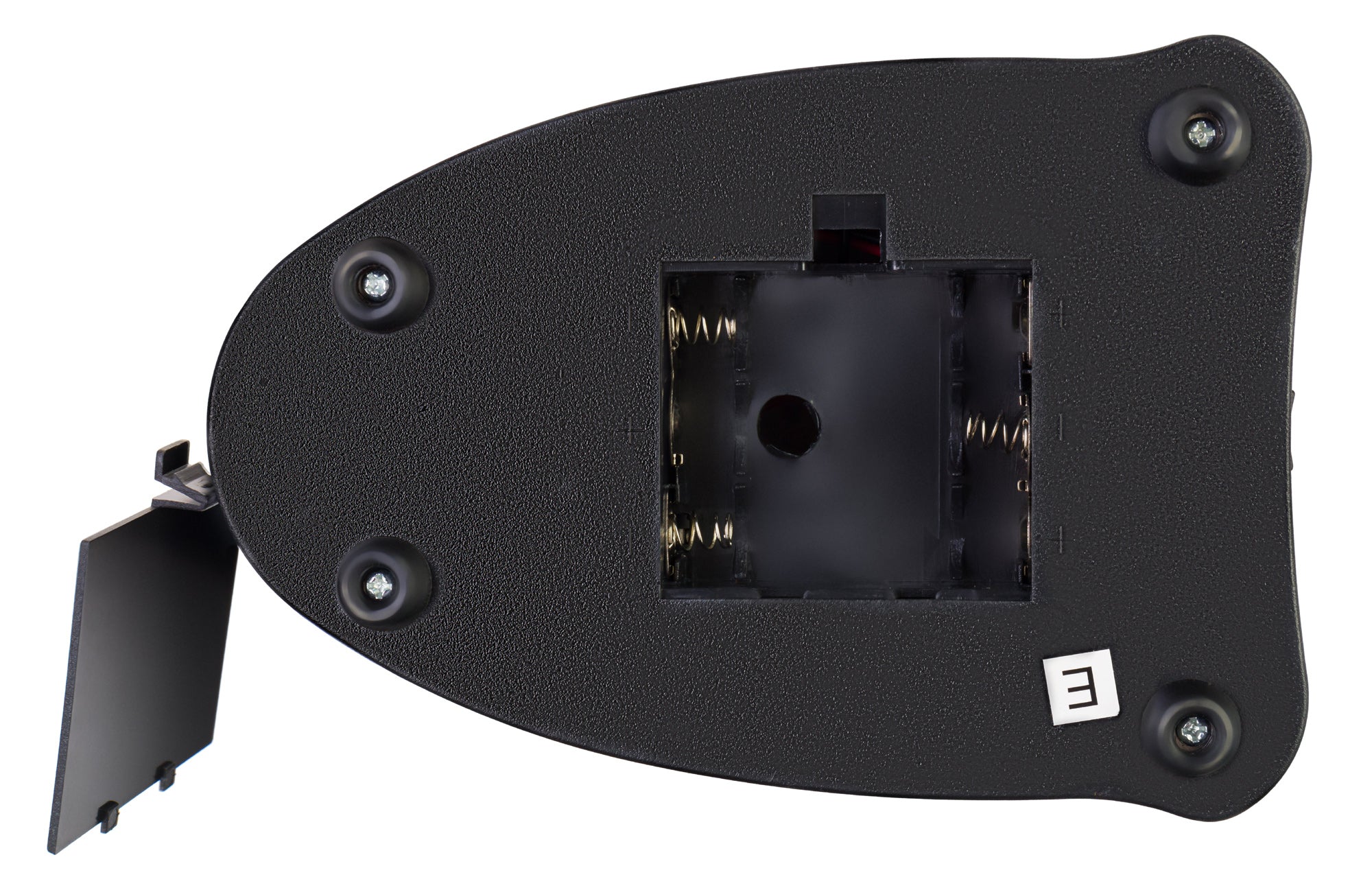

|Power supply||110–240V 3 AA batteries (not included)|
|Power supply: batteries/built-in battery||yes|
|Light source type||lower: 0.2W upper: 0.1W|
|Operating temperature range °C||5 – 40|
|Sensor element||1/2.7' CMOS|
|Pixel size μm||2.2х2.2|
|Usage location||ocular tube instead of the eyepiece|
|Image format||*.jpg *.bmp *.png *.tif and others|
|Spectral range nm||380–650 (built-in IR filter)|
|Method of exposure||ERS (Electronic Rolling Shutter)|
|Programmable options||image size brightness|
|System requirements||Windows XP (32-bit) Windows Vista/7/8/10/11 (32-bit or 64-bit) Mac OS X Linux; processor up to 2.8GHz Intel Core 2 or higher USB 2.0 port CD-ROM|
|Camera power supply||via USB cable|
|Assembly and installation difficulty level||easy|
|Software language||Turkish Russian English German French Polish Chinese|
|Video format||output: *.wmv *.avi *.h264 (Windows 8 and later) *h265 (Windows 10 and later)|
|Research method||bright field|
|Digital camera included||yes|
|Pouch/case/bag in set||dust cover|
