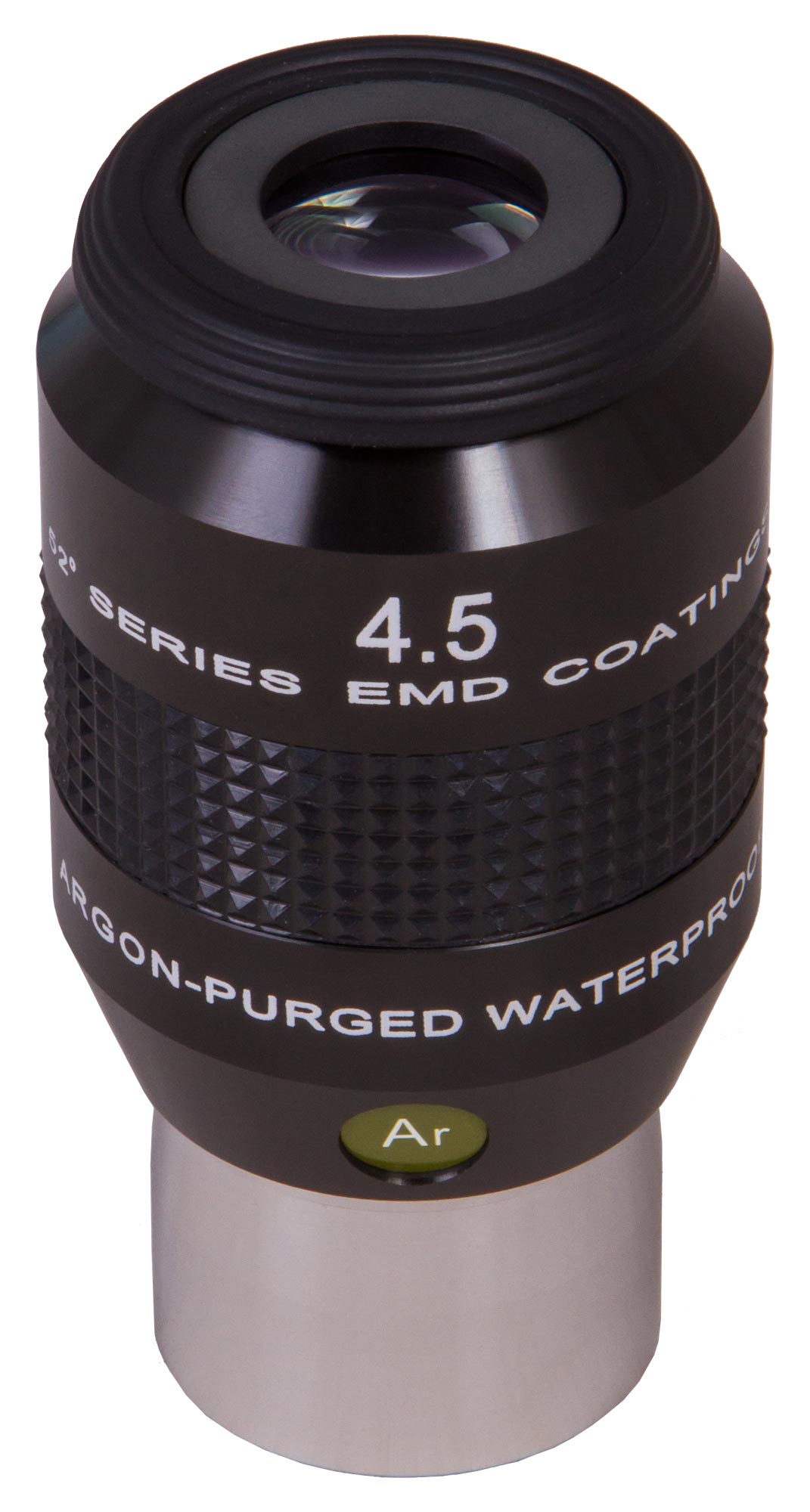

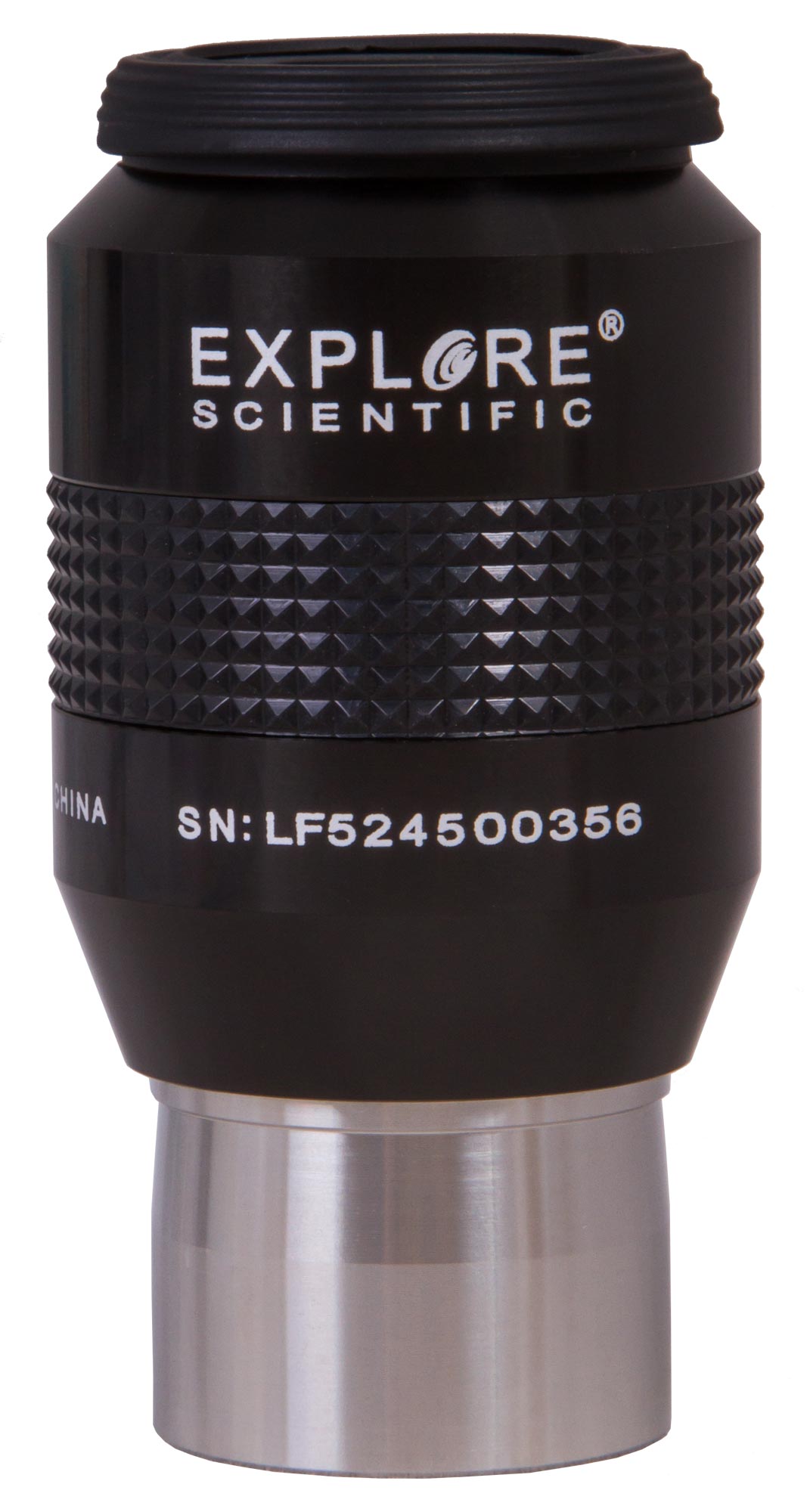

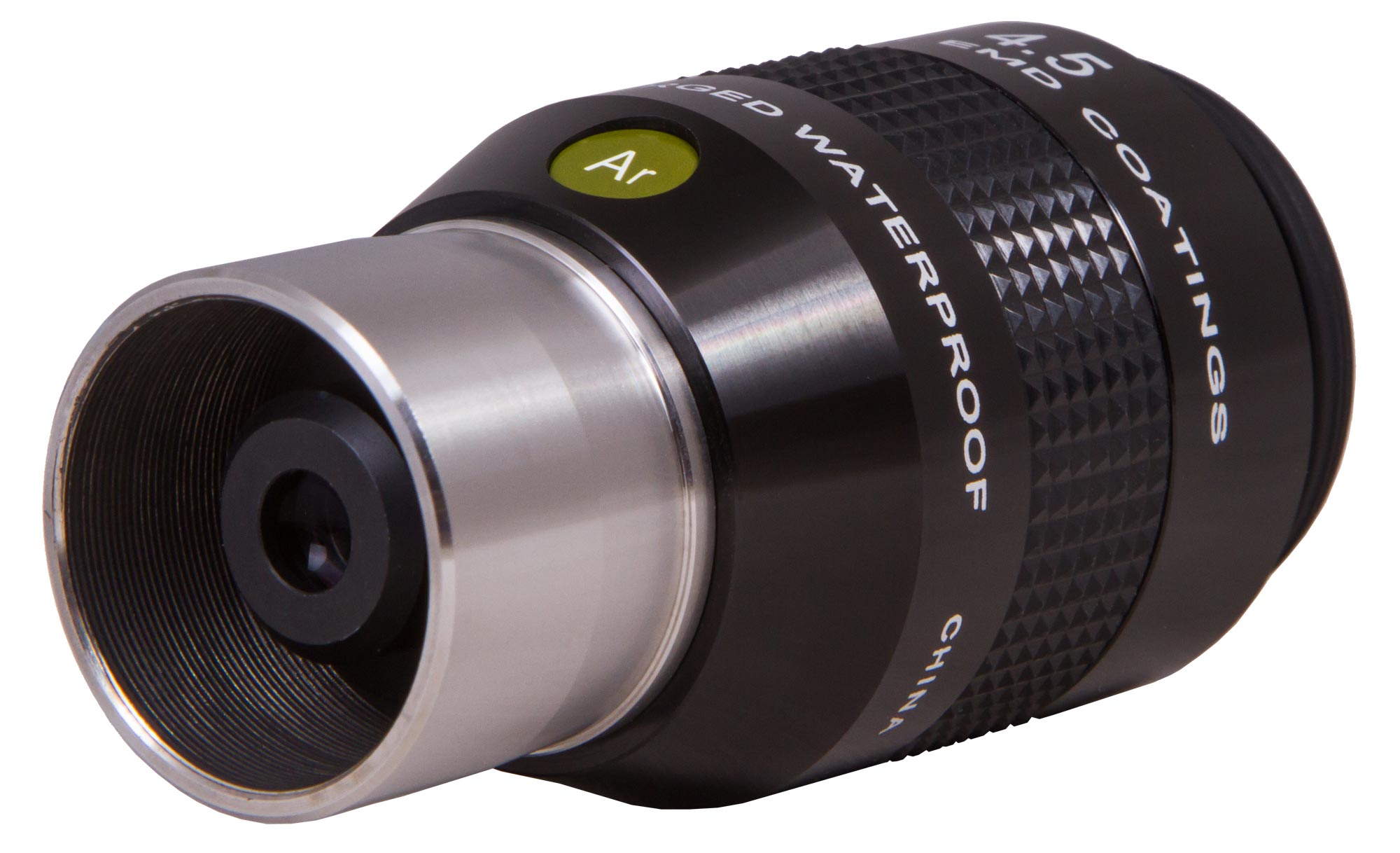

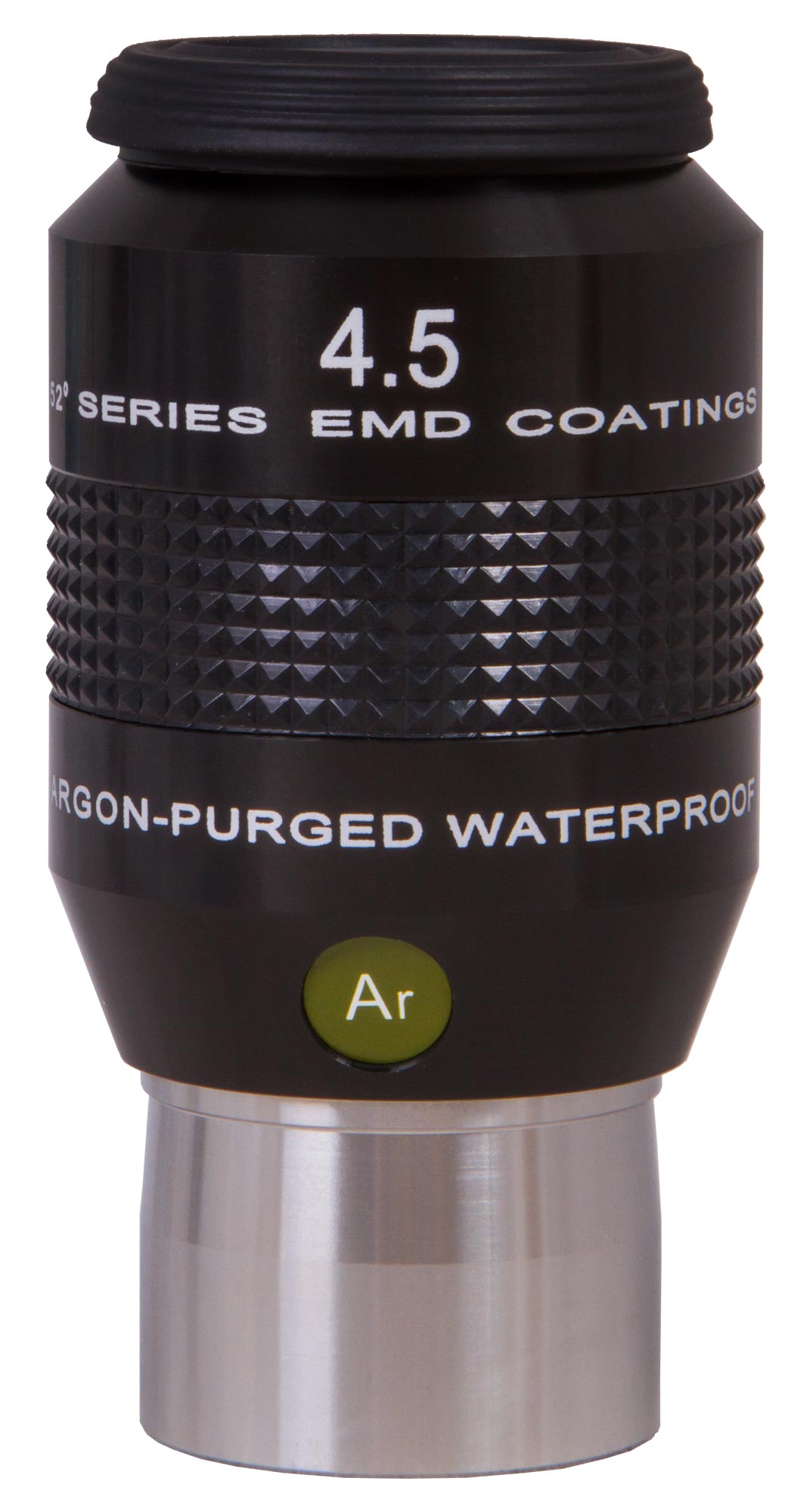

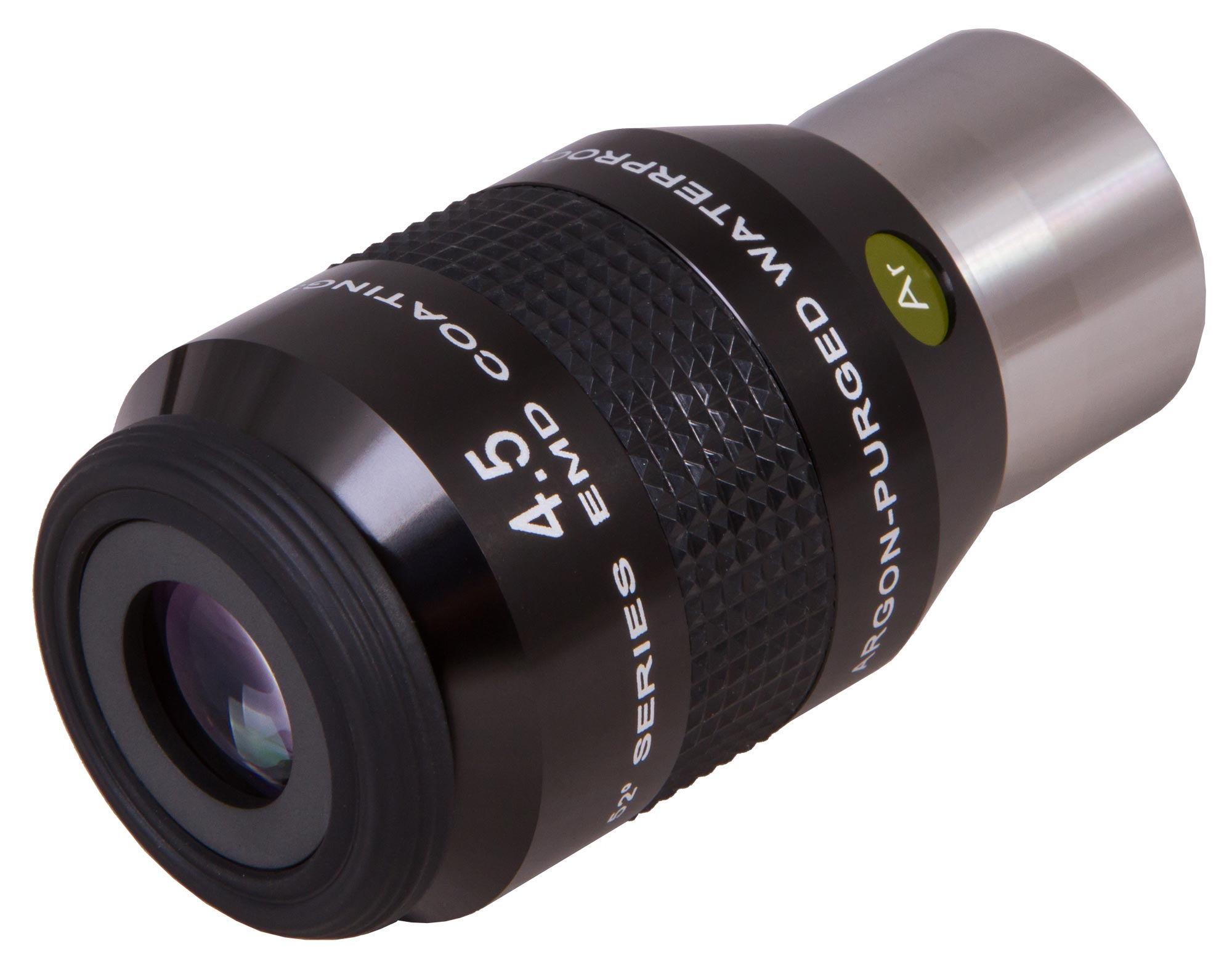

Explore Scientific LER 52° 4.5mm 1.25″ (AR) Eyepiece

  • $80.23
    Unit price per
Tax included. Shipping calculated at checkout.


High power eyepieces (e.g. 3mm to 10mm) are used not only for obvious observations of planets and double stars, but can be employed for bright, compact deep sky objects. Not only will the scale of an object like a planetary nebula or globular cluster be impressive as it fills the eyepiece FOV, but the background sky will be very dark as the contrast effect increases with added magnification, provided that the atmospheric seeing conditions are favorable enough to reveal a sharp image. The 4.5mm is a popular choice for a wide variety of telescopes, producing some of the highest magnification views that most astronomers will observe at.

The Explore Scientific 52° LER short focal length eyepiece is excellent flat-field multi-element ocular that can transform your visual astronomy experience. With an apparent field of view of 52 degrees, this eyepiece offer incredible value in a very nice eyepiece.

These eyepieces are the choice for observers wearing glasses – with excellent performance and durability. The rubber inlet and the foldable eyecups make handling and using in the field easy. The patented EMD-coating produces high contrast images and prevents reflexes and ghosting. The argon purging effectively prevents internal fogging, and you don´t have to deal with dirt, fungus or cleansing fluids getting between the lenses. The eyepieces are sealed – this makes sure you will be able to enjoy these eyepieces for many years to come.

Features:

  • Large eye distance, large field and great image sharpness
  • Excellent viewing position for people with glasses
  • Excellent field sharpness even with fast optics
  • 52° apparent field of view
  • Argon-purging prevents internal fogging, the sealing facilitates cleaning
  • Patented EMD-coating to maximize contrast
  • Blackened lens edges to avoid reflexes
  • All eyepieces of this series are parfocal
  • Stainless steel barrel with conical security cutoff

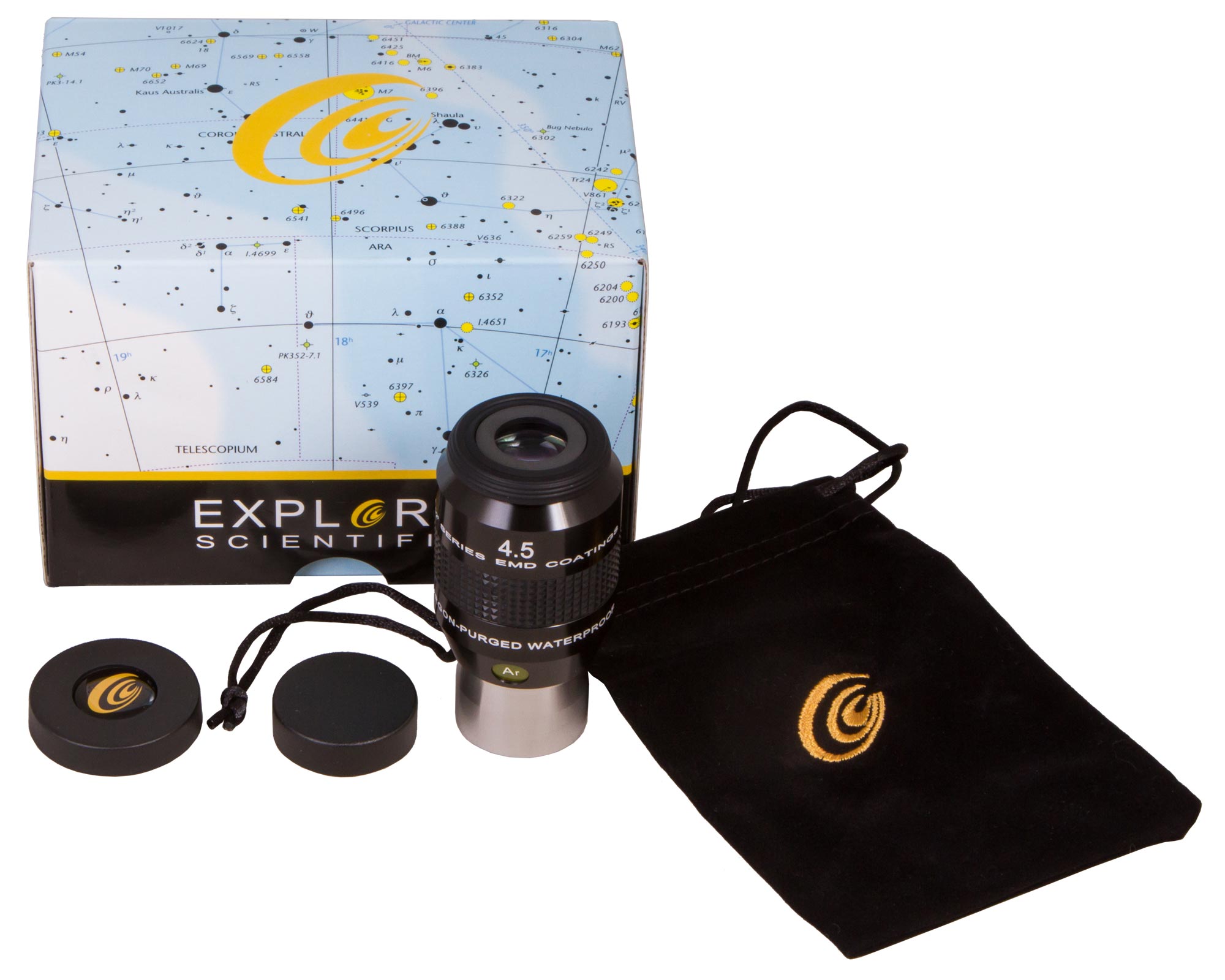

The kit includes:

  • 52° eyepiece
  • Dust covers
  • Protective bag
Specifications
Type parfocal
Optics material optical glass
Optics coating multicoated EMD (Enhanced Multilayer Deposition)
Optical design 6 elements in 3 groups
Apparent field of view, ° 52
Focal length, mm 4.5
Eyedistance, mm 15
Field stop diameter, mm 4.1
Barrel diameter, in 1.25
Eyepiece barrel diameter, mm 31.7
Waterproof yes, sealing ring, additional argon purge
Additionally rubber foldable eyecup, filter thread
Brand Explore Scientific
Warranty, years 0.5
Package size (LxWxH), cm 14.5x11x10
Shipping Weight, kg 0.38
Optical scheme 6 elements in 3 groups
Eyepiece barrel diameter, in 1.25”
Optics material optical glass
Lens coating multi-coated EMD
Focal length, mm 4.5
Field of view, ° 52
Eye relief, mm 15
Suitable for observations while wearing glasses True
Field Stop Diameter, mm 4.1
Filter thread True
Side edges blackening True
Parfocal True
Argon-purged True
O-ring True
Waterproof True
Degree of moisture/water protection immersion to a depth of 1m up to 30 minutes
Eyecup foldable, rubber
Protective caps included True
