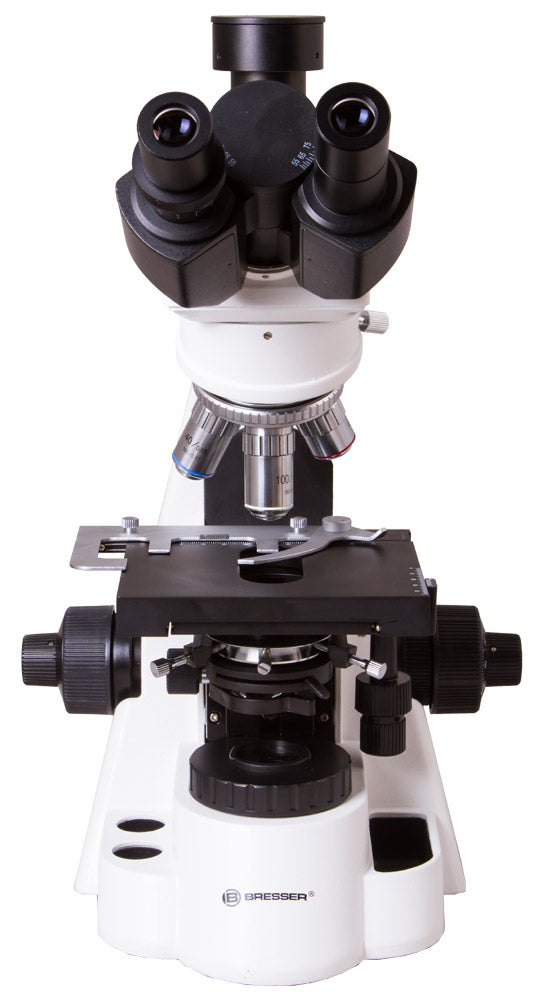

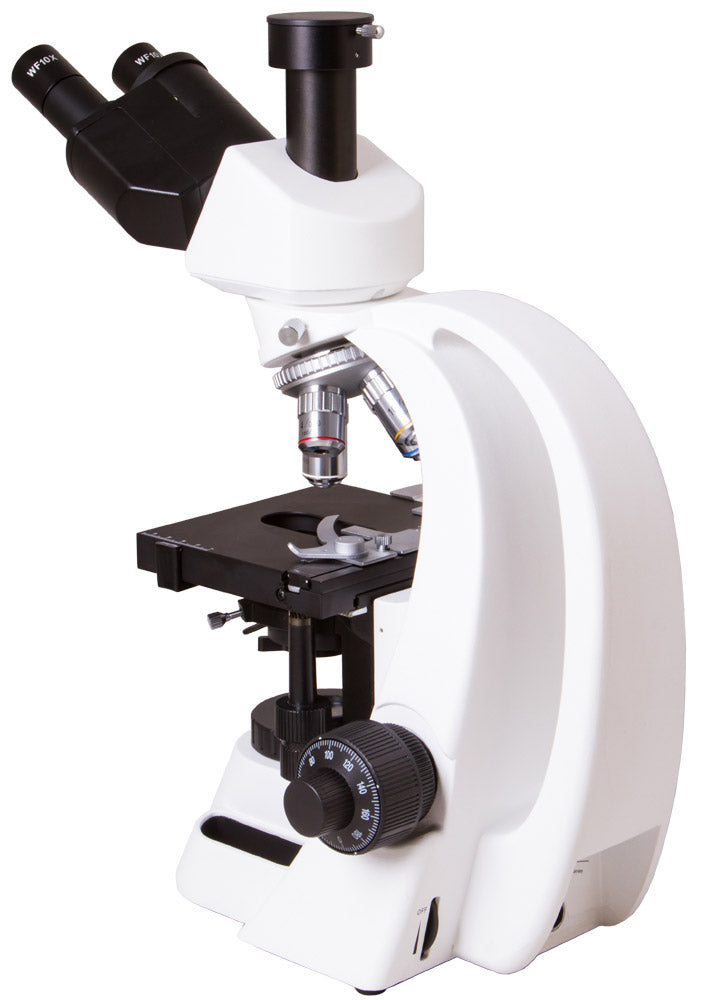

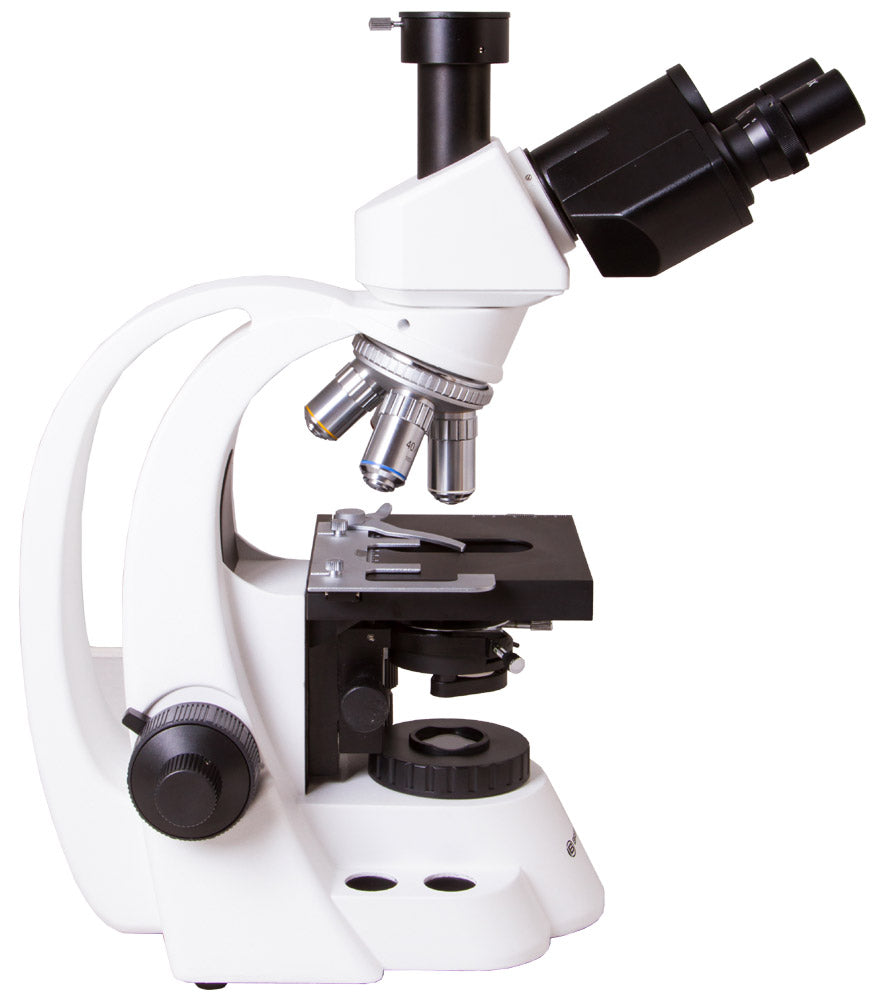

Bresser BioScience Trino Microscope
The Bresser BioScience is the perfect instrument for laboratory use. The size and ergonomic design is perfect for prolonged use. The Köhler illumination system provides a brilliant image quality. The trinocular tube will connect a MicroCam or other C-Mount microscope camera directly with the optional C-Mount adapter.
The standard bright field illumination (30W halogen) ensures a pleasant and differentiated colour rendering and is also bright enough for contrasting method like phase contrast and dark field (optional).
Features:

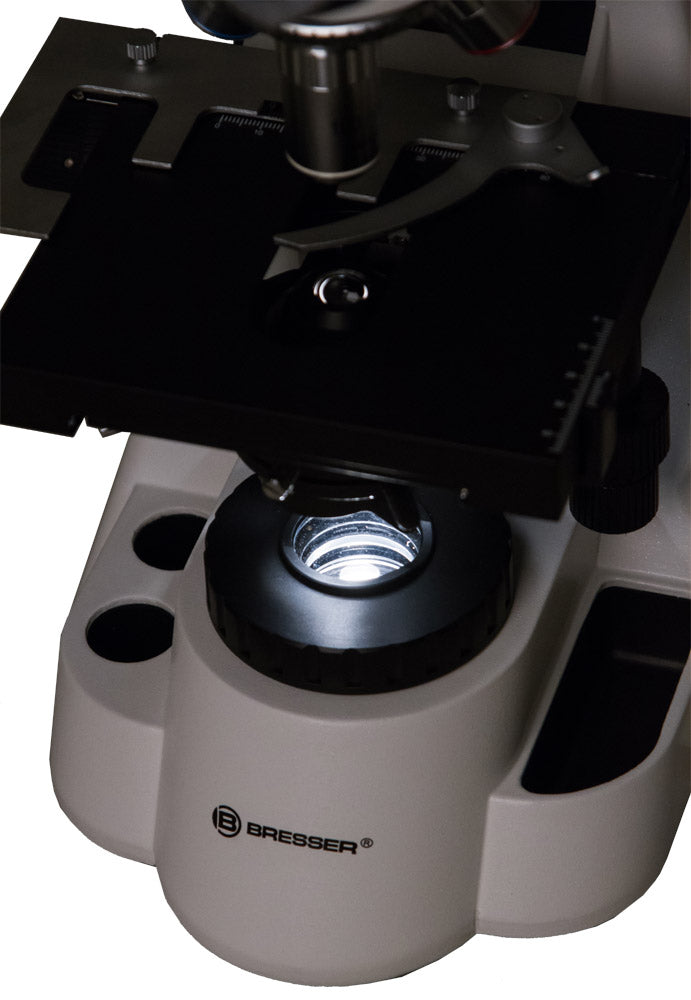

- Köhler iluminator
- Separate AC-adapter, for high safety

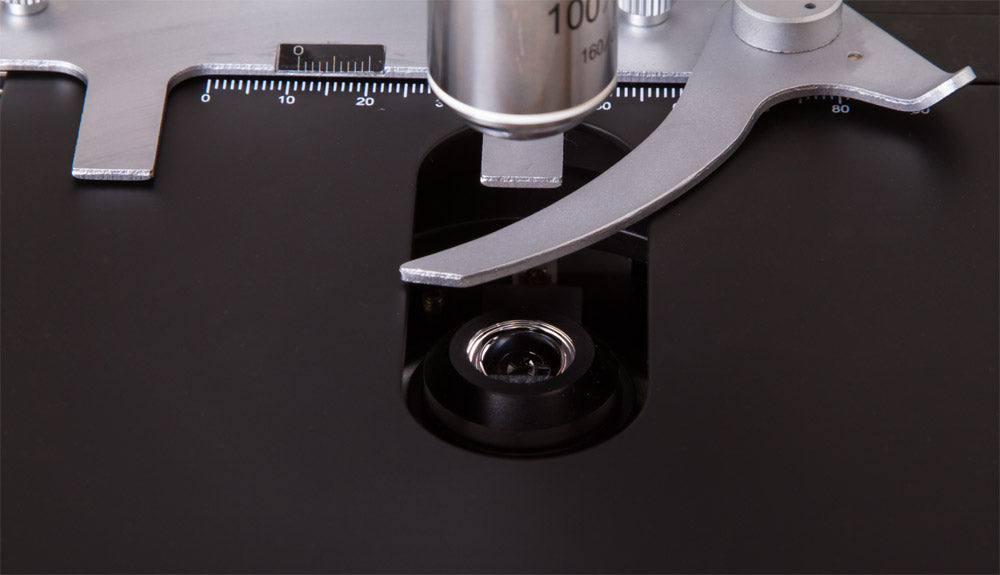

- Coaxial mechanical desk with nonius scale

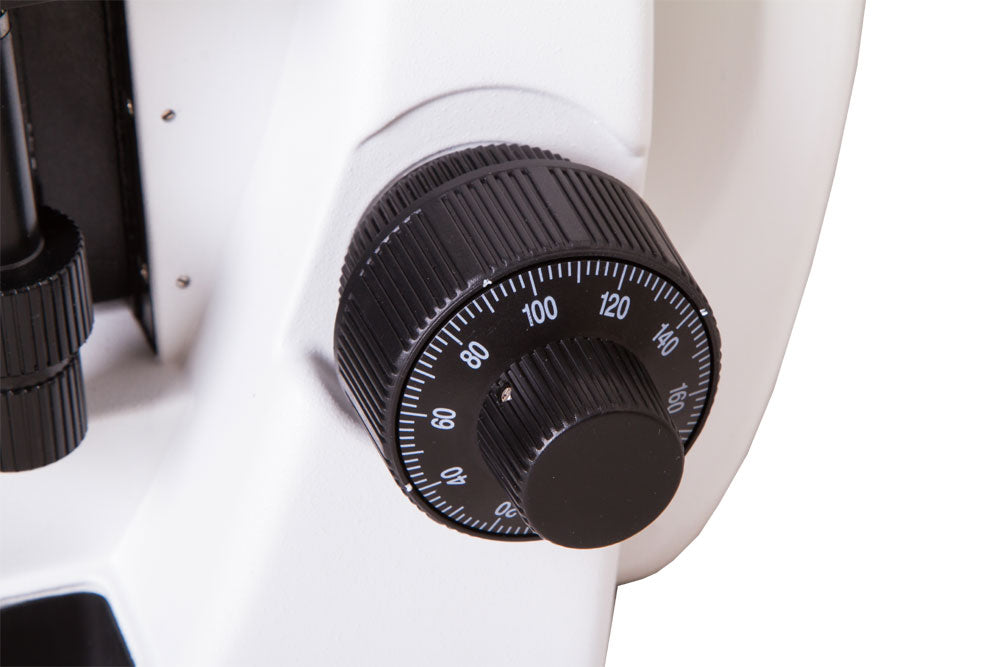

- Coarse and fine focusing

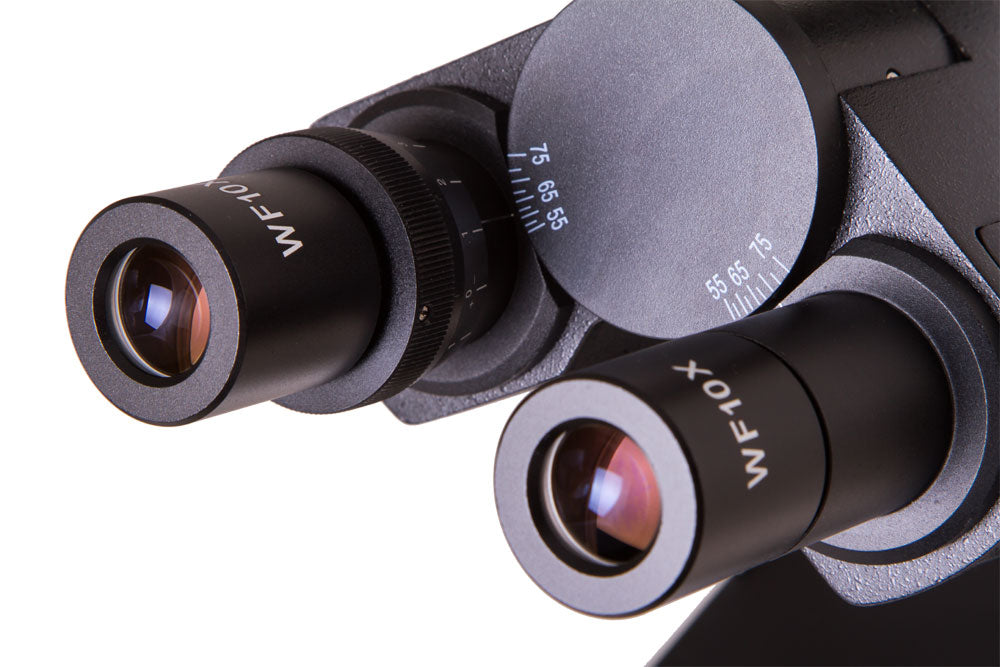

- 2 eyepieces: WF10x (23mm diameter)

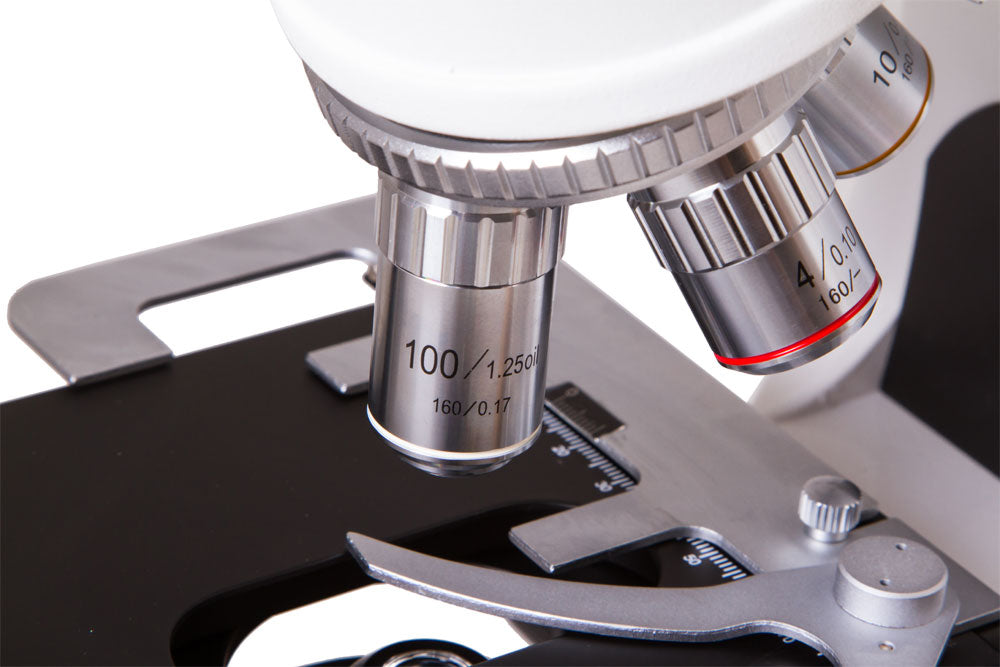

- 4 objectives with DIN 4x/10x/40x/100x (oil) magnification
- Type of objective: achromatic
- Abbe N.A. 1.25 condenser
- Illumination: 12V/30W halogen with dimmer

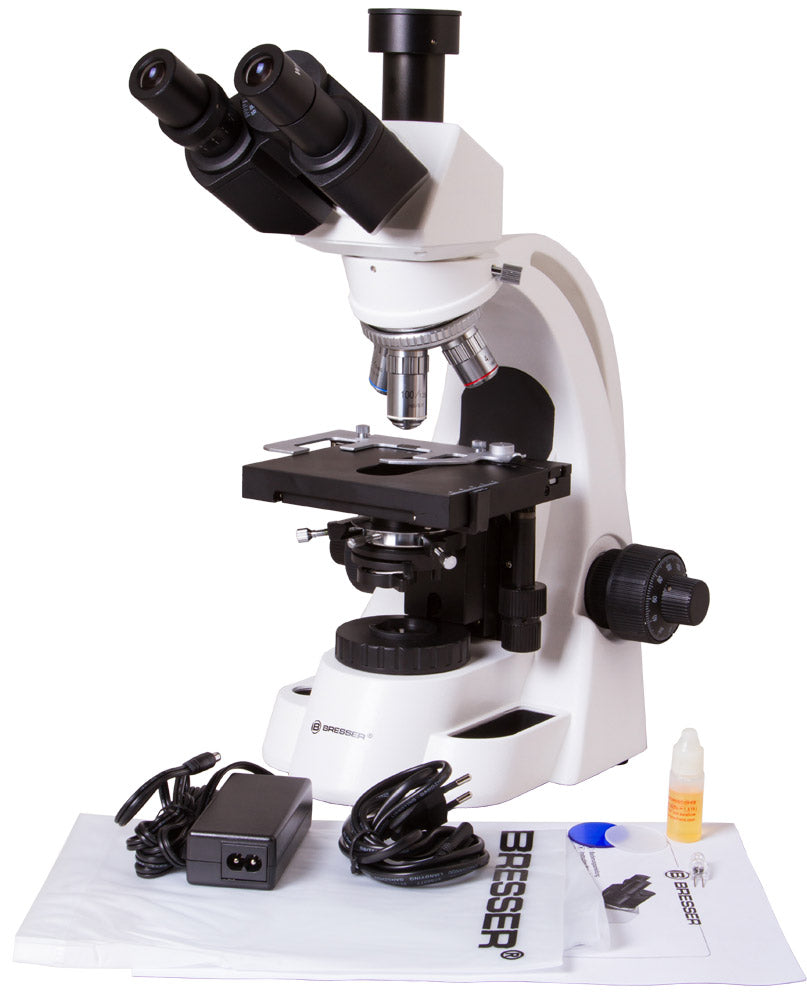

The kit includes:
- Microscope
- Dust cover
- 2 eyepieces
- 4 DIN objectives
- Immersion oil
- 230V power supply (12V/3A)
- User manual
| Brand | Bresser GmbH, Germany |
| Warranty, years | 10 |
| Package size (LxWxH), cm | 54x34.5x33.5 |
| Shipping Weight, kg | 10.26 |
| Type | light/optical, biological |
| Head | trinocular |
| Head inclination angle | 30 ° |
| Magnification, x | 40—1000 |
| Eyepieces | WF10x/23mm (2 pcs.) |
| Objectives | achromat DIN standard: 4x, 10x, 40x, 100x (oil) |
| Revolving nosepiece | for 4 objectives |
| Condenser | Abbe N.A. 1.25 |
| Focus | coarse and fine |
| Illumination | halogen |
| Brightness adjustment | True |
| Power supply | 220–240V |
| Light source type | 12V/30W |
| Application | laboratory/medical |
| Illumination location | lower |
| Research method | bright field |
