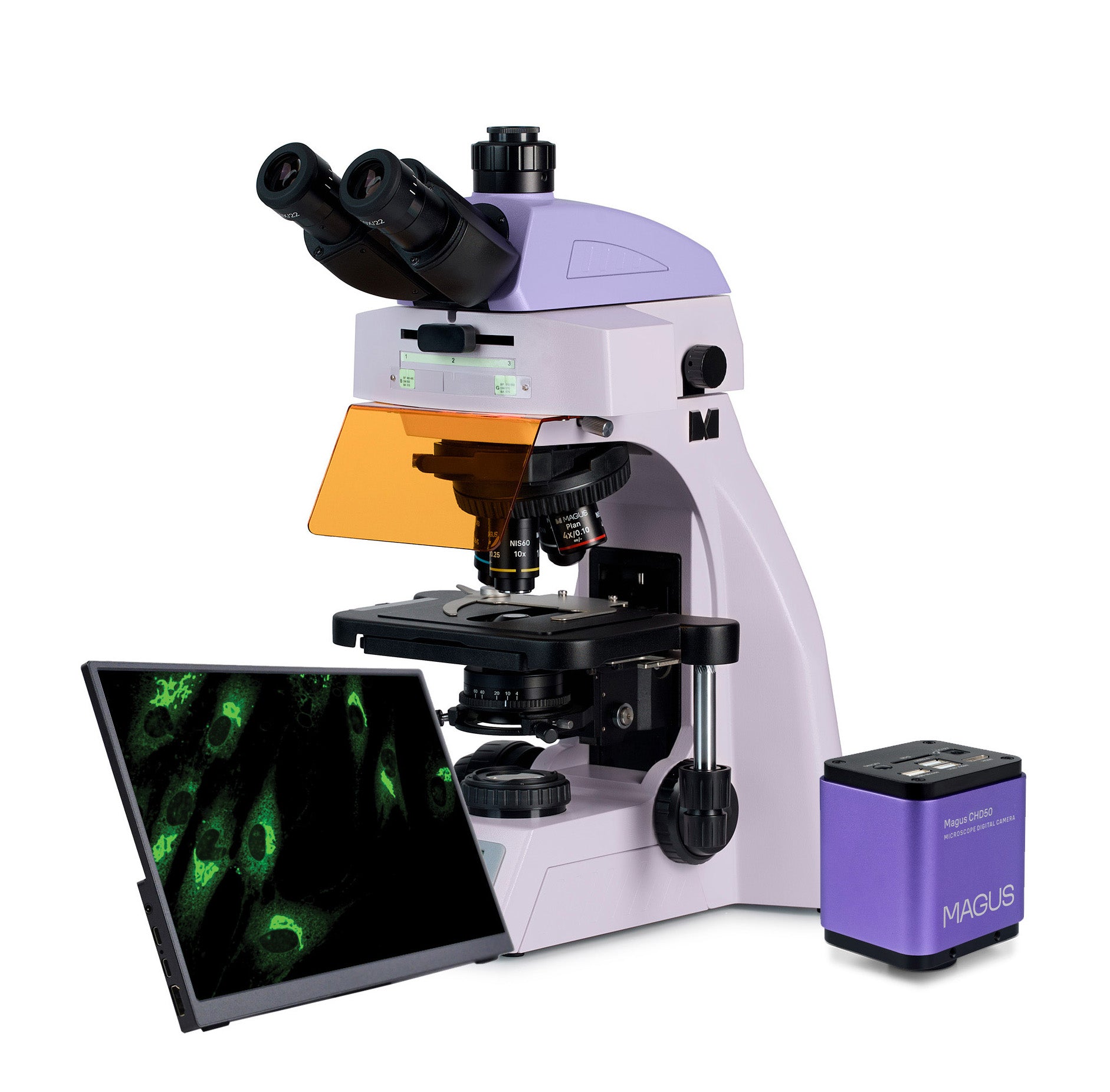

MAGUS Lum D450L LCD Fluorescence Digital Microscope

Microscope is designed for observing specimens in reflected light using the fluorescence technique and in transmitted light using the brightfield technique. With optional accessories, you can also use darkfield, simple polarization, and phase-contrast techniques. The coded revolving nosepiece maintains a comfortable brightness level when switching objectives. Intelligent control of microscope lighting increases the comfort and speed of the researcher’s routine work. “Smart” functions help students more easily enter the profession and gain the necessary professional experience. The fluorescence microscopy is based on the ability of some substances to glow when exposed to light of a certain part of the spectrum. With the MAGUS Lum D450L, objects are irradiated with blue and green light. The wavelength of the emitted light is longer than the wavelength of the excitation light. The specimen glows with green-yellow or red light, respectively. Some specimens glow by themselves while others glow after treatment with fluorochromes. The microscope is equipped with an 8MP camera and three video interfaces: HDMI, USB 2.0, and WLAN. It can be connected simultaneously to several devices: monitor, laptop, and desktop computer. The software complements the system with analysis and documentation functions. The monitor in a digital microscope has 4K resolution. The microscope is used in medical institutions and laboratories, research organizations, forensic centers, industrial and environmental organizations, pharmaceutical companies, and educational institutions.

Digital camera

MAGUS CHD50 is a digital autofocus HDMI camera supporting three video interfaces. The camera features an 8MP sensor and produces realistic images in 4K resolution (3840x2160px) automatically switching between 4K and Full HD depending on the resolution of the monitor. With its sensitivity of 505mV and low noise, reliable fluorescence visualization under standard excitation modes is achieved. The camera uses an HDMI interface to connect directly to a TV, monitor, or projector. In this mode, the camera operates autonomously without a PC. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. You can connect it to a PC via WLAN or USB2.0. Video is recorded at 30fps. The camera is mounted in the trinocular tube using a C-mount adapter.

Monitor

The MAGUS MCD40 monitor connects to a microscope-mounted camera to display a real-time image in 4K resolution. The screen diagonal is 13.3 inches. The IPS sensor delivers a bright image with large viewing angles: If you look at the monitor at an angle, there is no color distortion. The display can be placed on a folding stand on a table or mounted directly on the camera, whichever is more convenient for the user.

Microscope head

Trinocular head with infinity-corrected optics. The eyepiece tubes are raised and lowered, changing their position by rotating around the axis. The user can adjust the eyepiece height to suit their individual stature. The digital camera is mounted in the trinocular tube. The beam splitting ratio is fixed at 50/50. The vertical tube provides 0.55x magnification. When paired with the included 1x adapter, the final magnification at the camera is 0.55x. When calculating the field of view and on-screen magnification for each objective, use a total factor of 0.55x. The basic configuration includes 10x/22mm eyepieces with diopter adjustment and high eyepoint for working with glasses. Flat rubber eyecups protect eyeglasses from scratches.

Revolving nosepiece and objectives

The coded revolver for five objectives is oriented toward the interior: The user can see the objective inserted into the optical path, and the space above the stage is free. An additional objective can also be installed in the free slot in order to achieve extra magnification. The parfocal distance is 60mm. The 40x objective with its extended working distance of 1.5mm provides additional protection for the front lens against immersion oil contact when rotating the nosepiece. Above the revolver, there is a slot with a plug for the analyzer.

Maintaining a comfortable brightness level in transmitted light when changing magnifications

The objectives of different magnifications transmit light with different levels of intensity, and so each time you change objectives, the brightness of the light must be adjusted. Switching from a higher to a lower magnification objective causes eye fatigue, as the image brightness in the eyepieces increases sharply. The MAGUS Lum D450L LCD, which is equipped with intelligent brightness control, solves this problem. The microscope remembers the brightness for each objective that the user has selected and automatically sets this brightness when turning the nosepiece. Intelligent control reduces the time required to adjust brightness. MAGUS Lum D450L LCD increases user comfort and saves time even when the work requires frequent magnification changes.

Focusing mechanism

Coaxial coarse and fine focusing knobs. The coarse focusing knob is located on the left side. Fine focusing knobs are located on both sides, the right knob having special finger indentations. The ring on the left side adjusts the tension of the coarse focusing travel. The user adjusts the comfortable tension for work.

Stage

The stage has no X-axis rack and pinion, which improves ergonomics. The belt-driven mechanism allows for smooth movement of the specimen. The specimen holder is secured with two screws and can be easily removed during manual scanning. The long stage control handle ensures user comfort: The hand rests on the table with no strain.

Epi-fluorescence illuminator

The fluorescence excitation light source: 3W LEDs, filters of two wavelengths: blue (B) and green (G). Setting the switch on the reflected light illuminator to the left or right position, you choose the desired filter. The central position of the switch corresponds to the brightfield observations. The LEDs instantly reach the brightness that is set by the user. They do not heat up during prolonged use and can switch off quickly, if necessary. This makes it easy to switch from the brightfield technique to fluorescence and back again. The LED lifetime is 50,000 hours. It is recommended to choose LED-based fluorescence for higher education as it is the safest option and requires minimal maintenance.

Köhler illumination in transmitted light

Setting up the Köhler illumination enhances the image quality of a specimen. With such illumination, you achieve maximum resolution on each objective. Even illumination of the field of view with no darkening at the edges. The object of study is in sharp focus and the image artifacts are removed.

Condenser

The condenser is height-adjustable and can be centered. Mounting type: dovetail. The condenser ring adjusts the iris aperture diaphragm. The condenser body has a marking for the magnification of the objectives, and the ring has an indicator marker. To achieve contrast on each objective, it is recommended to rotate the ring so that the index marker matches the magnification marking of the objective being used. The condenser has a slot with a plug for a darkfield slider or a phase contrast slider. The installation of a slider saves time when changing the observation technique.

Transmitted light source

The transmitted light illuminator uses a 3W LED. The color temperature does not change when you adjust the brightness. The LED lifetime is 50,000 hours.

Status LCD screen

The LCD screen on the base of the microscope displays the objective magnification, brightness and color temperature of the light source, and operating mode (“sleep” and “eco”). The screen and a single knob allow the user to adjust the brightness, lock the brightness adjustment, set the Sleep mode and the auto-off timer.

Ergonomic design

Physical discomfort causes fatigue and reduces productivity. The ergonomic design of the microscope plays an important role in everyday scientific research. MAGUS Lum D450L LCD provides user comfort during operation. By rotating the microscope head, the user selects a point of view height so as not to strain their back and neck. Focusing knobs are located at the bottom of the body. The user does not need to strain their hands. Thanks to the smooth movement of the mechanism, the user can effortlessly focus on the object. The microscope is operated with minimal hand movement, since the stage control knob and fine focusing knob are located in the same working area. The microscope is equipped with a special carrying handle. The design for the hidden placement of the power cord improves the workplace esthetic and safety of carrying the microscope as well as simplifies storage of the device.

Accessories

There is a line of accessories designed specifically for this microscope. Optional objectives provide additional magnification. Eyepieces extend the magnification range of the microscope. Optional eyepieces help you maximize the potential of the objective that you use most often. The phase contrast device, darkfield slider, and polarizer/analyzer set offer more contrast techniques so that you can study specimens that are invisible in brightfield. A calibration slide is used to measure objects and can be combined with the eyepiece with a scale or with the camera software.

Alternative models

The MAGUS Lum D450L LCD is an alternative for the following models: Carl Zeiss Primo Star iLED, Nikon ECLIPSE Si.

Microscope features:

• Study of specimens emitting fluorescence when exposed to excitation light
• Microscopy techniques: fluorescence in reflected light, brightfield in transmitted light
• The trinocular head with a vertical tube for installing a digital camera and height adjustment to adjust to the observer; light beam splitting 50/50
• Coded revolving nosepiece: The brightness of the light source is set automatically depending on the selected objective
• Reflected light illuminator: two 3W LEDs with different wavelengths
• Visible fluorescence excitation filters: blue (B) and green (G)
• Transmitted light illuminator: energy‑saving 3W LED with a lifetime of up to 50,000 hours
• Köhler illumination in transmitted light
• Centerable and height-adjustable condenser with objective magnification markings
• Smart transmitted light control system: automatic brightness selection, brightness adjustment lock, auto-off timer, LCD operating status screen
• Stage without an X-axis positioning rack, featuring a long control handle for convenient operation
• Ergonomic stand with a carrying handle and the hidden placement of the power cord
• Wide range of compatible optional accessories

Camera features:

• The camera operates autonomously via an HDMI interface without connecting to a computer or installing software. It can also connect to a computer via WLAN and USB 2.0 interfaces
• Autofocus in HDMI mode makes it easy to adjust image sharpness
• 30fps with any video output interface for observing moving objects, recording video, and moving the sample without jerkiness or delays
• SONY Exmor/Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
• The software with the functions of photography, video recording, editing, and external monitor display as well as linear and angular measurement

Monitor features:

• 4K resolution provides highly detailed, clear, and realistic images
• The IPS sensor produces a bright and saturated picture with wide vertical and horizontal viewing angles
• Can be mounted on the camera or table to suit the user’s preferences

Package:

• MAGUS CHD50 digital camera (digital camera, HDMI cable (1.5m), USB 3.0 cable (2m), USB mouse, 32GB SD memory card, 12V/1A (Euro) power adapter, USB flash drive with drivers and software, user manual, and warranty card)
• MAGUS MCD40 LCD Monitor
• Stand with a built-in power supply, reflected light illuminator for visible fluorescence, transmitted light source, focusing mechanism, stage, condenser mount, and revolving nosepiece
• Abbe condenser
• Epi-fluorescence attachment
• Trinocular microscope head
• Plan achromatic objective Plan 4x/0.10 ∞/–, parfocal distance: 60mm
• Plan achromatic objective Plan 10x/0.25 ∞/–, parfocal distance: 60mm
• Plan achromatic objective Plan 40x/0.65 ∞/0.17, parfocal distance: 60mm
• Plan achromatic objective Plan 100x/1.25 oil ∞/0.17 (spring-loaded), parfocal distance: 60mm
• 10x/22mm eyepiece with high eyepoint and diopter adjustment (2 pcs.)
• Eyecup (2 pcs.)
• C-mount adapter
• Microscope power cord
• Power adapter for a fluorescence attachment
• Dust cover
• User manual and warranty card

Available on request:

• 10x/22mm eyepiece with a scale
• 10x/22mm eyepiece with a reticle
• 10x/22mm eyepiece with crosshairs
• 12.5x/16mm eyepiece (2 pcs.)
• 15x/16mm eyepiece (2 pcs.)
• 20x/12mm eyepiece (2 pcs.)
• 30x/8mm eyepiece (2 pcs.)
• Plan achromatic objective Plan 2x/0.06 ∞/–, parfocal distance: 60mm
• Plan achromatic objective Plan 20x/0.40 ∞/0.17, parfocal distance: 60mm
• Plan achromatic objective Plan 60x/0.80 ∞/0.17, parfocal distance: 60mm
• Plan apochromatic objective Plan Apo 60x/1.42 oil ∞/0.17, parfocal distance: 60mm
• Plan achromatic objective Plan 100x/1.10 ∞/0.17 water, parfocal distance: 60mm
• Set of plan semi-apochromatic fluorescence objectives: 4x, 10x, 20x, 40x, 100x (oil); ∞/0.17; parfocal distance 60mm
• Phase contrast device: set of phase sliders, set of phase objectives, centering telescope
• Phase contrast device: phase contrast condenser, set of phase objectives, centering telescope
• Darkfield slider
• Dry darkfield condenser NA 0.7–0.9
• Oil darkfield condenser NA 1.3–1.26
• Polarizer/analyzer set
• Stage plate, black
• Calibration slide
• Set of color filters (blue, green, yellow, frosted glass)
• C-mount adapter
